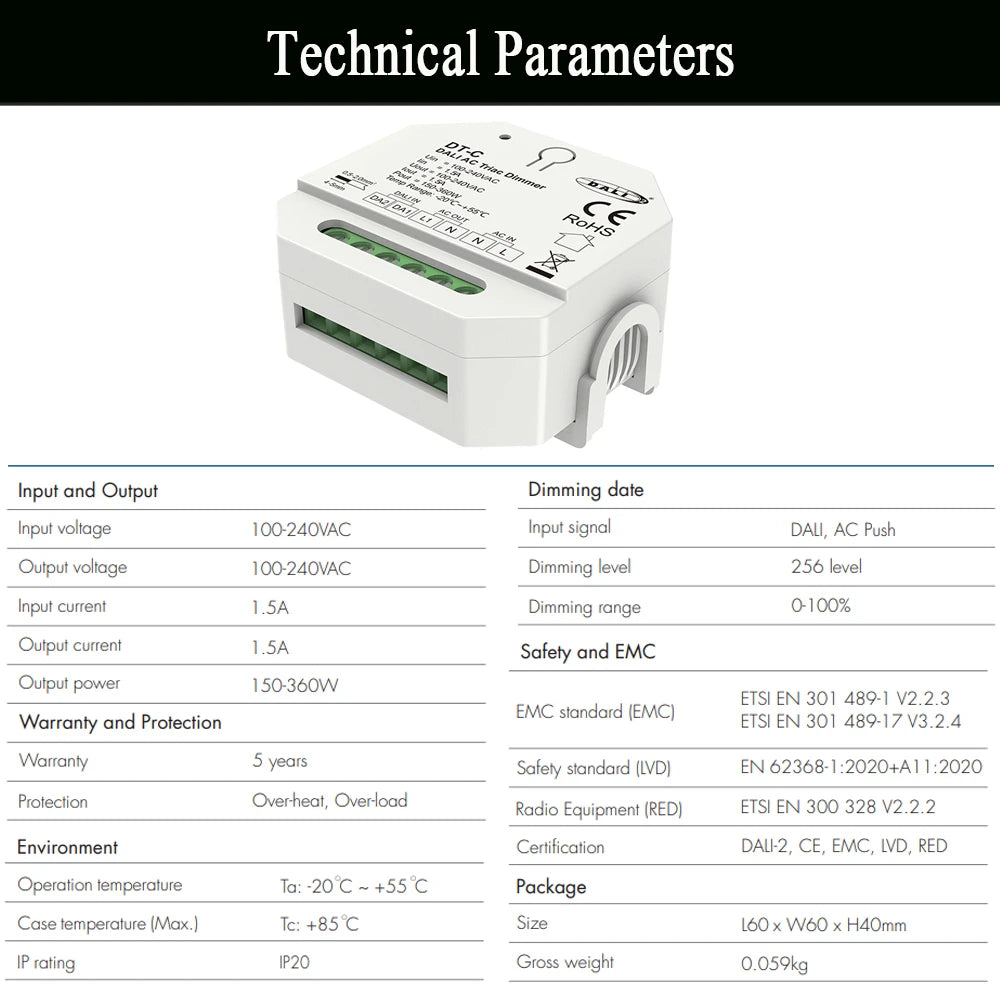

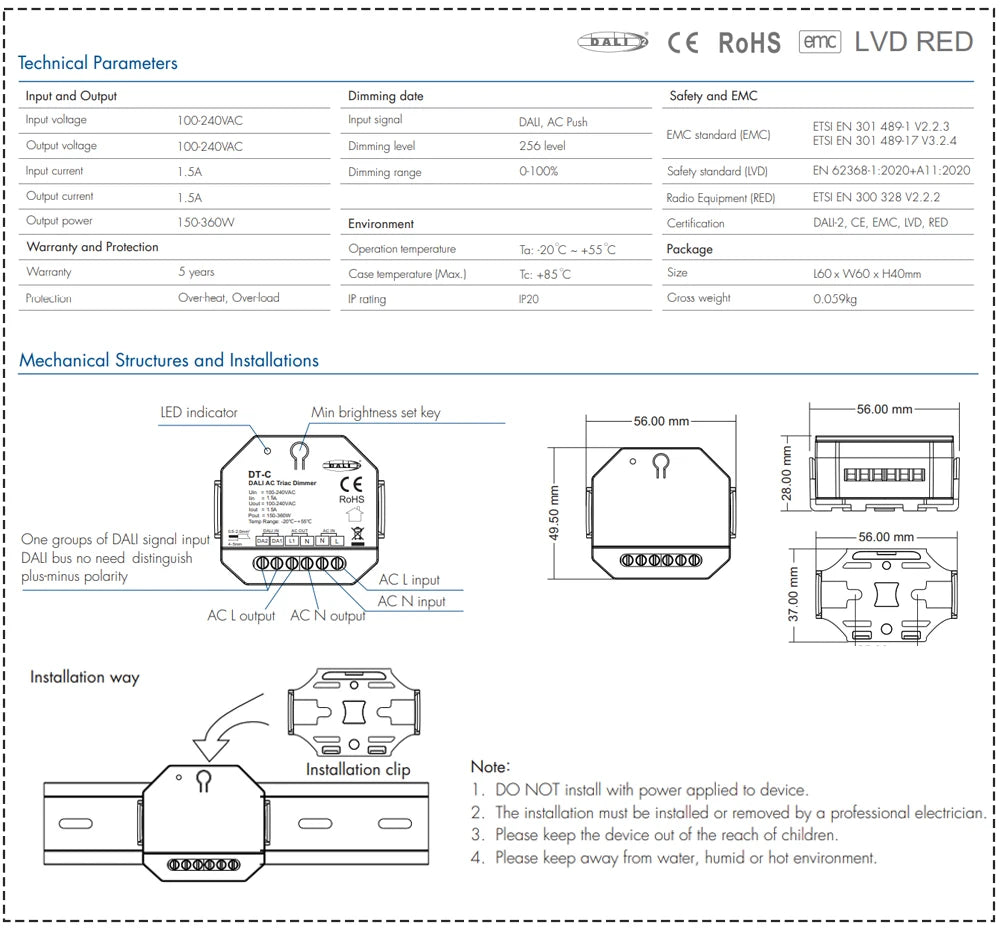

SPECIFICATIONS

Brand Name: CENFAYA

Certification: ce,ROHS

Choice: yes

Dimming leve: 256 leve

Dimming range: 0-100%

Features: DALI AC Triac Dimmer

Features 1: AC phase-cut DALI dimmer

Features 2: Leading edge dimming or trailing edge dimming selectable

Features 3: with Push swich Dimming function

Hign-concerned Chemical: None

Input voltage: 100-240VAC

Item Type: Dimmers

Material: ABS

Max. Load Power: 360W

Model Number: DT-C

Origin: Mainland China

Output voltage: 100-240VAC

Warranty: 5 YEARS

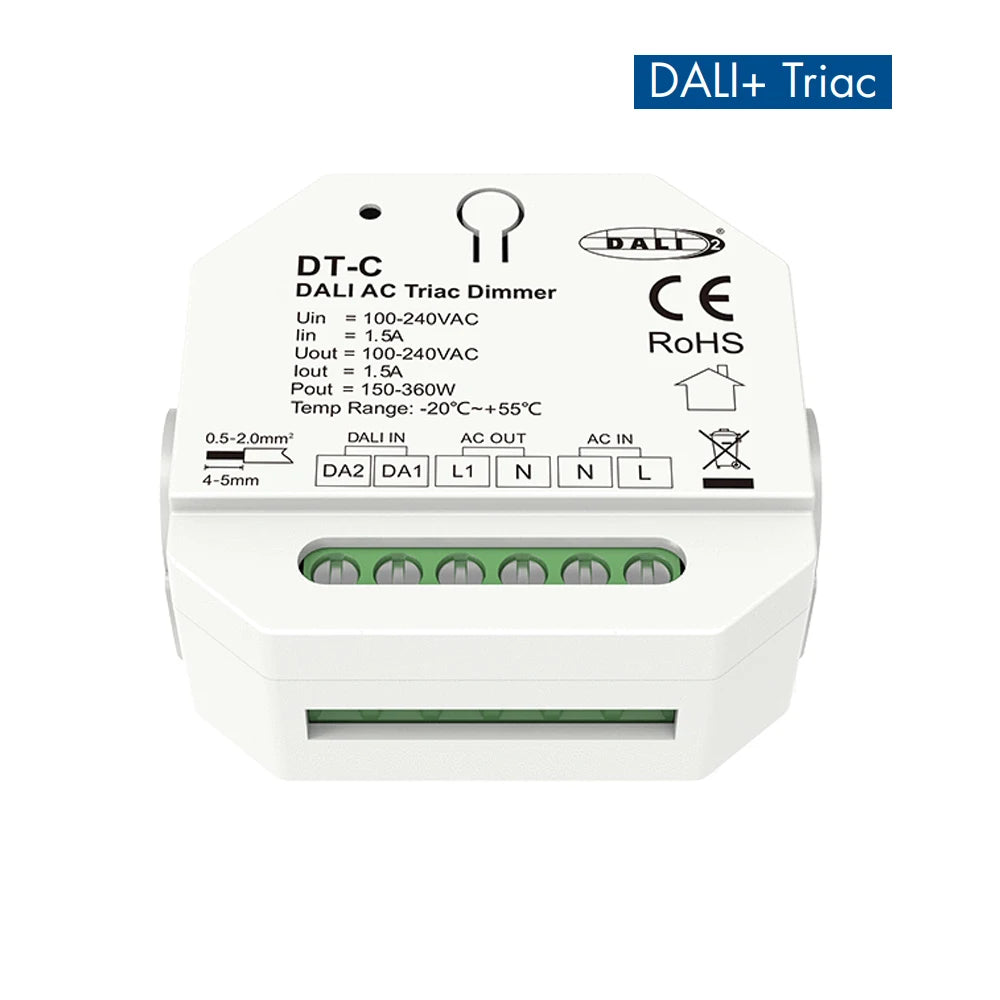

DALI AC Triac Dimmer DT-C With Push Switch Dimming Trailing Edge Dimmer for Single Color Dimmable LED Lamps AC100-240V 1.5A 360W

MODEL NO:DT-C

Features

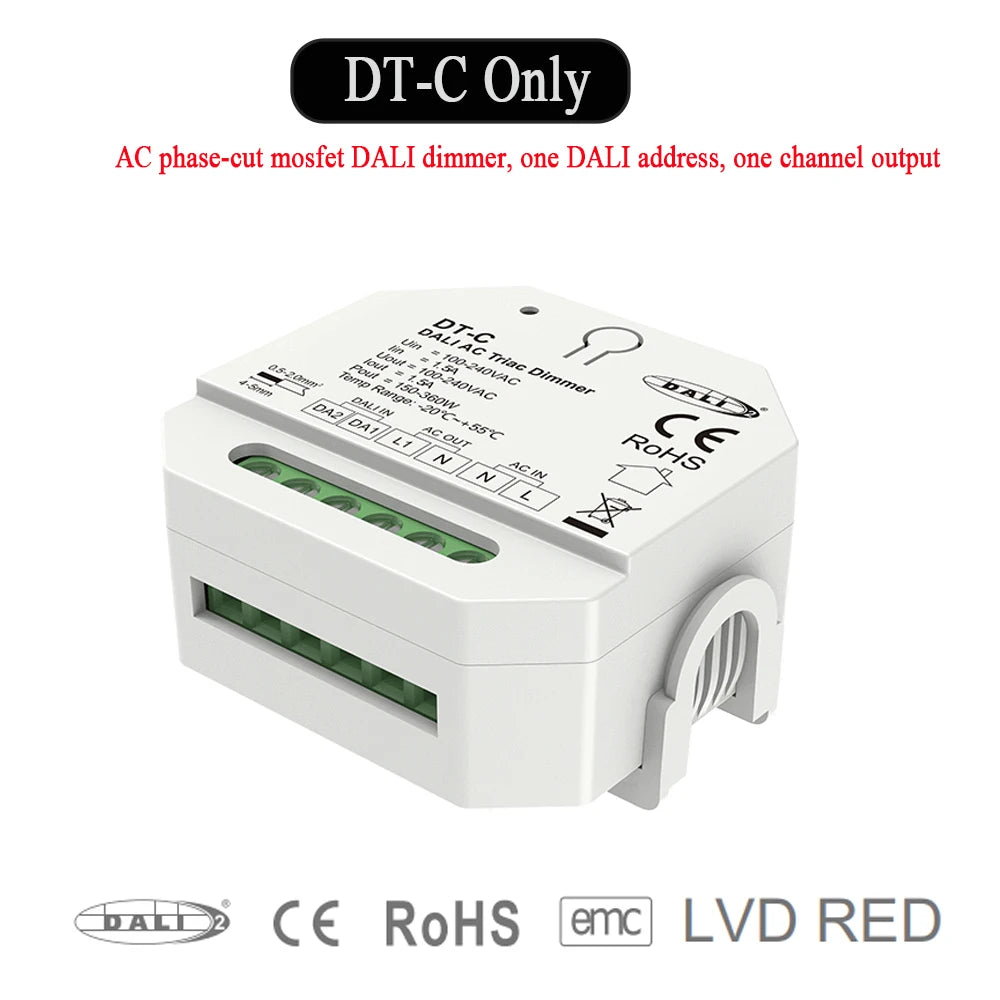

● AC phase-cut mosfet DALI dimmer, one DALI address, one channel output.
● Trailing edge dimmer.
● The minimum brightness is adjustable.
● DALI-2 certified, in accordance with DALI standard protocol 101, 102, 205 (IEC 62386)
and in compliance with DALI products from other international incorporation.

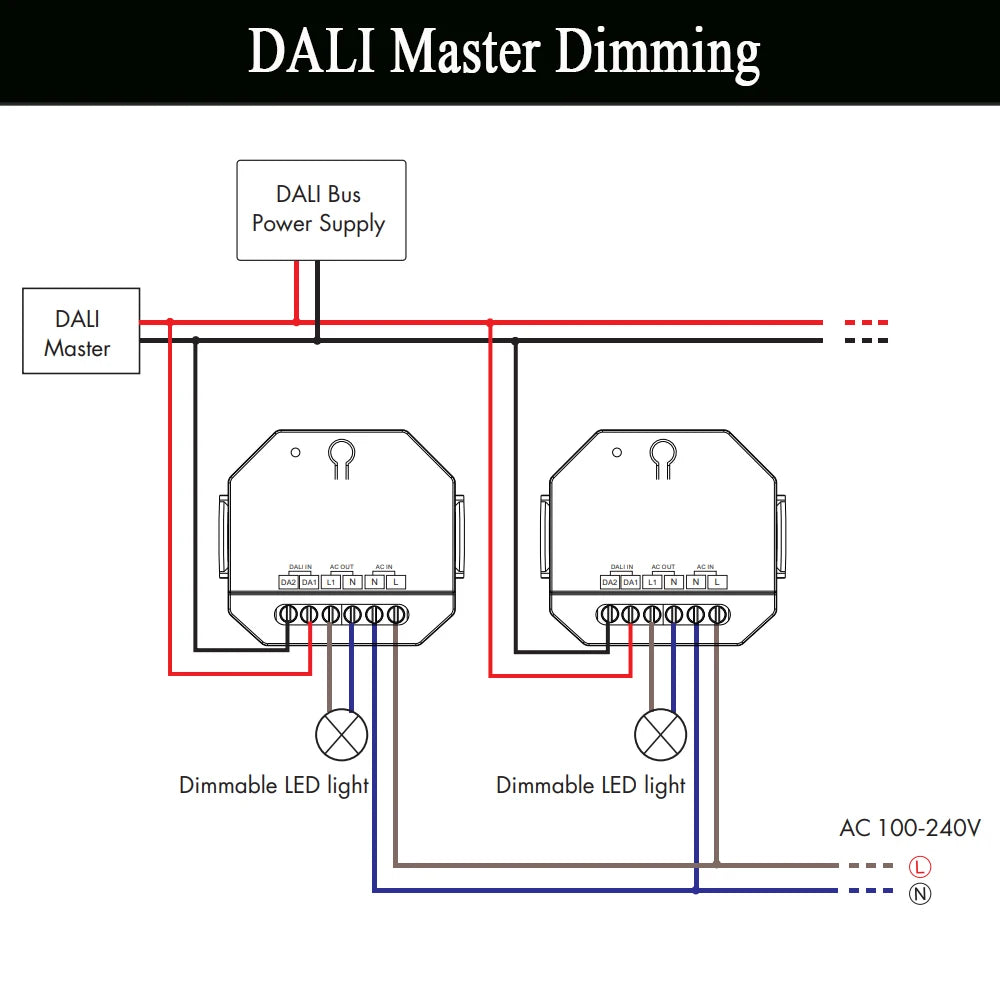

● DALI address can be automatically assigned by DALI master.

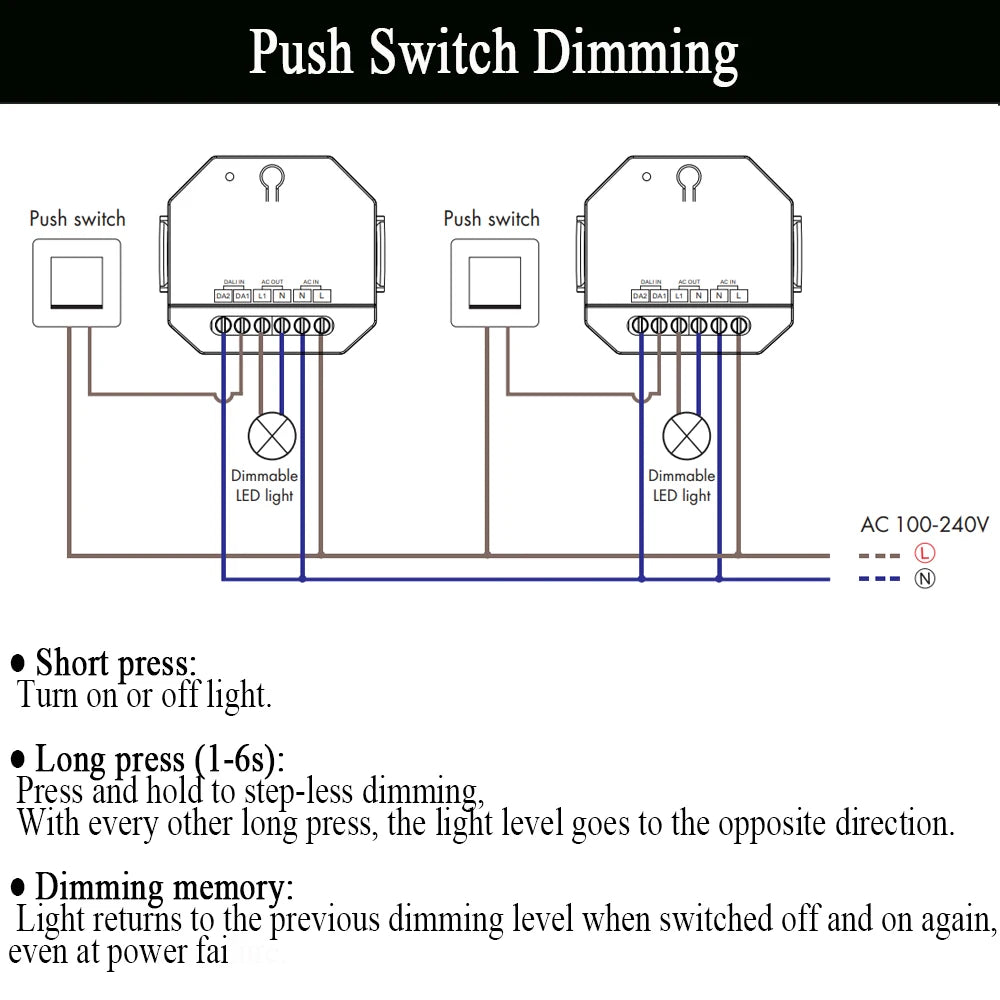

● Connect with external push switch to achieve on/off and 0-100% dimming function.
● To dim and switch single color dimmable LED lamps,traditional incandescent and halogen lights.
● Over-heat protection, Overload protection, recover automatically

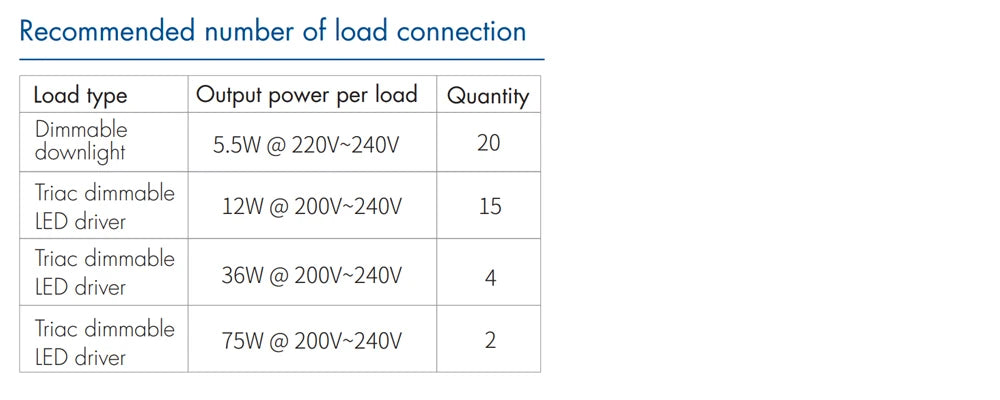

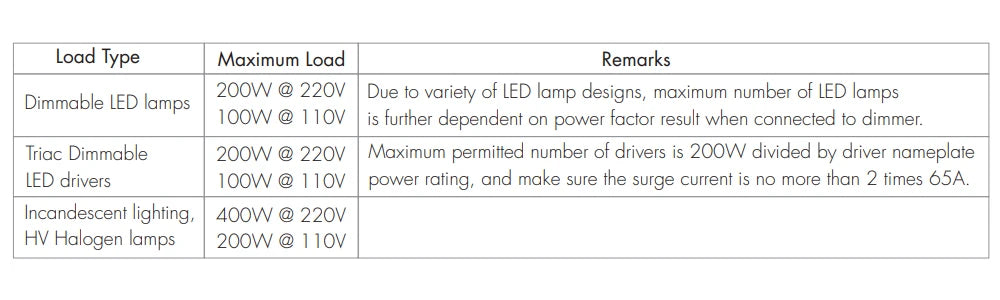

Compatible Load Types

● Because different manufacturers triac dimmable LED driver nameplate power rating is different,

● you can refer to the formula to calculate the max. number of LED driver. Formula: D max = 200W/RP,

● at the same time need to meet the sum of the surge current (I surge) does not exceed 130A.

● For example: triac dimmable LED driver nameplate power rating(RP) =15.4W, surge current =10A/230VAC,

Then D max= 200/15.4 =13(pcs), I surge=13*10 =130A, the max. number of triac dimmable LED driver is 13

2 WAY TO DIMMING

Minimum brightness setting

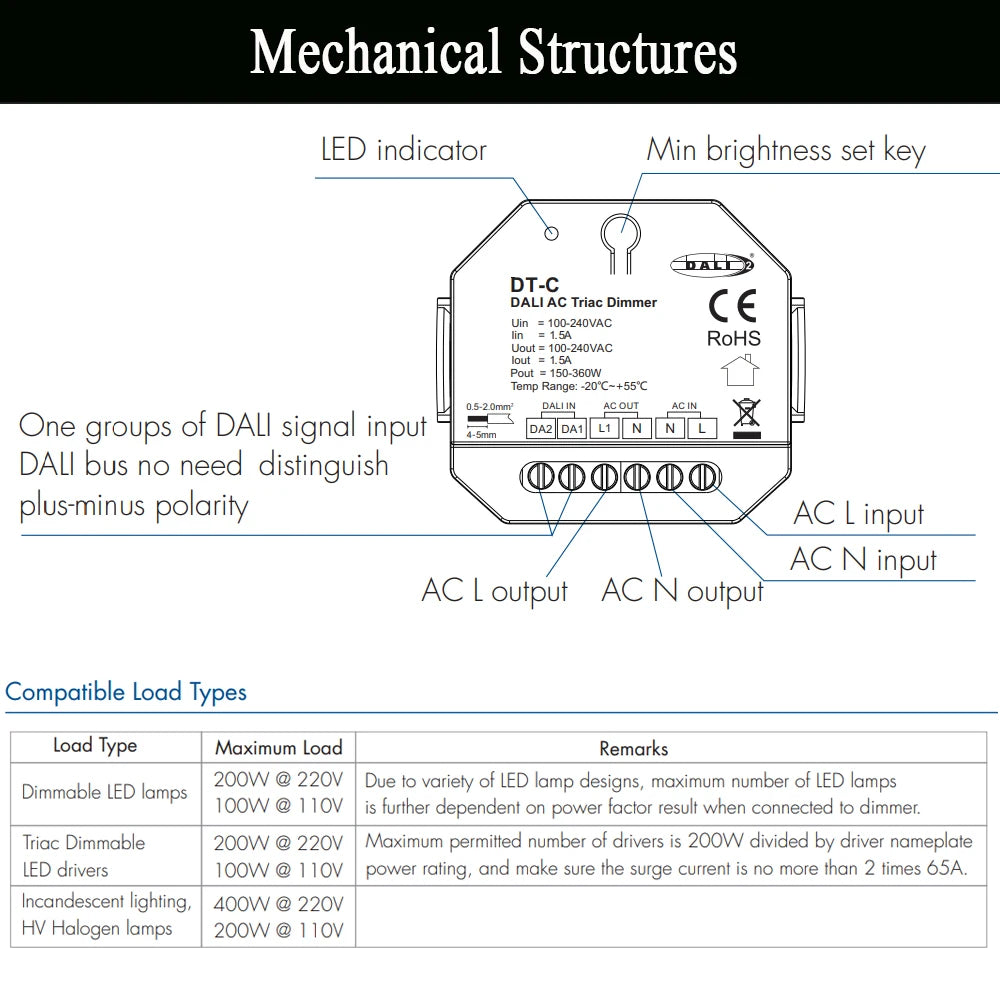

The minimum brightness of the device can be set or deleted by press the Min brightness set key on the dimmer.
● Recall minimum brightness:
Short press the Min brightness set key on the dimmer, LED indicator ash one, the light output the minimum brightness.
● Setting minimum brightness:
Adjust the brightness to a desired minimum level, then press and hold down the Min brightness set key 2s until the LED indicator ash one,
the current brightness is set as the minimum brightness.
The light can only be dimmable between this minimum brightness and maximum brightness.
● Delete minimum brightness:
Adjust the brightness to maximum level, then press and hold down the Min brightness set key 2s until the LED indicator ash one,
the minimum brightness setting is deleted.

Safety & Warnings

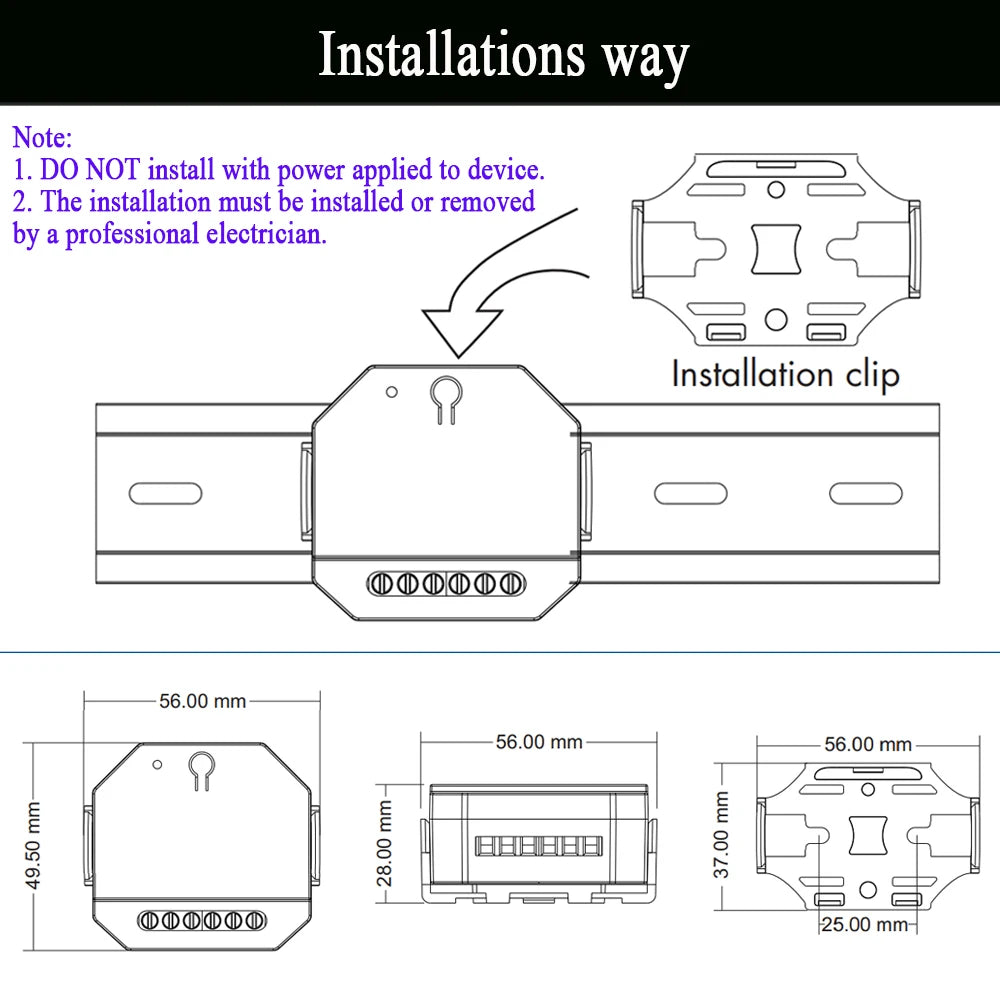

● DO NOT install with power applied to device.
● DO NOT expose the device to moisture.
