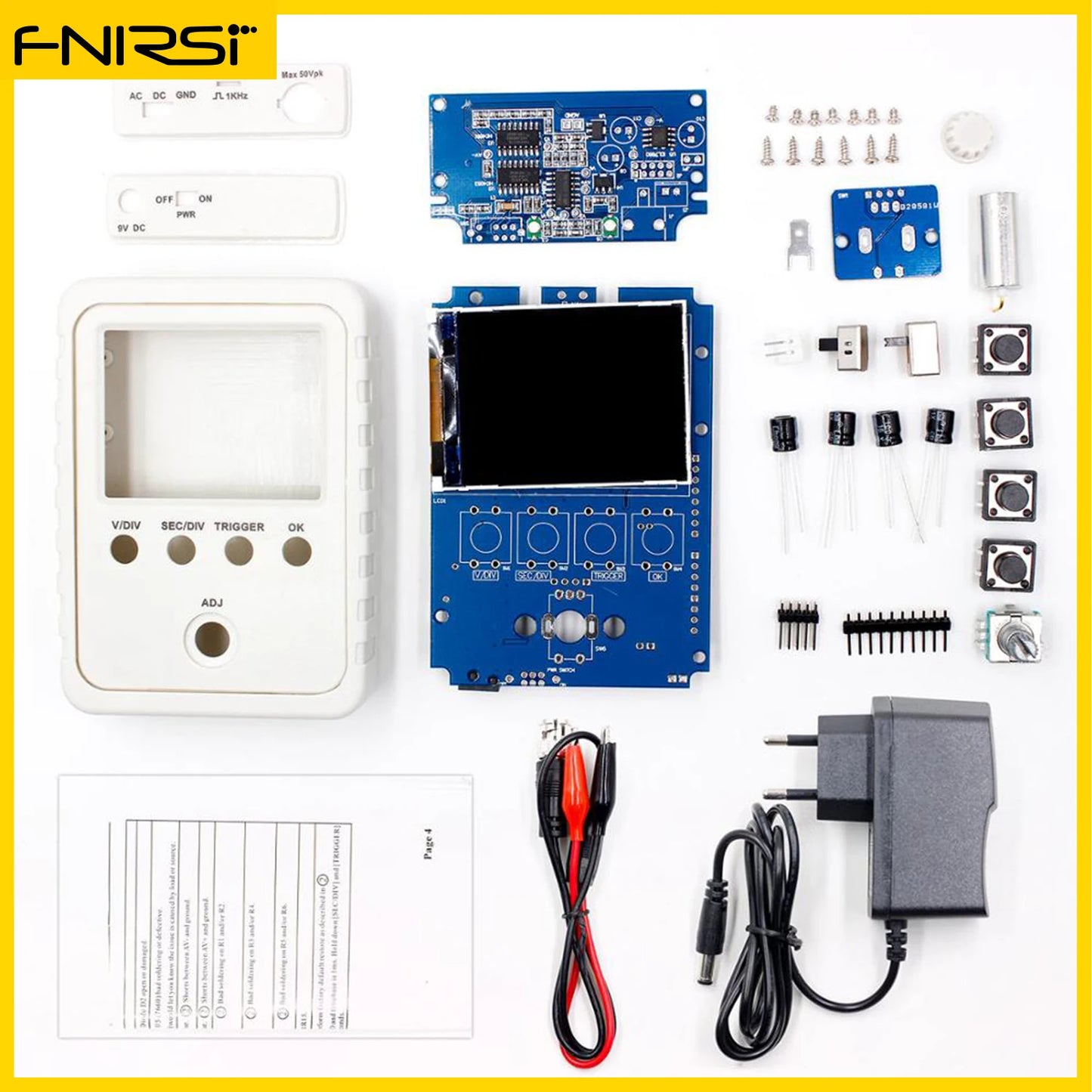

NOTE：Click on the picture, pay the corresponding price,

that is the package you will receive

Features:

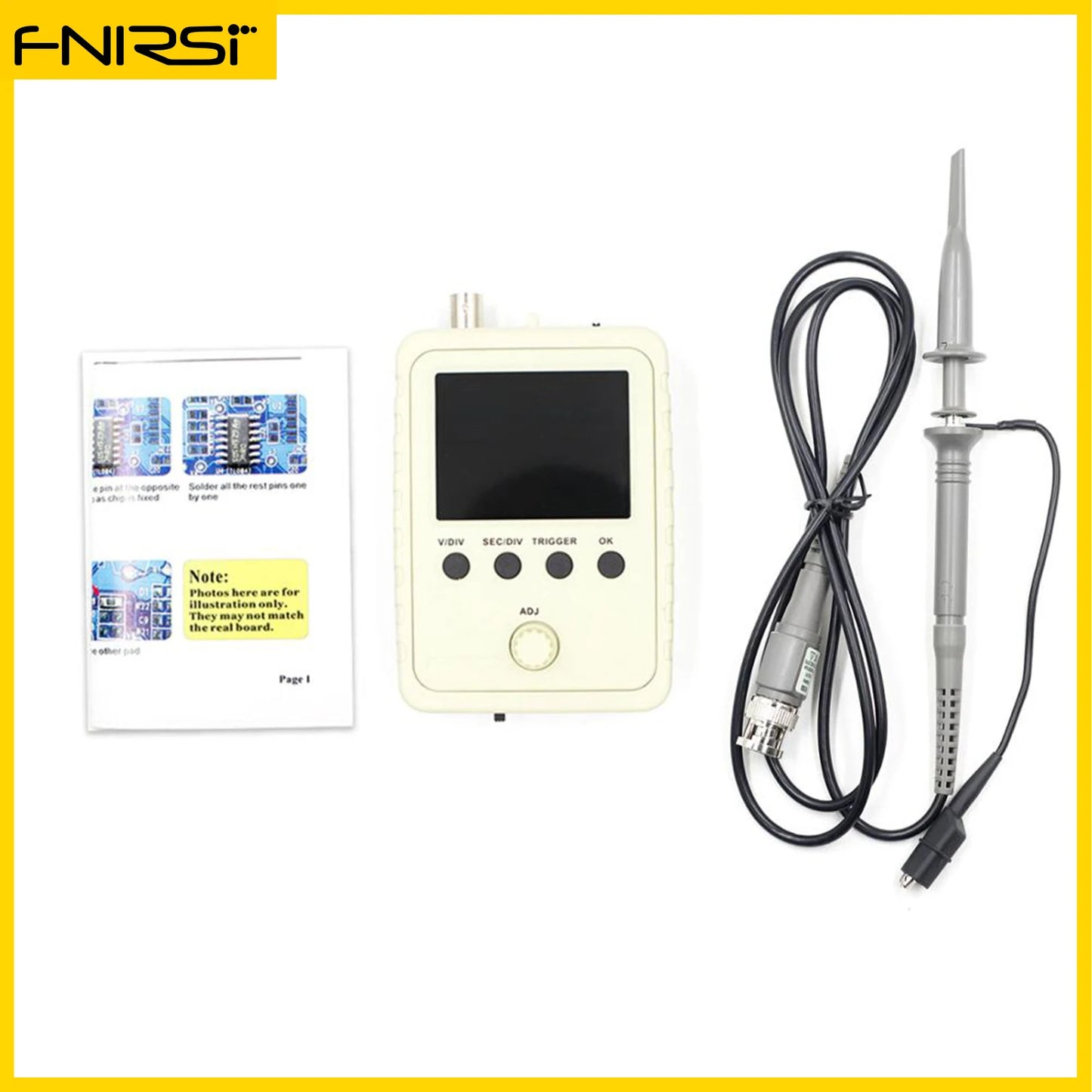

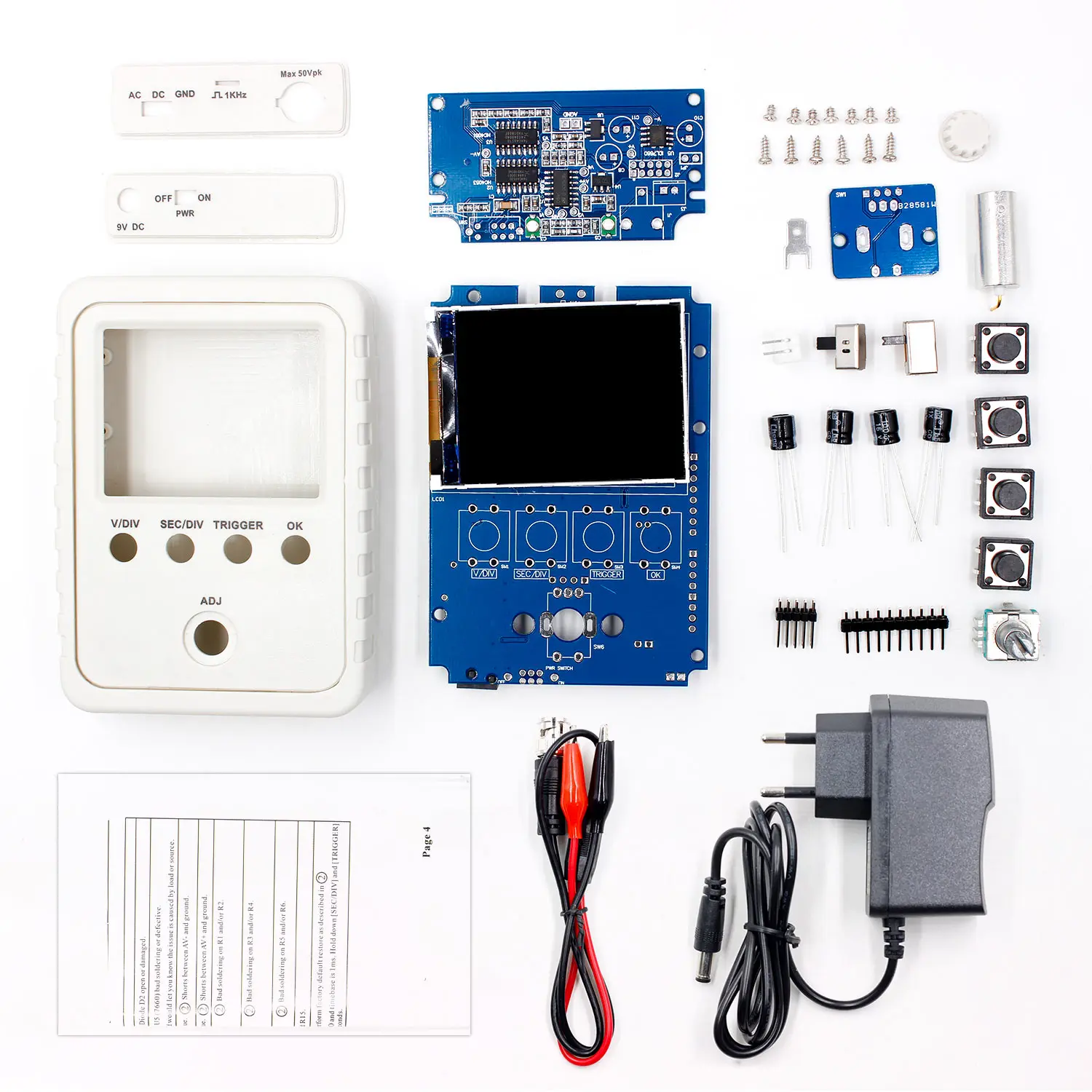

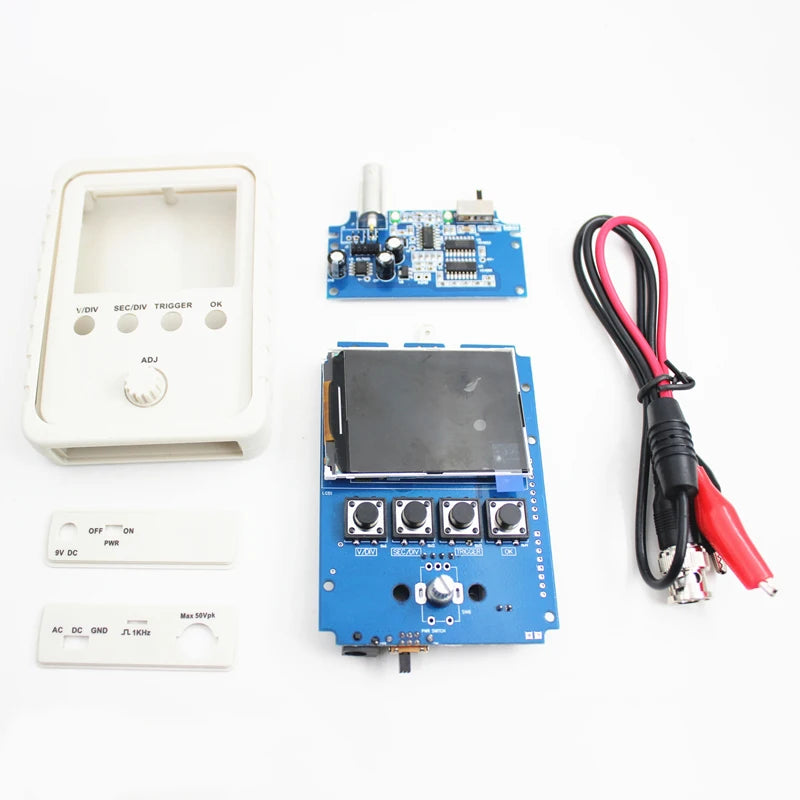

DSO150

Adopt ARM Cortex-M3 processor , and include a 2.4-inch color TFT display screen.

Used for secondary development on the basis of this kit, for example, it can be changed to Millivoltmeter, data loggers.

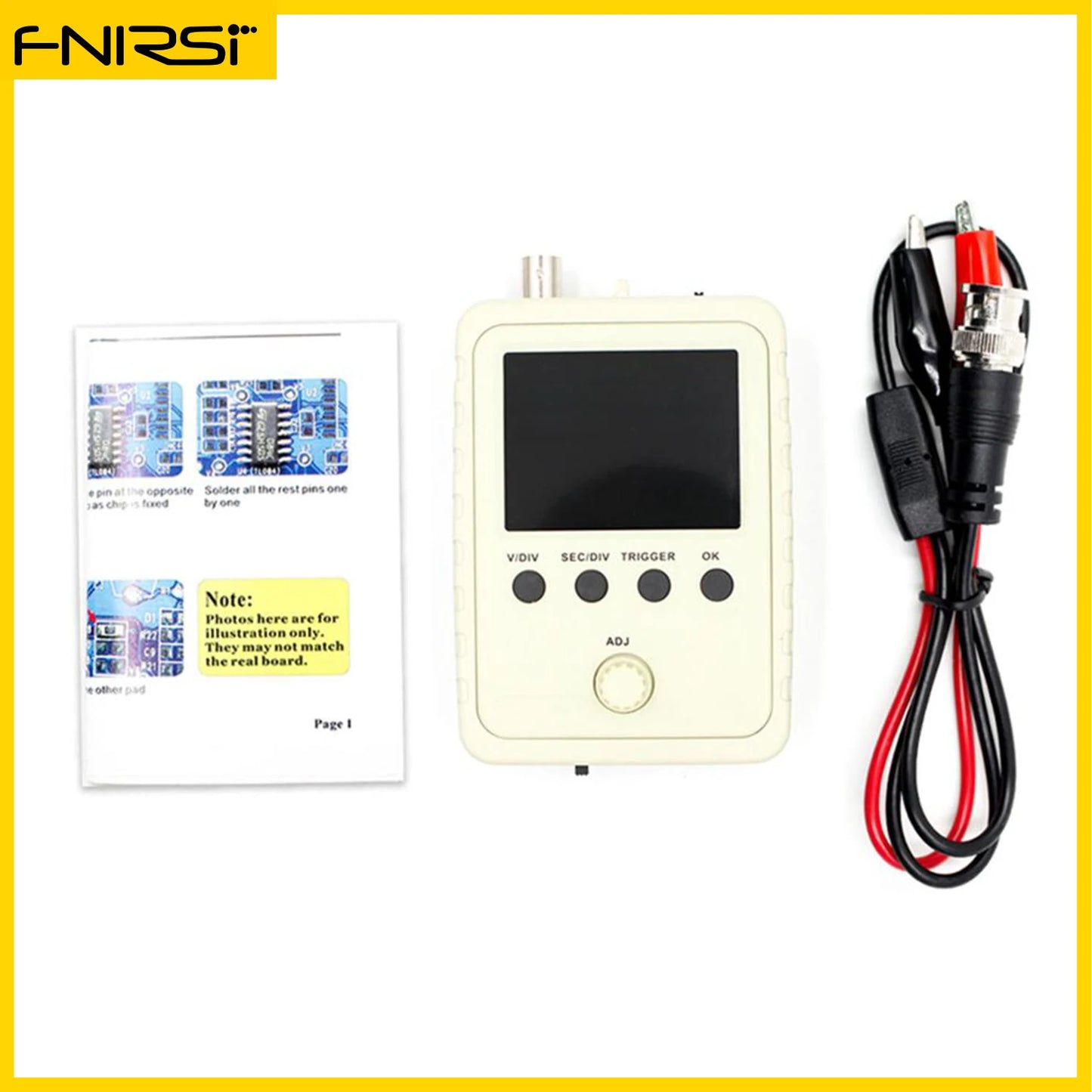

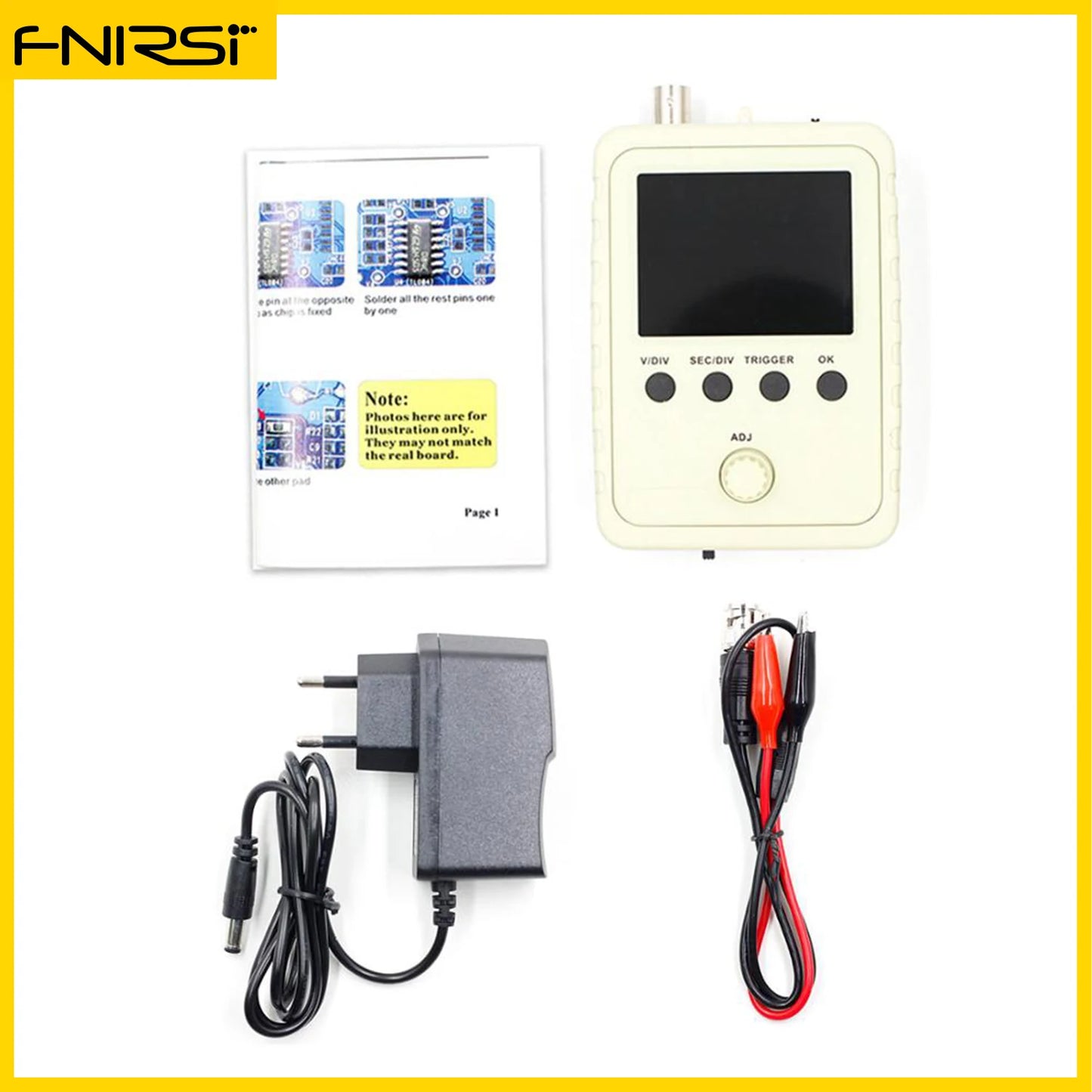

Come with instructions, easy to install and operate.

With Auto/Normal/Single trigger modes, easy to capture the moment waveform.

Available rising or falling edge trigger.

Observable previous waveform before trigger(negative delay).

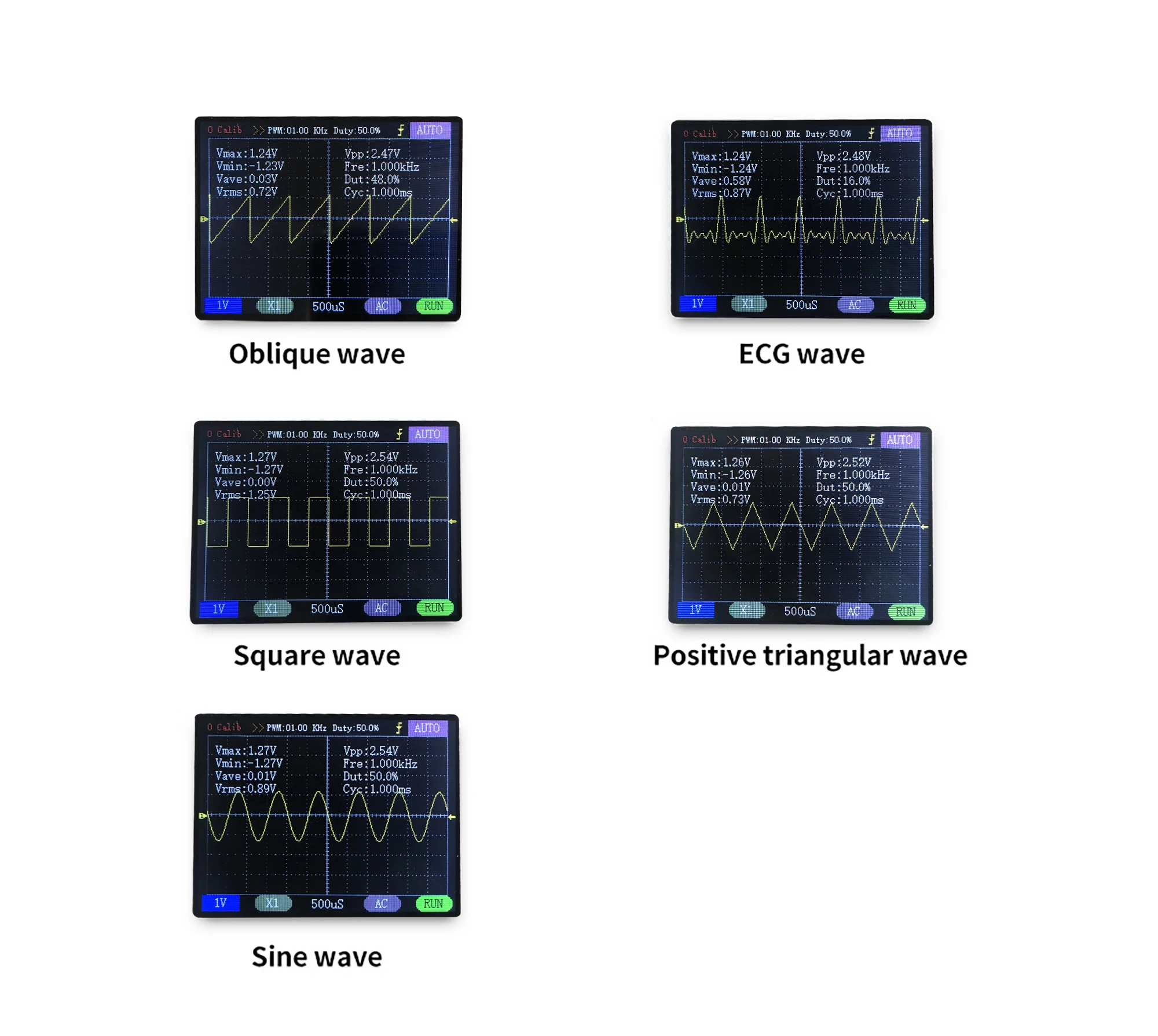

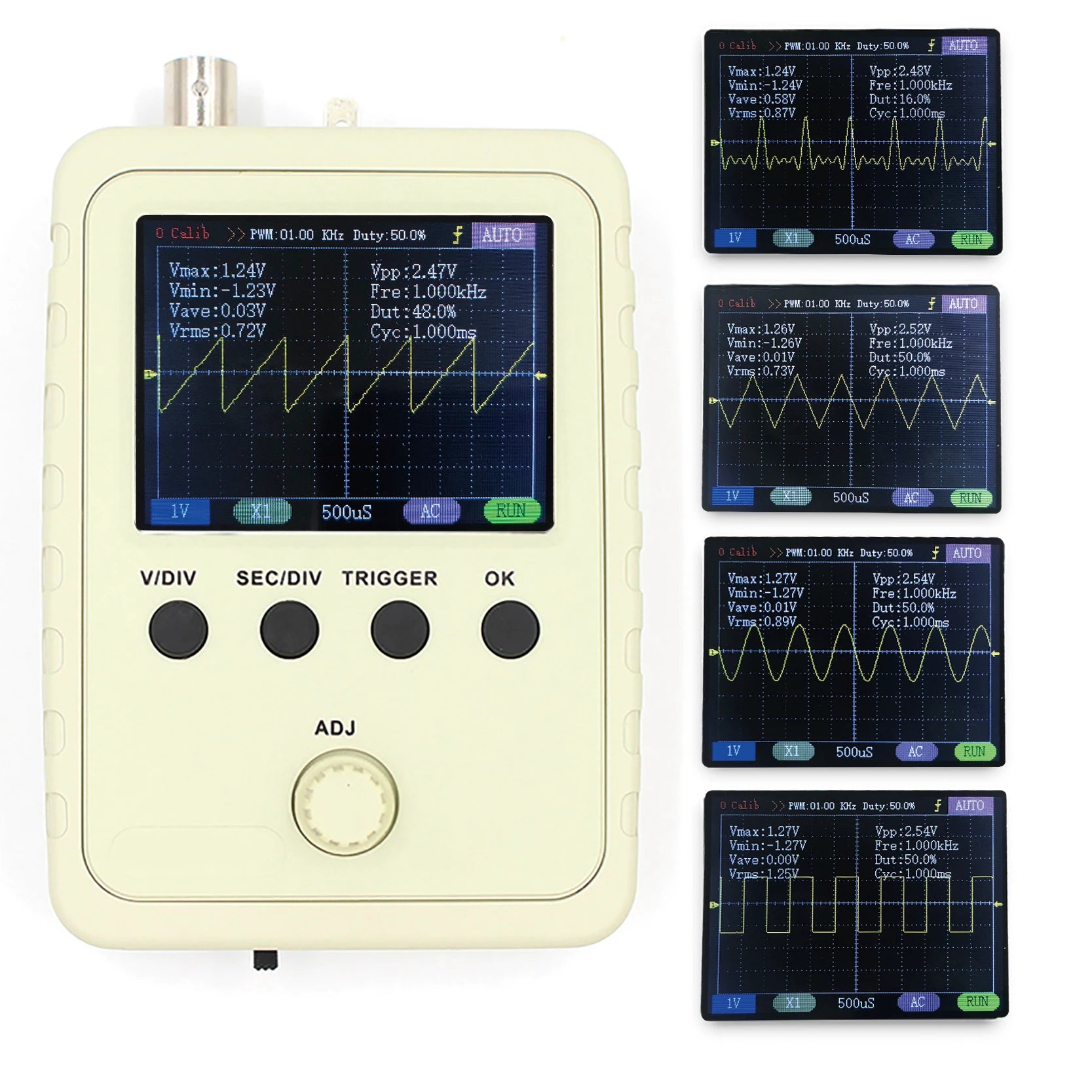

With waveform parameter digital display, including frequency, period, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.

Short-circuit and open-circuit detection: can help the user find out the soldering error.

TFT controller recognition function.

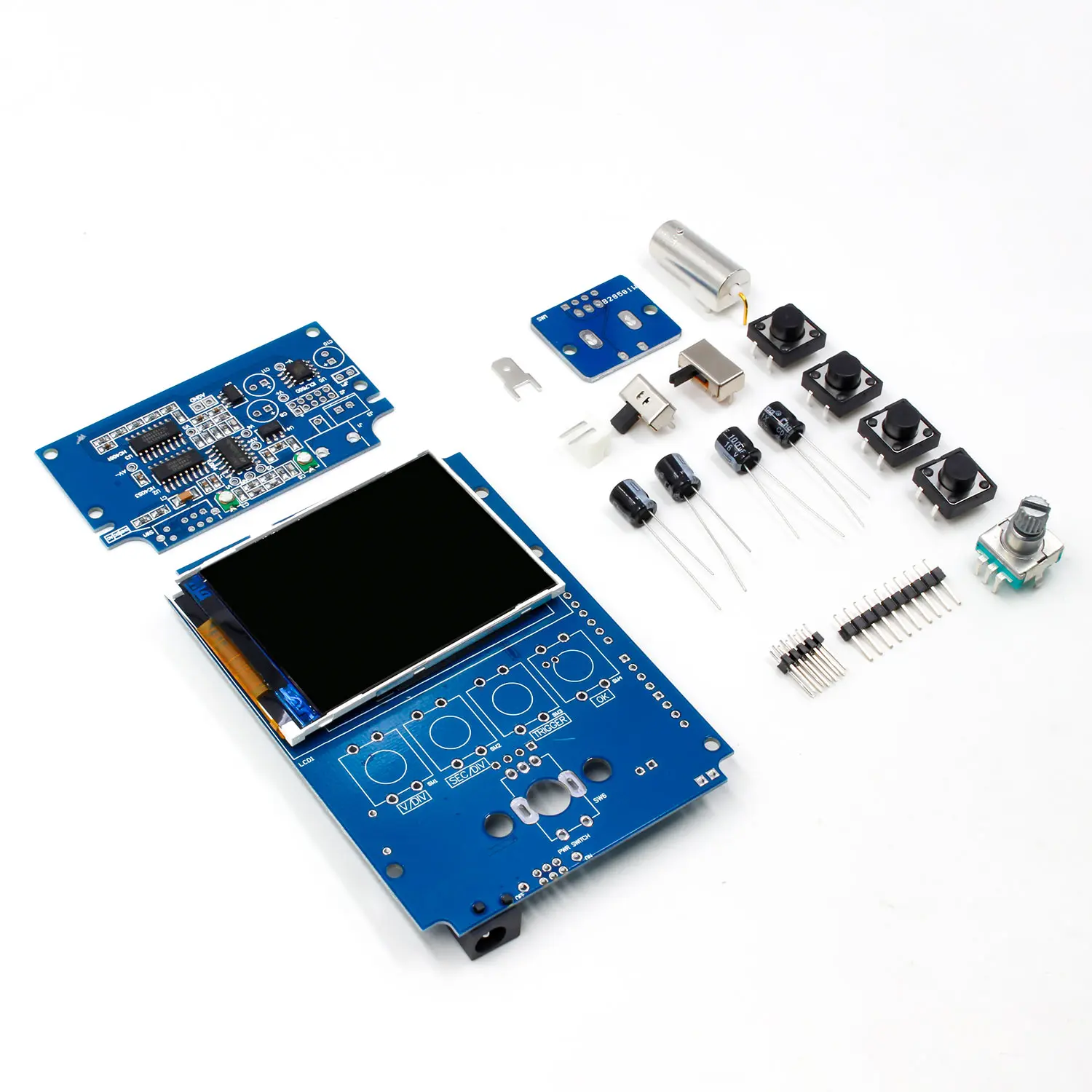

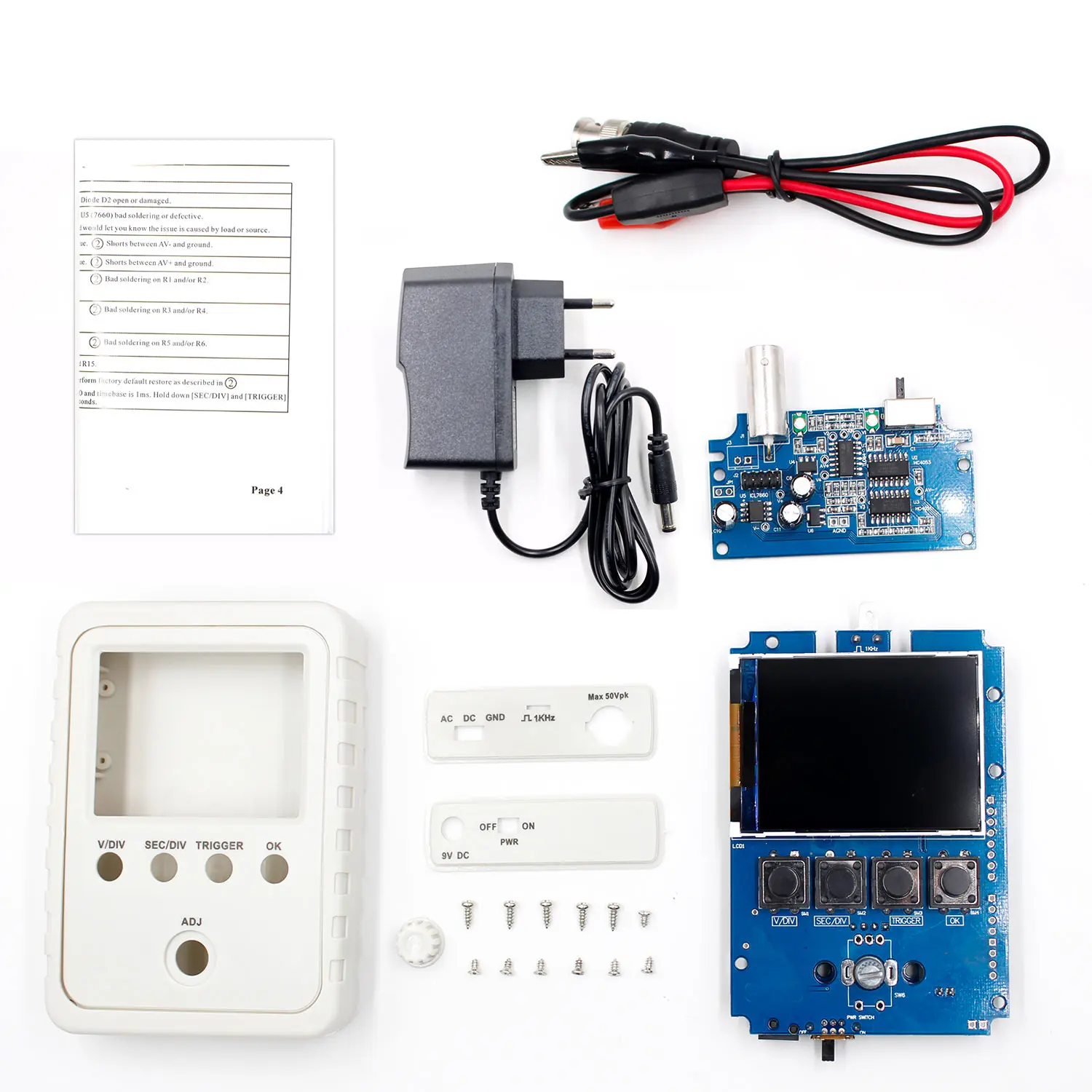

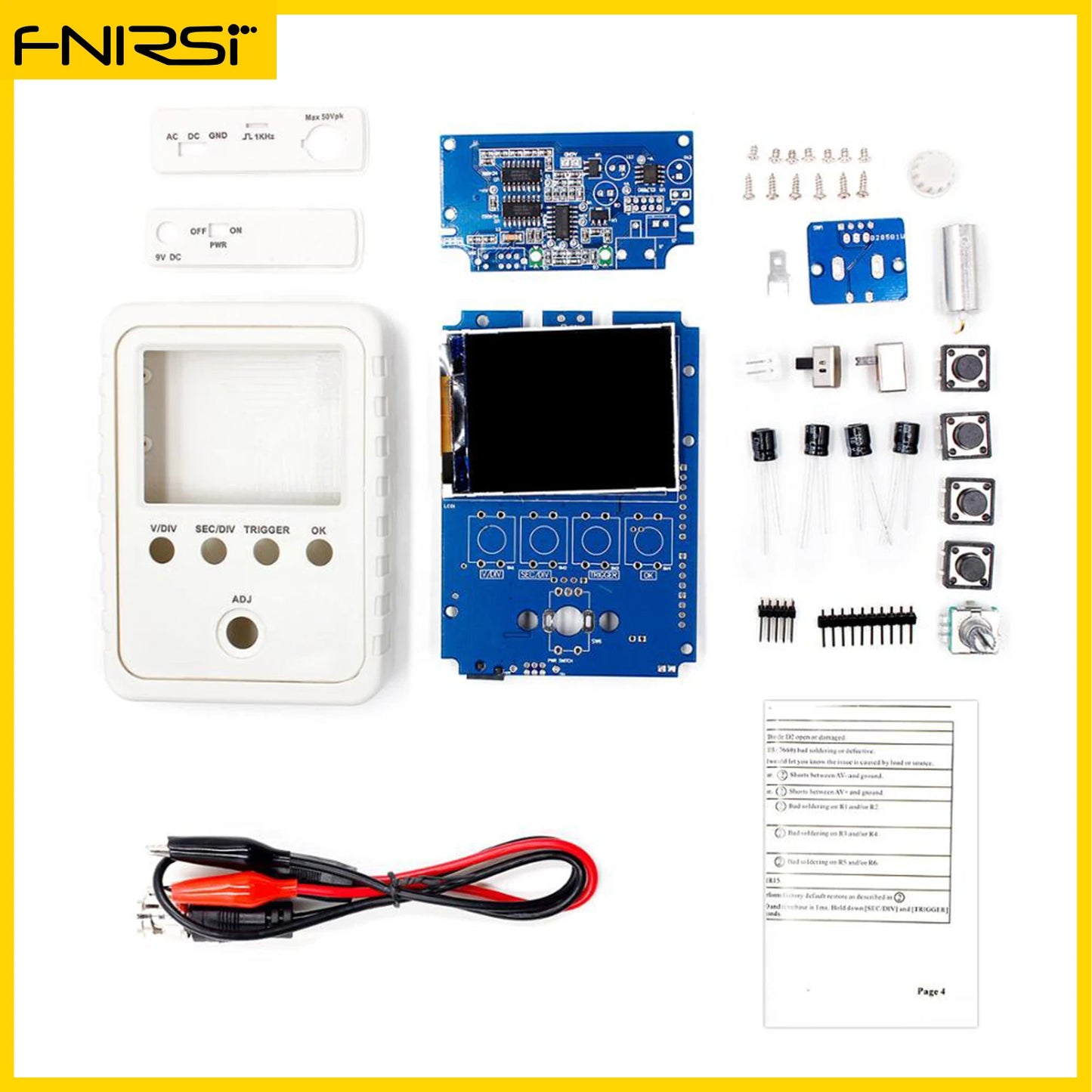

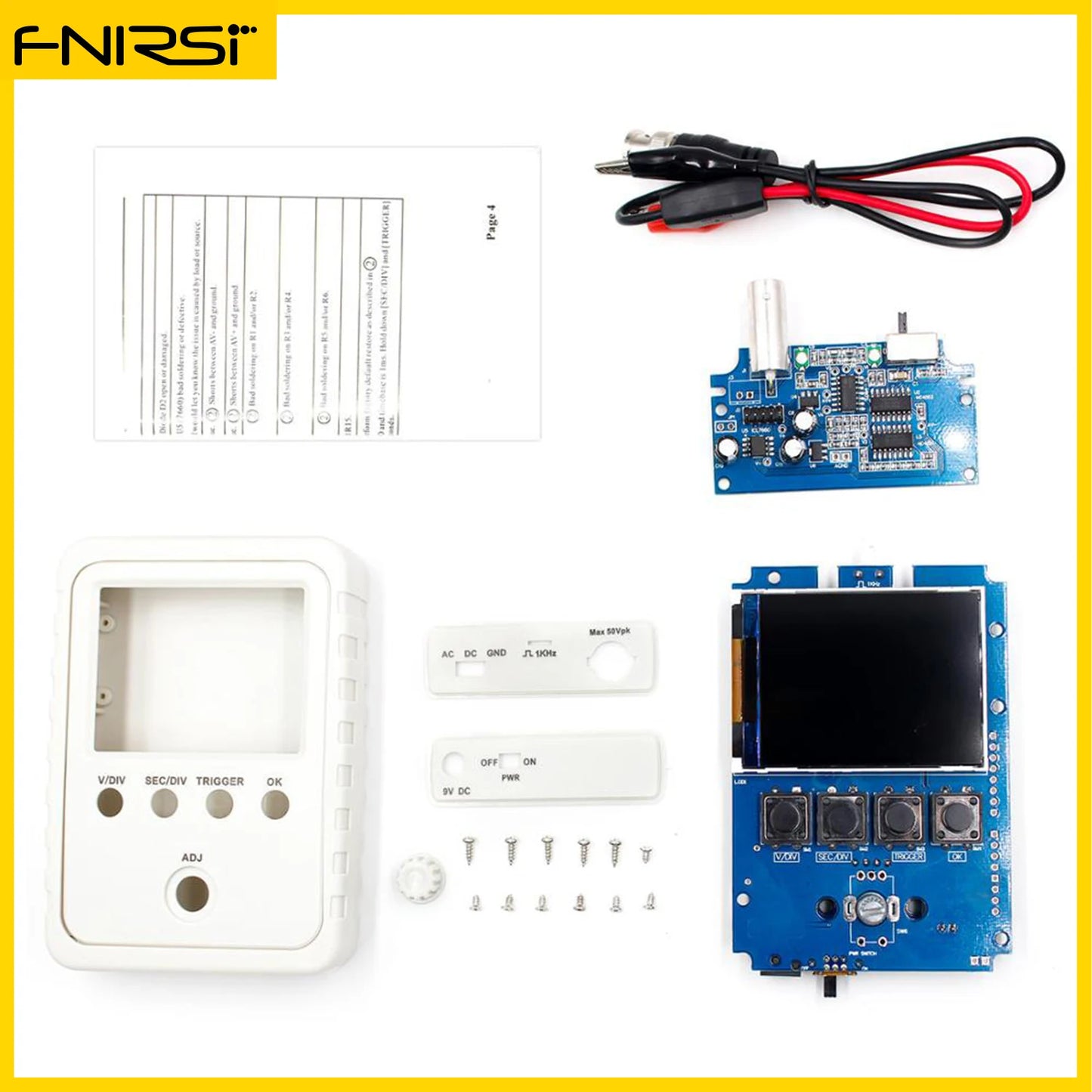

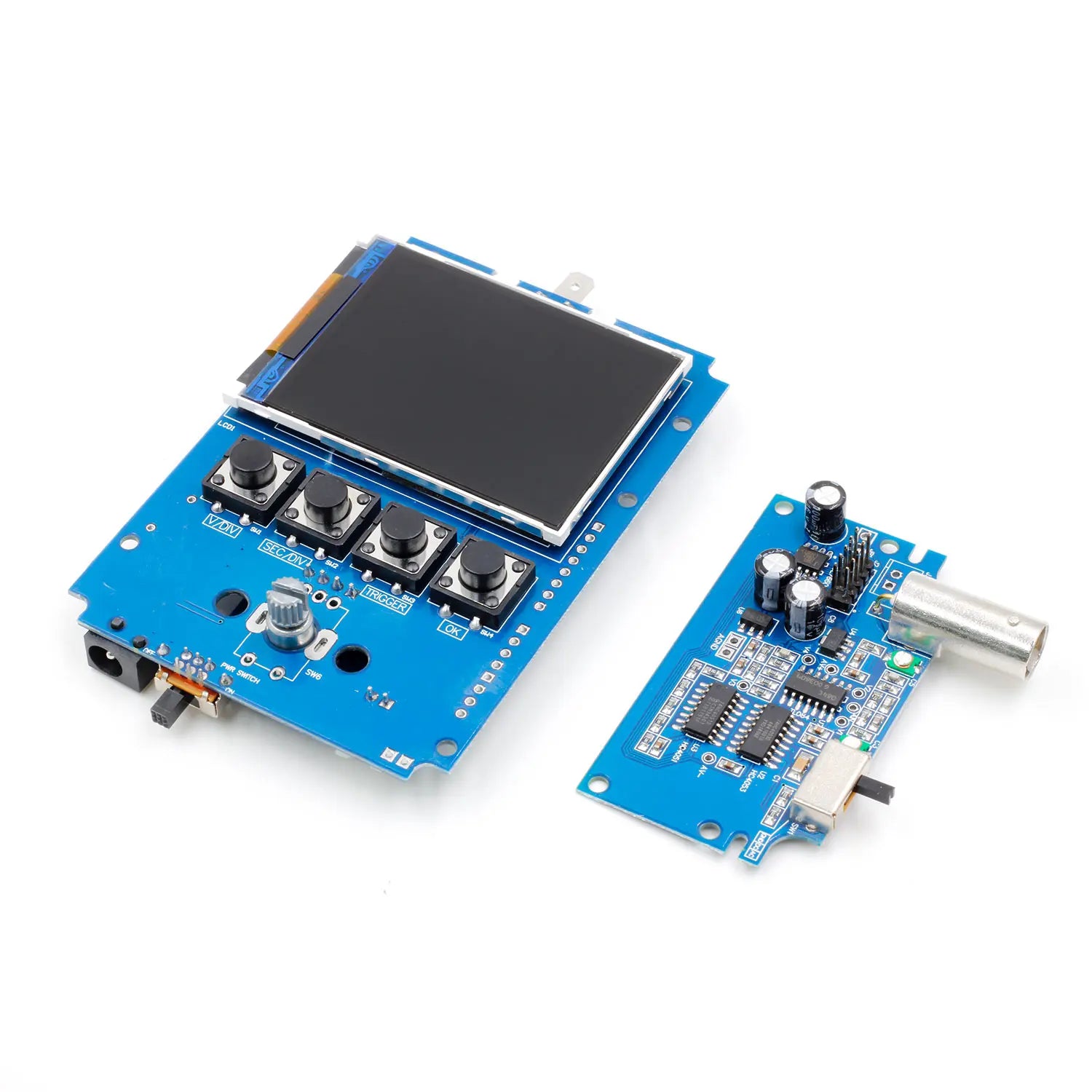

The SMD has been soldered, more suitable for electronic beginner.

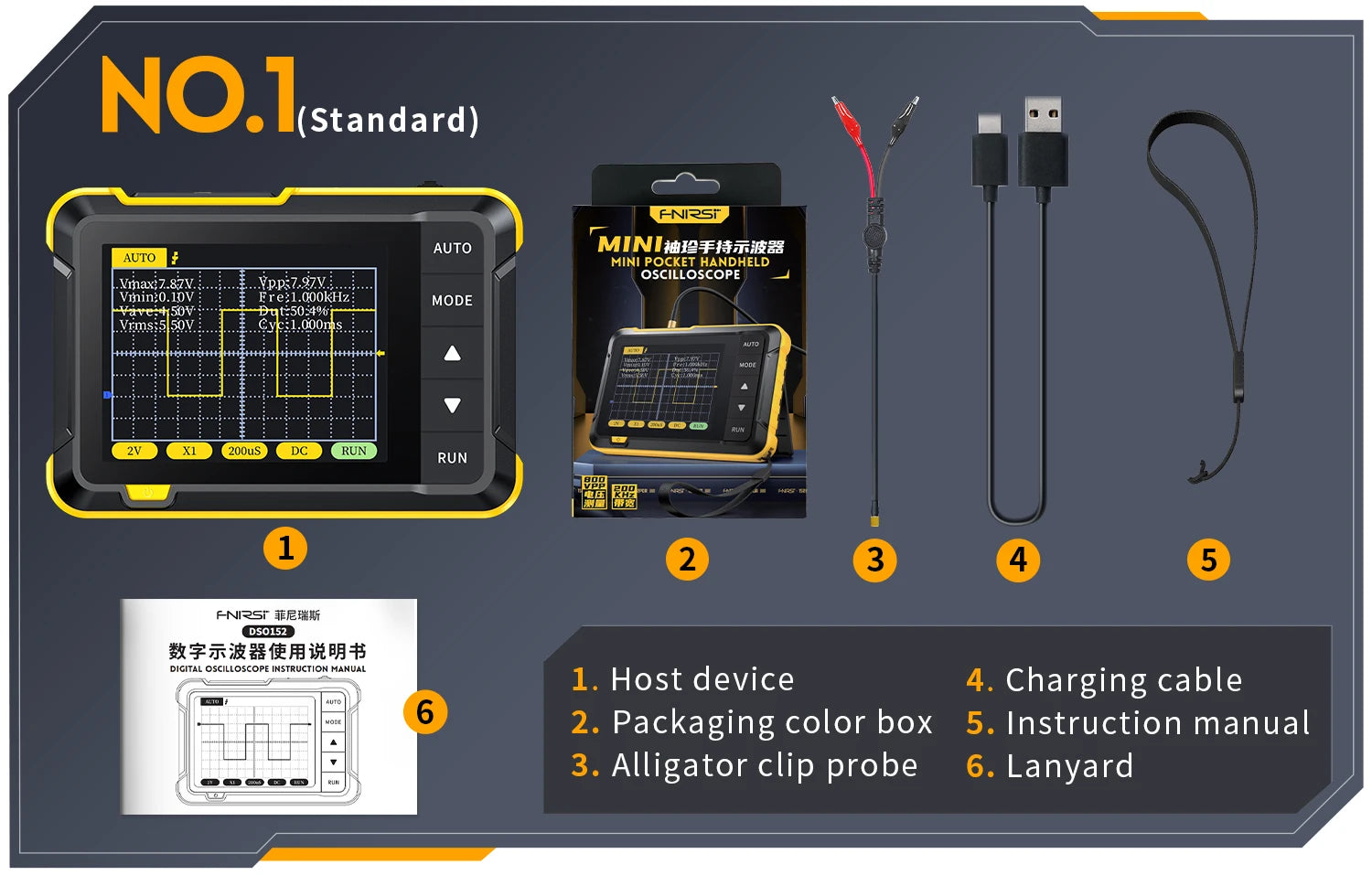

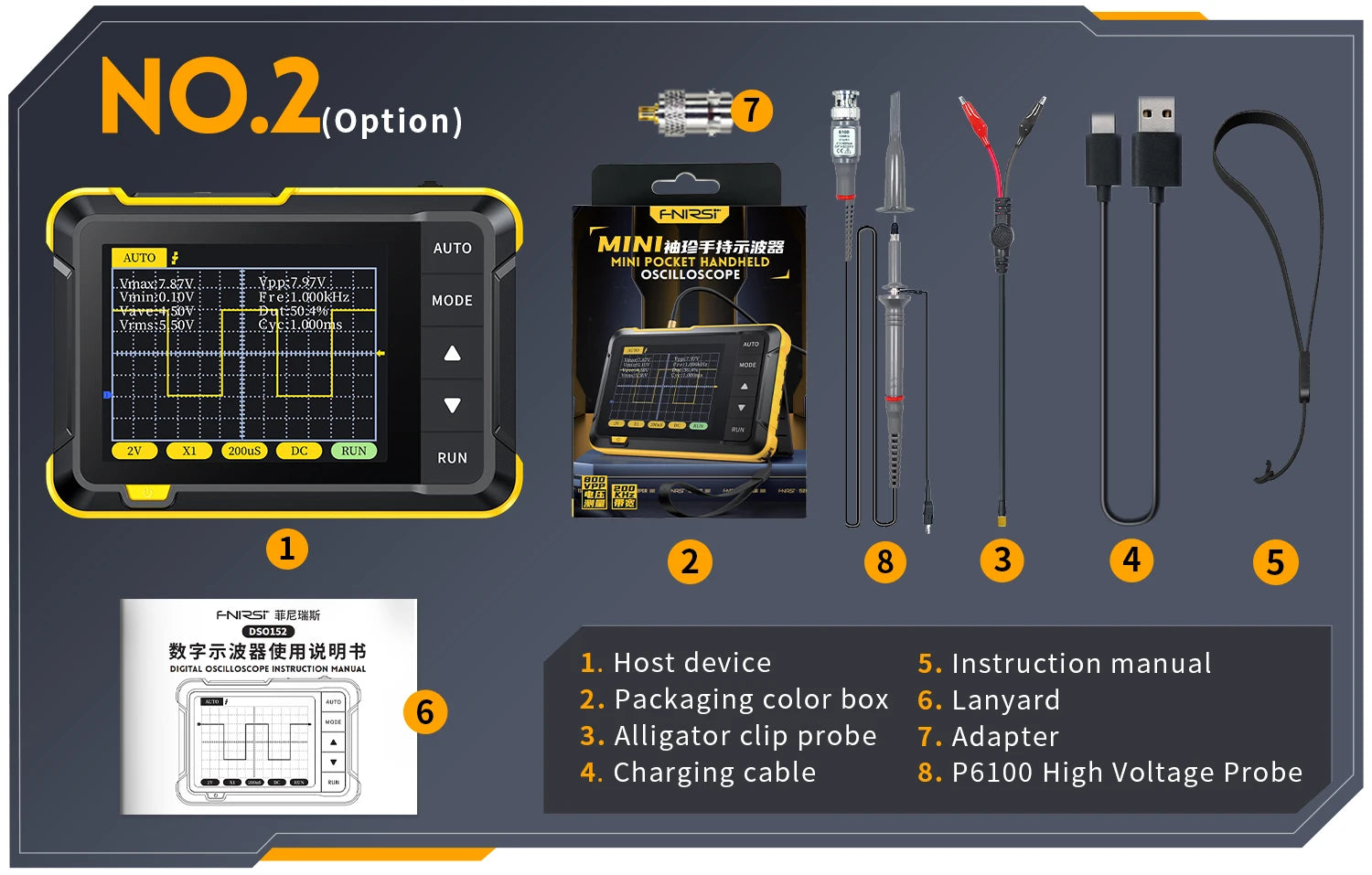

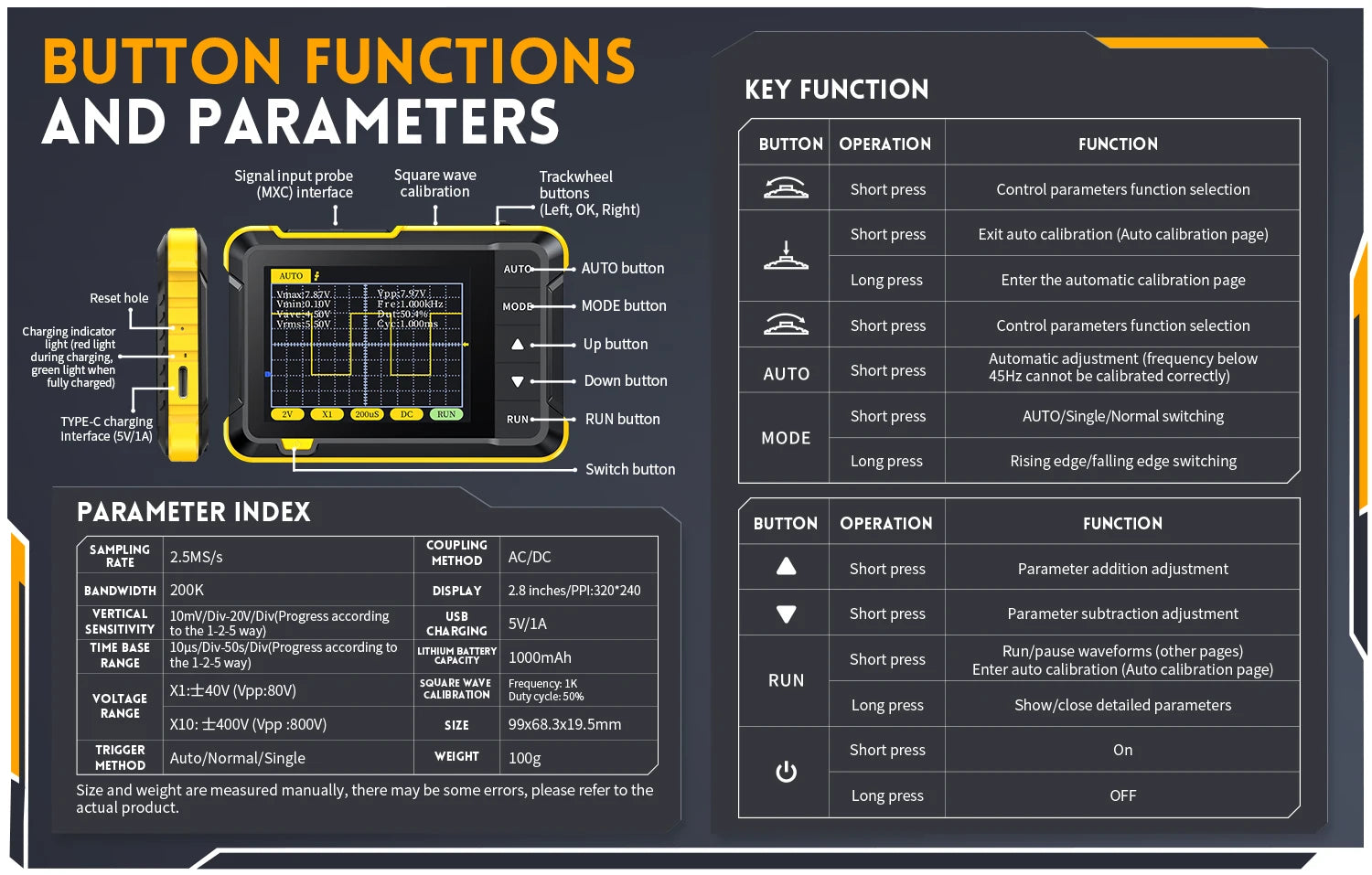

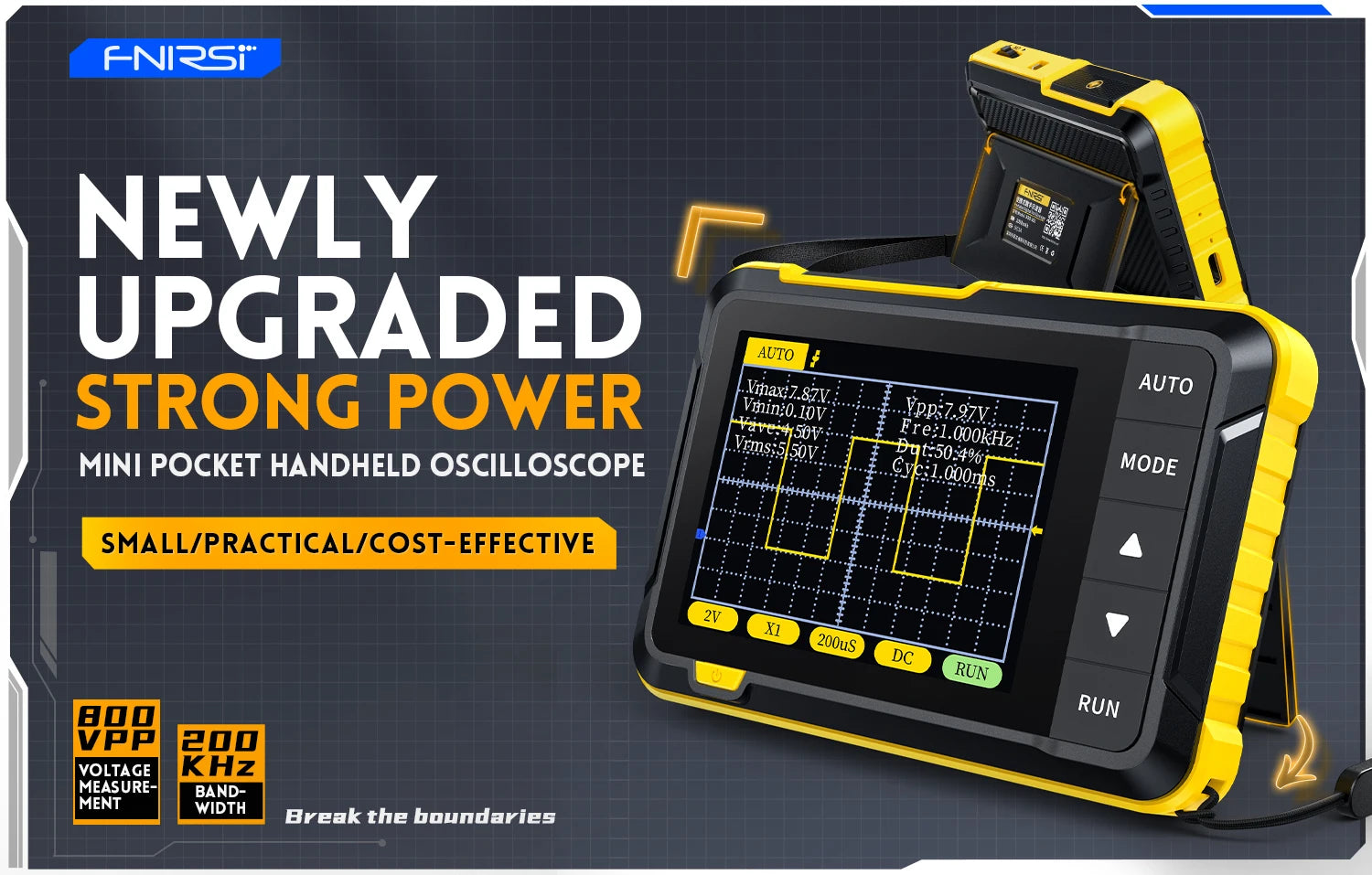

"DSO152" is a highly practical and cost-effective handheld oscillograph launched by our company, which is aimed at the maintenance industry and the research education industry.

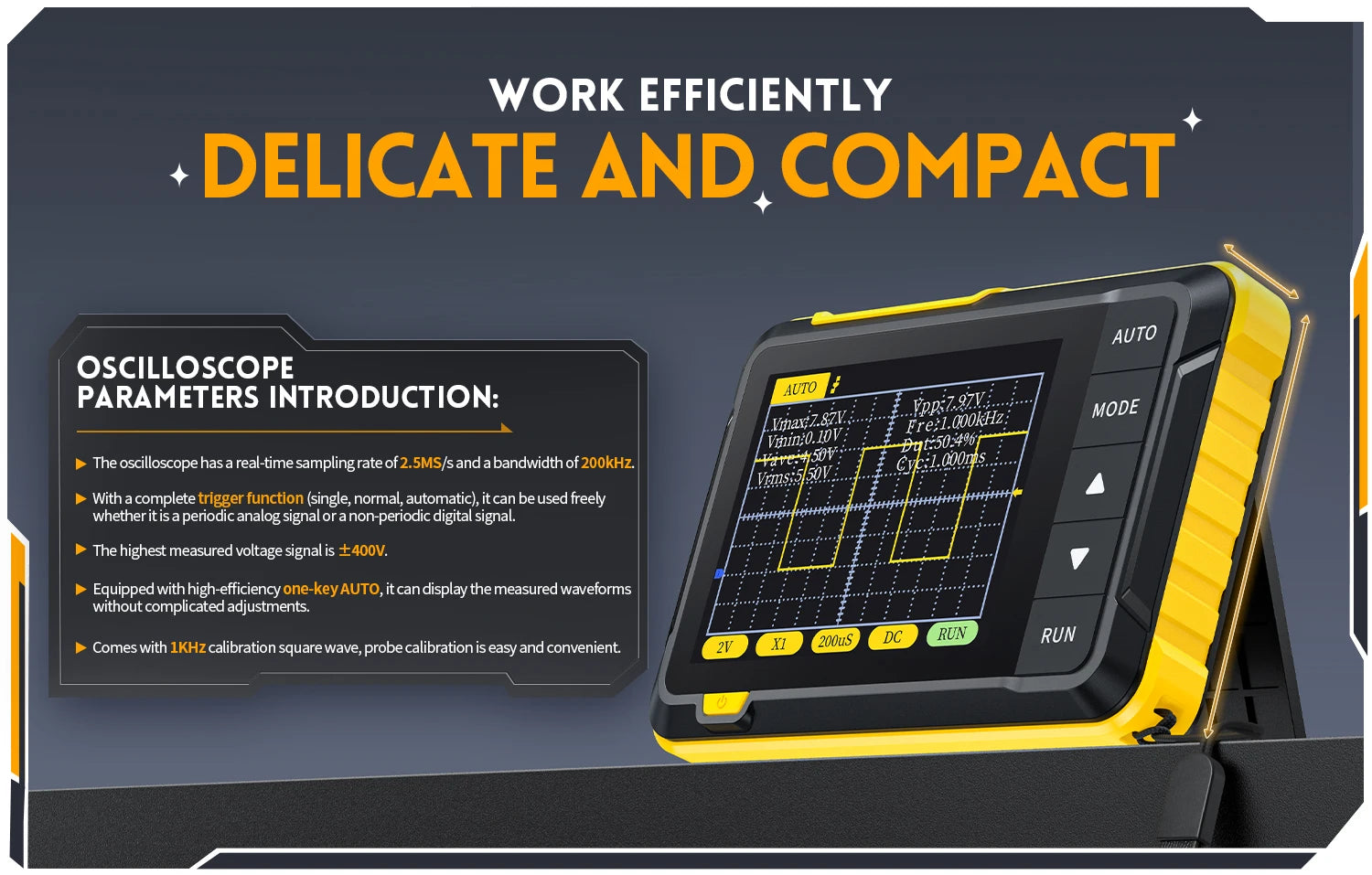

The oscillograph has a real-time sampling rate of 2.5MS/s, abandwidth of 200KHz, and complete trigger functions (single, normal, and automatic).

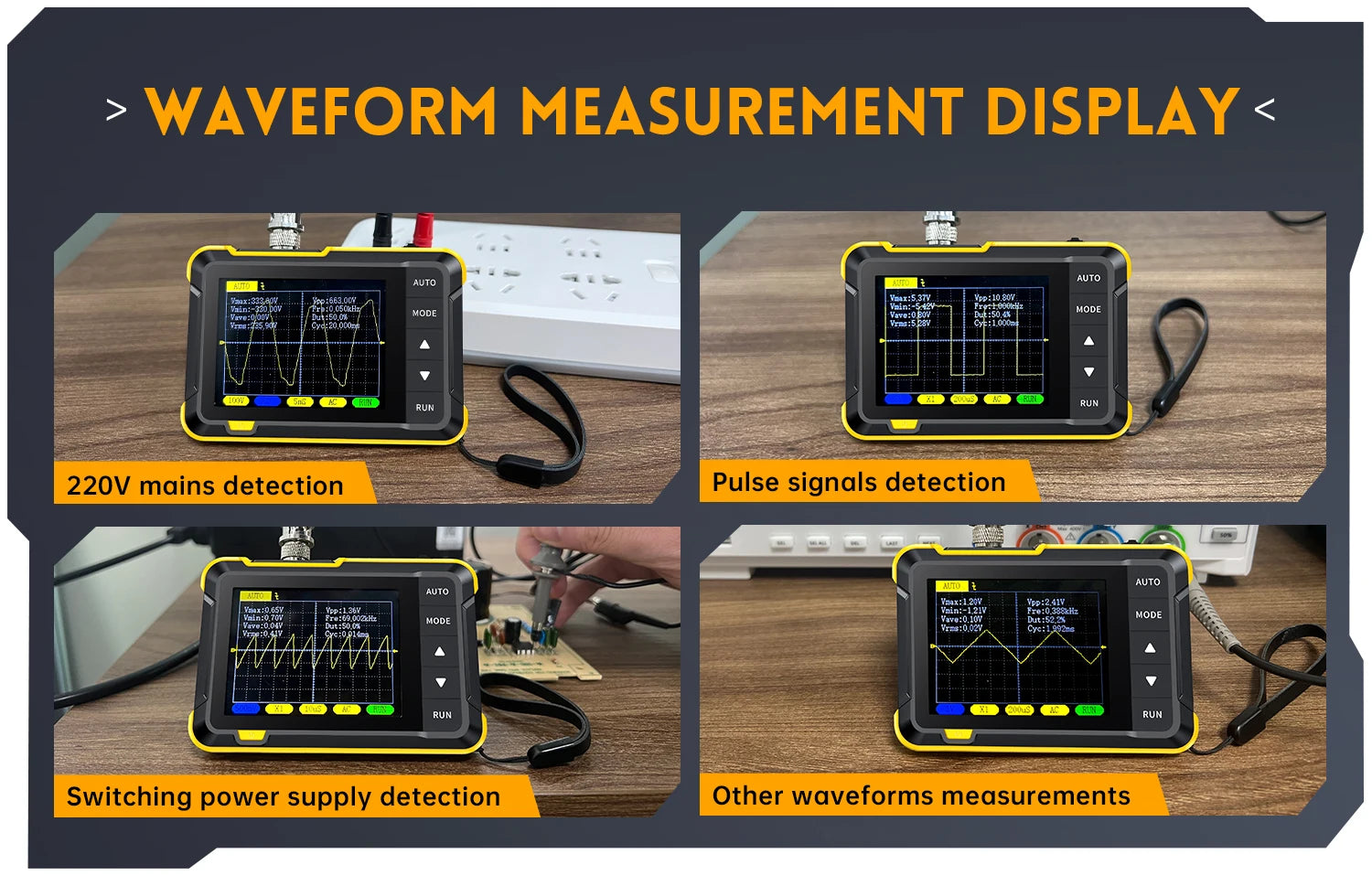

It can be used freely for both periodic analog signals and non-periodic digital signals, and can measure voltages up to ±400V.

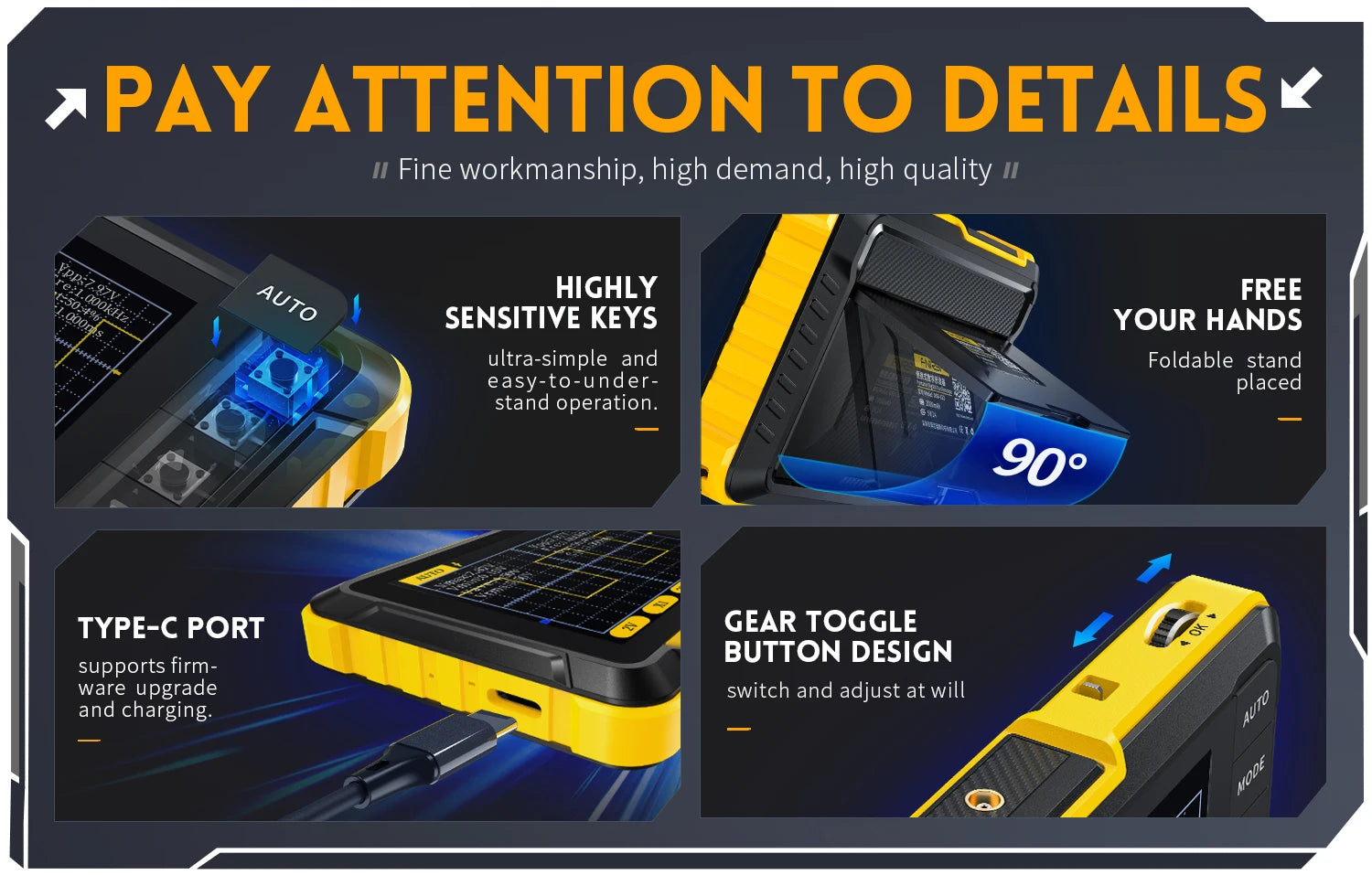

Equipped with an efficient one-key AUTO, it can display the measured waveform without cumbersome adjustments.

Equipped with a 2.8-inch 320*240 resolution high-definition LCD screen.

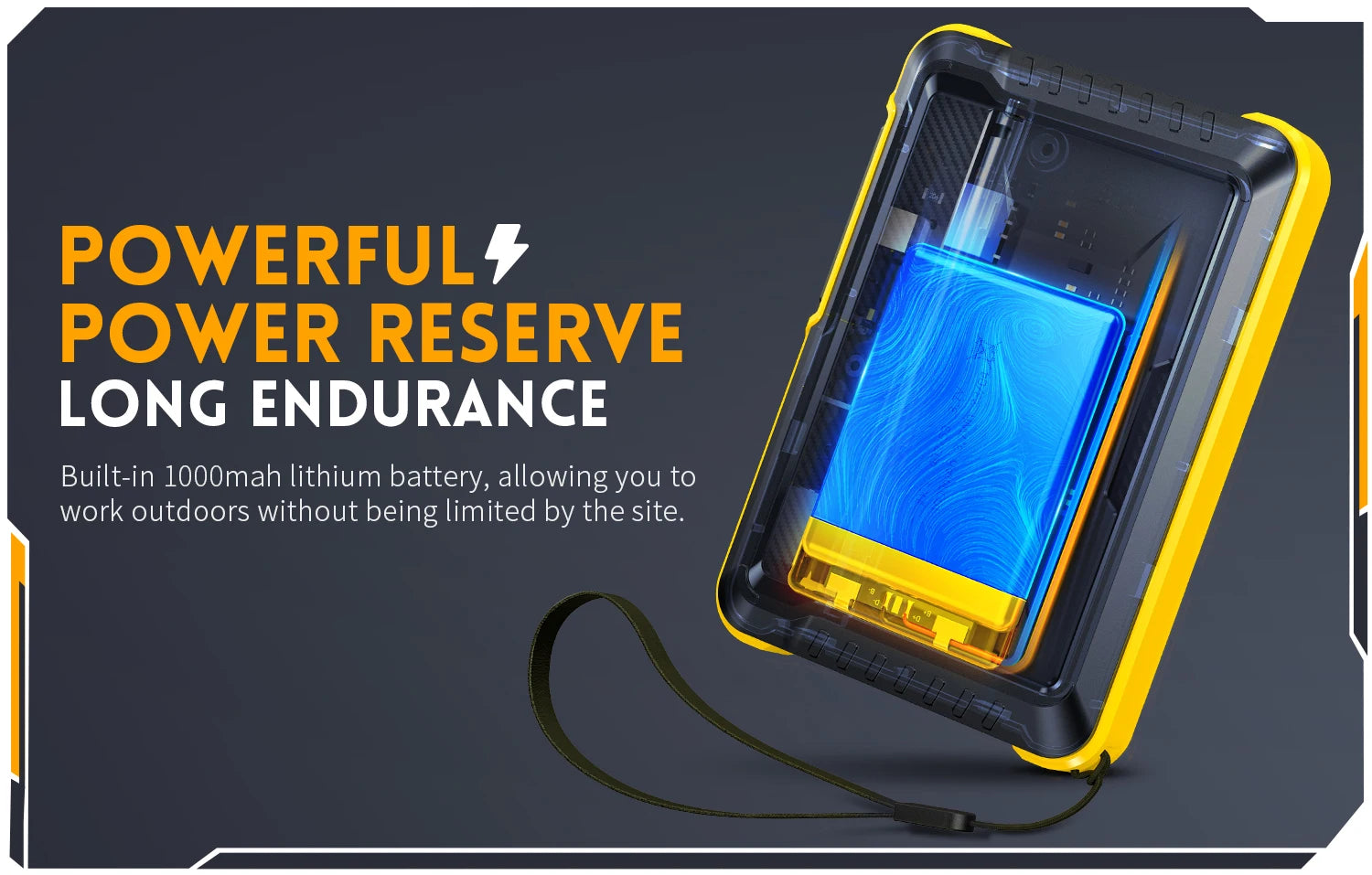

Built-in 1000mAh high-quality lithium battery, can be used continuously for about 4 hours after fully charged.

Maximum Real-time Sampling Rate: 1MSa/s

Analog Bandwidth: 0-200KHz

Sensitivity Range: 5mV/div-20mV/idv

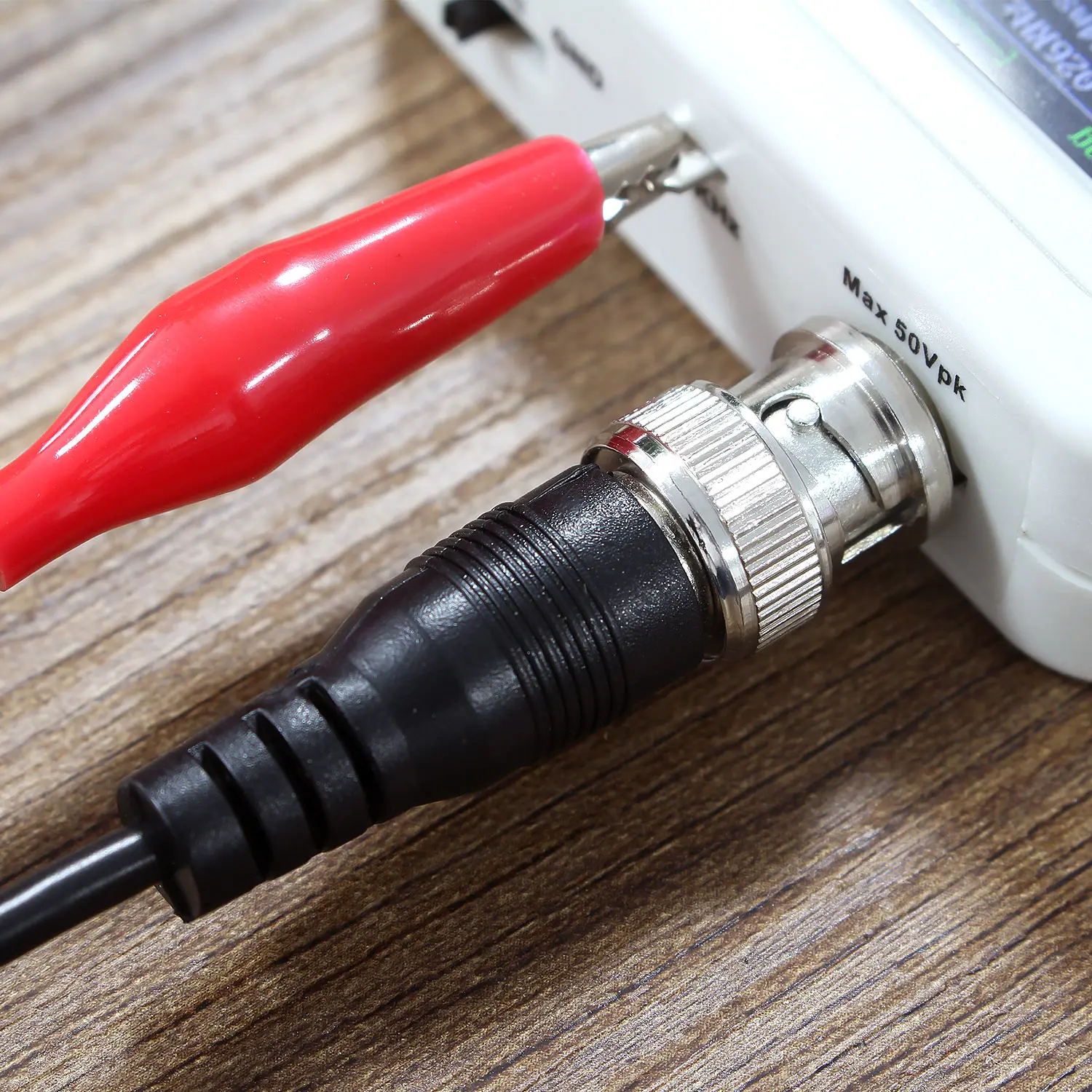

Maximum Input Voltage: 50Vpk (1X probe)

Input Impedance: 1M ohms/20pF

Accuracy: 12 Bits

Record Length: 1024 points

Coupling Modes: DC / AC / GND

Time Base Range: 500s/Div - 10us / Div

Trigger Modes: Auto, Normal, and Single

Trigger Position: Center of Buffer

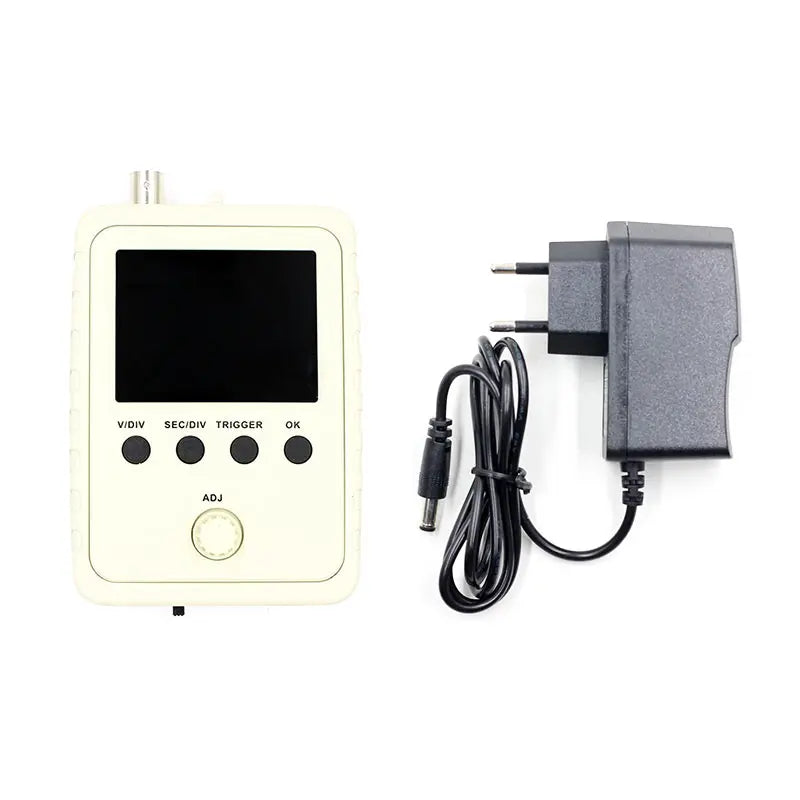

Supply Voltage: DC 9V(8-10V)

Current Consumption:~120mA @ 9V

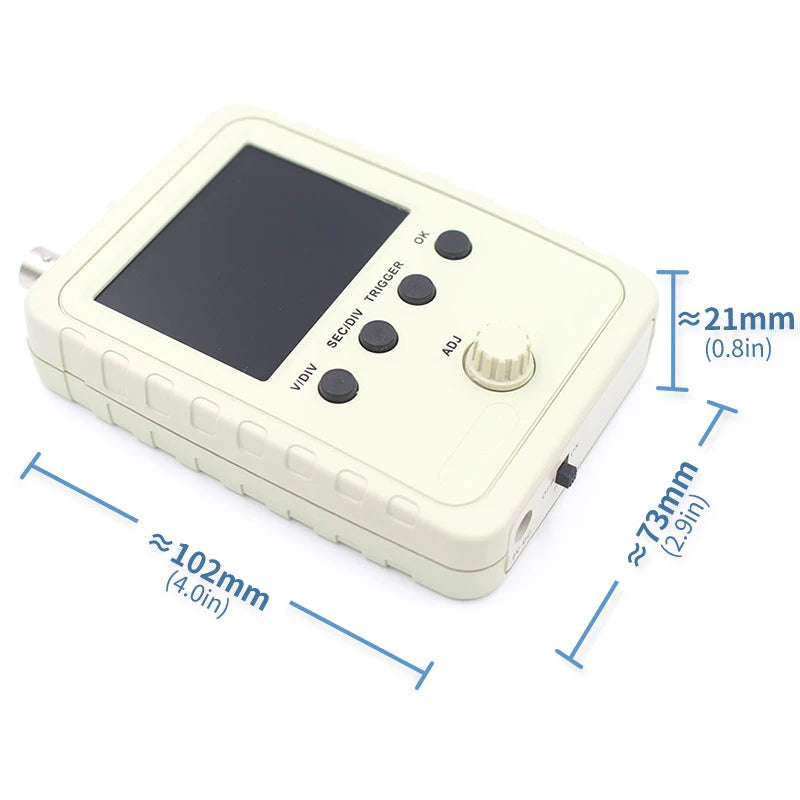

Main Board Size: 94 * 65mm / 3.7 * 2.56in

Analog Board Size: 65 * 47mm / 2.56 * 1.85in

Screen Size: 52 * 40mm / 2 * 1.57in
