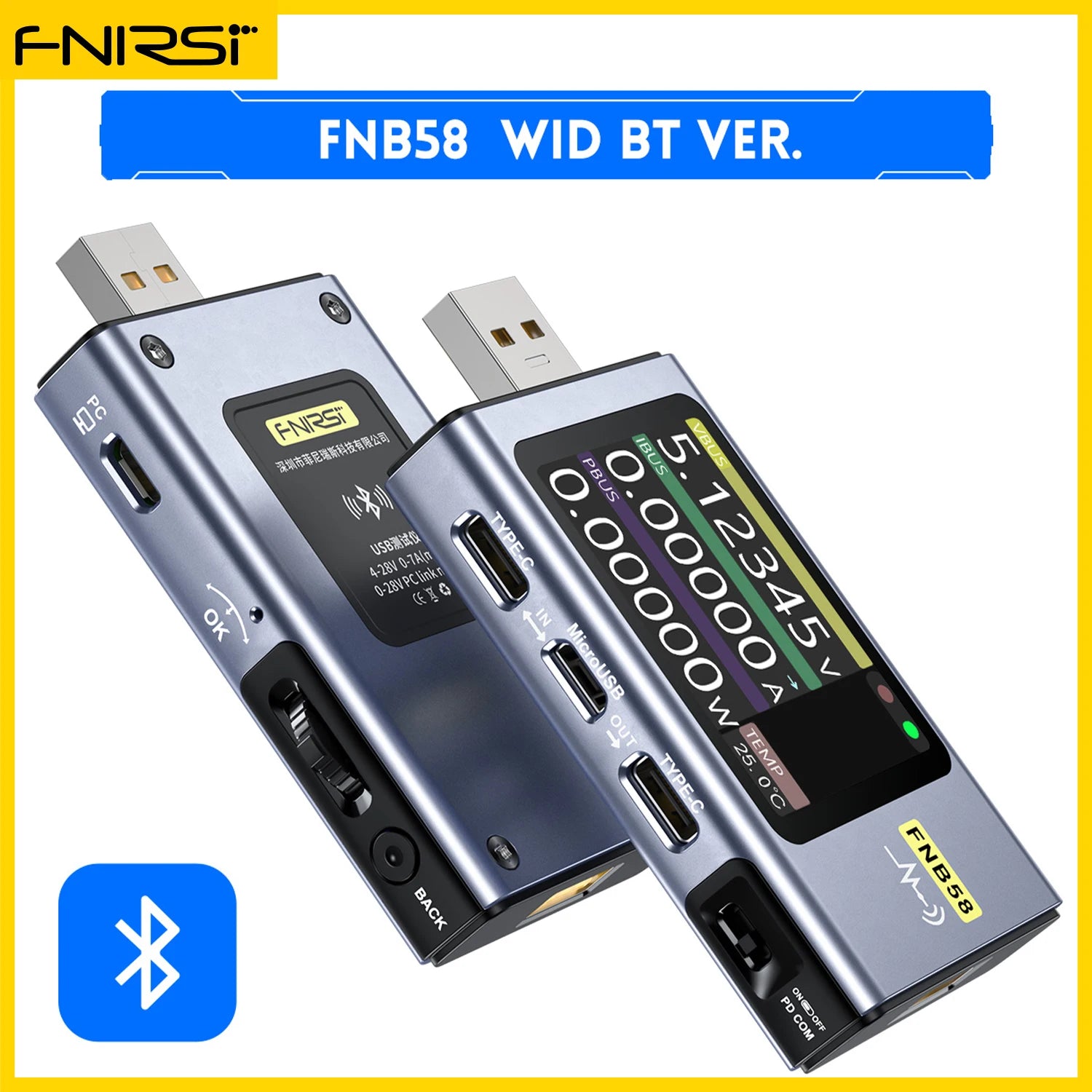

FNIRSI-FNB58 USB Tester Voltmeter Ammeter TYPE-C Fast Charge Detection Trigger Capacity Measurement Ripple Measurement
FNIRSI-FNB58 USB Tester Voltmeter Ammeter TYPE-C Fast Charge Detection Trigger Capacity Measurement Ripple Measurement
Couldn't load pickup availability

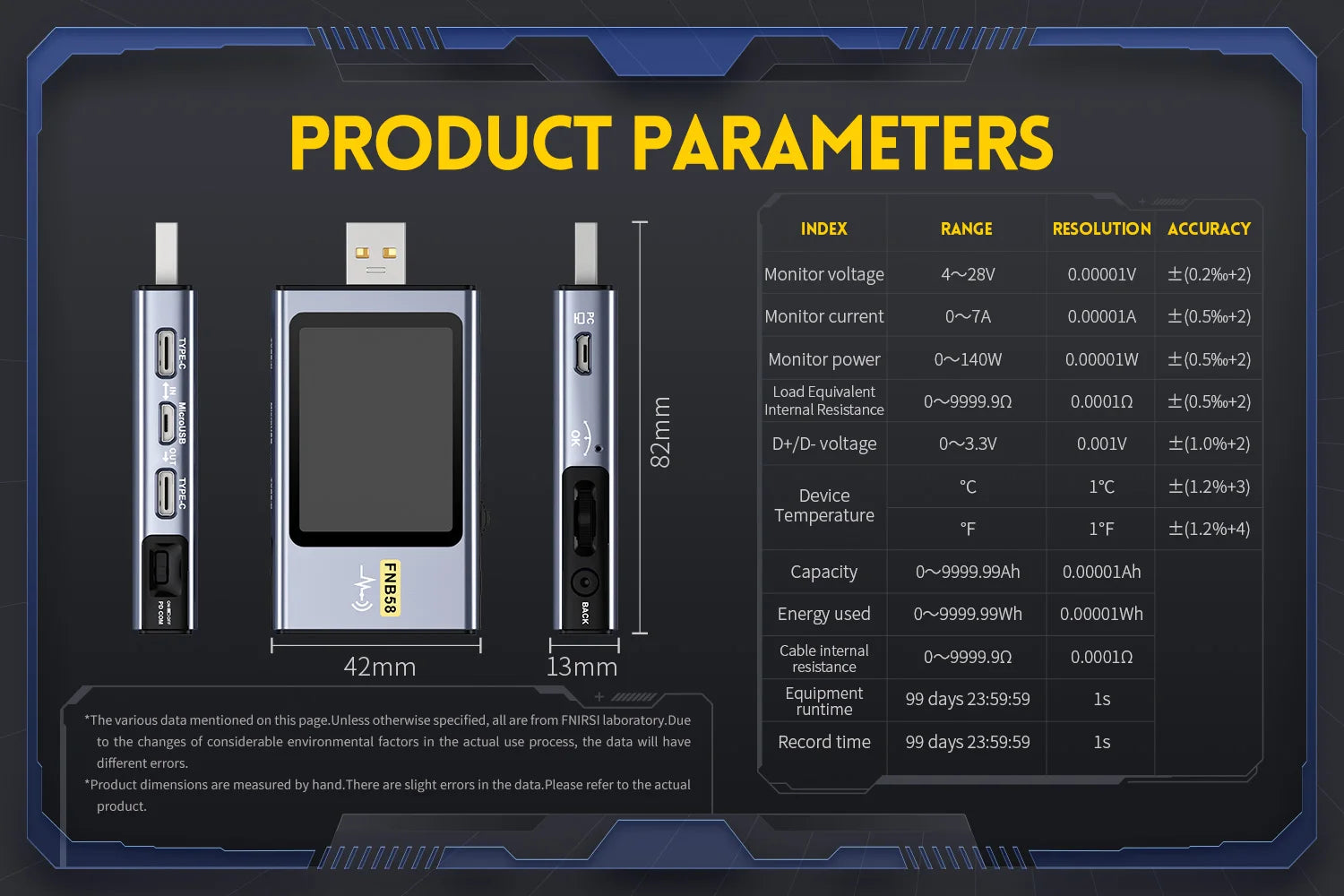

SPECIFICATIONS
Brand Name: FNIRSI
DIY Supplies: ELECTRICAL
Origin: Mainland China
Certification: CE
Model Number: FNB58
Monitor voltage: 4-28V
Monitor current: 0-7A
Monitor current: 0-120W
Load equivalent internal resistance: 0-9999.9Ω
D+/D- voltage: 0-3.3V
Capacity: 0-9999.99Ah
Energy used: 0-9999.99Wh
Cable resistance: 0-9999.9Ω
Equipmnt running time: 99days 23:59:59
Record time: 99days 23:59:59

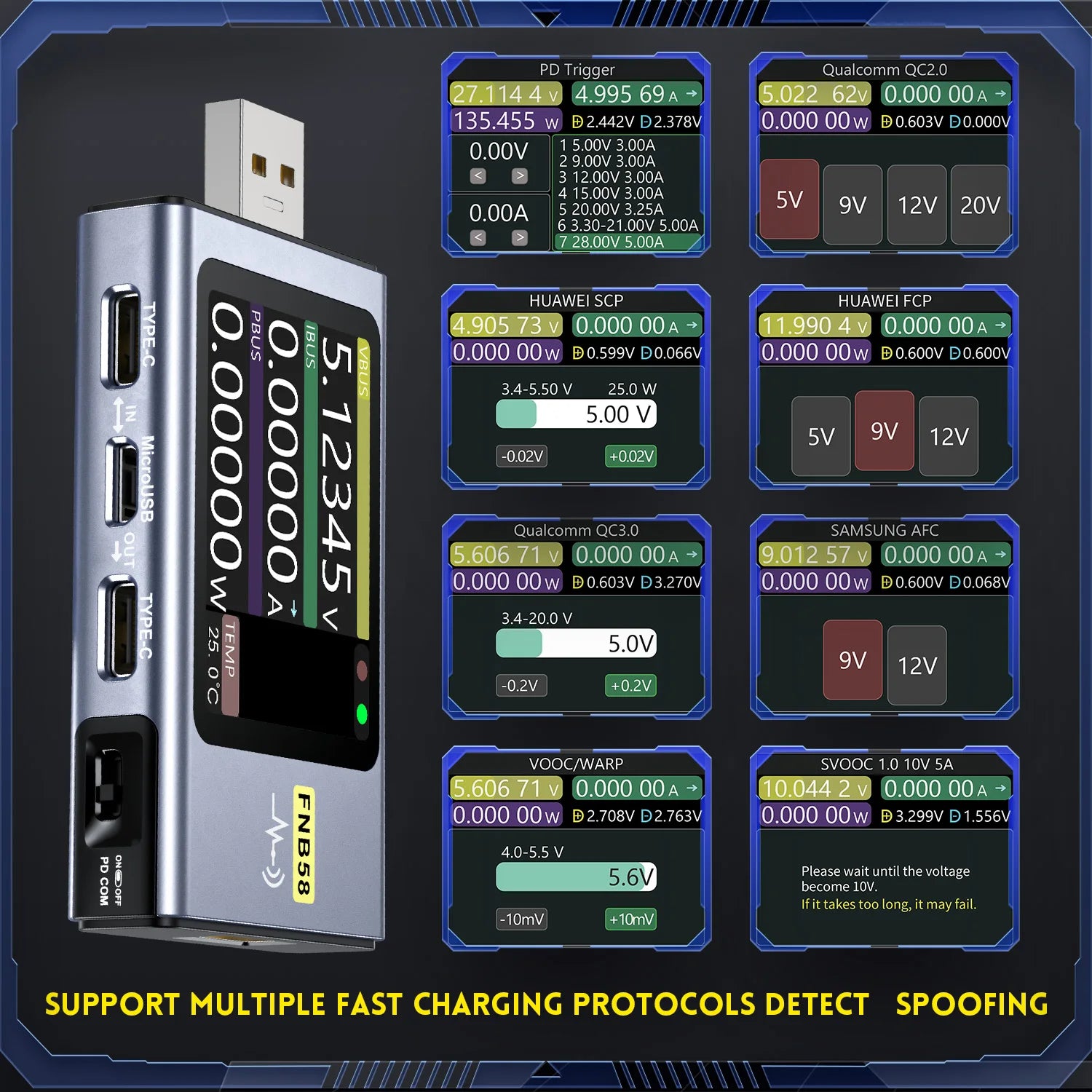

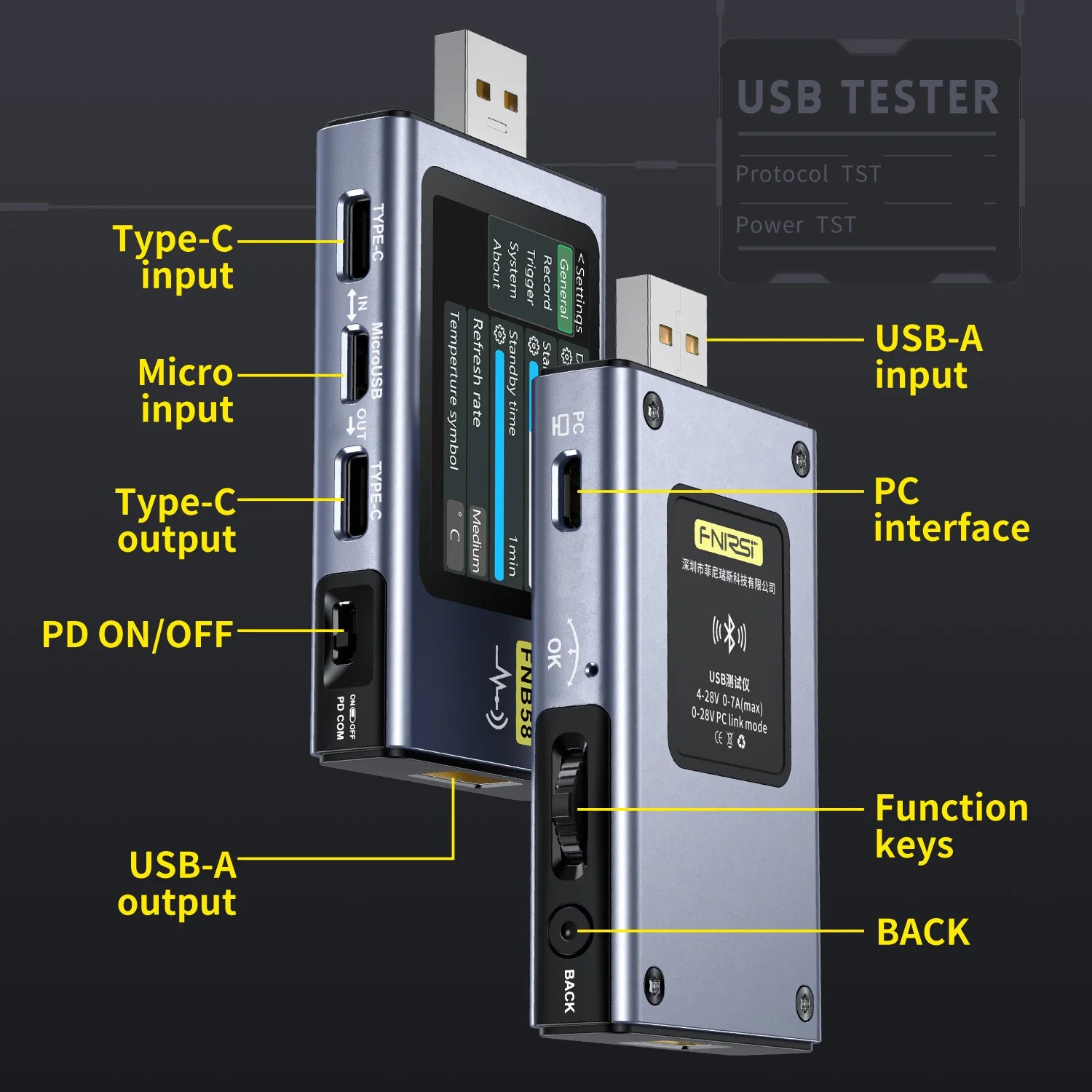

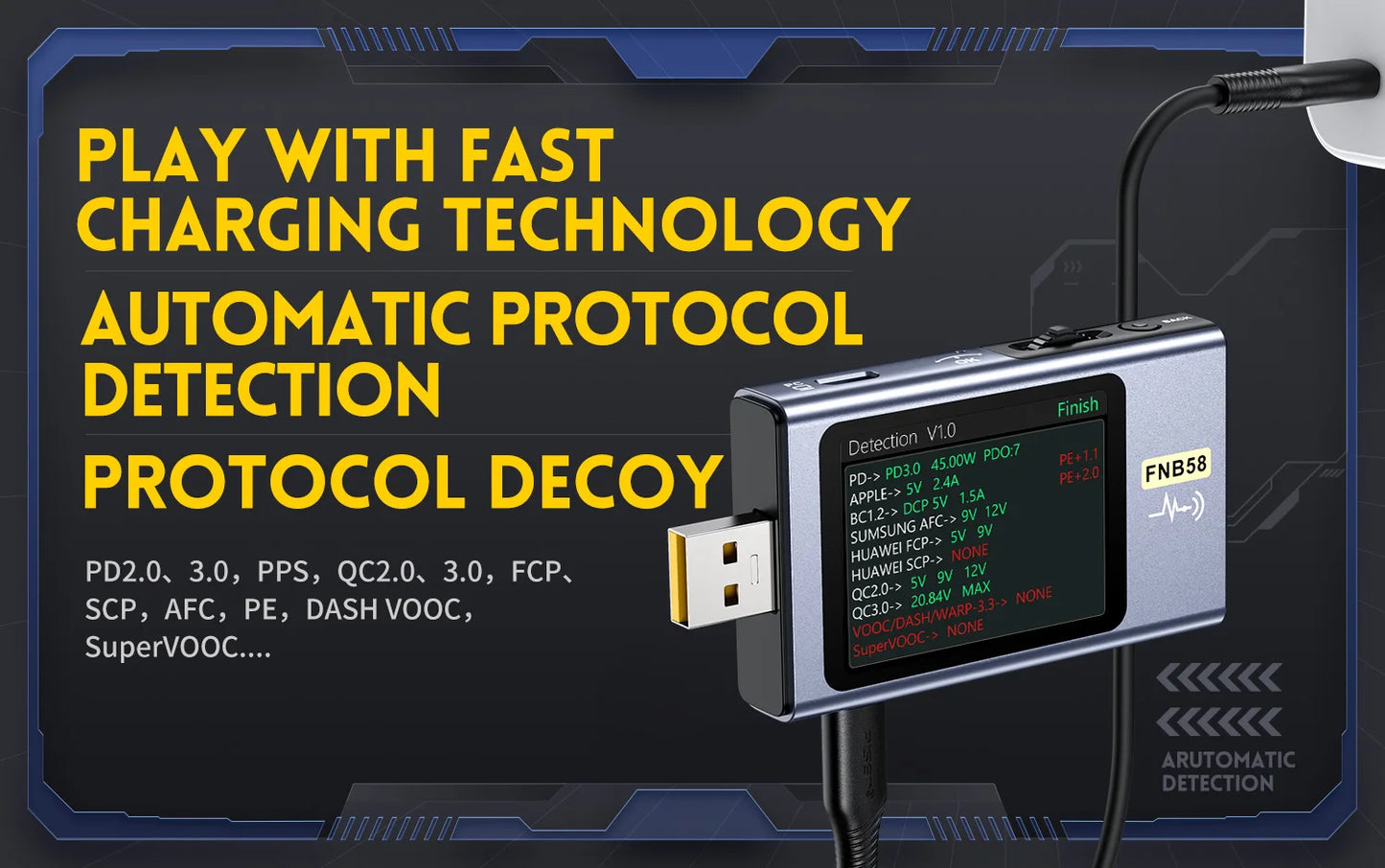

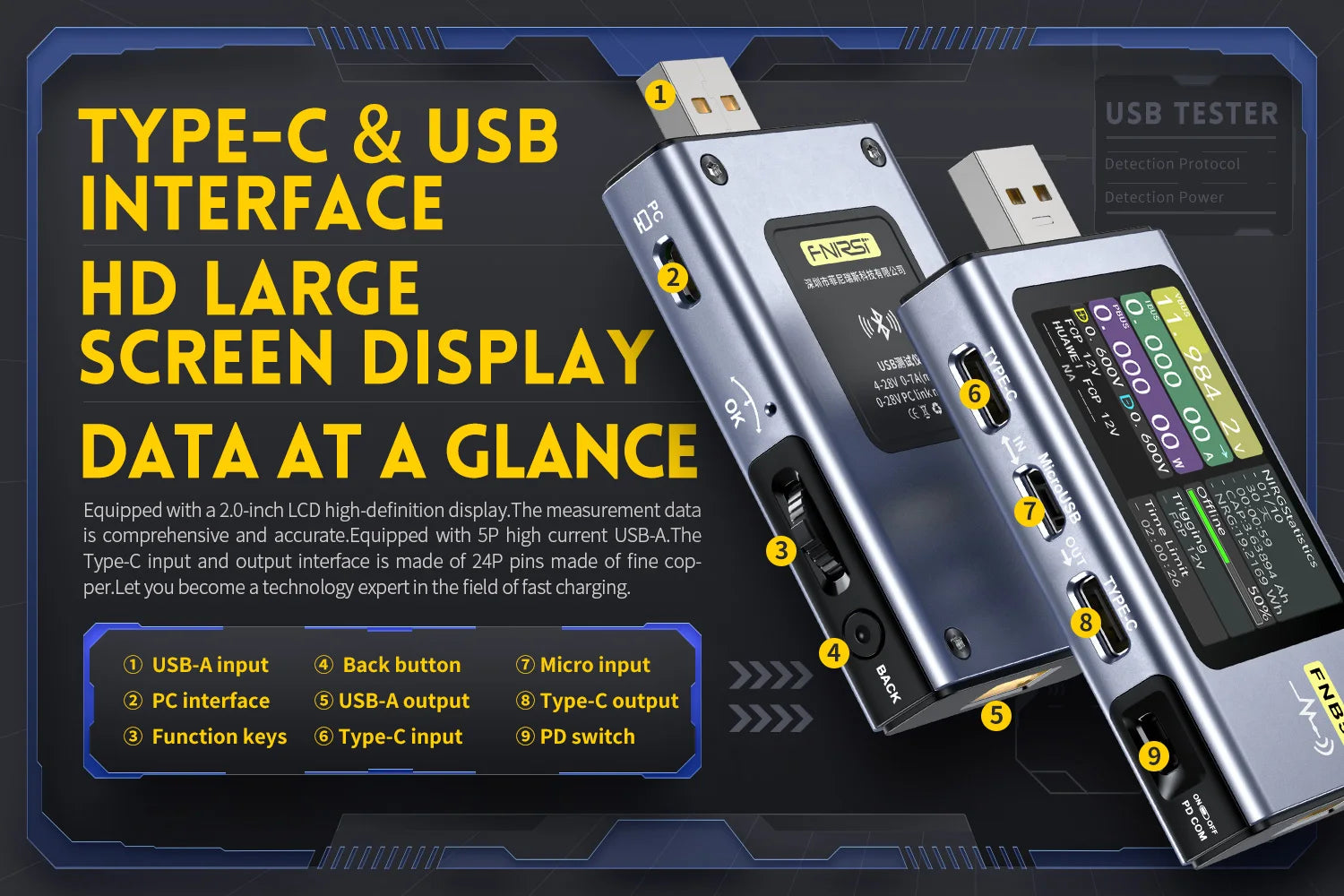

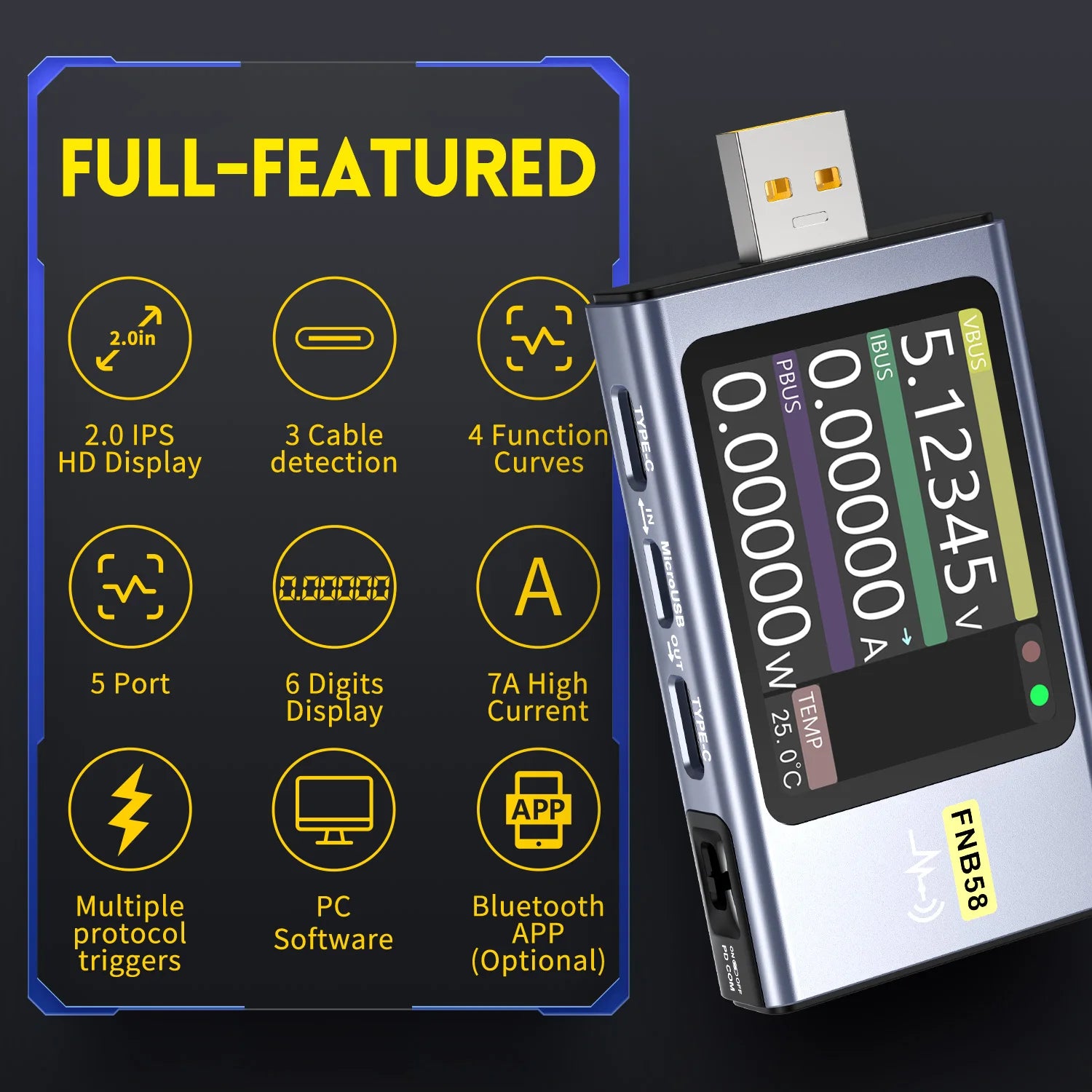

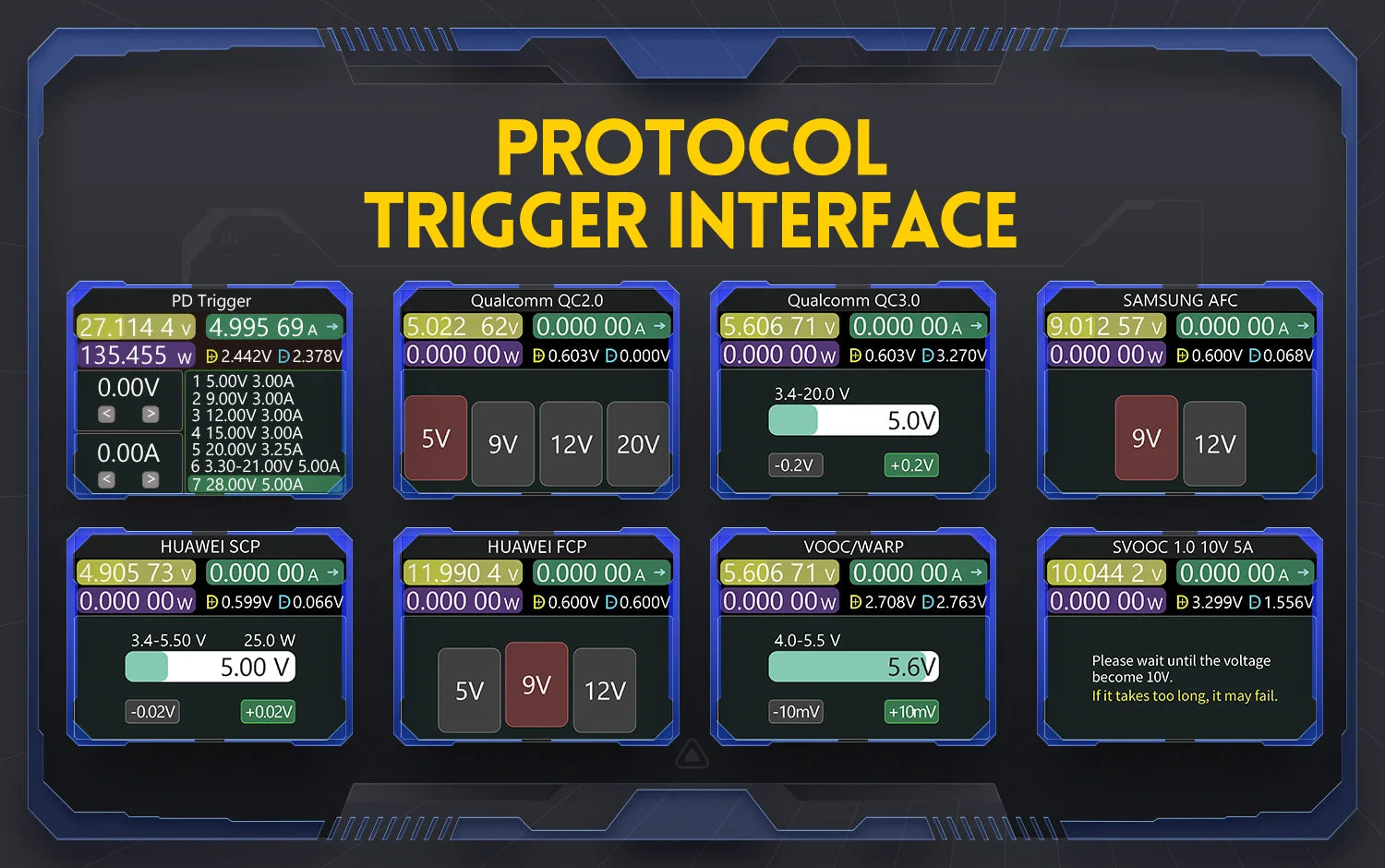

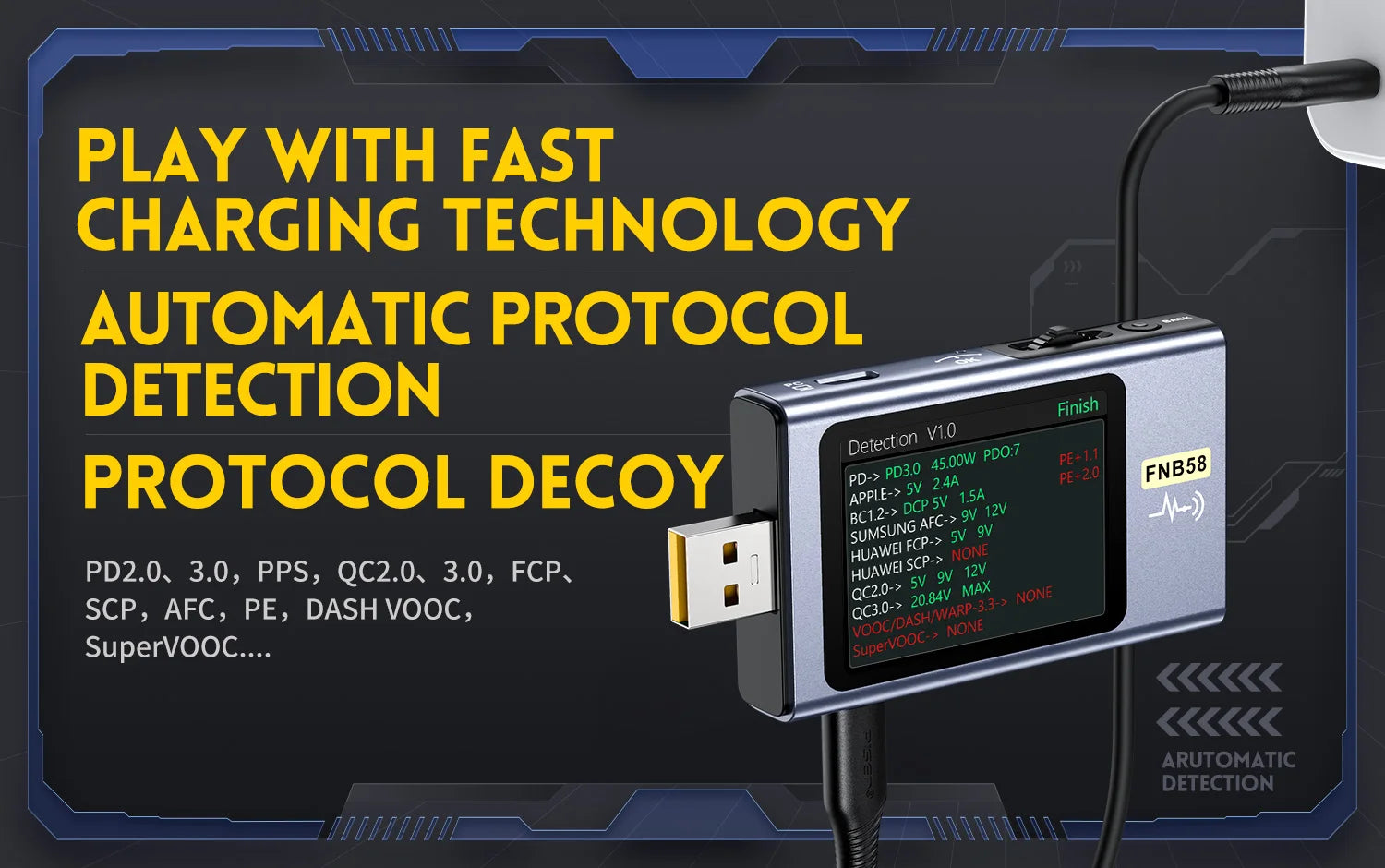

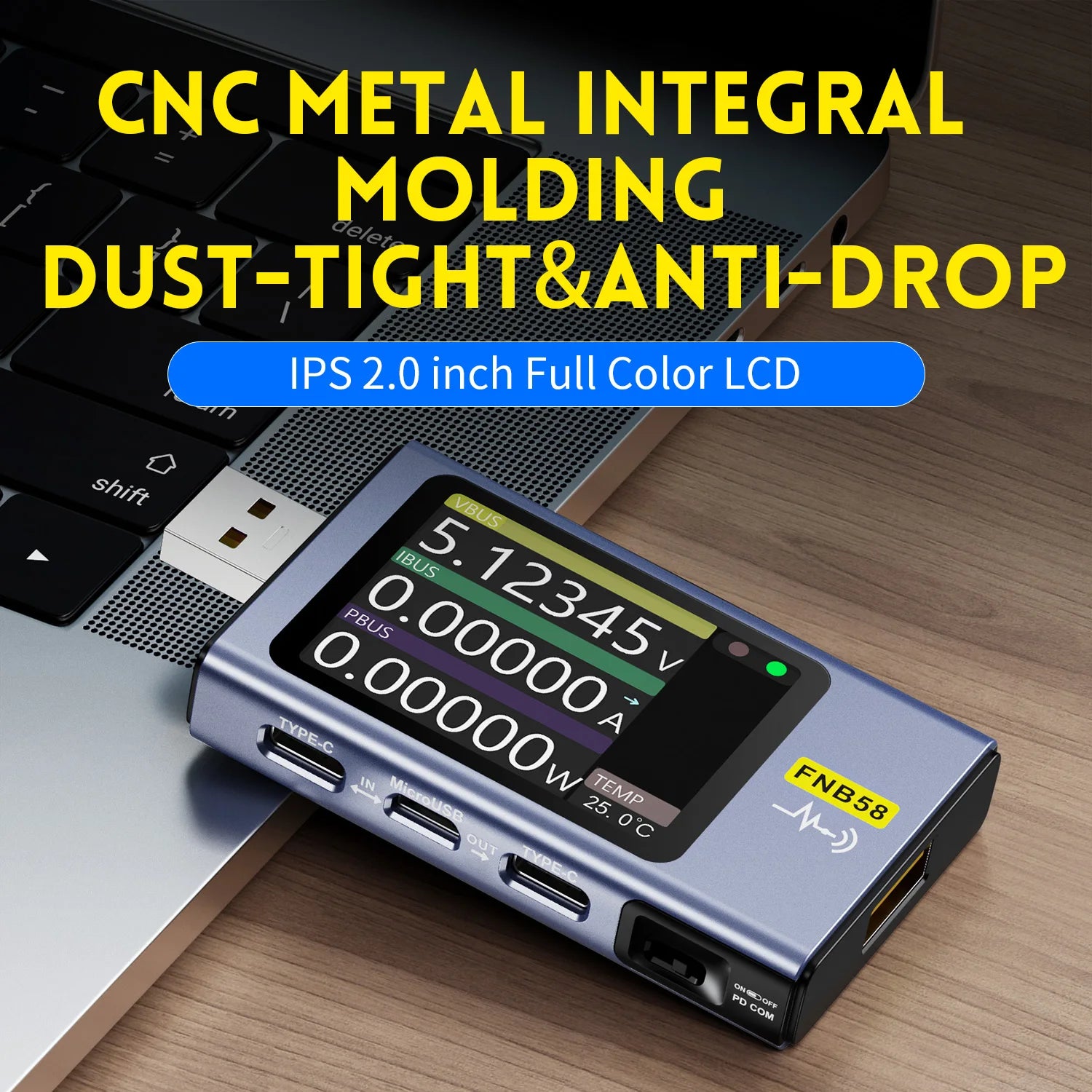

The FNB58USB tester is a high-reliability, high-safety USB voltage andcurrent detection meter and a mobile communication terminal fast chargingtrigger.It has a 2.0-inch full-color ultra-wide viewing angle TFT LCD display, integrated USB-A, Micro-USB, Type-C interface. Use external 16-bit ADC, PD protocol physical chip. It can be used to measure the power supply or power consumption of products such as USB interfaces, mobile phone chargers, and U disks; it can be used to measure the charging power of mobile phones and the input and output of mobile power supplies; it can be used to test the fast charging protocol of chargers.
Monitor voltage：4～28V
Monitor current：0～7A
Monitor power：0～120W
Load equivalent internal resistance：0～9999.9Ω
D+/D- voltage：0～3.3V
Equipment temperature：℃/℉

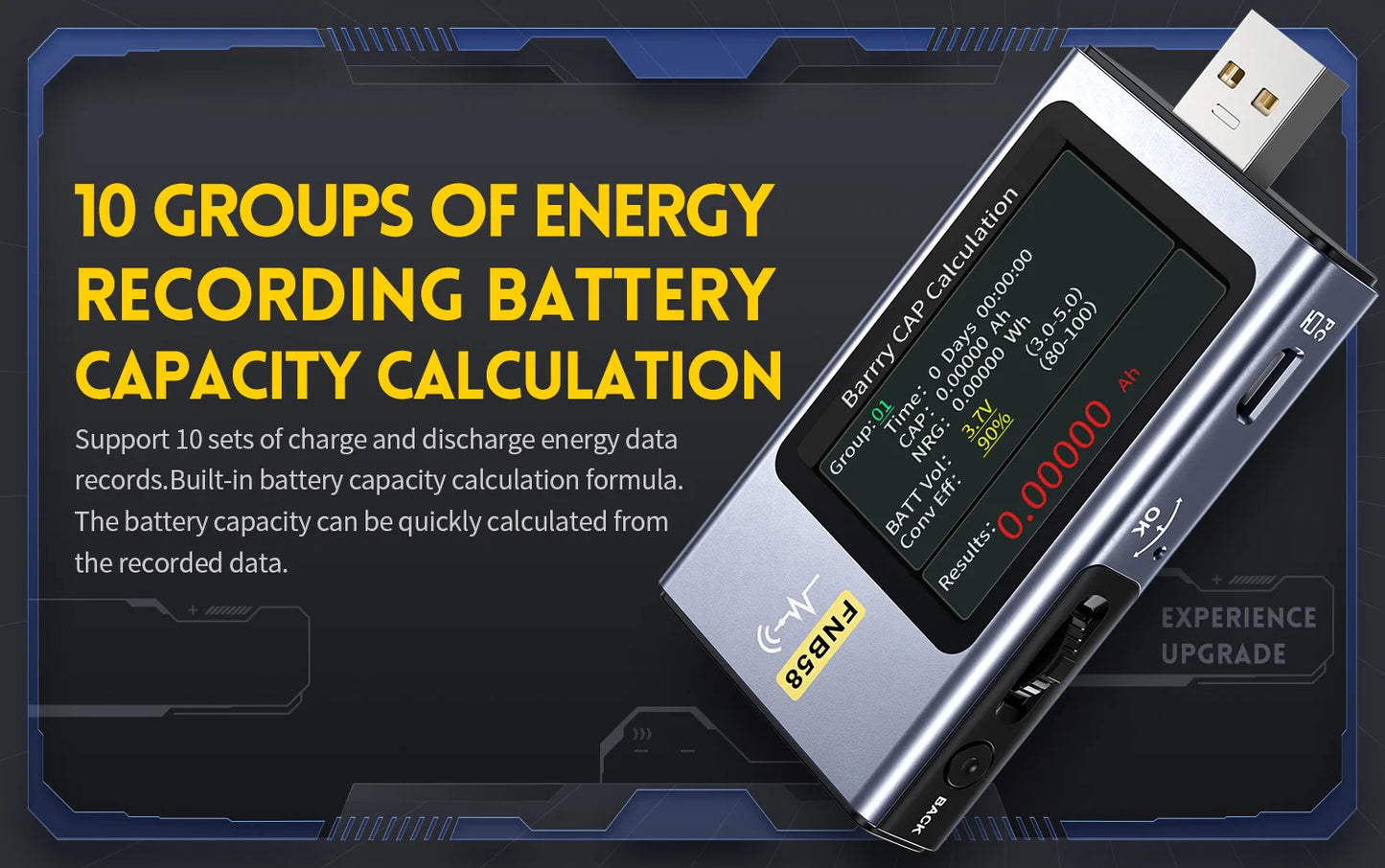

Capacity：0～9999.99Ah
Energy used：0～9999.99Wh

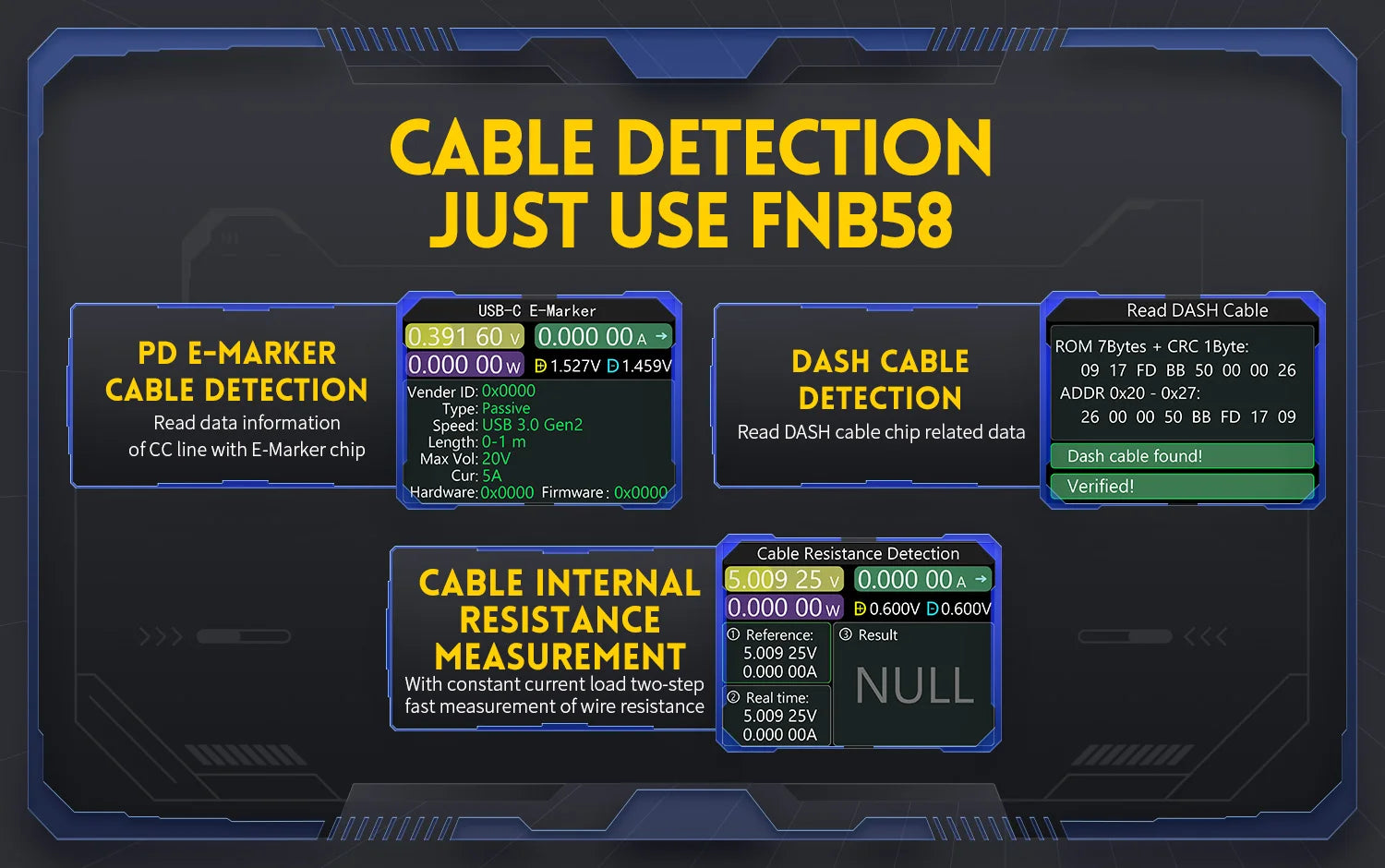

Cable resistance ：0～9999.9Ω
Equipmnt running time：99d23h59min59s
Record time：99d23h59min59s
