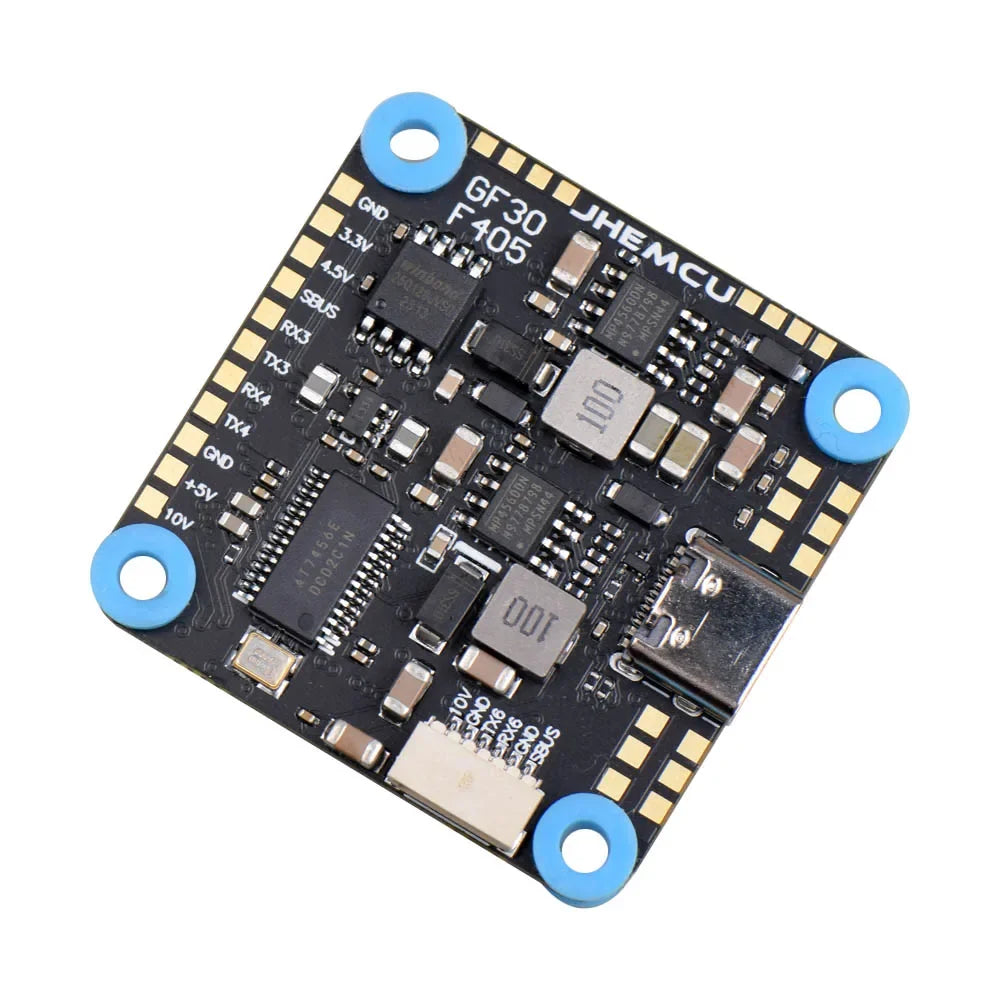

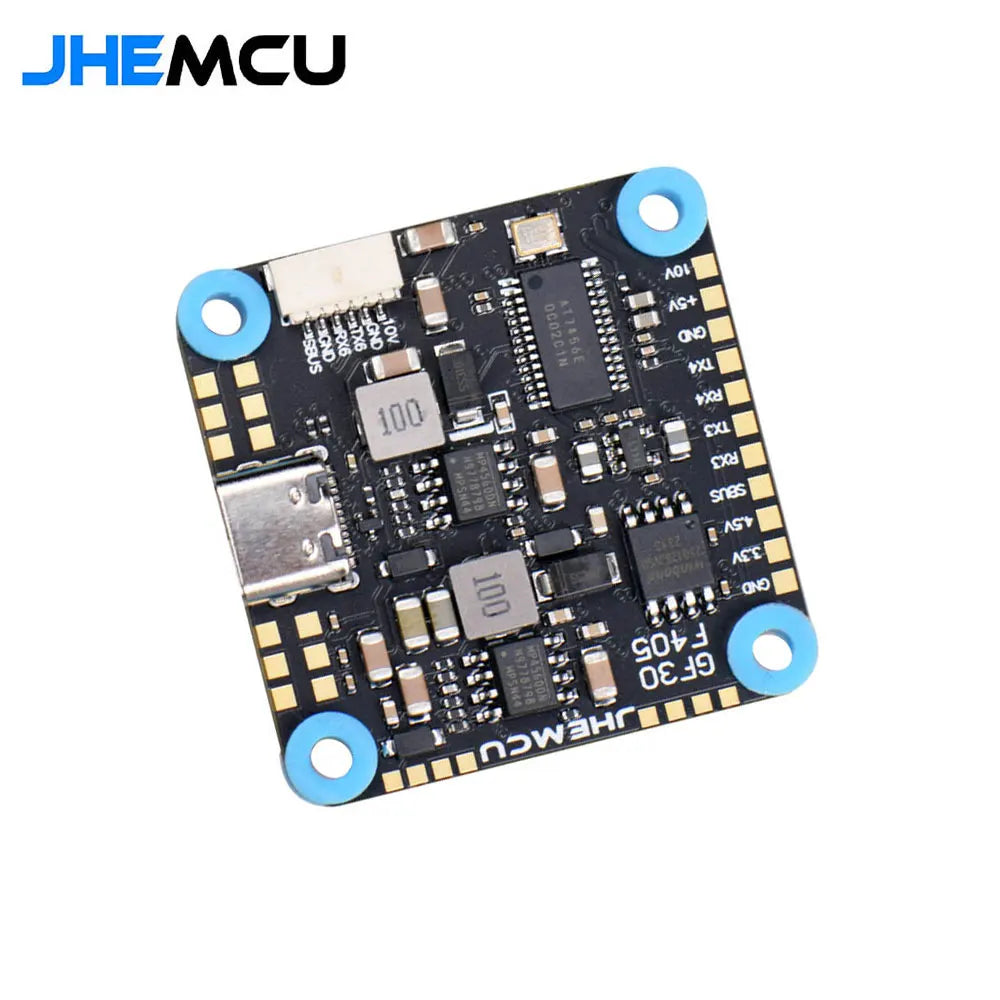

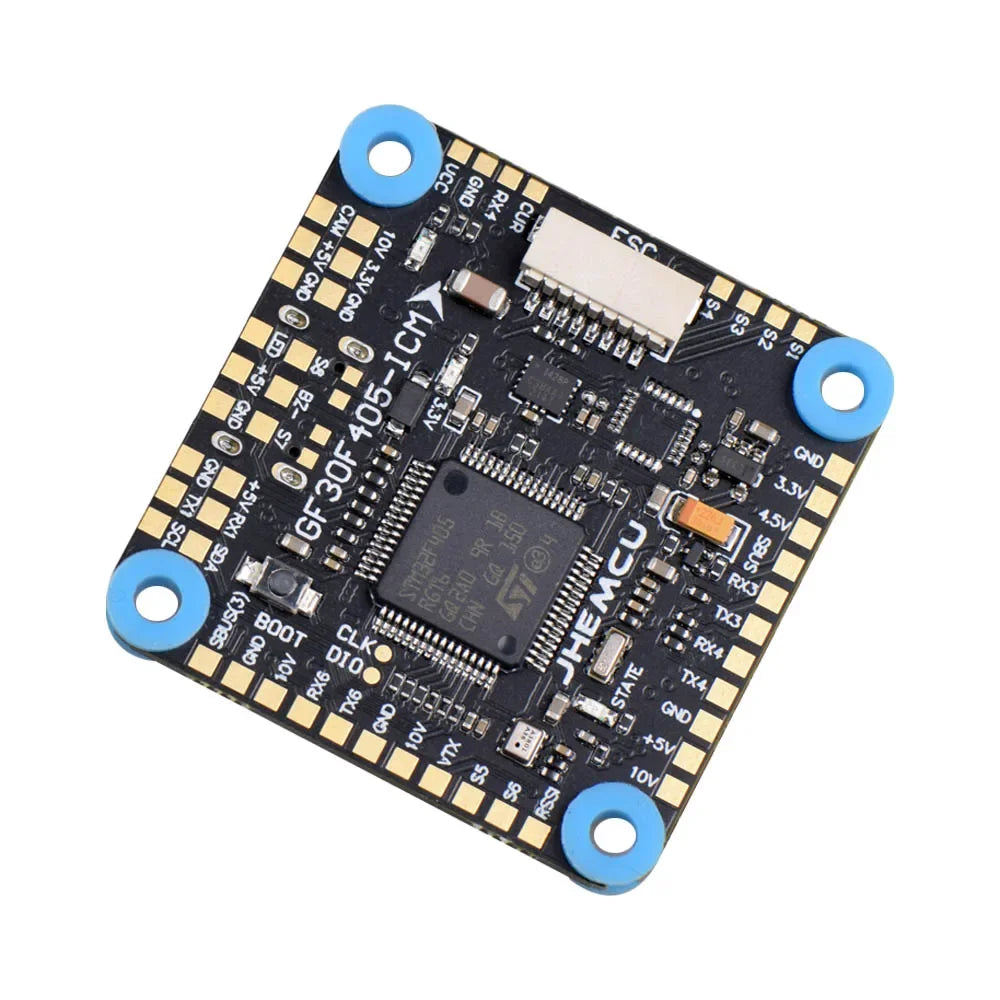

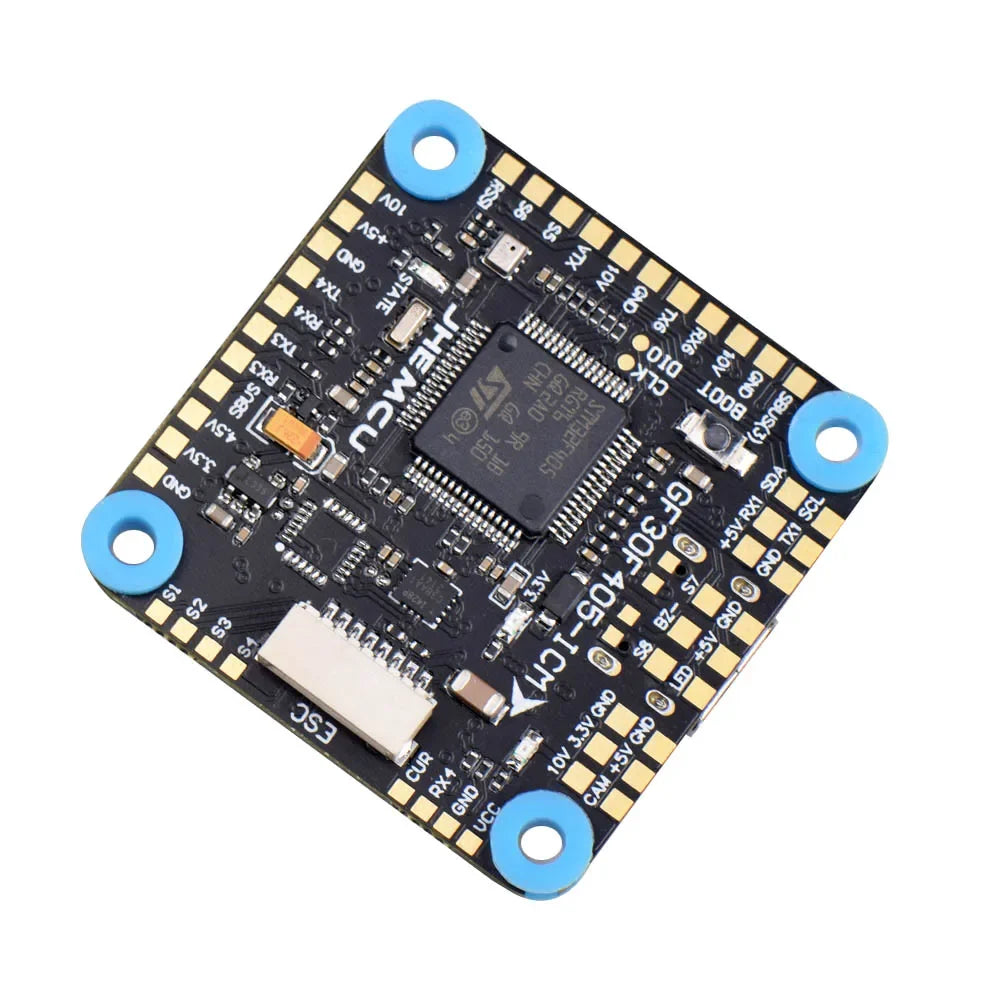

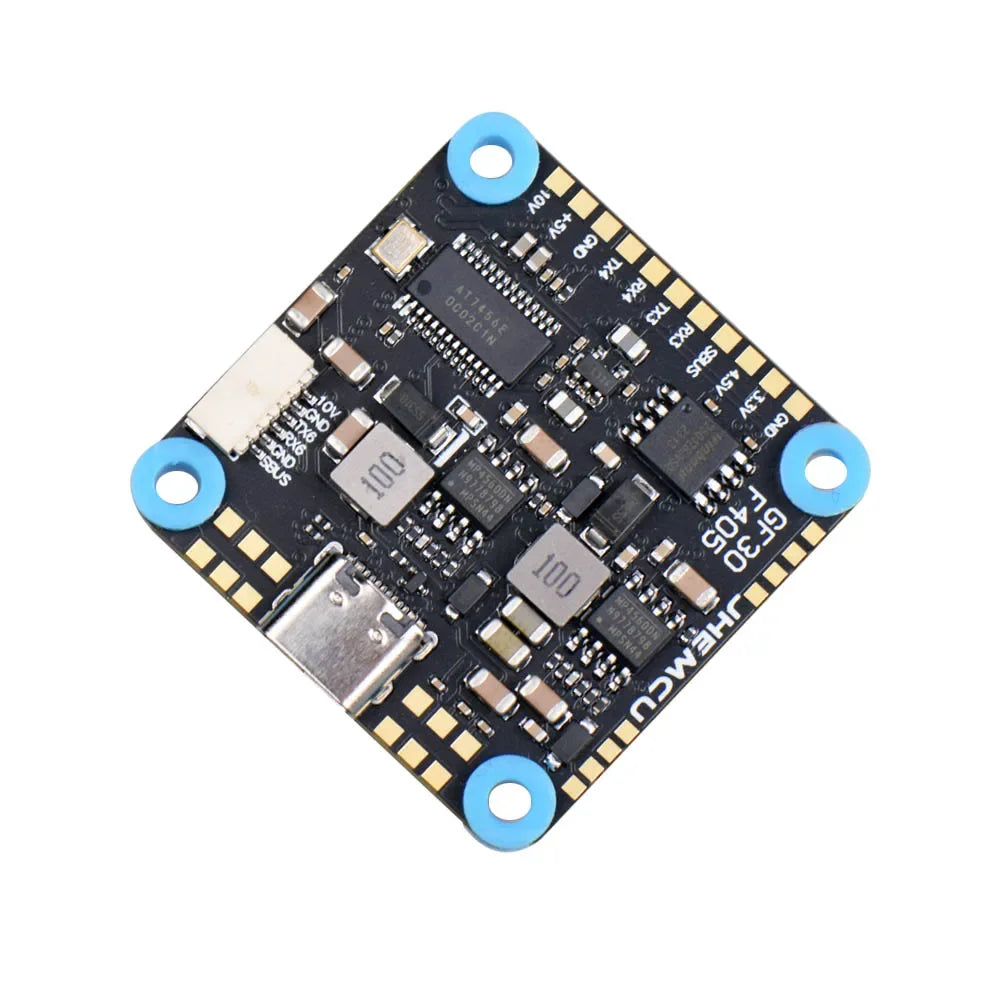

JHEMCU GF30F405-ICM Baro OSD BalckBox 5V 10V Dual BEC F405 Flight Controller 3-8S 30X30mm for RC FPV Freestyle Drone Parts
JHEMCU GF30F405-ICM Baro OSD BalckBox 5V 10V Dual BEC F405 Flight Controller 3-8S 30X30mm for RC FPV Freestyle Drone Parts
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: JHEMCU
Choice: yes
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: Assemblage
Hign-concerned Chemical: None
Is Electric: No battery
Material: Composite Material
Model Number: JHEMCU GF30F405-ICM
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Flight Controller
Recommend Age: 14+y
Remote Control Peripherals/Devices: Remote Controller
Size: as show
Technical parameters: KV1100
Tool Supplies: Assembly Category
Upgrade Parts/Accessories: Flight Controller
Use: Vehicles & Remote Control Toys
Wheelbase: Bottom Plate
JHEMCU GF30F405-ICM Baro OSD BalckBox 5V 10V Dual BEC F405 Flight Controller 3-8S 30X30mm for RC FPV Freestyle Drone Parts

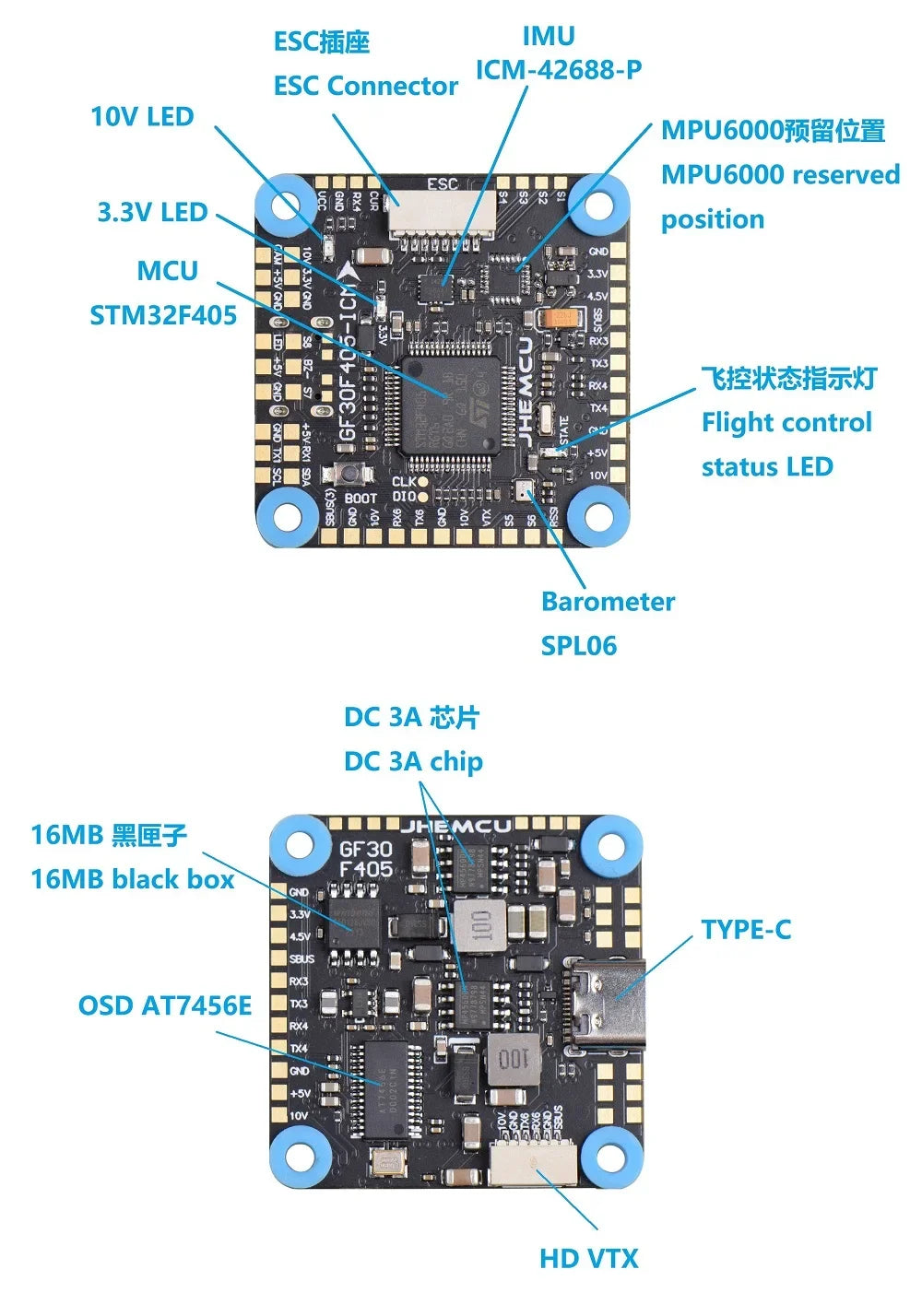

Specifications:
MCU: STM32F405RGT6
Power supply: 3-8S (11V-36V)
Signal Protocol: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300,Dshot600.
Sensor: ICM-42688-P
Size: 36*36mm (30.5mm mounting hole, 4MM diameter)
Firmware version: Betaflight JHEF405pro / INAV_6.1.0_JHEMCUF405
Black box: 16MB
Barometer: SPL06
OSD: Support
Support DJI VTX: with reserved interface
USB: TYPE-C interface
IIC: Support

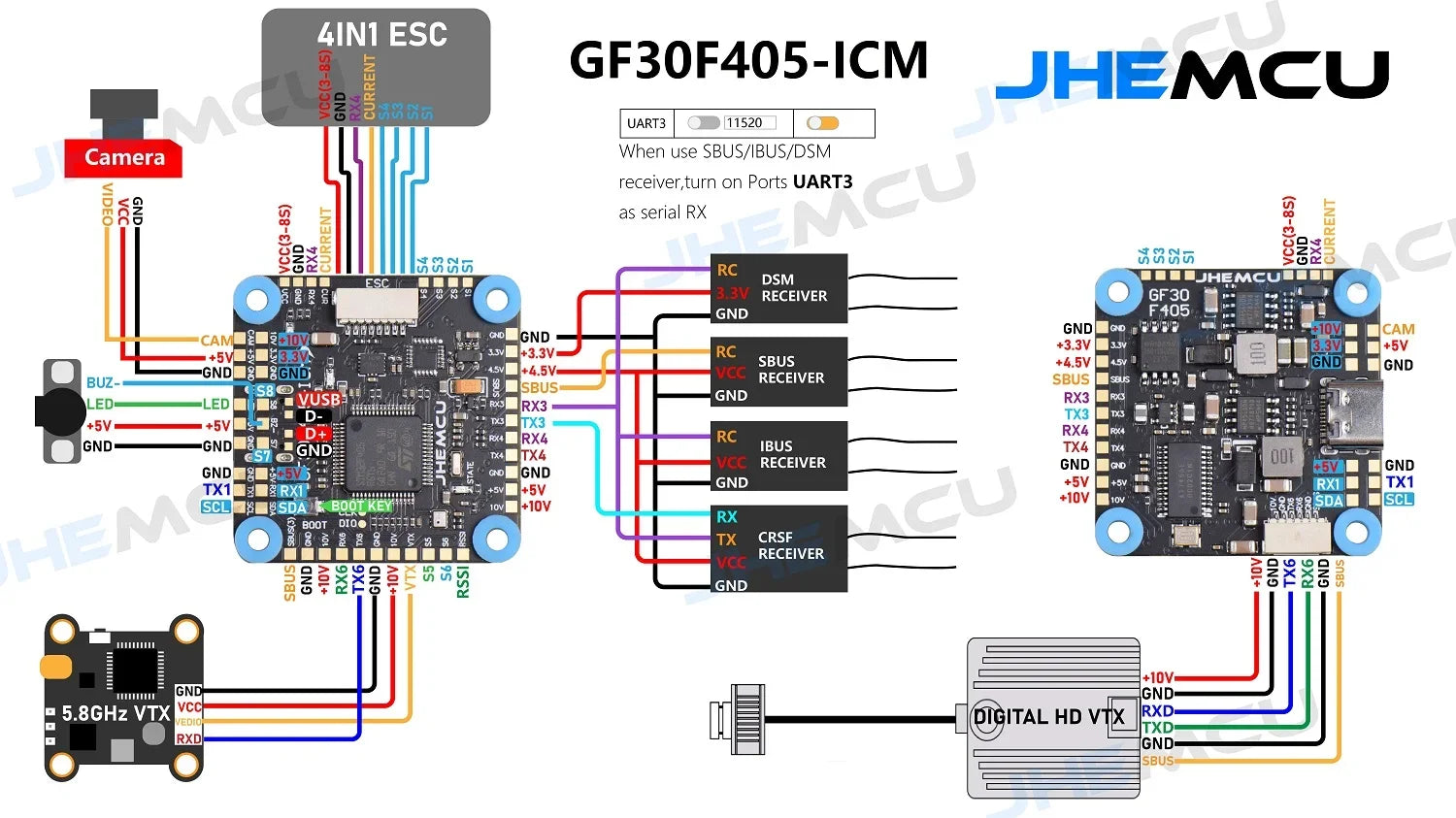

UART: 4 ways, UART1, 3, 4, 6, where UART3 is the receiver
BEC: BEC 5V/3A and 10V/2A
Receiver: SBUS, IBUS, DS M2/X, TBS, CRSF, etc.
Support WS2812 programmable LED
Support buzzer
Built-in voltage sensor with current detection port

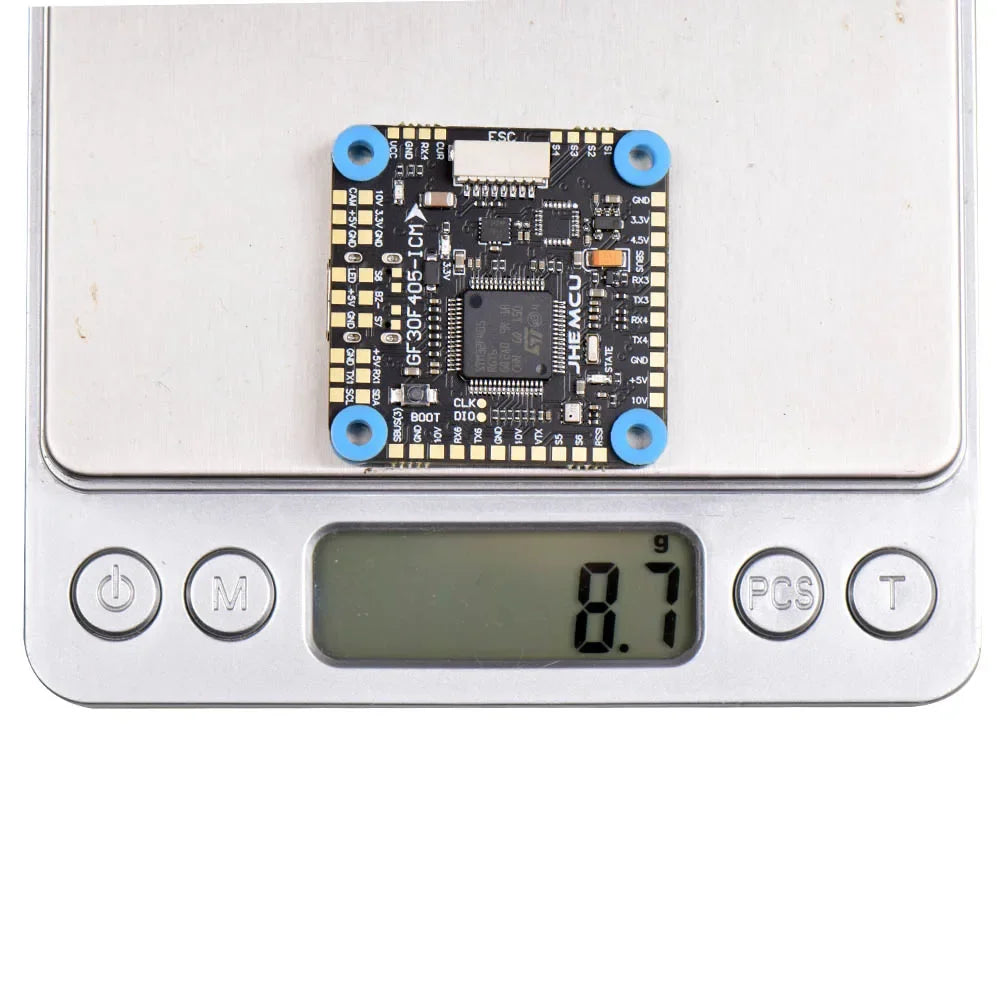

Weight: 8.7g

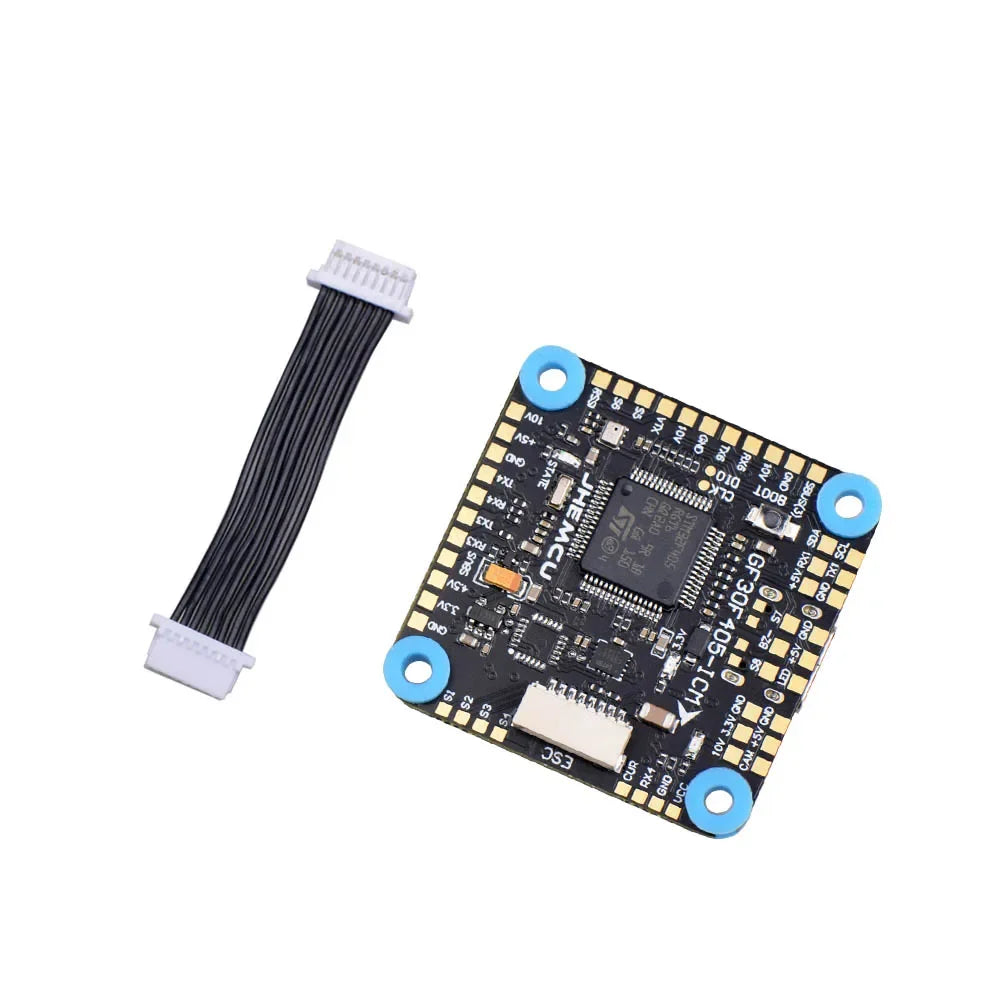

Packing List:
GF30F405-ICM *1
8P plug cable *1
M3 shock absorption ball *4
