Note before Order, please test compatibility

Please check if your garage controller is compatible with our module.

Take a wire with both ends stripped or a straightened-out paper clip to short-circuit the wall button terminal on the opener (I marked with red color). If the garage door opens or closes, it can work with our smart controller.

Features

REMOTE MONITORING: You can open or close the door by the APP. You can check the garage door open or closed state in real time. You can authorize multiple people to access your garage.

EASY TO USE: Instantly control the garage door by tapping the EweLink app on your smartphone. Just connect the smart opener to the 2.4G WiFi network.

VOICE CONTROL: You can activate your garage door opener by placing a voice command to your Alexa or Google Assistant device or driving near the garage door

WIDE COMPATIBILITY: You can only use one controller per garage door opener. Compatible with most general garage door openers.Please check the our list.

TIMER FUNCTION: You can set schedules to open and close your garage door. Quick & easy installation as well without the need of a professional.

COUNTDONW FUNCTION: You can set the countdown time to close or open the garage door.

EASY ADD DEVICE:

1.The garage door will be activated when added successfully (when the blue LED light stop blinking), so keep your door closed first.

Power up the garage, and the ren light and blue light flash alternatively.

2. Launch "EweLink" APP. Tap the icon '+' on the top right corner.

3. Select the "All Devices", then select the "Wi-Fi Connector" type.

4. Tap "Confirm indicator rapidly blink"

5. Input the correct 2.4G Wi-Fi passwords. Then, tap confirm.

6.It will auto-connect with the device. Once the process is completed,it will prompt you that you can rename the device. Enter a new name and press'Save'.

Description

Cutover current≤ 10A

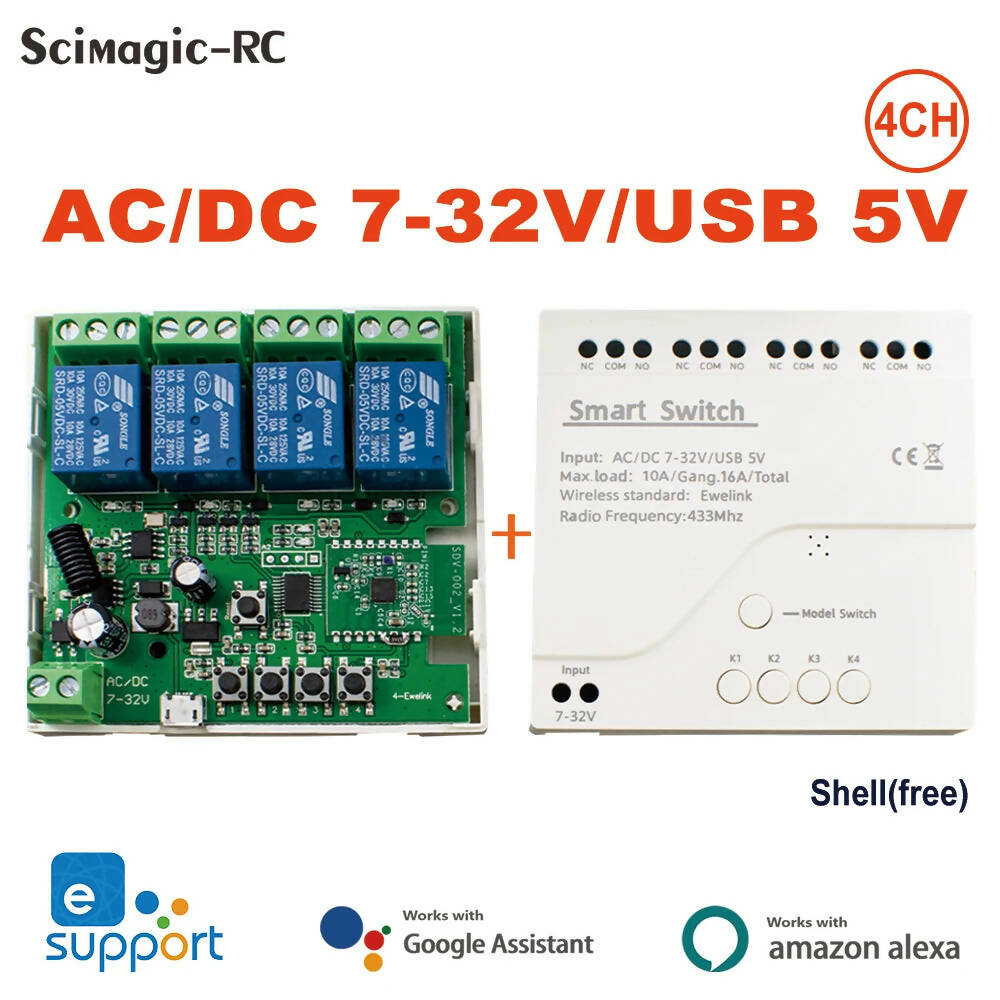

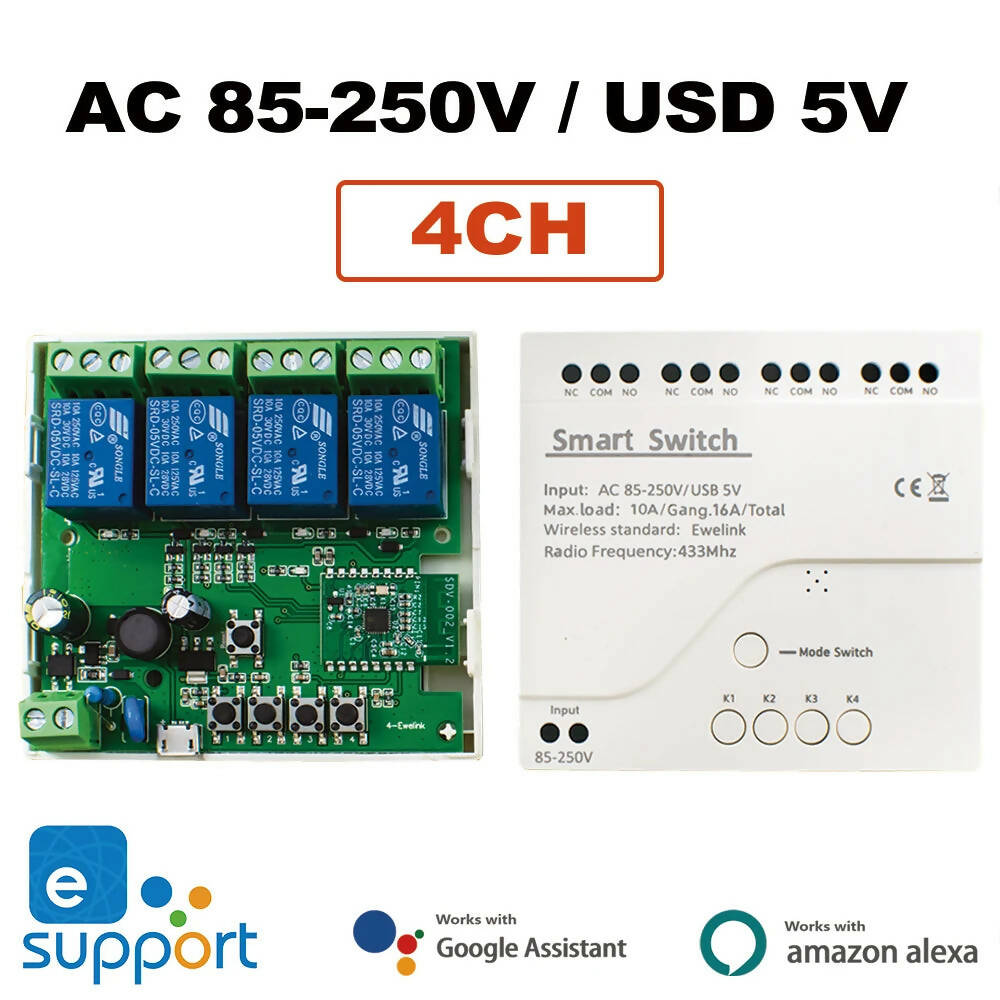

Voltage：AC/DC 7-32V input,AC 85-250V input
Output: No output
Working Temperature: -20 to 70degree
Working Humidity: 40% to 80% RH
WIFI Standard:2.4GHZ, 802.11 b/g/n(don't support 5G)

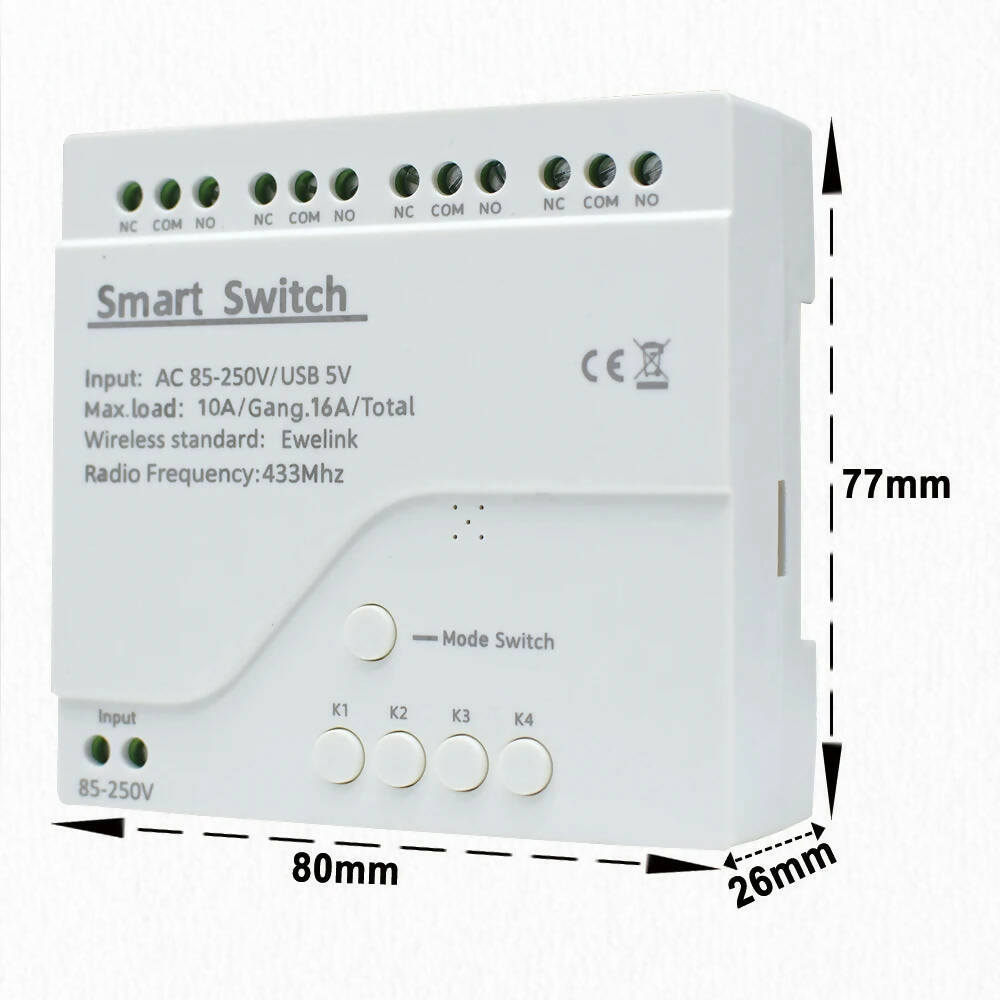

Size:120*38*25mm
APP: WeLink
Remote :1527 RF 433.92MHz Learning Code Remote Control (Not include)

Selling Point

1.Supports WiFi network,remotely turn on or off connected appliance/light;
2.Supports status tracking: device status timely provided to the "EWeLink";
3.Supports max 8 enabled scheduled/countdown/loop timers for each device;
4.Supports numerous WiFi smart switches on one smart phone;
5.Works with Amazon Echo, Echo Dot, Amazon Tap;
6.Works with Google Home and Google Nest.

Smart Wifi Garage Door Opener Controller

Just one of this Garge door opener controller to make the garage smart,without any change , to open and close the garage door by phone ,by schedules ,by voice (work with alexa & google home)etc.

Schedules

Auto open or close the electrical appliances with your schedules or countdown. Automatically detects the status of the garage door more safer without false running.

Garage Door Open/Close APP Message push & History

No matter where you are，You will get the APP message push when your Garage door opened/closed, and you can check the Garage door running history.

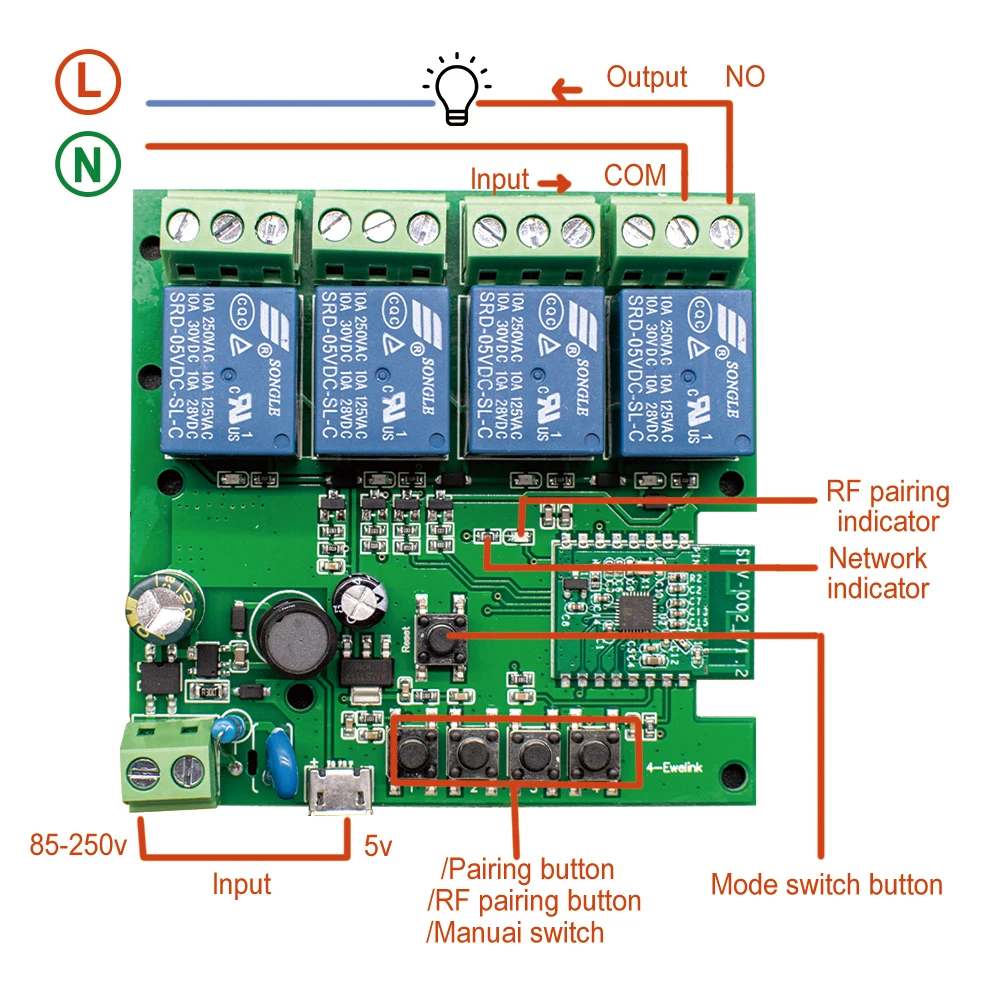

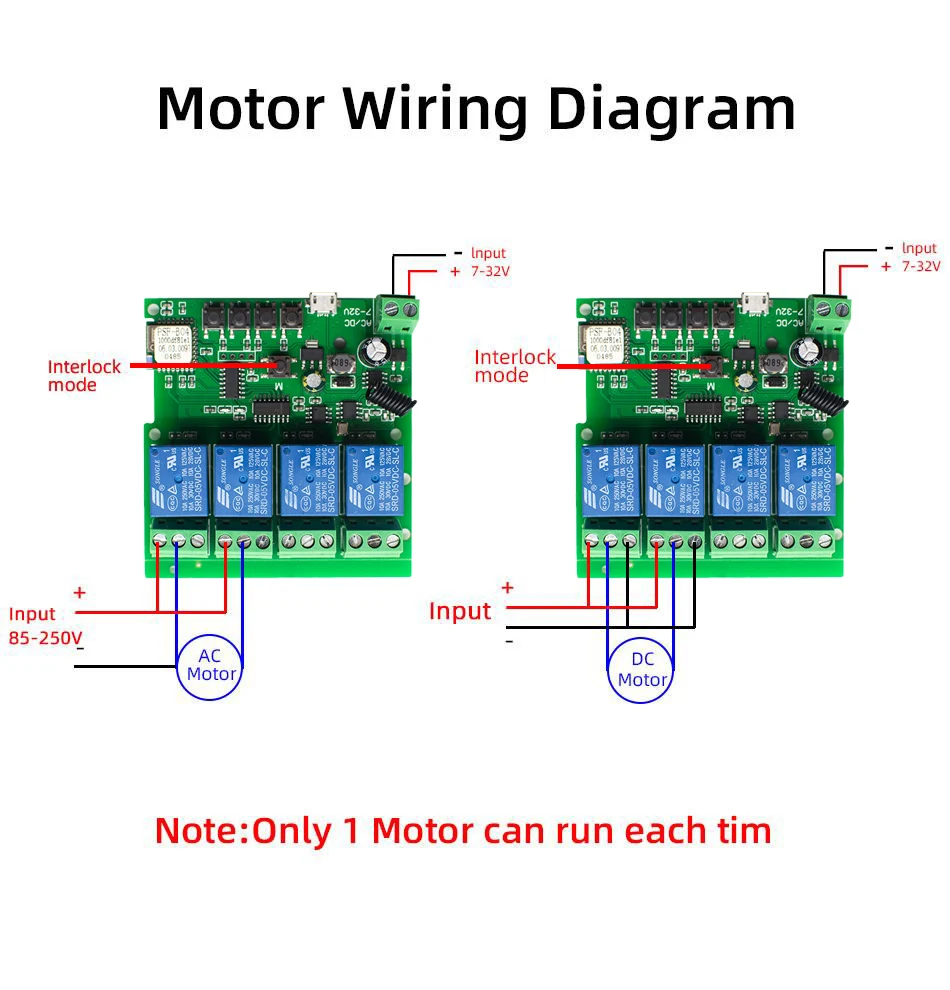

Wiring Diagram

How to learning 433mhz and Clearing code?

Learning:
1.hold 433 Pairing button(R1 or R2) for 4 seconds
2.Long press any key match on remote,pairing successfully
Clear code:
Long press the pairing button for 10-15 seconds
