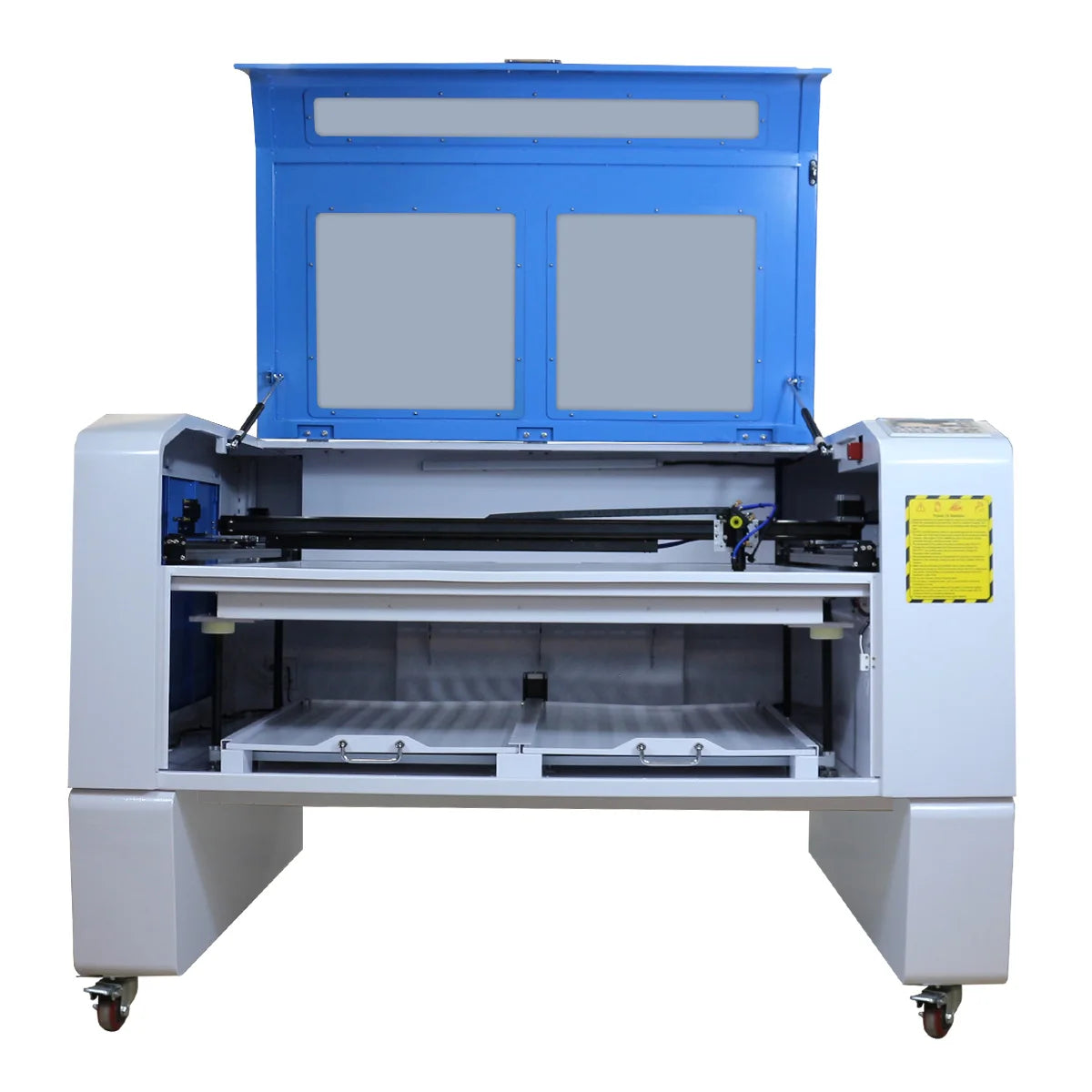

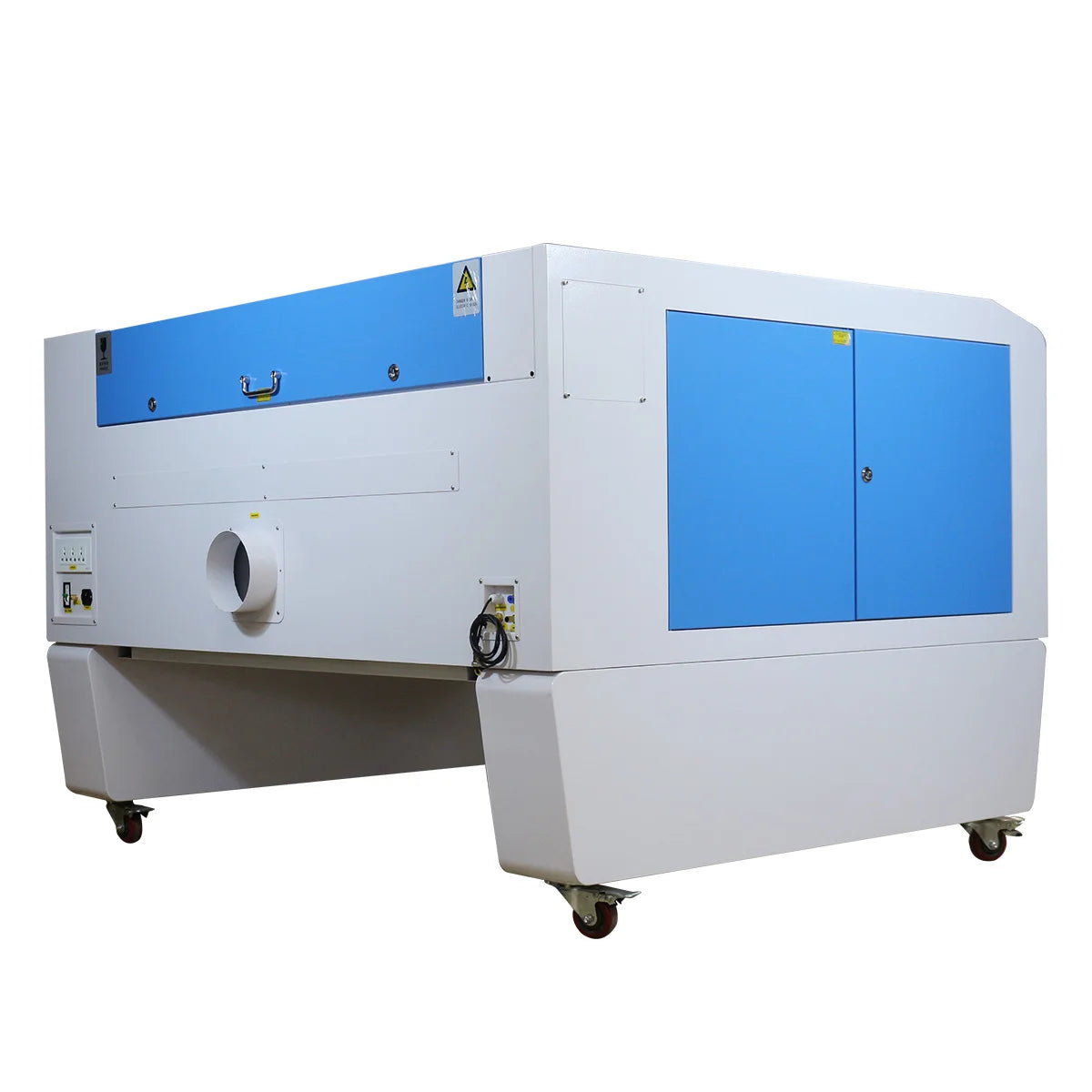

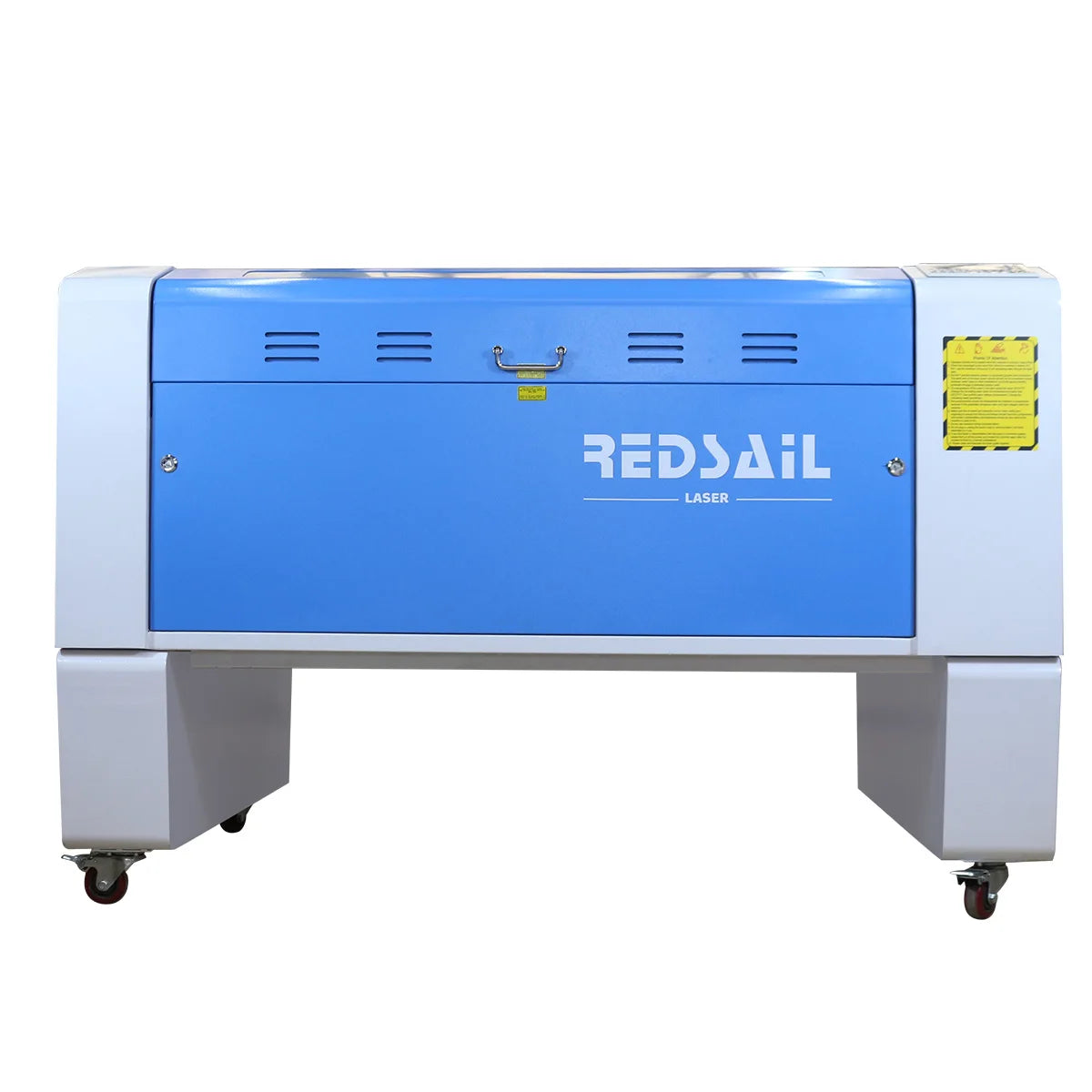

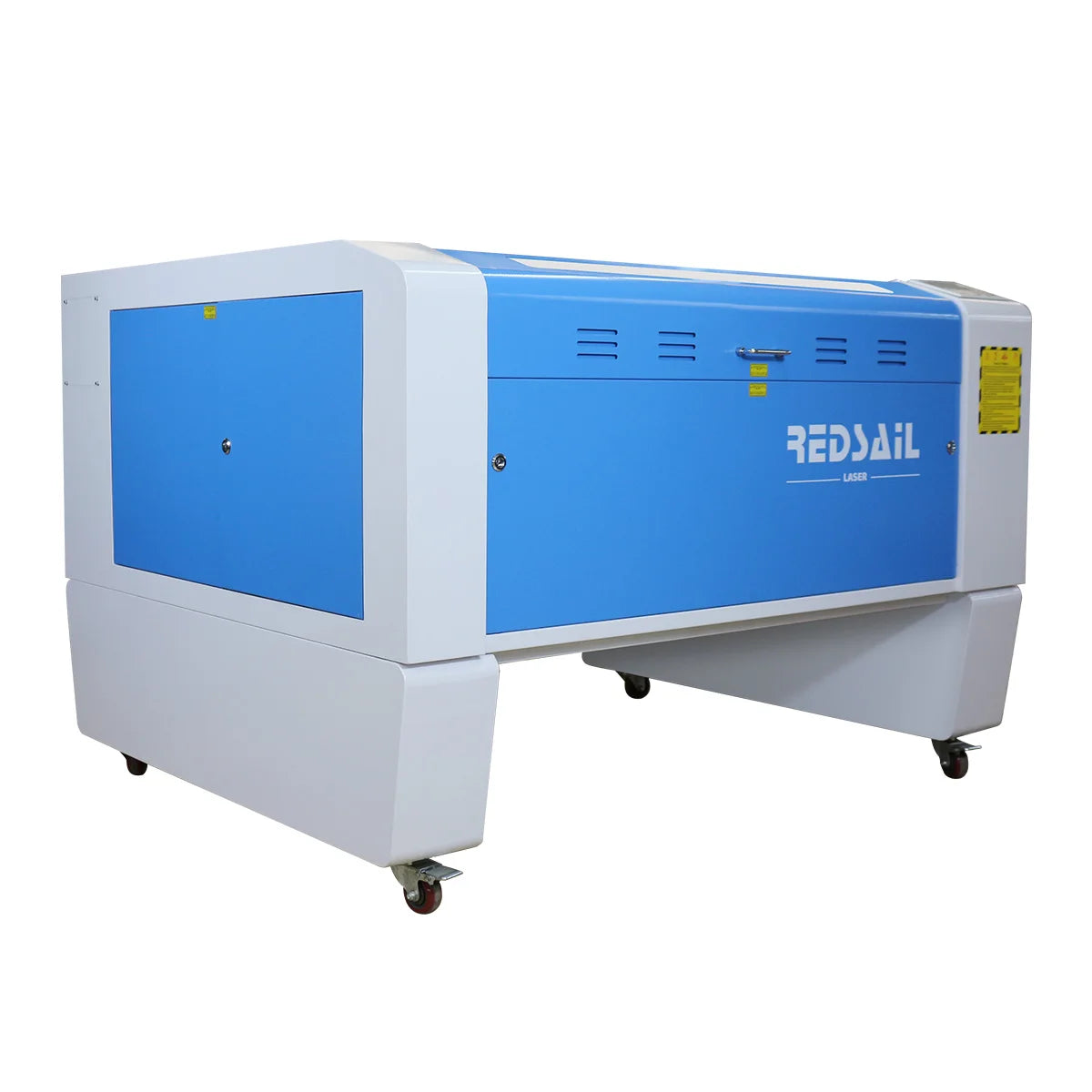

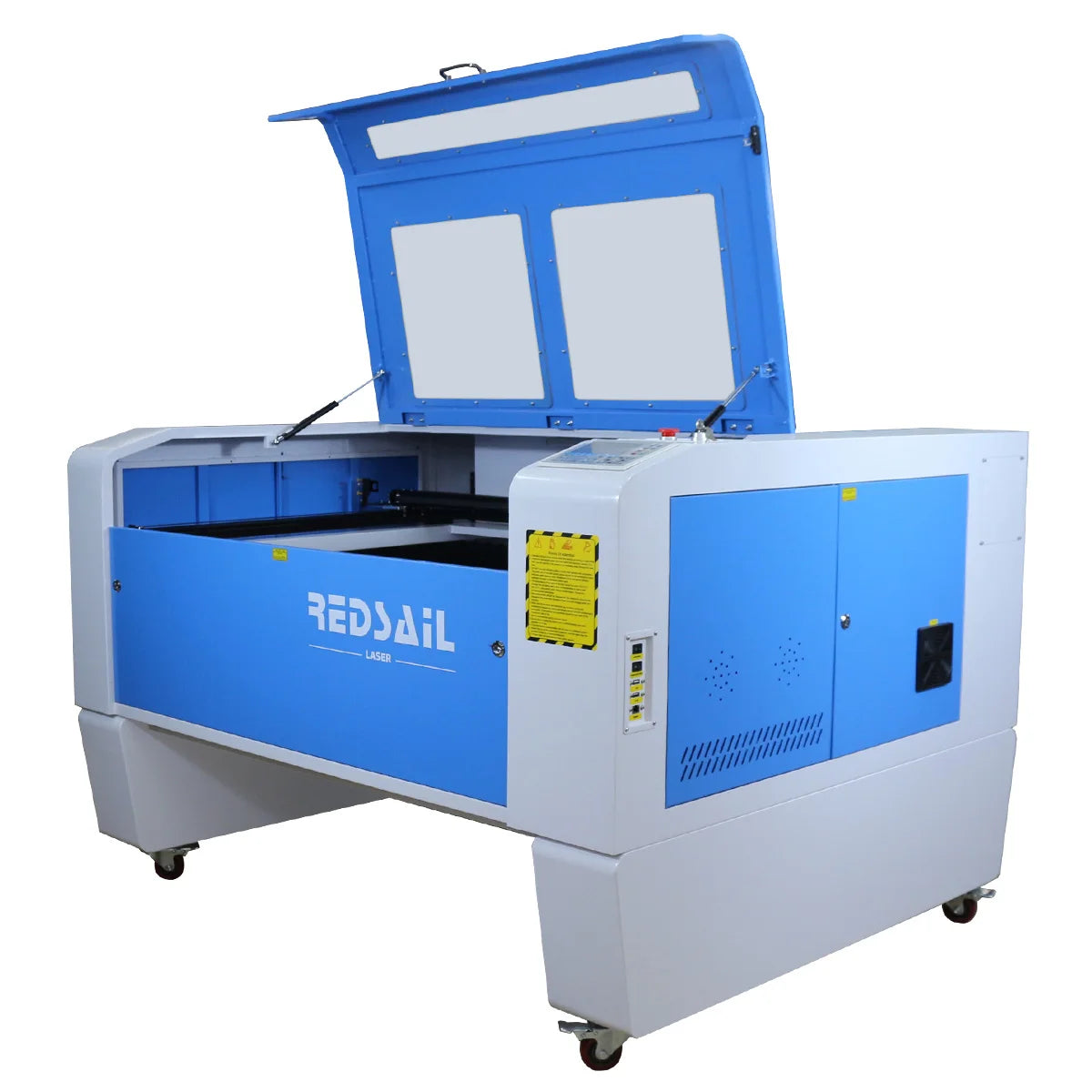

1000x800mm Laser Engraving & Cutting Machine
80W Laser Tube+Topwisdom A3 System+Red Dot+CW-3000 Chiller
Shipping is not included, please contact us to check shipping cost.
|
|
|
You are buying a CO2 Laser engraving and cutting machine from a professional engineering company who are responsible for the design, manufacturing and after sales service of these machines. The outstanding feature of X900 is offline control system, English LCD, USB interface, Water protection system(Water Pump), support CAD and CorelDraw output directly.
|
|

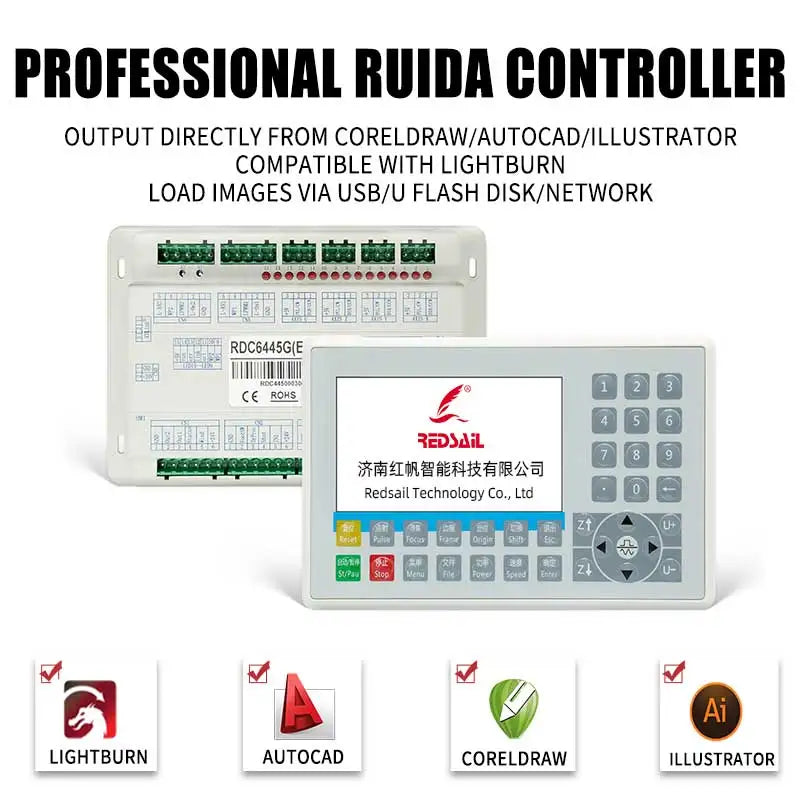

Control system: DSP Working size: 39.3"x23.6"(1000mm x 600mm) Up and down adjustable: Electric 200mm Laser tube type: Co2 Glass sealed laser tube Laser power: 80W PC Interface: USB2.0 and USB Disk Software: RDworks Image form: HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI Warranty: 12 Months (3 months for mirrors and lens, 6 months for laser tube) Package Dimension(L/W/H): 1690* 1130*1110 (mm) Package: Standard Wooden case for export N.W. : 210KG G.W. : 270KG
|
|
|
|
|
|
|
|
|
|
This Laser Engraver is a kind of Laser Engraving Machine System equipped with Co2 laser Tube, It is used to engrave on wood, bamboo, plexiglass, crystal, leather, rubber, marble, ceramics and glass and etc., most non-metal materials, also can engrave Painted Metals and Anodized aluminum. Can not work on metal materials directly. It is most suitable and the preferred choice of equipments in industries such as advertisement, gifts, shoes, toys and etc.
|
|
|
Wood Engraving |
Acrylic Cutting |
Marble Engraving |
|
|
|
Leather Cutting |
Art Work |
Photo Engraving |
Laser Engraving software Package (English Version) User Manual (CD) CW-5200 chiller Air exhaust fan Air Pump Communication cable 3 Reflect optics (installed in the machine) 1 Focus optics (installed in the machine) 1 Laser tube Other tools
02) Rotary(for engraving cylinder materials)
Max length of Material:535mm
Max diameter of material: 120mm
03）Red dot position: $0.00
04）Upgrade to CW-5000/5200 Chiller
Laser Tube Mirrors and Lens
We suggest to order extra one laser tube with machine, it will be very helpful and save much shipping cost when you need them urgently.
Q. Can the machine engraving and cutting?
A. Yes, even on the same Job, you can do setting with different colour in the software and also can making holes.
Q. is the machine must work with computer?
A. Must connect with computer with USB cable when you change the settings of machine. for the design files, you can transfer the file with USB memory stick to the machine, Or can download it to the machine directly with USB cable from computer.
Q. Can the machine be split so it can fit into my doors?
A. Yes it can the legs separate from the main body of the machine.
Q. How long the laser tube is working well?
A. Unfortunately we cannot confirm about this, it is about 3000+ hours.
Q. Do you avaliable spare parts?
A. we can provide all of spare parts of any model we listing.
Q. I have heard the mirrors need cleaning?
A. Yes they do but not after every job, once a week is normally enough
Q. Can I put larger materials in the machine?
A. Yes, the machine has doors which can be opened to accommodate larger materials
Q. How about the after sell service?
A. Free tech support for the whole life of the machine, and 24 hours telephone support. Camera of MSN support by MSN or skype online when you need.
1. Combine shipping, buy more save $$$.
2. It's Sea Shipping, please contact us to check shipping cost. The listed price is CIF LA/NYC trade term price.
3. Please note your phone number for shipping, when special status happened, they will call you.
4. Generally, CIF trade term, port to port, not to door, consignee need clear customs, pay import taxes, and arrange local shipping to place, please leave your nearest harbour name to check shipping cost.
5. EXW and FOB trade terms are also OK.
Here are some key terms for warranty policies you should know before your bidding:
Our warranty coverage for this item is one year from the date you received the product. We offer our warranty services worldwide. Provide service free for the machine all the life.
We have more laser machines with different watts laser power, welcome to feel free to contact us.
M500 |
*50watts |
500x300x200mm work area |
M3050 |
*50watts |
300x500x200mm work area |
M4060 |
*50/100watts |
400x600x160mm work area |
X700 |
*80/100watts |
700x500x200mm work area |
X900 |
*80/100watts |
1000x900x200mm work area |
CM1325 |
*100/150watts |
1300x2500x30mm work area |
|
|
Welcome and Happy Shopping!
|
