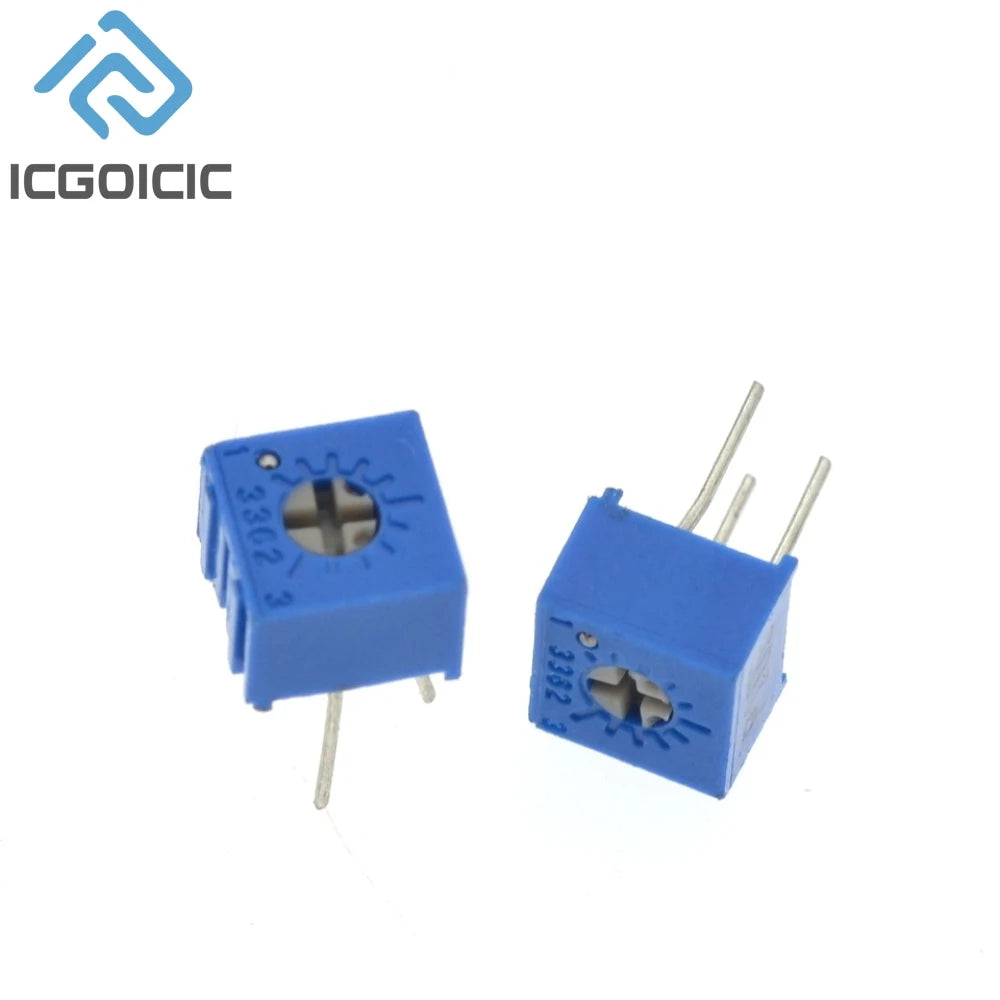

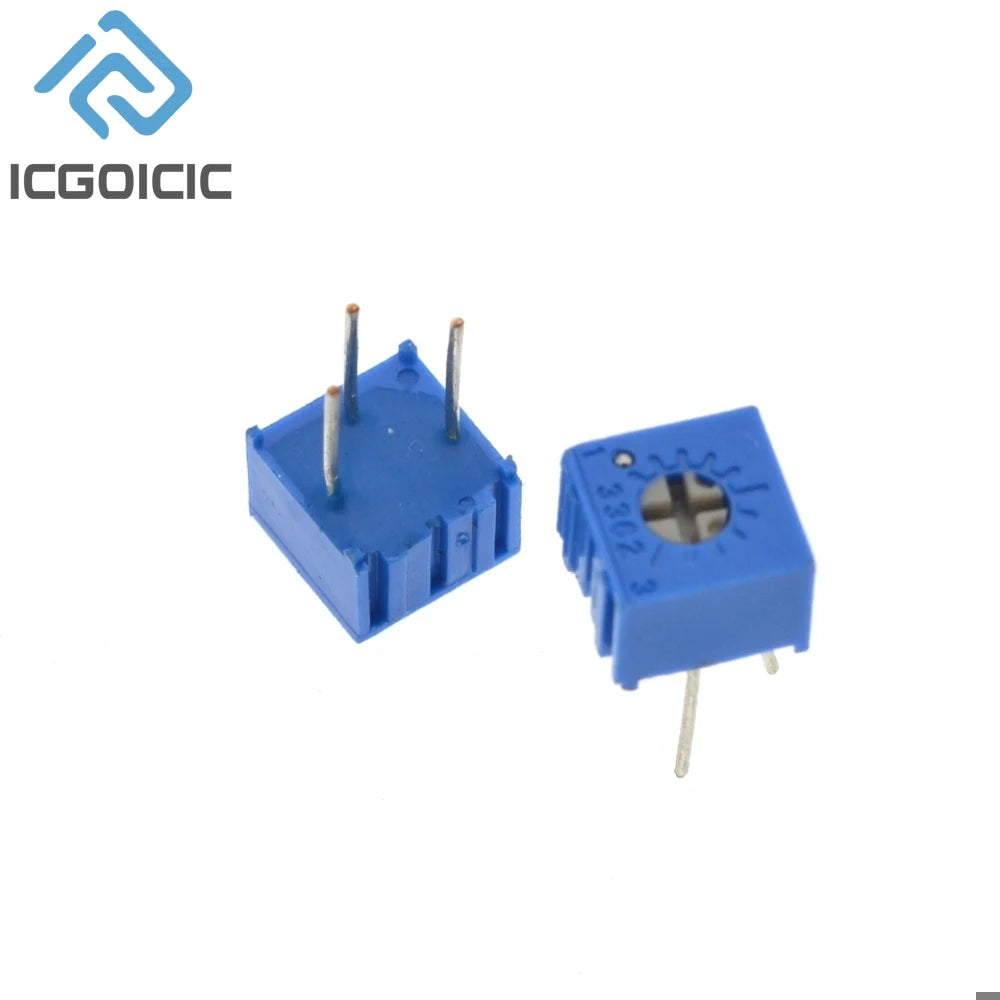

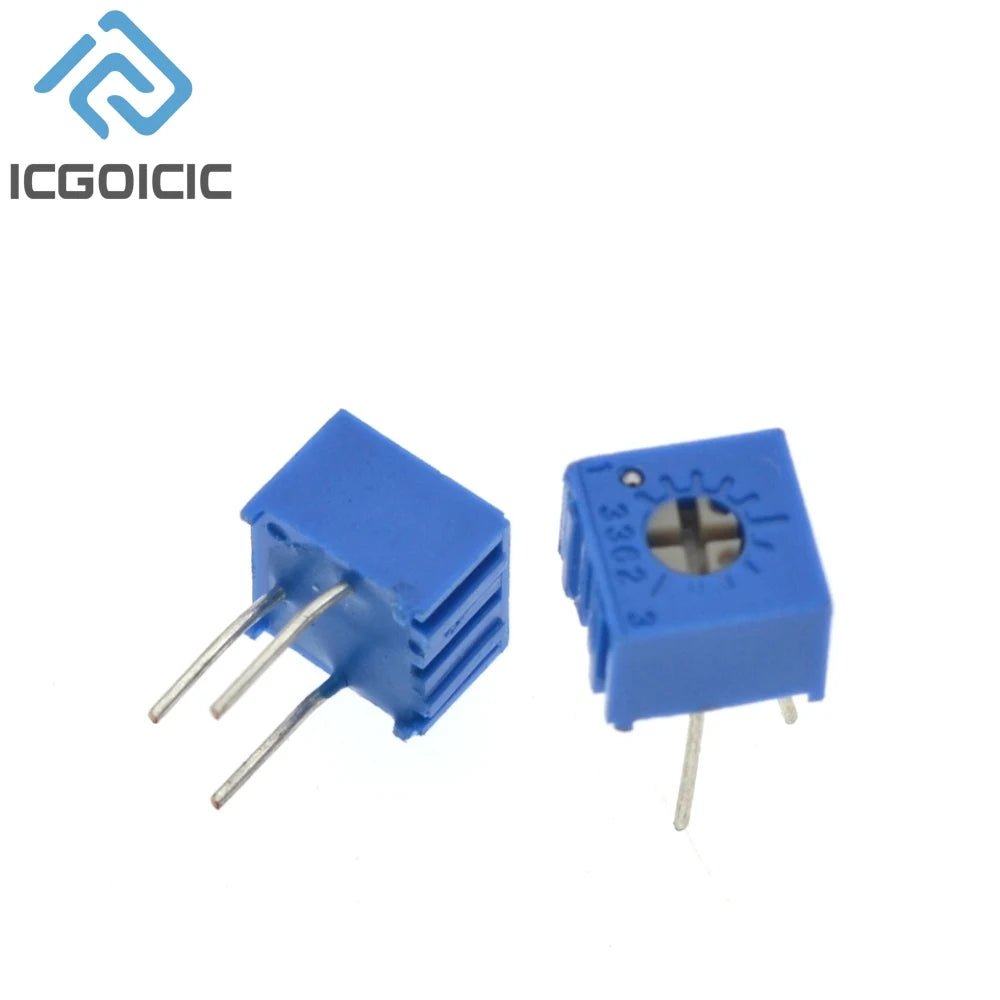

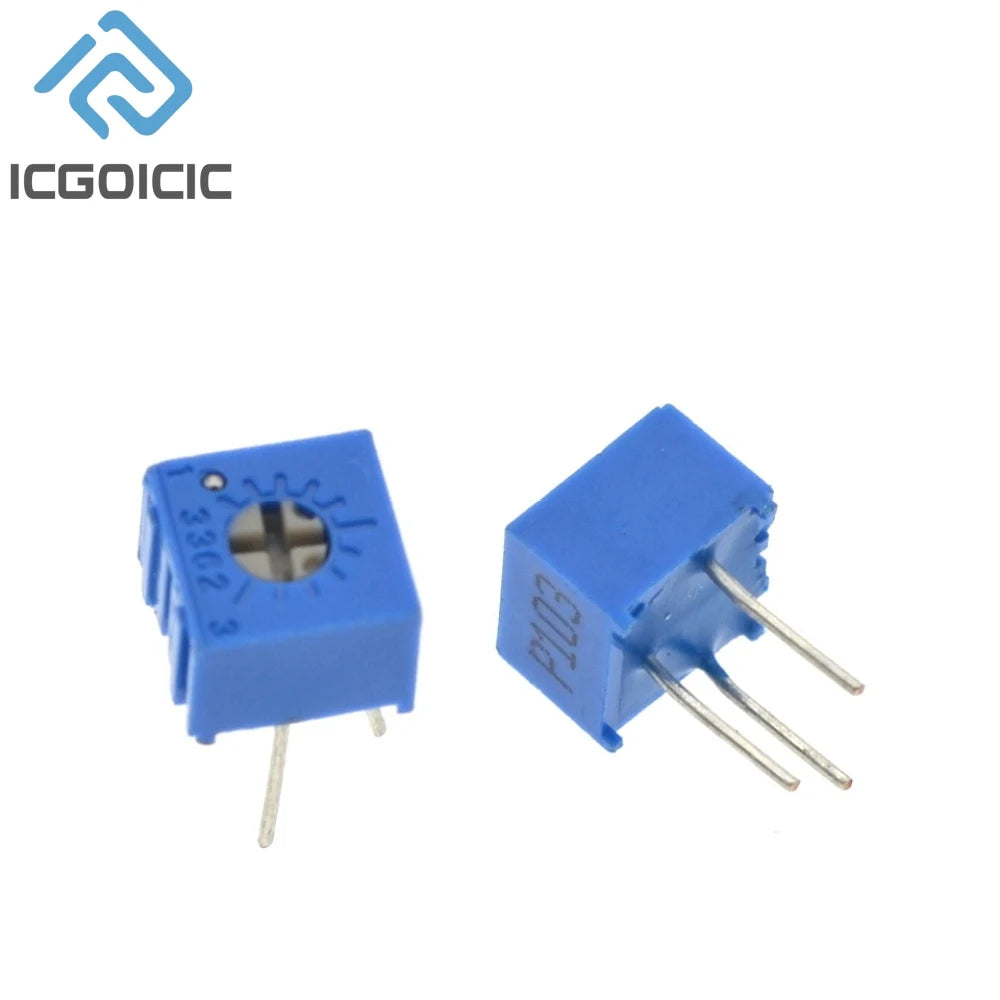

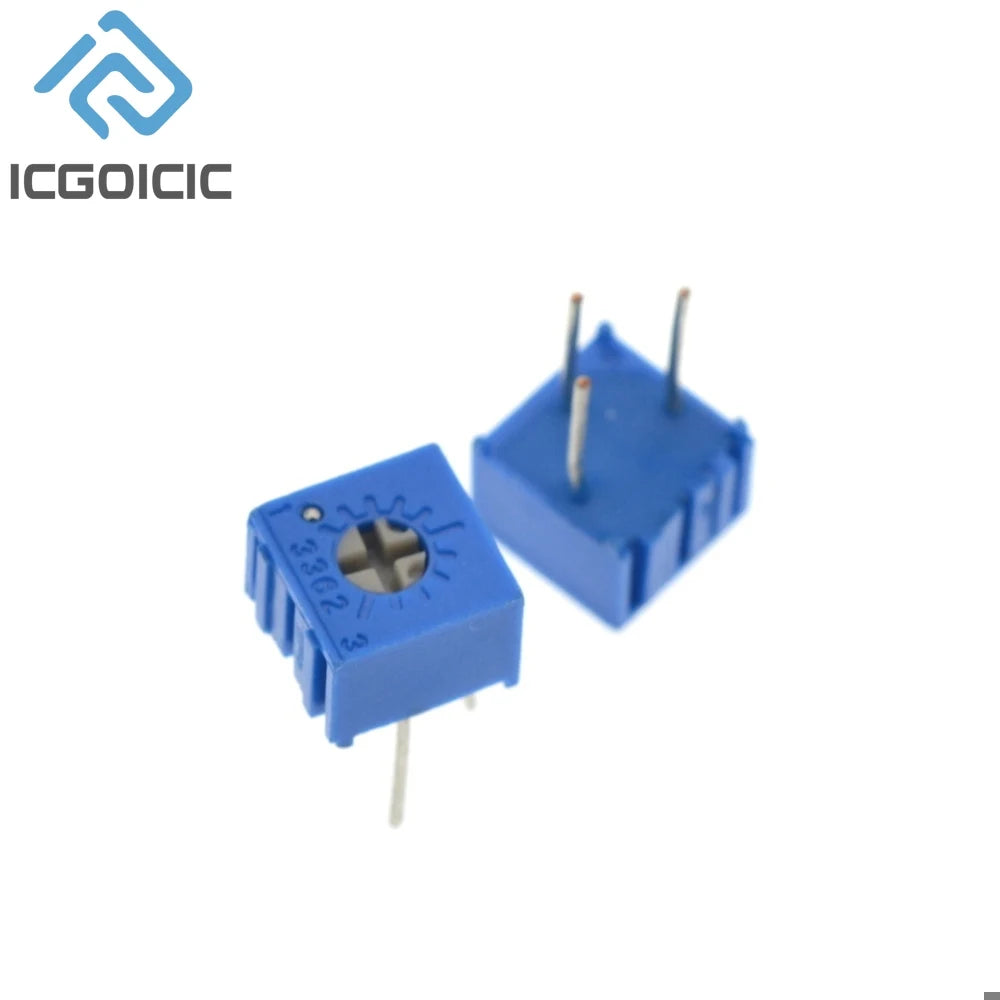

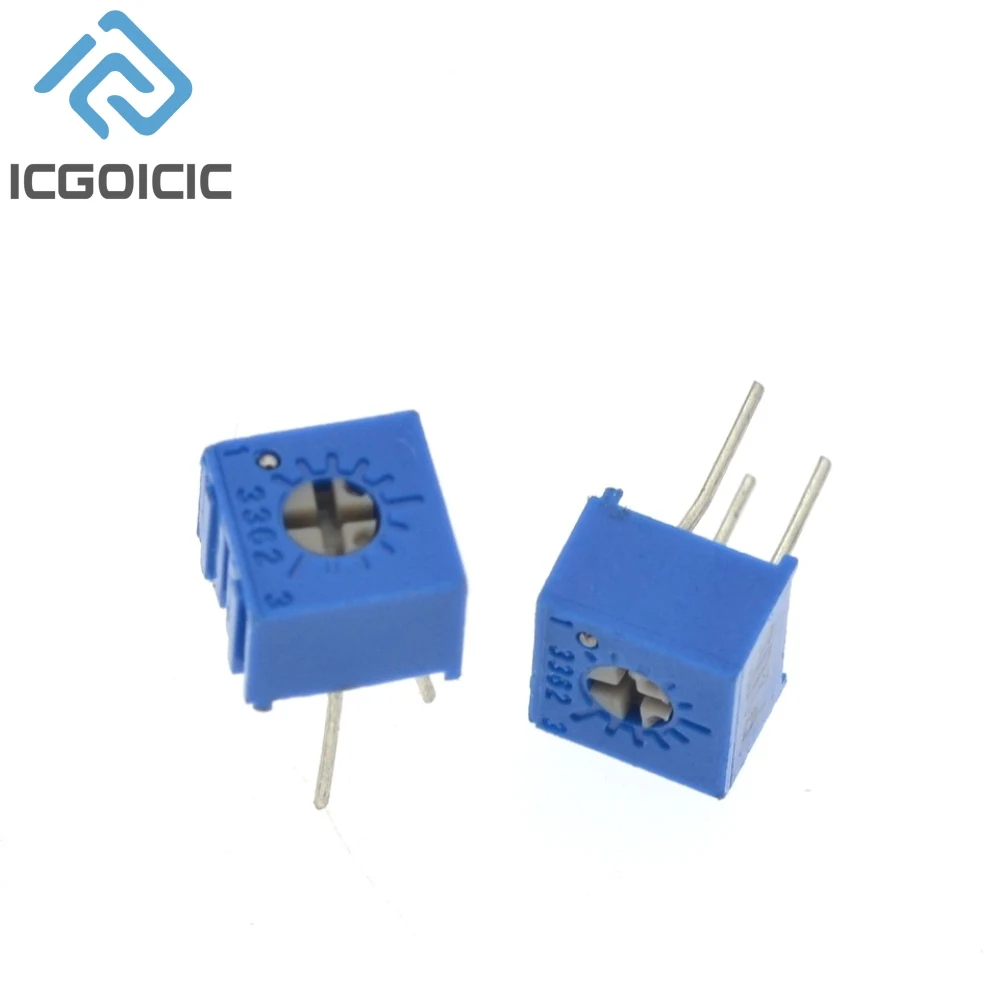

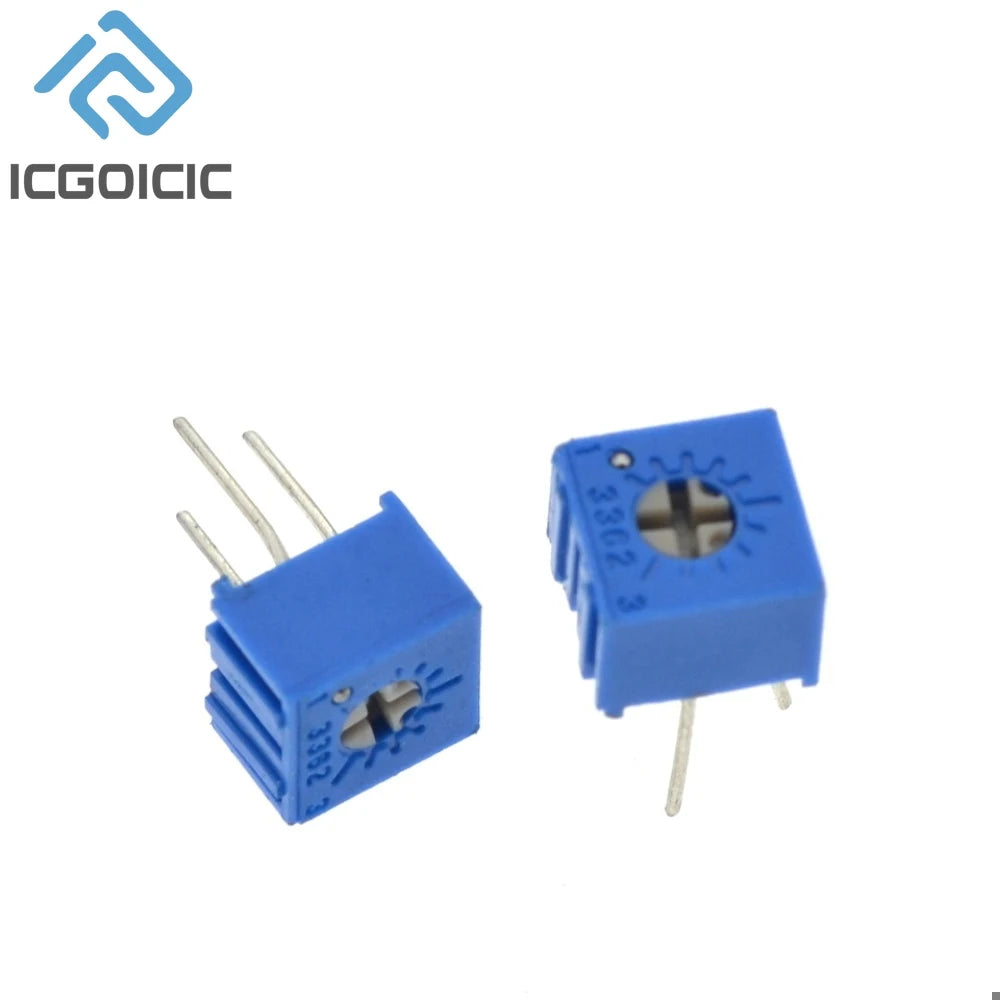

3362P 103 10k Top Adjustable Single Turn Potentiometer 1K 2K 5K 50K 100K 200K 500K 1M

Electrical Characteristcs

Nominal resistance range :50Ω - 2MΩ

Tolerance deviation :±5%, ±10%

Terminal resistance :≤5%R or 5Ω

Contact resistance change :CRV≤5%R or 5Q

Withstand voltage :101.3kPa 500V,8.5kPa 315V

Insulation resistance :Ri≥1GR(100Vac)

Effective stroke :210°±10°

Environment Characteristics

Rated power (315V max):0.5W 70 ° C,0W 125 ° C

Temperature range :-55 ° C to +125 ° C

Temperature coefficient :±100ppm/℃, ±250ppm/℃

Temperature variation :△R≤ soil (2%R+ 0.1Q), △(Uab/Uac)≤± 1%R

Collision :390m/S 2,4000cycles △R≤±1%R

70 ℃ electrical durability :0.5W,1000h △R≤ soil 10%R △(Uab/Uac)≤10%

Mechanical durability: 200 weeks (200 cycles), delta R + / - 10% or less R constant humid: delta R + / - 3% or less R, R1 Ω 100 m or more

Physical Characteristics

Total mechanical stroke :250°±10 °

Starting torque :≤20mN.m Stopping torque :≥50mN.m

Standard packing: 50pcs/tube (50 PCS.per tube)

Marks: TOLERANCE deviation (10% not marked), resistance code, product model
