Note:

All of these receivers must have a ZigBee gateway to work with the Tuya App/Smart Life App.

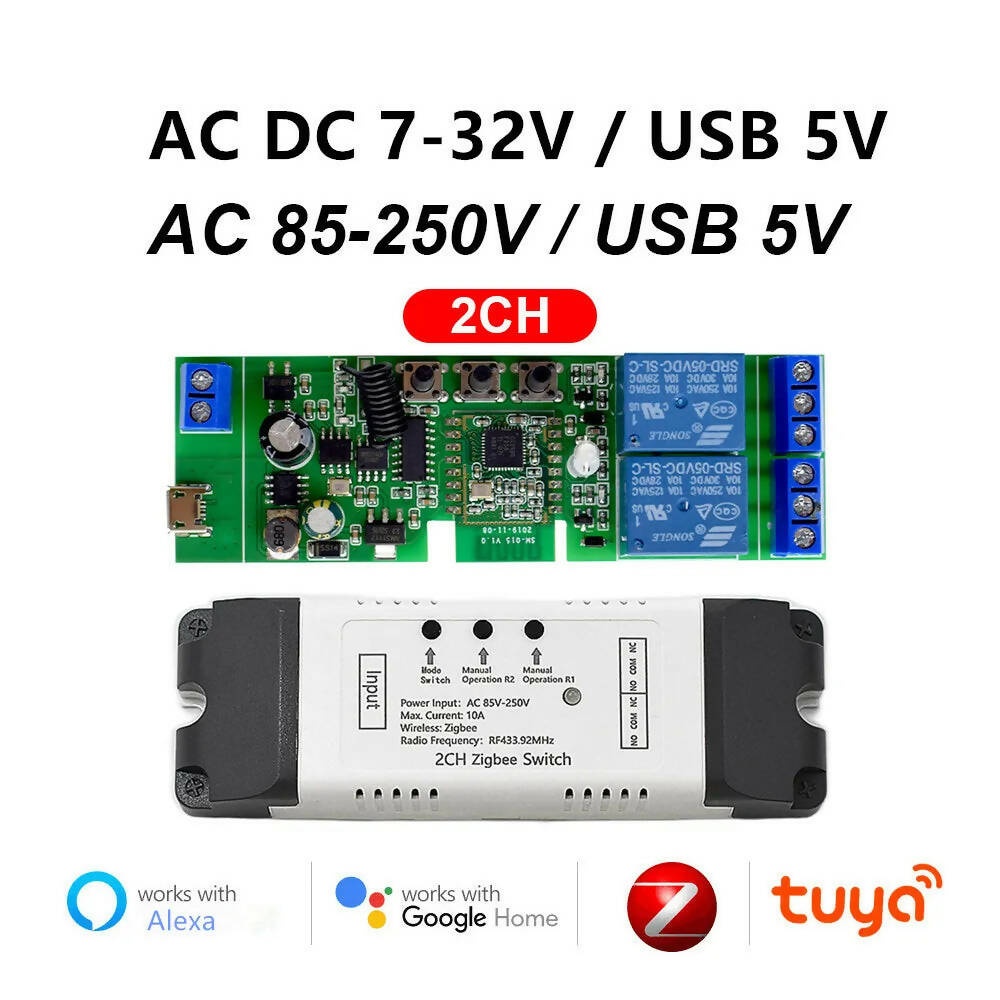

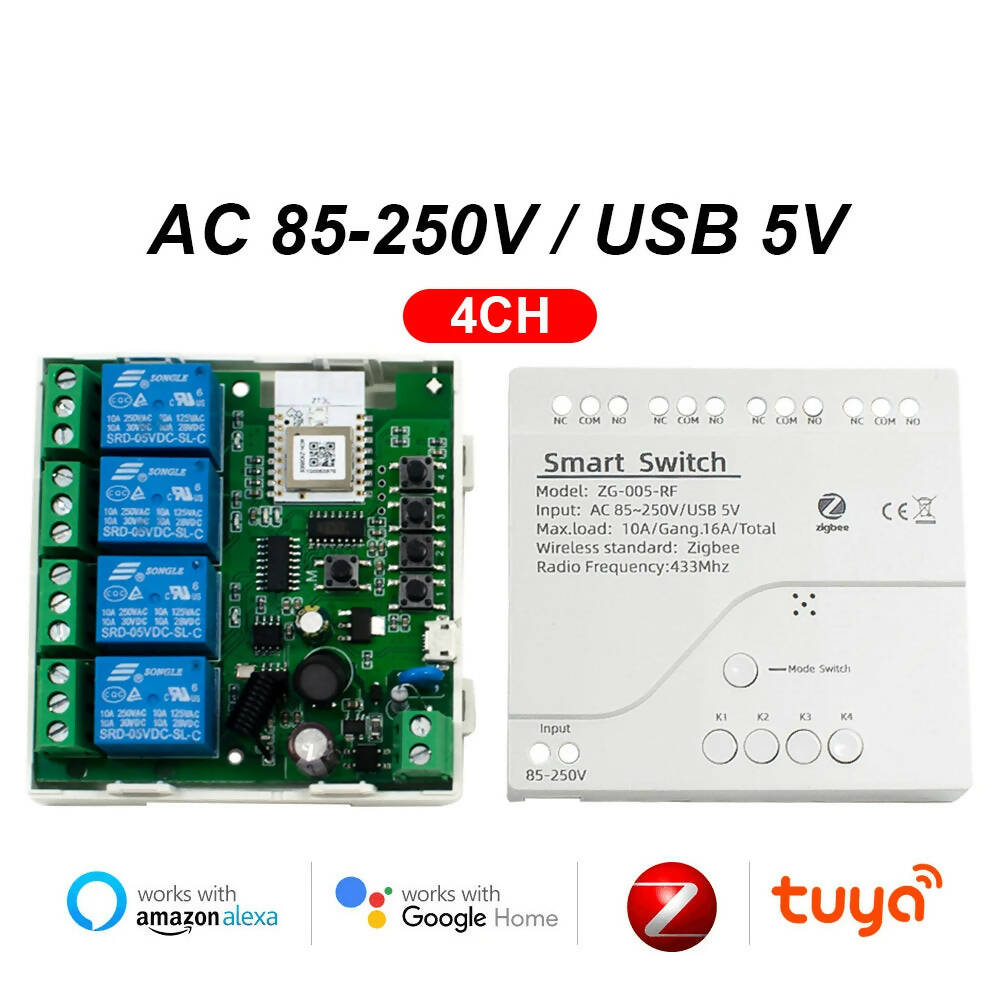

Zigbee 1/2/4 Channel Relay (Three Working Modes)

Use for

1.Remotely give a pulse signal to turn on/off Lights,Lamps and other home appliance.

2.Remotely give a pulse signal to turn on/off Garage Door,Door Access

3.Remotely give a pulse signal to control DC Motor,AC Motor to Forward and Reverse

The switch is a micro/self-locking smart switchsupporting ZigBee

It can be used as a Zigbee router to help transmit ZigBee signals to ensure a stable connection when using multiple Zigbee devices in your house.

What can I use it for?

*Connect a light, remotely control the switch of the light.Connect a light, remotely control the switch of the light, and can also switch on and off regularly
19:00 On 21:00 Off
*Open your curtains regularly 7:00
*Change the water for the fish tank regularly
*Use mobile phone or voice control Garage door switch
*Control your heater remotely
*And your coffee machine
*Connect a water pump, remote control or timer switch
More functions waiting for you to discover. DIY

Feacture

【Two Input Ports】
You could choose USB 5V port or the screw terminal port to supply power in the input to make the pcb board board work.
【Dry Contact/Passive Output】
No matter how many power you supply in the input, the output don't have any voltage
(Except that the input and output share the same power supply)
If you do not supply power in output port, the connectted home appliance can't work, you also need to supply power in output.

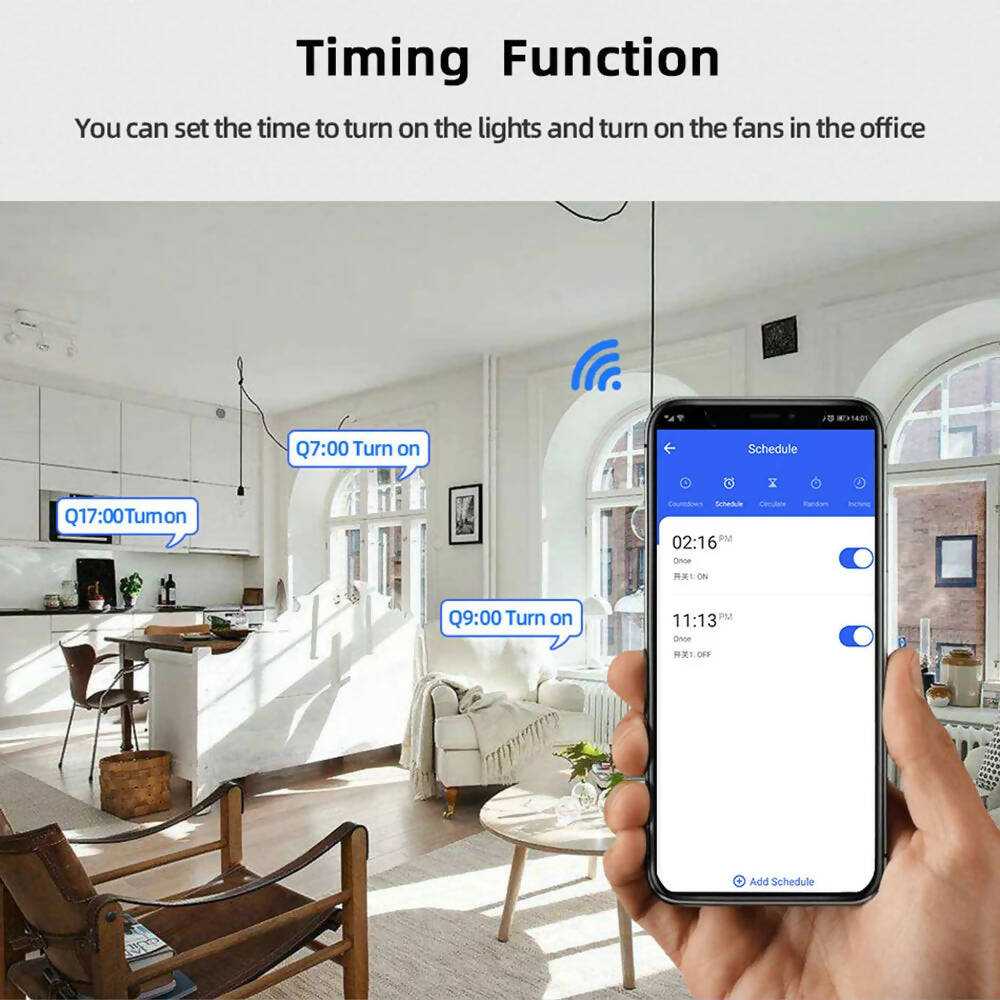

【Timer】
The connectted home appliances can be automatically turned on/off according to the time schedule.
Each channel can set different time schedule.

Function

【APP Remote Control】
Require Tuya Zigbee Hub. You can check the working state of the device in Tuya APP anywhere and anytime.

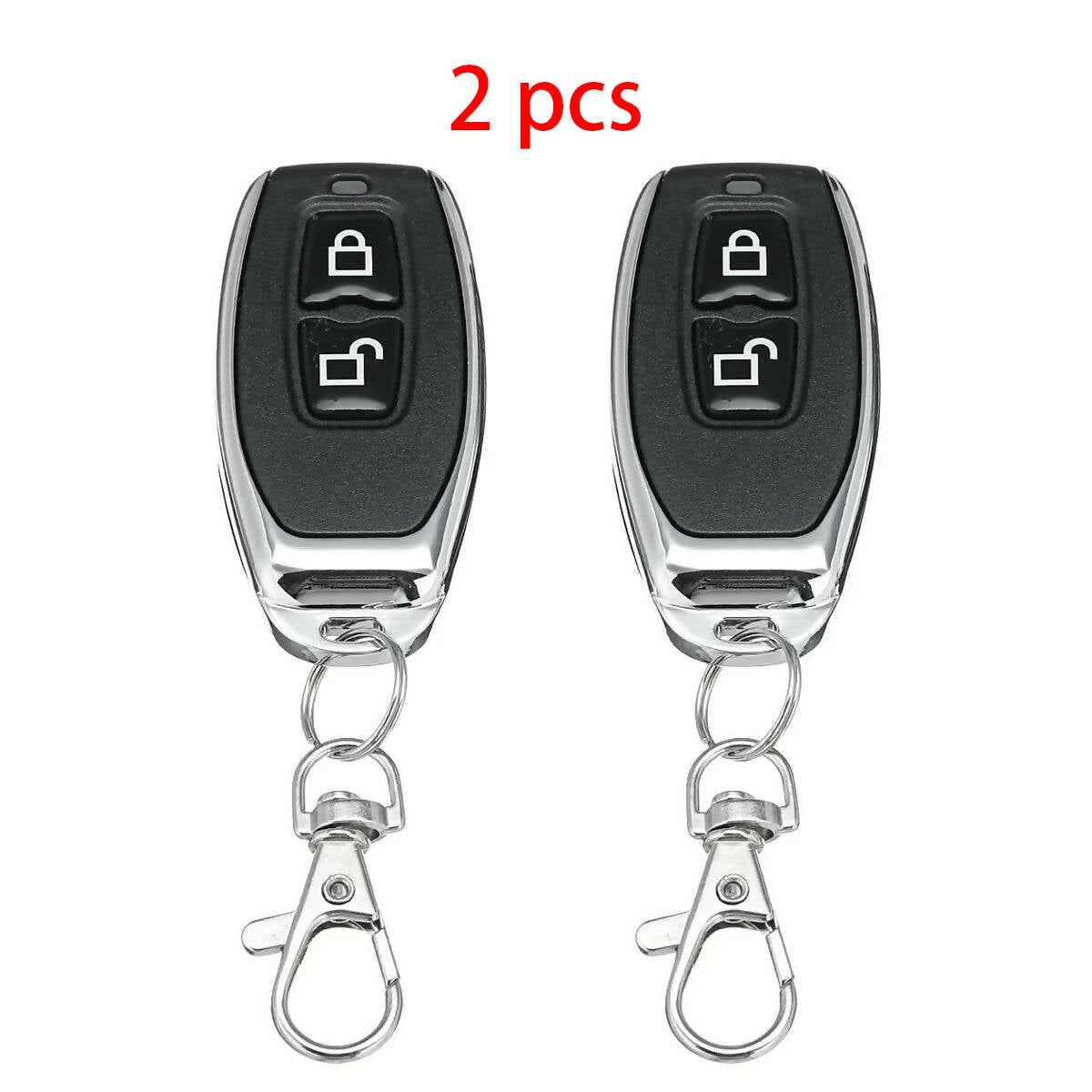

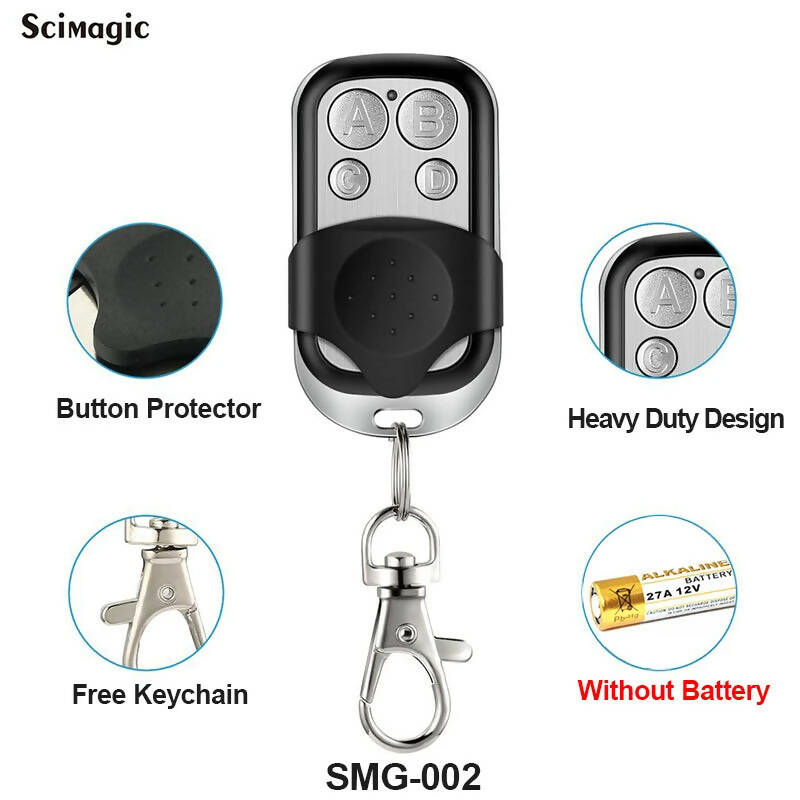

【RF433mhz Control】
The device can be controlled by the RF433mhz Remote Controller.
【Mobile Phone Control】
Require Tuya ZigBee Hub ,when you go outside or at home, your smart phone could control the device by 2.4Ghz WIFI or 2G/3G/4G Mobile Network.
【Voice Control】
Require Tuya Zigbee Hub, you could voice control the device by Alexa/Google Assistant.
【Smart Linkage】
Cooperate with other zigbee products to achieve intelligent linkage. For example, with zigbee door magnetic sensing, to realize the light on immediately after opening the door
【Group Control】
Unified management of individual devices using gateways
【Timing function】
Lying in bed without turning off the lights fell asleep, it does not matter, the wall switch timing function to the point of turning off the lights, from the lights off do not worry about.
【Two Working Modes 1CH】
Self-locking, Inching
【Three Working Modes 2CH 4CH】
Self-locking, Inching, Interlocking

Parameters:

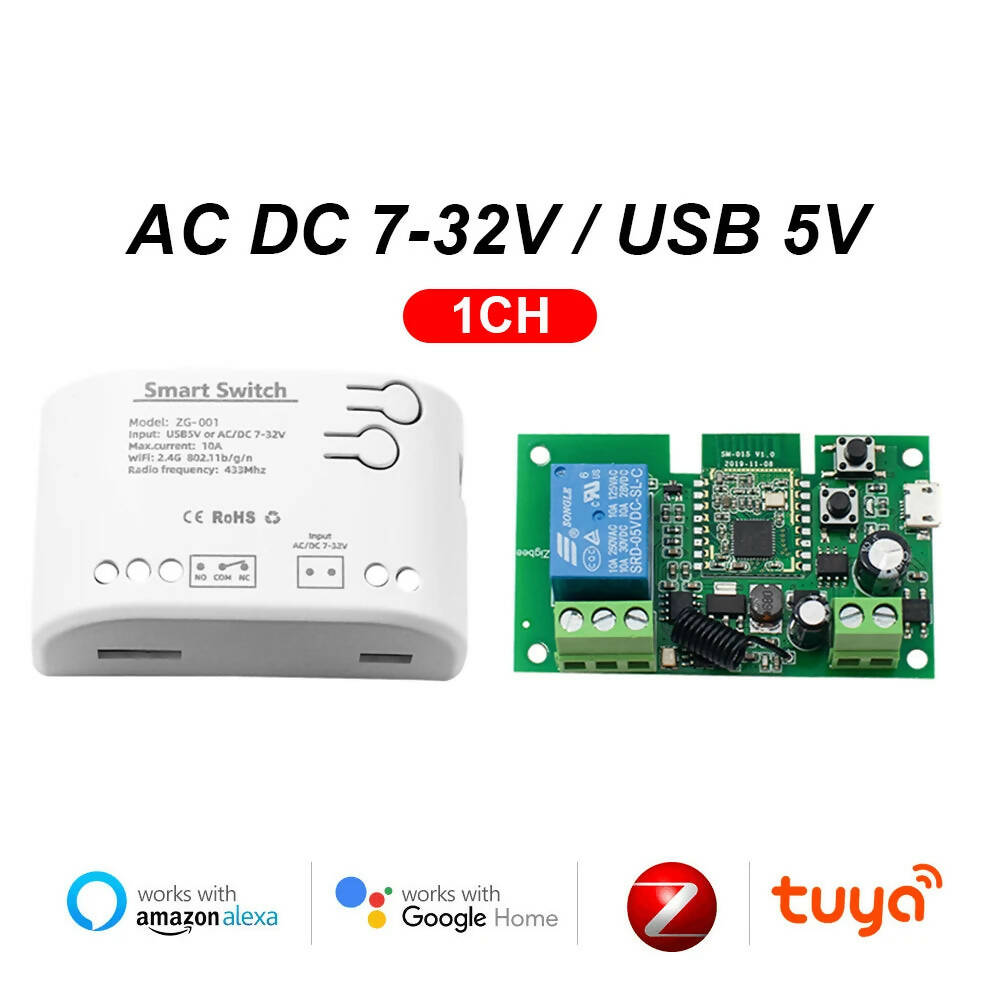

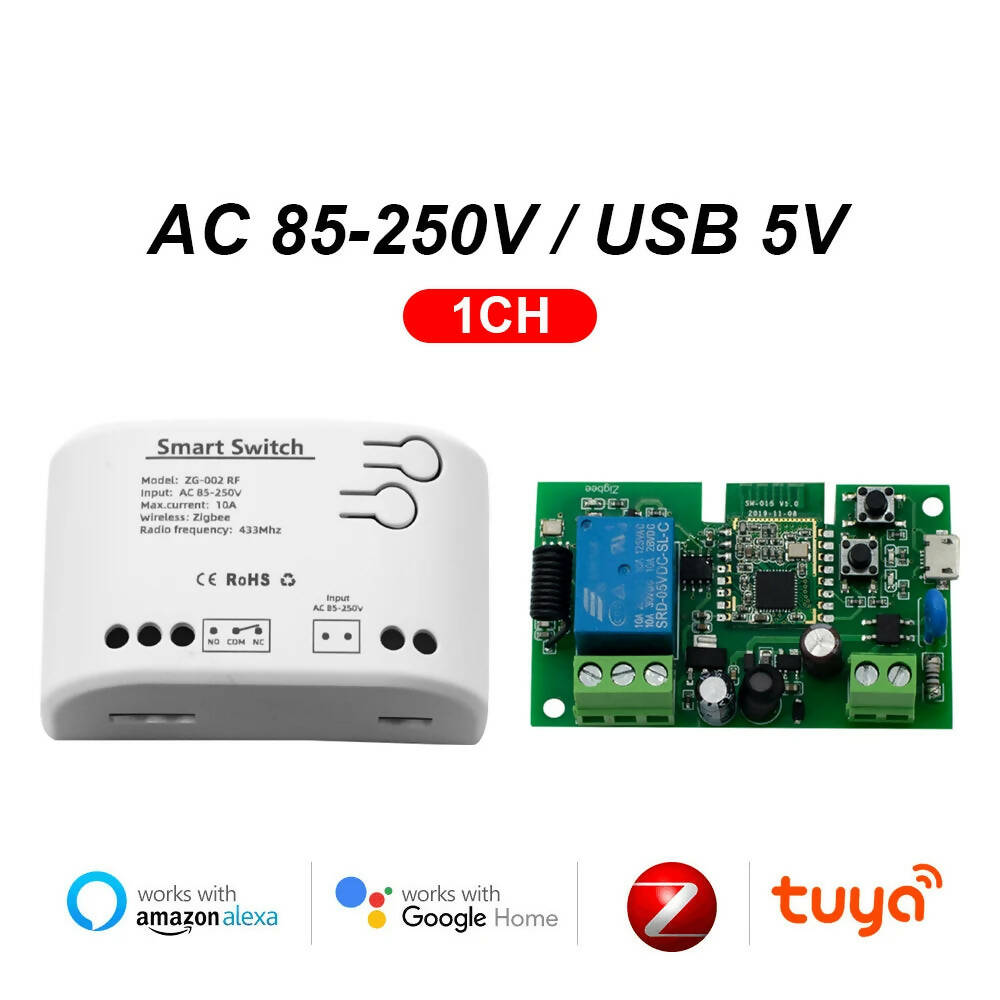

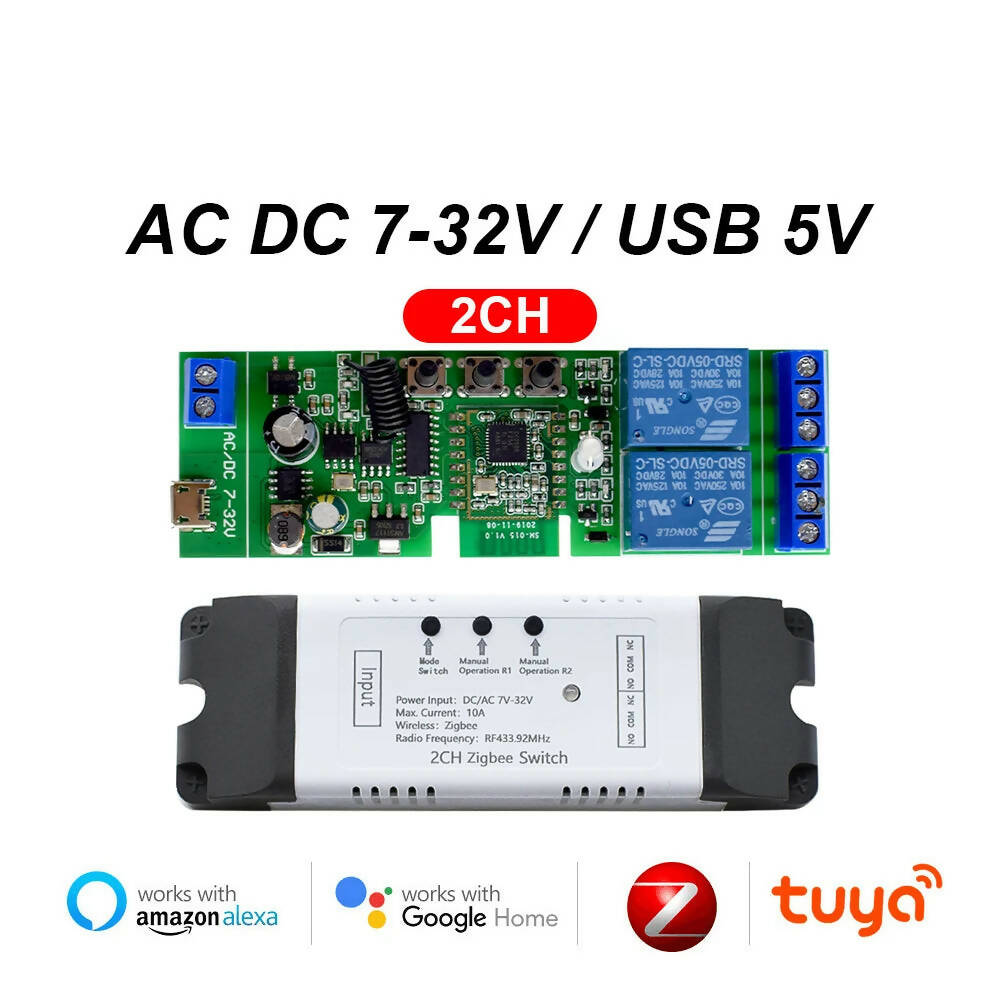

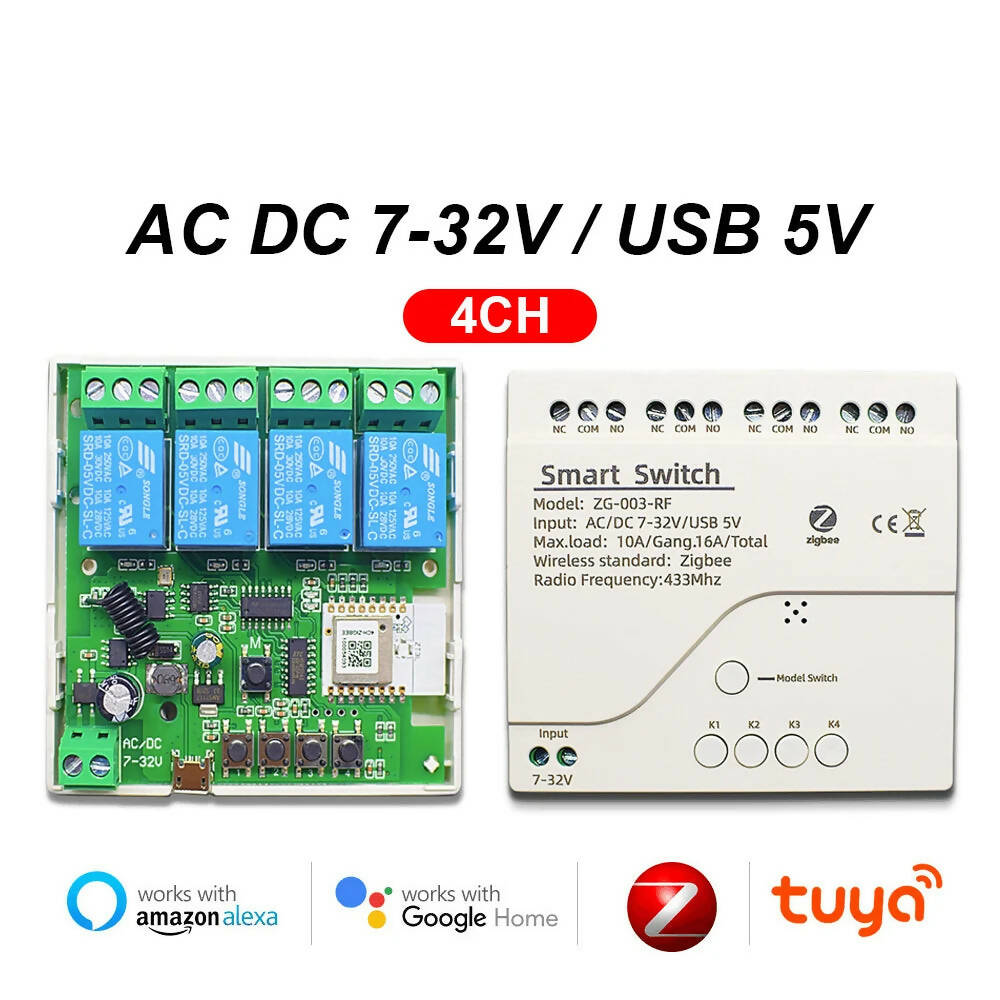

lnput voltage: DC/AC 7-32V Micro USB 5V input，AC 85-250V Micro USB 5V input
Output：NO Output
Max.Current:2200W/10A
wireless Standard:Zigbee 3.0
Working temperature: -20℃~70℃
3 Control methods: APP, 433MHz Remote, voice control
3 Working Modes:Self-locking, interlock and inching mode
Voice Control:Alexa Google Home Compatible
APP: Smart Life / Tuya Smart
Size:
1ch 69*41*20mm
2ch 116*38*25mm
4ch 81*76*28

Remote Control

Control your home's curtains, garage doors, motors , anywhere. Lights, water heater，water dispenser. television. air conditioner etc.
