2MP/5MP CMOS USB Camera Microscope HD Electronic Eyepiece 23.2mm Mounting with 30mm 30.5mm Ring Adapter Digital Camera Photograph Recording Measuring on Computer for Stere Microscope Biological Microscope

Feature

1.High-resolution image sensor, high-quality color reproduction, high definition;
2. 1/3.2-inch progressive scan image sensor, hardware 2 or 5 million pixels;
3. USB2.0 digital interface, data transfer rate up to 480MPS;
4. Brightness, contrast, saturation, sharpness and gamma software adjustable;
5. Auto white balance, auto exposure;
6. Without scheduling driver to support Windows2000 \ XP2 \ Vista \ Win7 \ Win8 \ Win10 operating system;
7. Underlying hardware and software support for the exposure time, color, brightness, contrast, saturation and other image enhancement features late.

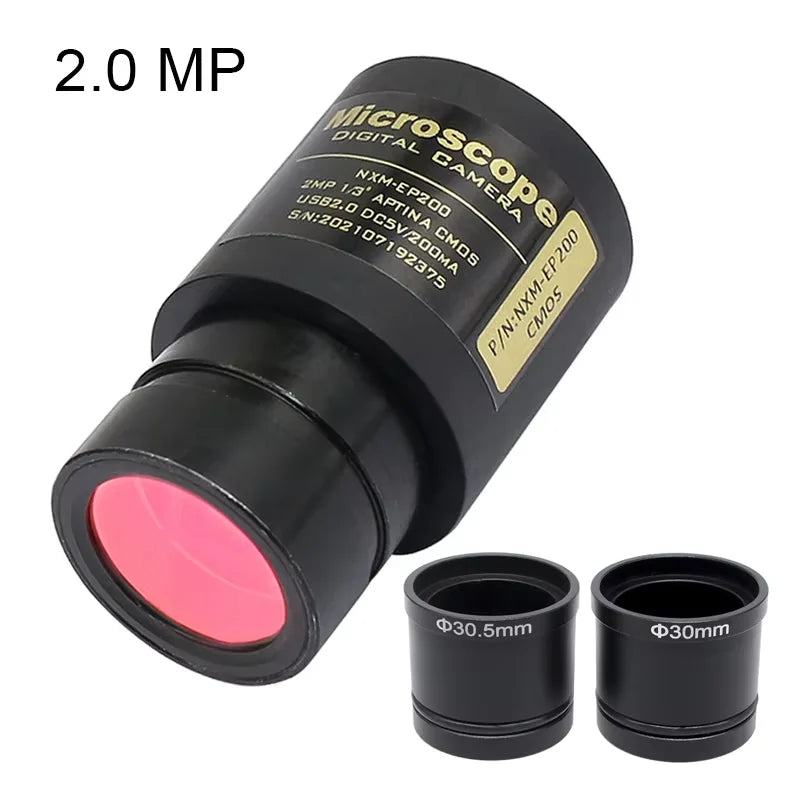

Technical Parameters for 2.0MP

1. Image 1 / 3.2 "color 2 million COMS
2. Resolution: 1600 x 1200 effective pixels
3. The pixel size: 2.8Umm * 2.8um
4. Frame rate: 15fps @ 1600 * 1200/30 fps @ 640 * 480
5. Shutter: Electronic Shutter
6. SNR: 42.3dB
7. scan mode: progressive scan.
8. Working temperature: 0-50 degrees Celsius.
9. Sensitivity: 1.8v/1ux-sec@550nm
10. Spectral response: 400nm-1000nm
11. Data Interface: USB2.0 (480 Mbit / sec)
12. Power: no external supply
13. Current: 200Ma
14. White Balance: Auto / Manual
15. The automatic exposure control: AE
16. Software functions: image display / Image Capture / Video
17. Applications: Micro Imaging / general image acquisition / macro imaging.

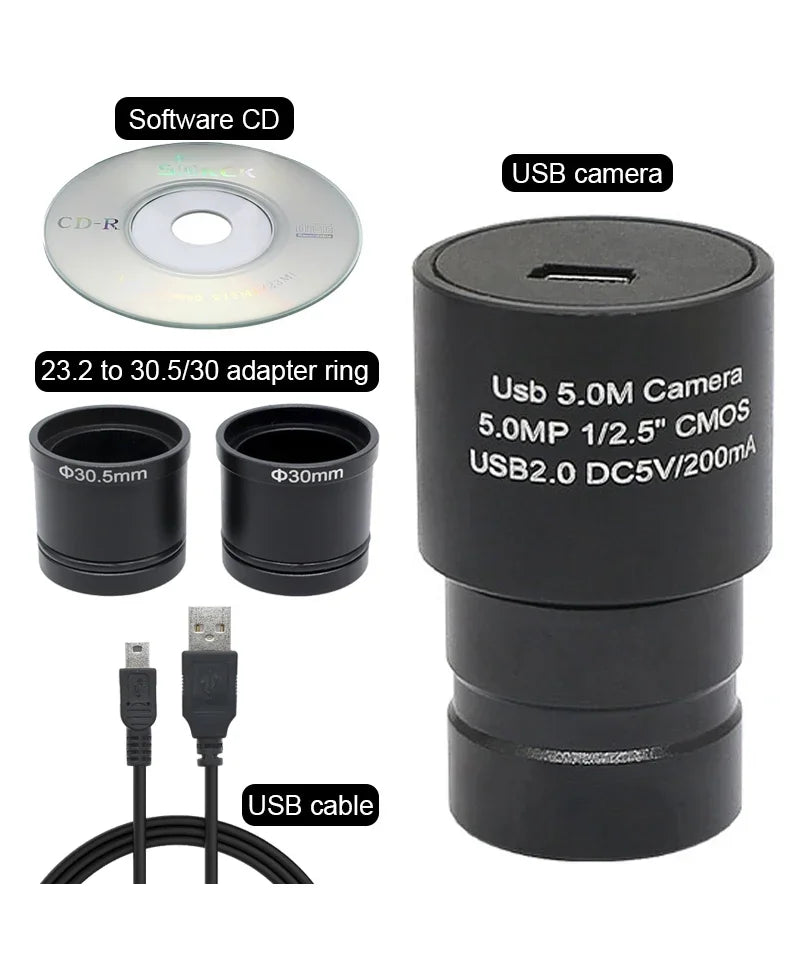

Package Included

1x 2.0MP or 5.0MP USB Camera
1x USB cable
1x CD

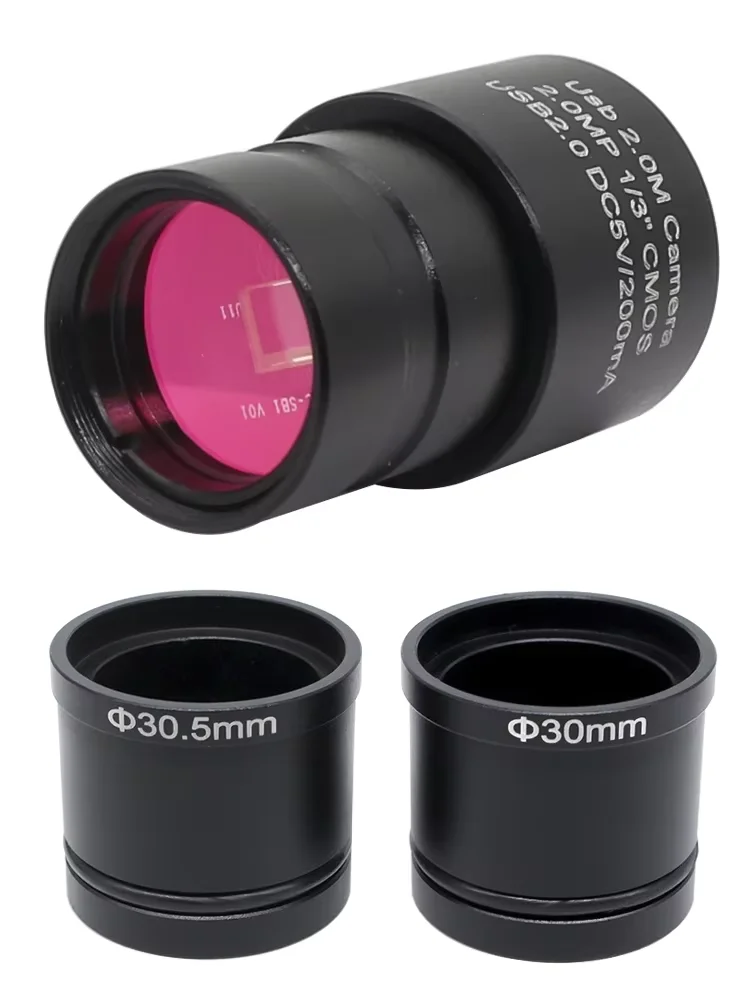

1x 23.2 mm to 30 mm adapter ring
1x 23.2 mm to 30.5 mm adapter ring

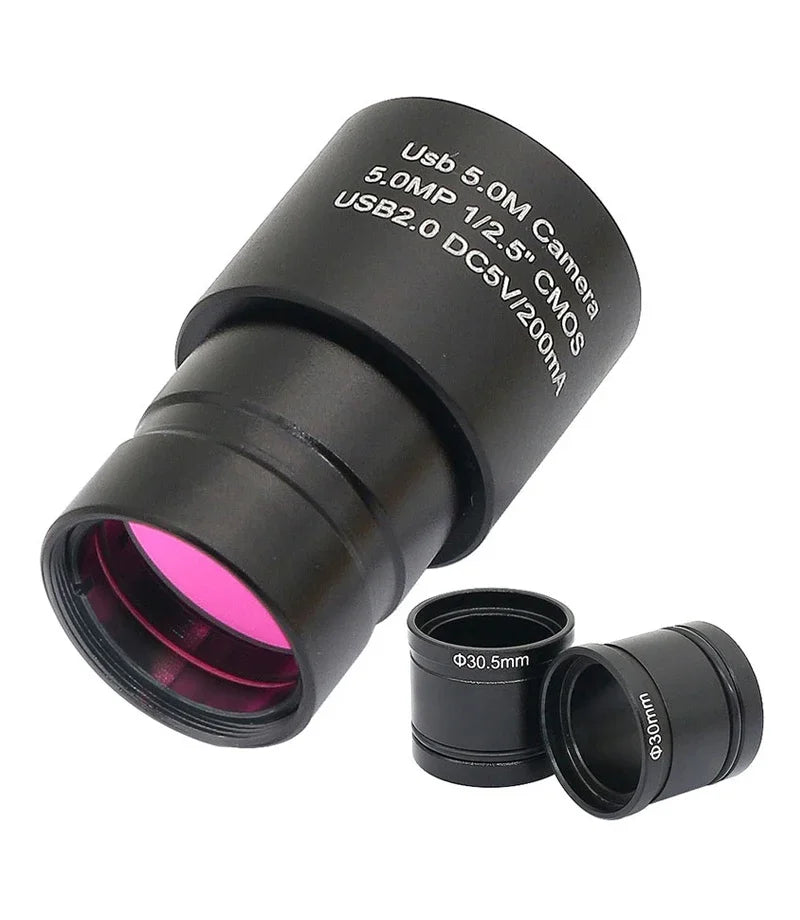

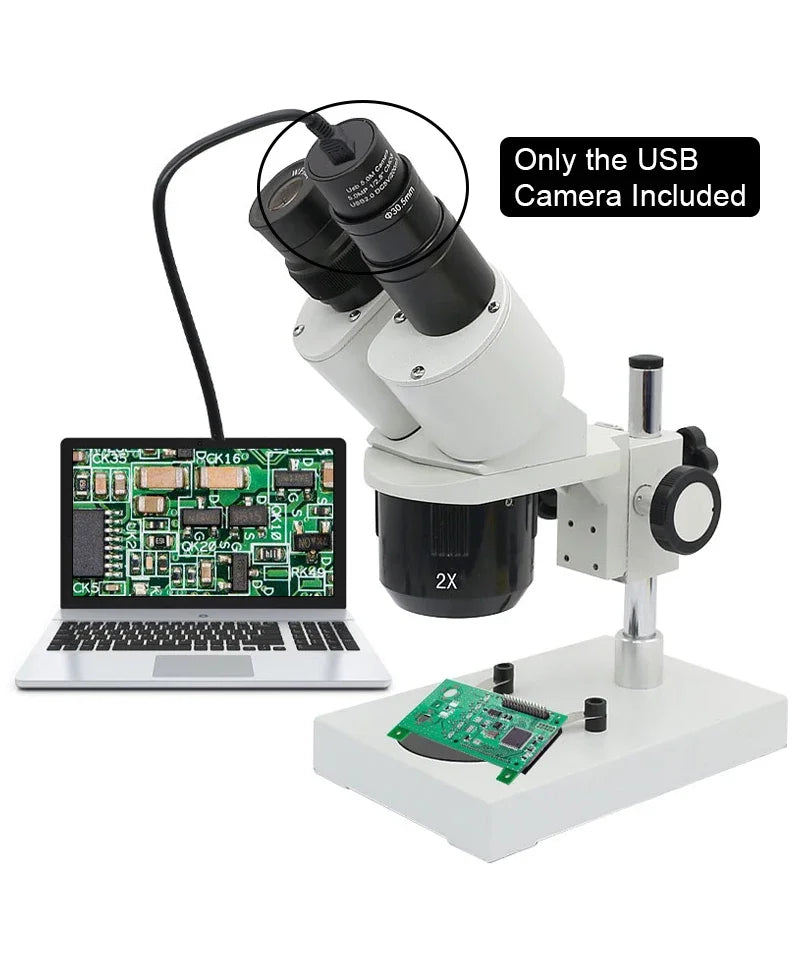

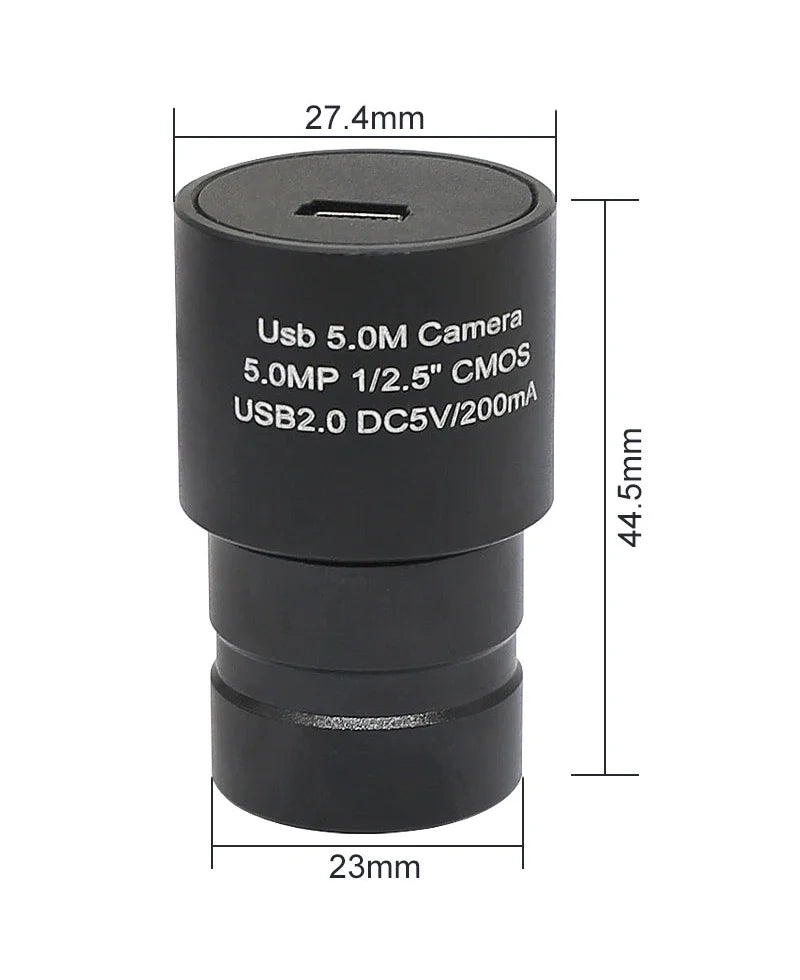

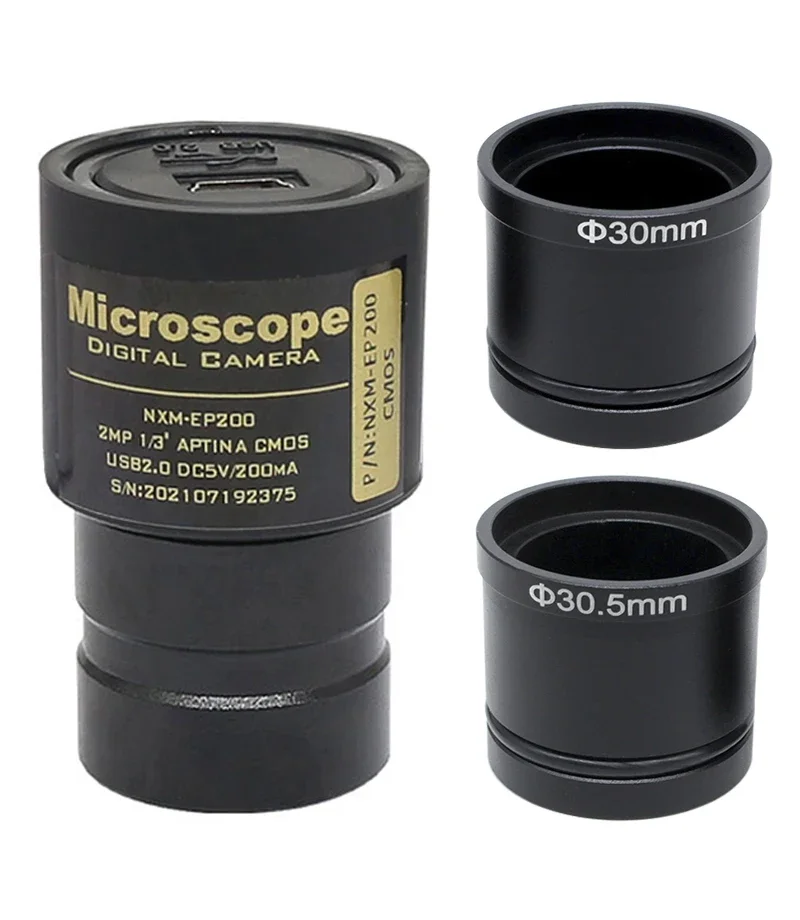

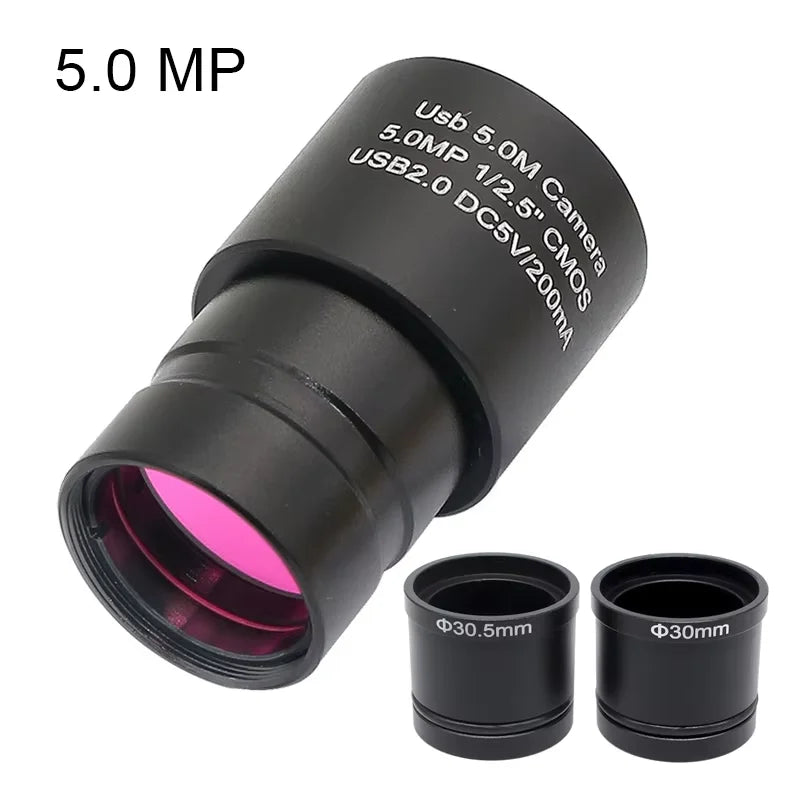

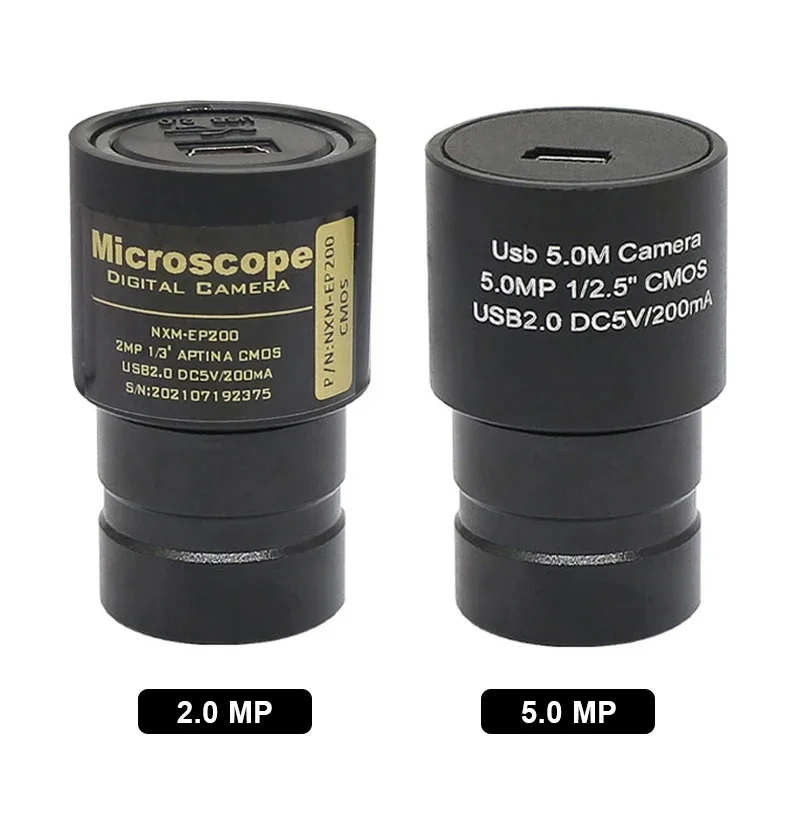

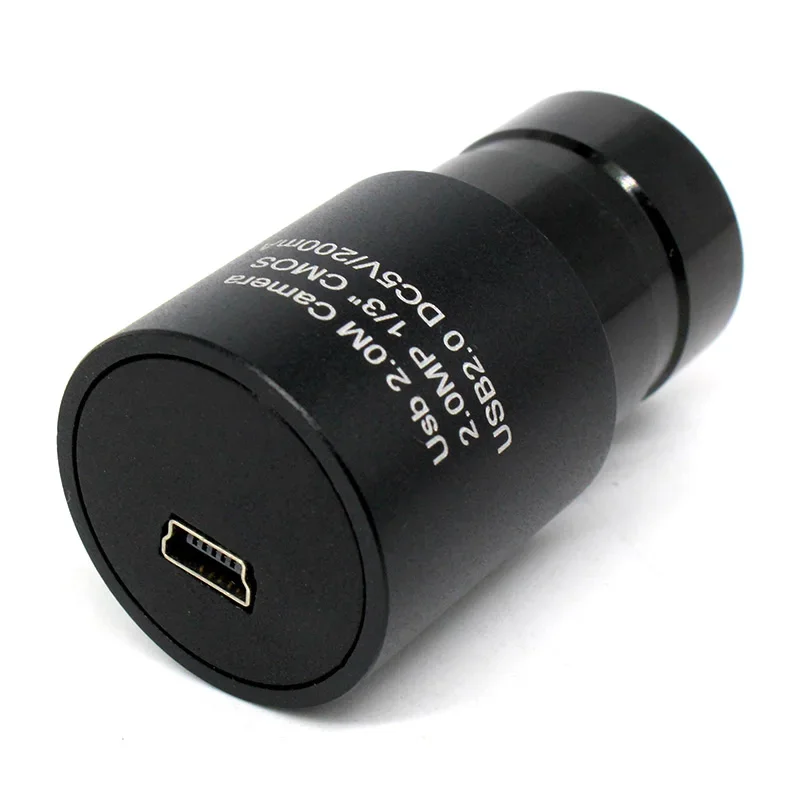

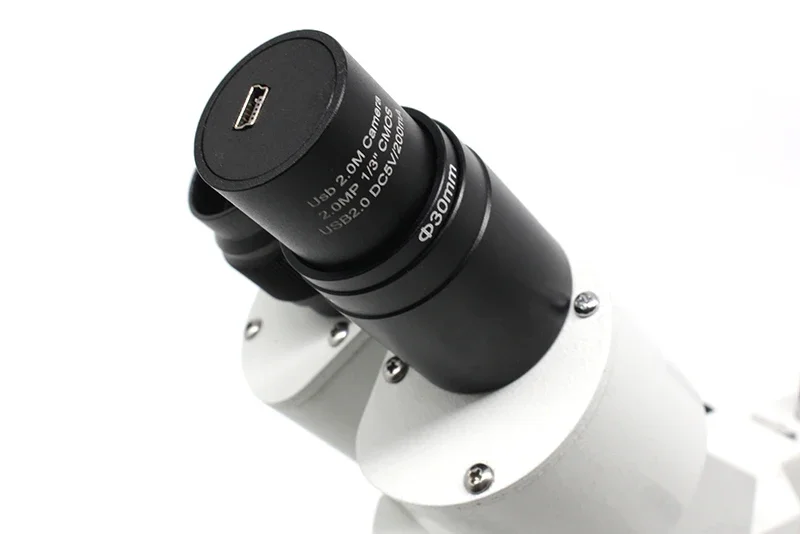

Product Show
