SPECIFICATIONS

Brand Name: tedeligo

Use: Universal

Use: Lighting

Use: SWITCH

Origin: Mainland China

Wireless Communication: RF

Support APP: No

Certification: CE

Certification: RoHS

Frequency: 433 MHz

Channel: 1

Package: Yes

Model Number: 2201Socket

RF frequency: 433MHz

Working Voltage: AC 85~265V

Max current: 15A

Load Power: 3000W

Socket Size: 51*99*73mm(2.0*3.9*2.87in)

Socket Weight: 105g

Switch Size: 50*50*13mm

Switch Weight: 20g

Switch Battery: CR 2032

Working temperature: -30~+80 Celsius

Remote operating mode: Toggle Mode

Receiving Sensitivity: 97dbm

Amount of storage remote controls: 20 pieces

Support encoding: 1527 Learning code

RF Operating mode: ASK superheterodyne wireless reception

Receiving range: Open space is more than 30 meters

Application2: Light, LED, Lamps

Choice: yes

semi_Choice: yes

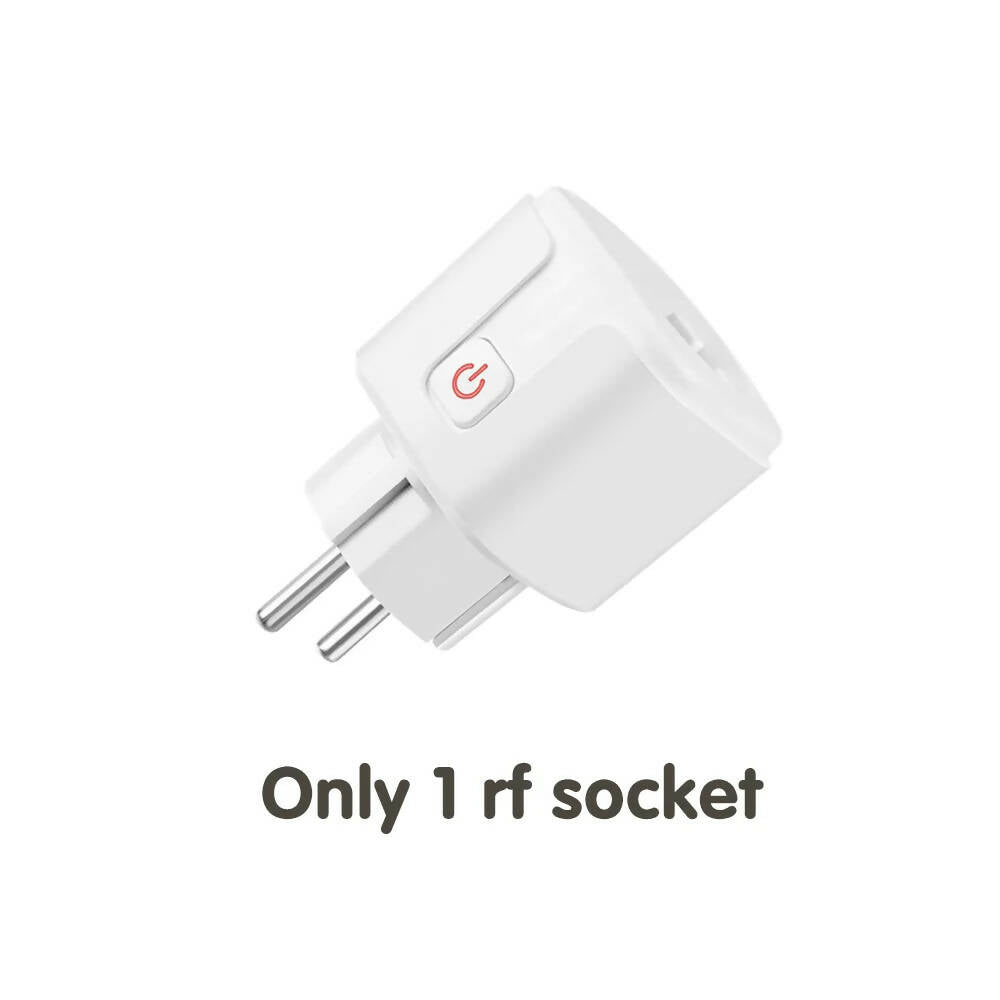

Smart Socket Parameter

• Working Voltage  : AC 85~265V

• Max current  :  15A

• Load Current :  3000W

• Weight :  85g

• RF frequency  :  433MHz

• Working temperature  :  -30~+80 Celsius

• Receiving Sensitivity  :  >97dbm

• Amount of storage remote controls  :  20 pieces

• Support encoding  :1527 Leaning code /2262 fixed code

• RF Operating mode  :  ASK superheterodyne wireless reception

• Receiving range  :  Open space is more than 30 meters

• Remote operating mode  : Toggle Mode



Wireless Switch Parameter

• Working Frequency:433mhz

• Size:50*50*13mm

• Battery:CR2032(Include)

• Distance:30-50m(open space)

• Coding chip: EV1527 (learning code)

• Weight :  20g

• Working temperature: -20 degrees ~+70 degrees

Working Mode
Toggle mode :Press switch 1 time,light on;Press once again,light off.

How to set up
Press and hold the learn button until the incaditor lights up 1 time,press switch 1 time,succeed.

Reset
Press and hold the learn button until the incaditor lights up 8 times,succeed.

---



---
