SPECIFICATIONS
Brand Name: QIACHIP
Use: TV
Use: Air Conditioner
Use: Computer
Use: Universal
Use: Projectors
Use: Audio / Video Players
Use: Camera / Video Camera
Use: Speaker
Use: Lighting
Use: Electric Door
Use: Automated curtains
Use: SWITCH
Origin: Mainland China
Wireless Communication: RF
Support APP: No
Certification: CE
Certification: RoHS
Frequency: 433 MHz
Channel: 4
Package: Yes
Model Number: KR2204-4
Choice: yes
semi_Choice: yes

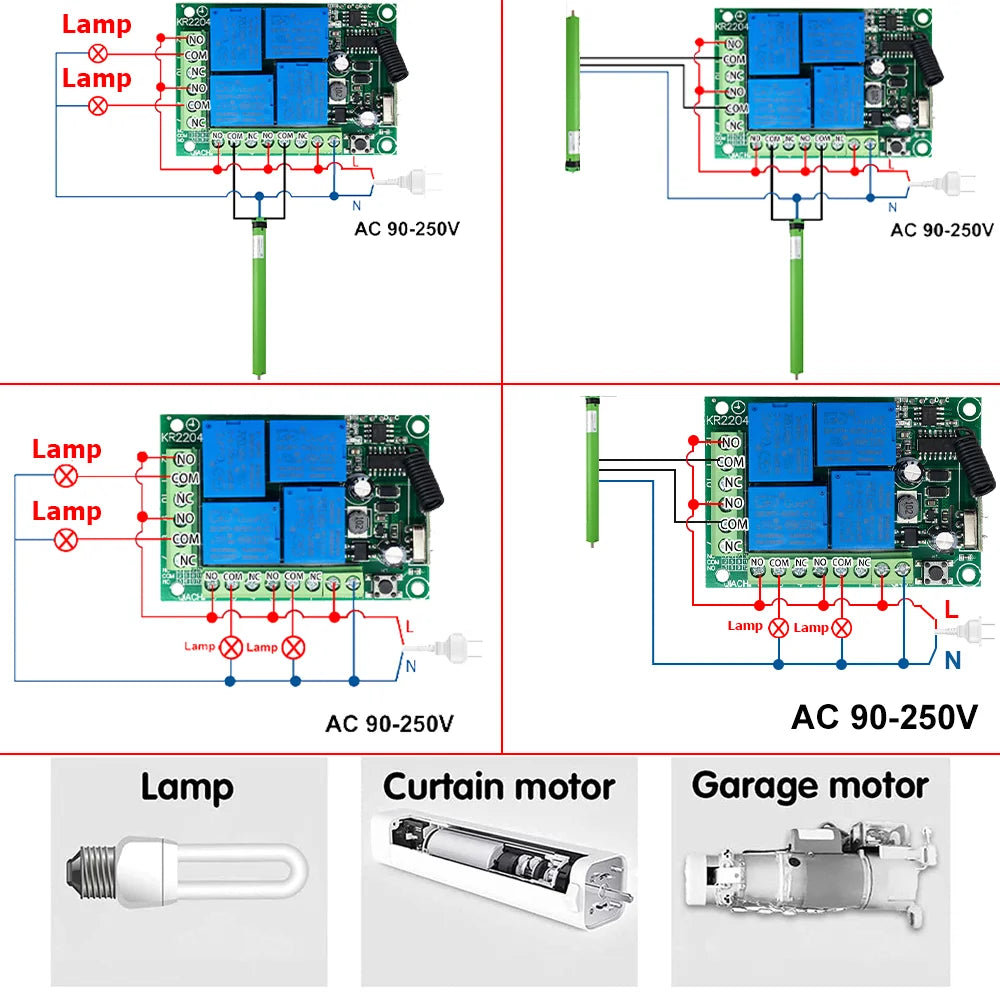

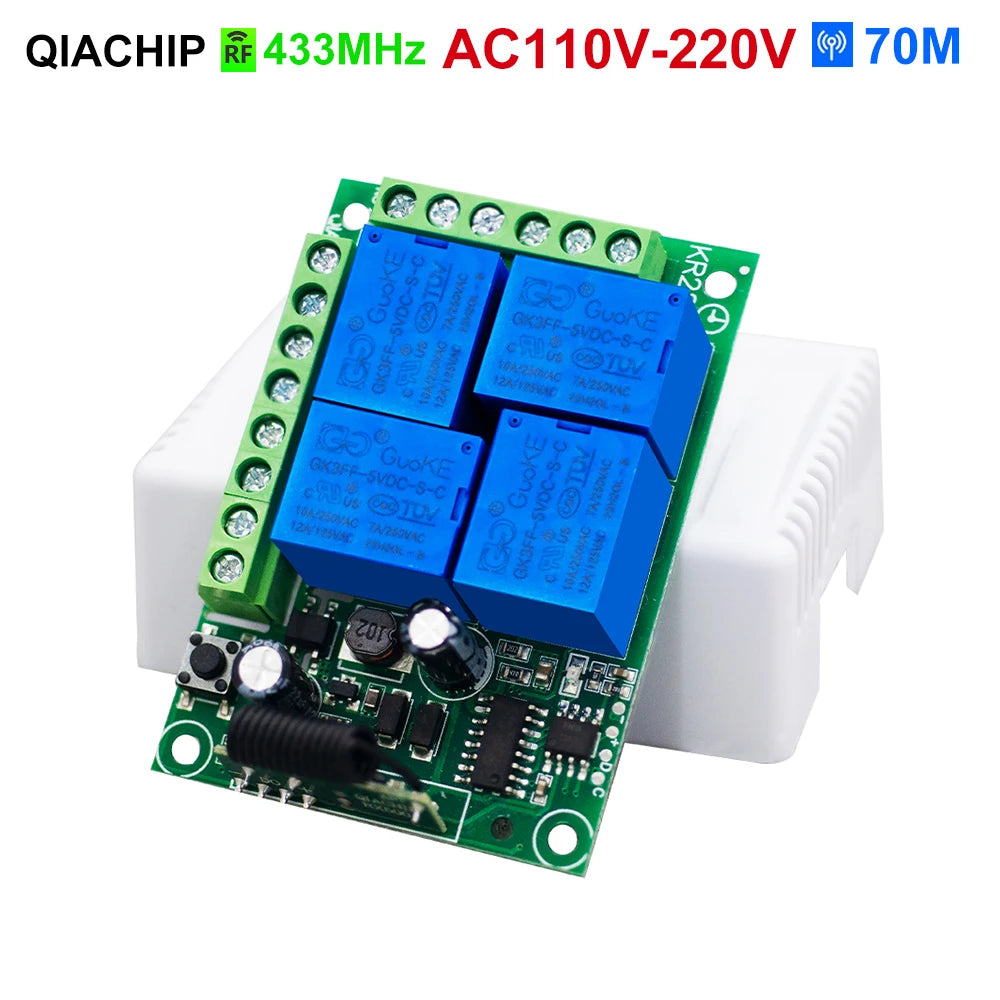

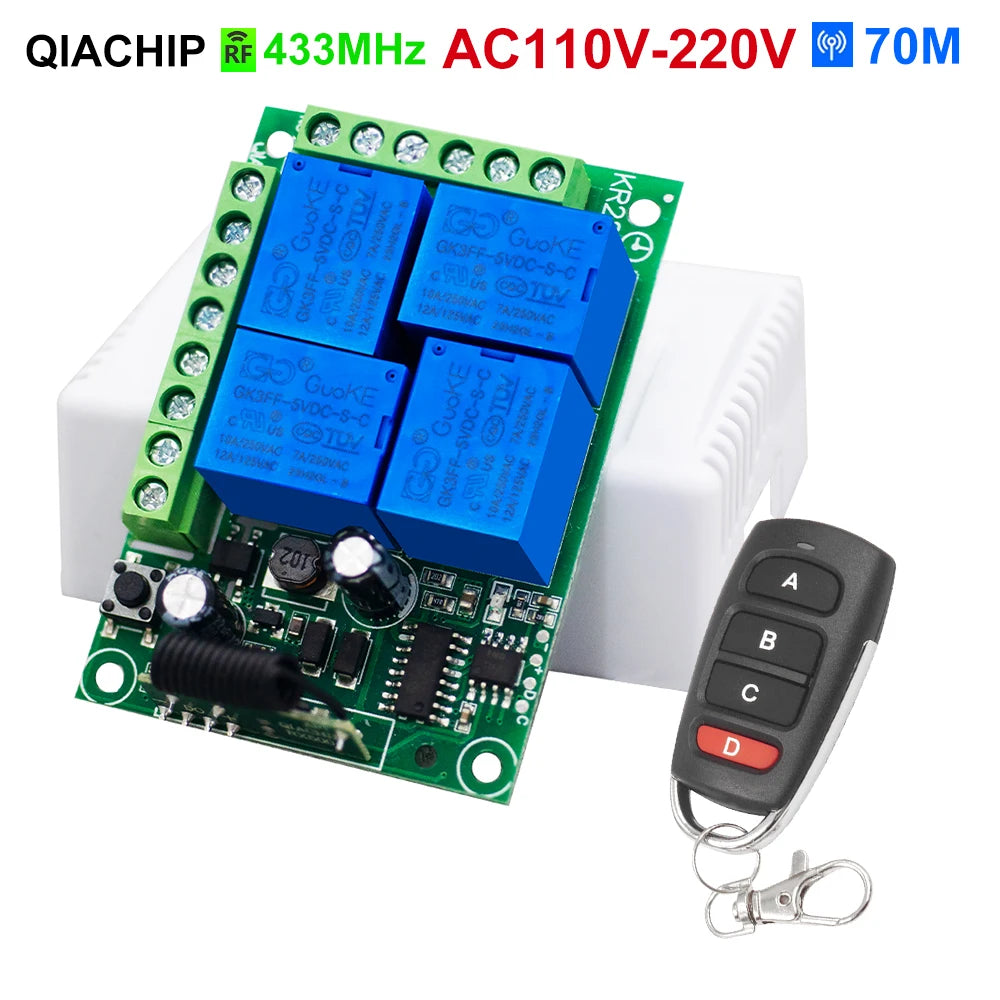

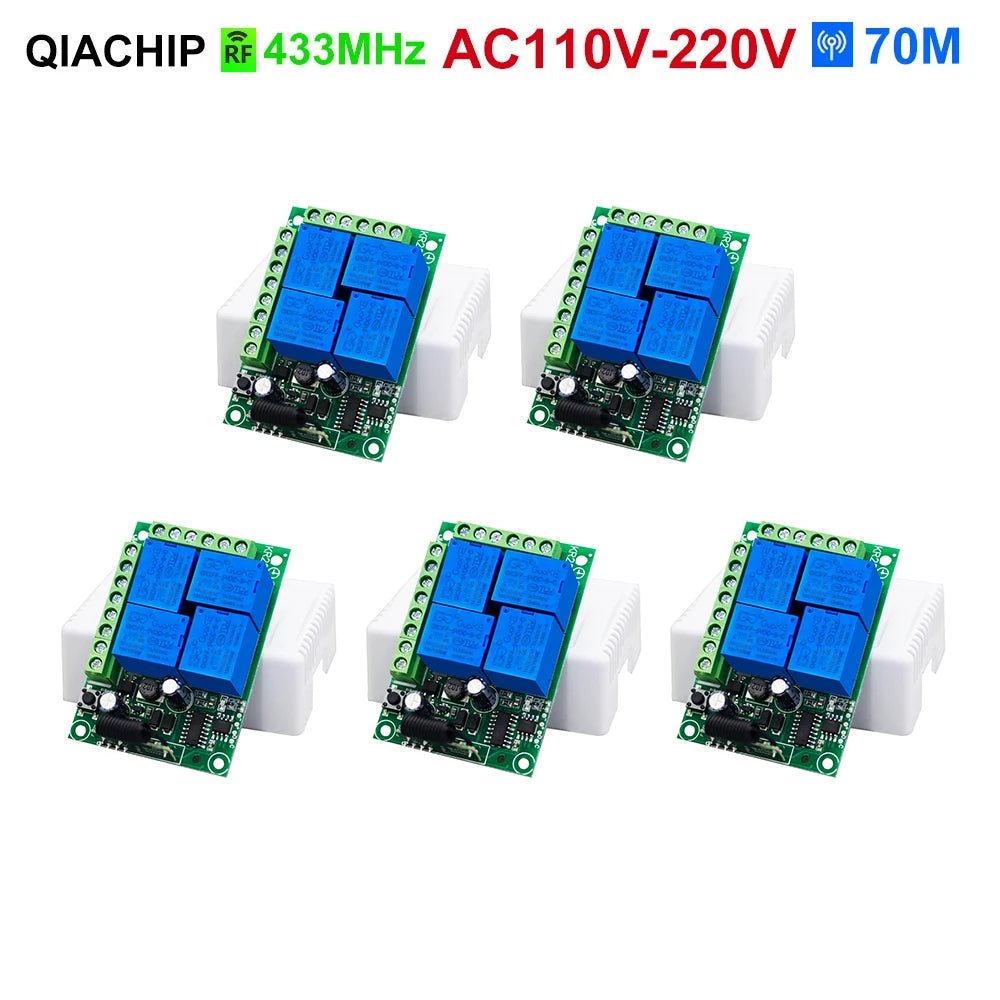

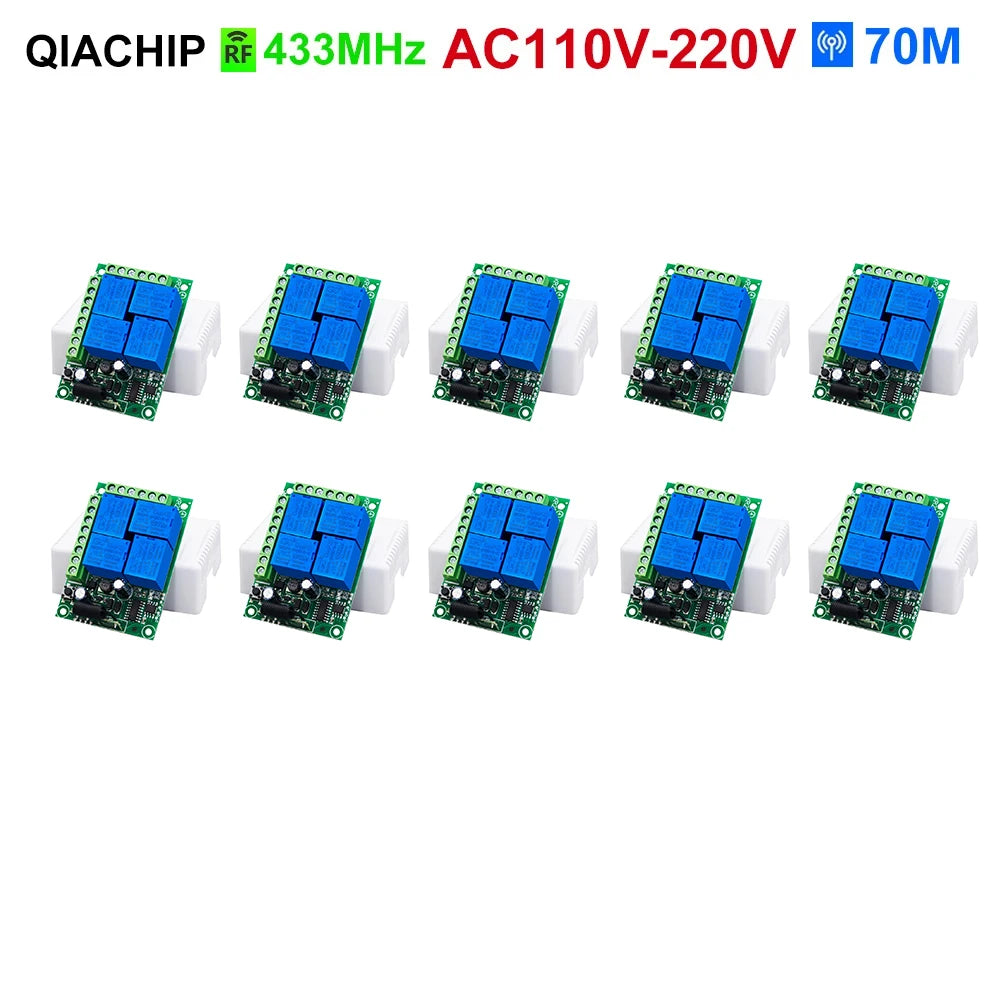

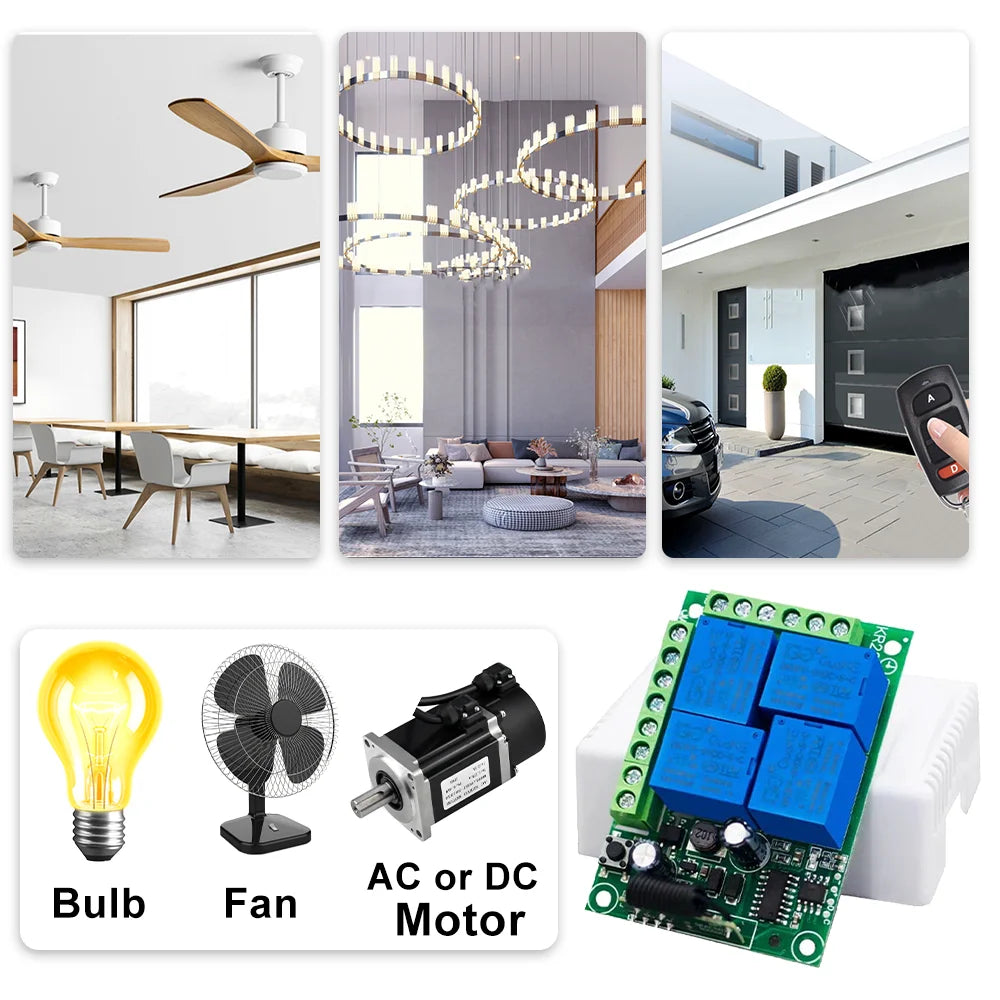

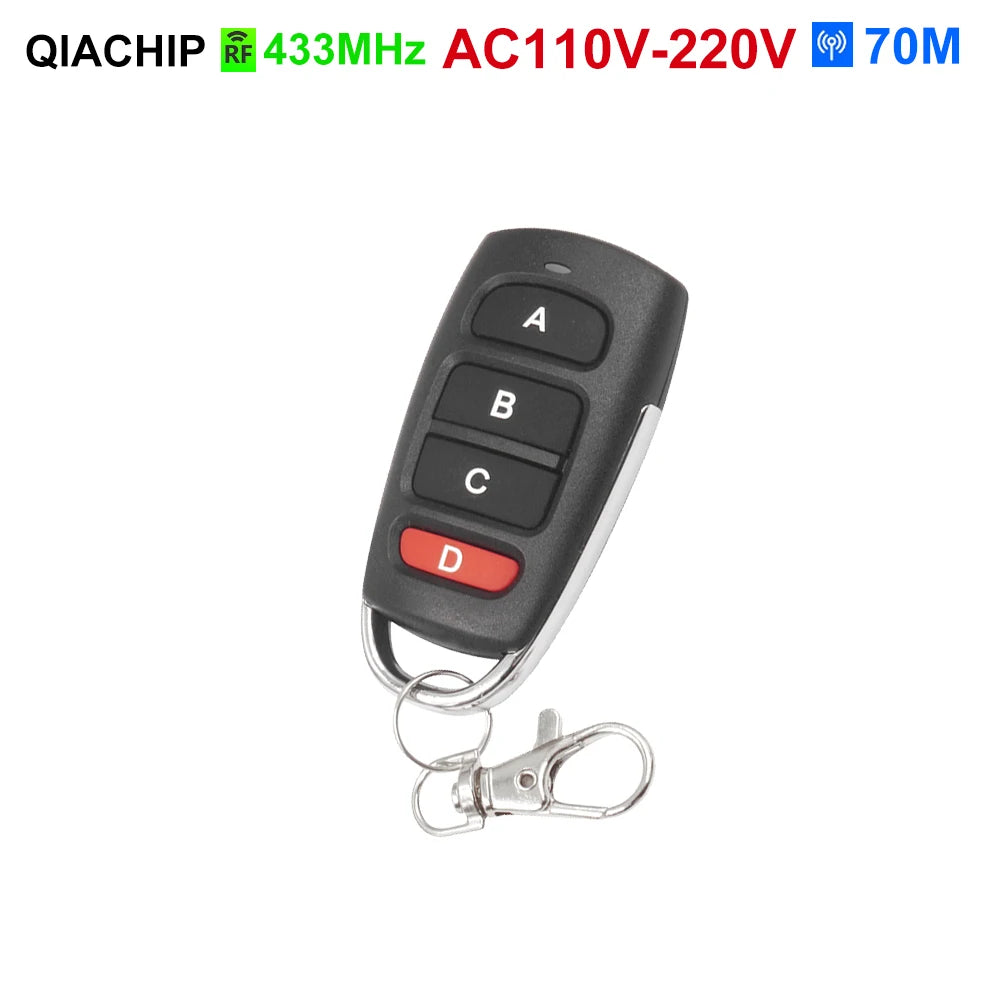

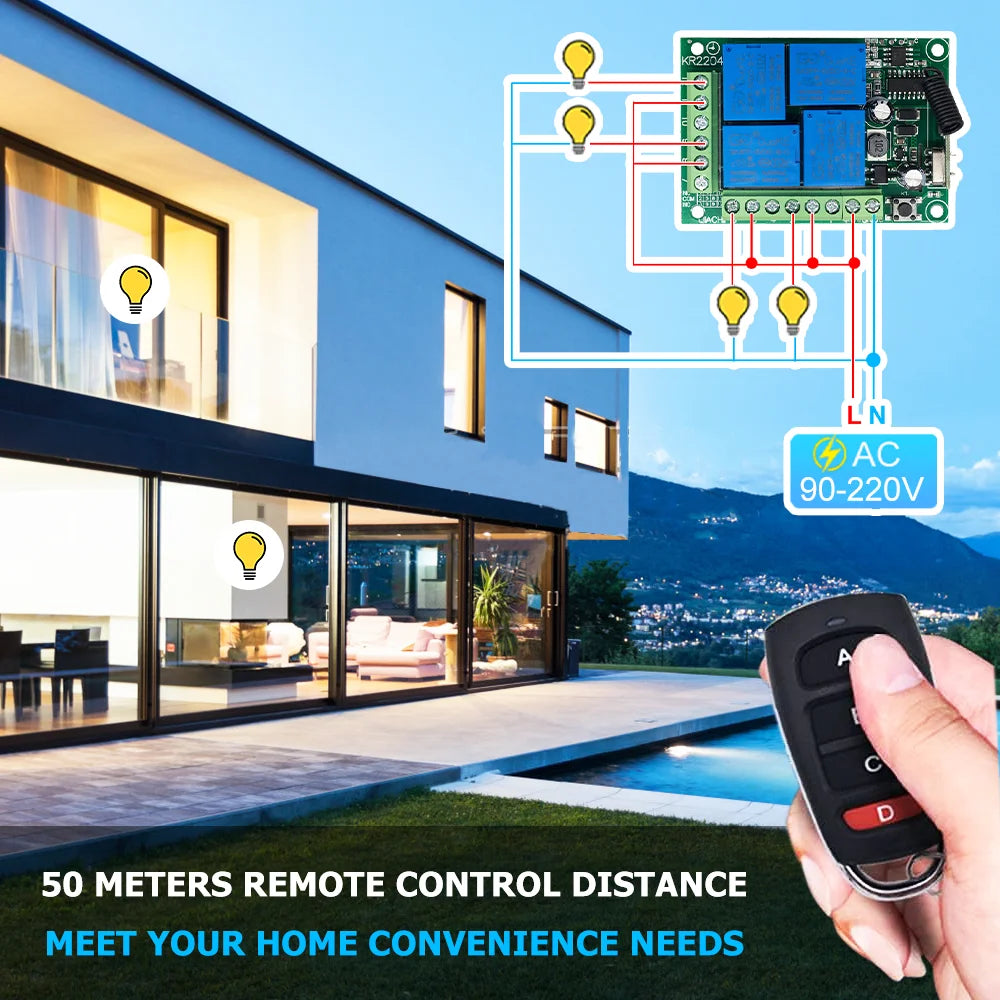

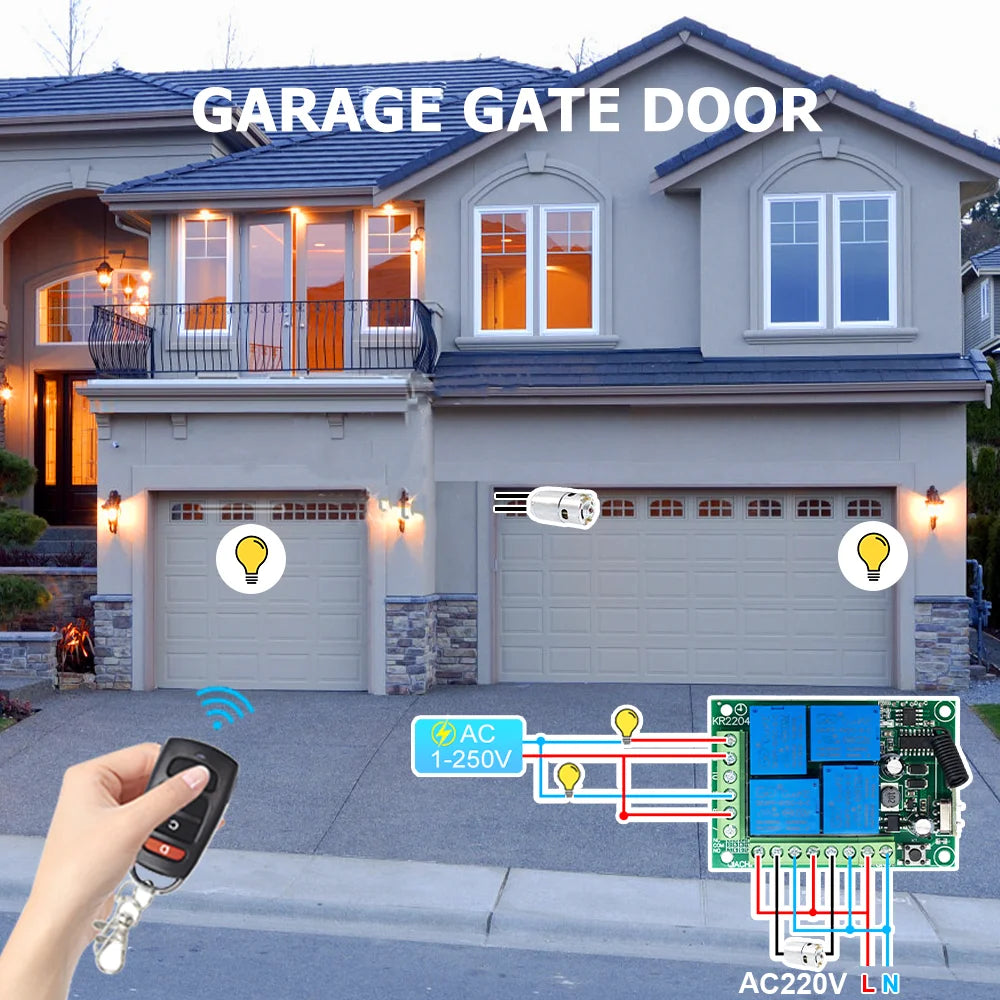

433Mhz Universal Wireless Remote Control AC110V 220V Relay 4CH Module Receiver 4B Transmitter For Garage Door Gate Motor Light
Model Number:KR2204-4
Working Voltage: AC 90V-250V 50/60HZ
RF Working Mode: ASK Superheterodyne Reception.
Modulation Mode: ASK.
Working Mode: Momentary/Toggle/Latched, etc.
Matching Mode: Intelligent Learning Code.
Quiescent Current: 5mA.
RF Frequency: 433MHz.
Receiving Sensitivity: >104dbm.
Remote Control Range: >70m (Free Space).
Output Mode: Dry Contact/Voltage Output.
Wired Connection Way: Fixed Wiring Pillar.
Color: Green (PCB Board), White (Outside Shell).
Package Size:7.5 * 5.5 * 3.0cm / 2.95 * 2.16 * 1.18in.
Package Weight: 80g/2.82oz.
Press the learning button on the Receiver Switch Module board 8 times , the existing data are deleted successfully.
After deleted the data, all the remote control cannot work any more.
Operating instructions:

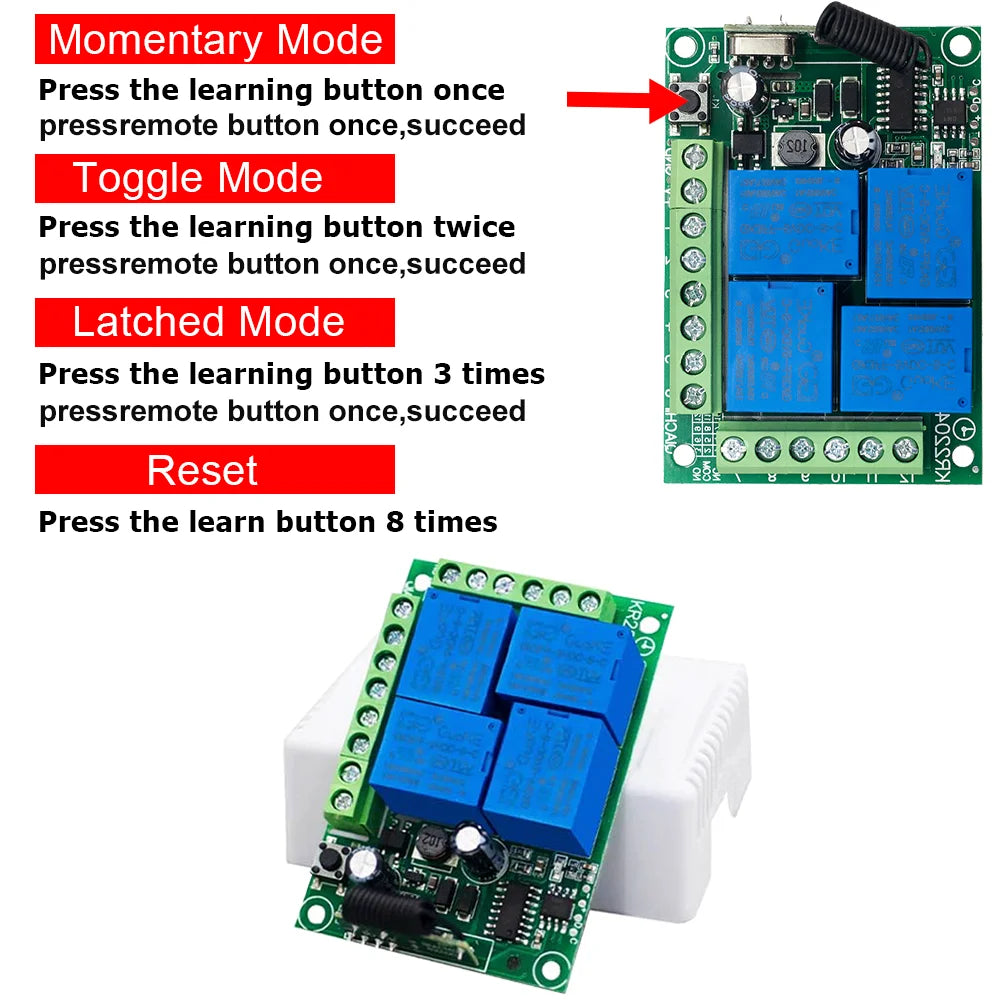

1. Jogging function: Press the control board pairing button once, and the LED indicator light will flash once. After the LED indicator light is on, press the remote control button that needs pairing, and the control board LED indicator light will flash three times continuously to successfully pair the codes.
2. Self locking function: Press the control board pairing button twice in a row, and the LED indicator light will flash twice. After the LED indicator light is on, press the remote control button that needs pairing, and the control board LED indicator light will flash three times in a row, successfully pairing.
3. Interlocking function: Press the control board code matching button three times in a row, and the LED indicator light will flash three times. After the LED indicator light is on, press the remote control button that needs to match the code, and the control board LED indicator light will flash three times in a row to successfully match the code.
4. Two way jog and two way self-locking: Press the control board code matching button 4 times continuously, and the LED indicator light will flash 4 times. After the LED indicator light is on, press the remote control button that needs to match the code, and the control board LED indicator light will flash 3 times continuously to successfully match the code.
5. Two way jog and two way interlock: Press the control board code matching button 5 times continuously, and the LED indicator light will flash 5 times. After the LED indicator light is on, press the remote control button that needs to match the code, and the control board LED indicator light will flash 3 times continuously to successfully match the code.
6. Two way self-locking and two way interlocking: Press the control board code matching button 6 times continuously, and the LED indicator light will flash 6 times. After the LED indicator light is on, press the remote control button that needs to match the code, and the control board LED indicator light will flash 3 times continuously to successfully match the code.
7. Two way interlocking and two way interlocking: Press the control board code matching button 7 times continuously, and the LED indicator light will flash 7 times. After the LED indicator light is on, press the remote control button that needs to match the code, and the control board LED indicator light will flash 3 times continuously to successfully match the code.
8. Code clearing function: Press the control board's code matching button 8 times in a row, and the LED indicator light will flash 8 times. At this time, the LED indicator light will automatically flash 8 times in a row, completing the code clearing and clearing all previously learned remote control key codes.
