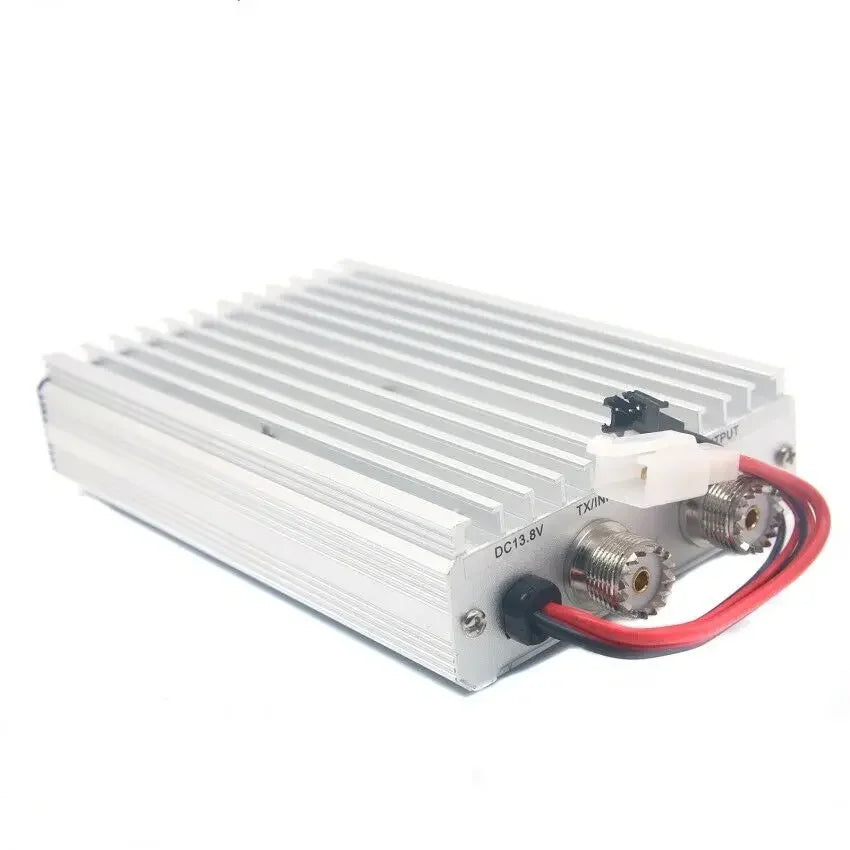

45W MX-P50M HF Power Amplifier for FT-817 ICOM IC-703 Elecraft KX3 QRP FT-818

Description:

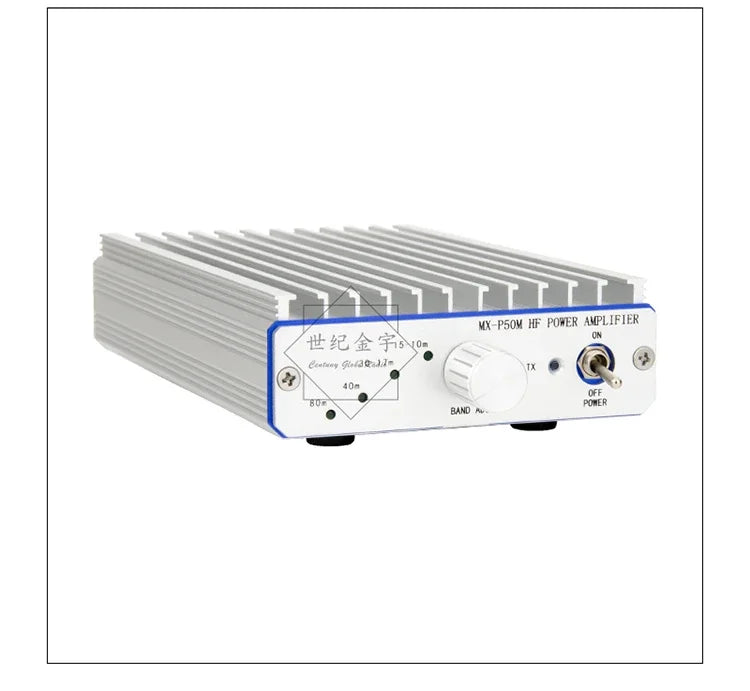

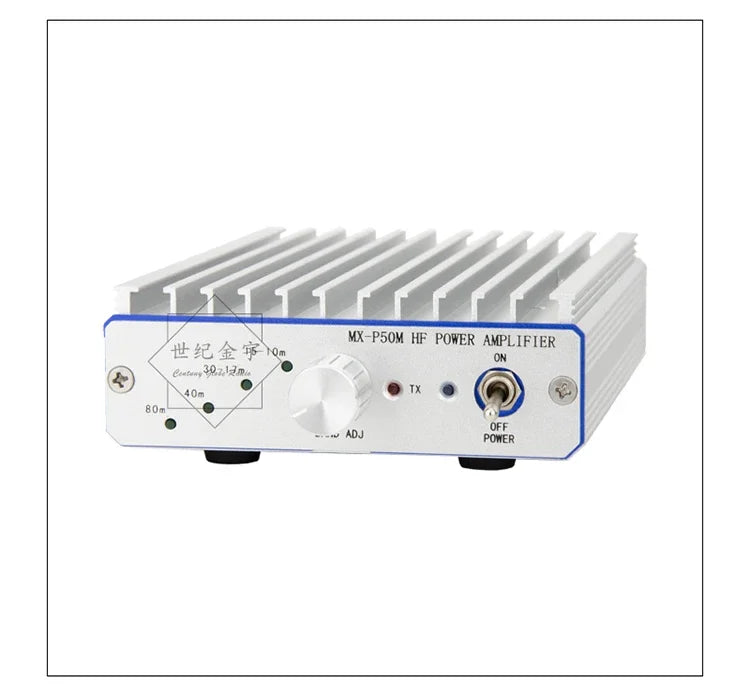

HF power amplifier, for QRP transceiver,  Improve signal. Can be used both as a base and mobileunit,Extremely Small Compact and lightweight , Full integration with the FT-817 using the supplied interface cable,The amplifier incorporates various protection circuits such as high VOLTAGE,front mounted LED display.

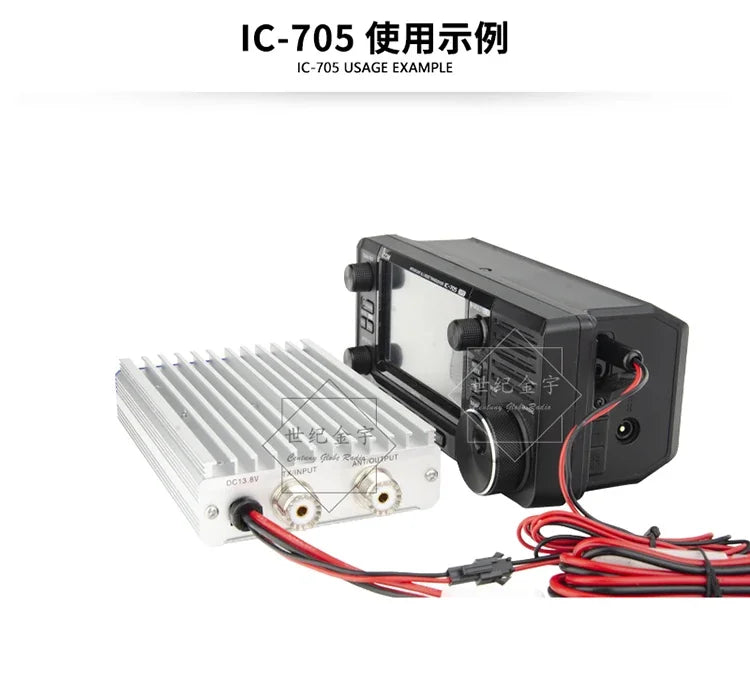

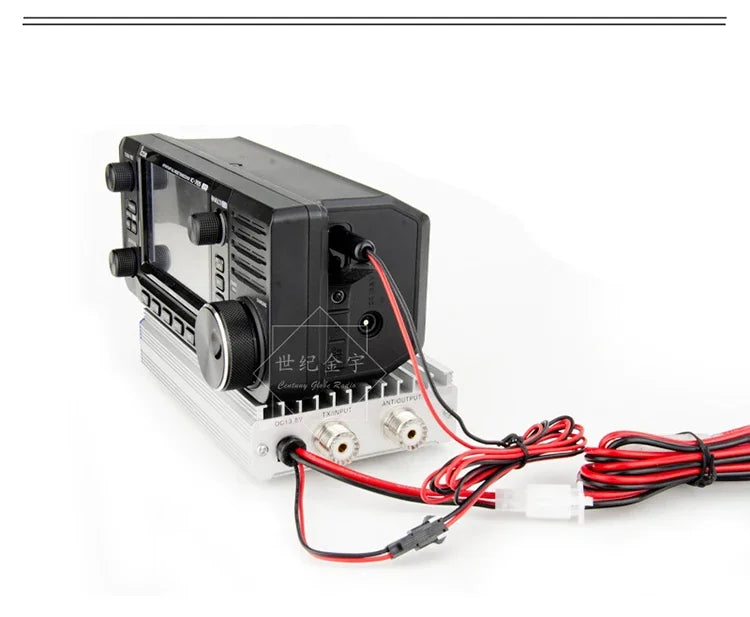

This amplifier can be successfully used with other QRP rigs such as the ICOM  IC-703(and Elecraft KX3).

YAESU FT-817ND Quick operating manual:

- Connect power cord to DC power supplier, Red to "+", Black to" -"

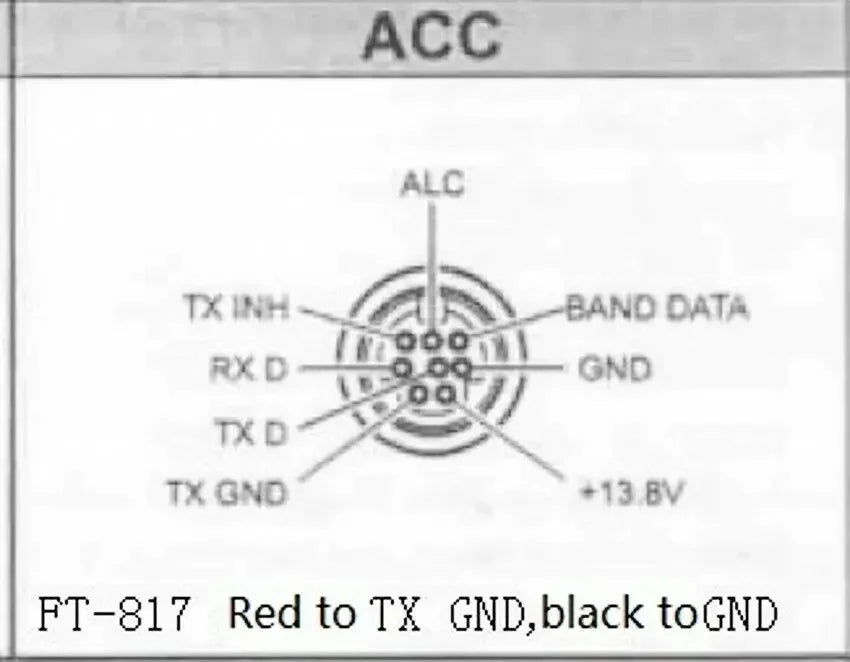

- Connect ACC cable to FT-817 ACC and amp

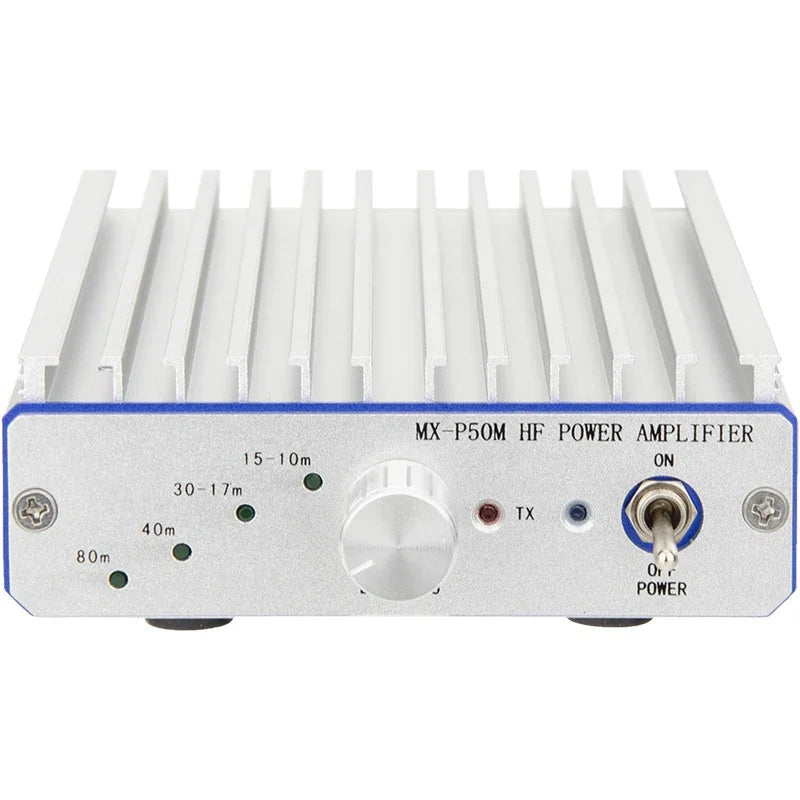

- Adjustment “BAND ADJ” button,Select the band.

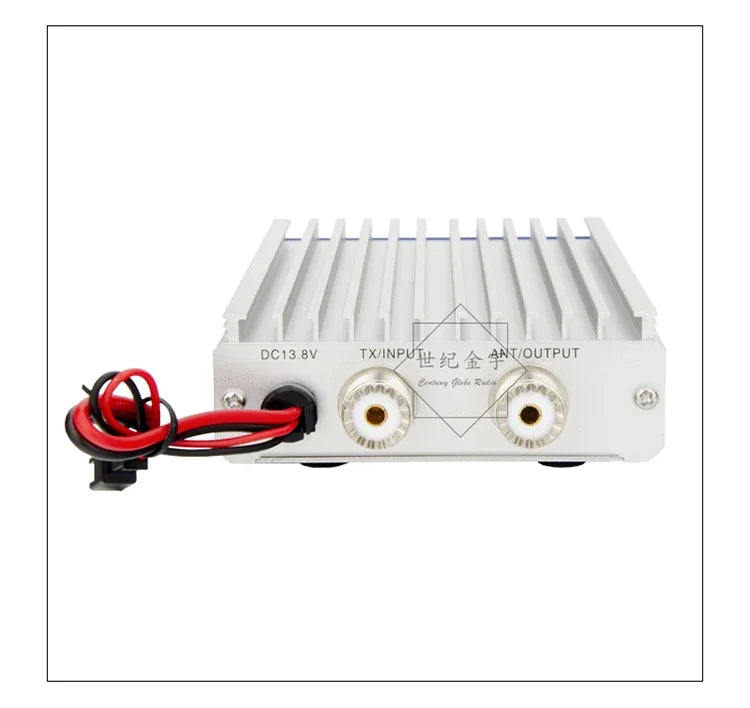

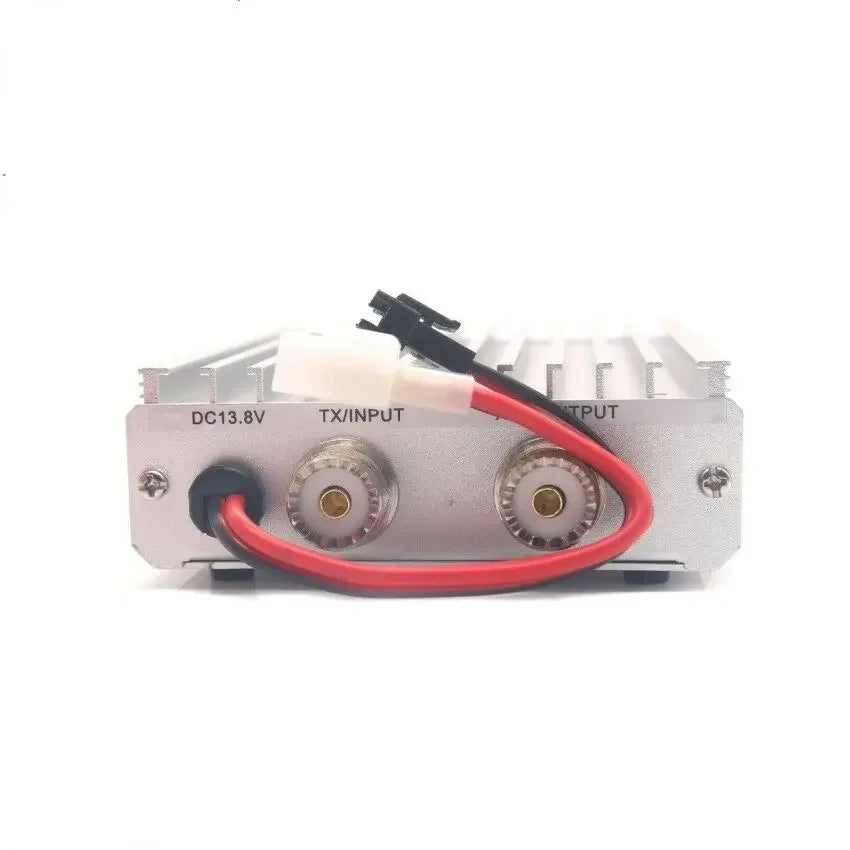

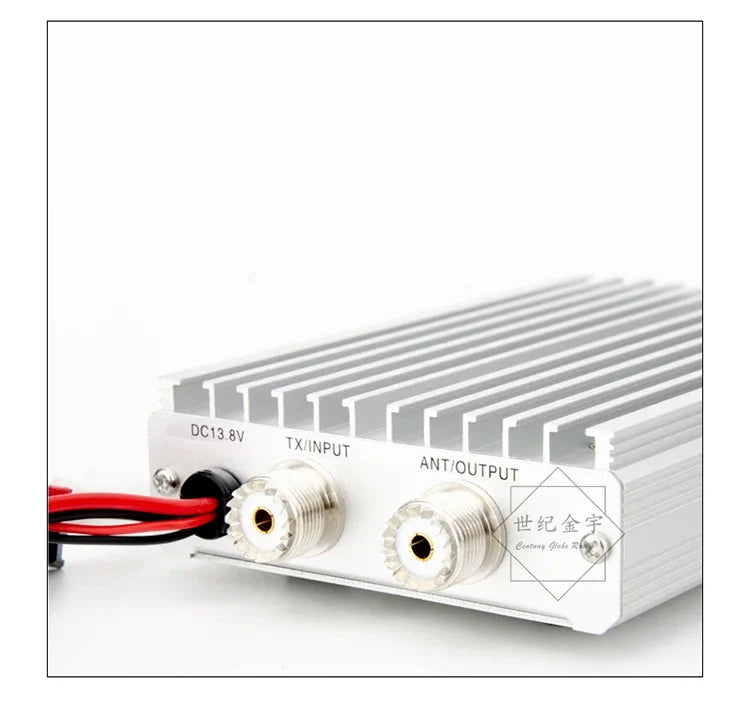

- Connect antenna to amp "ANT" and "input" from FT-817 antenna out. Note that the antenna you used that should well tuned, the SWR should less than 1:1.5
- Open the power on both power supplier and AMP. The power indicate on.
- Power on FT-817, the band indicate on Amp shoule be on.
- Press PTT, the TX indicate on Amp should be on.Notice! If working on  FM or SSTV for long operating time, should lower the output power on FT-817,
say 2.5W or 1W.

Other QRP transceiver operating manual:

Connect acc cable to transceiver PTT-TX and amplifier,ACC green to“GND”，RED TO“TX-PTT”,the radio “TX-PTT”view manual.

Specifications

- Frequency Band: 80m 40m 30m-17m 15m-10m
- Operating Modes: SSB CW AM， RTTY and FM-Reduced duty cycle
- Rf input: 5W
- Out power:45W( antenna SWR < 2.0)
- Band mode: Manual
- Power requirement: 13.8V 8A, RED "+" BLACK"-"
- Cooling method:passive air cooling
- Antenna connector: SO-239 50Ohm

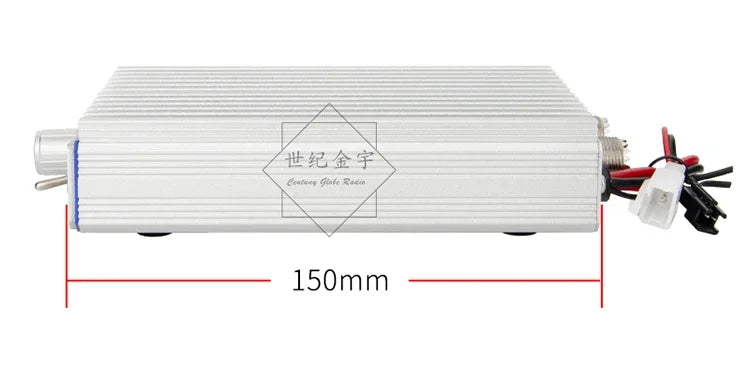

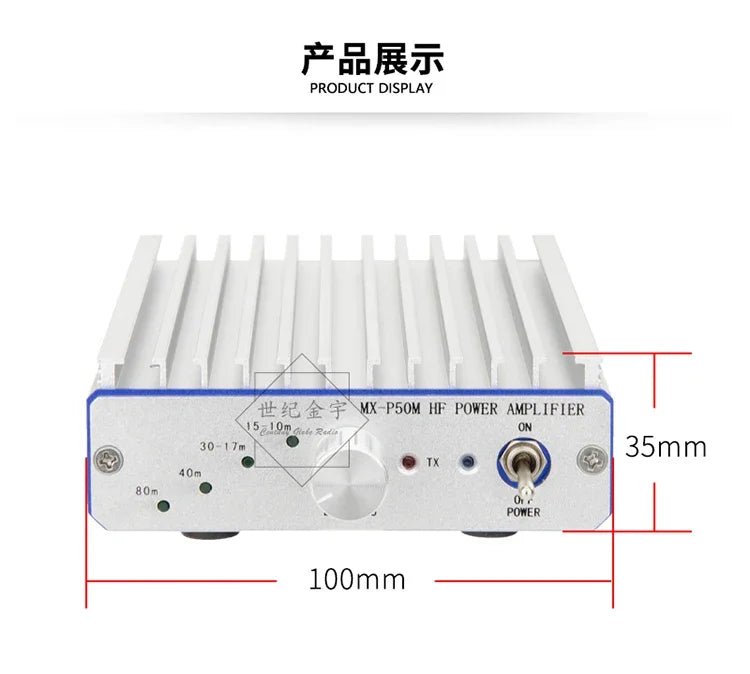

- Size: 155*100*35mm D*W*H
- Weight: 0.55KG

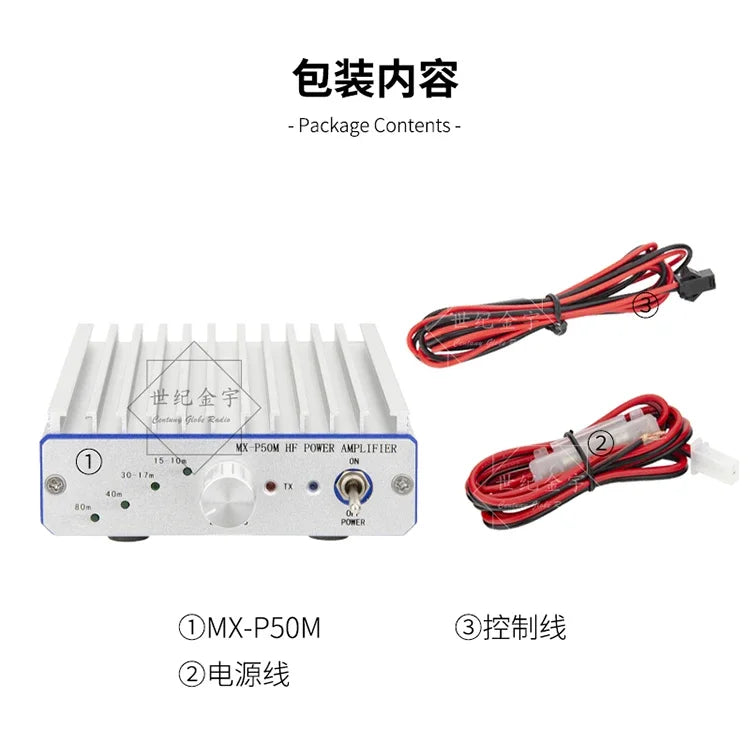

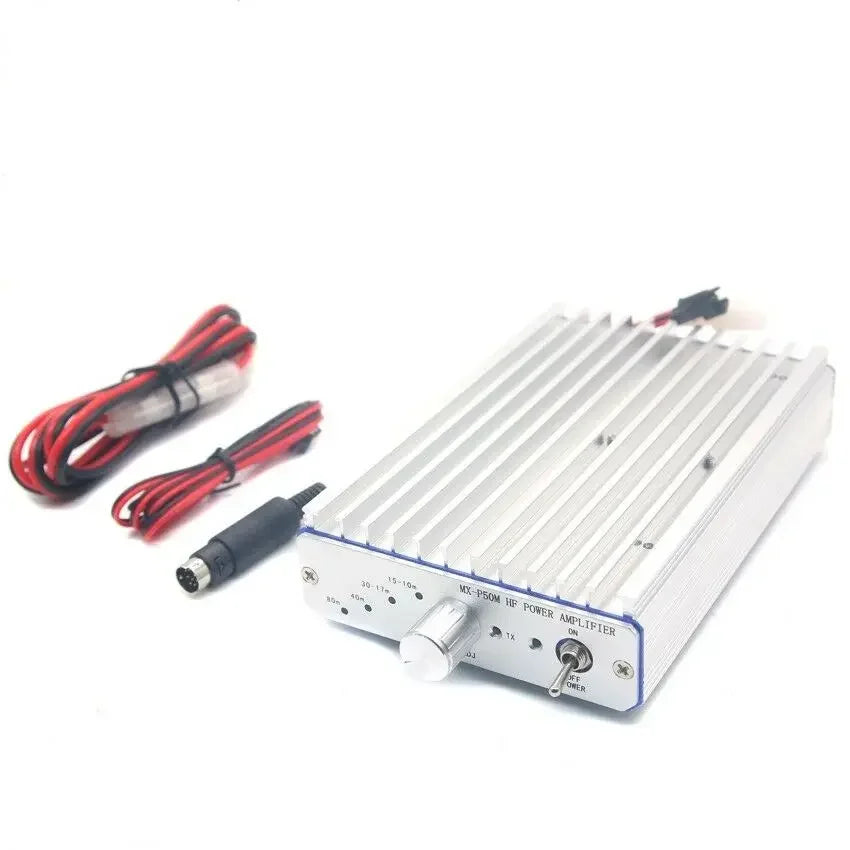

Package list:

- 1x MX-P50M
- 1x Power cord
- 1x Control cable( need solder youself)
