SPECIFICATIONS

Battery Included: No

Brand Name: XMSJ

Certification: CE

Color: Black

Feature: Support 3D, deep color 48/36/30/24-bit

High-concerned chemical: None

Input interface: 8xHDMI

Material: Metal Housing

Origin: Mainland China

Power supply: DC12V

Product name: 4K 30Hz HDMI Matrix Switch 4x4

Resolution: 4K@30Hz, 1080P@60Hz

Warranty: 1 Year

Web control: Support

brand name: MT-ViKI

color: Black

model number: MT-HD88L

output interface: 8xHDMI

place of origin: Guangdong, China

private mold: Yes

Contact US：

WhatsApp: +86 15131351114   Email: yierguoji02@163.com

Series Available

HDMI matrix	Hybrid matrix	HDMI matrix +video wall	Video wall controller
Available for-- 4 in 4 out (ADI)  8 in 8 out (ADI)  16 in 16 out (ADI)  4 in 4 out  8 in 8 out  16 in 16 out	Available for-- Hybrid 8 in 8 out Hybrid 16 in 16 out Hybrid 32 in 32 out Hybrid 36 in 36 out Hybrid 7 in 72 out	Available for-- Seamless HDMI 4x4 (4K 60hz) Seamless HDMI 8x8 (4K 60hz) Seamless HDMI 16x16 (4K 60HZ)	Available for-- HDMI matrix 4x4 over Cat6 HDMI matrix 8x8over Cat6
Special Note:  MT-VIKI authorize clients to sell our branded product, but you may also customize brand (MOQ required)

Product Features

About this item

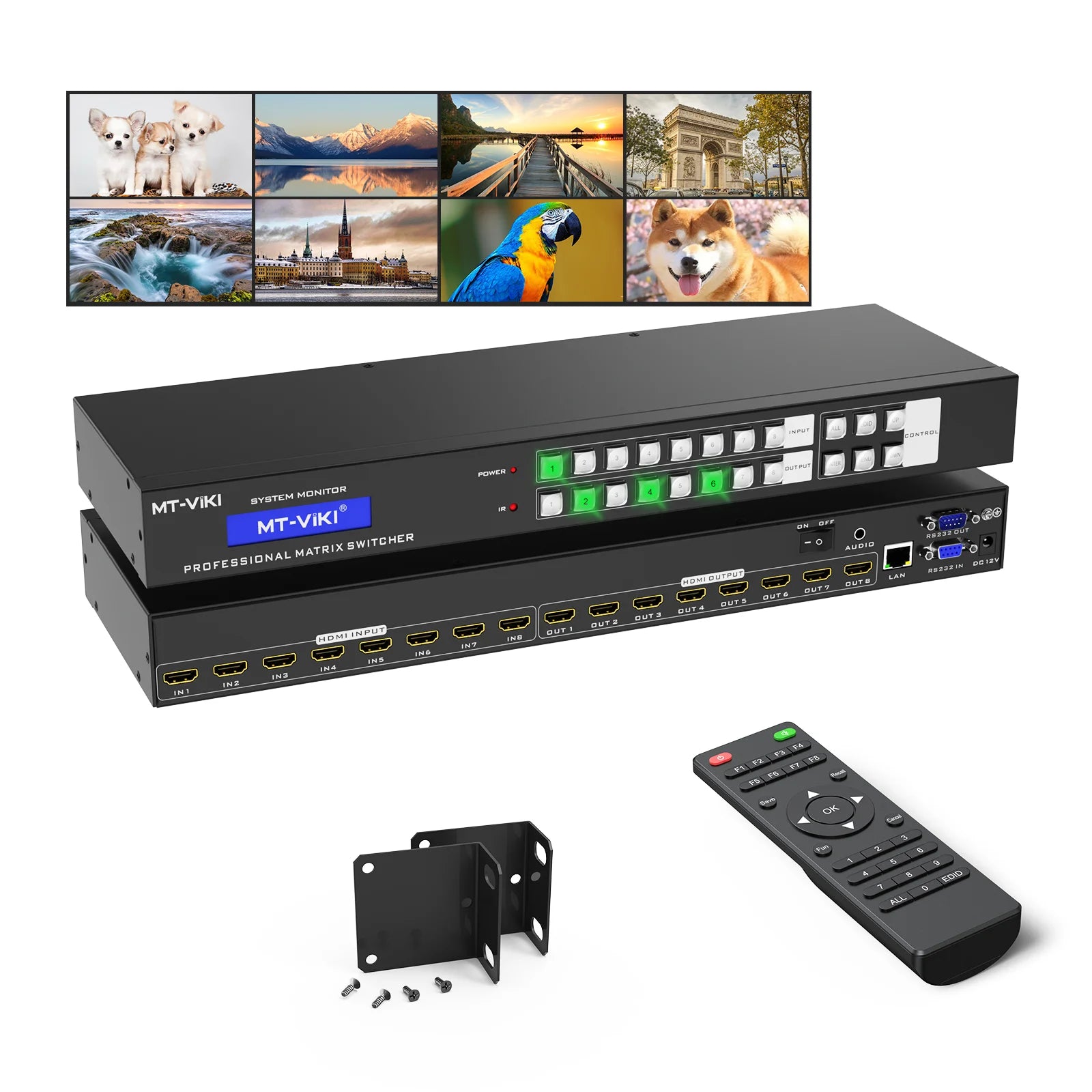

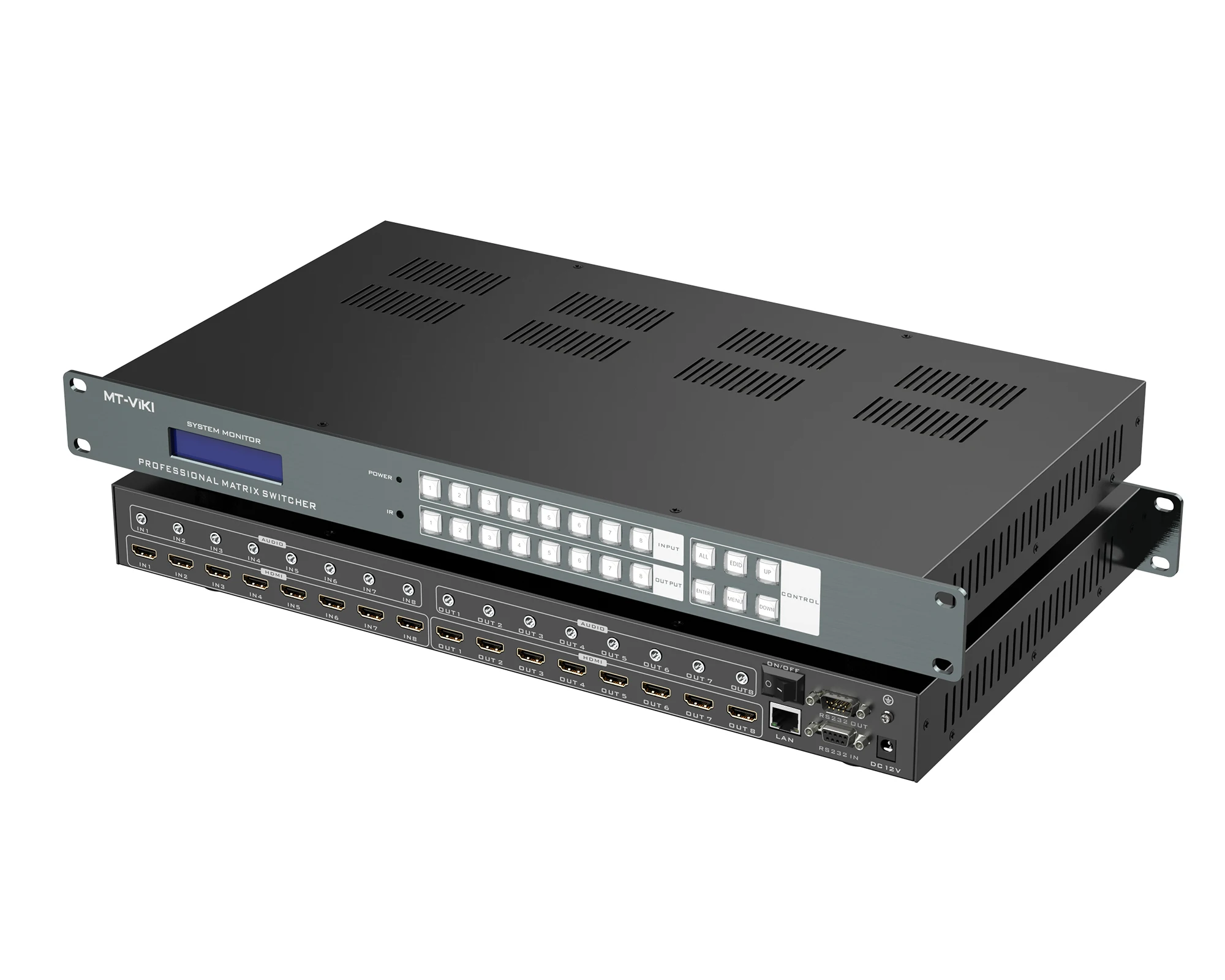

Model：MT-HD88L

Description:
This HDMI matrix 8X8 is a new generation that our company is dedicated to create. It supports HDMI1.4 standard, EDID management and resolution up to 4K@30Hz, 1080@60Hz. Support audio and video synchronization switching, suitable for conference rooms, command centers, multimedia rooms and other application scenarious.

Feature:
*Resolution max up to 3840*2160@30Hz.
*Each signal supports HDCP decoding, blu-ray, 3D.

*Supports EDID rewritable and EDID self-adaptive function, better adapt to the diversified display devices in the field and improve compatibility.

*Using high quality HDMI version 1.4 cables, the transmission distance can be up to 15m.

*Switching options by: button, IR remote control, RS232 serial port without delay.
*Supports PCM, Dolby AC3, DTS5.1, DTS7.1 and DSD audio format.

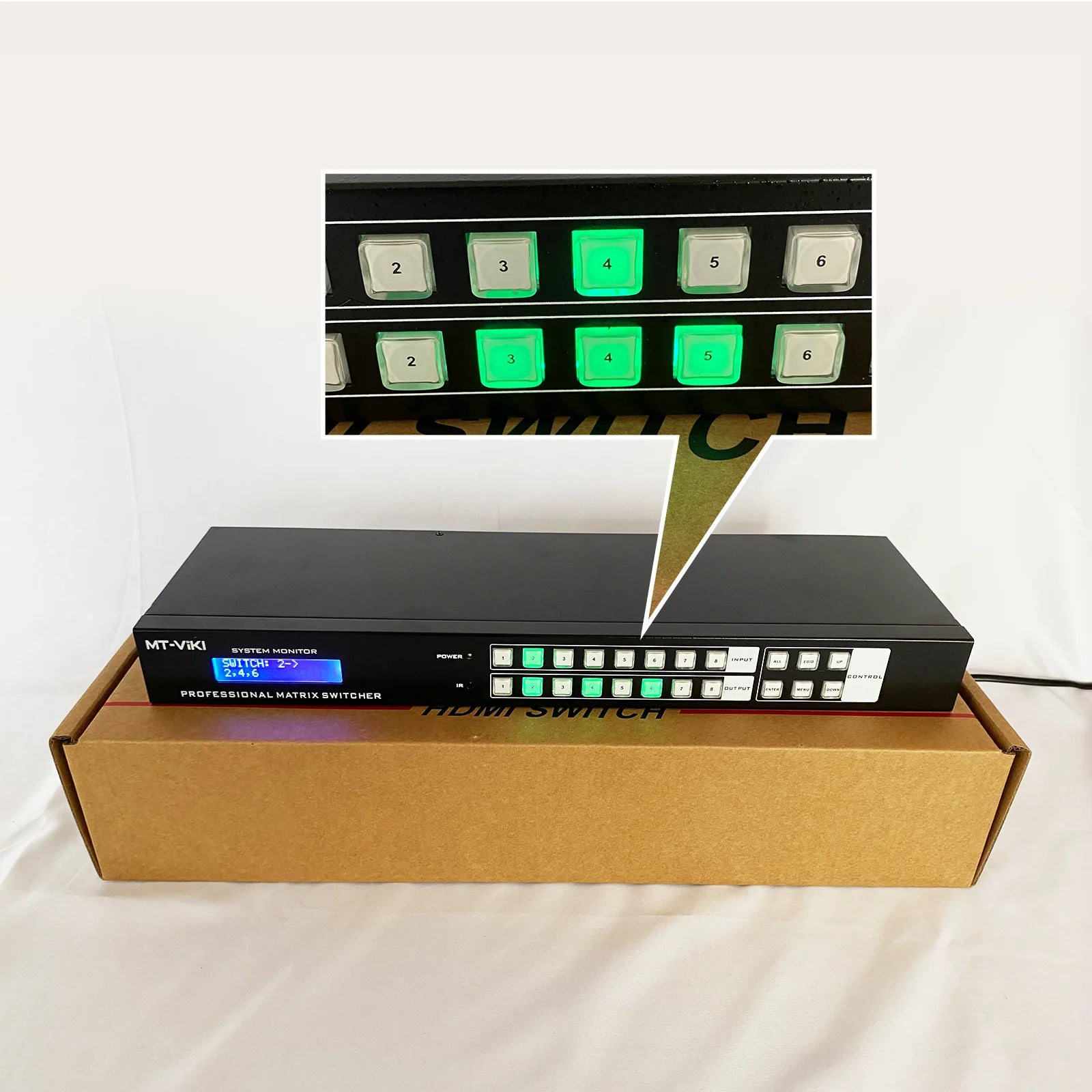

*Fits for standard 1U 19-inch Cabinet/Rack. Built-with Acrylic crystal button and LED backlit.
*3.4G high-bandwidth original switching chip is used, so that all signals can be switched synchronously.

Product Specifics

Product name	4K 30Hz HDMI matrix switch 8X8

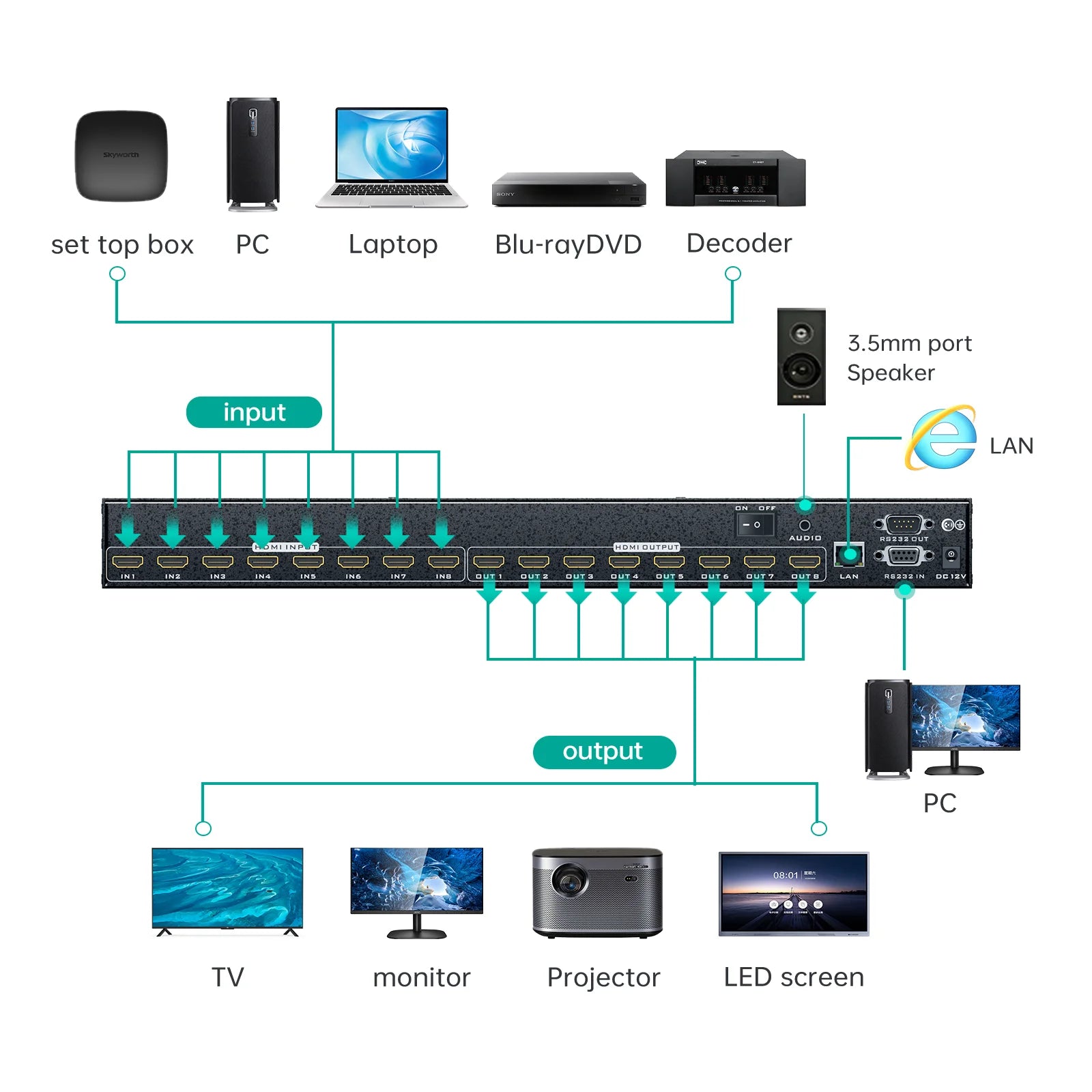

Input	8* HDMI
Ouput	8* HDMI
Device height	1U
Support resolution	480i, 576i, 480p, 576p, 720p ,1080i, 1080p@24/30/50/60/120Hz, 1080P 3D@60Hz, 4K*2K@30Hz
Control interface	1* RS-232 IN, 1* RS-232 OUT, 1* RJ-45(optical)
HDMI Version	HDMI 1.4
HDCP Version	HDCP 1.2
Protocol standard	Support EDID management and rewritable, HDCP decoding
Color space	Support RGB444, YUV444, YUV422 color space, support x.v.Color extended color gamut standard
Audio output	Support left and right stereo sound
Electrostatic protection	Human discharge mode: ± 8kV (air gap discharge) ± 4kV (contact discharge)

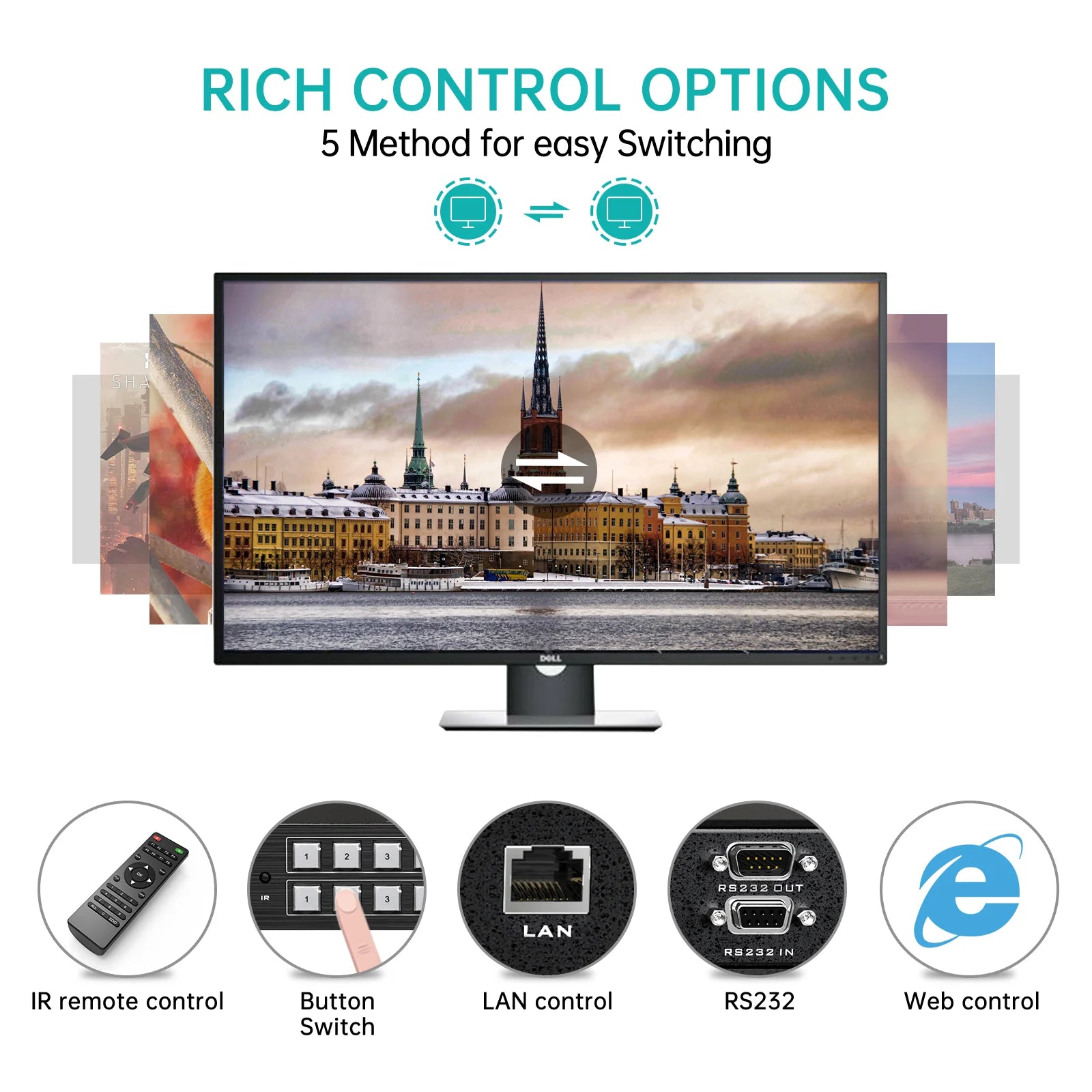

Control method	Standard button, RS232, IR control switching; WEB control; APP control
Power adapter	AC:100V-260V 50/60Hz DC:12V/2A
Input voltage	Power AC 100V ~ 260VAC, 50/60 Hz
Power consumption	30W(max)
Dimension(mm)	480mm × 252mm  × 57mm
Weight	3.2Kg
Operating temperature	0 ºC~40 ºC/32 ºF~104 ºF
Storage temperature	−20 ºC~60 ºC/−4 ºF~140 ºF
