4K 3x3 HDMI Video Wall Controller 1080p DVI 1X2 1X4 1X3 2x2 2x3 2x4 Multi Screen Splicing Video Processor 9 Unit TV Splicer Box
4K 3x3 HDMI Video Wall Controller 1080p DVI 1X2 1X4 1X3 2x2 2x3 2x4 Multi Screen Splicing Video Processor 9 Unit TV Splicer Box
Couldn't load pickup availability
SPECIFICATIONS
Battery: No
Brand Name: RULLZ
Certification: CE
Choice: yes
High-concerned chemical: None
Origin: Mainland China
Retail Box: No
Whether or Not 50Vac or 75Vdc or Higher Power Supply: No
semi_Choice: yes
Product Introduction:
Brand new and high quality

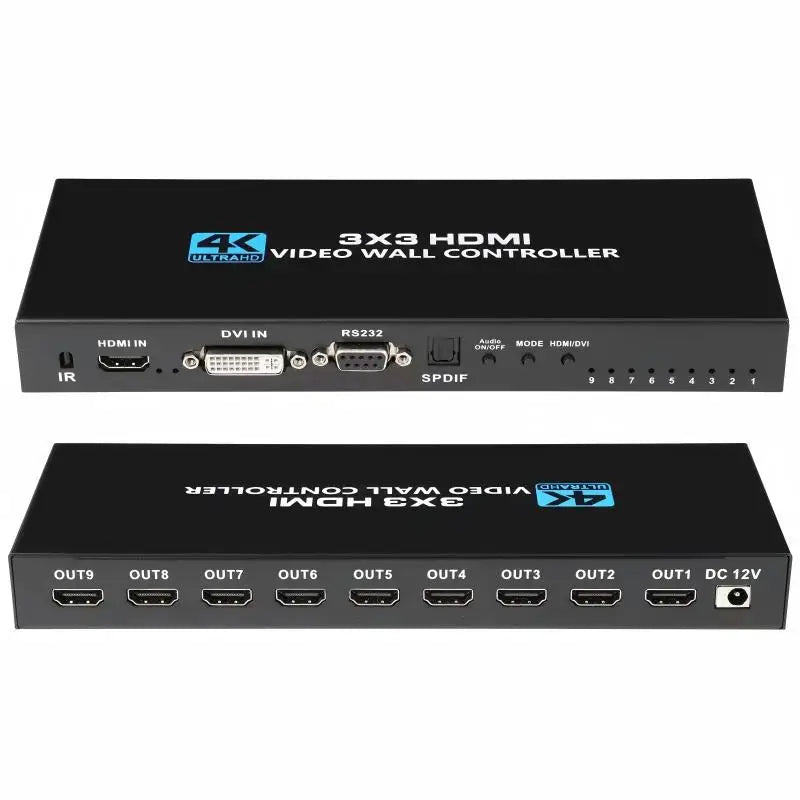

This 4K 3X3 video wall controller, support 1-way HDMl or DVI input and 9 HDMl output,its function is to divide
a complete HDMl or DVI HD image singal into 9 blocks and assign to 9 videodisplay unit (such as rear
projection unit, LCD TVetc.).
Complete with 9 HDMI high-definition videodisplay units to form a large dynamic image screen.
Features:
* Supports one DVl input or HDMI input.
* Input support HDMI1.4, HDCP1.4.
* Input format: RGB/YUV24bit;
* Output format: RGB4:4:4 24bit.

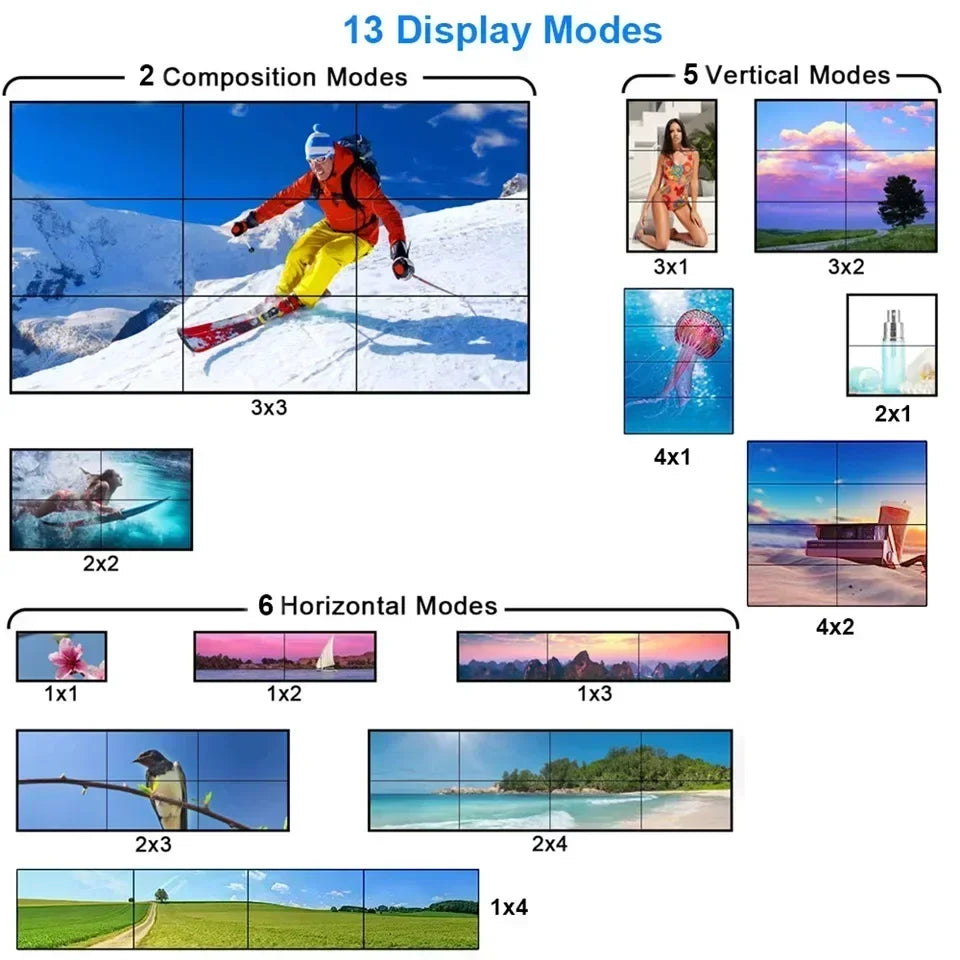

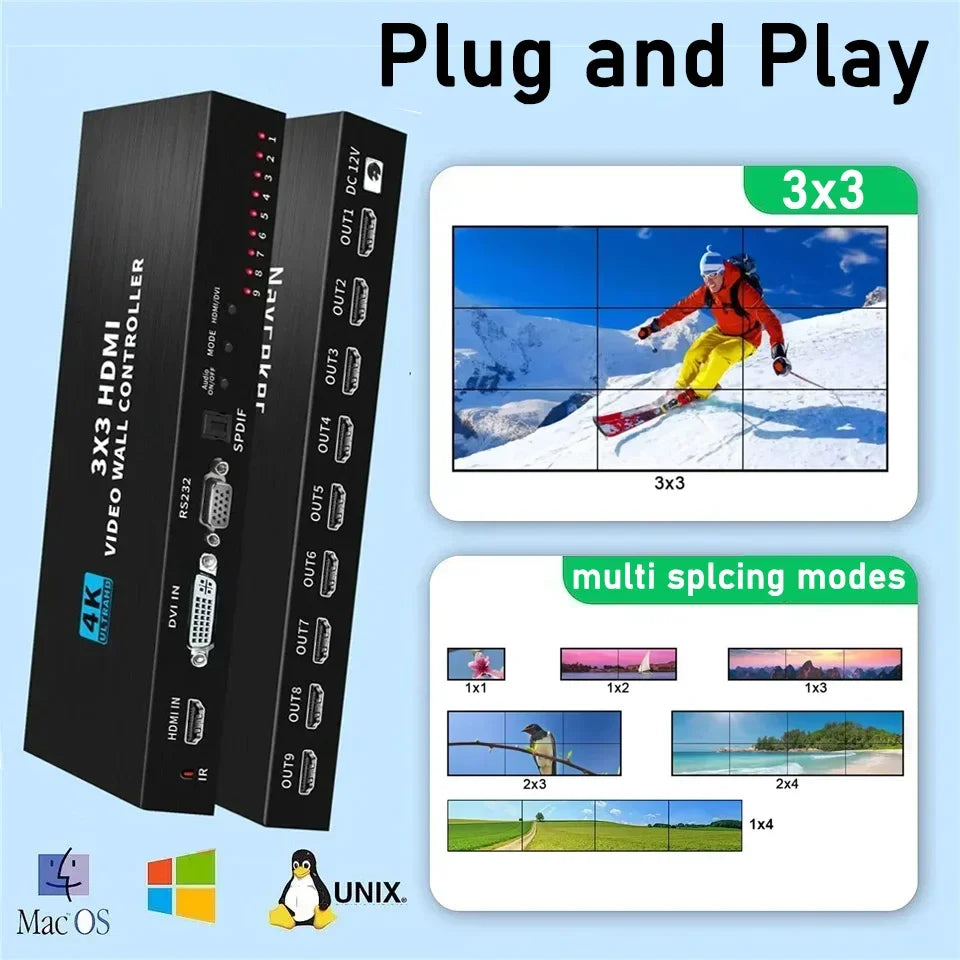

* Support 3X3 stitching, easy operation, plug and play;
* Input support 1920x1080P@25/30/50/60Hz , 3840x2160P@24/30Hz
* Output support 1920x1080P@60Hz

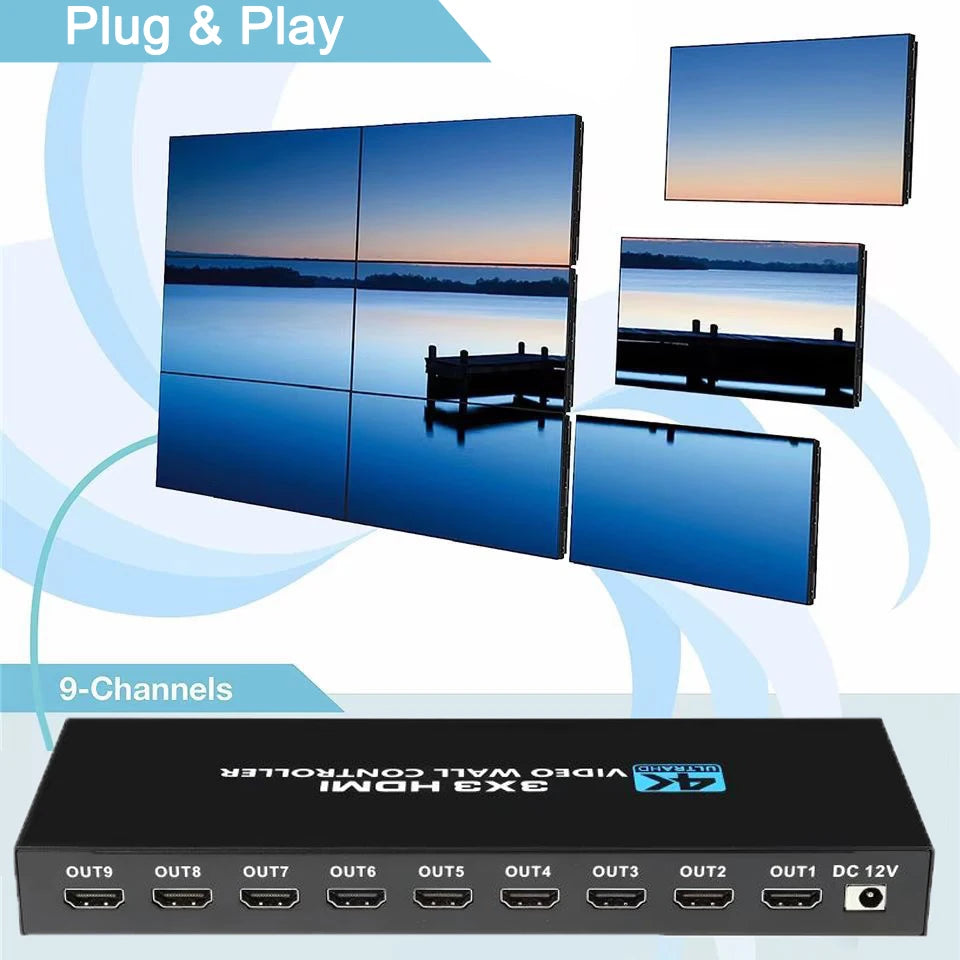

* Support 9 HDMl outputs
* Supports SPDIF audio output over optical fibers.
* Supports RS232
* Supports remote control
* DC12V power supply

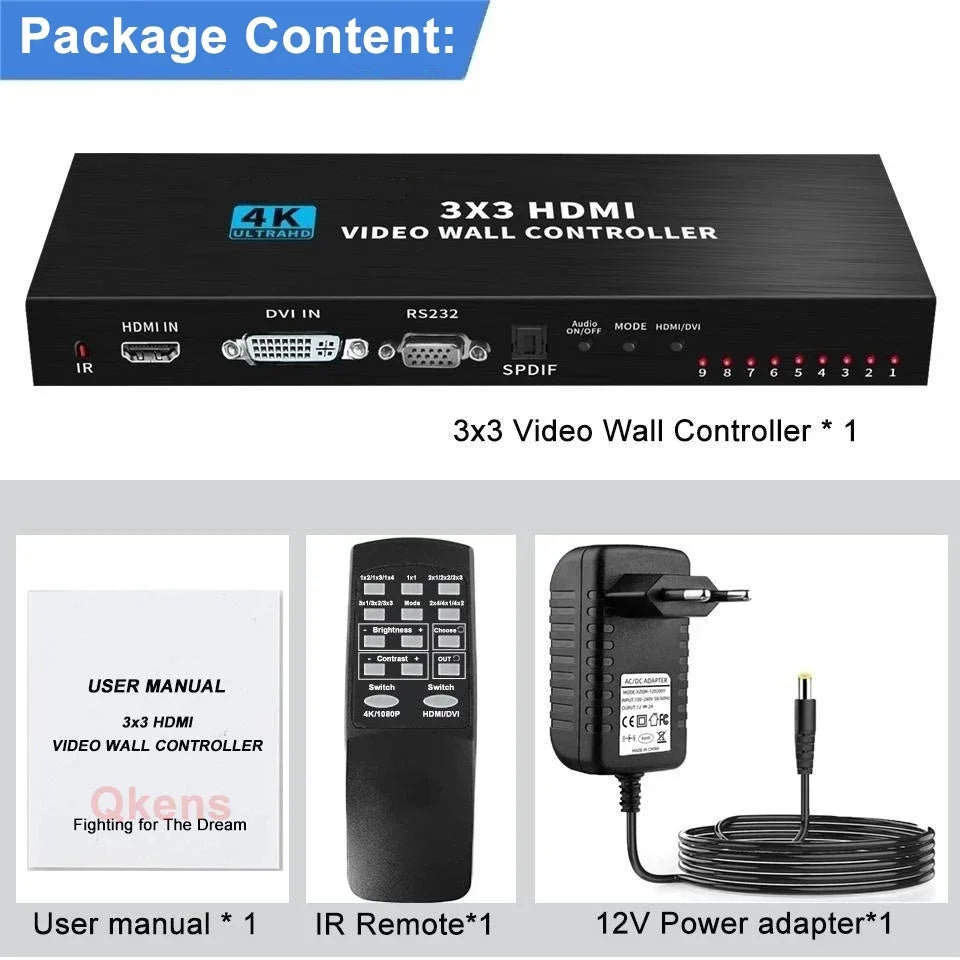

Package List:

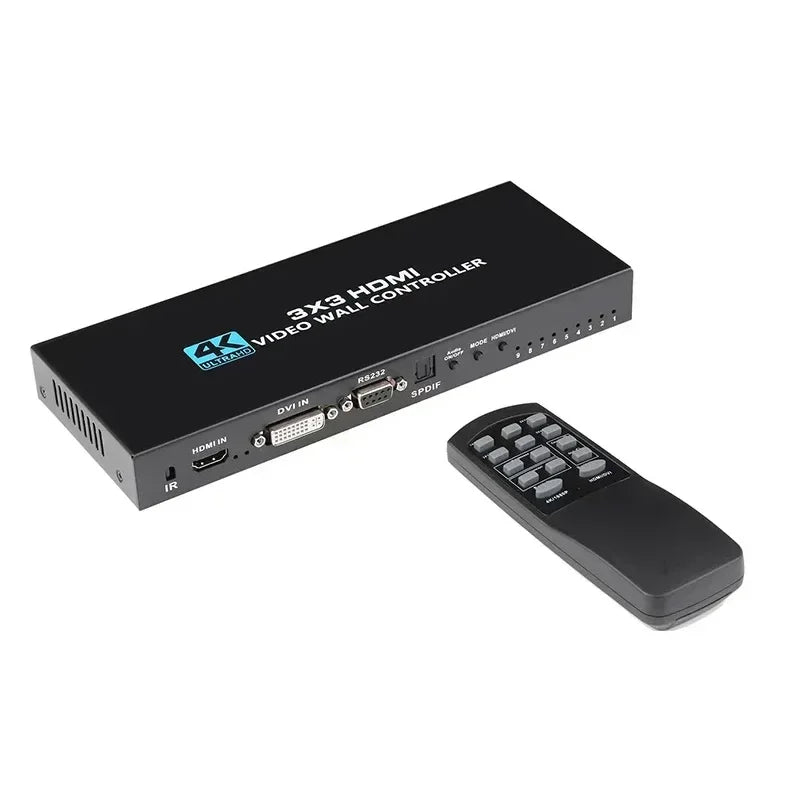

1 x 4K 3X3 Video wall controller
1 x DC 12V Power adapter
1 x Remote control(without battery)
1 x User manual
Without retail box and other accessories,if any need,pls contact us before purchase.
Important note:
1)The 4K refers to the HDMI inputs signal only.It supports up to 4K 30Hz input and 1080P 60Hz output.
2)Pls use qualified HDMI cable with all 19 pines wired and shielded to pair the source and display.
Most sync issues are caused by poor cables.
3)It supports PCM 2CH stereo audio only either from Aux or the Digital toslink port.And under some cases,
when the input is 4K 30Hz, there might be no audio. Pls set the resolutions to 1080P.
