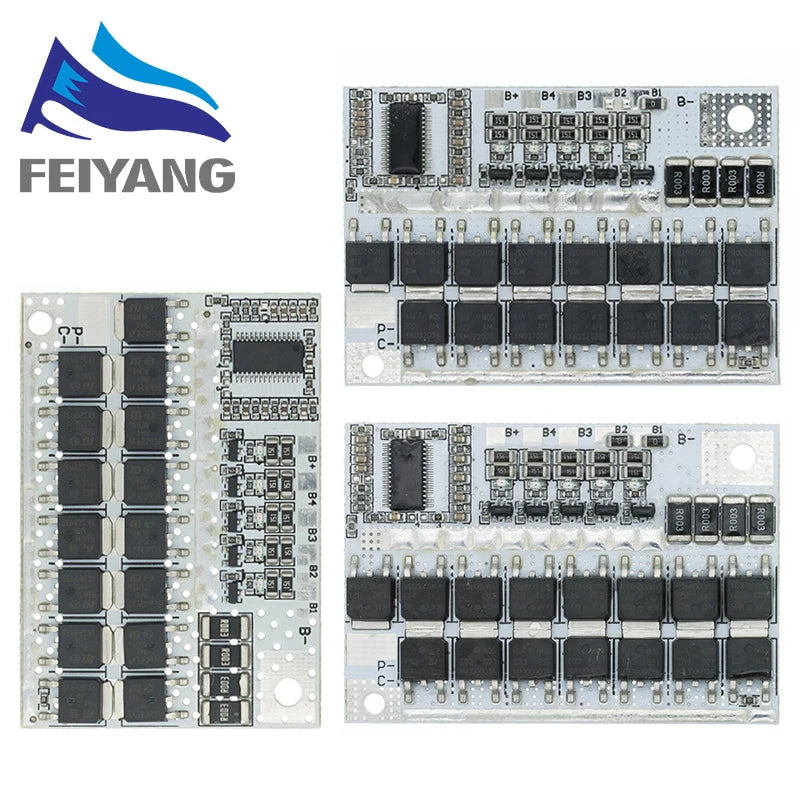

5S 4S 3S BMS 100A 21V 18V 16.8V 12V 18650 Li-ion LMO Ternary Lithium Battery Protection Circuit Board Balance Charging
5S 4S 3S BMS 100A 21V 18V 16.8V 12V 18650 Li-ion LMO Ternary Lithium Battery Protection Circuit Board Balance Charging
Couldn't load pickup availability
SPECIFICATIONS
Application: Computer
Brand Name: SAMIROB
Choice: yes
Condition: New
Current balance accuracy: Yes
Dissipation Power: 100A 5S BMS Li-ion LMO Ternary Lithium Battery
High-concerned chemical: None
Lithium-Battery-Protection Circurt Board: Balance Charging Li-polymer 100a Li-ion Ternary
Model Number: 18650
Operating Temperature: -40+85,-40 to 80 Celsius
Origin: Mainland China
Over-discharge protect Current: 100A
Overcharge protect delay: 1.5-2.5S
Package: SMD
Protection Circuit Board module 1: 100A 3S BMS Li-ion
Protection Circuit Board module 3: 21V 100A 5S BMS Li-ion LMO
Protection Circuit Board module 4: 12V 21V 18V 100A
Protection Circuit Board module 5: Lithium-Battery-Protection Circuit Board
Protection Circuit Board module2: 100A 4S BMS Li-ion LMO
Shortage delay: 100-600 uS: 100-600 uS
Single Cell overcharge protect voltage: 4.21-4.29 V
Supply Voltage: Protection Circuit Board,21V
Temperature protect: Yes
Type: Module
battery: Lithium POLYMER Pack
charging current: 60 V
is_customized: Yes
100% Brand new and high quality 18650 lithium battery charging Module
FOR Li-POLYMER LiMnO Protect Parameter(3.6V/3.7V)
Charging voltage: 21V (4.2V*5=21V), please clike the video in this page from our customer for how to use.
Single cell battery overcharge protect recover voltage : 4.14-4.24 V
Overcharge protect delay : 1.5-2.5S
Single cell battery over-discharge protect voltage : 2.72-2.88 V
Single cell battery over-discharge protect recover voltage : 2.9-3.1 V
Overcharge protect Current : 100A
Over-discharge protect Current : 100A
Over-discharge protect delay : 0.5-1.5S
Temperature protect : Yes
Disconnect protect : Yes
Shortage protect : Yes
Shortage delay : 100-600 uS
Shortage protect recover : Yes
Ampere balance (Current) : 60MA
Current balance accuracy : Yes
Single cell battery overcharge protect voltage : 4.21-4.29 V

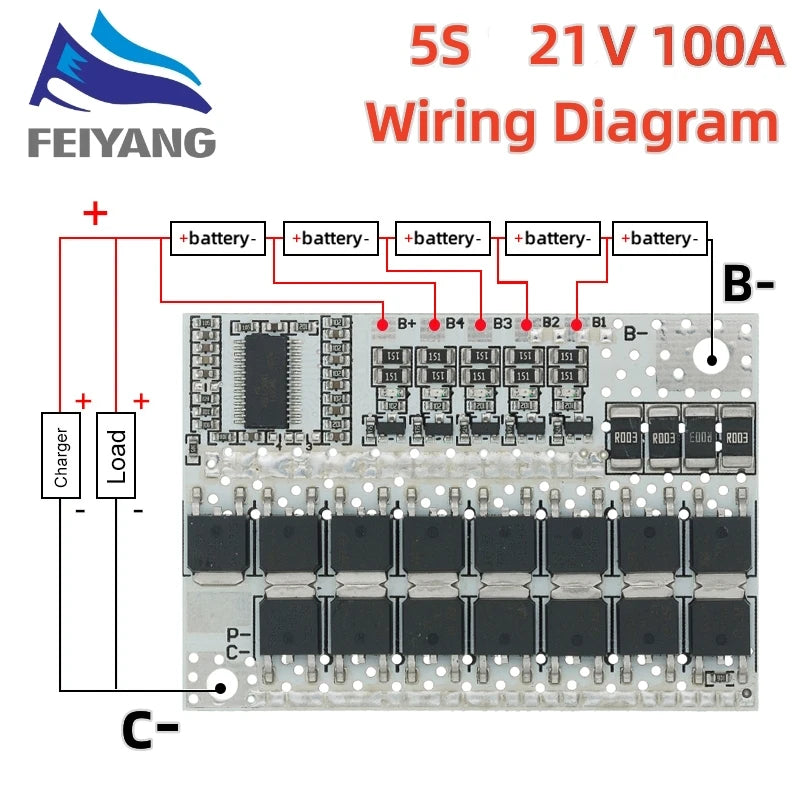

Please note that this module is for 5S Polymer Li-ion battery pack and the charging voltage is 21V (4.2V * 5 = 21V)

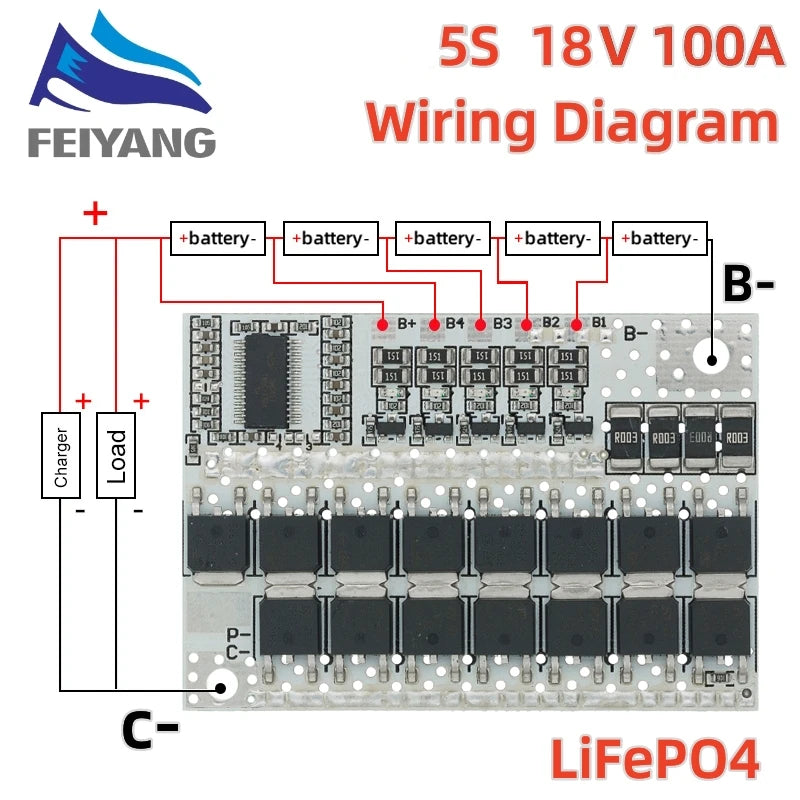

if you need a 18V 5S LiFePo4 battery pack , please click here : 5S BMS 100A LiFePo4 18V

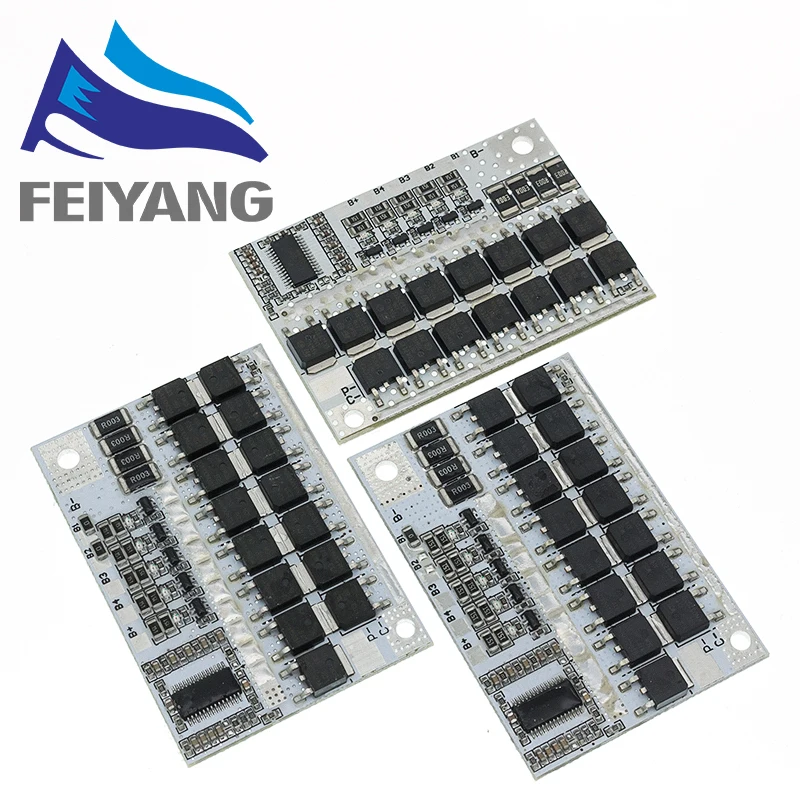

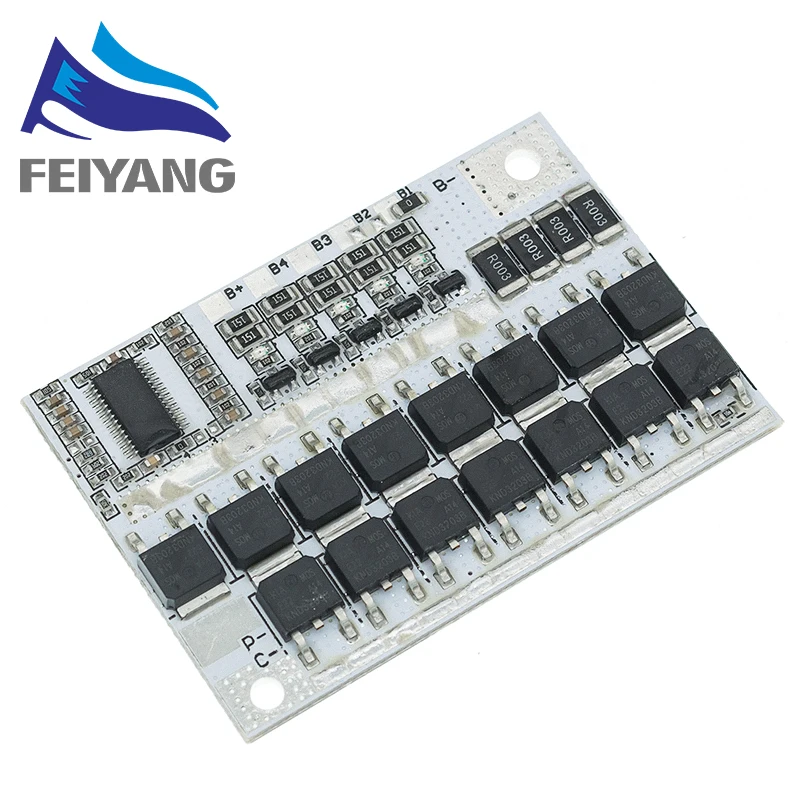

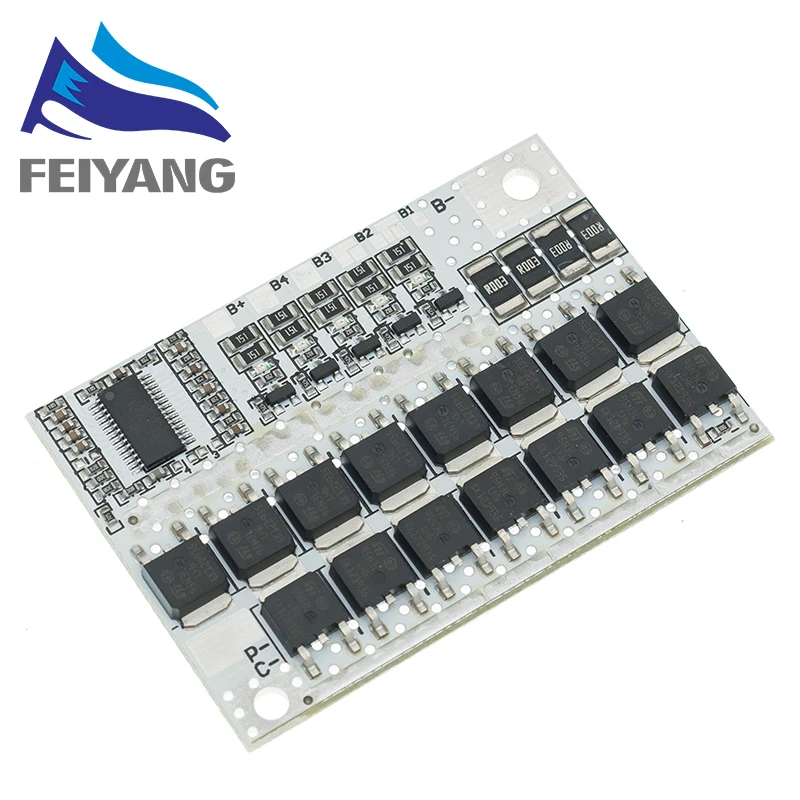

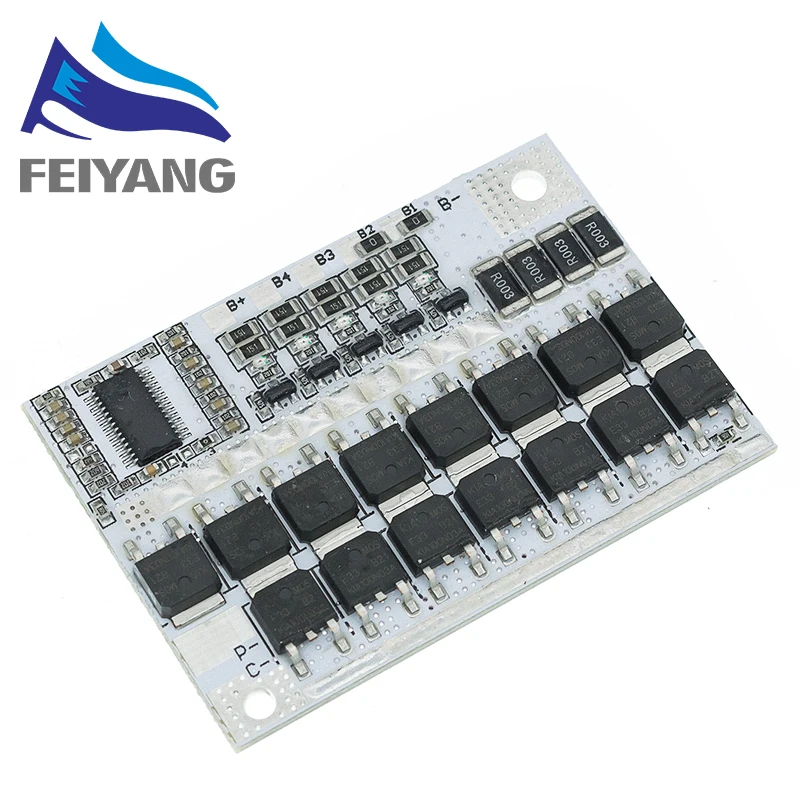

1PCS 5S BMS Li-ion Battery Protection Circuit 18650 100A Li-POLYMER Lithium POLYMER LiMnO Balance Charging Board
Description:
1.This protection board is 3s 4s 5s in common use LiFePo battery protection board (you can adjust for how many strings to be used), the default delivery is 5S ternary lithium.
2.Specified chip, stable performance, support disconnection protection, over-current protection, over discharge protection, overcharge protection, with balance, etc.

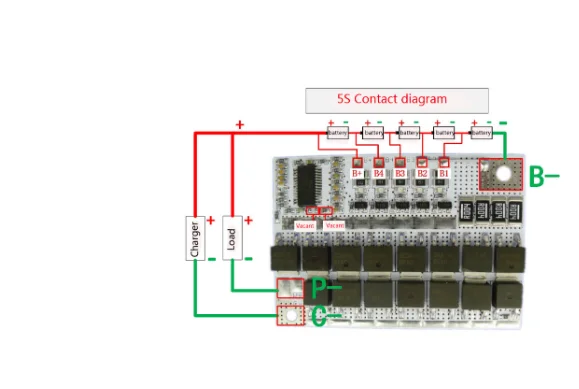

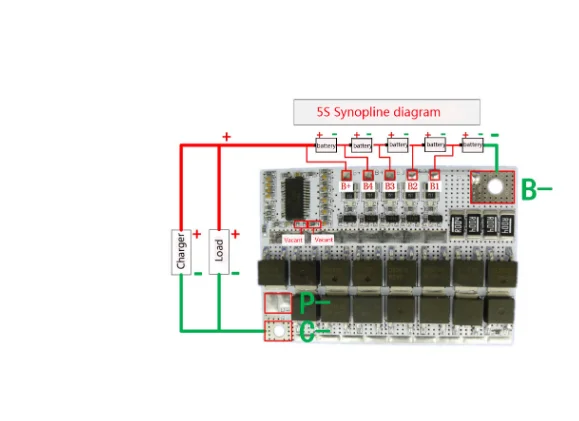

3.Common use for “same port” and “different port”, the protection board uses 15 high-power of ultra-low resistance MOS tube (discharge of 8, charging of 7), in the same port mode can support the discharge current 60A, charging current 60A; different port mode discharge current 80A, charging current 60A.
4.Can use for LiFePo battery,battery packs etc.
Parameter:
Single cell battery overcharge protect voltage : 3.61-3.69 V
Single cell battery overcharge protect recover voltage : 3.5-3.6V
Overcharge protect delay : 1.5-2.5S
Single cell battery over-discharge protect voltage : 2.27-2.43 V
Single cell battery over-discharge protect recover voltage : 2.45-2.65 V
Overcharge protect Current : 100A
Over-discharge protect Current : 100A
Over-discharge protect delay : 0.5-1.5S
Temperature protect : Yes,have Temperature control interface.
Disconnect protect : Yes
Shortage protect : Yes
Shortage delay : 100-600 uS
Shortage protect recover mode: Off load release.
Contact discharge current:80A
Synopline discharge current:60A
Charging current:60A
balance function:yes
Ampere balance (Current) : 50MA
Voltage alance accuracy : 3.355-3.455 V

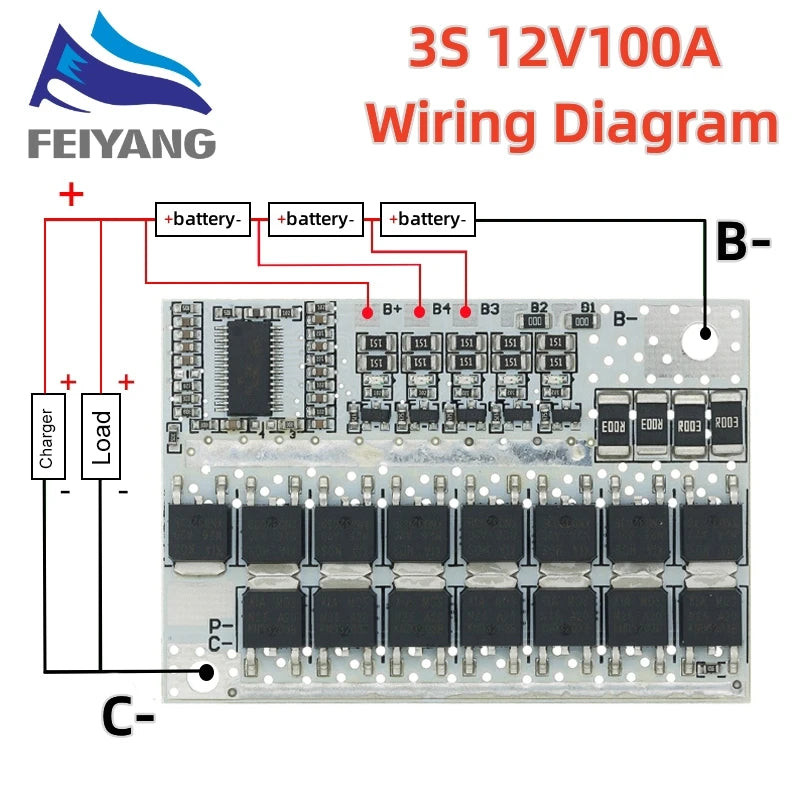

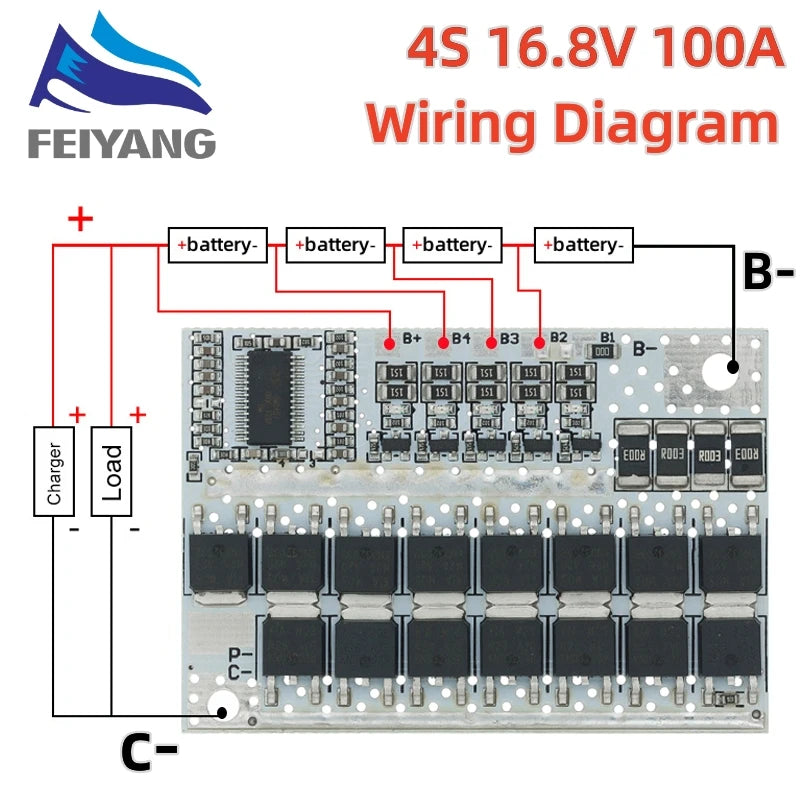

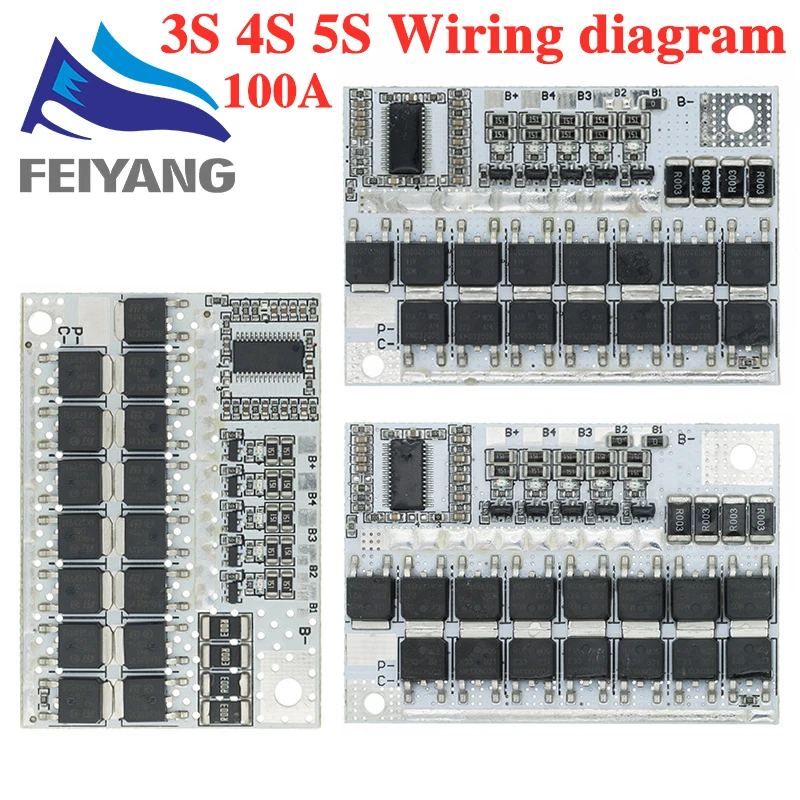

1.This protection board is 3s 4s 5s in common use lithium battery protection board (you can adjust for how many strings to be used), the default delivery is 5S ternary lithium.
2.Specified chip, stable performance, support disconnection protection, over-current protection, over discharge protection, overcharge protection, with balance, etc.
3.Common use for “same port” and “different port”, the protection board uses 15 high-power of ultra-low resistance MOS tube (discharge of 8, charging of 7), in the same port mode can support the discharge current 60A, charging current 60A; different port mode discharge current 80A, charging current 60A.
4.Can use for LMO.Ternary lithium battery.LCO(3.7V)battery packs etc.
Parameter:
FOR Li-POLYMER LiMnO Protect Parameter(3.6V/3.7V)
Single cell battery overcharge protect voltage : 4.21-4.29 V
Single cell battery overcharge protect recover voltage : 4.14-4.24 V
Overcharge protect delay : 1.5-2.5S
Single cell battery over-discharge protect voltage : 2.72-2.88 V
Single cell battery over-discharge protect recover voltage : 2.9-3.1 V
Over charge protective current:100A
Over discharge protective current:100A
Over-discharge protect delay : 0.5-1.5S
Temperature protect : Yes,have Temperature control interface.
Disconnect protect : Yes
Shortage protect : Yes
Shortage delay : 100-600 uS
Shortage protect recover mode: Off load release.
Contact discharge current:80A
Synopline discharge current:60A
Charging current:60A
balance function:yes
Ampere balance (Current) : 60MA
Current balance accuracy : 4.14-4.24V
