SPECIFICATIONS

Brand Name: NoEnName_Null

Origin: Mainland China

Hign-concerned Chemical: None

Usage: spot welder

Certification: CE

Max. Welding Thickness: 0.1-0.15mm

Model Number: 80 Gear

Choice: yes

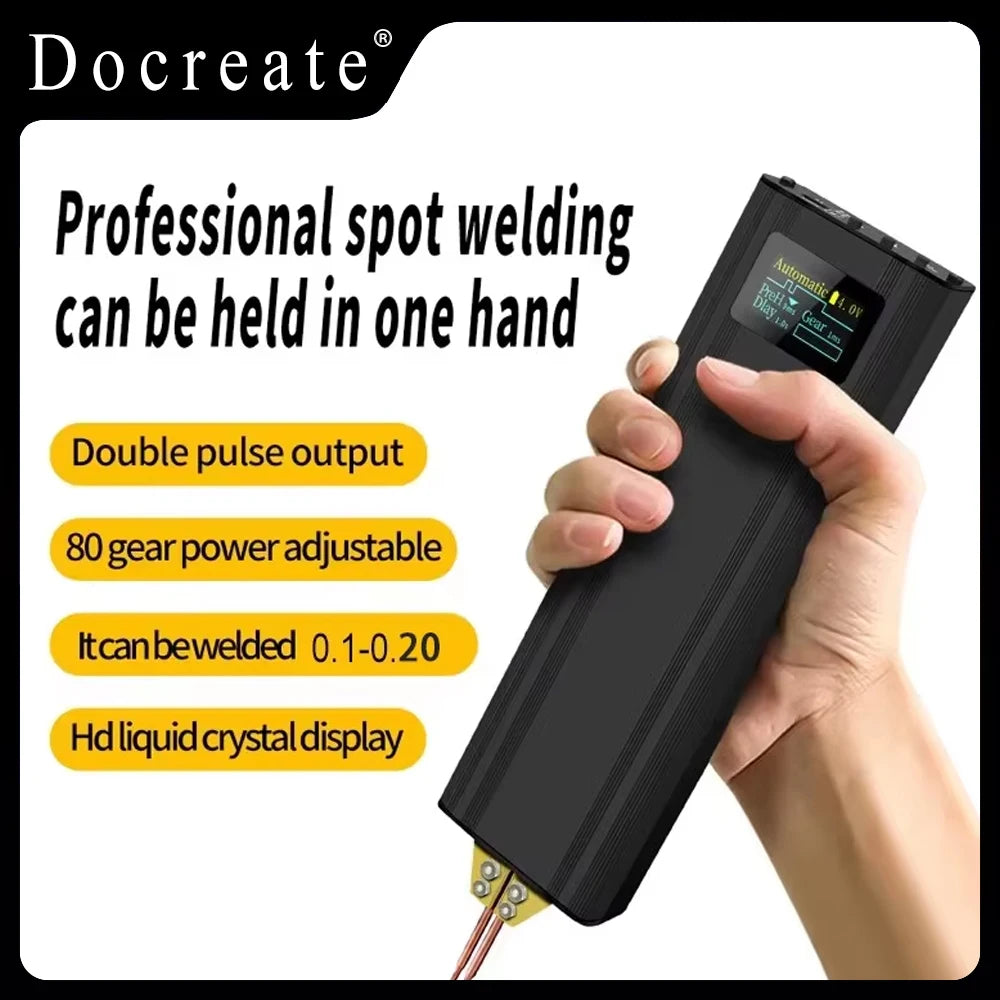

• • Digital Display :The digital display allows for easy and accurate setting of welding parameters, making it easier to achieve the desired weld.




  • Portable and Handheld :The handheld design makes it easy to use and maneuver, allowing for greater flexibility and convenience in welding tasks.




  • Adjustable :The adjustable feature allows for customization of the welding process to fit specific needs, ensuring a more precise and effective weld.




  • Automatic Trigger :The automatic trigger feature ensures a consistent and reliable welding process, saving time and effort.

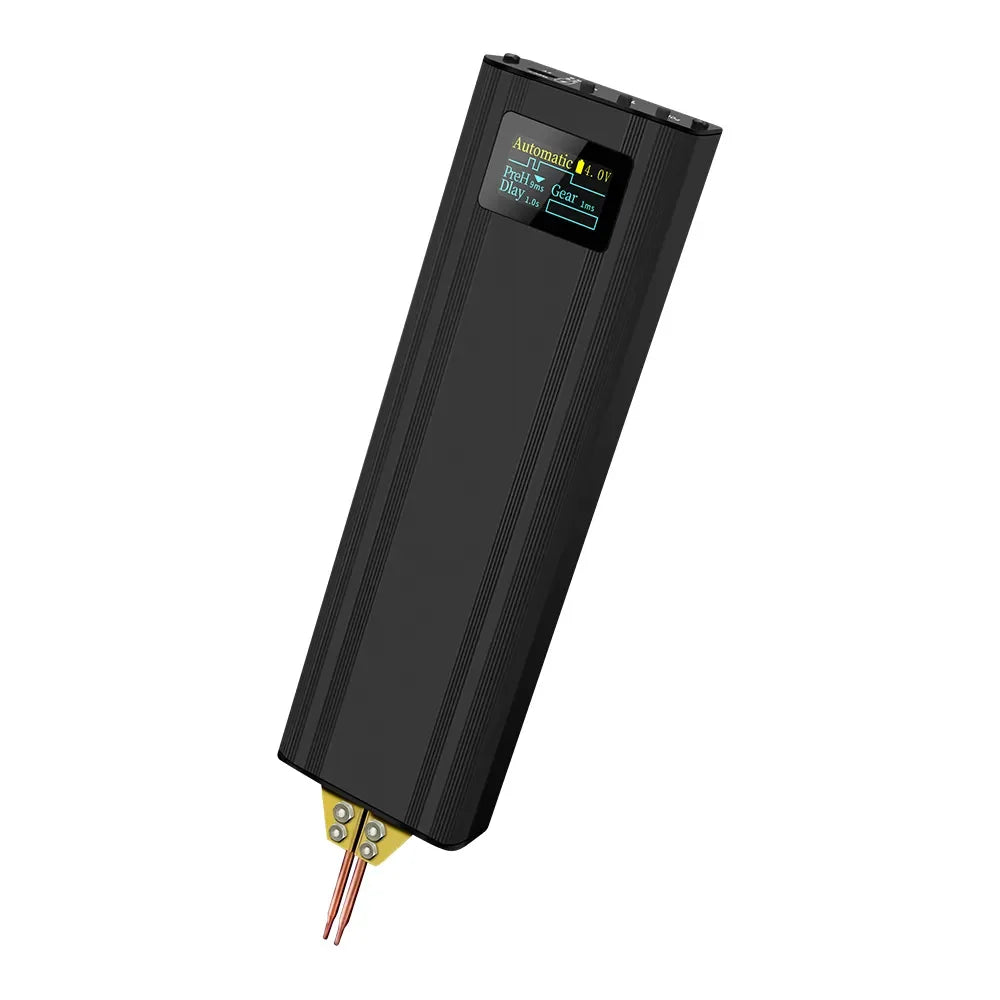

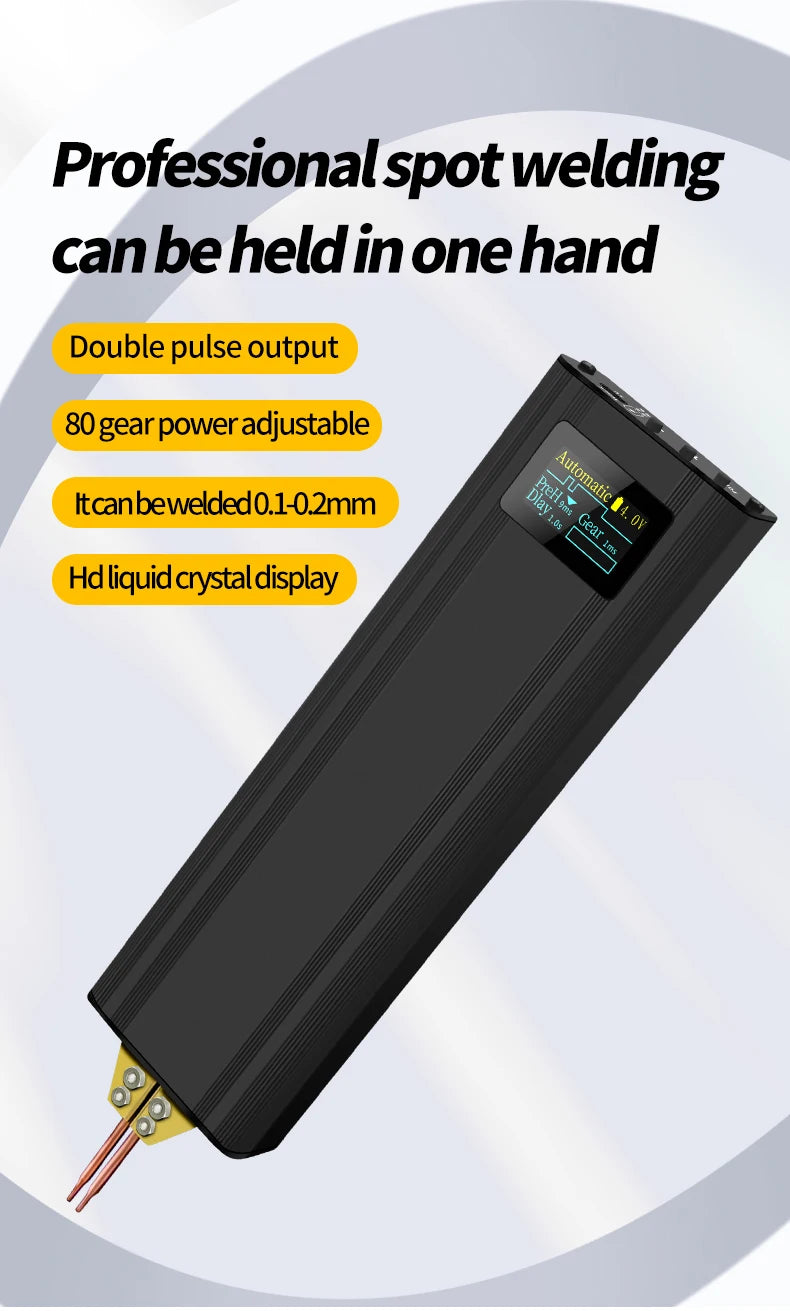

  Product Name: Portable Handheld Spot Welding Machine

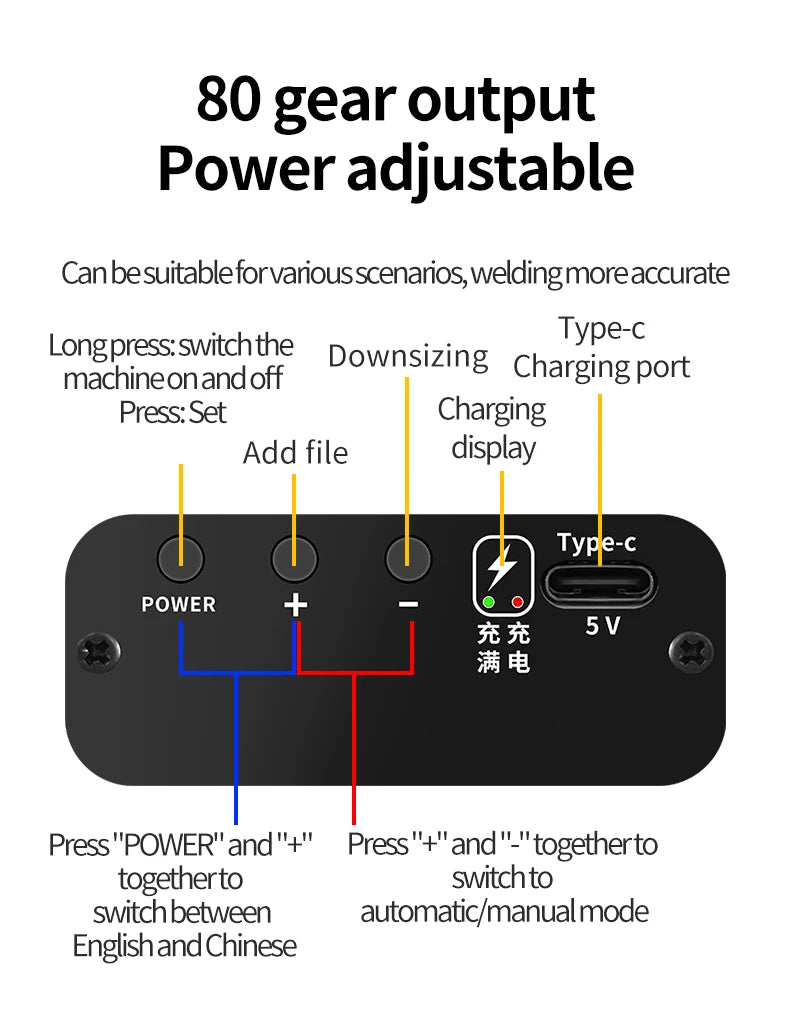

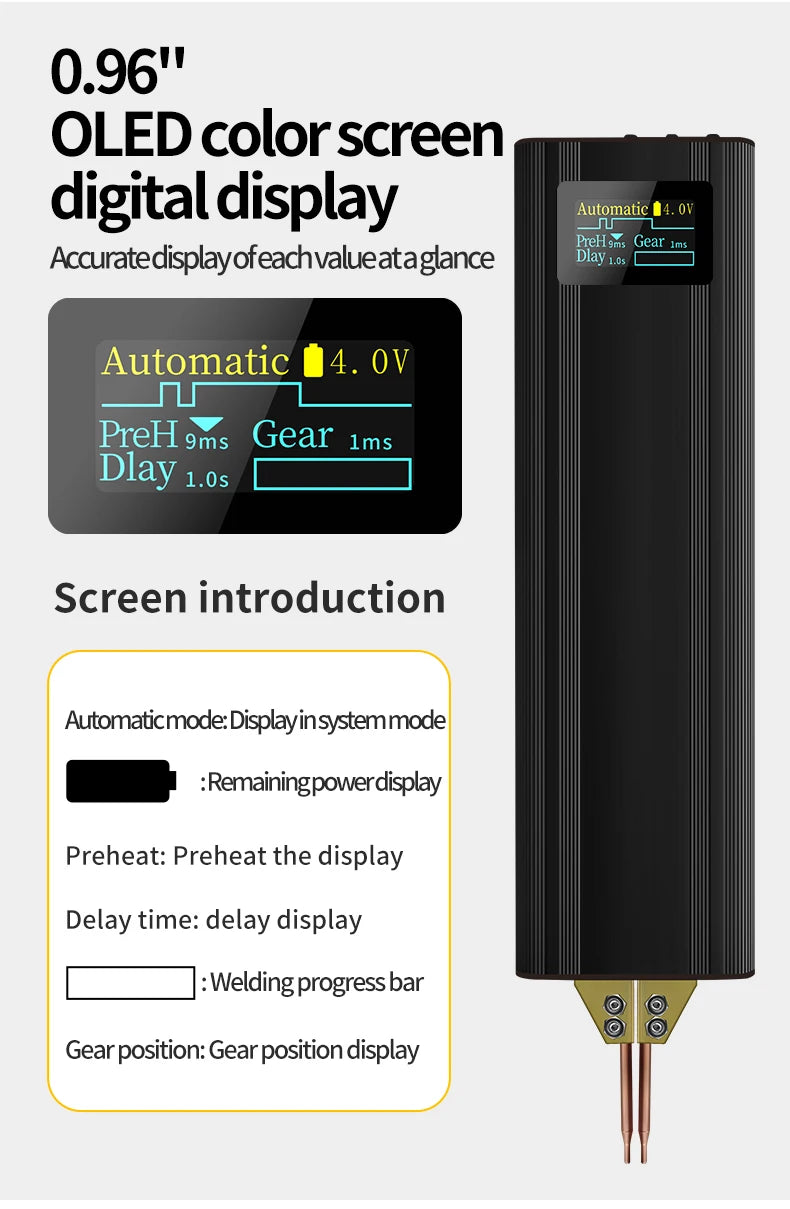

• LCD display: battery level/gear/delay/voltage/mode

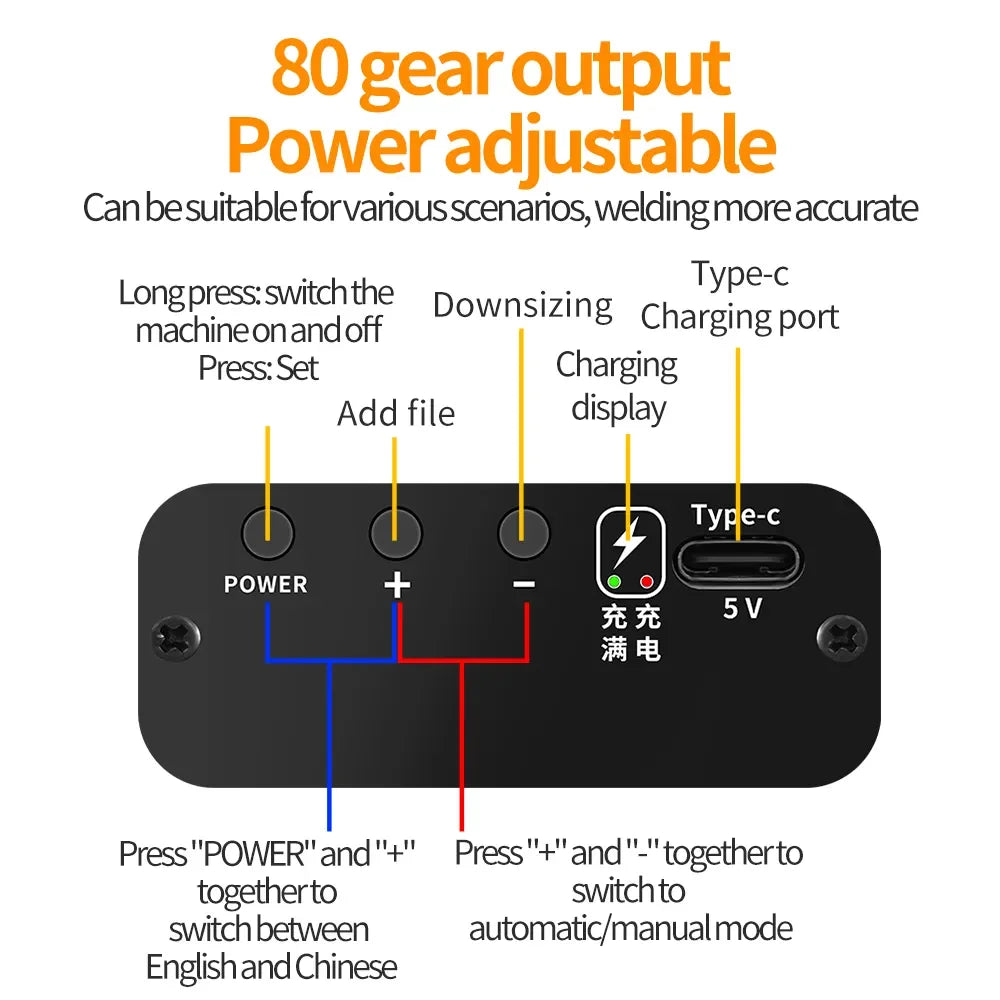

  Gear adjustment: 80 gears




  Battery type: Lithium polymer battery




  Display screen size: 0.96 inches




  Battery capacity: 5000mAh




  Design current: 800A (MAX)




  Input interface: Type-c




  Input parameters: 5V/2.1A




  Nickel strip thickness: 0.1-0.2mm




  Product size: 251 * 58 * 25mm




  Product weight: 350g




  Welding method: Visually inspect the welding head, grip it tightly at a 60 ° angle to the horizontal plane, and use two pieces

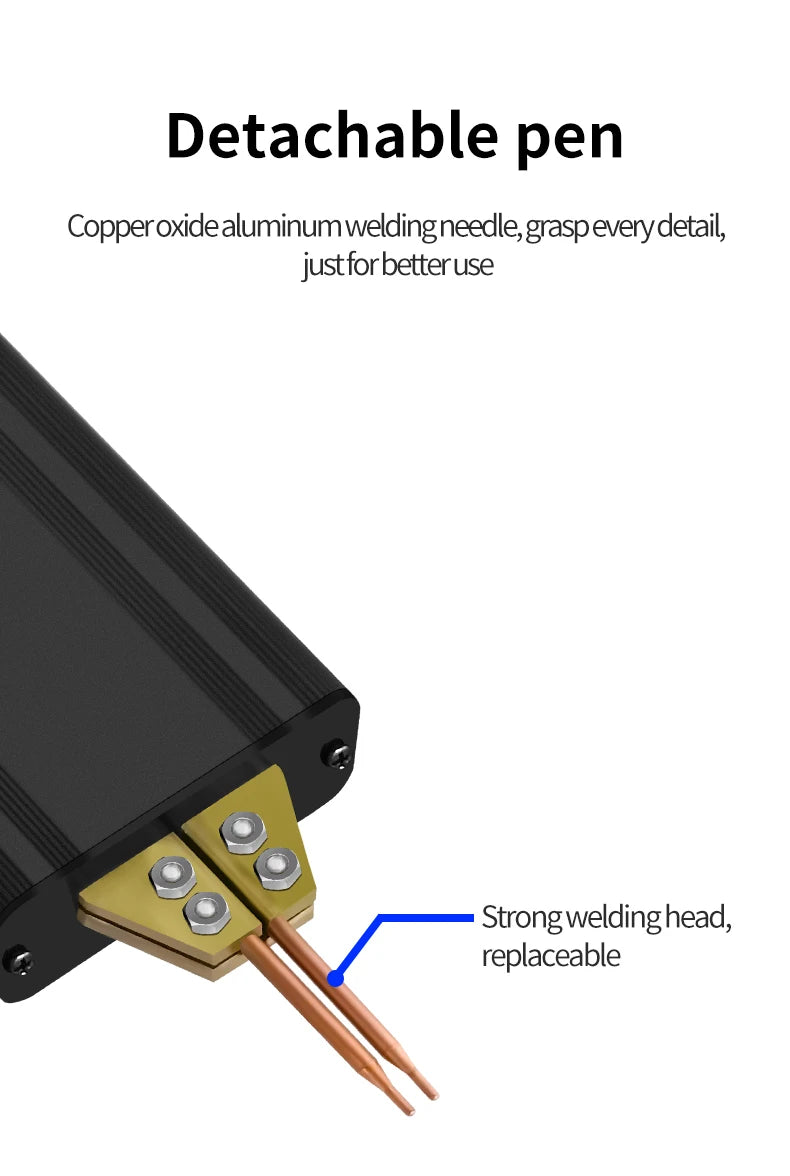

  The needle is simultaneously pressed against the surface of the nickel sheet




  Operation Guide for Spot Welding Machine




  1. Please read the instruction manual carefully after receiving the product

  2. Press and hold the power button for 6 minutes without any operation, it will automatically shut down

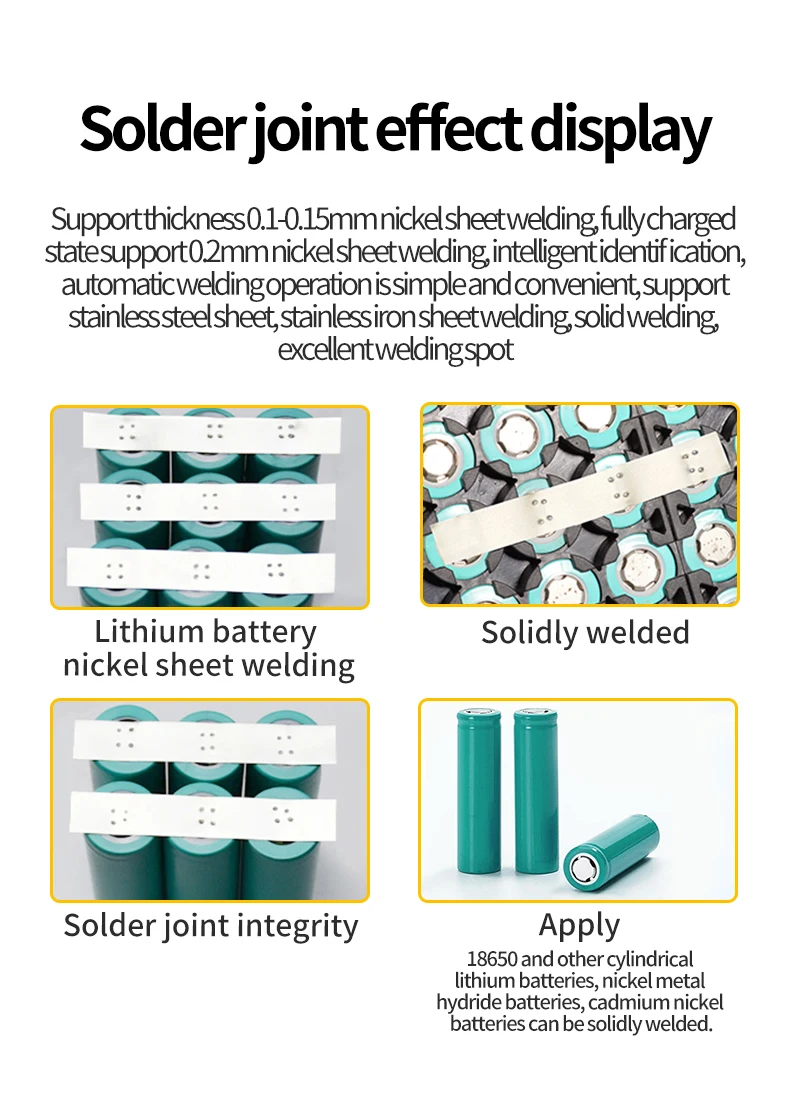

  3. Supports nickel sheet thickness of 0.1-0.2mm

  4. After startup, the product is in automatic welding mode

  5. When the welding head comes into contact with metal, it can output once, and then lift it up again

  Welding next time

  6. Ensure that the battery welding surface is rust free, clean, and flat

  7. Ensure that the nickel sheet is clean and flat

  8. Set up the spot welding machine and press it with appropriate force to make the welding needle and nickel plate, and the nickel plate and

  If the battery has good contact, no hanging or poor contact, it can be welded well.

  Different nickel sheet thicknesses and gear settings do not necessarily result in higher power output

  The better, users can try which gear is more suitable.

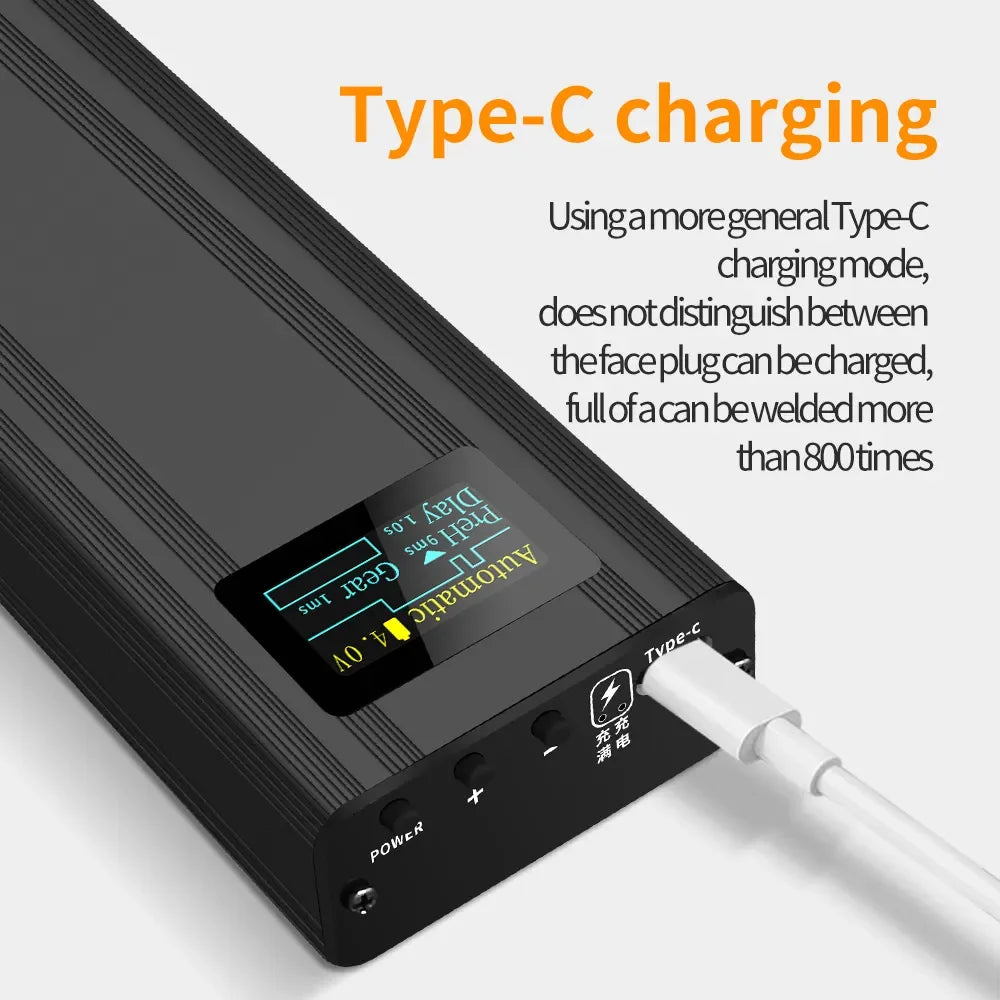

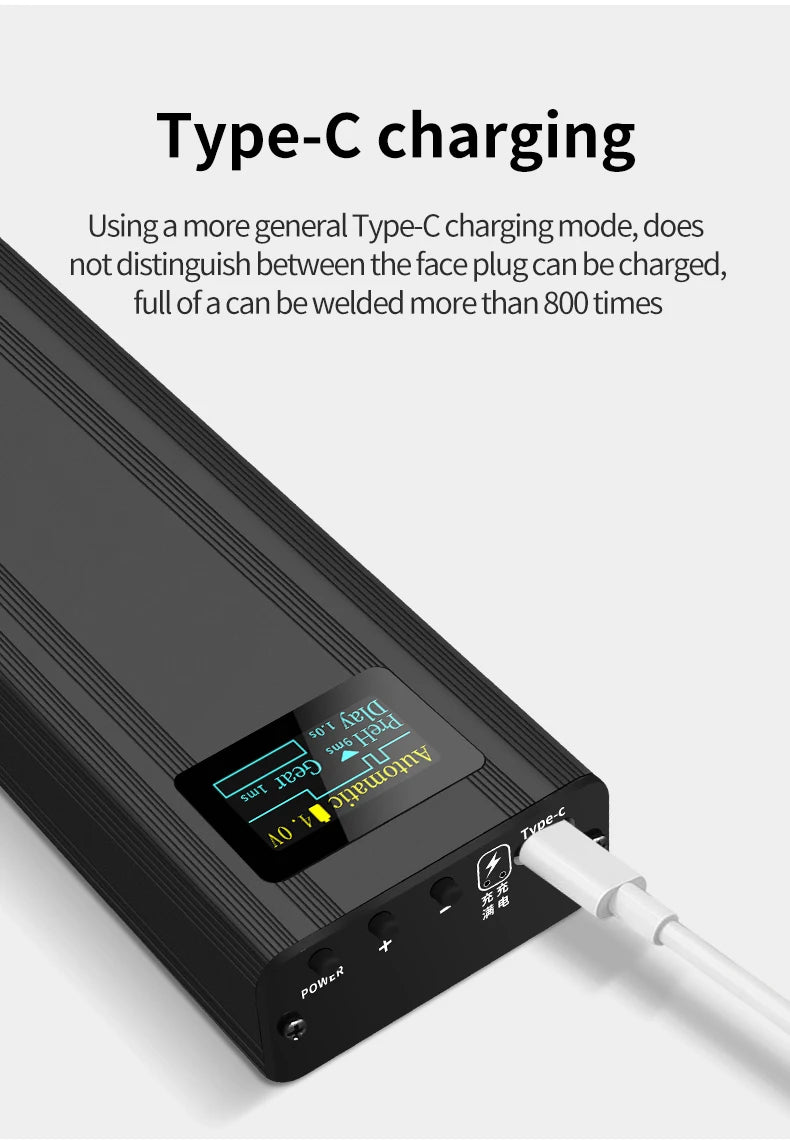

  9. Use Type-C charger for charging, 5V input (higher voltage input is strictly prohibited)

  Using a 5V/2A charger. This product supports charging while using.
