A3 DTF Printer Dual XP600 Printhead A3 Plus 13" DTF Printer Direct to Transfer Film DTF Printer for T-shirts Hoodies All Fabric
A3 DTF Printer Dual XP600 Printhead A3 Plus 13" DTF Printer Direct to Transfer Film DTF Printer for T-shirts Hoodies All Fabric
SPECIFICATIONS
Brand Name: GMXZE
Interface Type: USB
Double-sided Printing: No
Type: Inkjet Printer
Paper Feed Mode: Roll Feed
Print Speed: 20ppm
Supports Network Printing: Wired/Wireless
Max Paper Size: A3
Origin: Mainland China
Internal Memory: None
Black Print Speed: 6Pass
Max. Resolution: 2880*1440dpi
After-sale Service: Shop's Three Guarantees
Color Print Speed: 8Pass
Voltage: 100-240V
Application: For Commercial
Consumable Type: Black Powder One
Certification: CE
Certification: weee
Use: Dye Sublimation Printer
Item: DTF Printer XP600
Printing Size: Max width 33cm
Print head: with double XP600 print head
Compatible: T-shirt printing machine

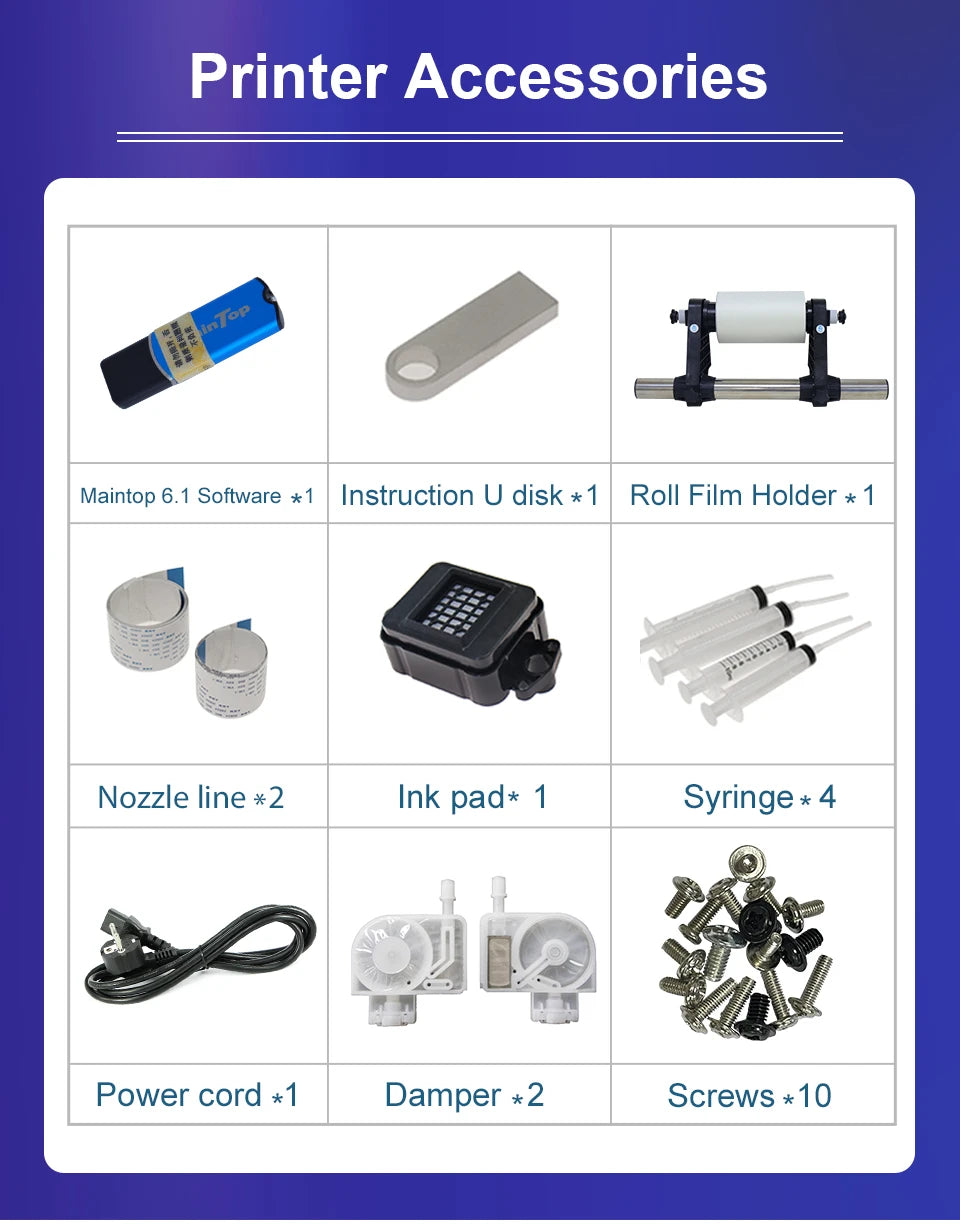

Accessories: DTF Ink, DTF Powder, Roll pet film
Function: Directly Heat Press Transfer
Powde Dryer Shaker: Automatic Powder Shaking Machine
White ink circulation system: Reduce print head clogging
White ink mixing system: Reduce white ink precipitation
Features: Direct to Transfe Film Printer
A3 DTF Printer Dual XP600 Printhead A3 Plus 13" DTF Printer Direct to Transfer Film DTF Printer for T-shirts Hoodies All Fabric
Digital Transfer Film is the newest method in the digital printing world. With this DTF method, it will be easy to print t-shirts. In addition, the texture of the print is very strong and elastic because the ink material is made of plastisol, assisted by adhesive glue or powdered flour to attach the printout from the film to the t-shirt material, the print is tight without porous and looks solid. More detail information please contact us.
Product Advantages :
1. A new front heating device is added to optimize the paper output platform, effectively improve the sticky powder,
Scraping problems caused by the corners of the table.
2. Improve the stability of ink pumping, adopt a silent peristaltic pump, stable and silent output.
3. Added standby automatic cleaning function to reduce the problem of nozzle clogging.
4. Optimize the position of the paper in and out, refuse to deviate, fix the position of the printing film, after testing, printing
The error of ten meters is within 1MM
5. Optimize the volume and weight, take the essence and remove the dross, the weight of the new body is only half of the old one
If not, save a lot of transportation costs and increase profits.
6. Install an independent white ink circulation system, which can also be turned on when the printer is turned off.
7. Improve stepping stability and solve problems such as dark and light lines.
8. The operation of debugging the white color set is simple and easy to use, and the customer satisfaction rate increases.
9. The ink stack is independently developed, and the end customer does not need to adjust, even if the adjustment is only a simple operation.
Printer Parameter :
Printhead : Dual Epson XP600 Print head
Max Printing width : A3/330MM
Printing speed : 4Pass:6m2/h 6Pass:4m2/h 8Pass:2m2/h
Printing Software : Maintop 6.1
Motherboard : Sunyung
Printer size: 78*35*34cm
Printer weight : 41kg
Printing Process:
1.Use professional software to draw the picture, and then use the printer to print the pattern on the PET film
2.Sprinkle an appropriate amount of hot melt powder on the printed PET film and shake off the excess
hot melt powder
3.Put the PET film on the heat transfer machine and bake for 5-7 minutes, until the hot melt powder melts,
take out the PET film
4.Lay the T-shirt flat on the heat transfer machine, and stick the side sprinkled with hot melt powder on
the T-shirt for pattern hot stamping,and the hot stamping takes 15-20 seconds
