SPECIFICATIONS

Brand Name: luxuglow

Origin: Mainland China

Certification: CE

Connection: Plug In

Choice: yes

Features:

1. Five modes to use as a charger. Please adjust the voltage and charge according to the above five kinds of batteries.



The rated voltage is the voltage of the corresponding battery that the charger needs to adjust; the full voltage is the voltage after the battery is fully charged, and the light will automatically turn on after the battery is fully charged.



Steps to use the charger:

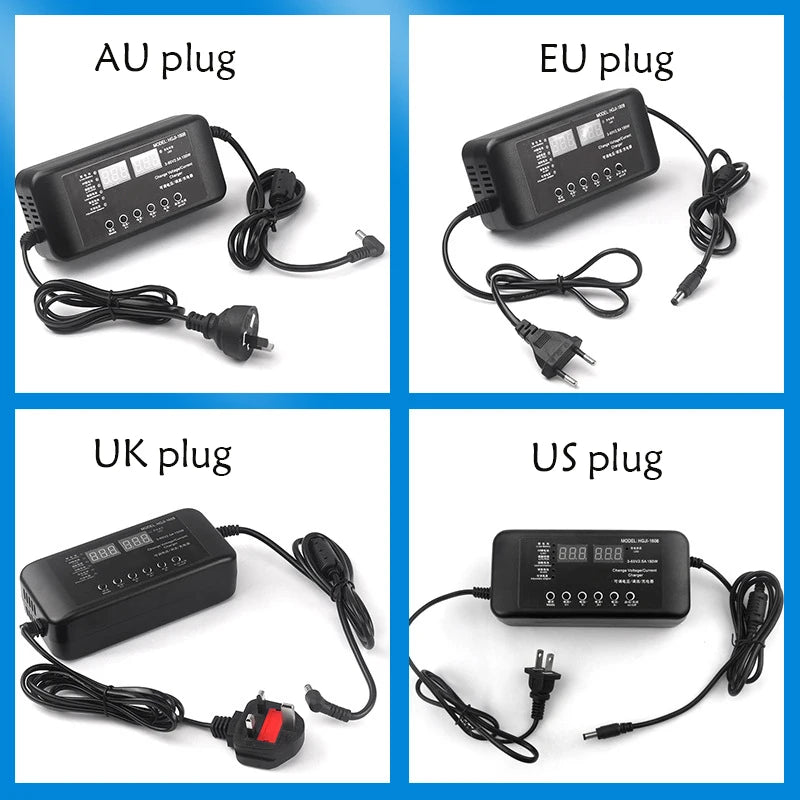

①Connect the 110V/220V power supply, and then connect the battery.(It depends on the style you buy,if you buy US US plug,then you Connect 110V power supply,if you buy EU plug,then you Connect 220V power supply,,,,,,,,)

②Press the mode to select the corresponding battery type. (Caution: Selecting the wrong type of battery for charging may have the risk of burning and exploding)

③ Press Voltage+/- to select the corresponding rated battery voltage. (Note: Selecting the wrong battery voltage for charging may result in a fire and explosion hazard)

④Press current +/- to select charging current. Usually choose 0.2c or choose the charging current according to the battery specification.

⑤Press OK to start charging, the red light is on. (Other key functions are invalid while charging, but only stop is valid if there is an error LED)

⑥ When fully charged, it will automatically stop charging and display -full-. It has the function of preventing reverse battery connection. After the battery is reversely connected, the red and green charging indicators flash at the same time, and the charging is invalid.

The lead-acid battery has an automatic detection function, selects the wrong voltage and does not charge, and displays -Err-.



2. Use as a power adapter. You must turn on the power and adjust the voltage and current before connecting to the device.

①Multifunctional digital display power supply: adjustable voltage and current. With adjustable voltage 3V-60V and adjustable current 0.5-8A 150W. Finally press the button to confirm and start to exit.

②Use it as a power adapter. Please load your device wattage must be at least 30% less than the power supply. For example, your device usually uses 48V2.5A,

This adapter must be set to 48v3a before connecting to the device.



Specification:

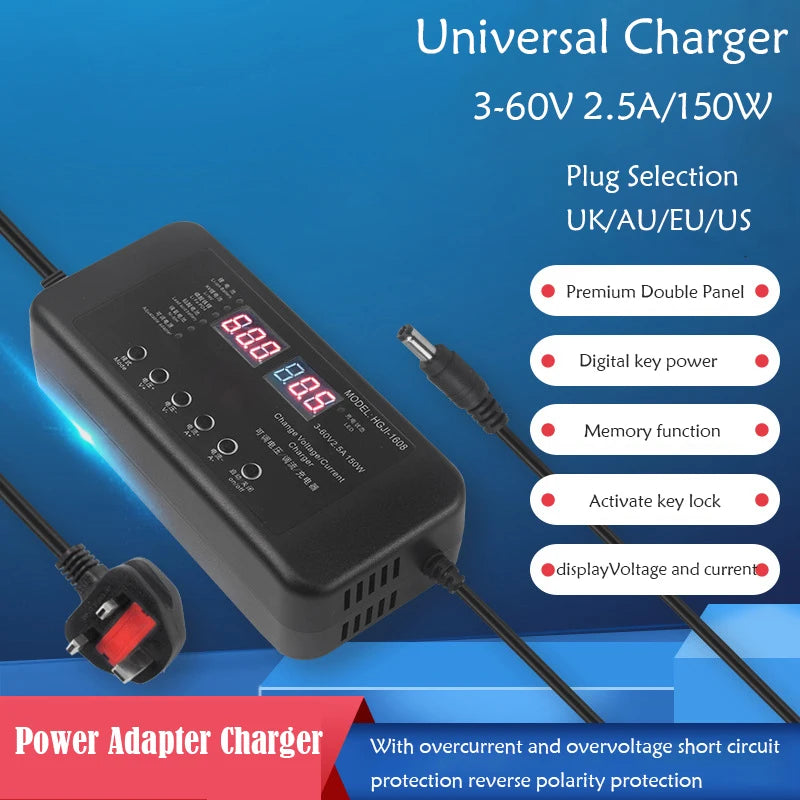

Name: Power Adapter Charger

Input voltage: 110V/60Hz

Output voltage: 3-60V adjustable

Maximum current: 8A

Maximum power: 150W

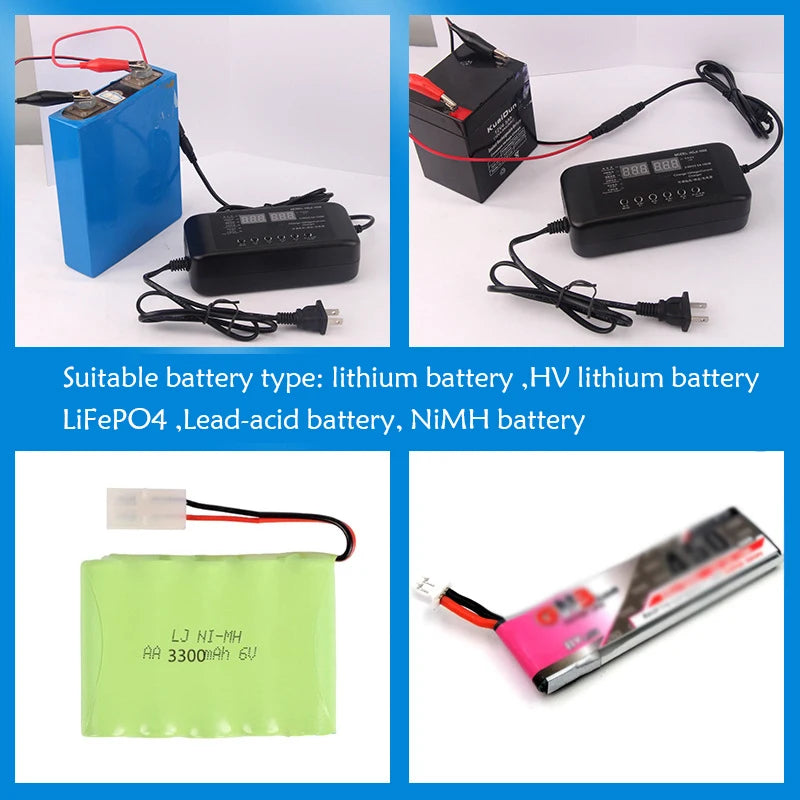

Applicable battery: suitable for lithium battery/hv lithium battery/lithium iron phosphate/lead-acid battery/nimh battery

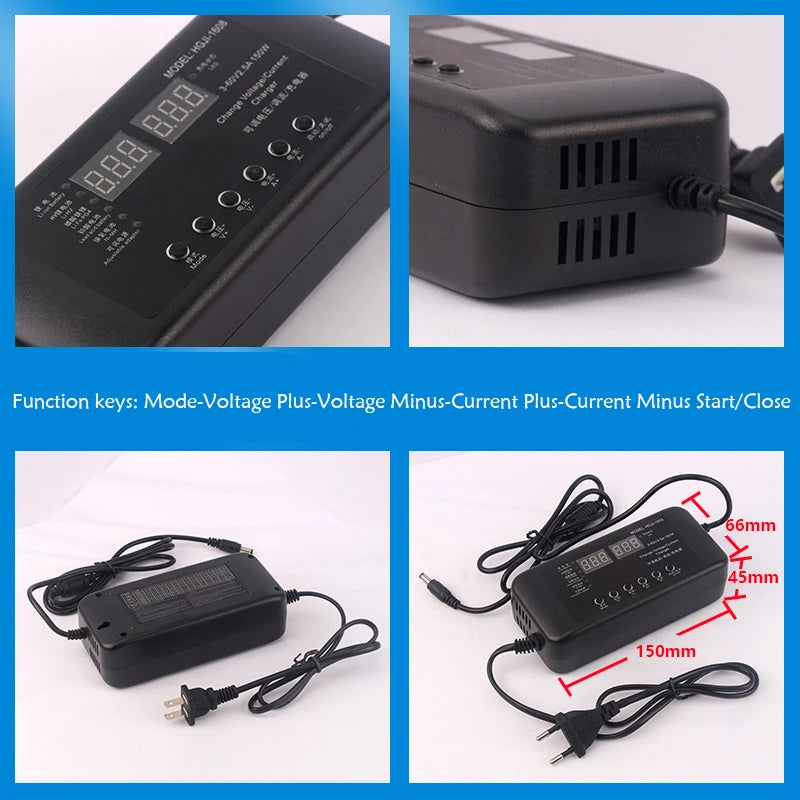

Size: 150*66*45mm

Colour: Black



Packing included:

1 * Power Adapter Charger



Note:

1. Due to manual measurements and slight color variations, please allow 1-3 cm (0.4-1.18 inches) difference to suit different display settings.

2. Due to the light and screen difference, the item's color may be slightly different from the pictures. Please understand.
