Android POS Terminal 58mm paper ticket label sticker printing Handheld 1D 2D barcode scanner with thermal printer
Android POS Terminal 58mm paper ticket label sticker printing Handheld 1D 2D barcode scanner with thermal printer
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: ZUIDID
Interface Type: USB
Double-sided Printing: No
Type: thermalprinter
Paper Feed Mode: Roll Feed
Print Speed: 30ppm
Supports Network Printing: Wireless
Max Paper Size: 58mm
Origin: Mainland China
Internal Memory: 2MB
Black Print Speed: 70MM / s
Weight: 1.5kg
Max. Resolution: 203dpi
After-sale Service: Shop's Three Guarantees
Color Print Speed: None
Size: 210*80*42mm
Voltage: 220V
Application: For Commercial
Consumable Type: Thermal Paper
Dot Matrix Printer Type: Ticket printers
Use: Thermal Printer
Processor: ARM Cortex A53 Quad-core 64bits 1.3GHz
Operating system: Android 6.0
Memory: 16GB ROM+2GB RAM
Screen size: 5.5 inch touch screen
Camera: 8 million auto focusing with LED flash light
Battery: 7.4V 5500mah
Interface: Micro USB / Serial Port ( TTL )
SDK: will provide SDK for your further development
Data communication: 4G / Wifi / Bluetooth
Printer type: built-in thermal printer
Printer width: 58mm
Roll diameter: 30mm
Printing content: text / barcode / QR code / image
Printer feature: low noise , engergy saving
NFC: yes, built-in NFC reader
GPS: yes , GPS / AGPS supported
Barcode scanner: 1d or 2d barcode scanner , optional
Android POS Terminal 58mm paper ticket label sticker printing Handheld 1D 2D barcode scanner with thermal printer
1.The standard configuration is Camera scanner version,
5.5 inch touch screen + Android 6.0 OS + Wifi + Bluetooth + GPS + FDD-TLE 4G / WCDMA 3G / GSM 2G + Camera + 2G RAM + 16G ROM + NFC reader + Printer
It means, the functions of the standard version
1> can read NFC card / nfc tag .

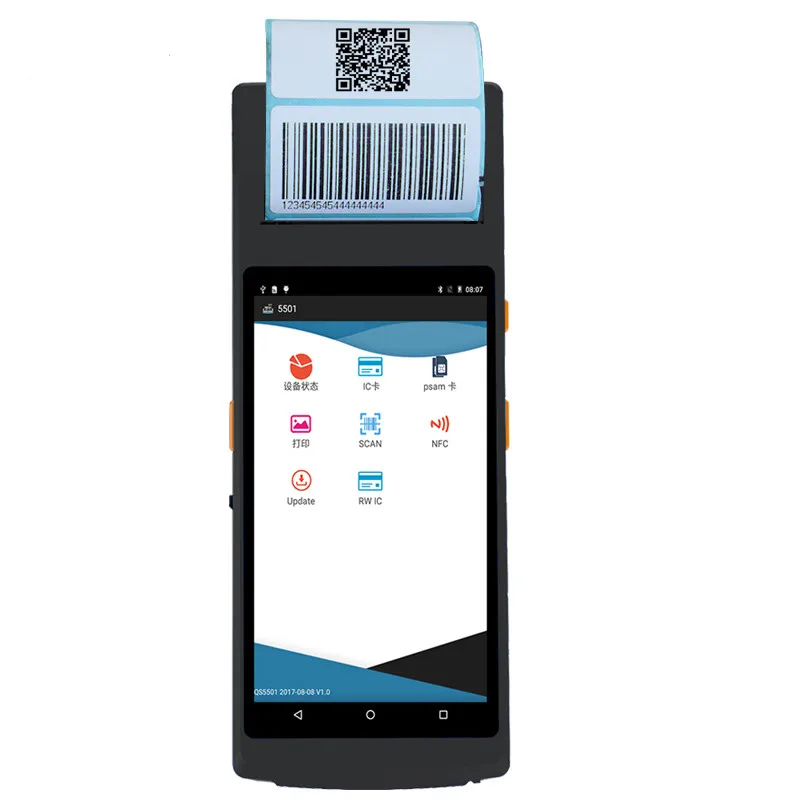

2> can print text/image/ barcode / QR code on thermal paper or thermal label
3>The camera can scan 1D or 2D barcode as well, but the speed is not very fast , and code range is not wider than professional 1D / 2D barcode scanner. The camera only can scan very normal 1D/ 2D bar code.
2.Optional functions,
1D or 2D barcode scanner, Fingerprint reader , UHF RFID reader. Please choose according to your needs.

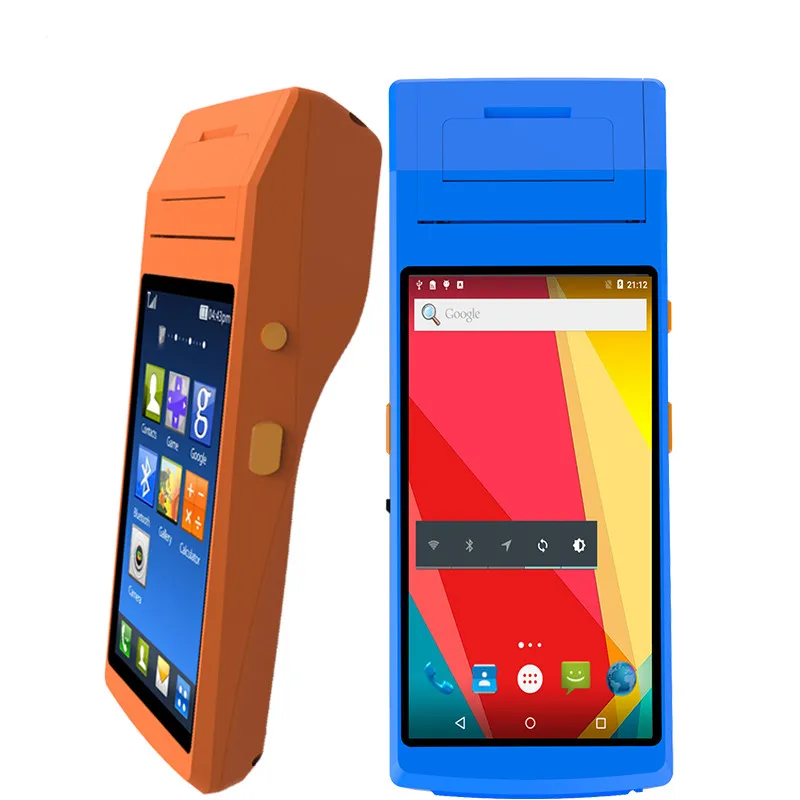

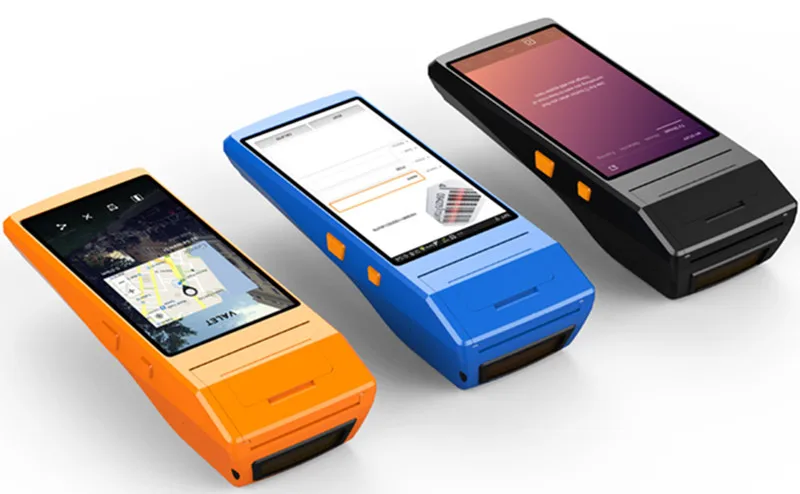

3.About the PDA device color
3 colors you can choose , that is Orange / Blue / Black. Please remark which color you want, when you order. Thanks.

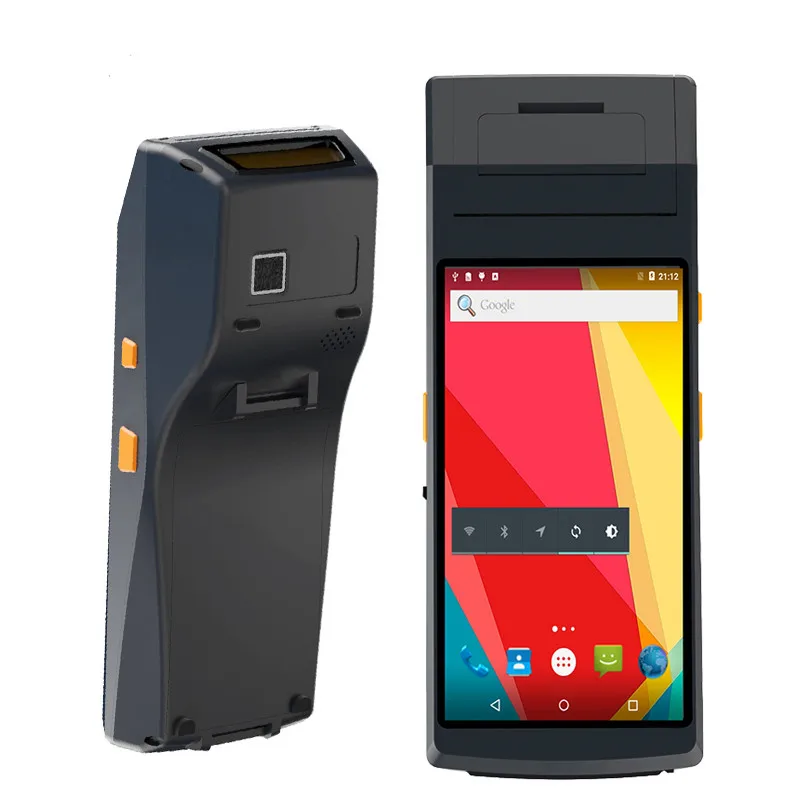

Product Pictures
Technical Specifcations
System Configuration | |

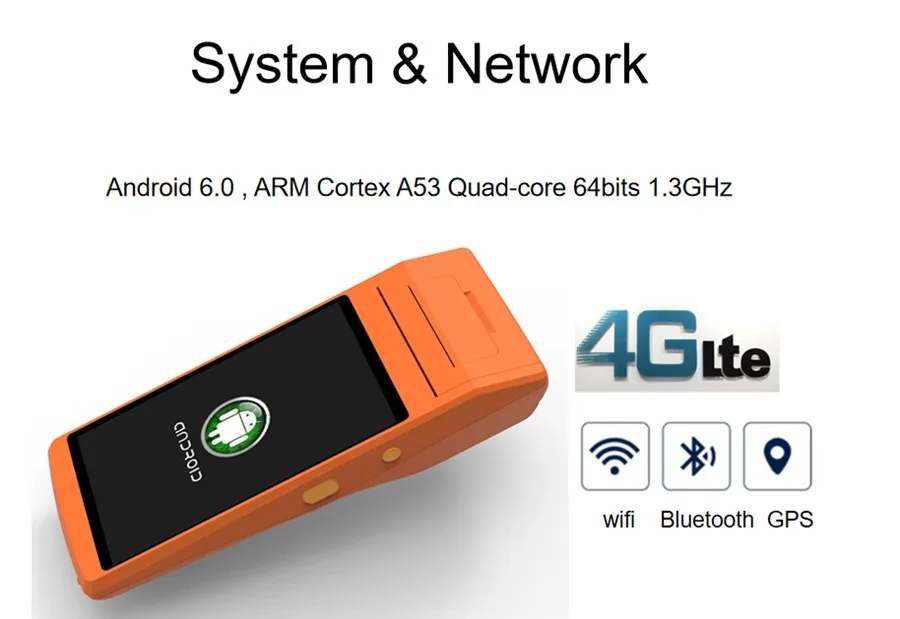

Processor |
ARM Cortex A53 Quad-core 64bits 1.3GHz |
O.S |
Android 6.0 |
Memory |
8GB ROM+1GB RAM |
Ex-Storag |
Micro SD (Up to 64GB) |

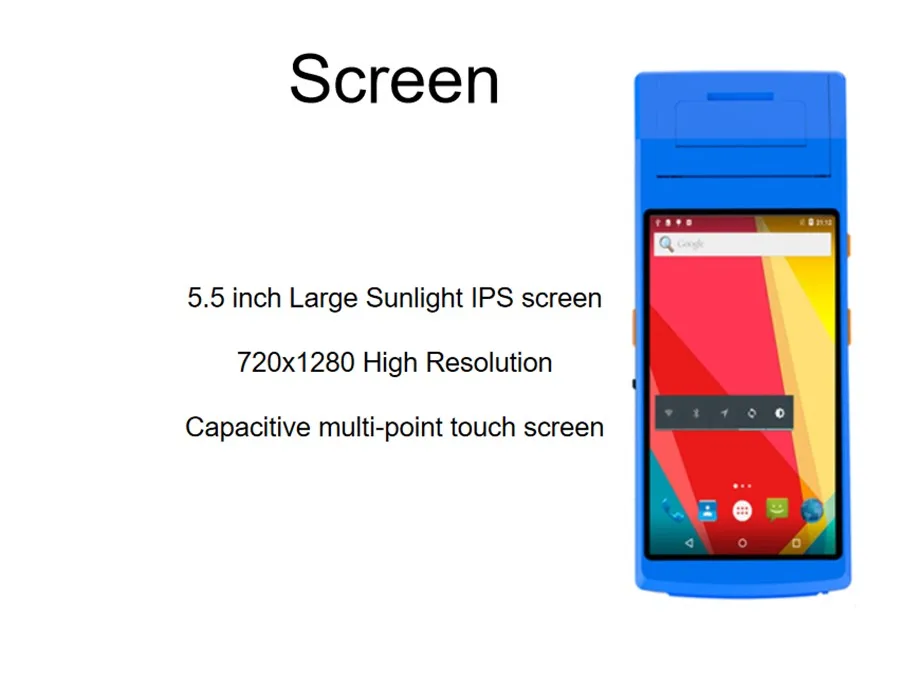

Display |
5.5inch IPS 720x1280 High Resolution |
Camera |
AF 8.0M Pixels with LED flash light |
Touch Panel |
Industrial-grade capacitive touch panel |
Keypad |
2 side keys,Power key |
Notification |
Vibrator/LED/Speaker |

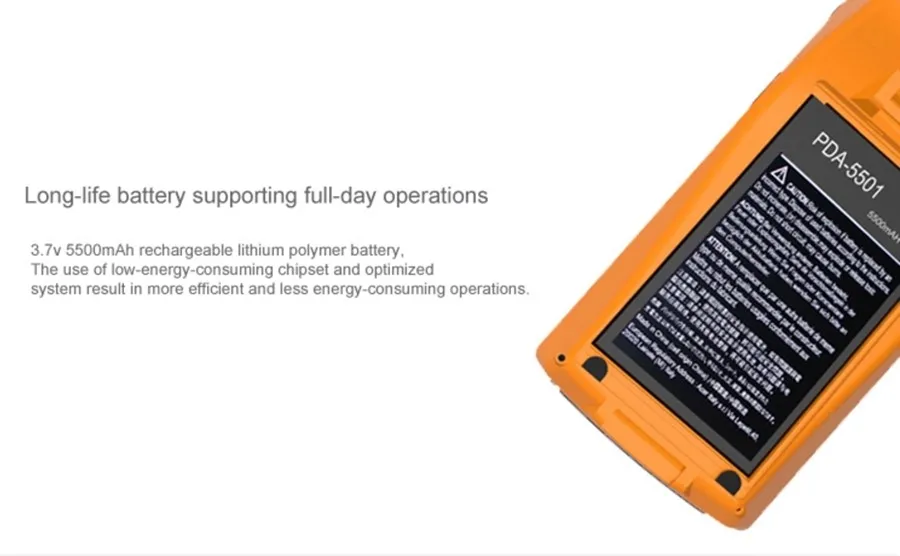

Battery |
7.4v 5500mAh rechargeable lithium battery |
Audio |
Built-in microphone/Headphone slot |
Sensor |
G-sensor |
Interface |
Micro USB/Serial Port(TTL) |
Structural Parameters | |

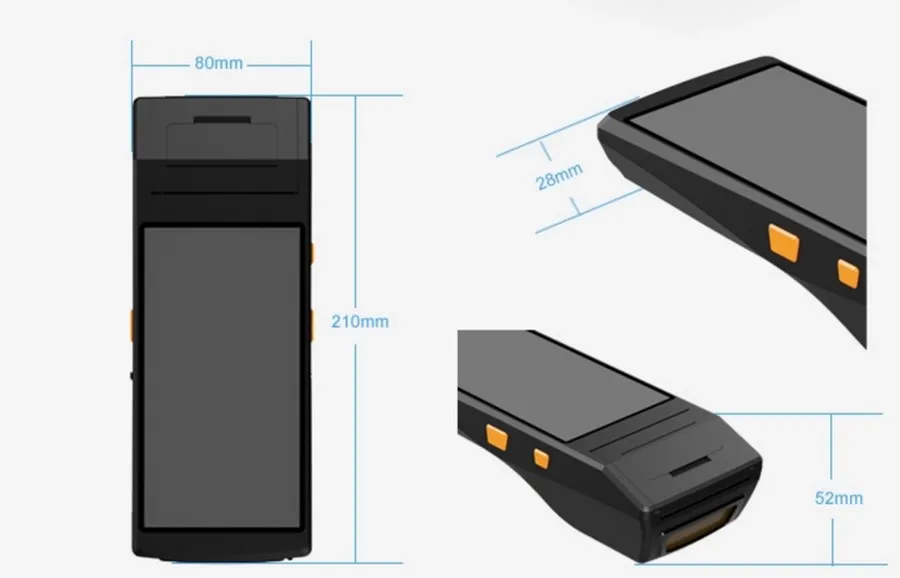

Dimensions(LxWxD) |
210*80*42mm |
Weight |
505g ( battery included ) |
Communication Transmission | |
Mobile Network |
3G: WCDMA:850/900/1900/2100MHz CDMA/EVDO 800MHz |
GSM: 850/900/1800/1900MHz | |
4G:LTE-FDD:B1/B3/B7/B8/B28 LTE-TDD:B38/B39/B40/B41 | |
Wi-Fi |
IEEE 802.11 b/g/n |
Bluetooth |
Bluetooth 4.0 |
GPS |
Supporting GPS/AGPS |

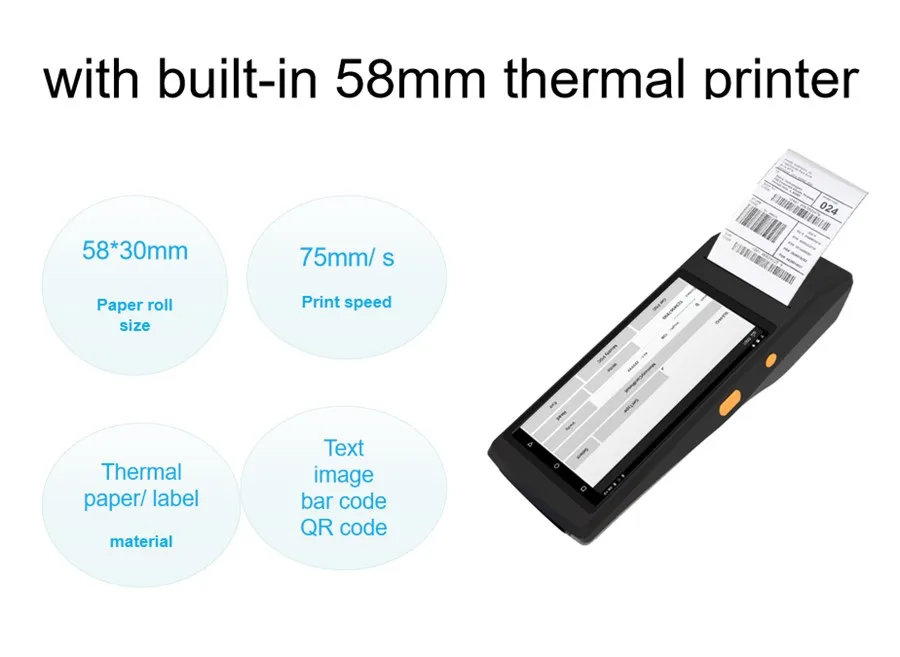

Printer | |
Method |
Direct Thermal |
Speed |
70mm/sec |
Width |
48mm(384 Dots/lines) |
Sensor |
Black mark / out of paper / overheat over-voltage protection |
Medium |
Thermal paper and label |
Type |
Text/image/bar code/QR cod |

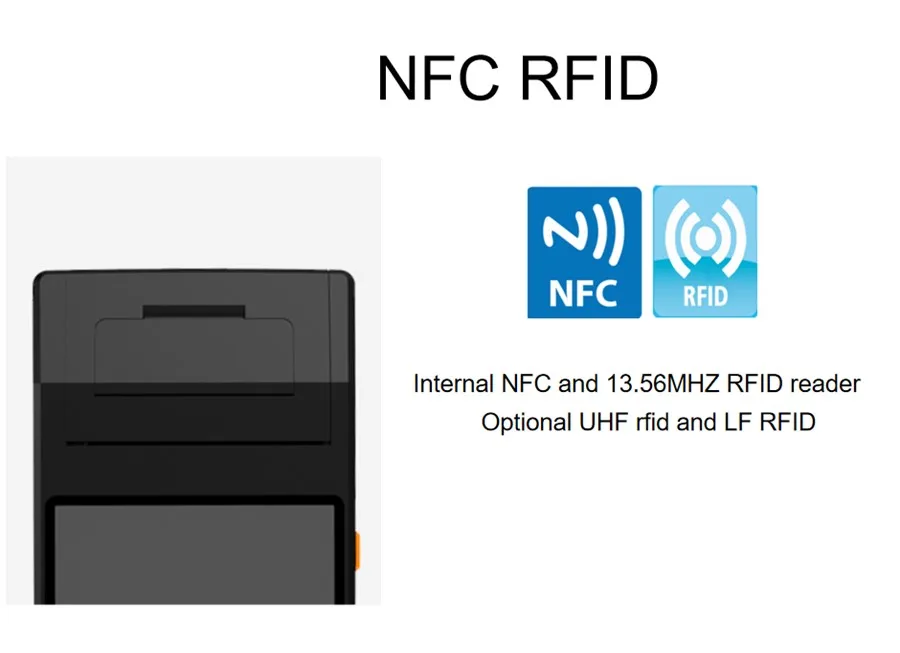

NFC/HF RFID | |
Protocol |
ISO/IEC 14443A/B,ISO15693 |
Frequency |
13.56MHz |
NFC type |
Type1-4Tag/Mifare/Felica |
PSAM/ Contact Card | |
PSAM |
IS0/IEC 7816 1-4 |
Contact chip card |
|

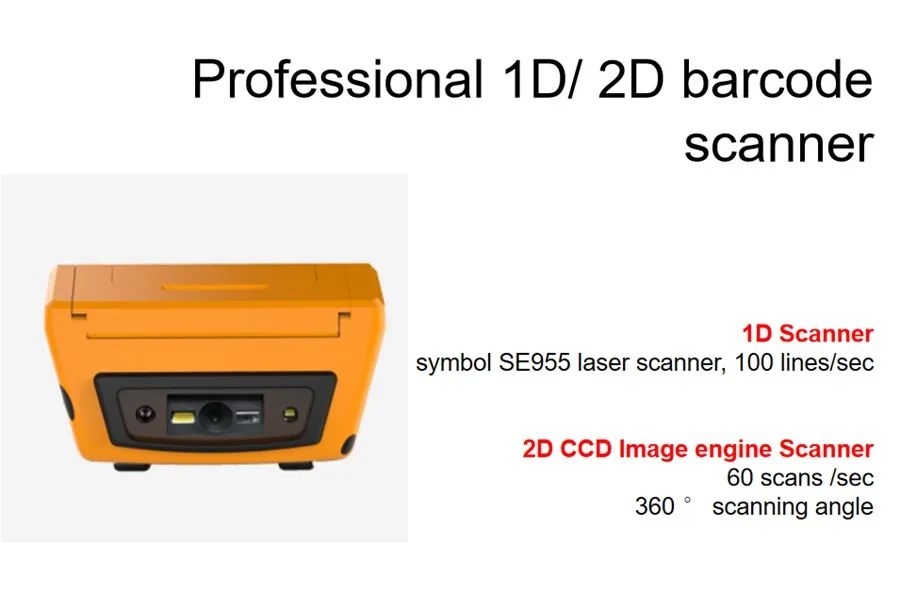

1D Laser Scanner ( optional ) | |
Speed |
100 lines/sec |
Scan Angle |
±50° |
Identification accuracy |
≥4mi |
Decoding Type |
UPC-A,UPC-E,UPC-E1,EAN-13,EAN-8,ISBN/ISSN, |
Code 39,code39 (ASCII full), Interleaved 2 of 5, | |
Industrial 2 of 5,Matrix 25,Codebar(NW7), | |
Code 128,UCC/EAN 128,ISBT128,code 93, | |
MSI/Plessey,UK/Plessey,China post,GS1 Data Bar | |
2D Image Scanner ( optional ) | |
Method |
CMOS Image |
Scan Speed |
Scan Speed |
Scan Angle |
360 ° angle, Elevation angle ± 55 °, Eeflection angle ± 55 ° |
Identification |
2D≥7.5mil,1D≥5mil |
accuracy | |
Decoding Type |
QR Code, Data Matrix, PDF417,UPC-A, UPC-E, |
EAN-8, EAN-13, ISBN, Code 128, GS1 128, | |
ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5, | |
Industrial 2 of 5,Matrix 25, Standard 25, Coda bar, | |
MSI/MSI PLESSEY, GS1 Data Bar | |
DPM |
Support DPM scanner (optional) |
Operating Environment | |
Develop Tools |
Android SDK + JDK + Eclipse |
P-Language |
Java |
Operating Temp |
-10°~ 50°C |
Storage Temp |
-20°~ 70°C |
Humidity |
0 ~ 95% (non-condensing) |

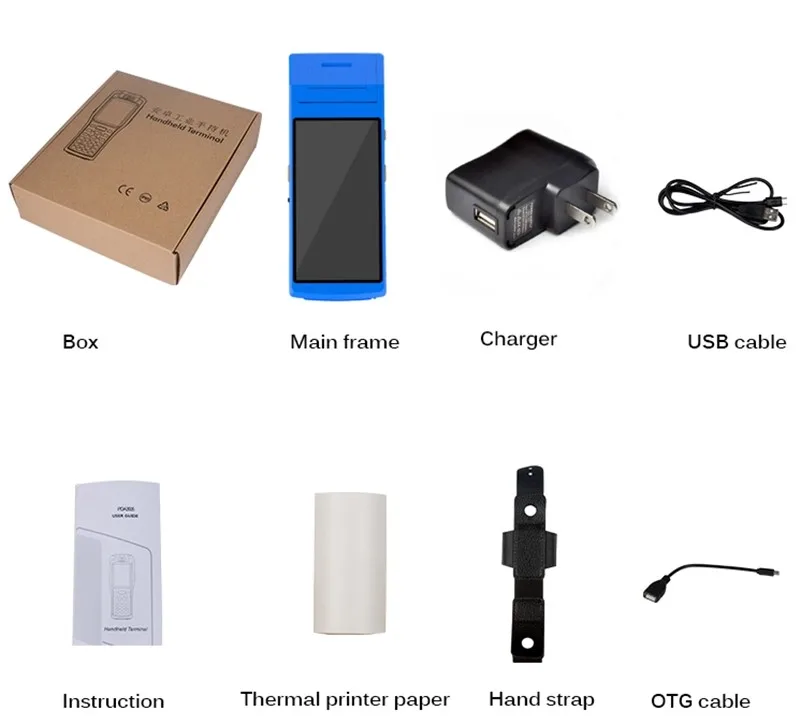

1 unit packing list include
1x PDA machine
1x battery
1x charger
1x USB data cable
1x user manuel
1x roll of thermal printer paper
1x hand strap
1x OTG cable
