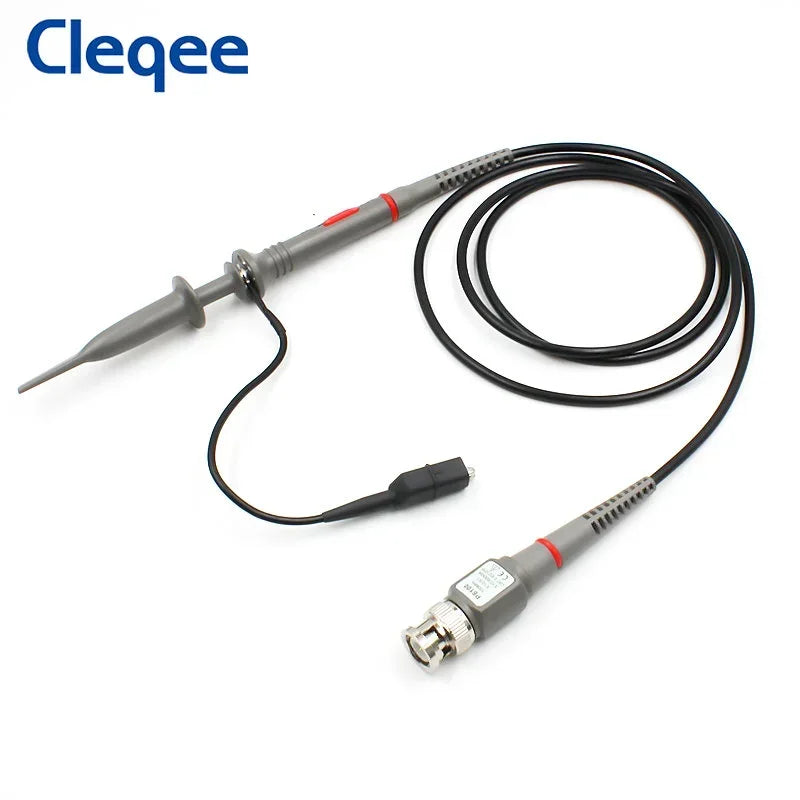

Features and specifications:

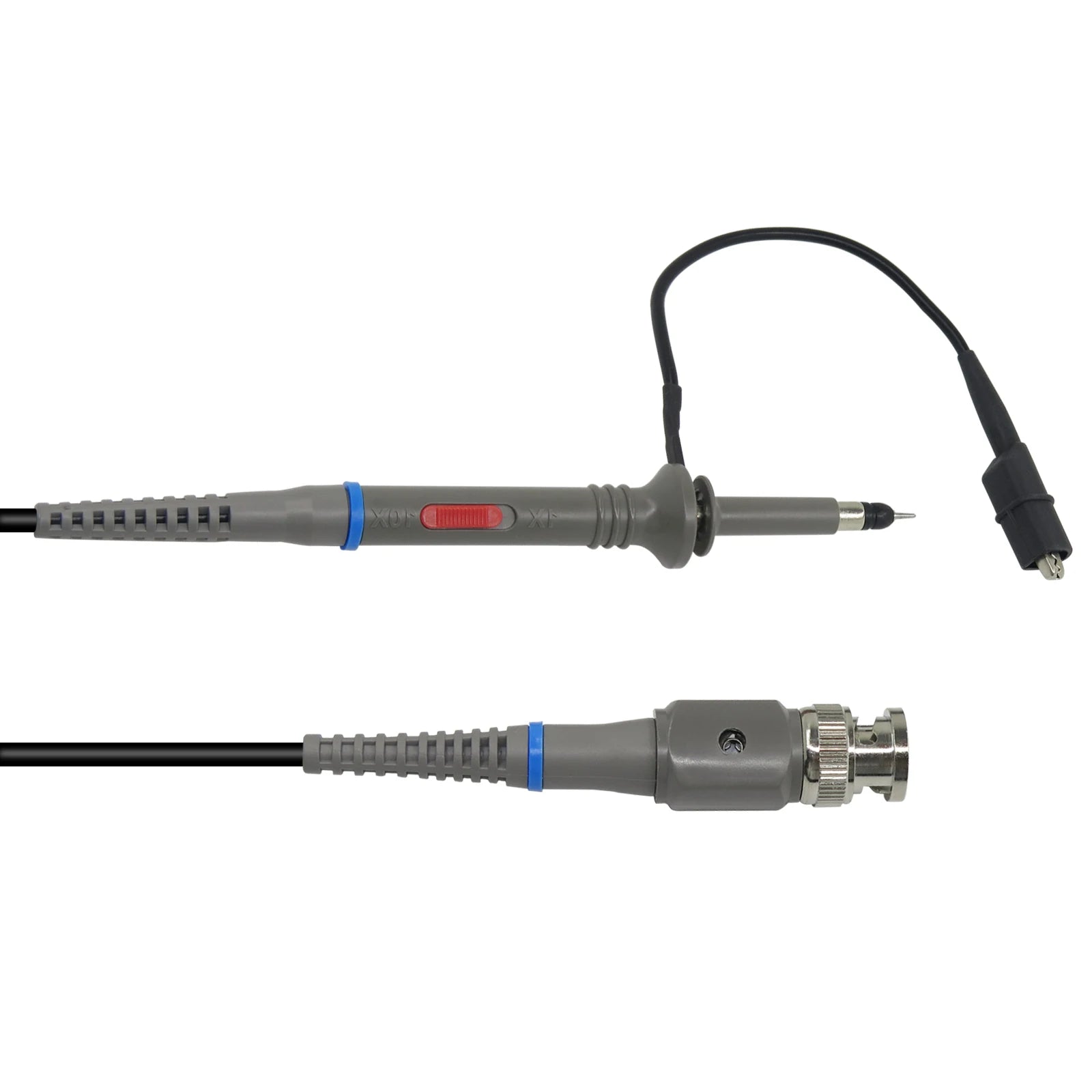

·Universal Oscilloscope Probes 10:1 and 1:1 Switchable Bandwidth 100MHz

·Usable with Scopes having Bandwidth up to 100 MHz

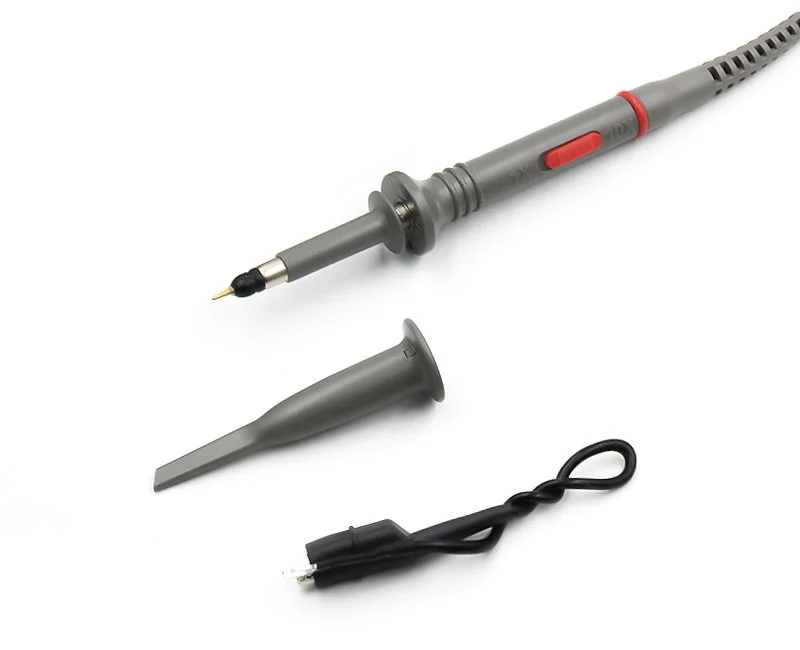

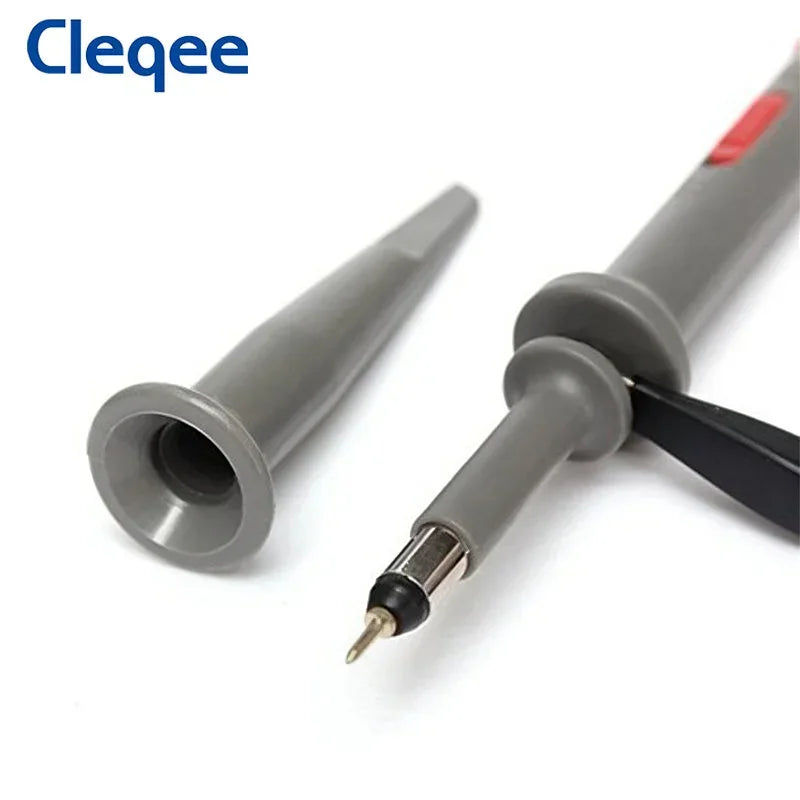

·Interchangeable Probe Tip.High Sensitivity, Excellent Performance and Reliable Function
·High Input Impedance (X10 Range)

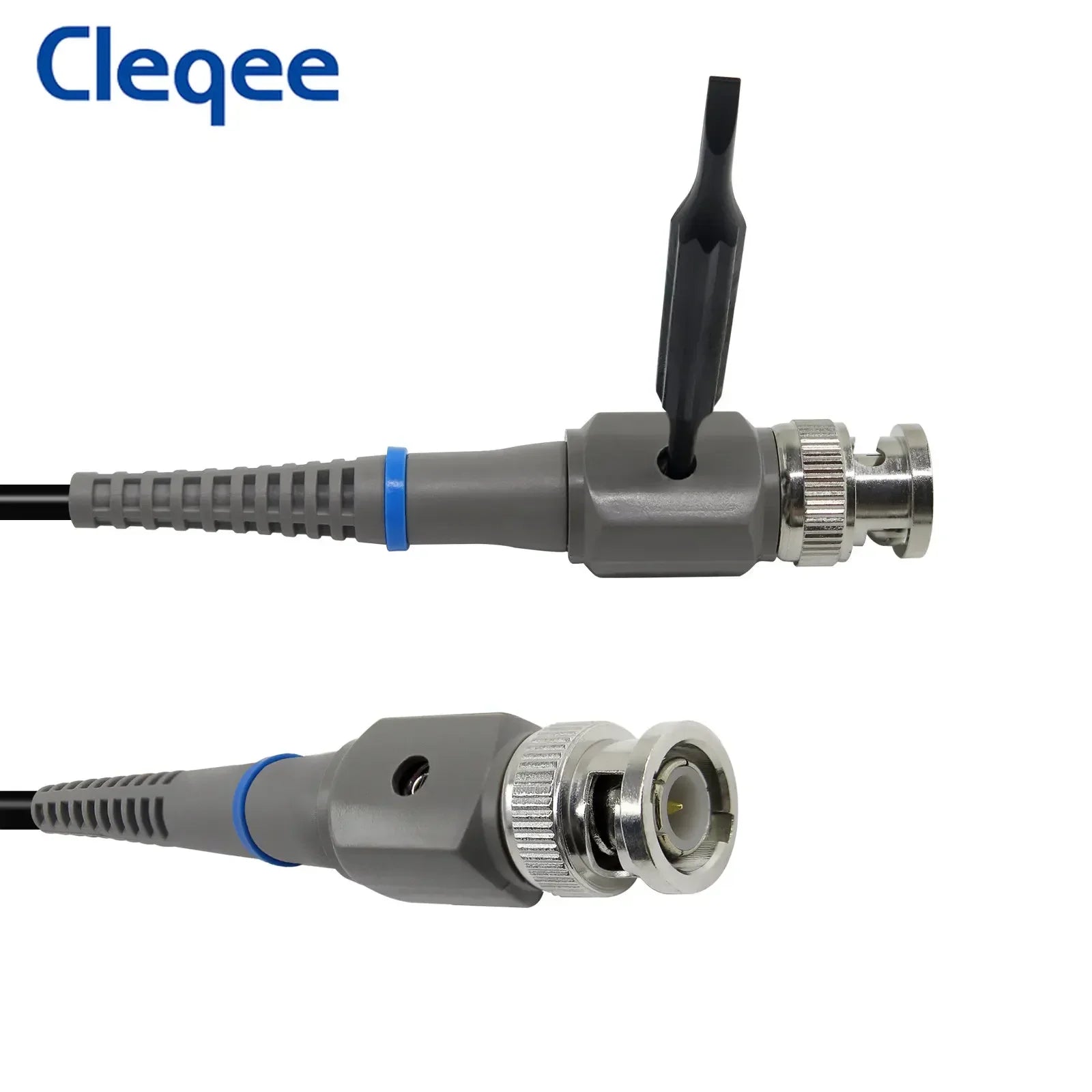

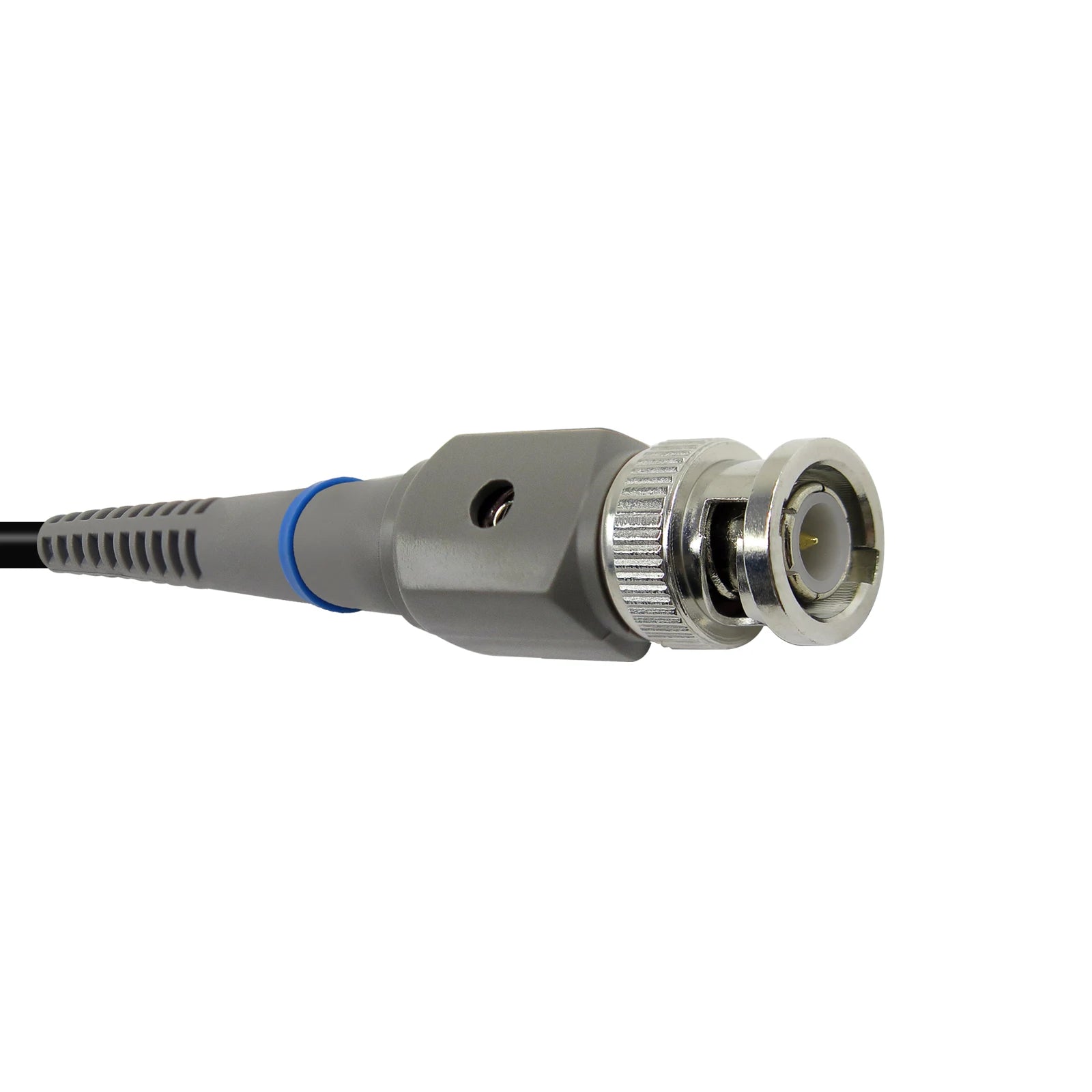

·Used with Oscilloscopes from All Manufacturers , Equipped with The Standard BNC Connector

·Adjustable oscilloscope probe that is compatible with the BNC interface, digital oscilloscopes, virtual oscilloscopes, handheld oscilloscopes, etc.

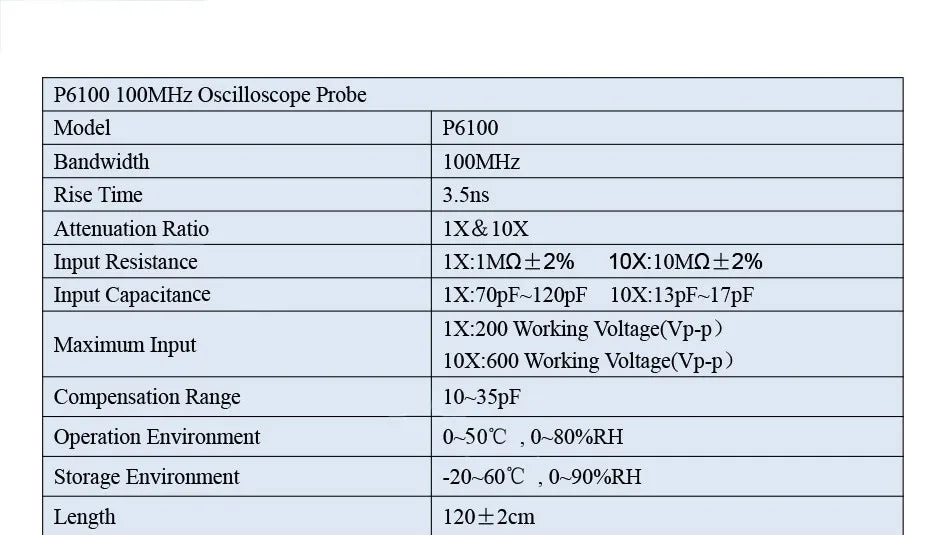

Parameters

Model: P6100-2PCS

Bandwidth: DC-100MHz

Rise time: 3.5ns

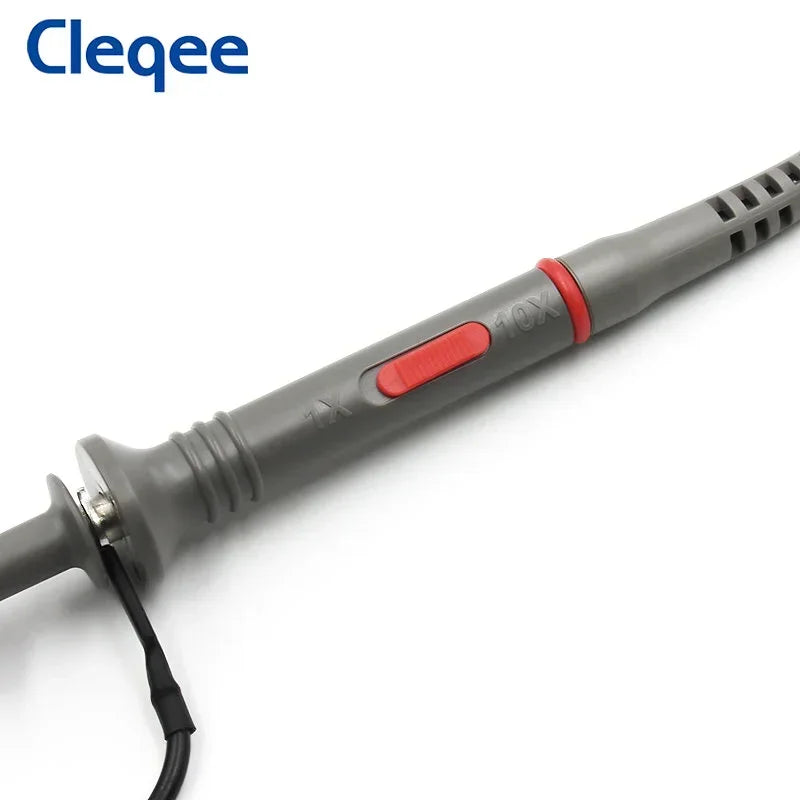

Attenuation ratio: 1X/10X

Input resistance: 1MΩ/10MΩ±2%

Input capacitance: 1X:70pF-120pF, 10X:13pF-18pF

Maximum input: 1X-200 working voltage (Vp-p),
10X-600 working voltage (Vp-p)

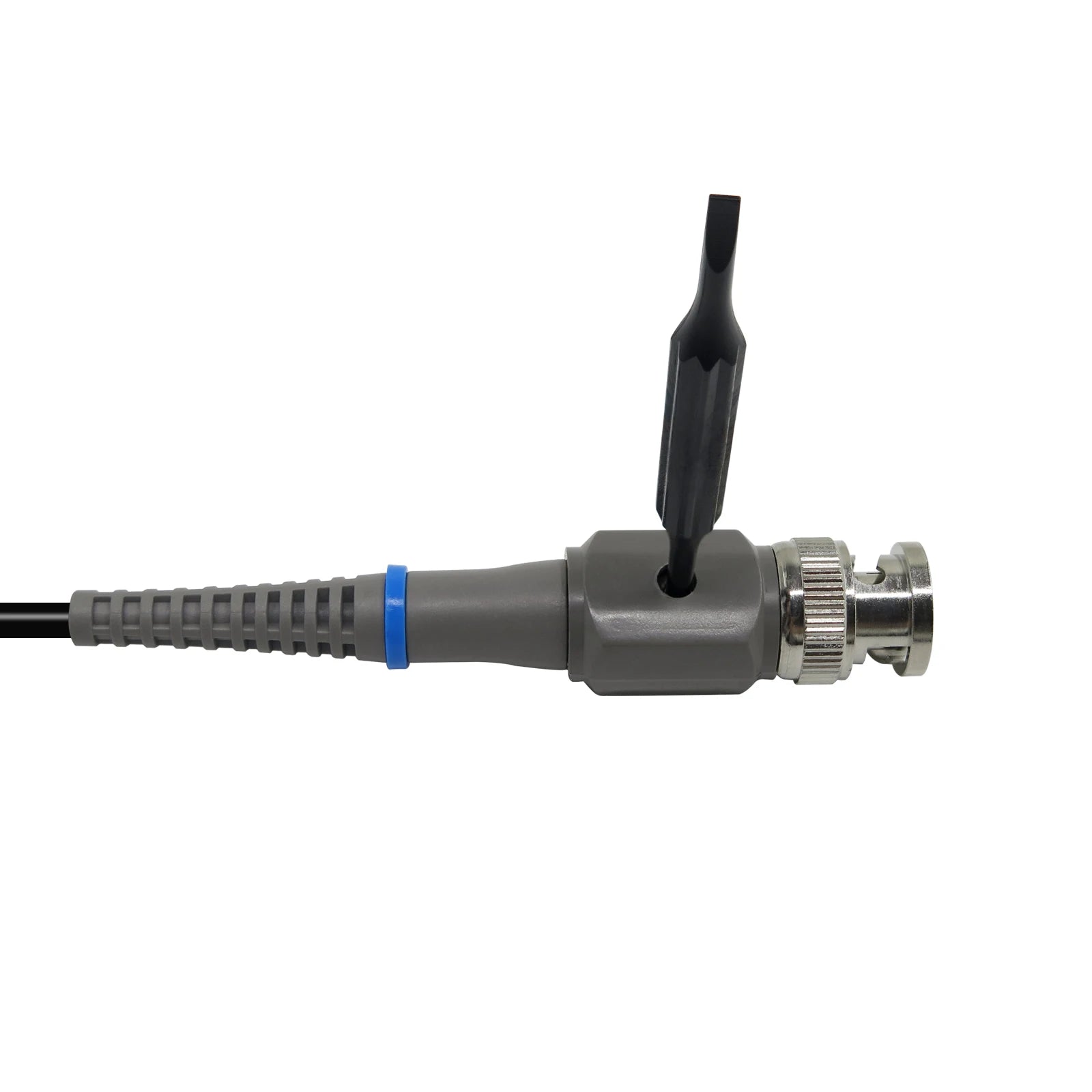

Compensation range: 14 - 35pF

Operation environment: 0-50℃ ,0-80%RH

Storage environment: -20-60℃ ,0-90%RH

Size:110 ± 2cm Weight: About 130g/set

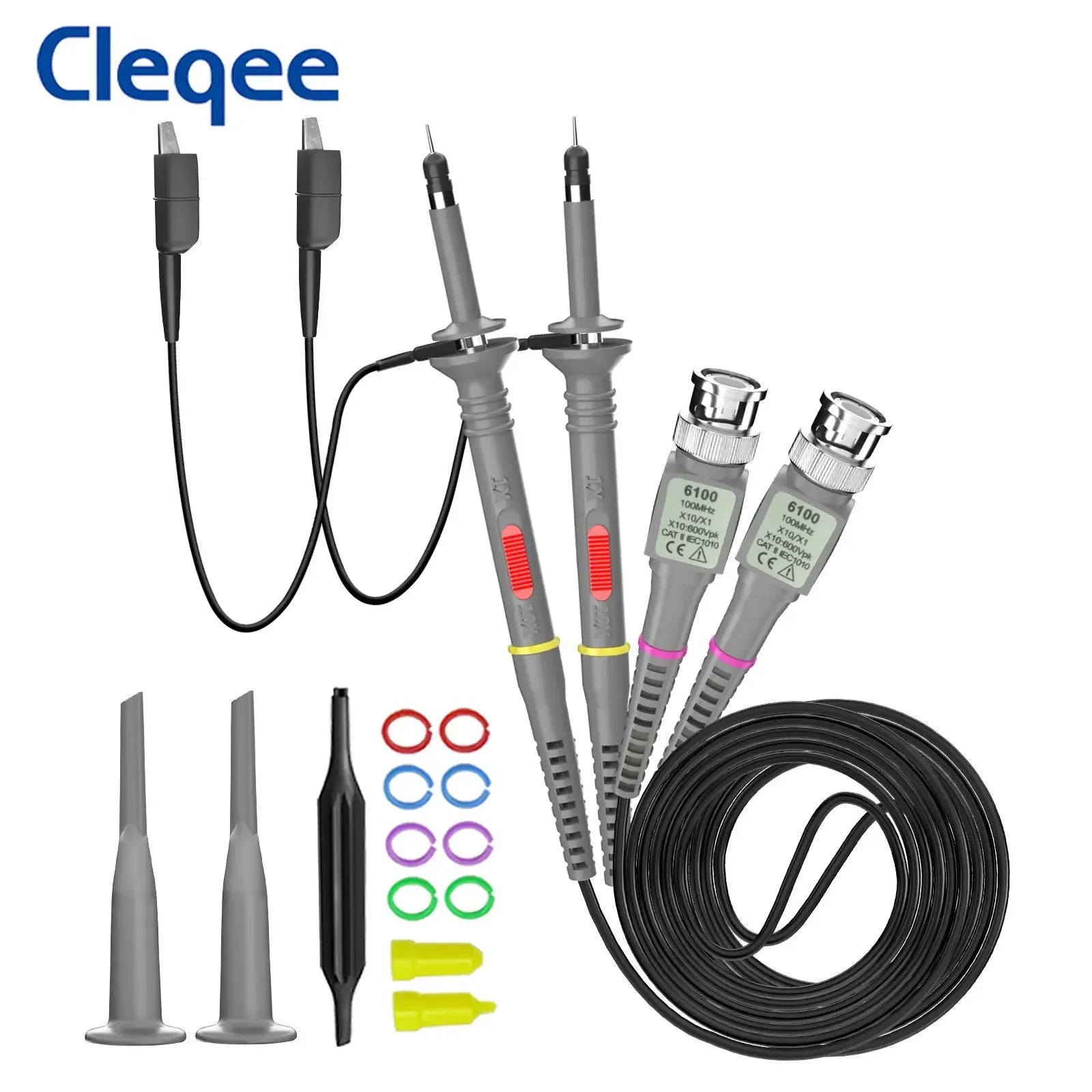

Package includes:

P6100-2pcs
• 2 x Probes

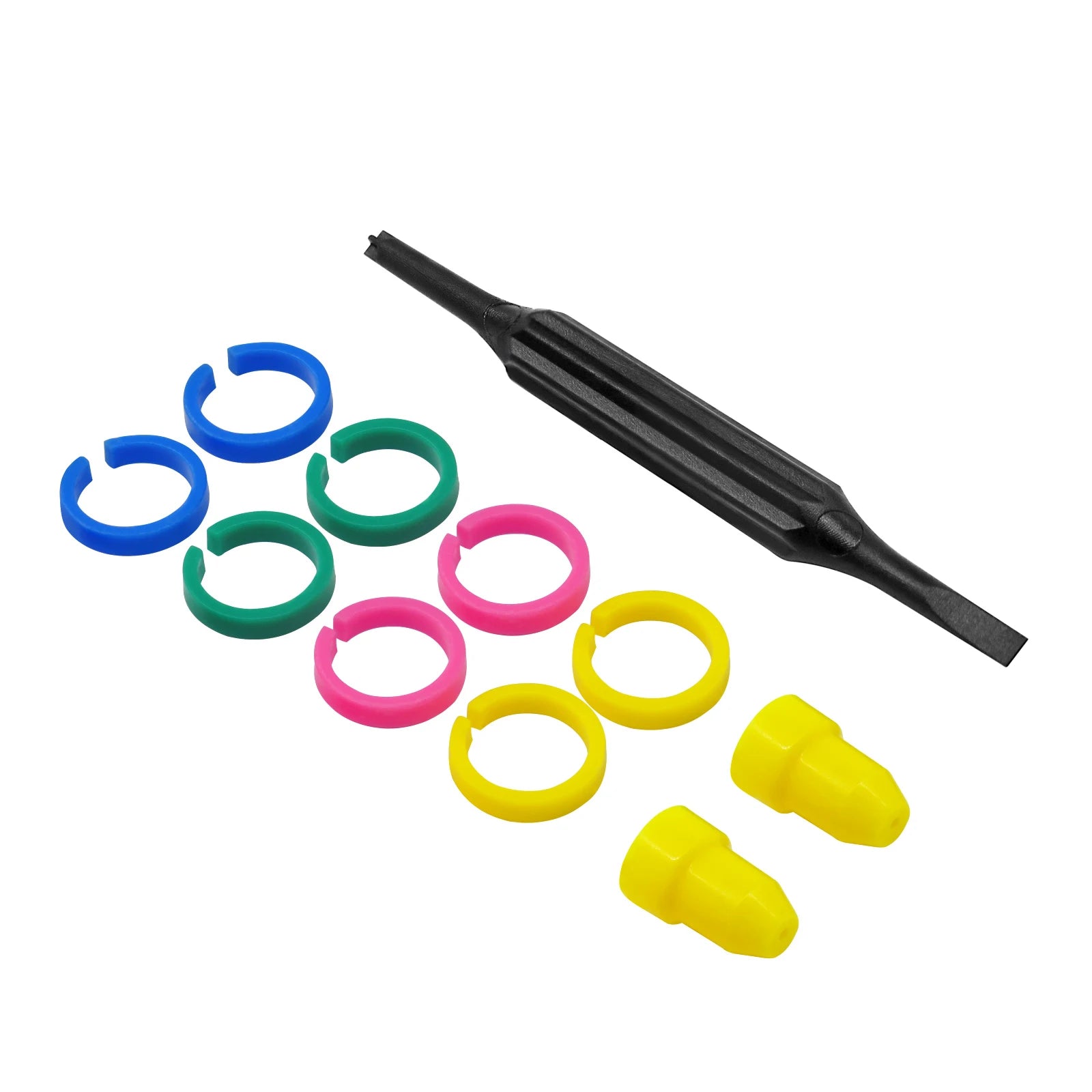

• 8 x Marker rings
• 2x Ground leads

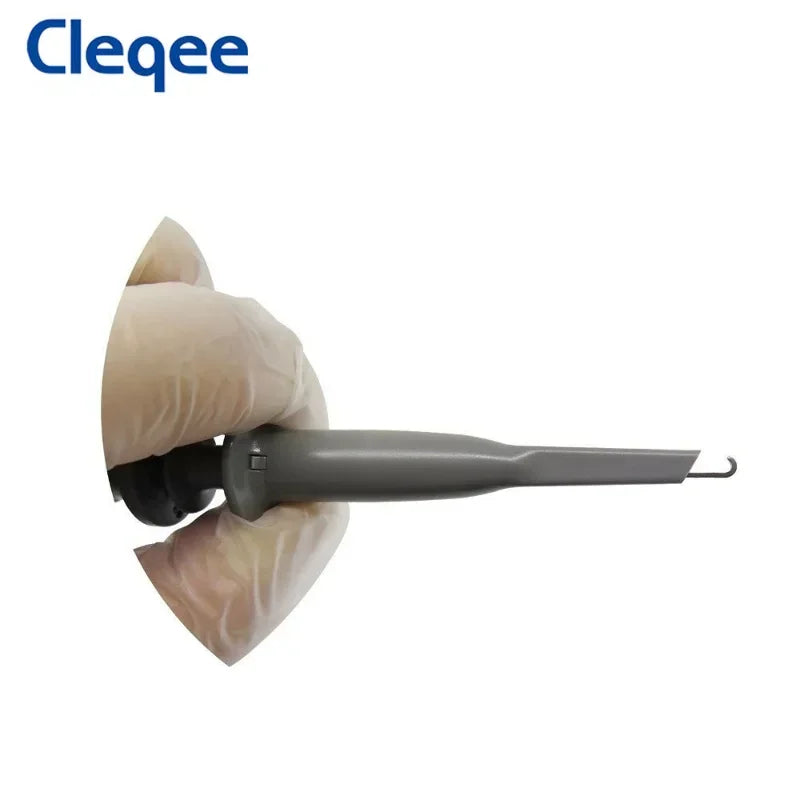

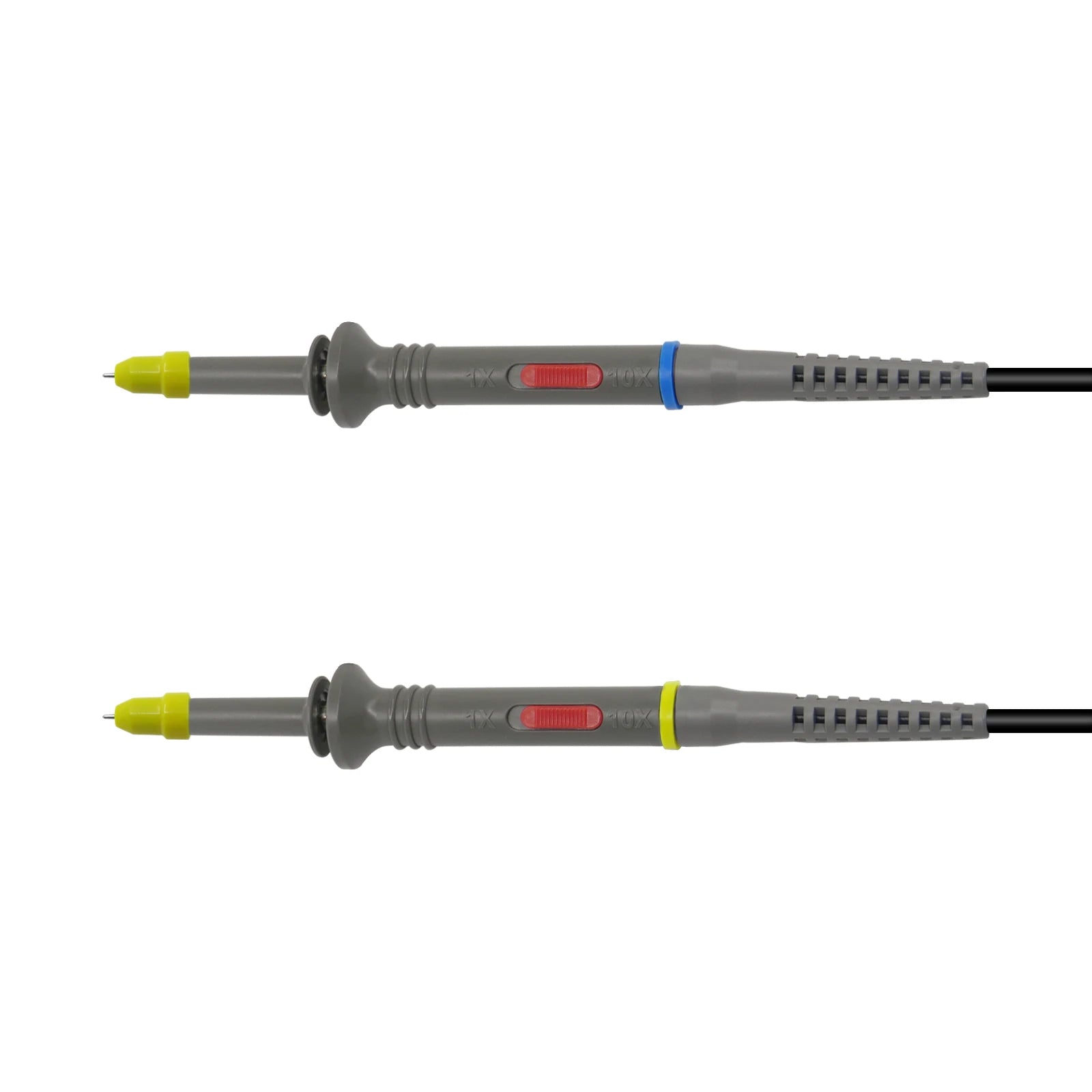

• 2 x IC Test Protection Cap
• 1 x Adjustment tool
• 1 x User manual
