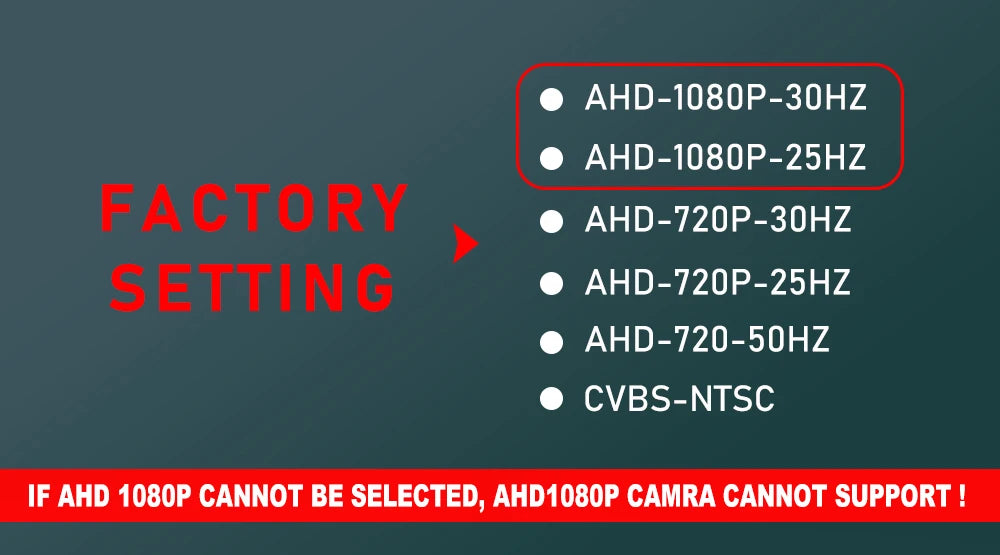

Tips, About AHD1080P Style:

Please check whether the Android unit supports AHD1080P camera!

If AHD1080P cannot be selected, AHD1080P cameras are not supported!
Go to Car settings >> Factory settings >> Reverse (picture) settings >> Select AHD1080P

FAQ：

After connecting the rear view camera, the screen shows no signal, black screen and no picture, what should I do?

A) Please check your signal format (AHD/CVBS), choose right signal to run the camera.

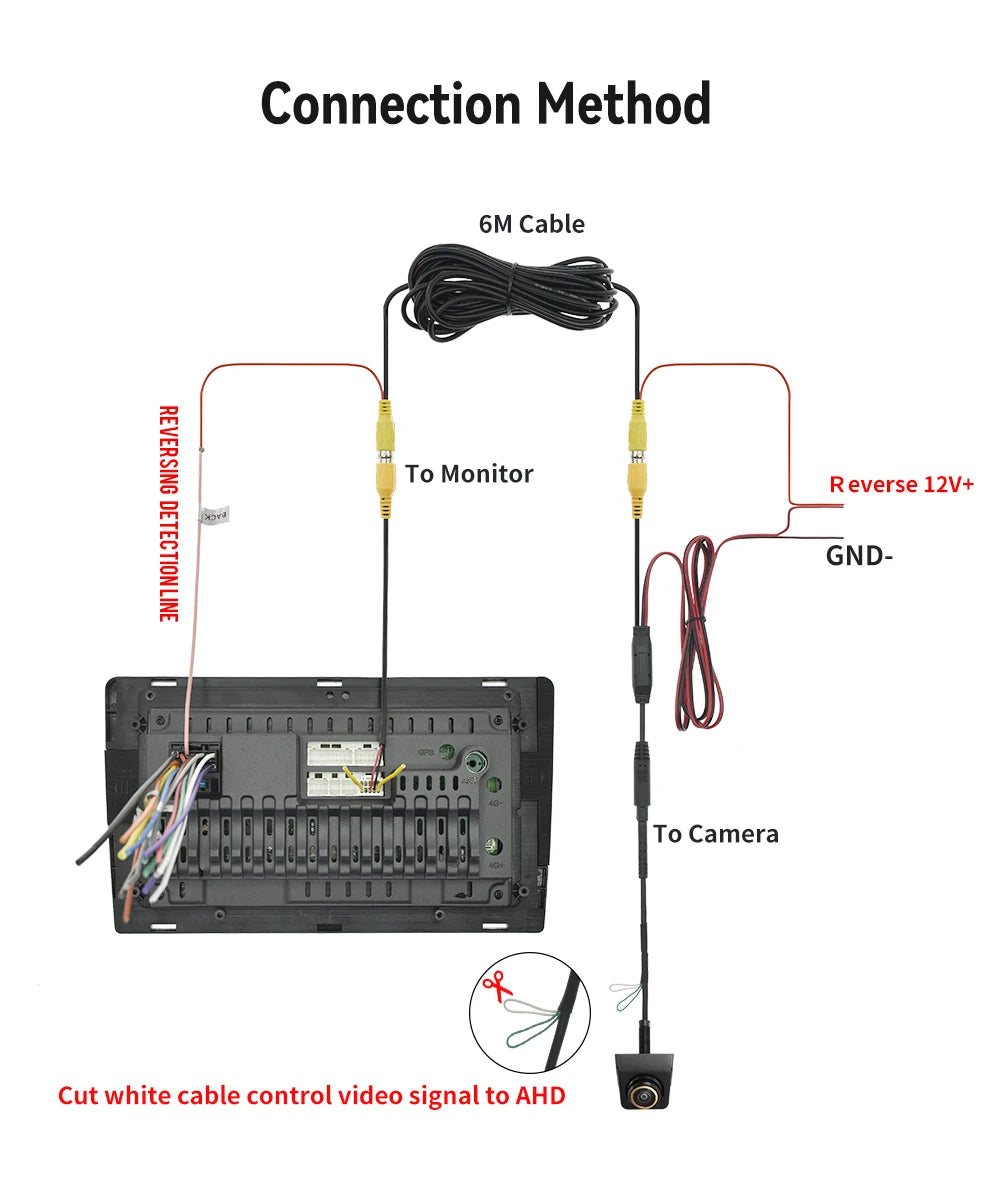

B) Please check your connection, red trigger line should connect to your reverse light and monitor reverse-in cable.
C) If your monitor has AUX-IN function, you can connect to the AUX-IN.
Tip: CVBS cameras can test the performance on the TV. Universal cameras with 4Pin plugs can only be installed with our cables. You can consult customer service if you encounter any problems during the installation process.

After connecting the rear view camera, the screen shows black and white, what should I do if there is no color?

A) Choose wrong camera system(such as PAL/NTSC) will cause the screen to be black and white. Please select the right system to run the camera and restart the camera power. CVBS camera is NTSC system, AHD1080P camera is PAL system.

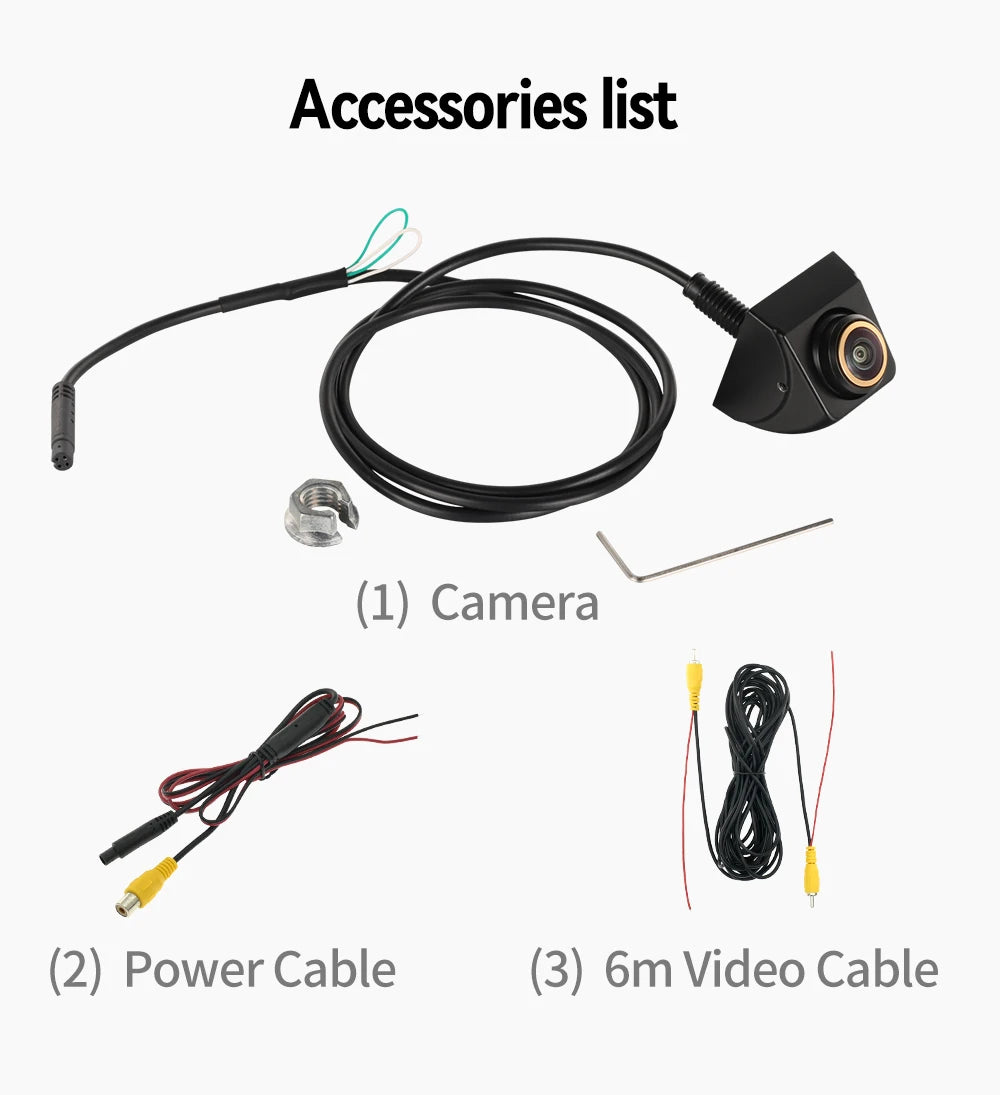

B) Please check whether the 6M line is normal, please replace with another 6M cable to test the camera.

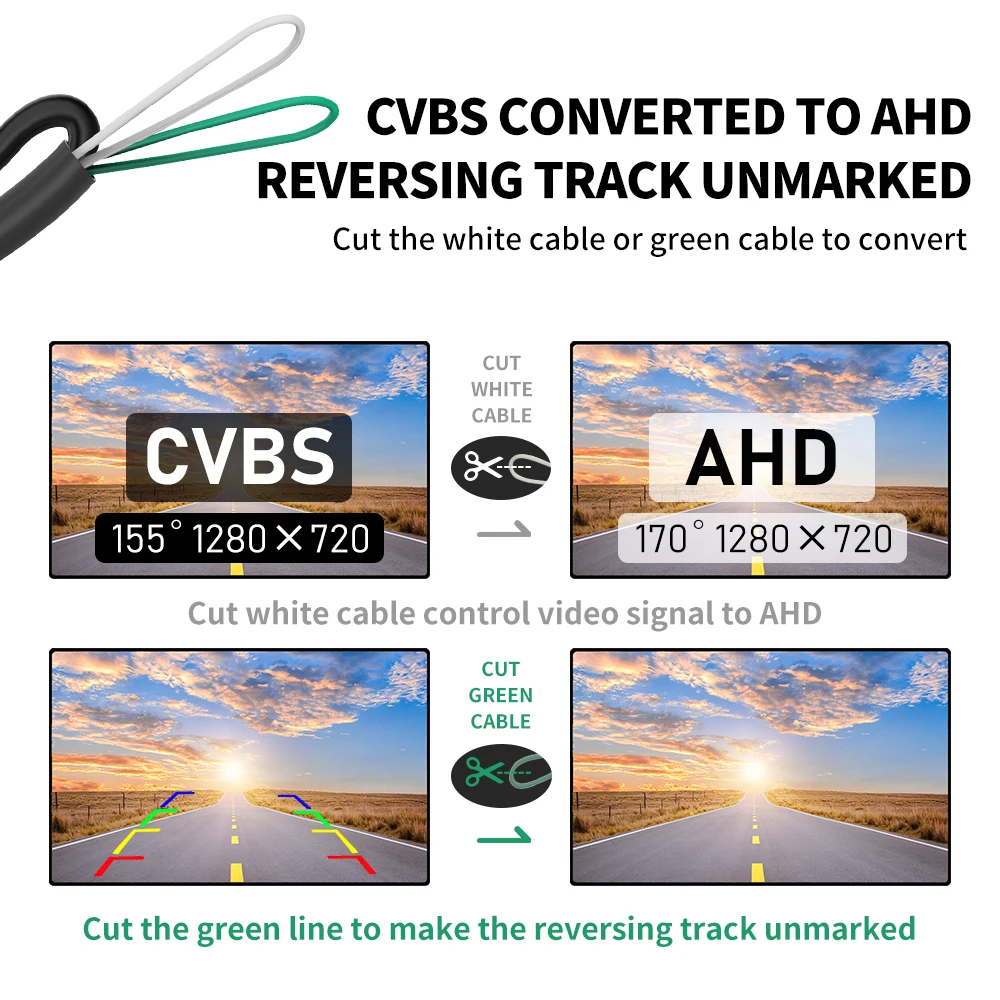

What functions are controlled by each of the 3 cables of the rear view camera?

Brown Cable: Video Signal Control

• CVBS-AHD720P/1080P Camera:

Default ( CVBS )+( 1280x720 )+( 155° )

Cut the white cable→

( AHD )+( 1280x720 )+( 170° )

• CVBS-AHD1080P Camera:

Default CVBS ( CVBS )+( 1280x720 )+( 155° )

Cut the white cable→

White Cable: Mirror Control
• The default is the rear view camera (Mirroring).
Cut the white cable→
Front view camera ( Non-mirroring )

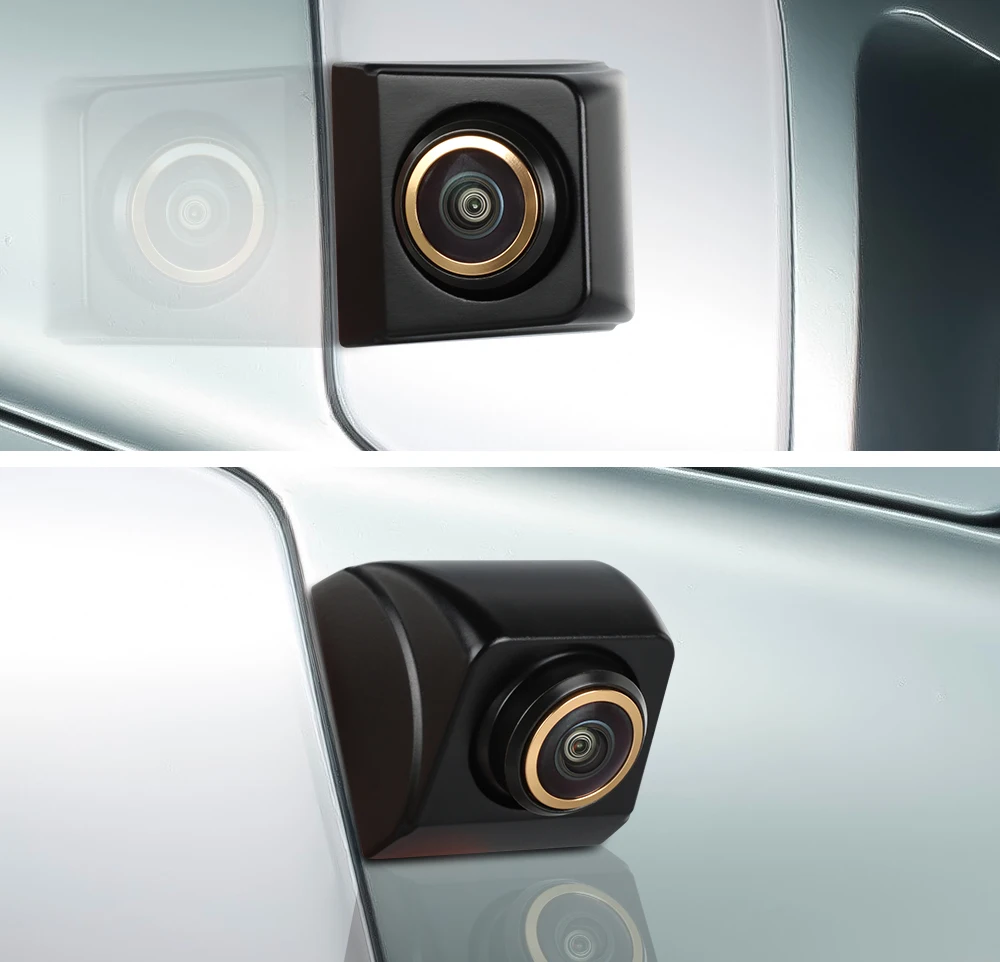

You can also manually rotate the sphere angle 90 °, to achieve the effect of the side camera

Green Cable: Parking Line Control
• Camera with parking line/camera does not display parking line, you can cut the green cable, then reconnect the camera's power supply, that can change the parking line.

Does it support customized products?

Yes, we can customize all kinds of chips, lenses, colors, accessories, and appearance, please contact us for any interest.
