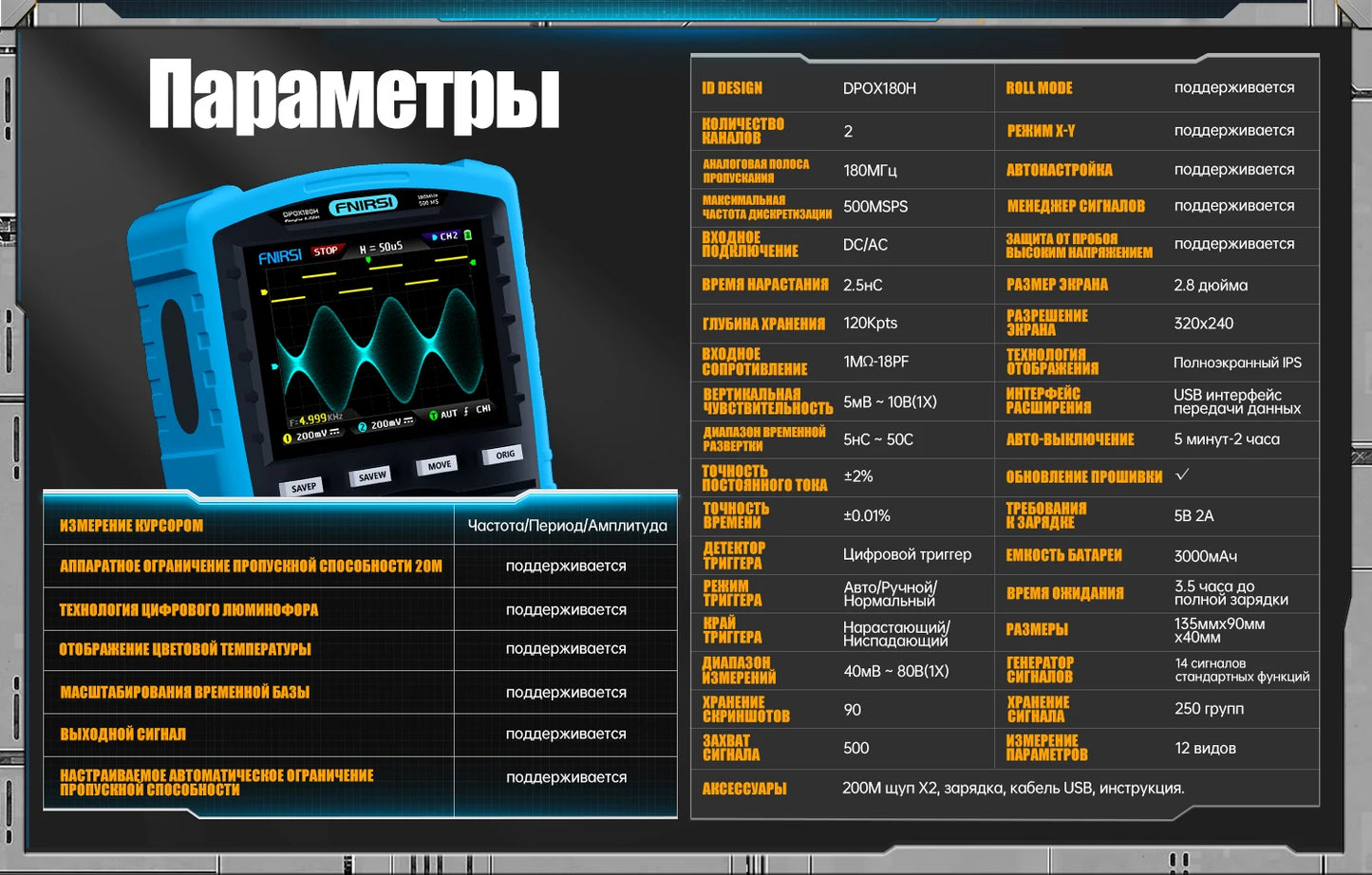

SPECIFICATIONS

Brand Name: FNIRSI

Origin: Mainland China

DIY Supplies: ELECTRICAL

Display resolution: 320*240 Pixels

Digital Channels: 2

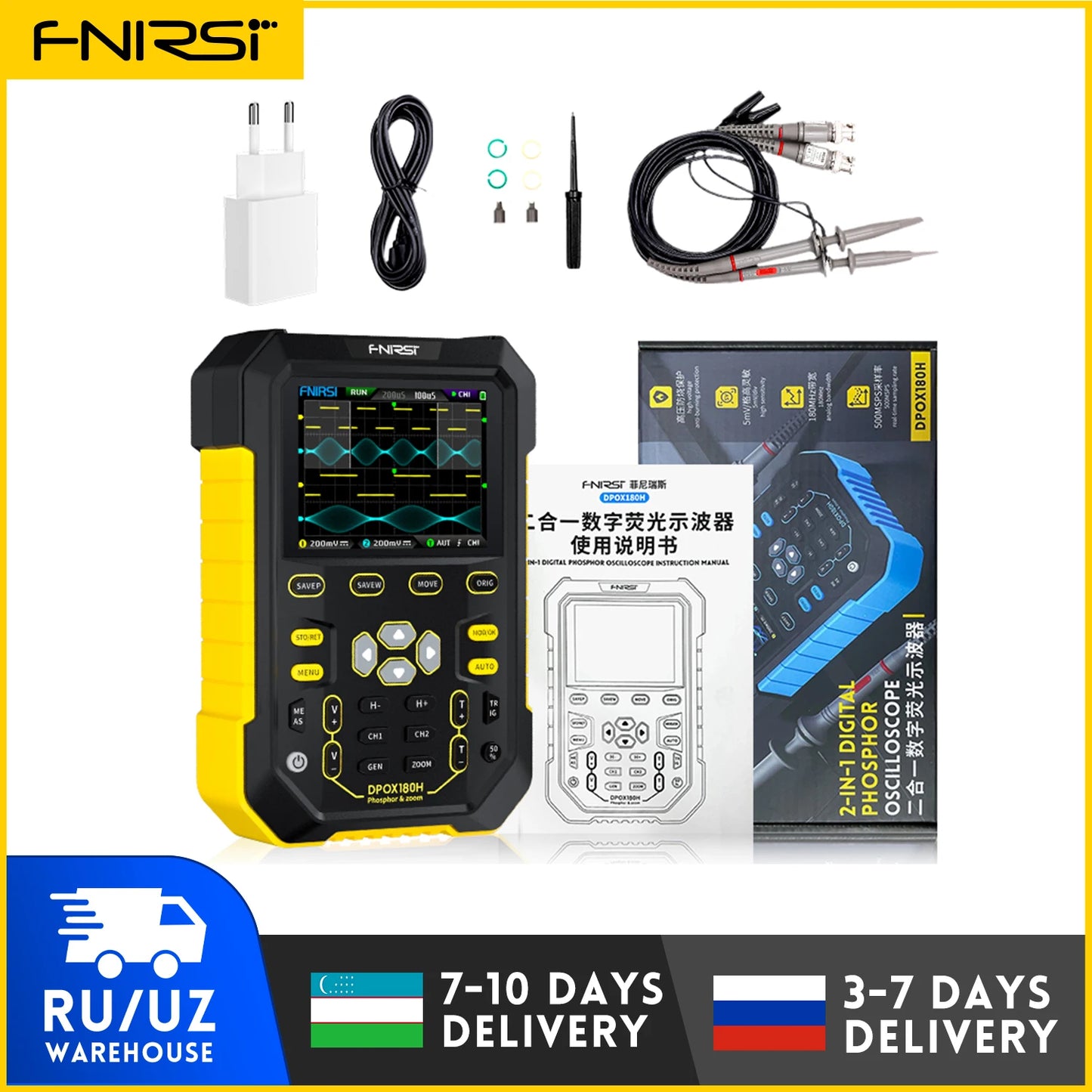

Model Number: DPOX180H

IS Battery Demountable: No

Certification: CE

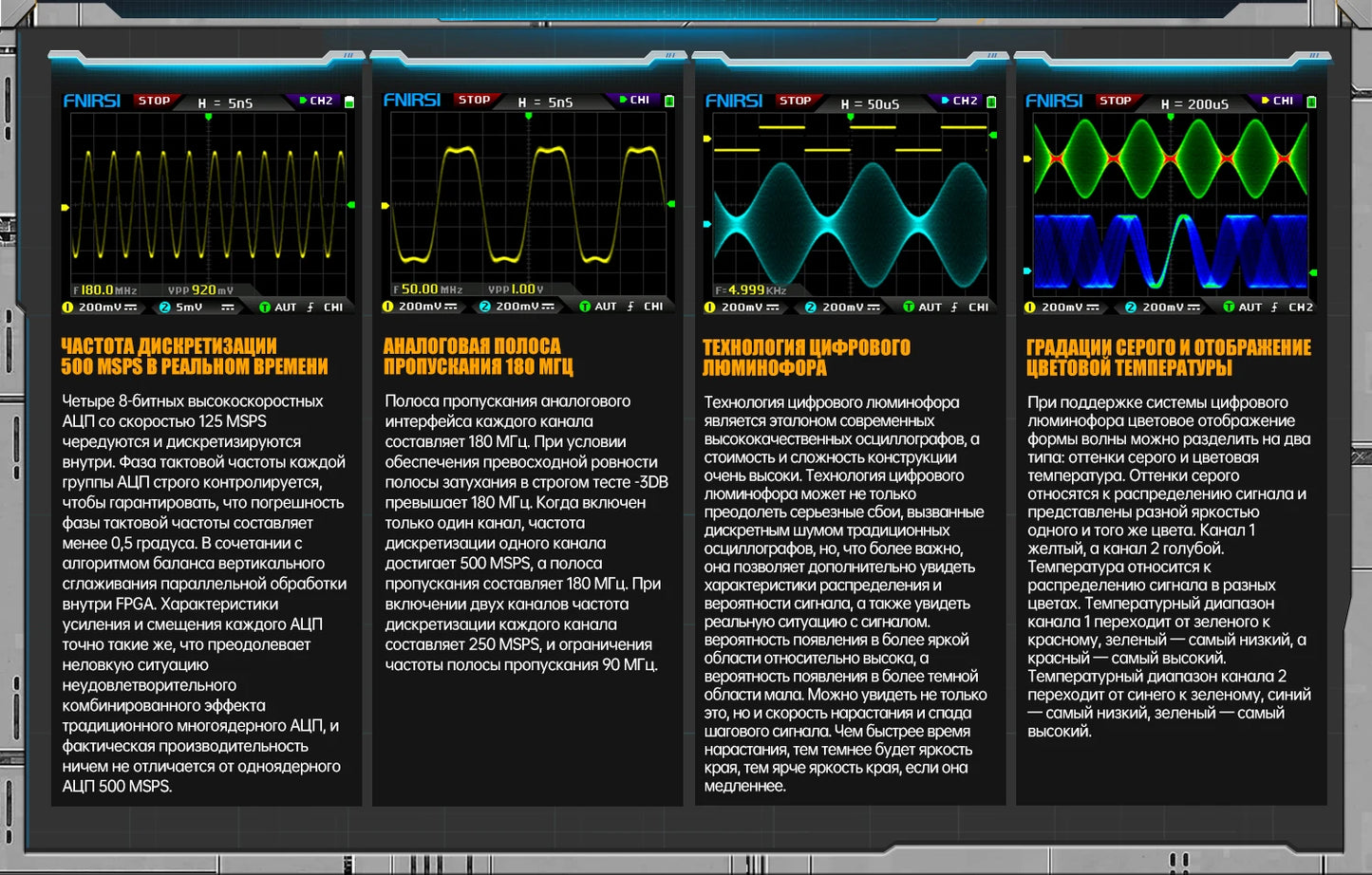

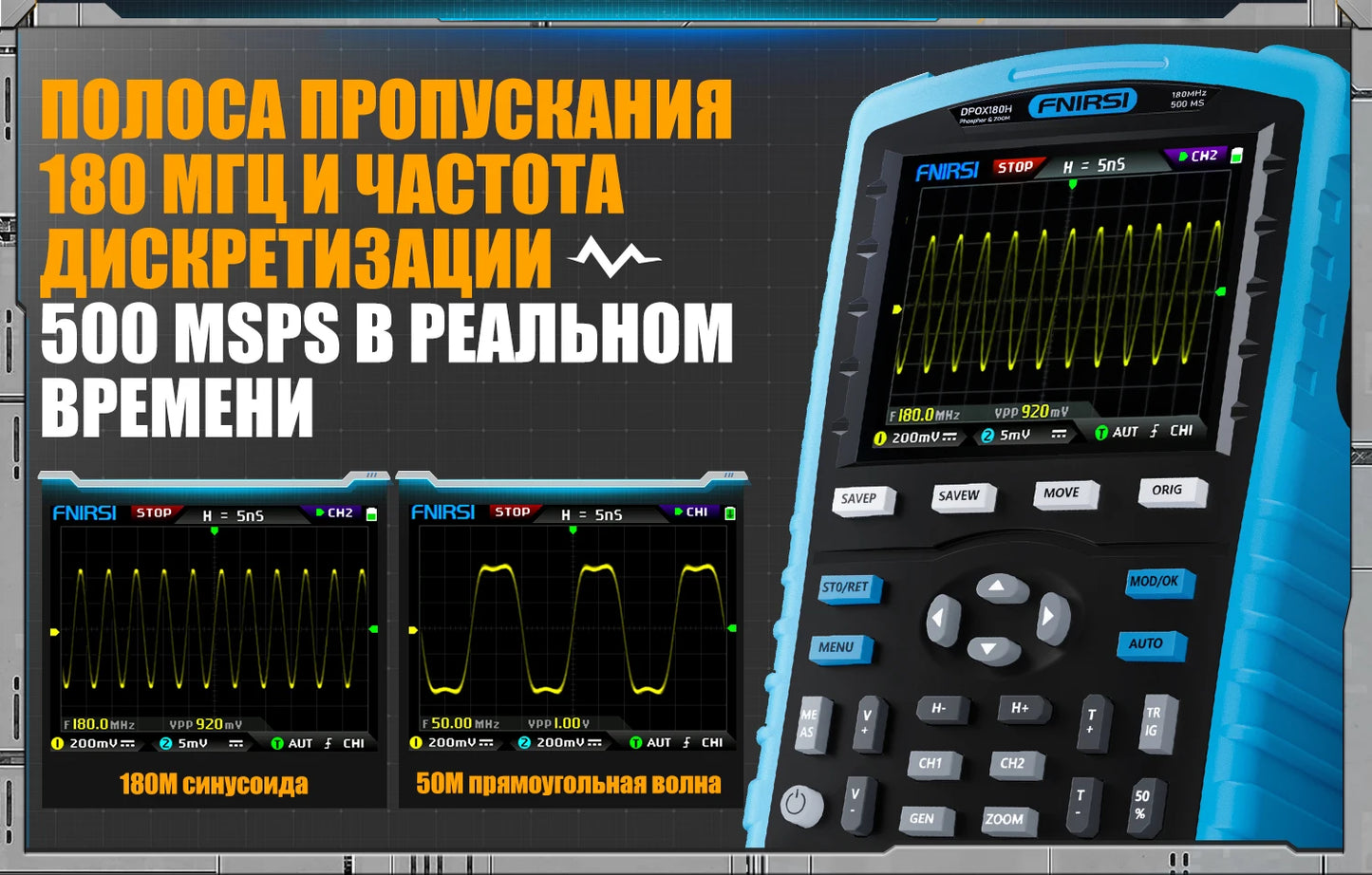

Real Time Sampling Rate: 500MSa/s

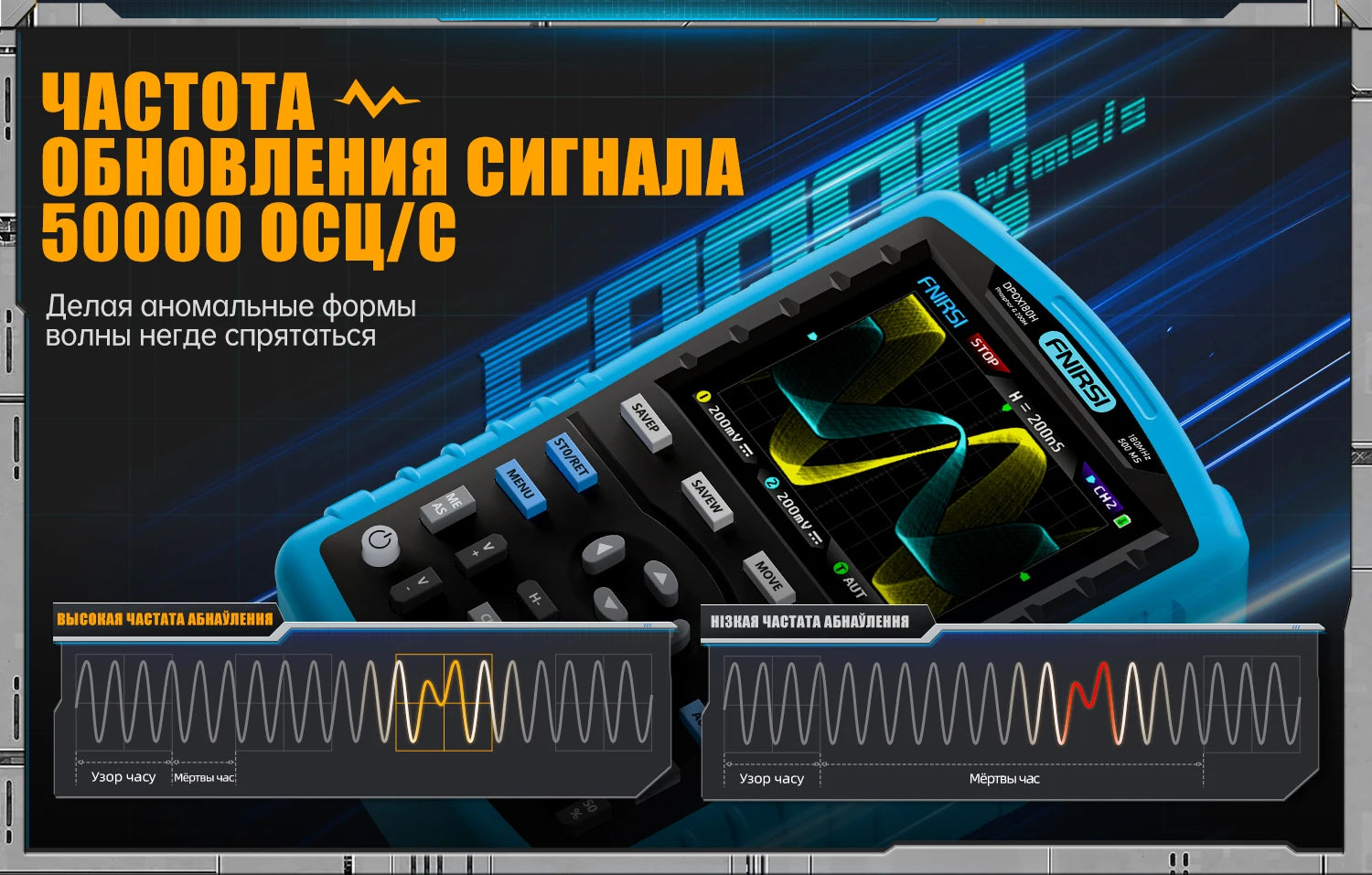

Max Waveform Capture Rate: 50,000wfm/s

Band Width: 180MHz

Input coupling: DC/AC

Rise time: 2.5nS

Storage depth: 120Kpts

Input impedance: 1MΩ-18PF

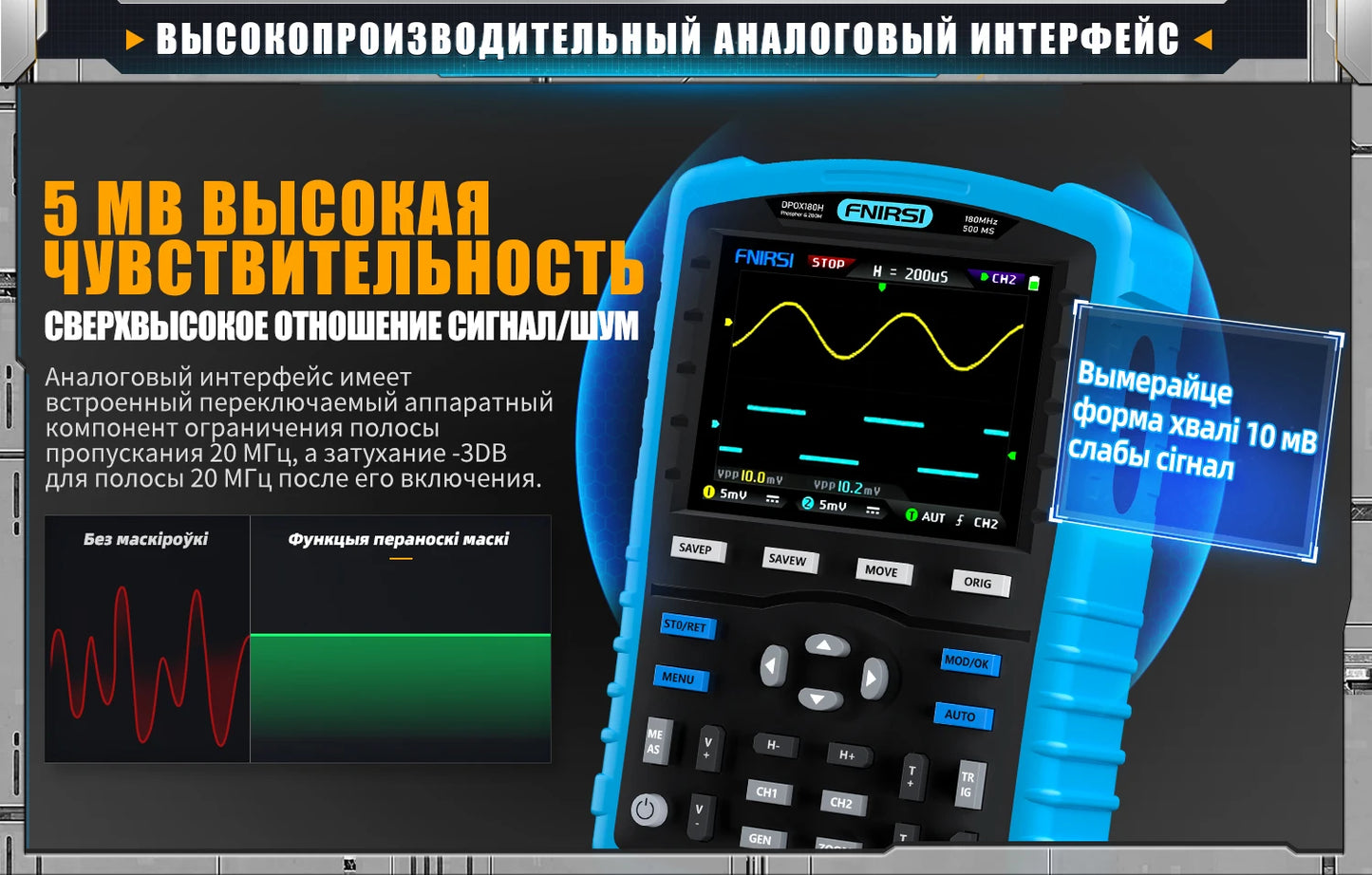

Vertical sensitivity: 5mV ~ 10V(1X)

Time base range: 5nS ~ 50S

DC accuracy: ±2%

Time accuracy: ±0.01%

Measurement range: 40mV ~ 80V(1X)

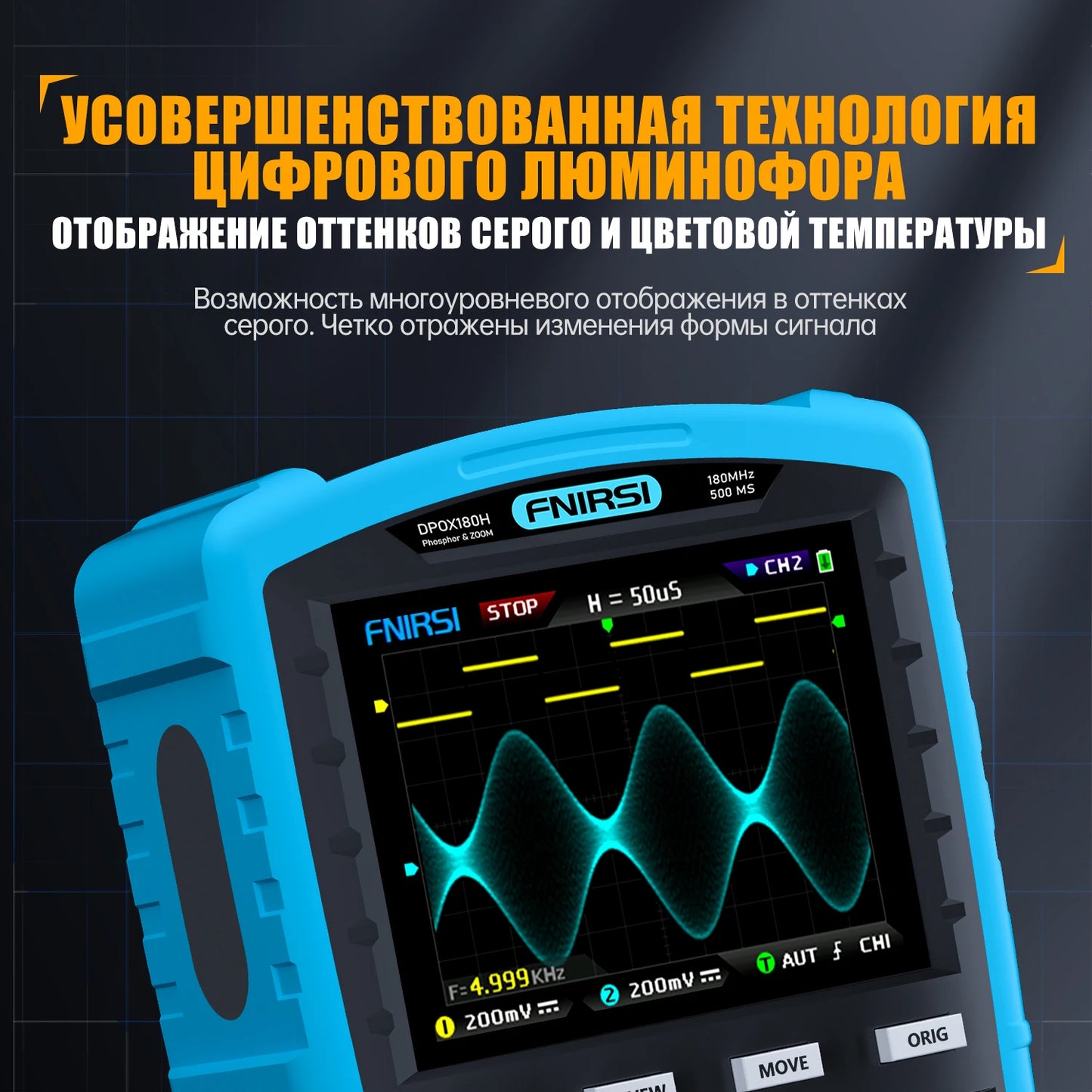

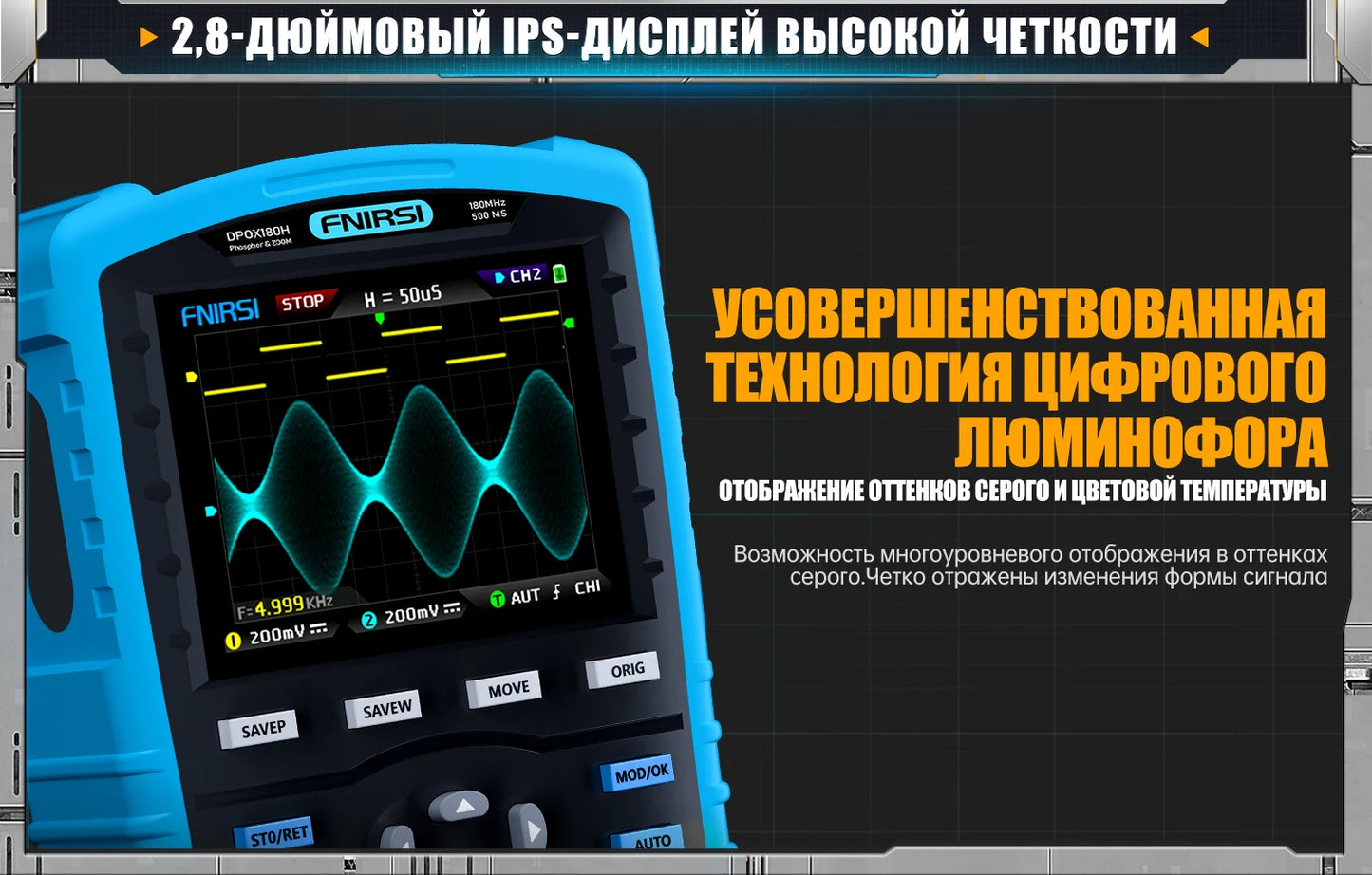

Digital phosphor technology: YES

Color temperature display: YES

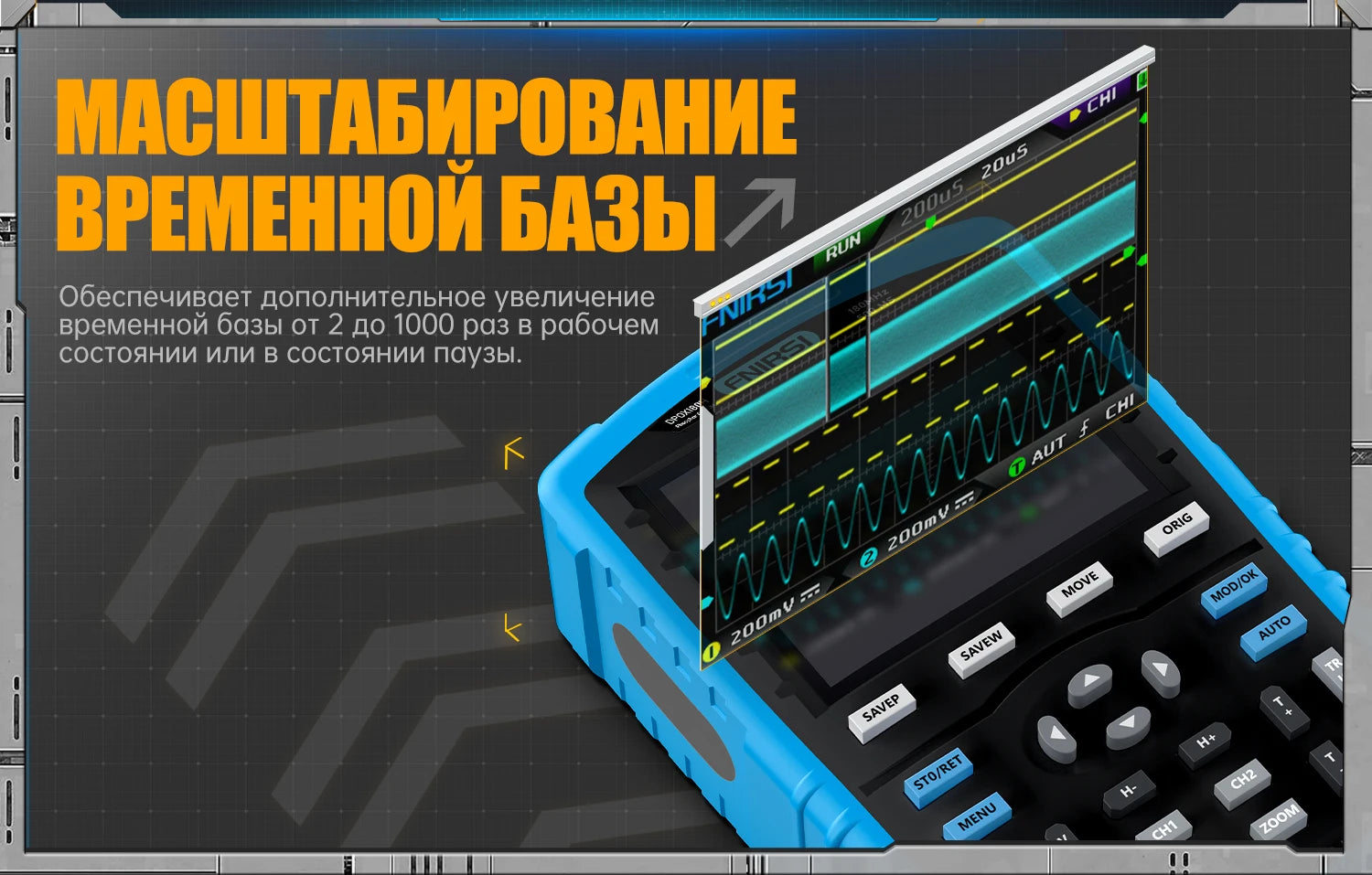

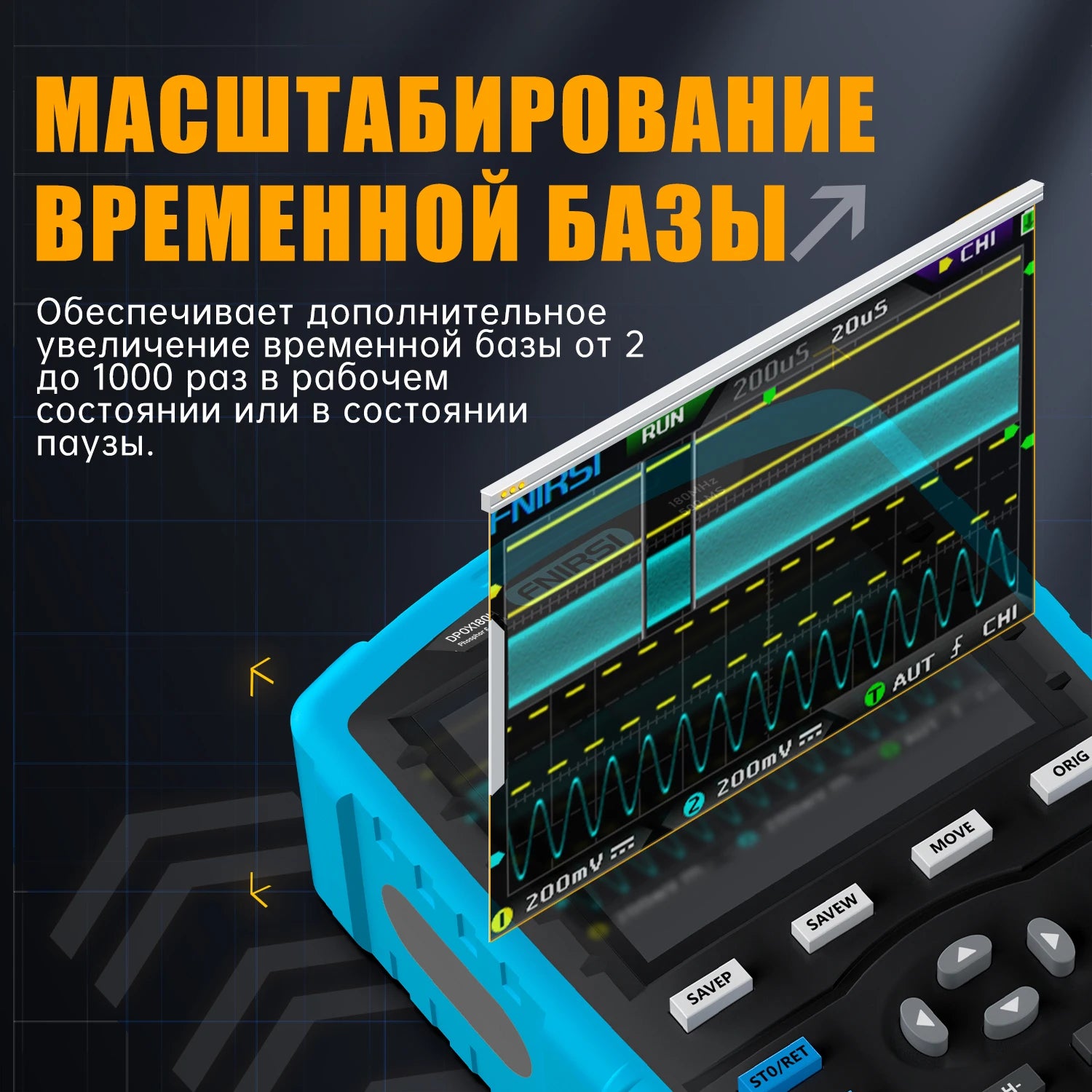

Zoom scaling time base: YES

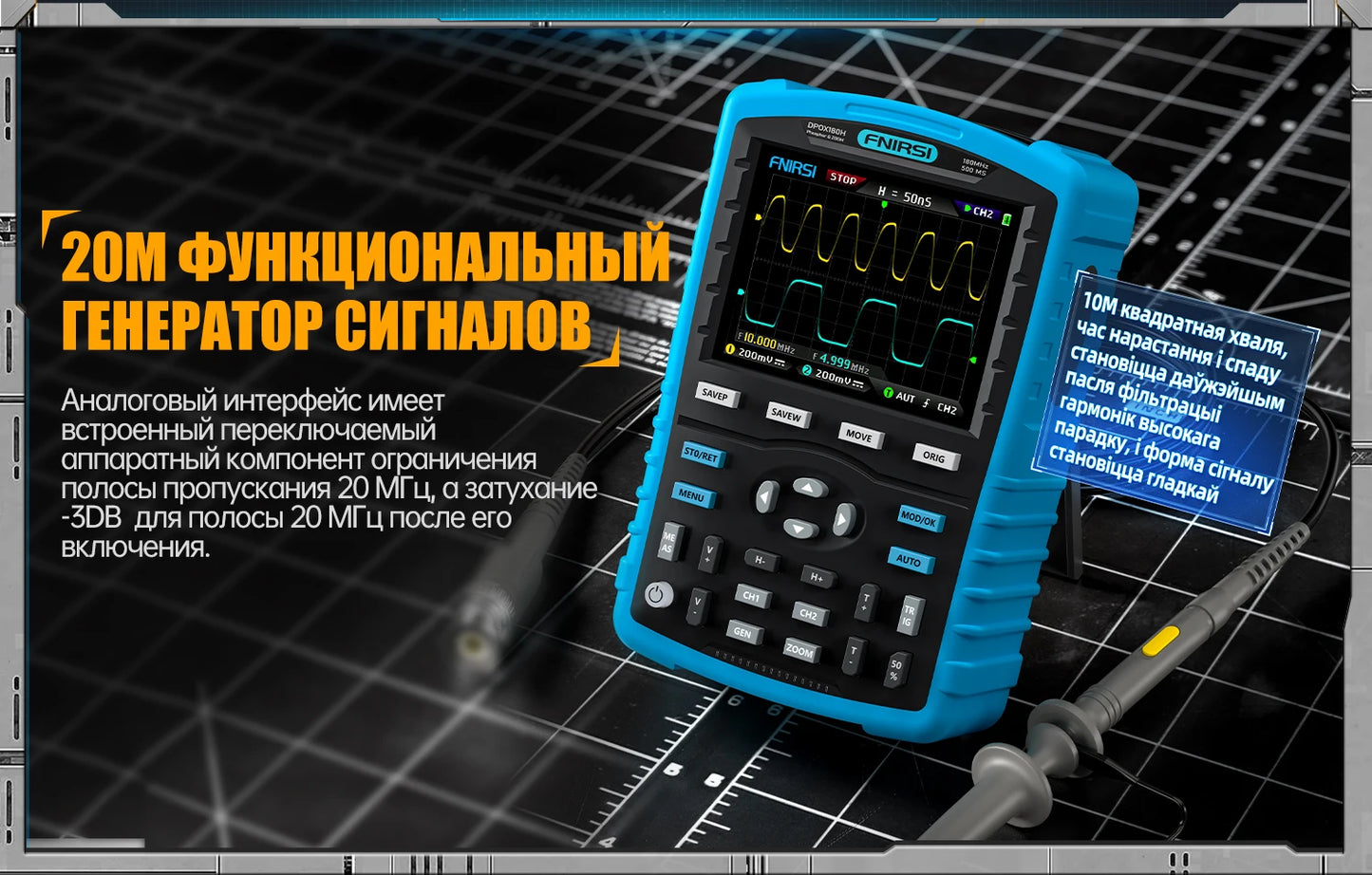

20M hardware bandwidth limitation: YES

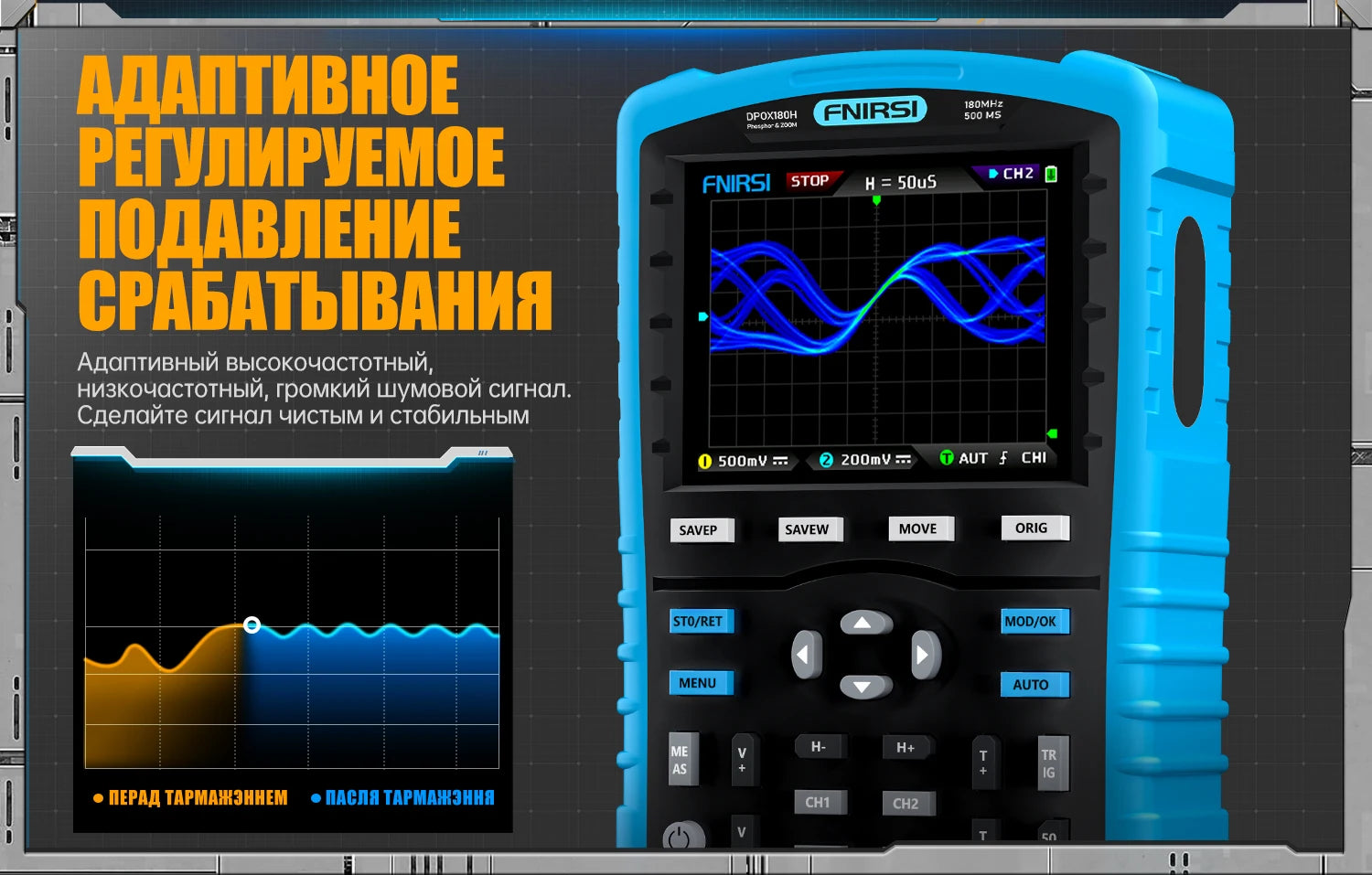

Adjustable automatic bandwidth limitation: YES

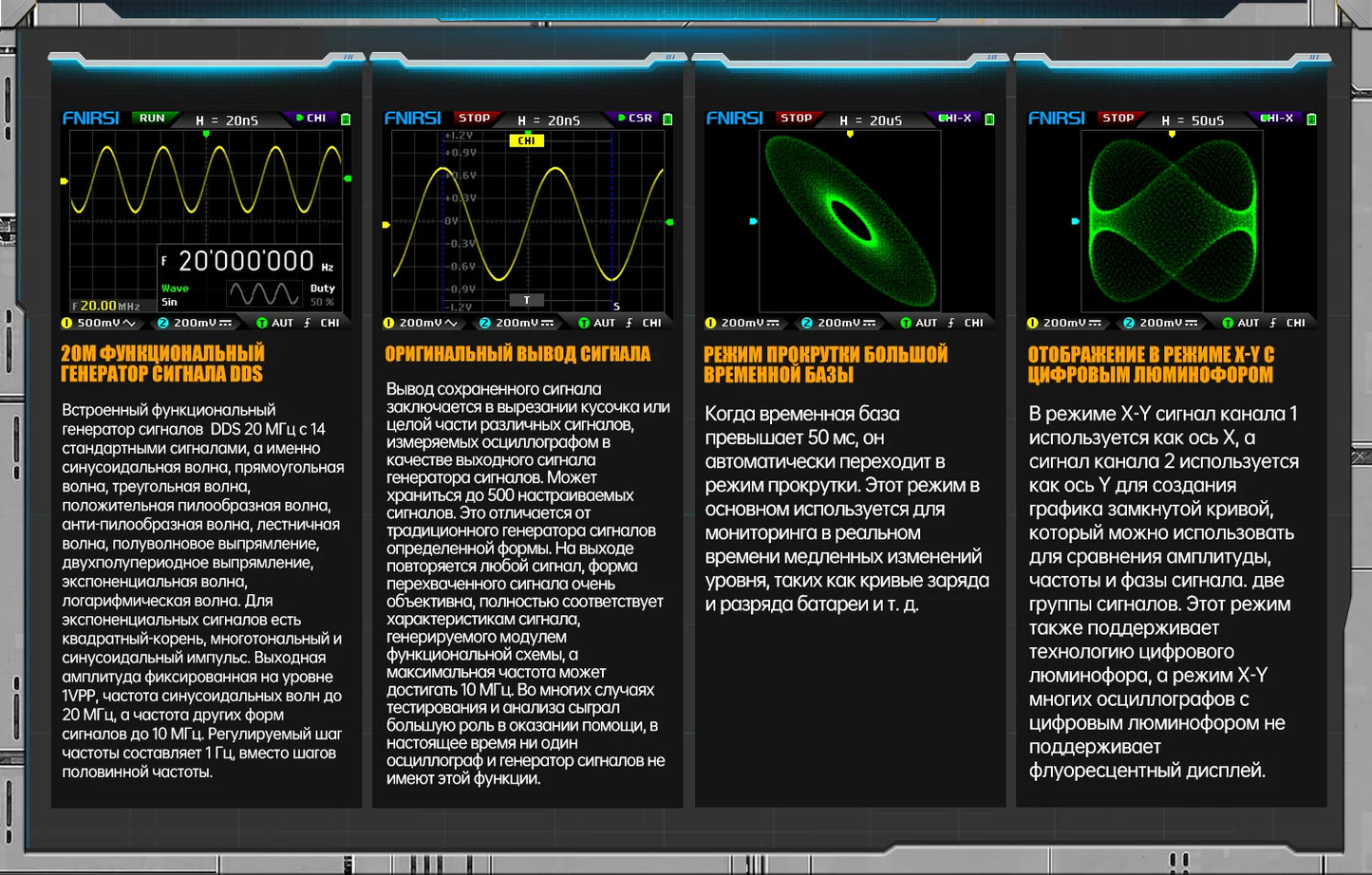

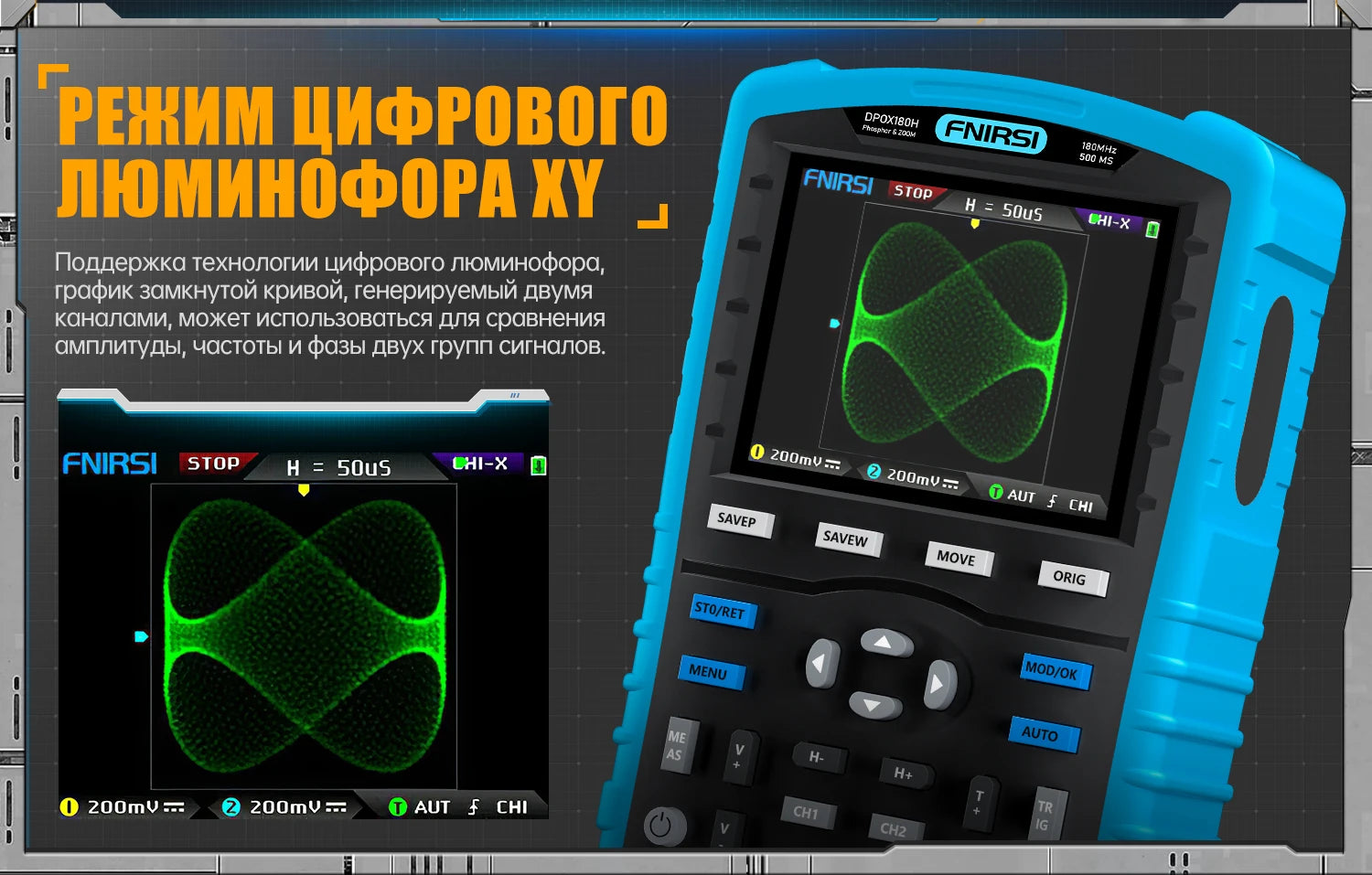

X-Y mode: YES

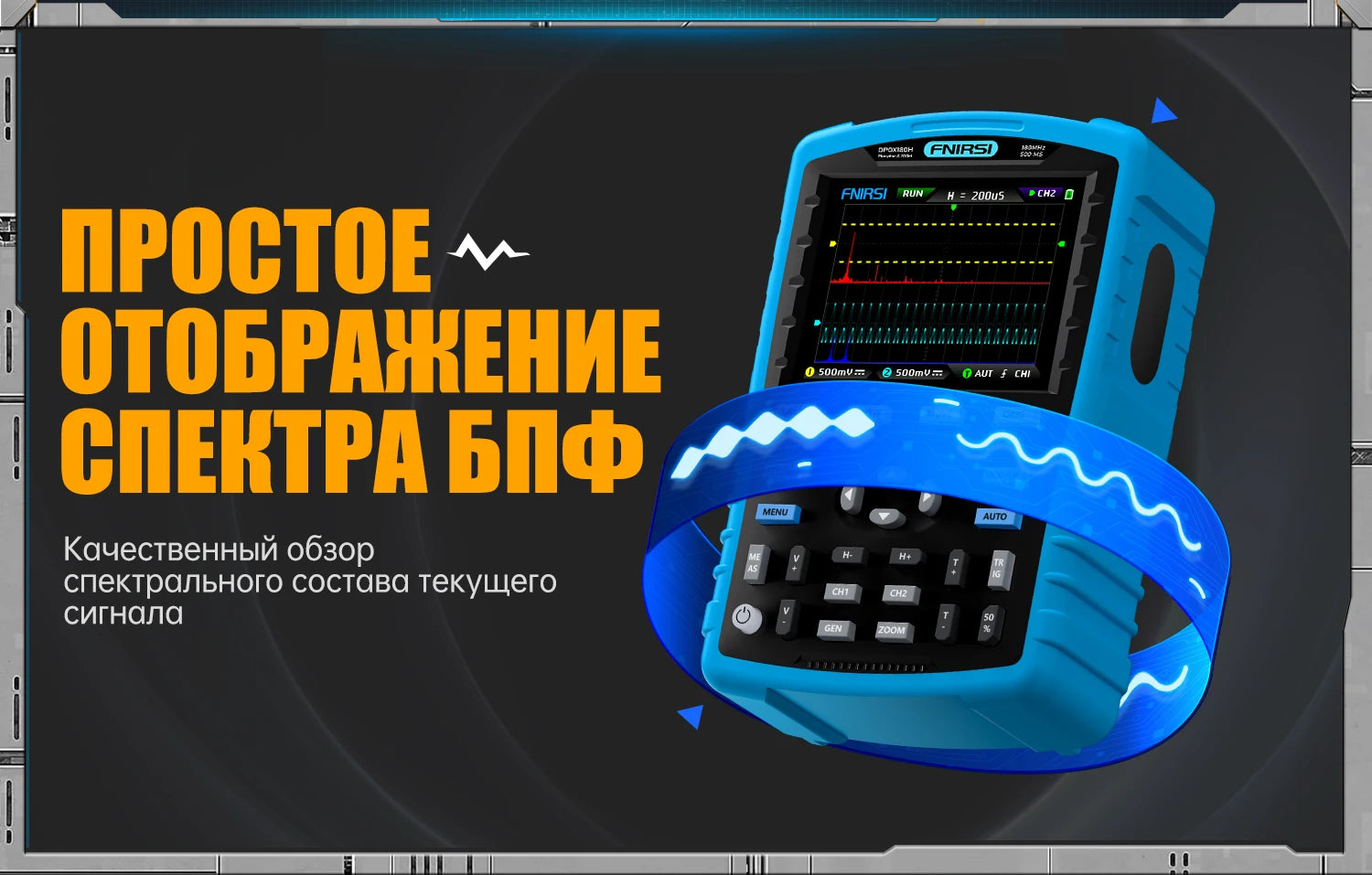

FFT: YES

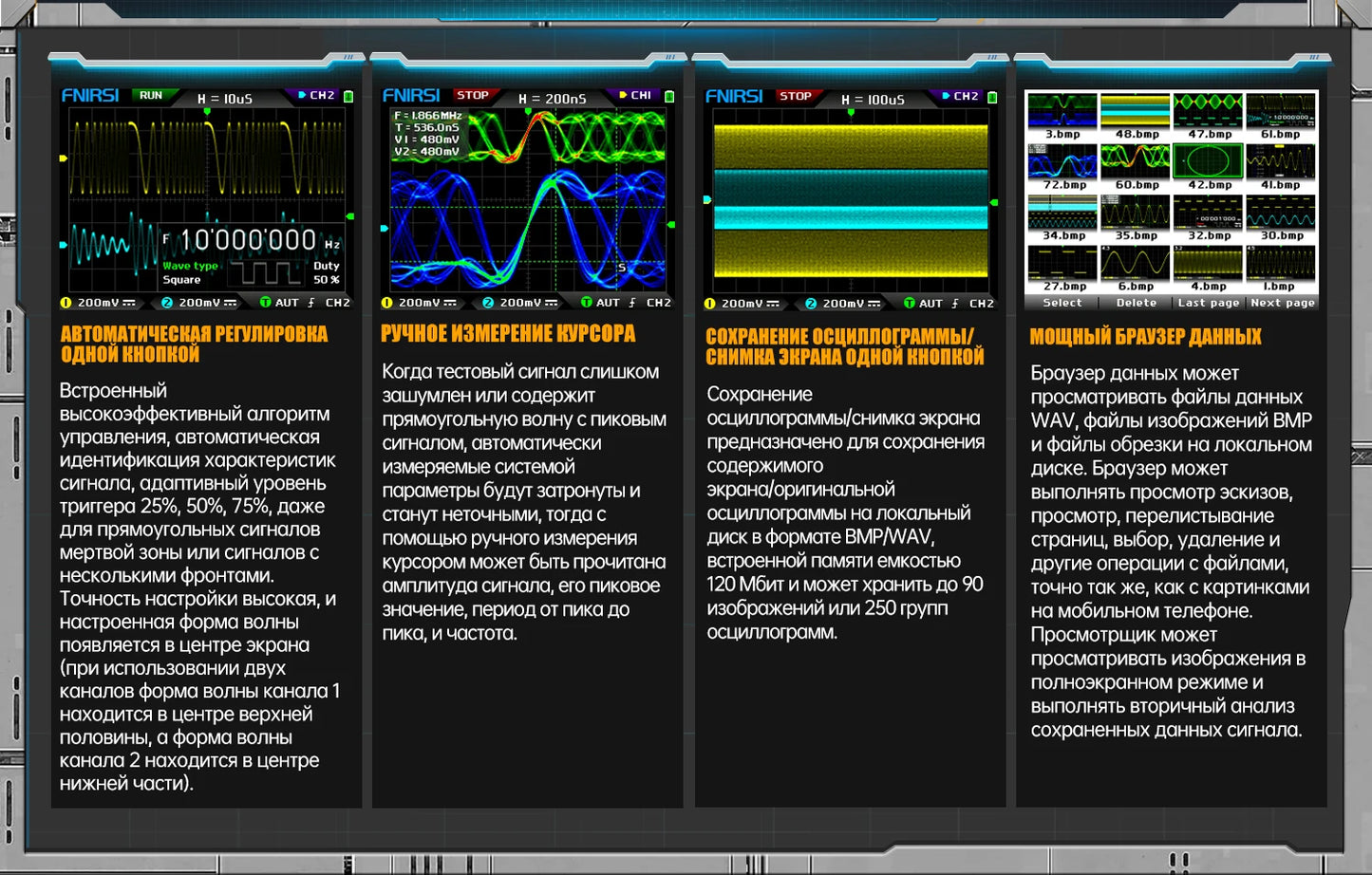

Cursor measurement: Frequency/Period/ Amplitude

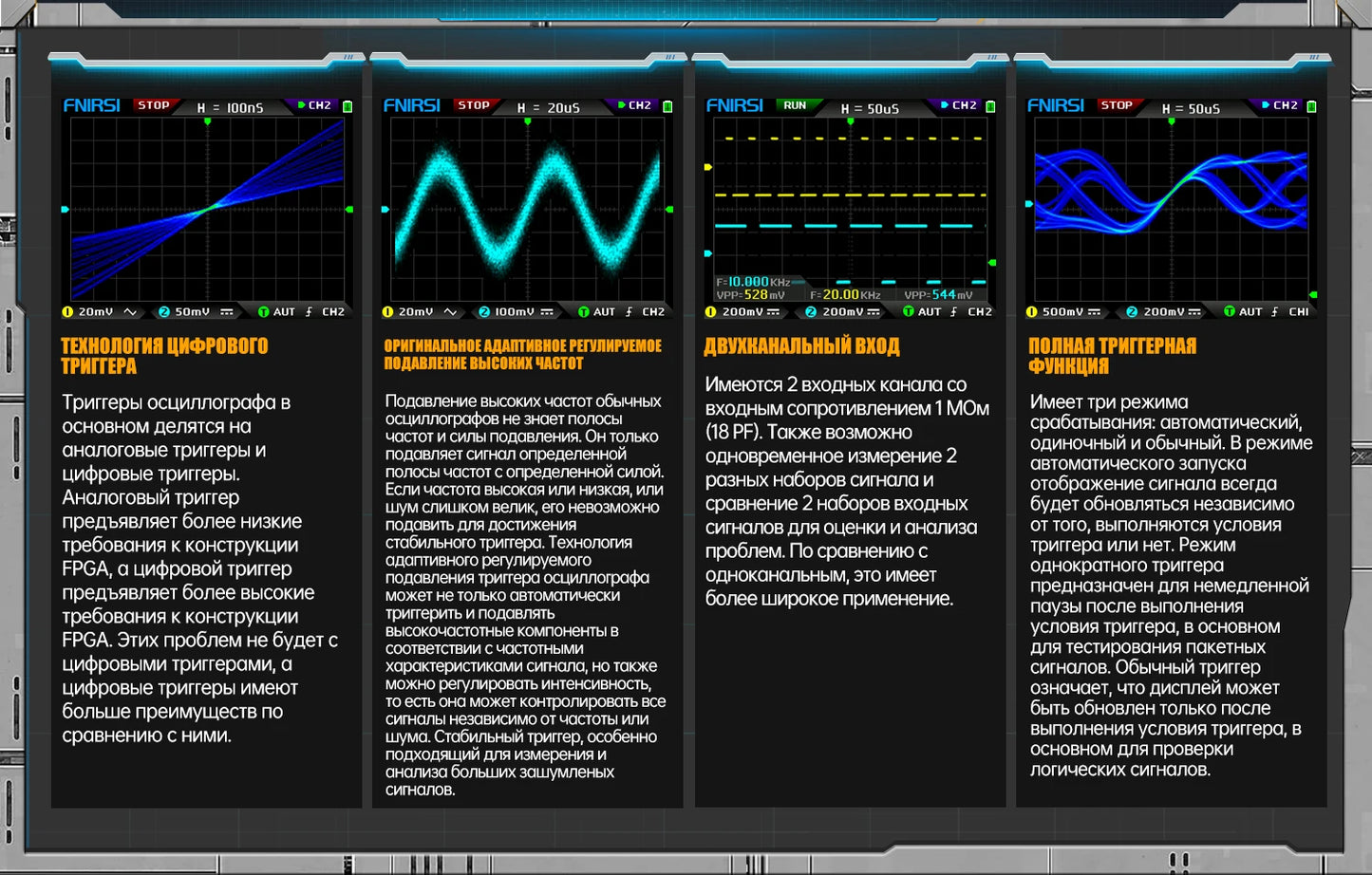

Trigger detection: Digital trigger

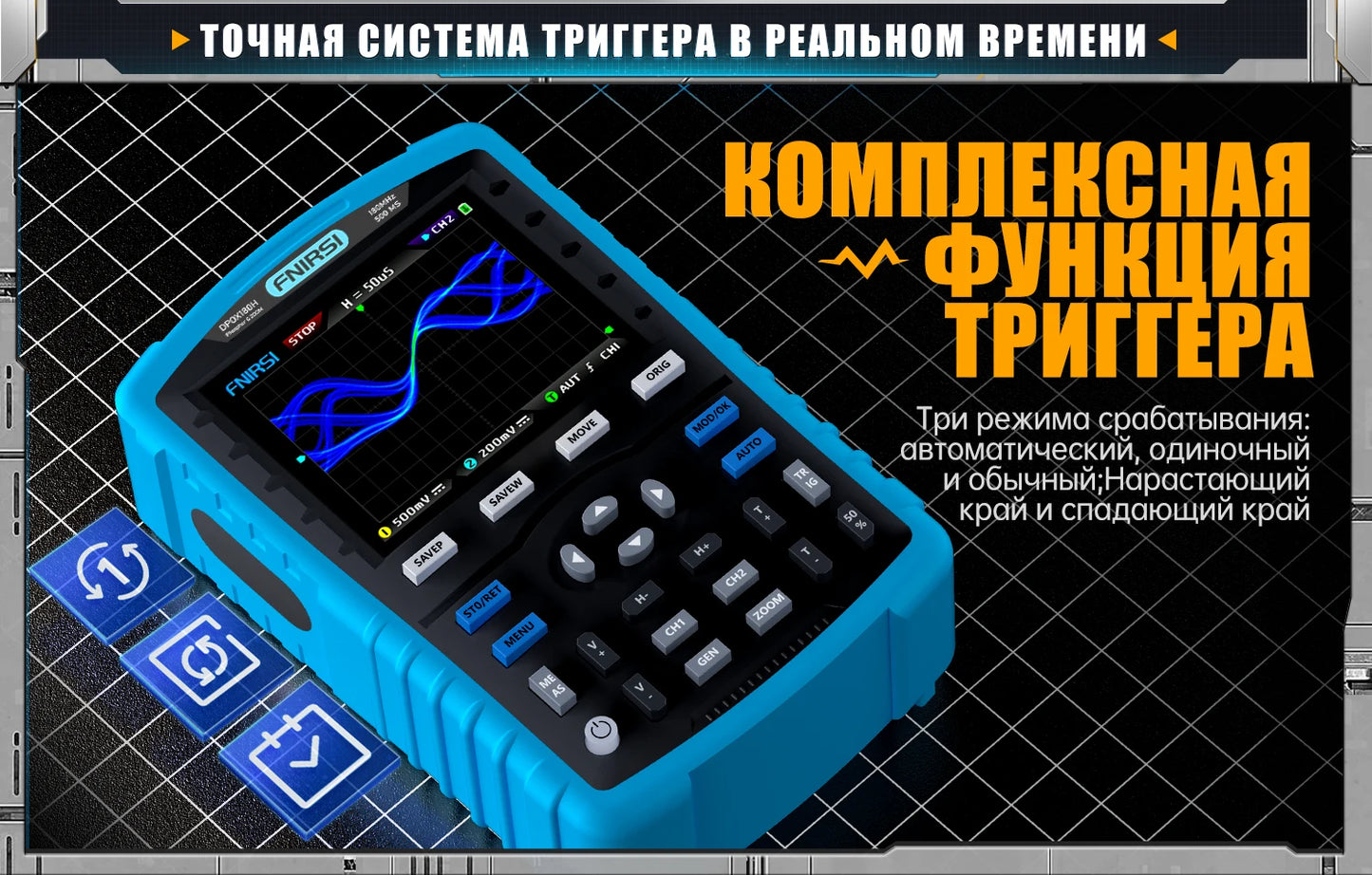

Trigger mode: Auto/Single/Normal

Trigger edge: Rising/Falling

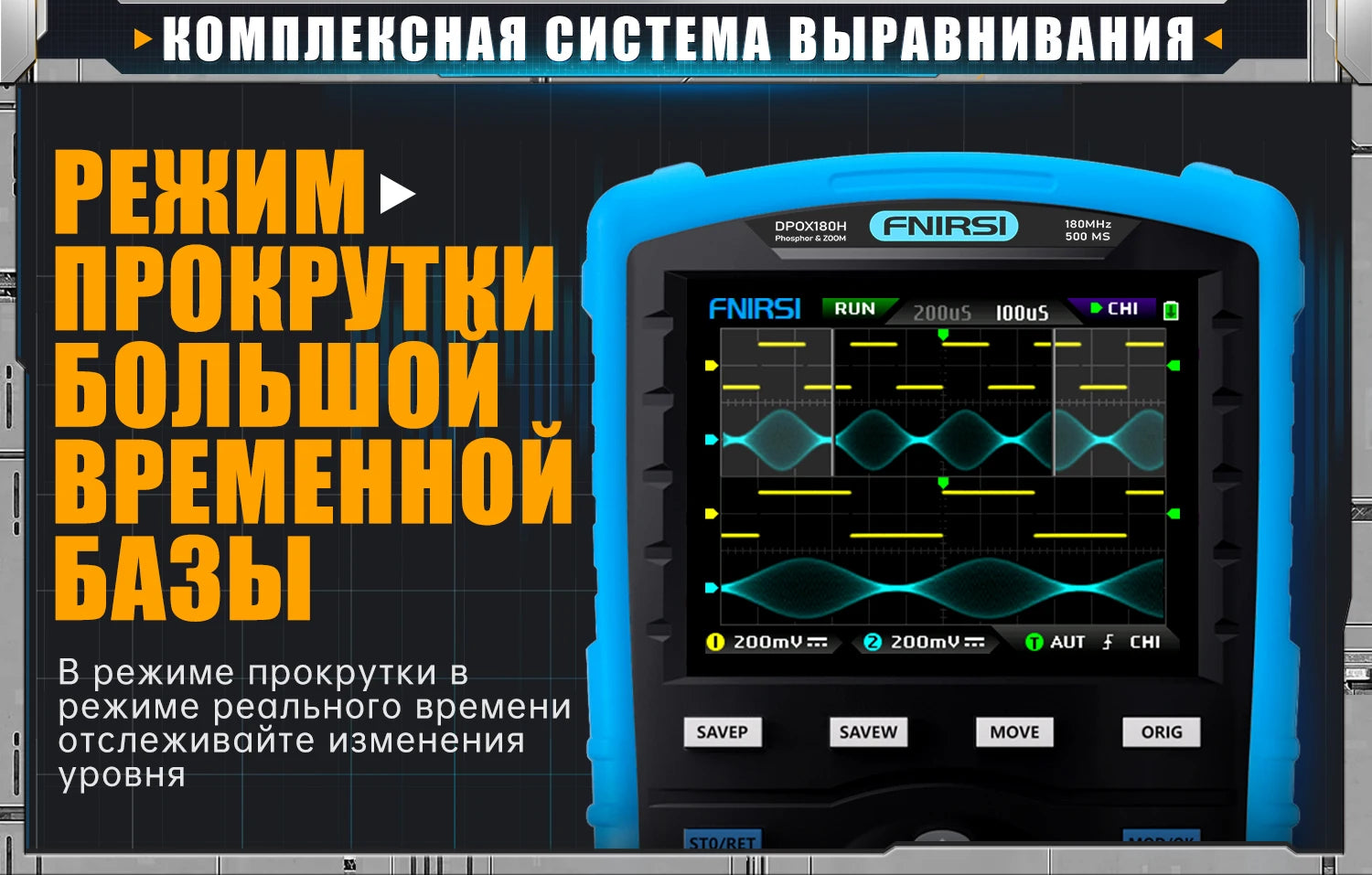

Roll mode: YES

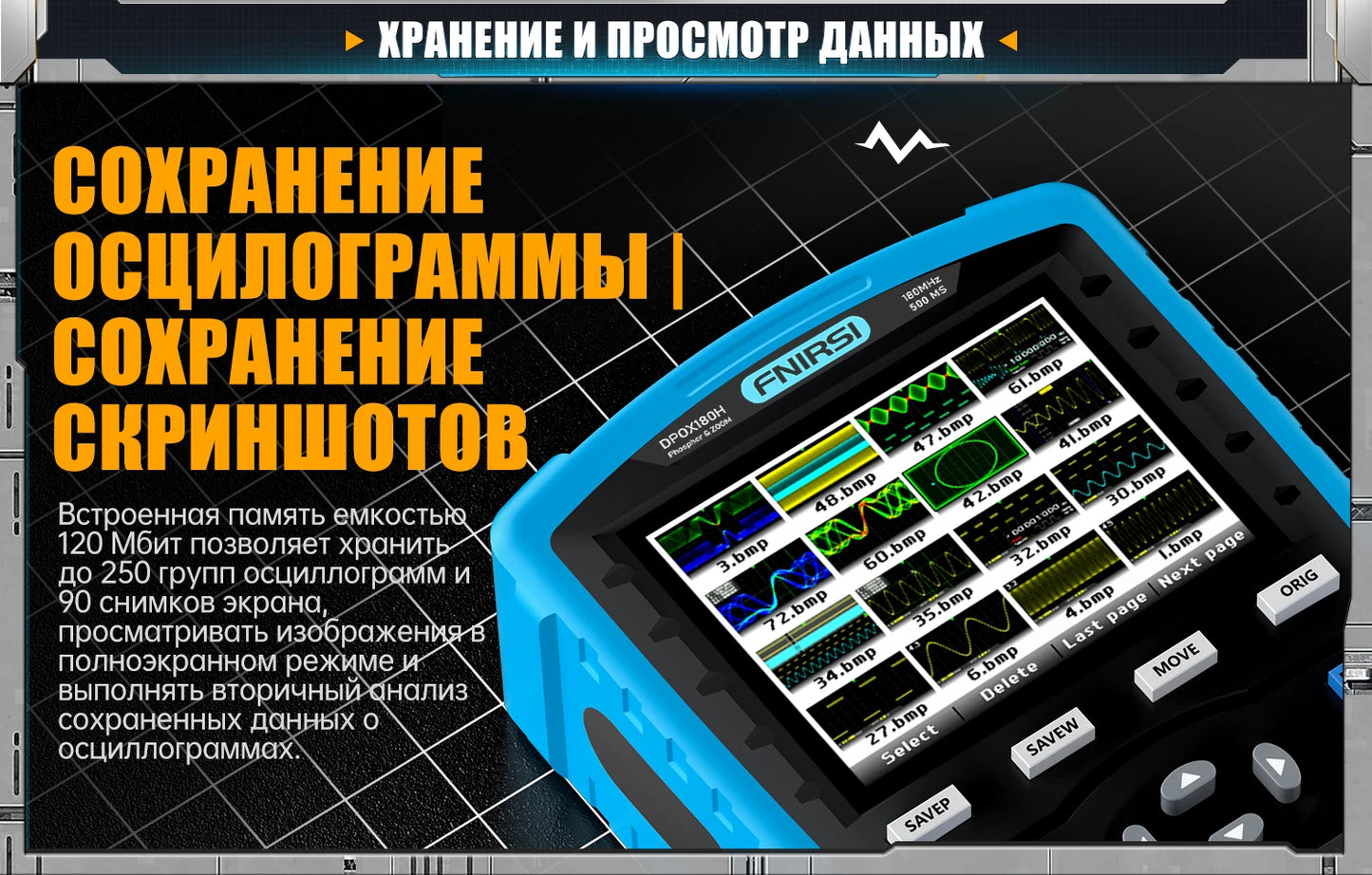

Screenshot storage: 90

Waveform storage: 250 groups

Capture signal: 500

Parameter measurement: 12 kinds

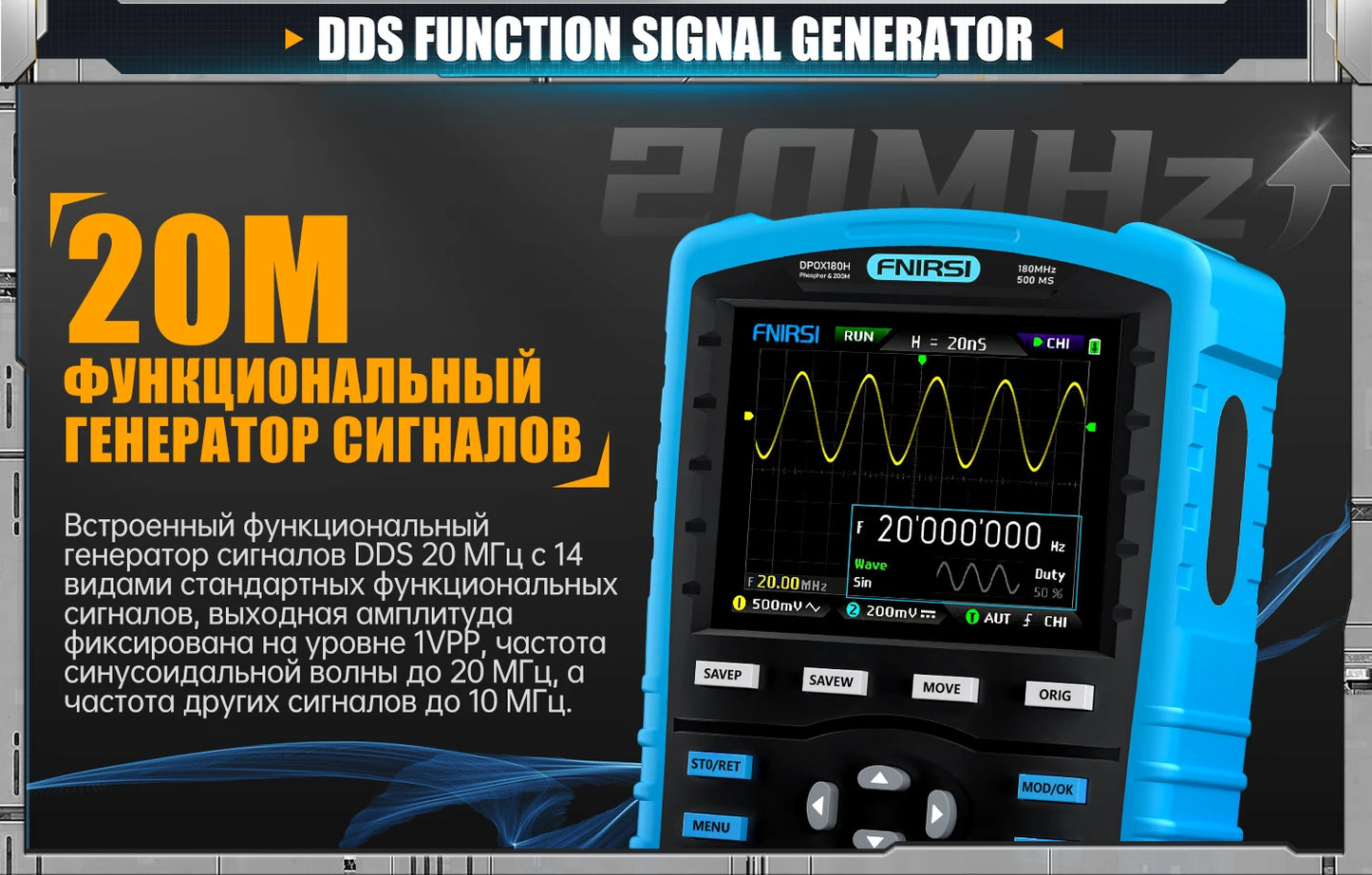

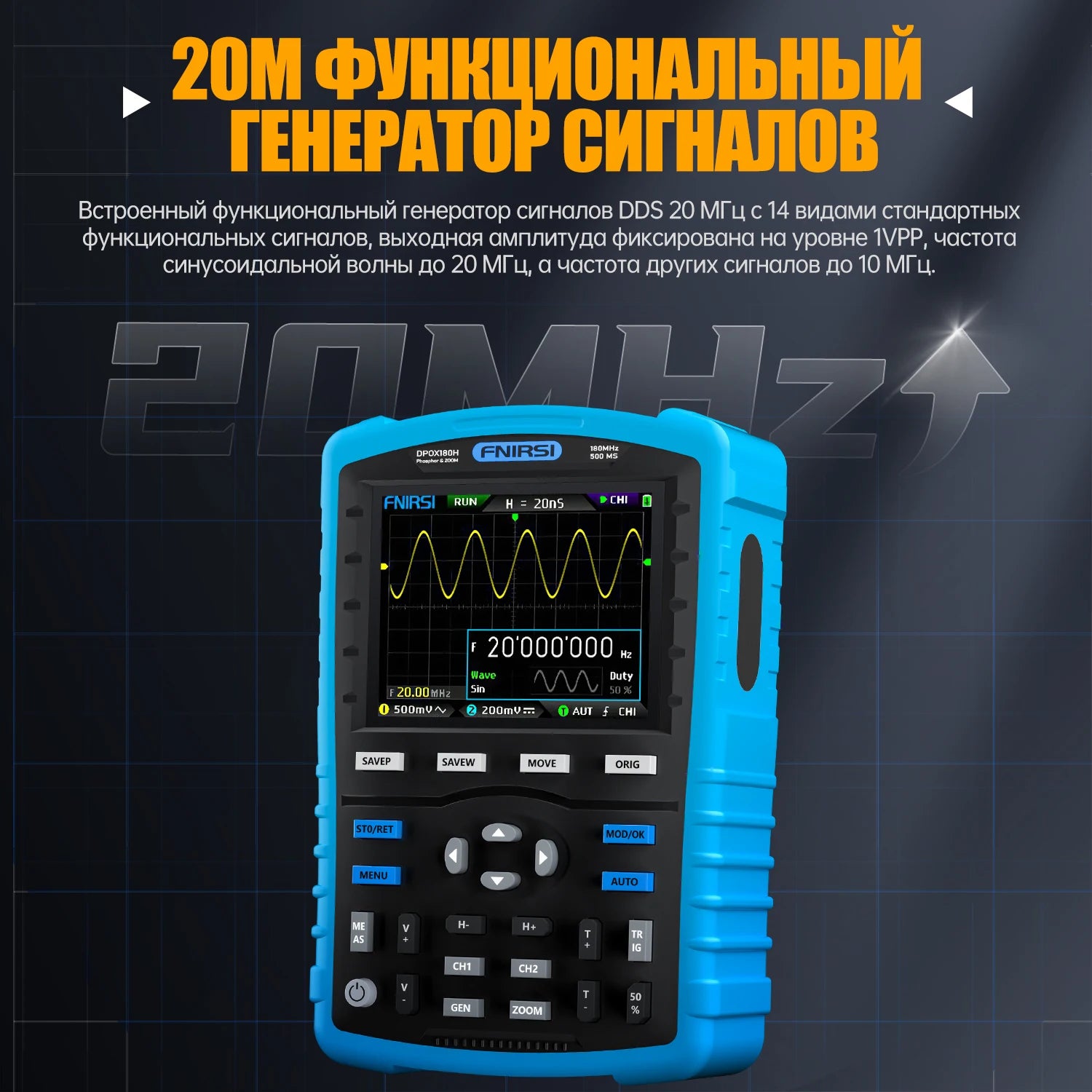

Signal generator: 14 standard function signals

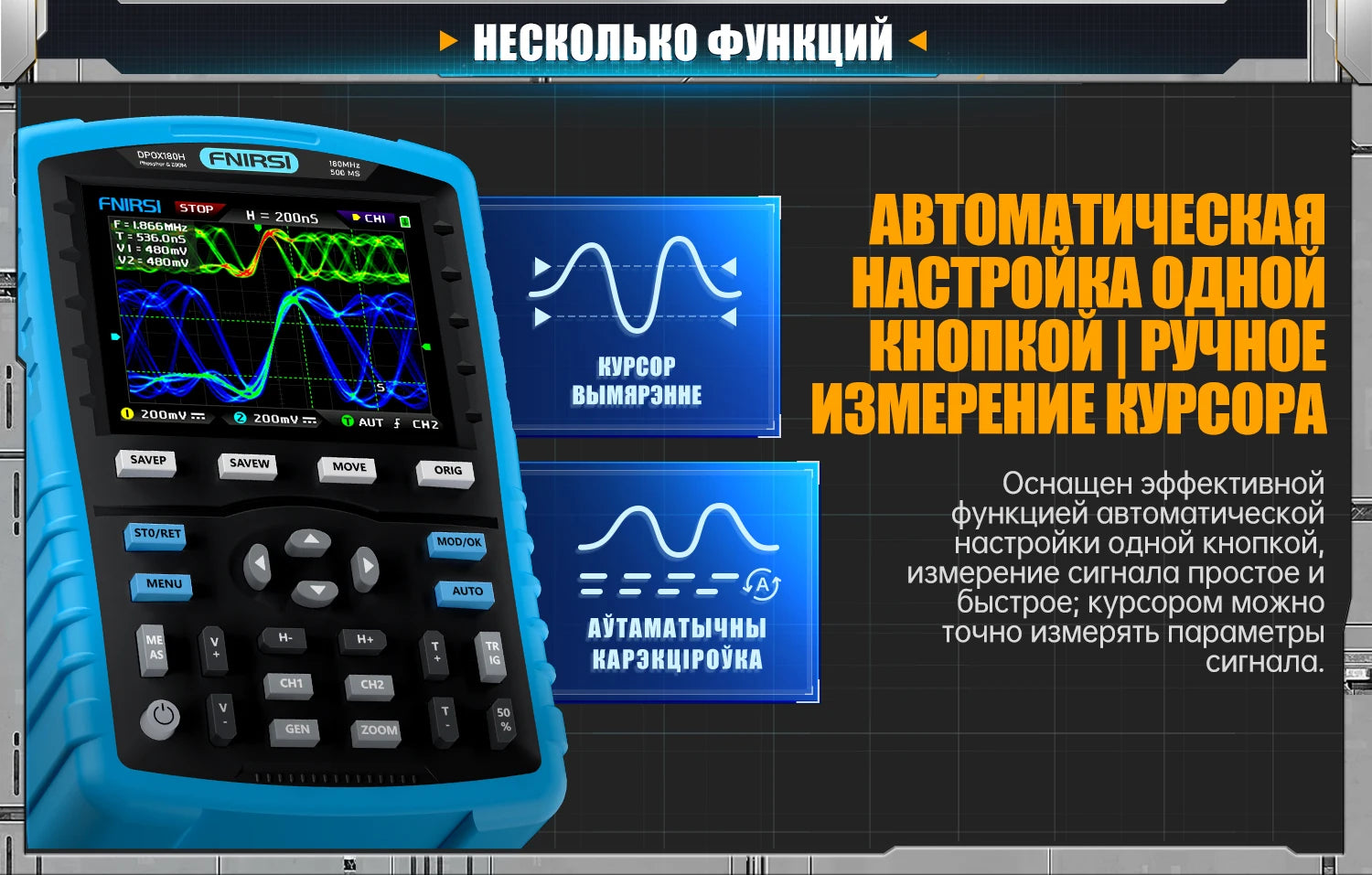

Auto-adjustment: YES

Waveform manager: YES

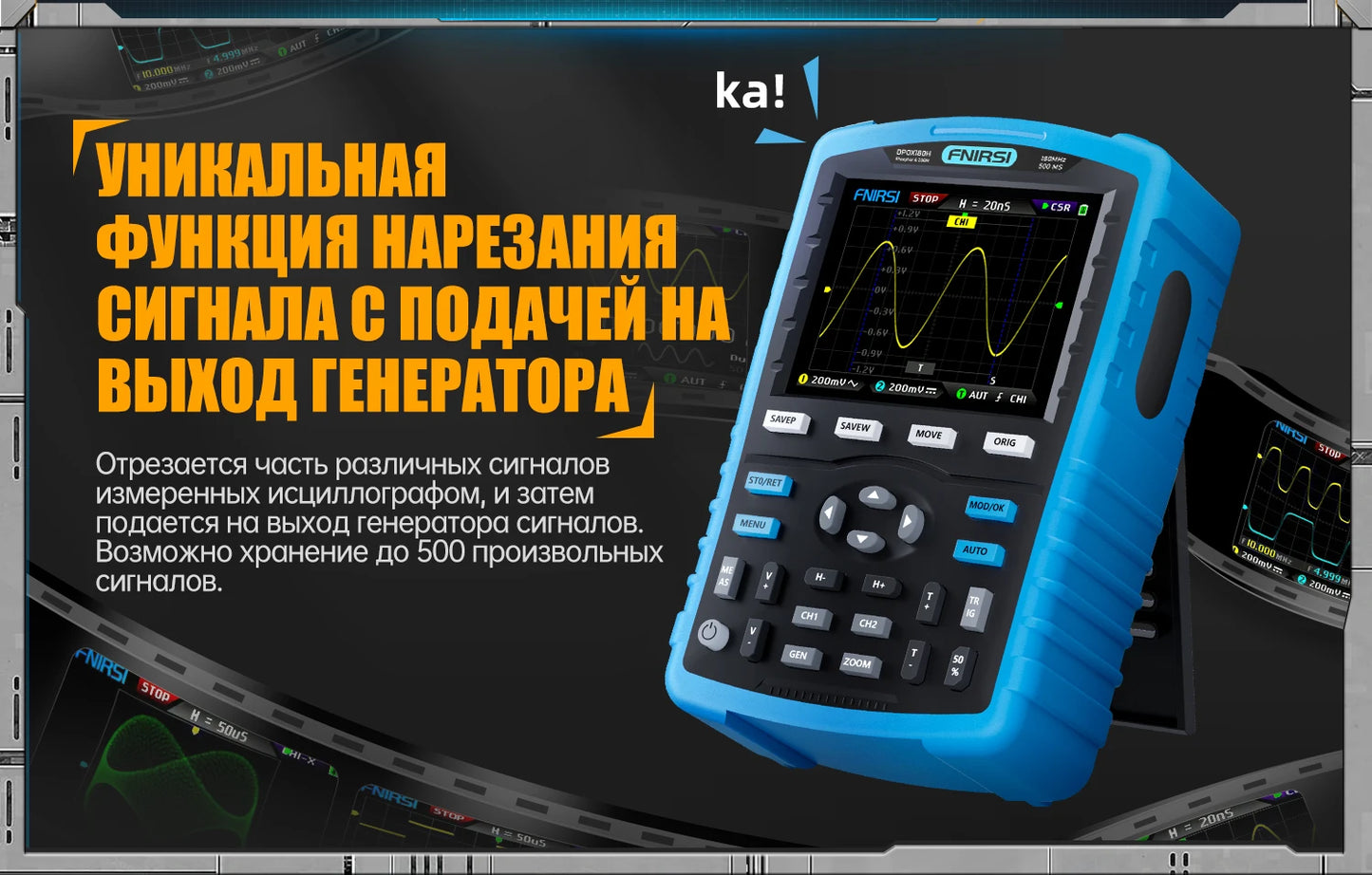

Waveform output: YES

High-voltage burnout protection: YES

Screen size: 2.8 inches

Display technology: IPS full view

Expansion interface: USB transmission interface

Auto power-off: 5minutes-2hours

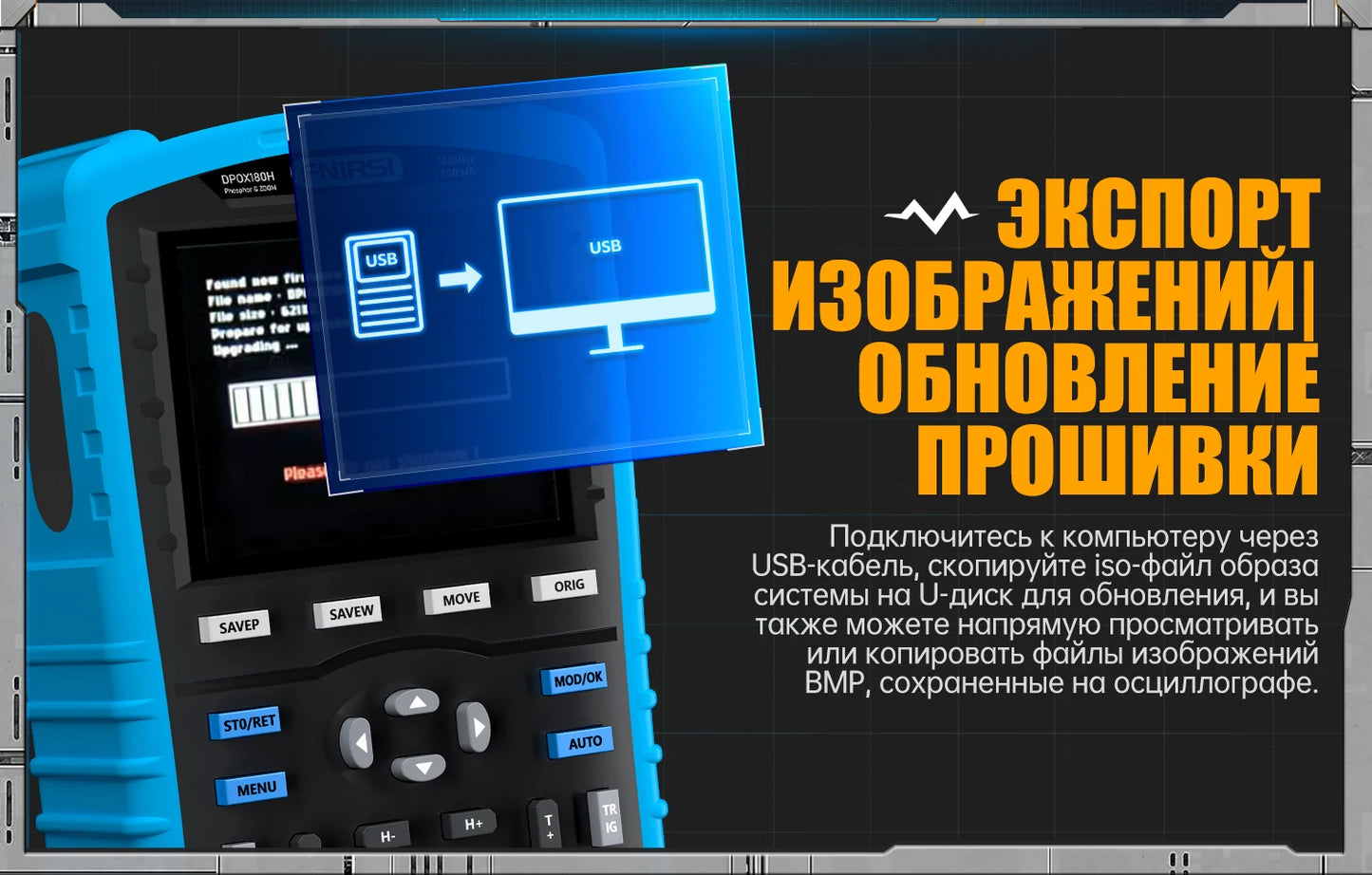

Firmware upgrade: YES

Charging requirements: 5V 2A

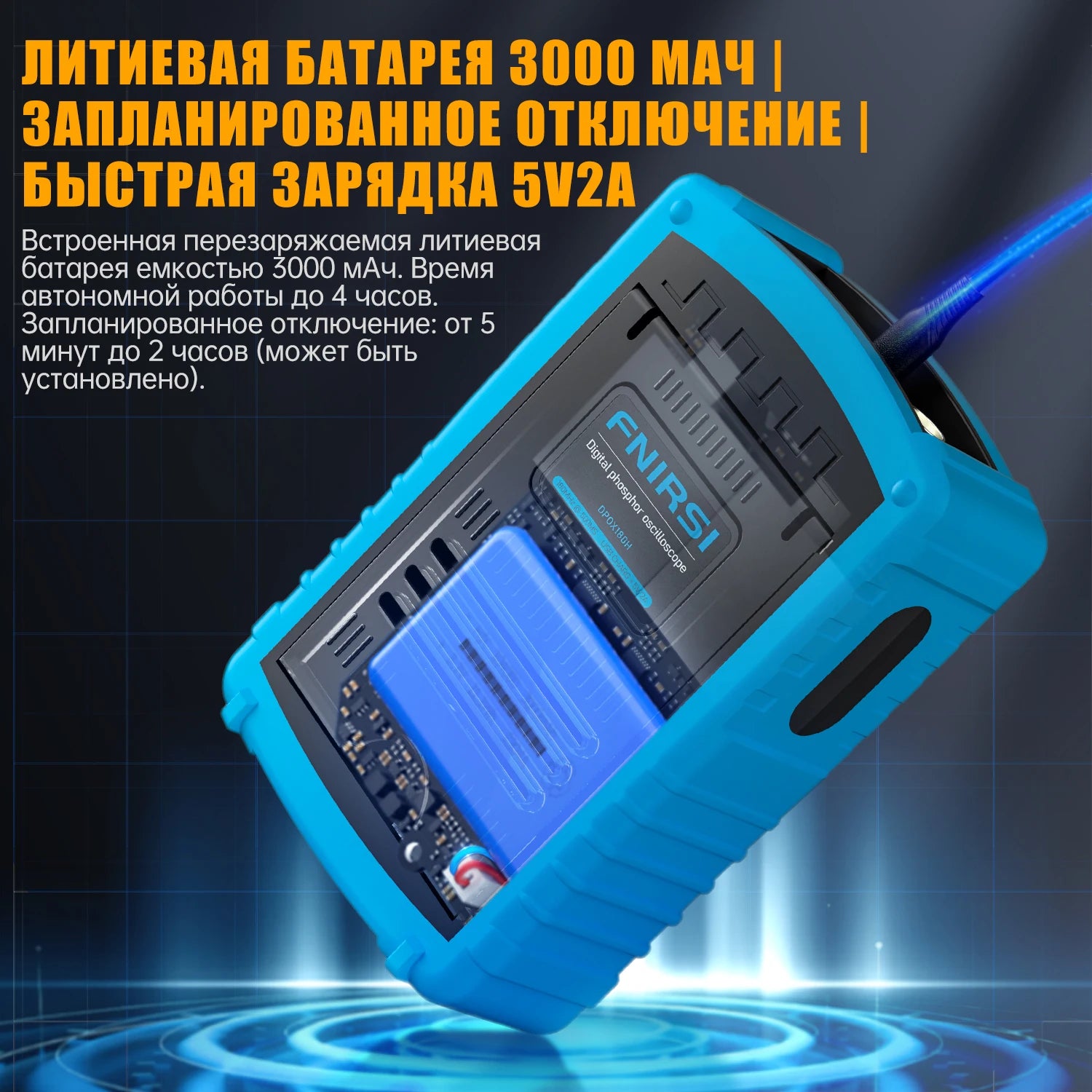

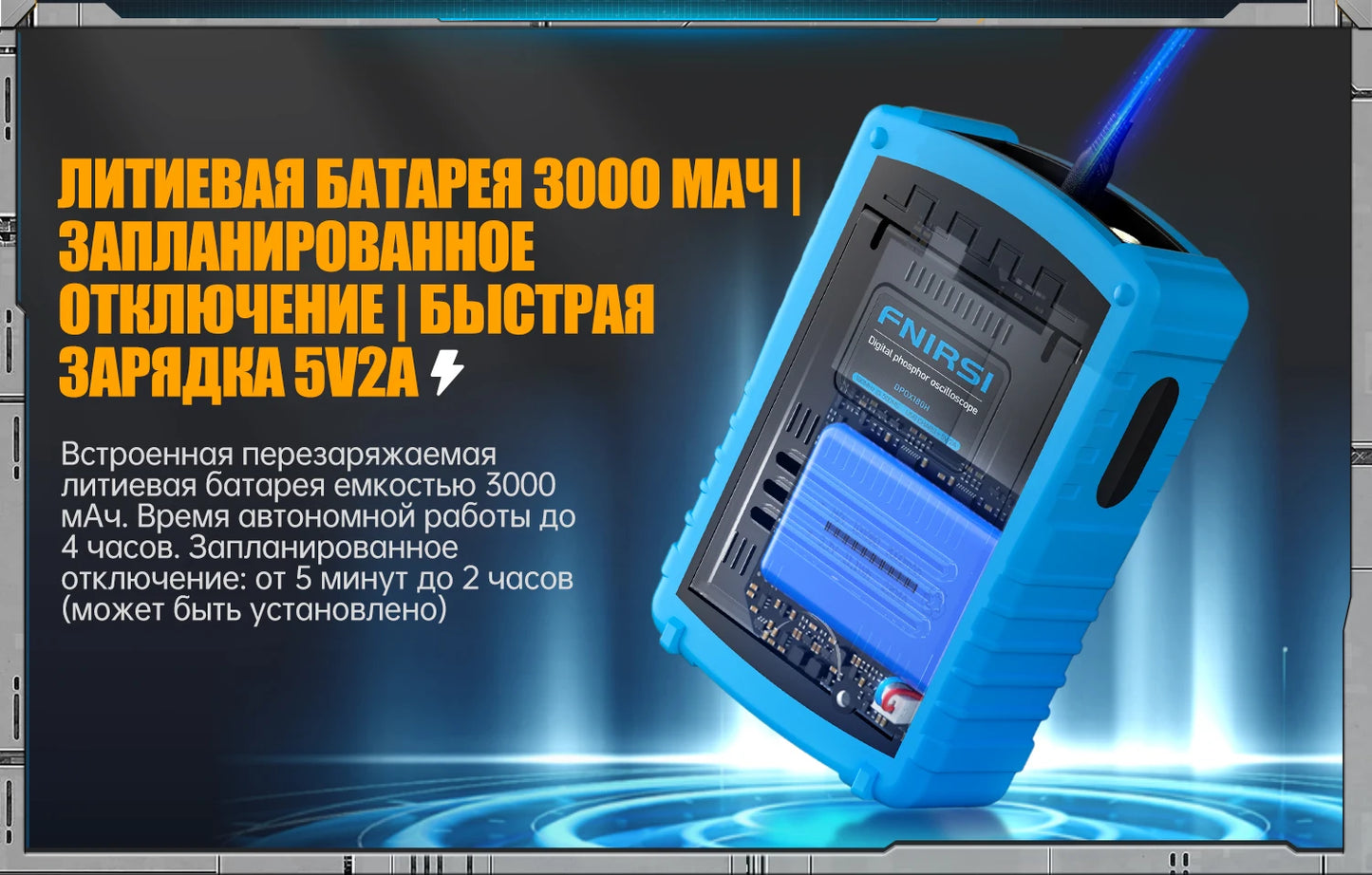

Battery capacity: 3000mAh

Standby time: 3.5 hours at full charge

Dimensions: 135mmx90mmx40mm
