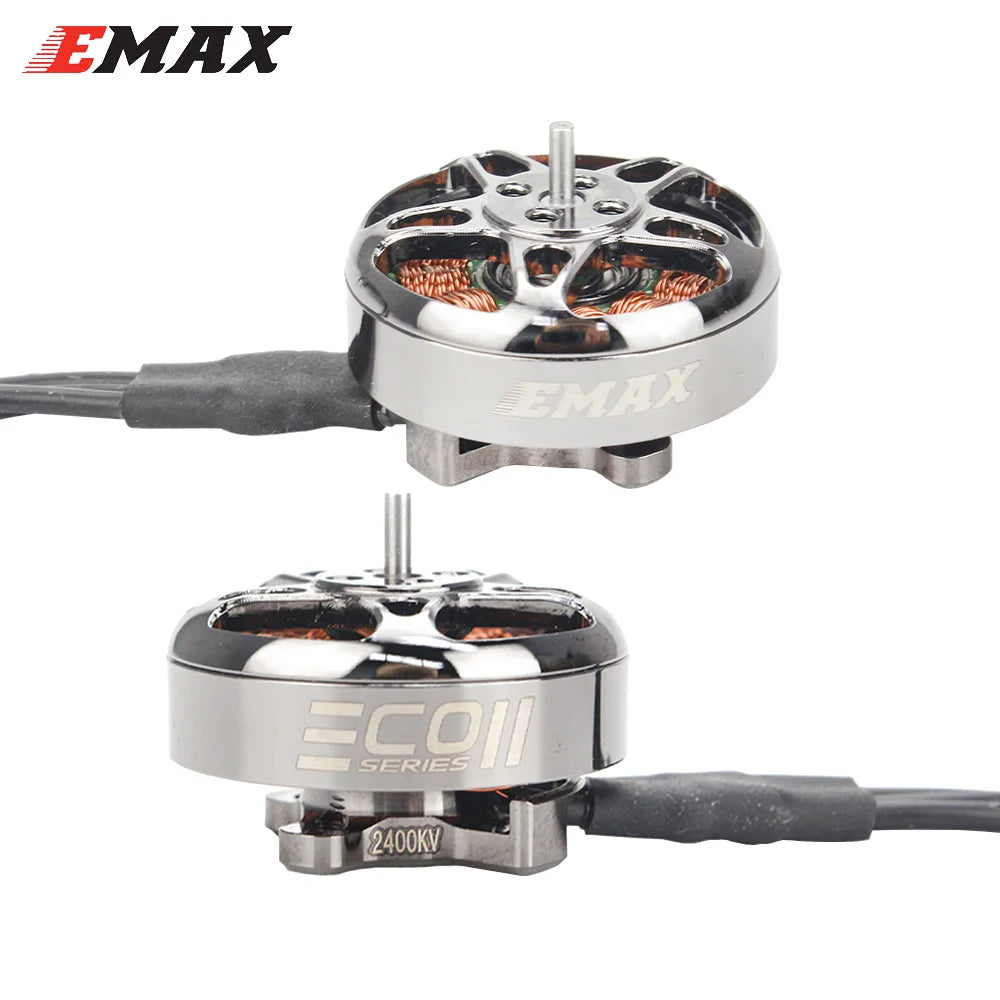

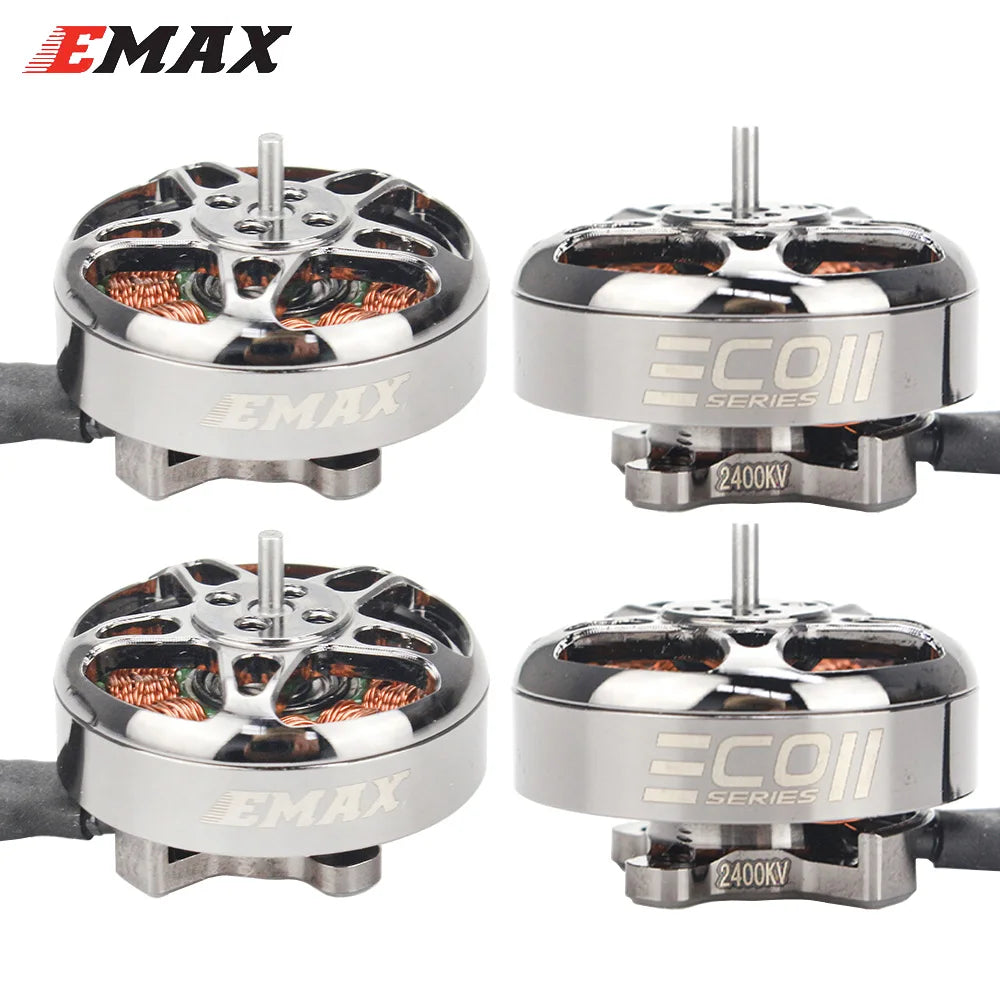

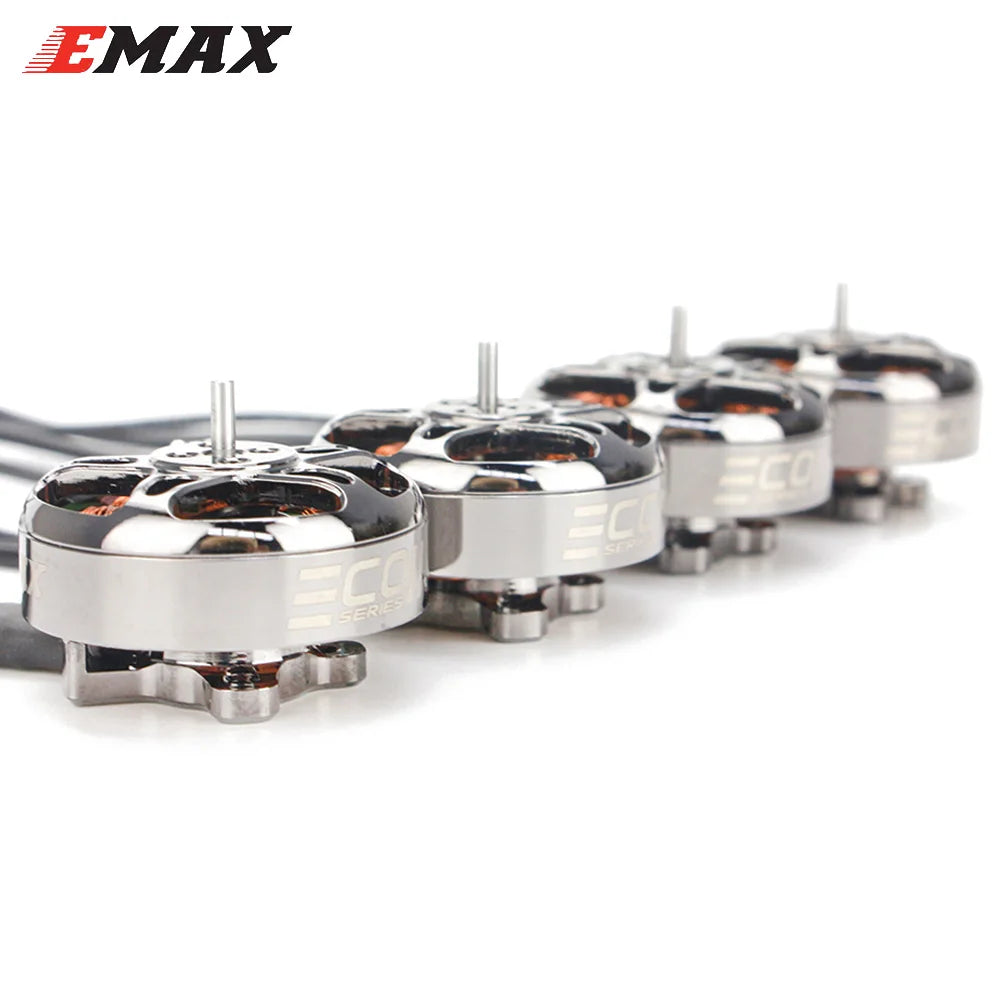

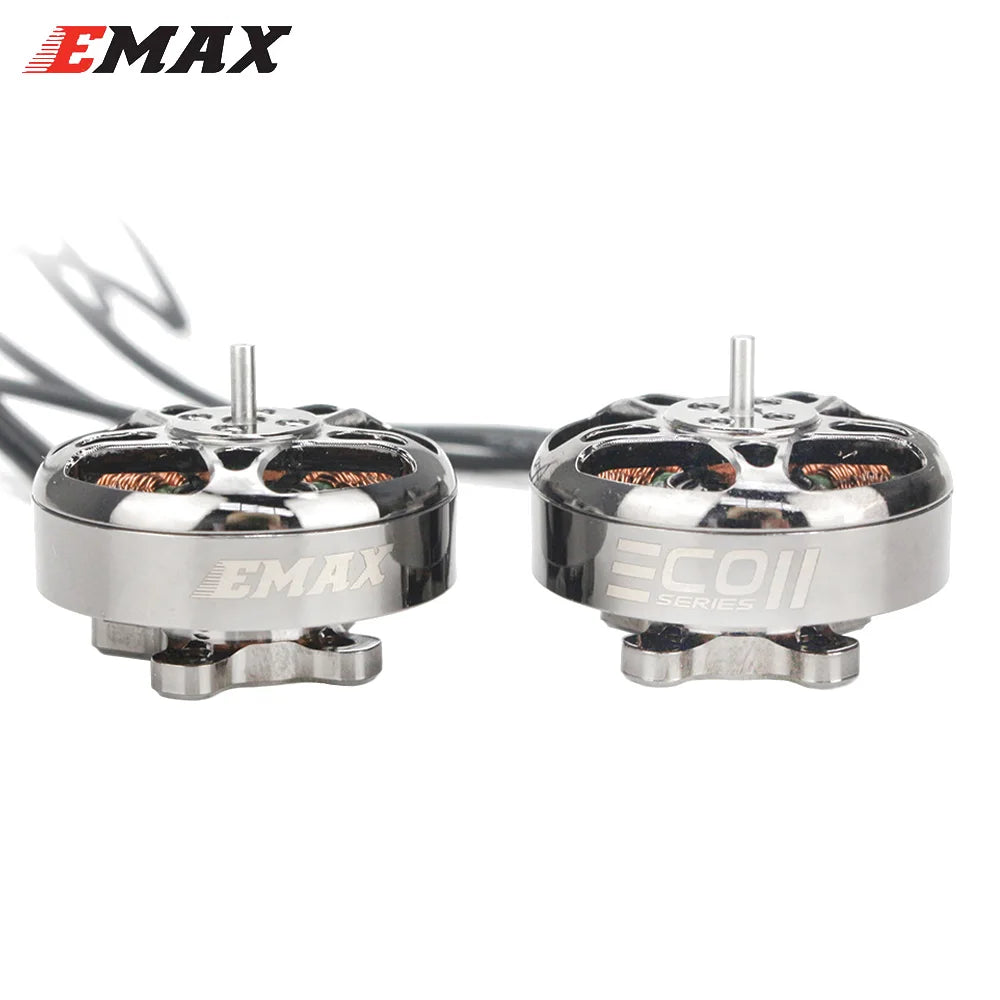

Emax ECOII 2004 1600KV 2000KV 2400KV 3000KV 3-6S RC Lipo 3mm Shaft Brushless Motor

Feature:
NSK Precision Bearing;
Base Casing: AL 7075;
Rotor: N52SH Arc Magnets;
Steel Shaft;
Anodizing
12*12mm Hole Pattern;
Multi-strand Winding;
120mm 24AWG Silicone Wire;

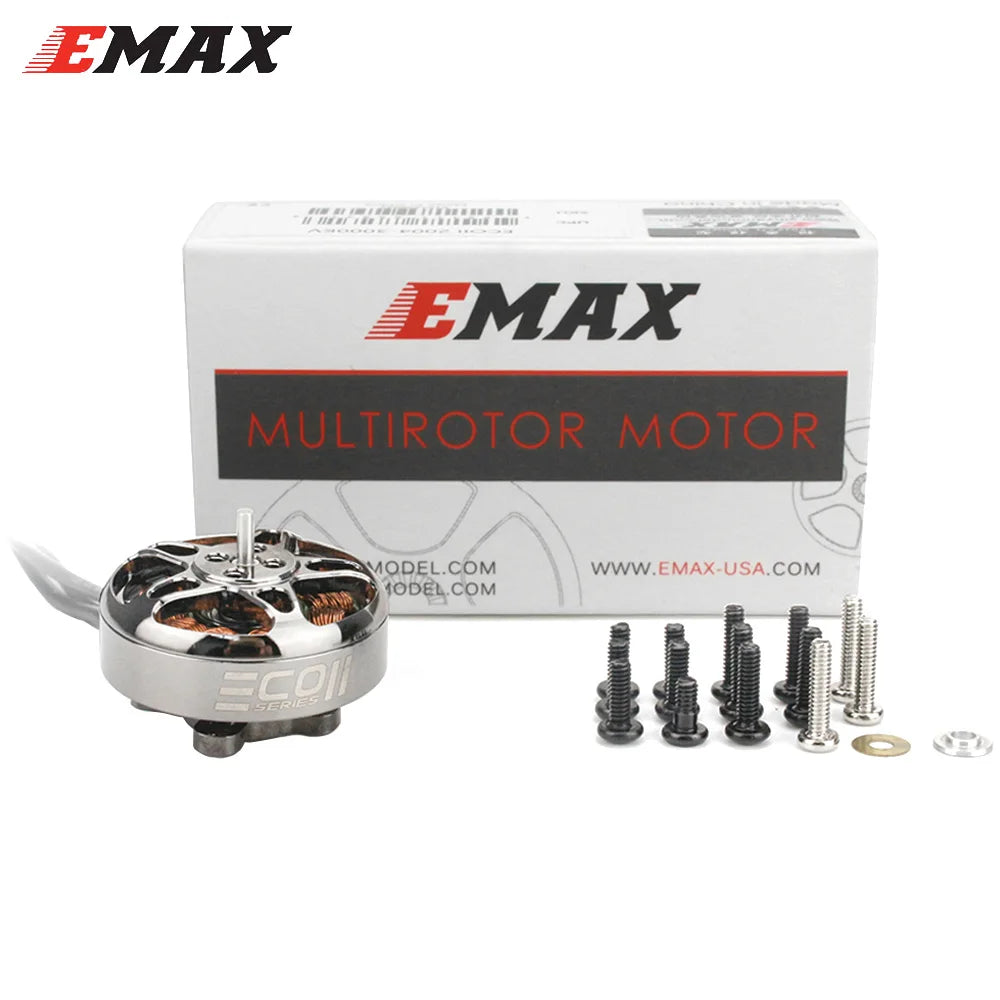

Package Includes:
1* 2004 Motor;
5* M2*6 Screw;
5* M2*7.5 Screw;
3* M2*8.5 Screw;
1* Washer And Screw For Shaft;

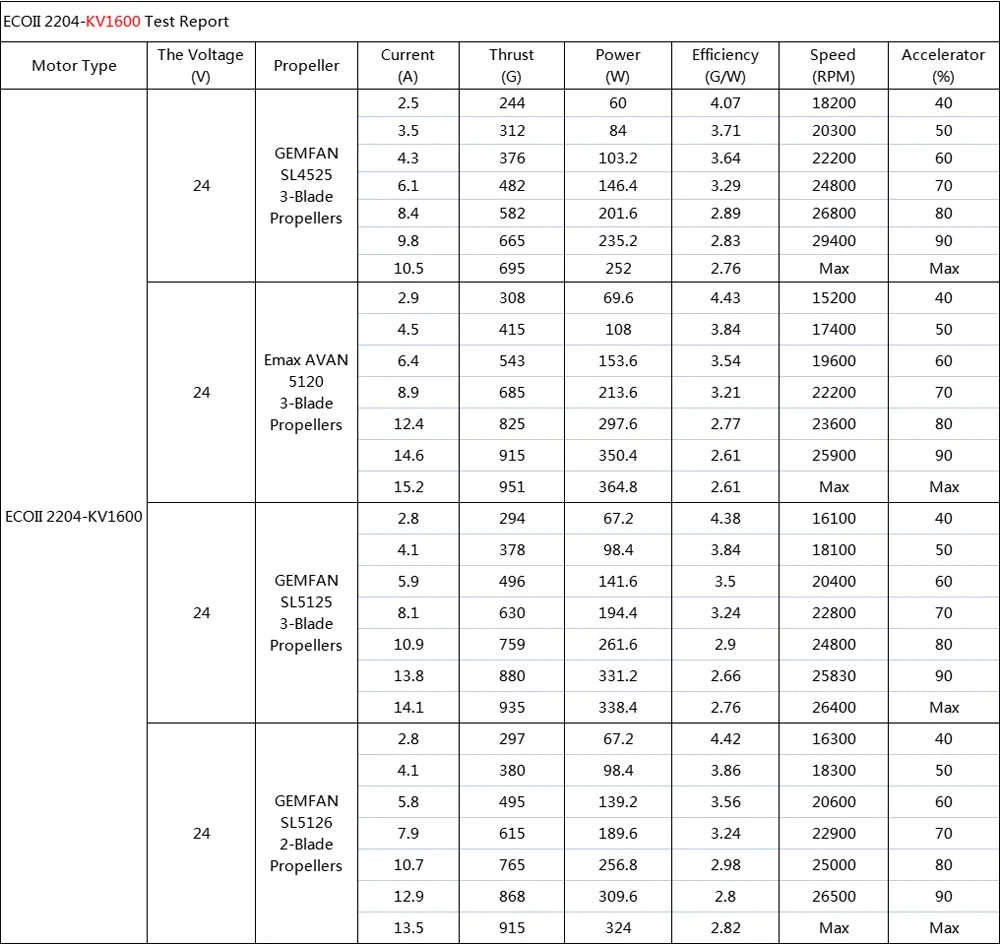

Emax ECO II 2004 1600KV Motor:
Test Item: KV1600;

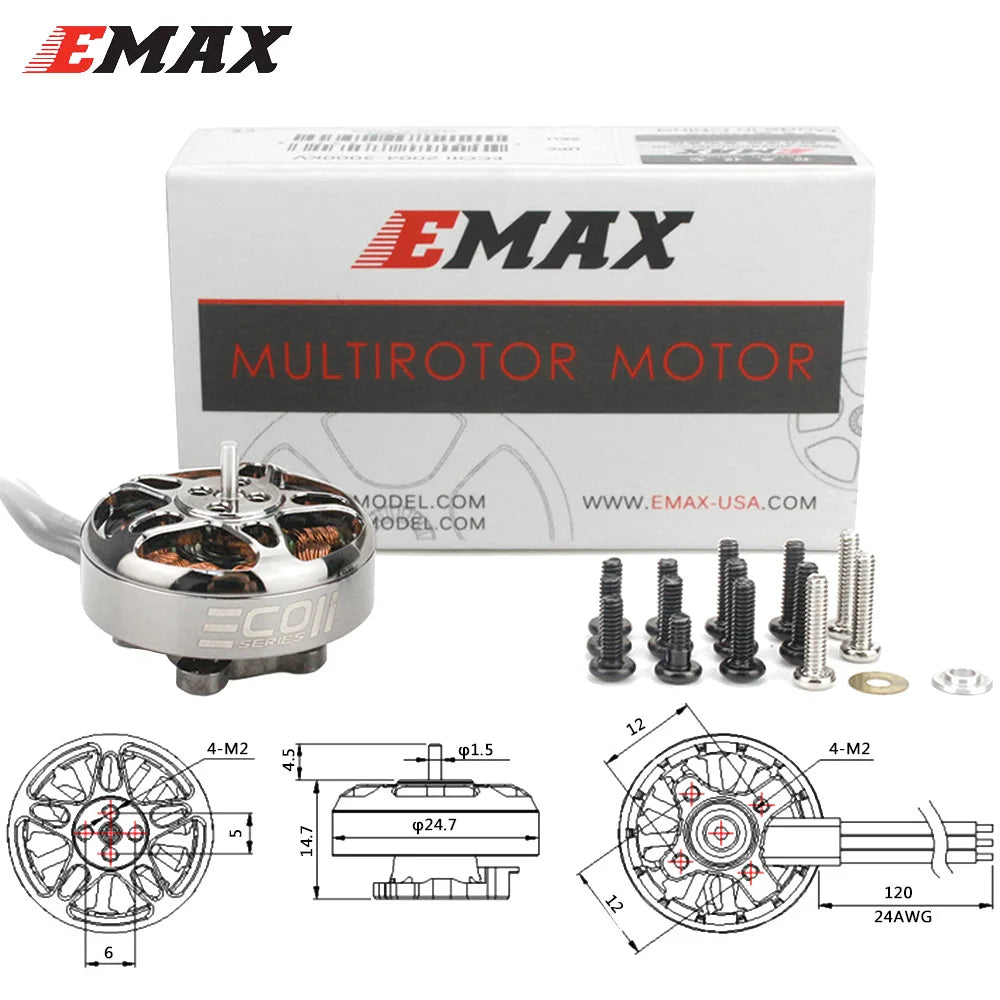

Motor Dimensions: φ24.7*19.2mm;
Framework: 12N14P;
Bearing Shaft: 3mm;
Lead: 24AWG 120mm;
Weight: 16.6g (Silicone Wire);
Idle Current(10V): 0.5A;
Internal Resistance: 200mΩ;
No. Of Cell: 4-6S;
Propeller: 4''-5'';
Peak Current(6S): 18A;
Max. Power(6S): 450W;

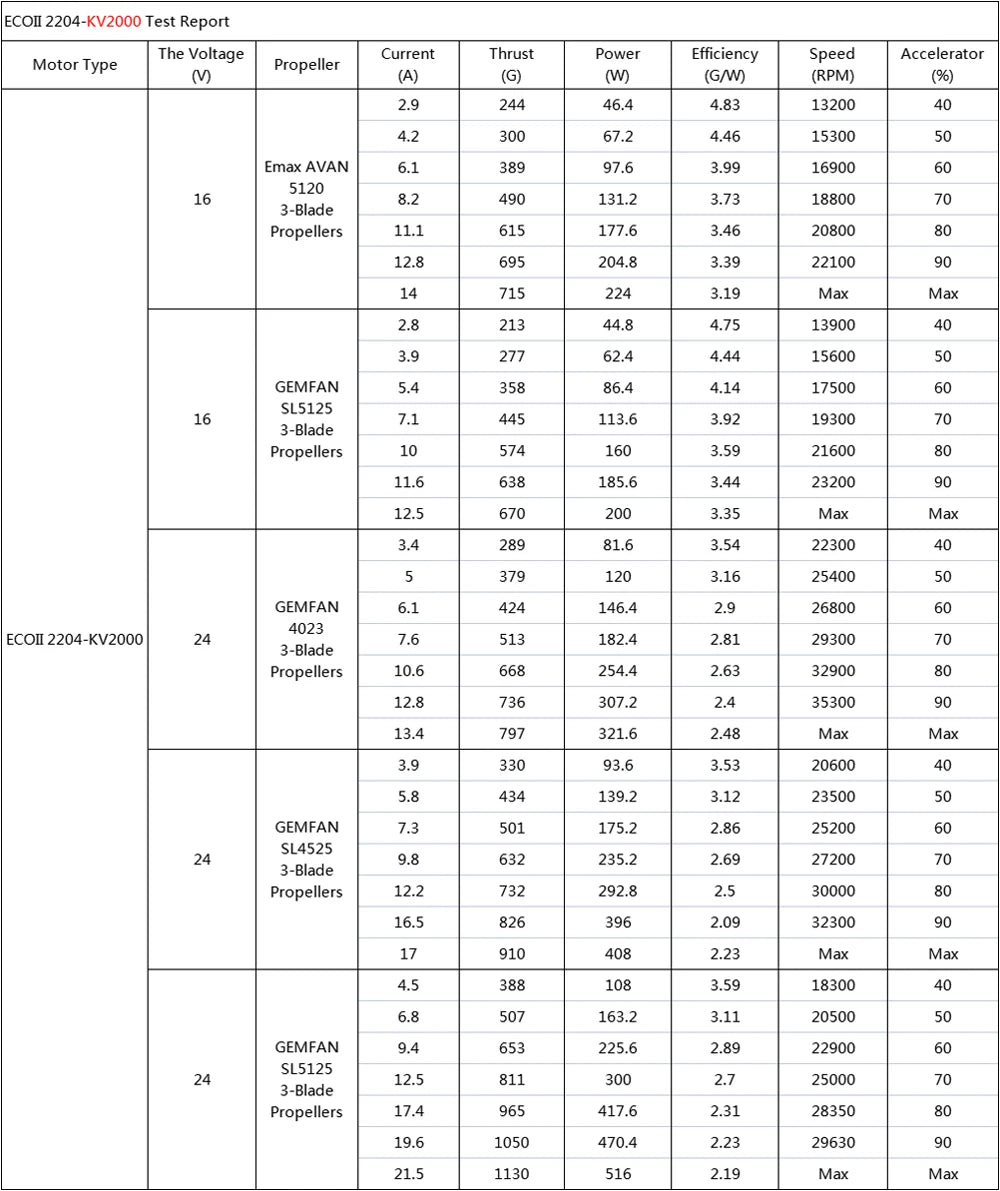

Emax ECO II 2004 2000KV Motor:
Test Item: KV2000;
Motor Dimensions: φ24.7*19.2mm;
Framework: 12N14P;
Bearing Shaft: 3mm;
Lead: 24AWG 120mm;
Weight: 16.6g (Silicone Wire);
Idle Current(10V): 0.7A;
Internal Resistance: 158mΩ;
No. Of Cell: 4-6S;
Propeller: 4''-5'';
Peak Current(6S): 23A;
Max. Power(6S): 580W;

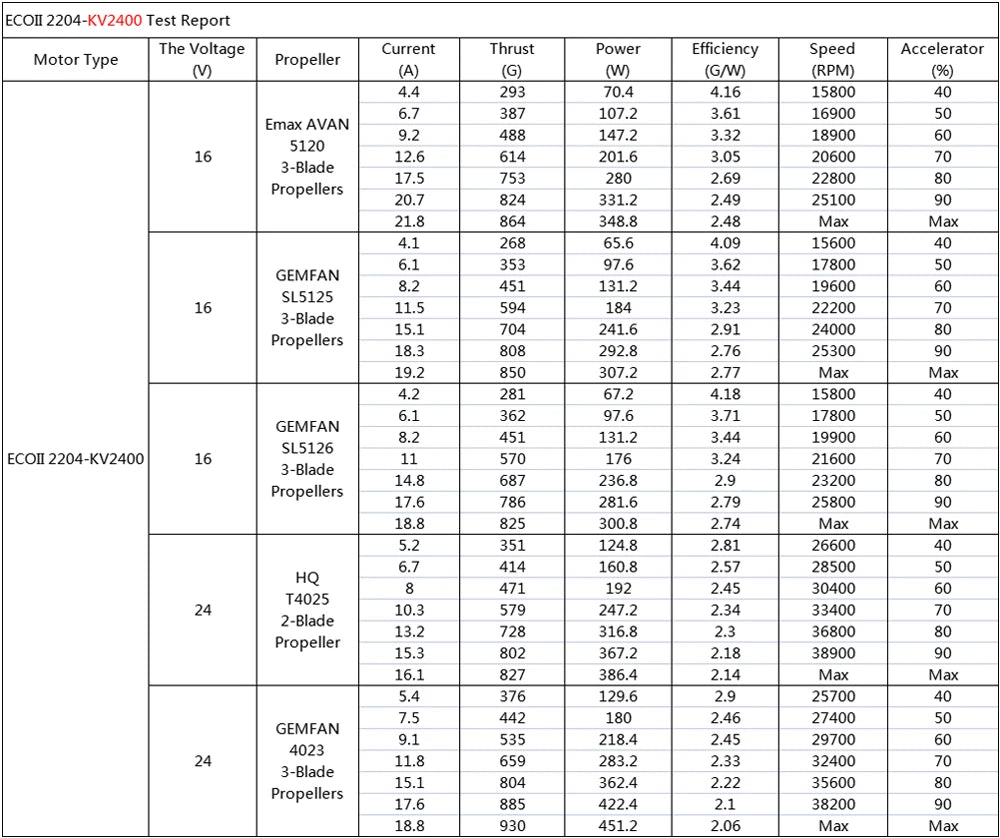

Emax ECO II 2004 2400KV Motor:
Test Item: KV2400;
Motor Dimensions: φ24.7*19.2mm;
Framework: 12N14P;
Bearing Shaft: 3mm;
Lead: 24AWG 120mm;
Weight: 16.4g (Silicone Wire);
Idle Current(10V): 0.9A;
Internal Resistance: 110mΩ;
No. Of Cell: 4-6S;
Propeller: 4''-5'';
Peak Current(6S): 25A;
Max. Power(6S): 630W;

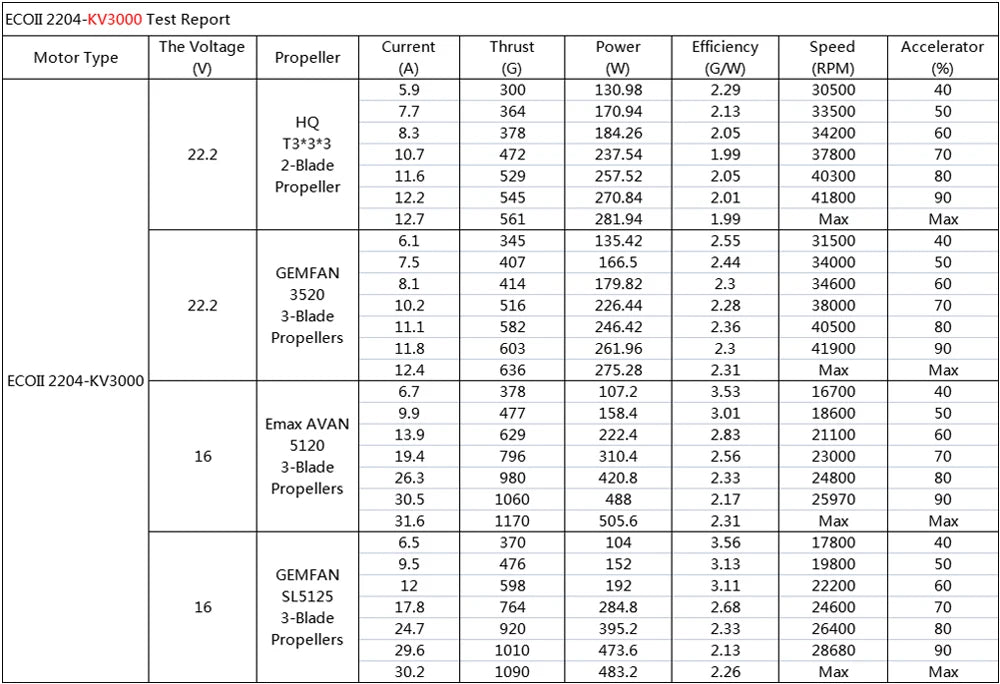

Emax ECO II 2004 3000KV Motor:
Test Item: KV3000;
Motor Dimensions: φ24.7*19.2mm;
Framework: 12N14P;
Bearing Shaft: 3mm;
Lead: 24AWG 120mm;
Weight: 16.4g (Silicone Wire);
Idle Current(10V): 1.1A;
Internal Resistance: 80mΩ;
No. Of Cell: 3-6S;
Propeller: 3''-5'';
Peak Current(6S): 32A;
Max. Power(6S): 810W;
