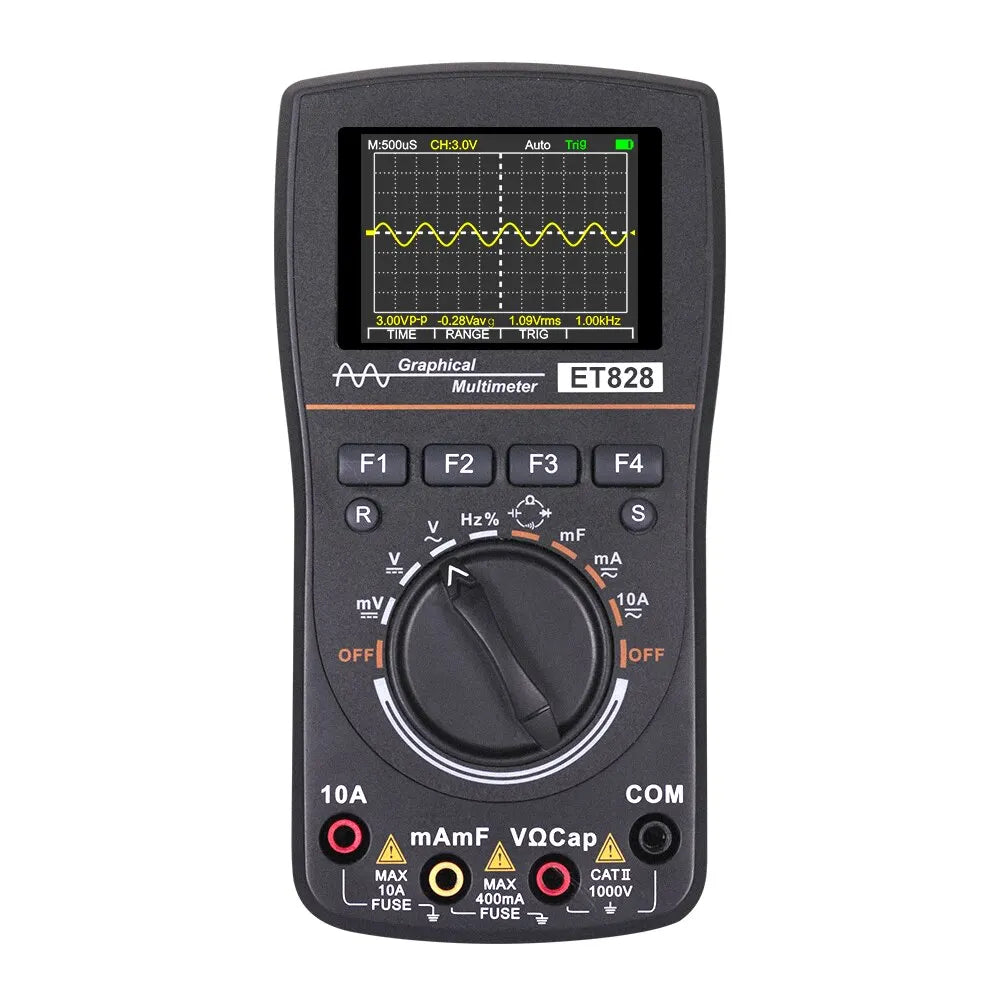

ET828 2 in 1 Digital Oscilloscope Multimeter 2.4 Inch Color Screen 2.5Msps Sampling Rate for DIY Electric Graphical Multimeter
ET828 2 in 1 Digital Oscilloscope Multimeter 2.4 Inch Color Screen 2.5Msps Sampling Rate for DIY Electric Graphical Multimeter
Couldn't load pickup availability
SPECIFICATIONS
Digital Channels: 1
Brand Name: TOOLTOP
Model Number: ET828
Origin: Mainland China
Certification: CE
DIY Supplies: ELECTRICAL
Choice: yes
• 2 in 1 Digital Oscilloscope Multimeter :This product is a versatile tool that can be used as both an oscilloscope and a multimeter, making it a great value for DIY enthusiasts.
• 2.4 Inch Color Screen:The large color screen provides clear and easy-to-read visualizations of the signal being analyzed, making it easier to diagnose issues.
• 2.5Msps Sampling Rate :With a sampling rate of 2.5Msps, this oscilloscope can capture and display high-frequency signals with precision, making it ideal for electronic circuits that operate at fast speeds.
• CE Certification :This product has been certified by CE, ensuring that it meets high safety and quality standards, giving you peace of mind when using it.
1.One button waveform capture , intelligent and easy to use, improve work efficiency

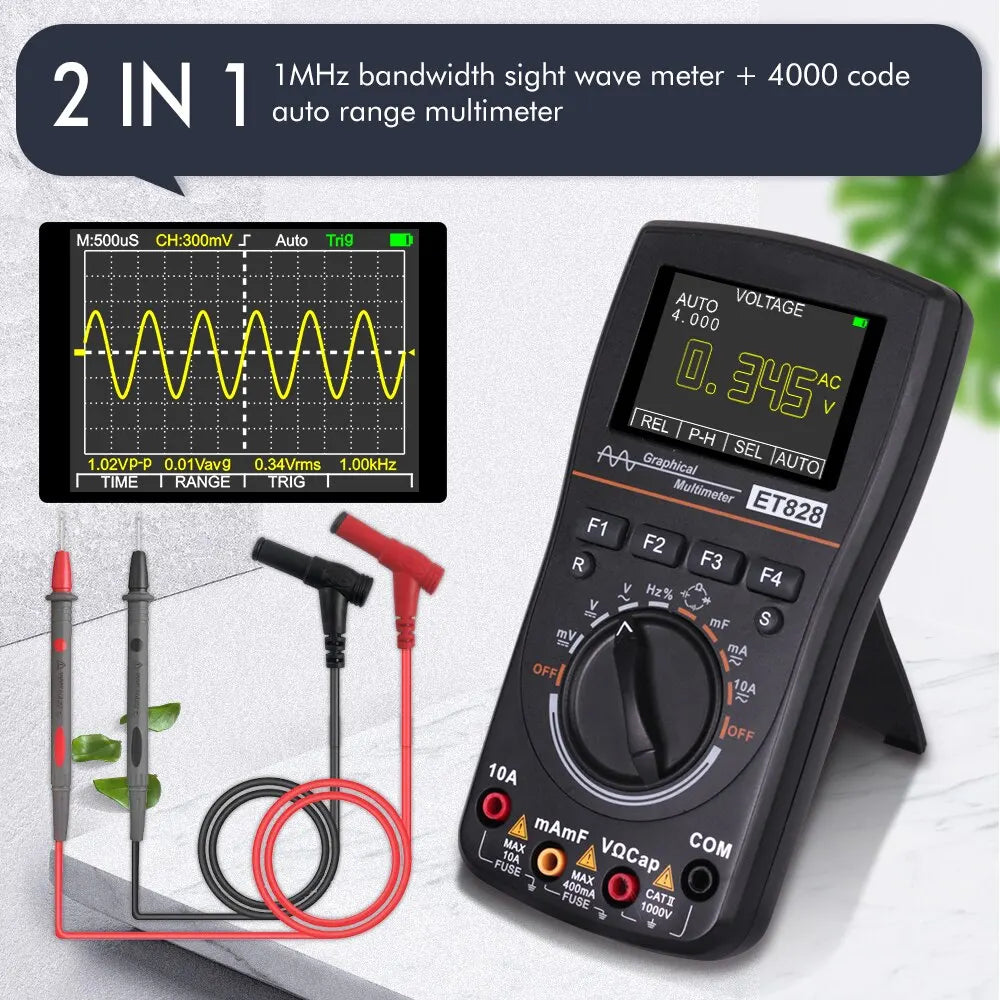

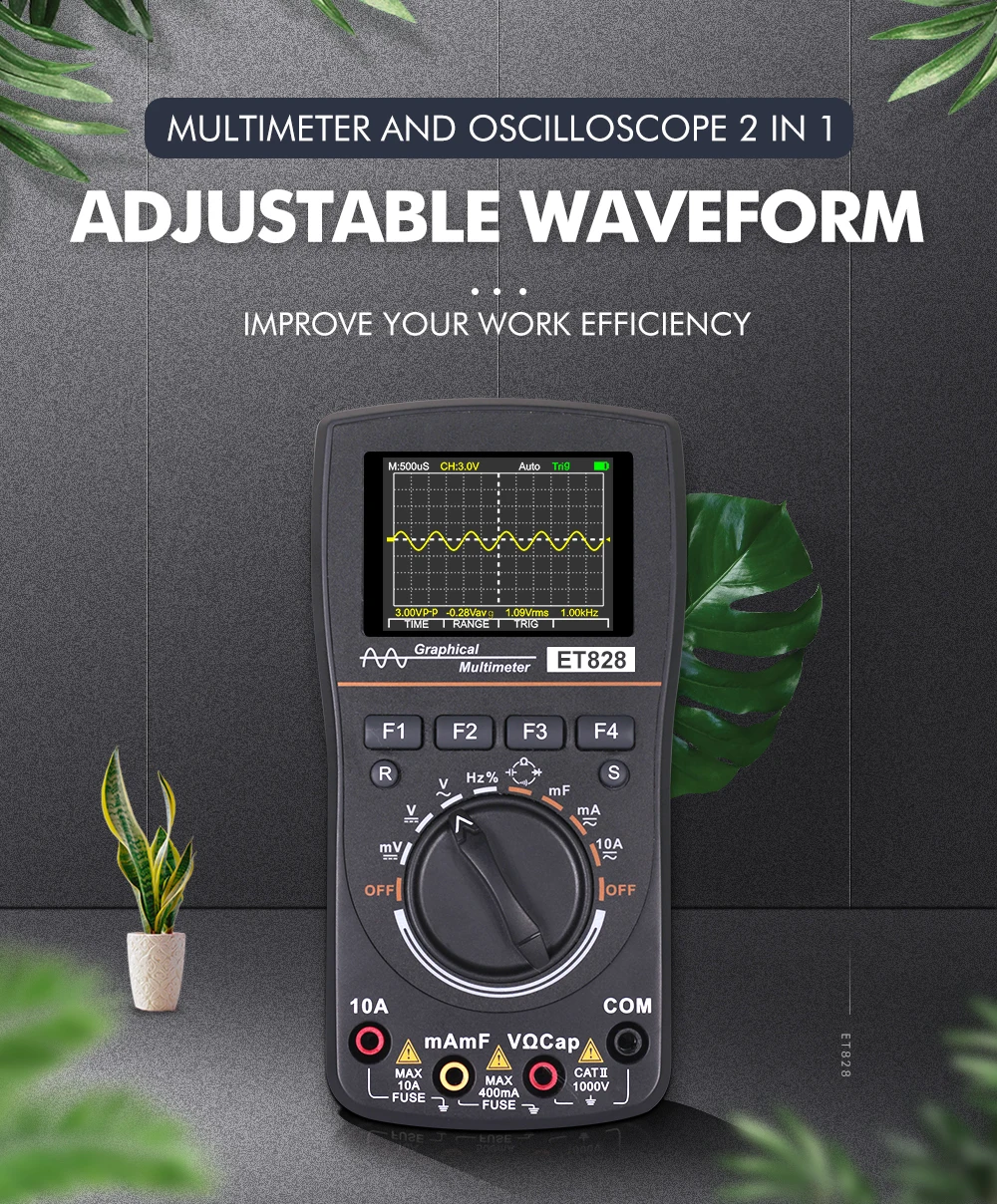

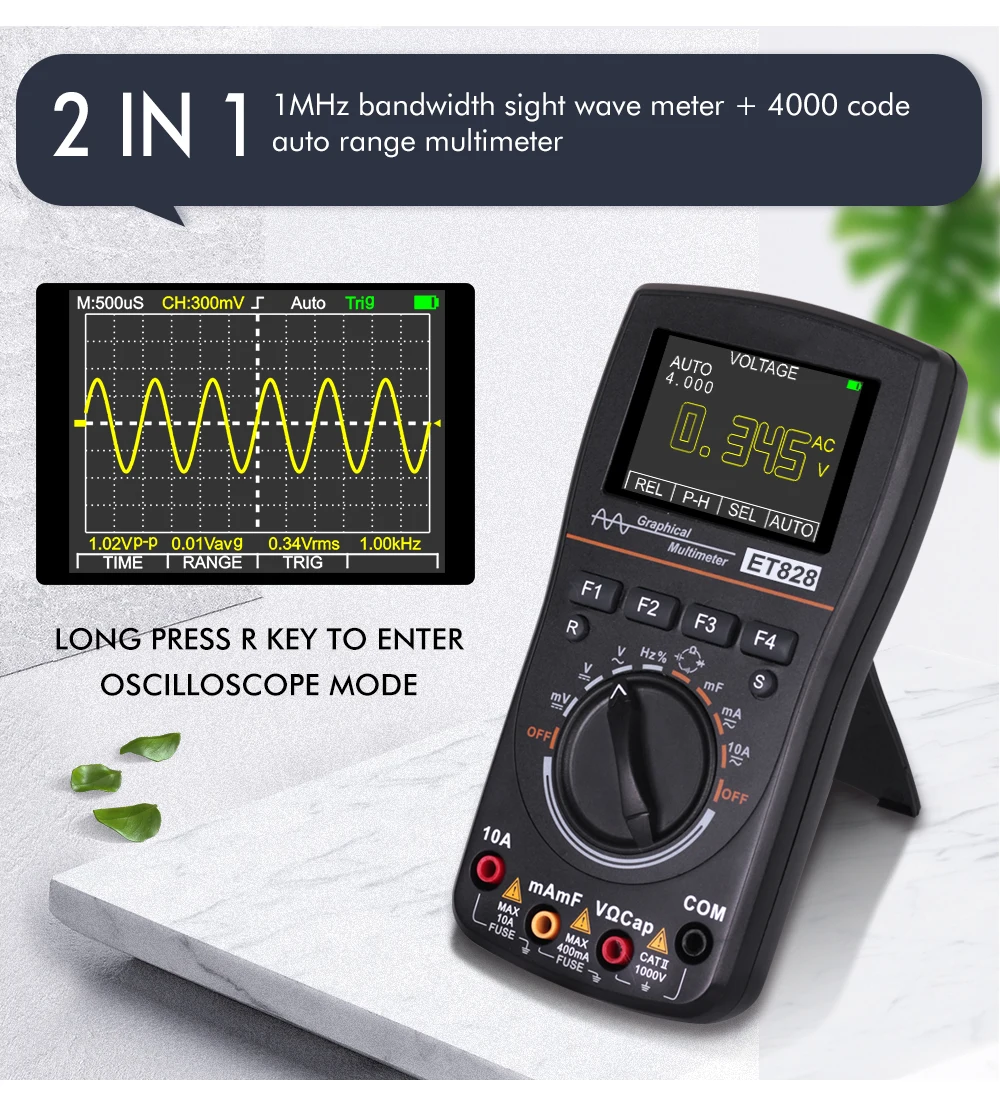

2.Two-In-One : 2.5Msps high-speed sampling, 1MHz analog bandwidth Oscilloscope + 4000 counts display digital multimeter
3.High voltage oscilloscope: In the oscilloscope state, it can measure up to 565V AC voltage, with peak to peak voltage reaching 1600Vp-p
4.Powerful uses: it can be used in different application such as DIY electrical design ,car overhaul, production line, equipment maintenance, and power system

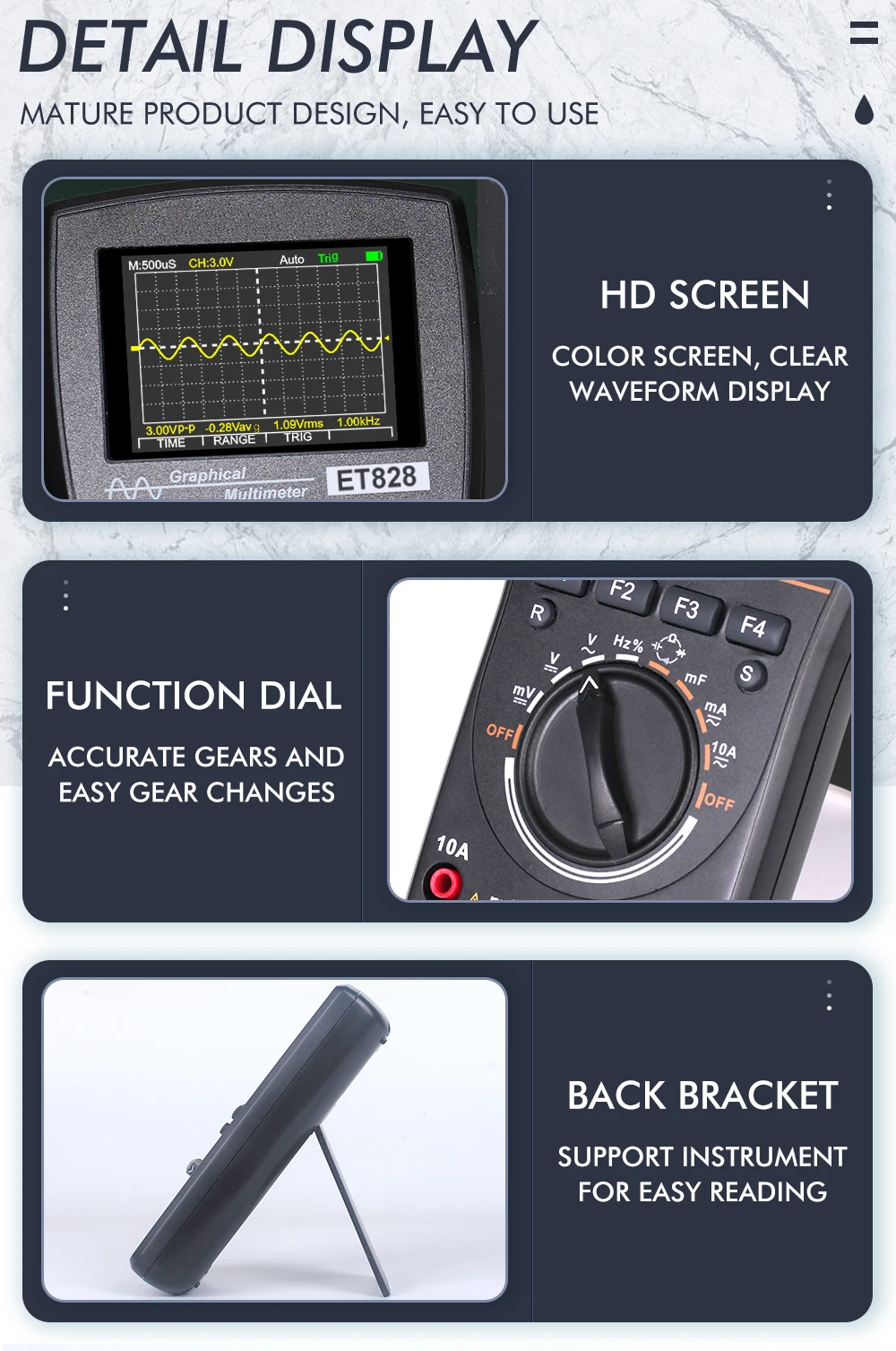

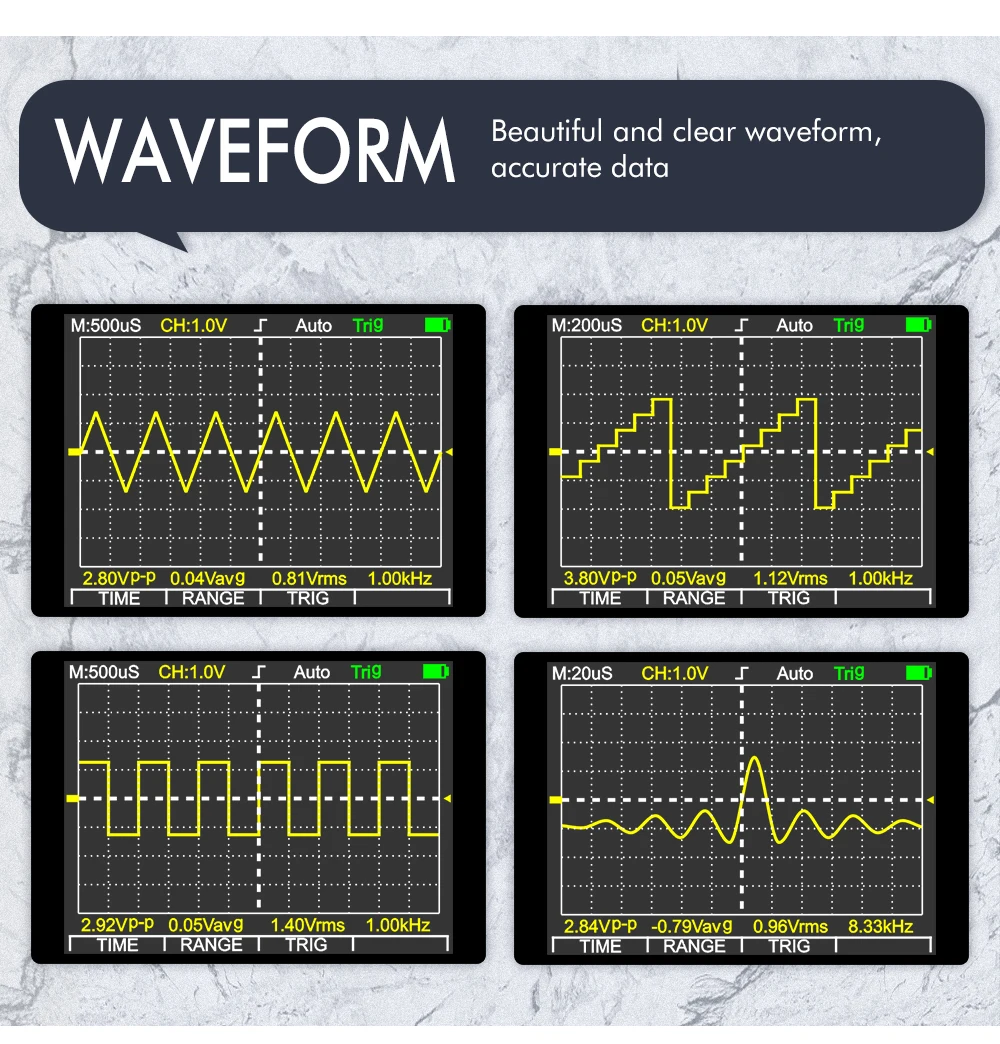

Color screen display: 2.4 inch color screen, clear waveform display

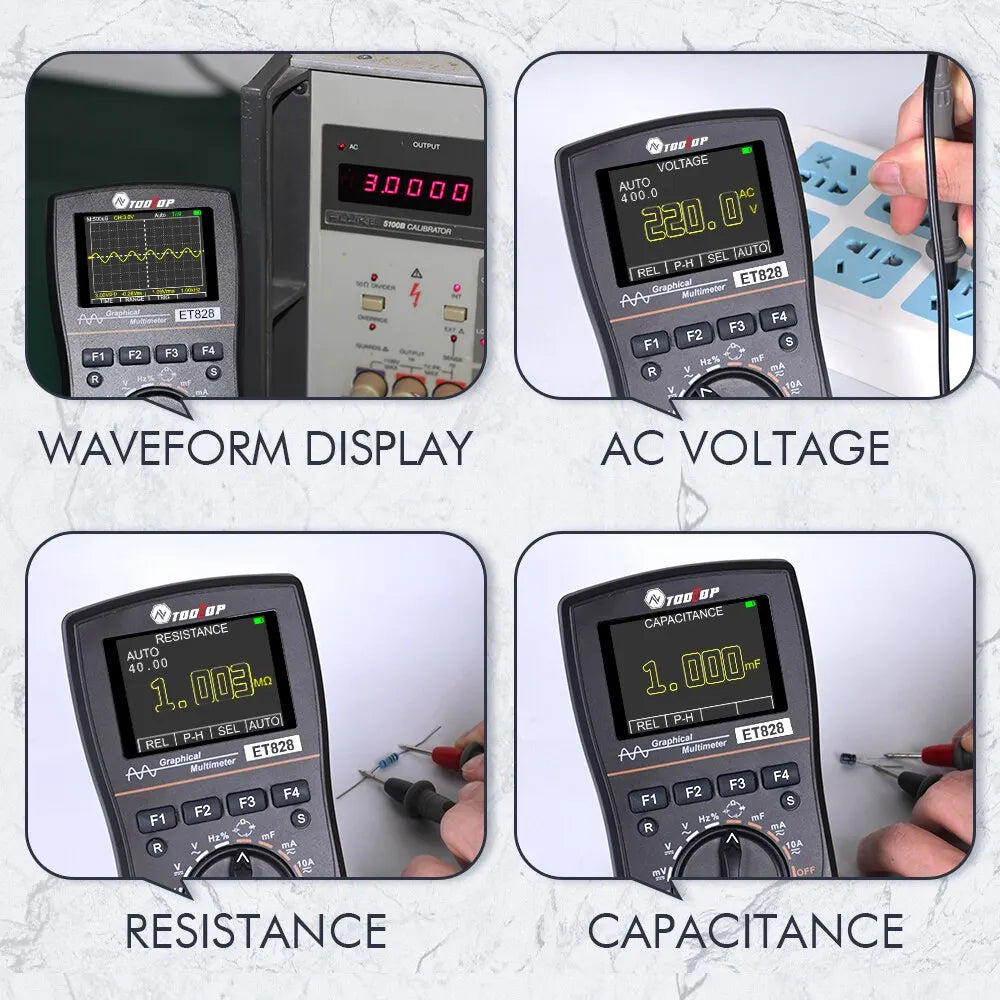

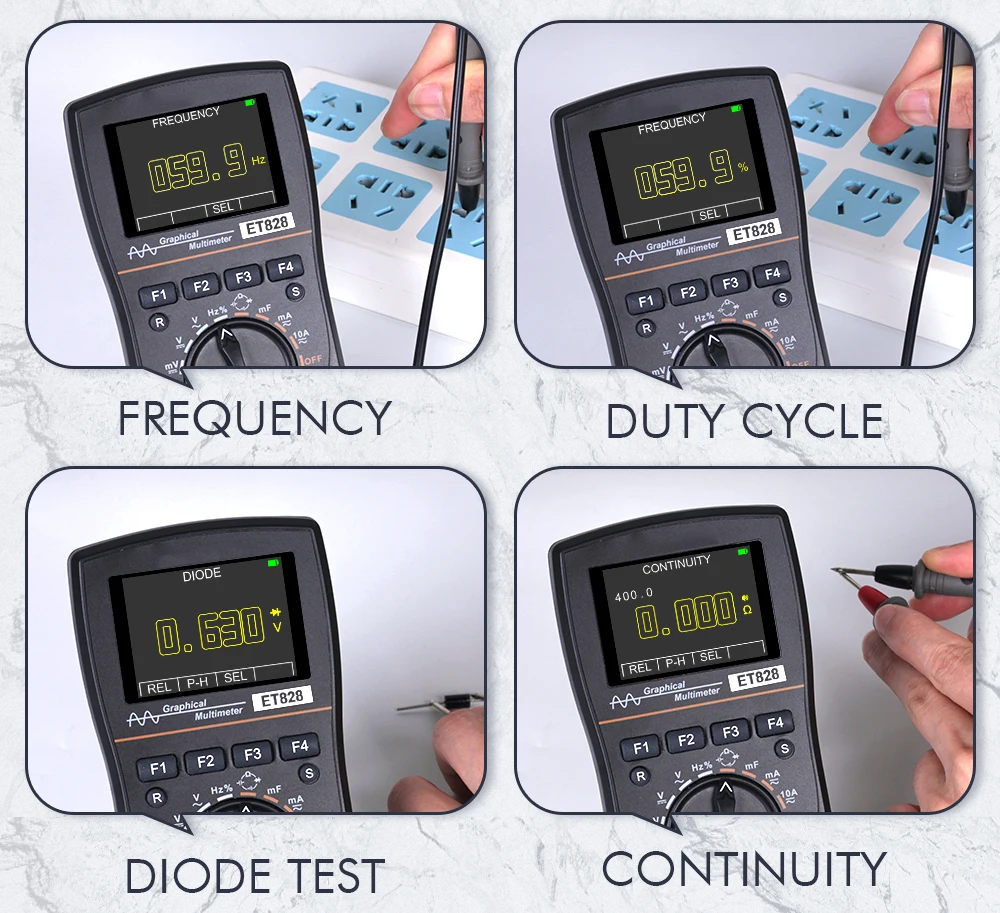

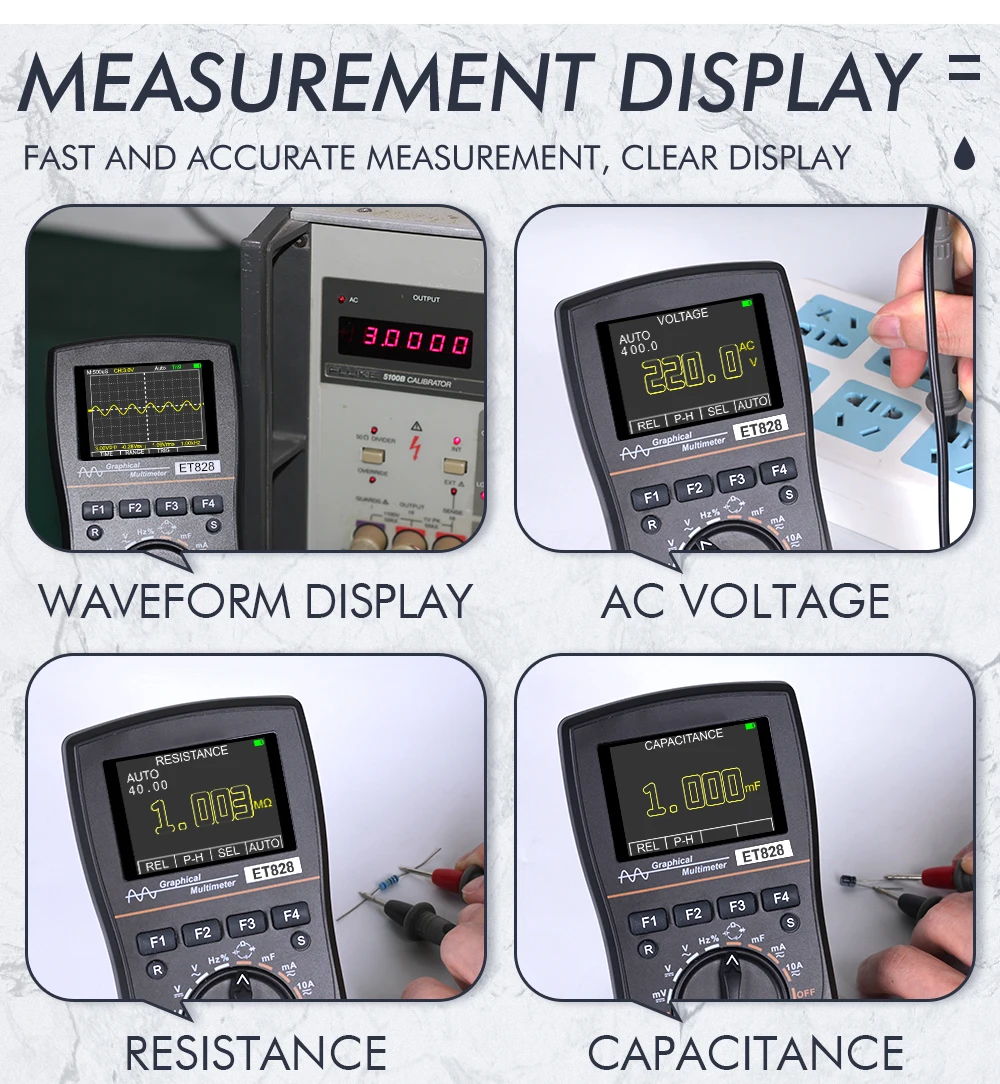

6.Multi-function multimeter: 4000 counts display, fast and accurate measurement of AC/DC current, resistance, capacitance, frequency, duty cycle, diode, continuity

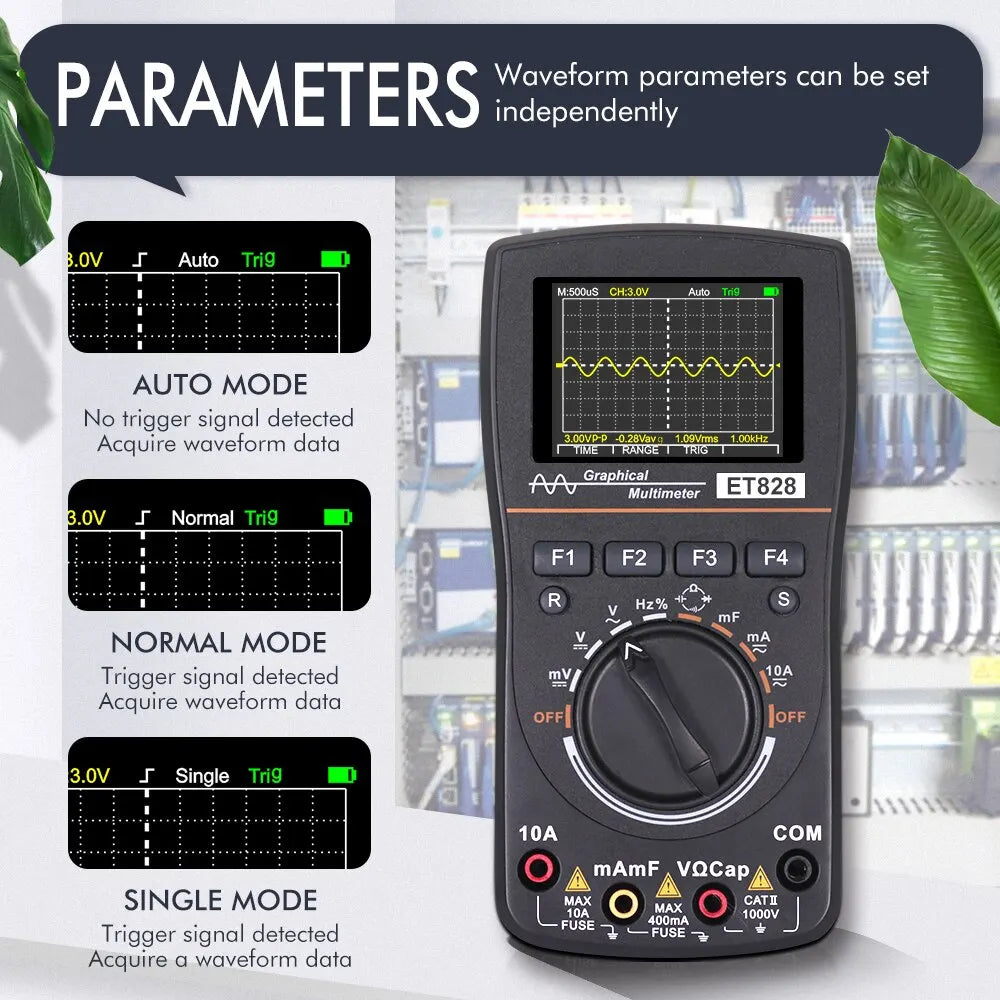

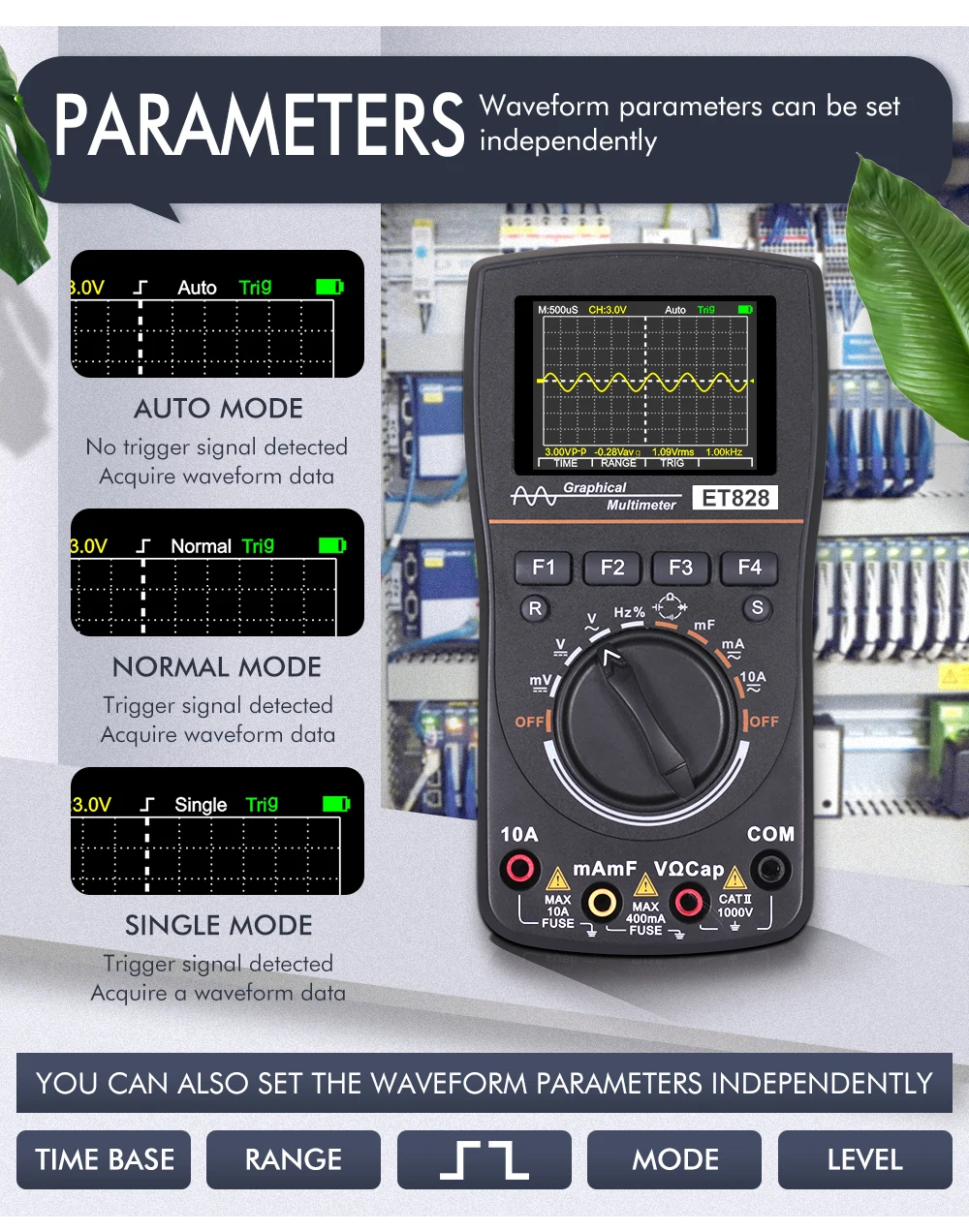

7.Oscilloscope parameter independent setting : Auto/Normal/Single scanning modes,time base, amplitude, rising edge, falling edge and level

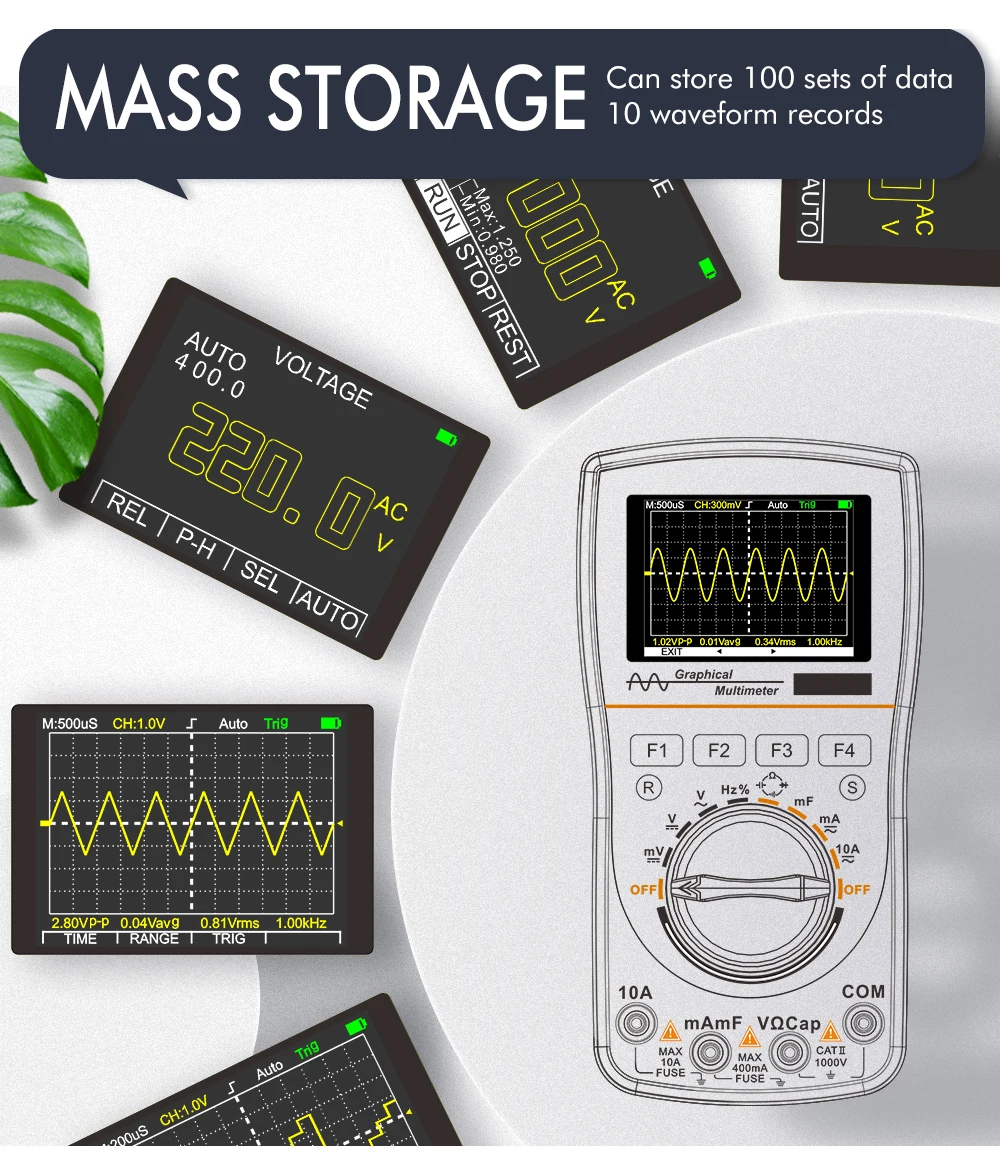

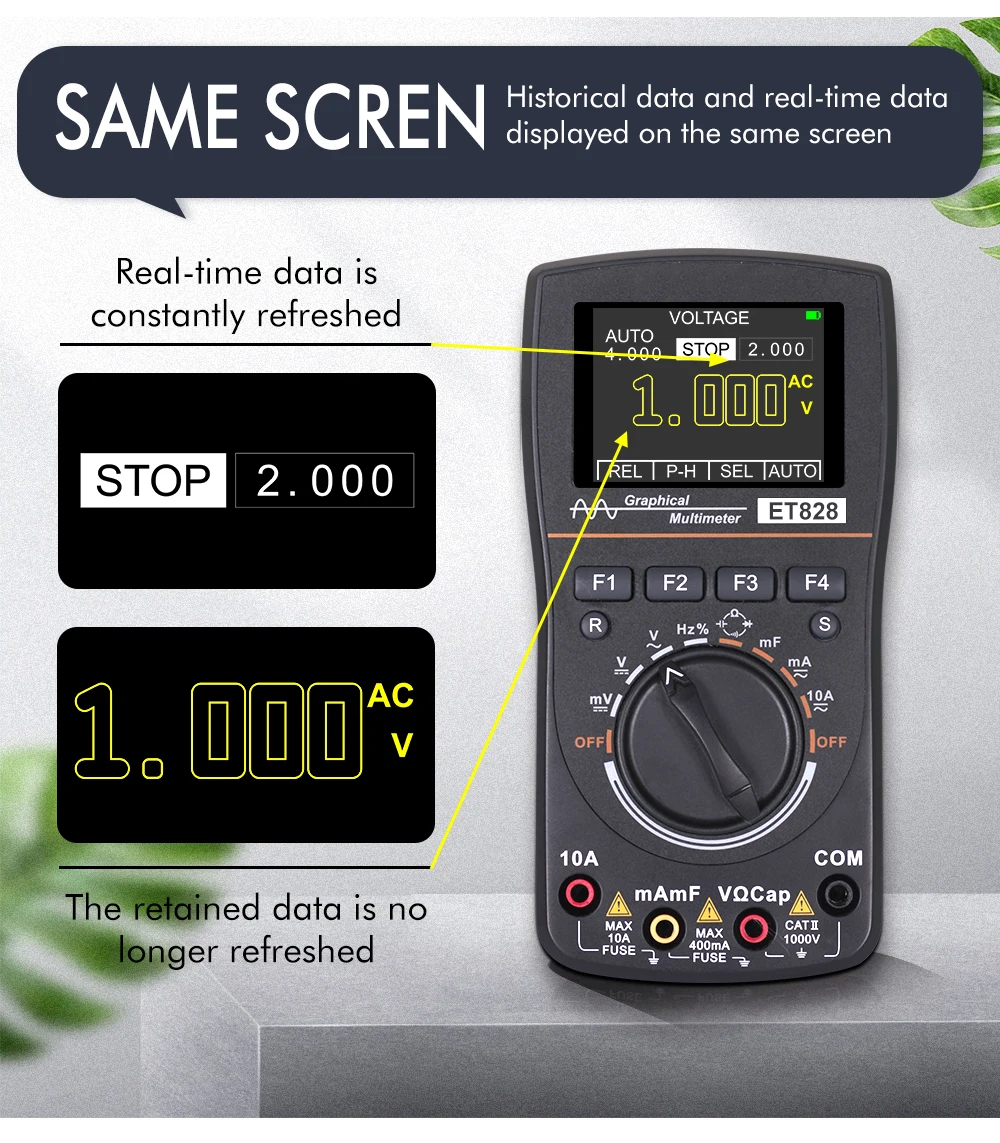

8.Can store 100 sets of data and 10 sets of waveform. Historical data and real-time display can be displayed on same screen, greatly facilitating the analysis of data
9.Panel calibration, memory calibration coefficients do not need potentiometer adjustment, higher reliability.

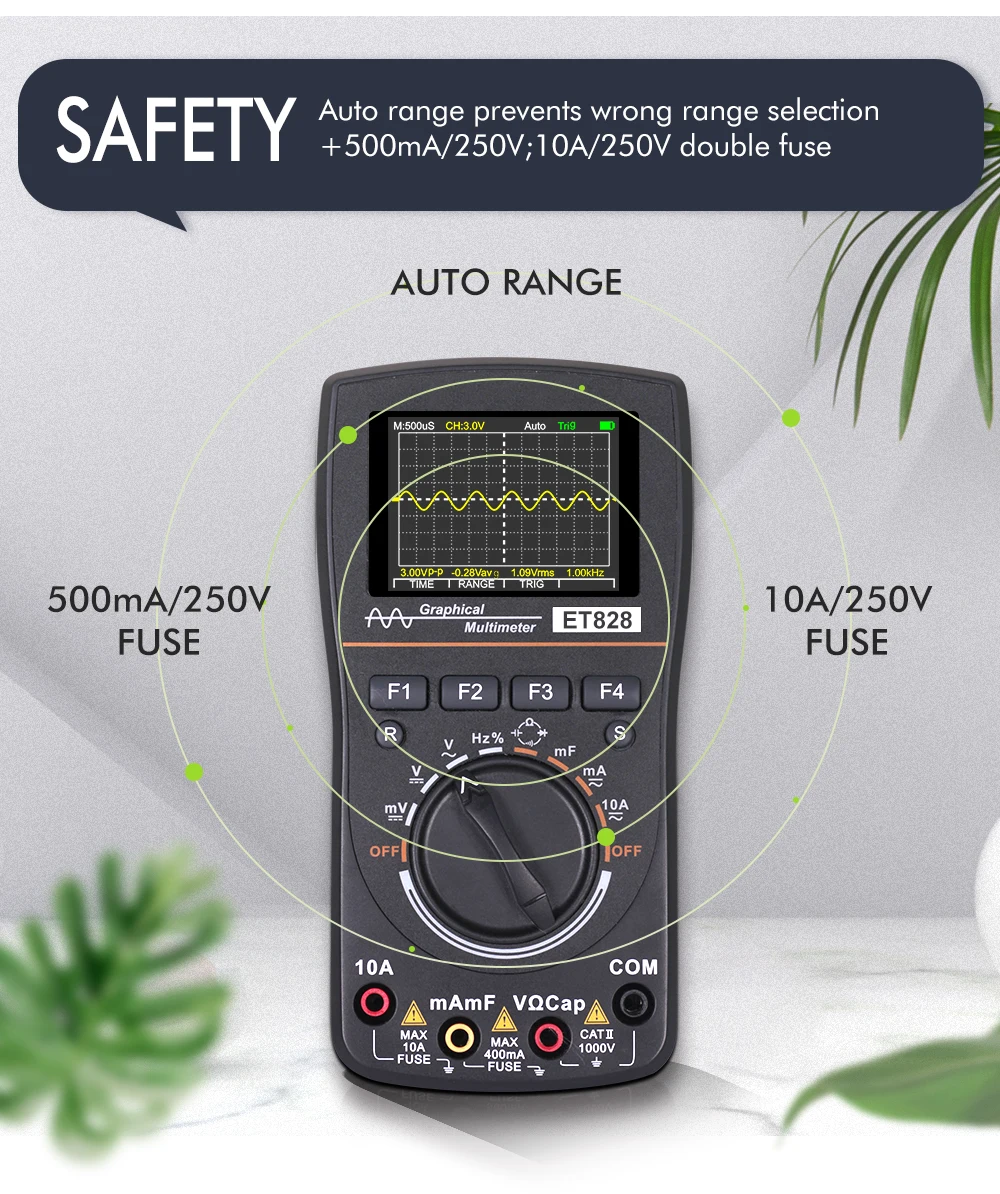

10.Overload protection 500mA/10A double fuse, double protection meter.

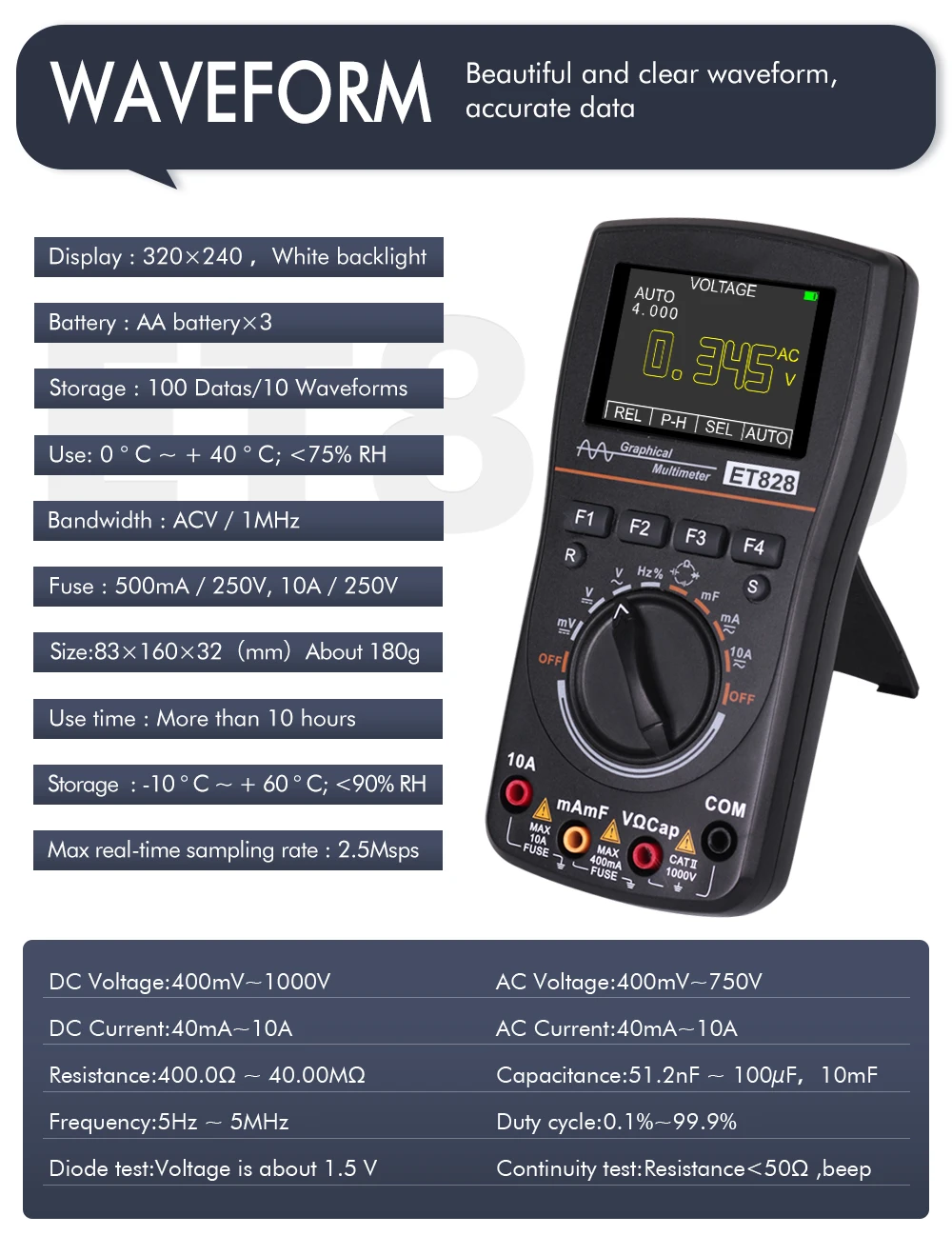

Specifications:
Display:240X320 LCD Screen
Display area: about 2.4 inches
Backlight: White
Input resistance: 10MΩ
Battery : AA battery x 3(not included)
Power consumption : About 80mA
Use time : Low light about 5 hours
Storage : 100 Data,10 Waveforms
Use: 0 ° C - + 40 ° C; <75% RH
Storage : -10 ° C 〜 + 60 0 C; <90% RH
Size: 83x160x32(mm)
Weight: About 195g (without battery)
Oscilloscope characteristics
Analog bandwidth: 1MHz (limited to ACV oscilloscope)
Maximum real-time sampling rate: 2.5Msps
Number of channels: 1
Input impedance: about 10MΩ
Vertical sensitivity range: 300mV - 100V/grid
Time base range: 2.5us - 10s/div
Vertical amplitude accuracy: ±(5%+ 0.2div)
Time base accuracy: ±(0.01% + 0.1div)
Scan Mode: Auto/Normal/Single
Trigger edge selection: rising edge/falling edge
Automatic setting: automatically set the time base and vertical amplitude
Automatic measurement function: Vp-p, Vavg, Vrms, Hz
Multimeter Specification
Features Range Uncertainty
DC voltage 400mV,4V/40V/400/1000V ±(1.5% RDG + 10dgt)
AC voltage 400mV/4V/40V/400/750V ±(1.0% RDG + 10dgt)
DC Current 40mA/400mA,4A/10A ±(1.2% rdg+10dgt)
AC Current 40mA/400mA,4A/10A ±(1.5% rdg+10dgt)
Resistance 400.00
Capacity 51.2nF ~ 100uF,10.00mF ±(3.0% RDG + 5dgt)
Frequency 5Hz 〜5MHz ±(1.0% rdg+5dgt)
Diode test: Voltage is about 1.5V
Continuity test: Judgment Resistance about:<50Ω beep
Fuse : 500mA/250V, 10A/250V

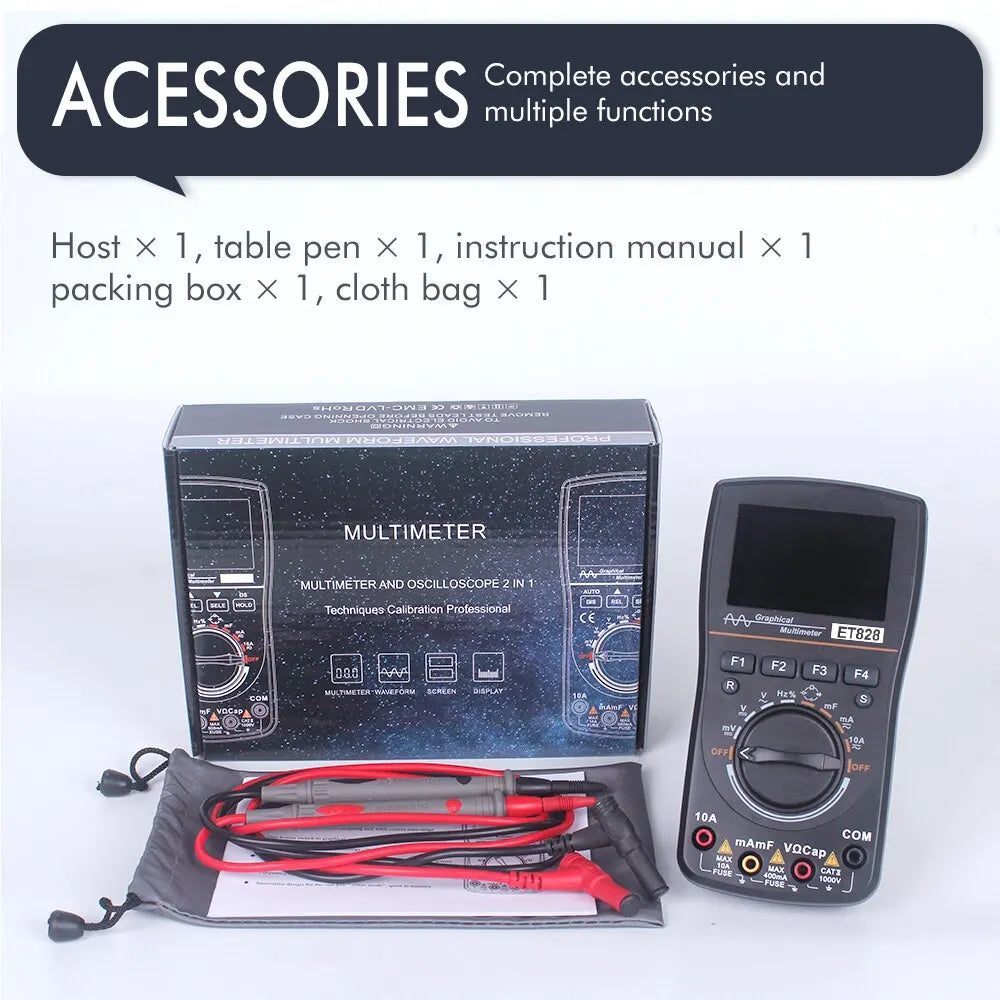

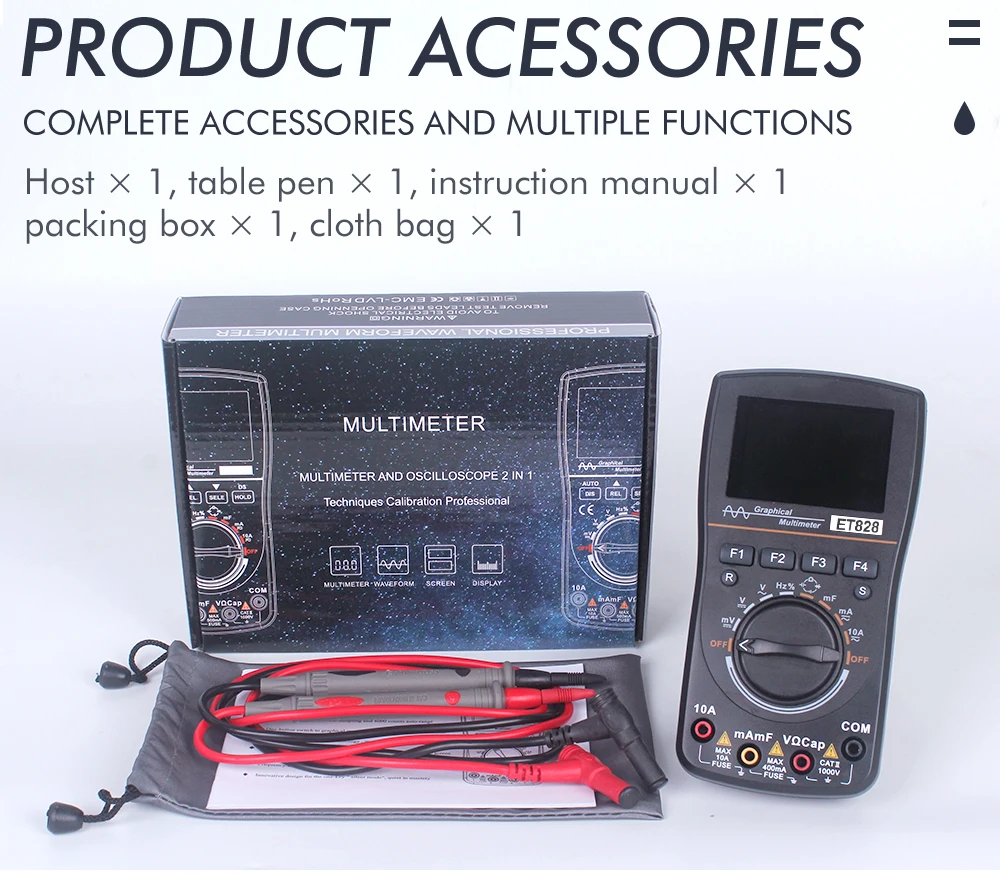

Packing List:
1 * ET828 2 in 1 Digital Oscilloscope Multimeter
1 * Pair of Test Pens
1 * cloth bag
1 * User Manual
