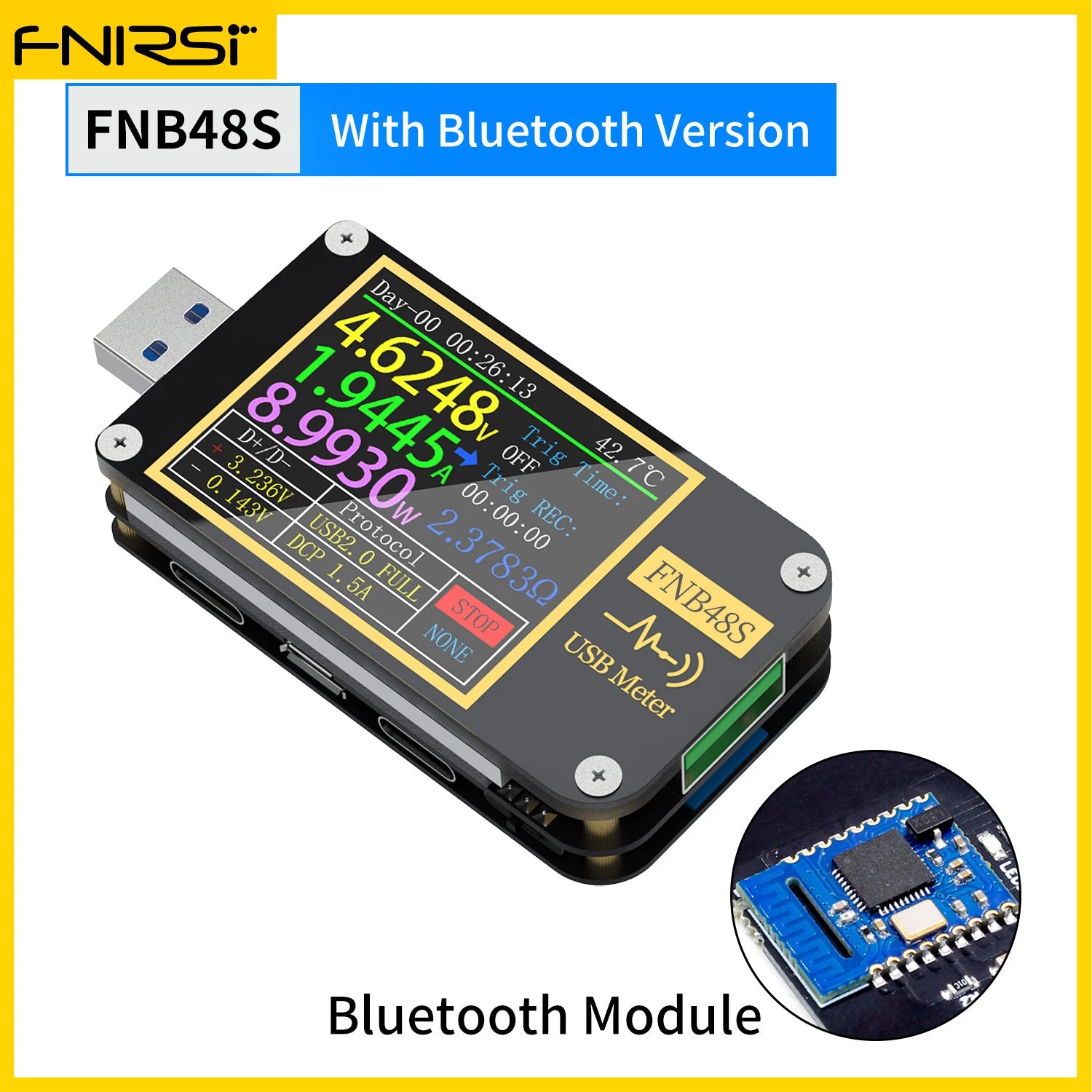

FNB48S PD trigger Voltmeter ammeter Current and Voltmeter USB tester QC4 + PD3.0 2.0 PPS fast charging protocol capacity test

KSh9,724

~~KSh9,899~~ KSh9,724

Sale Sold out

Shipping calculated at checkout.

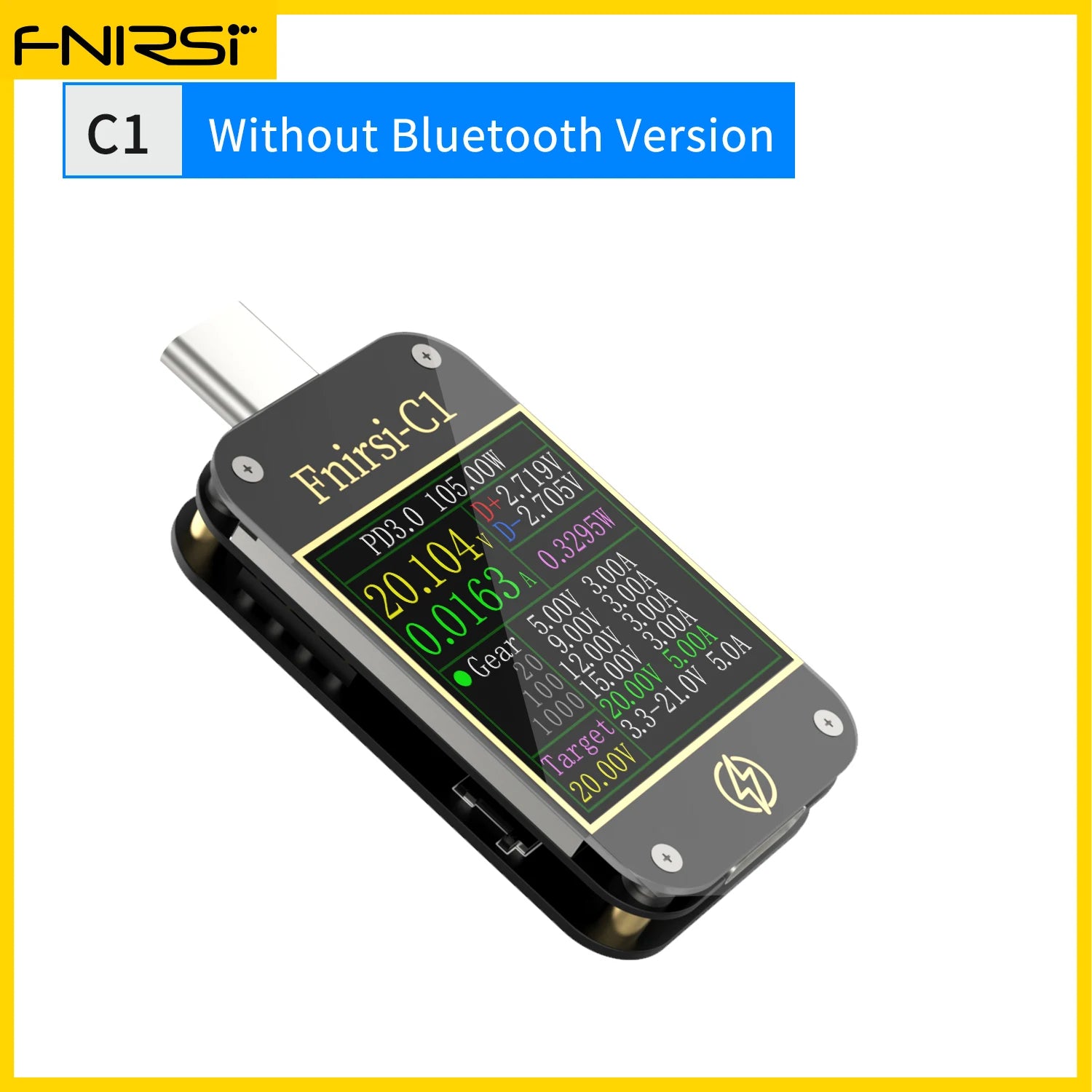

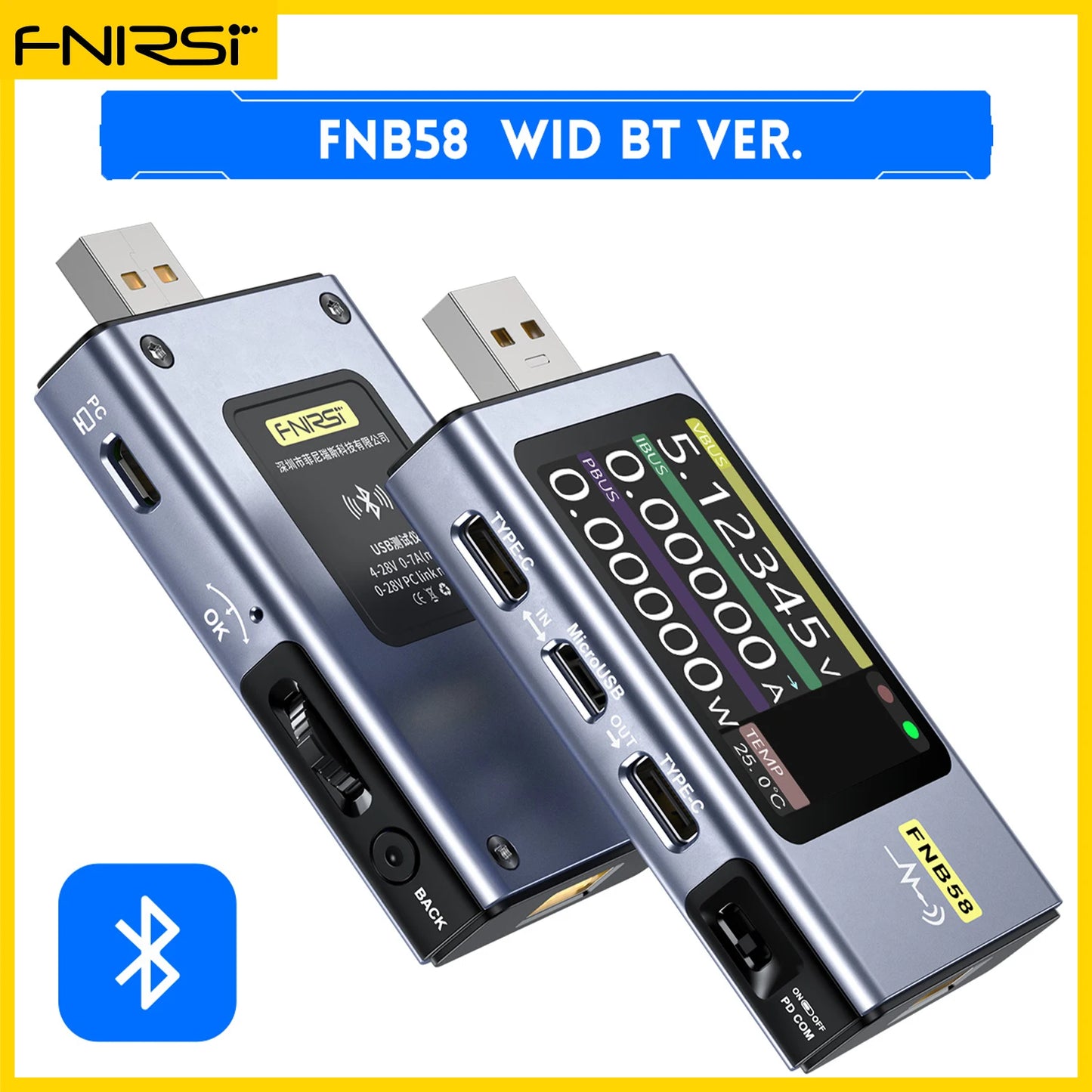

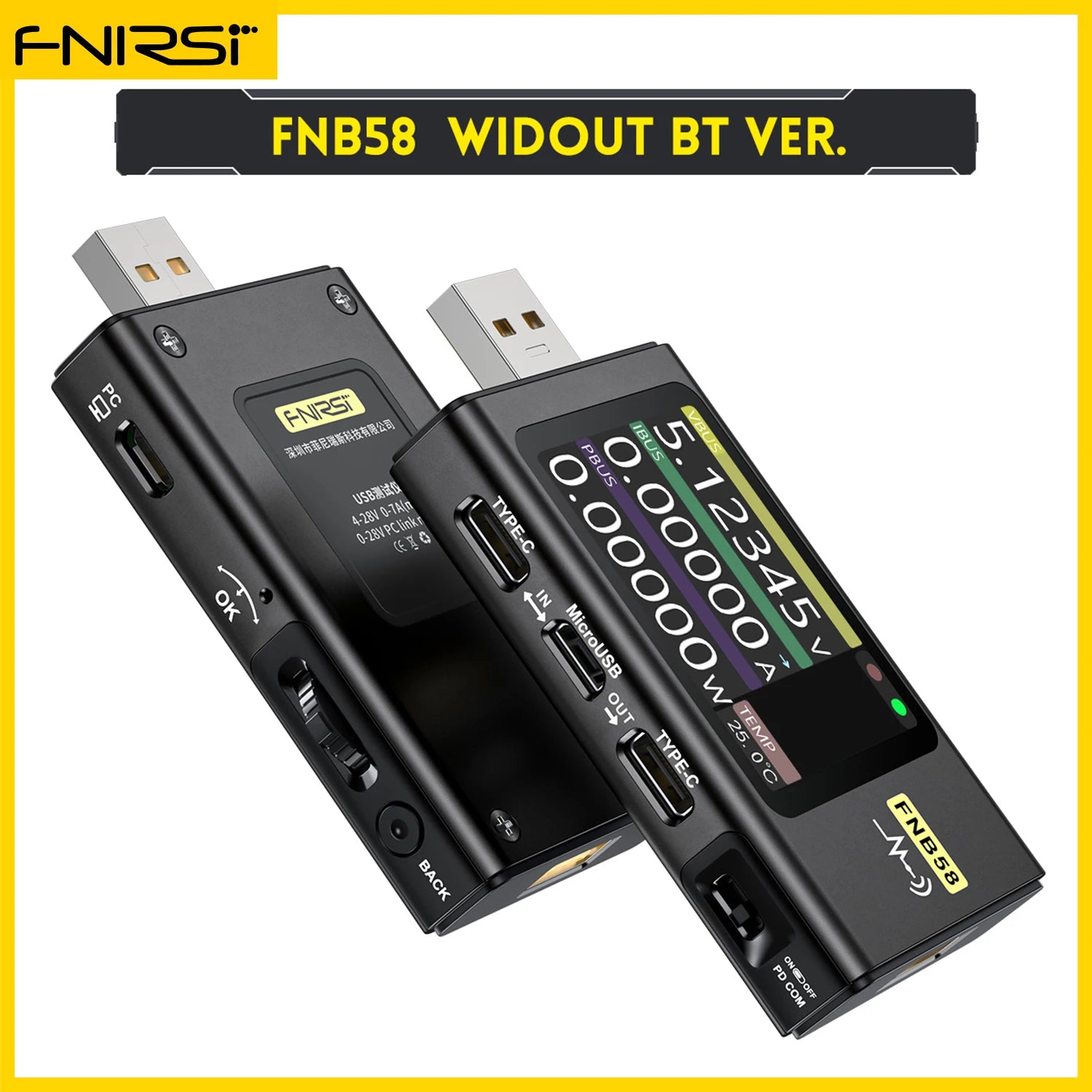

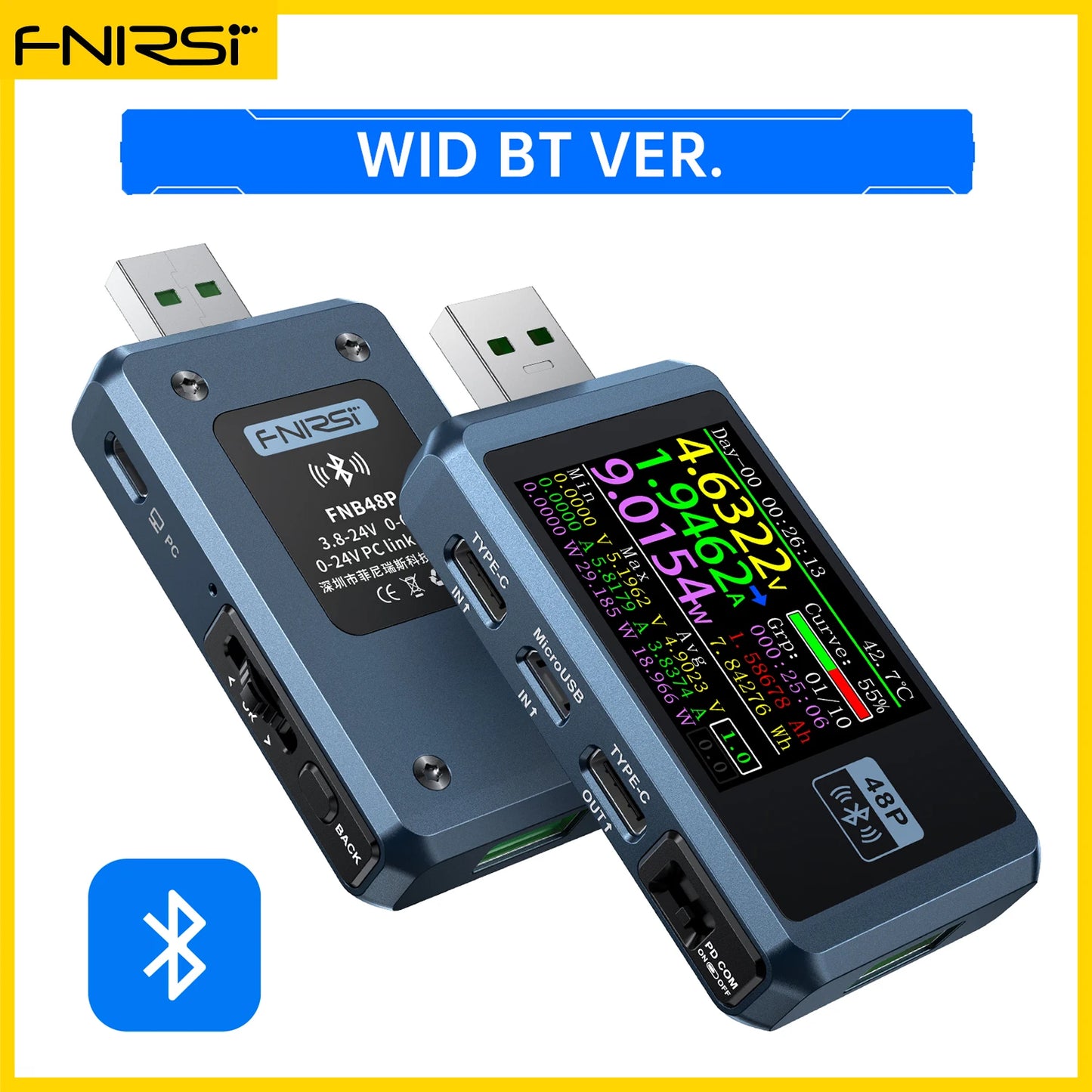

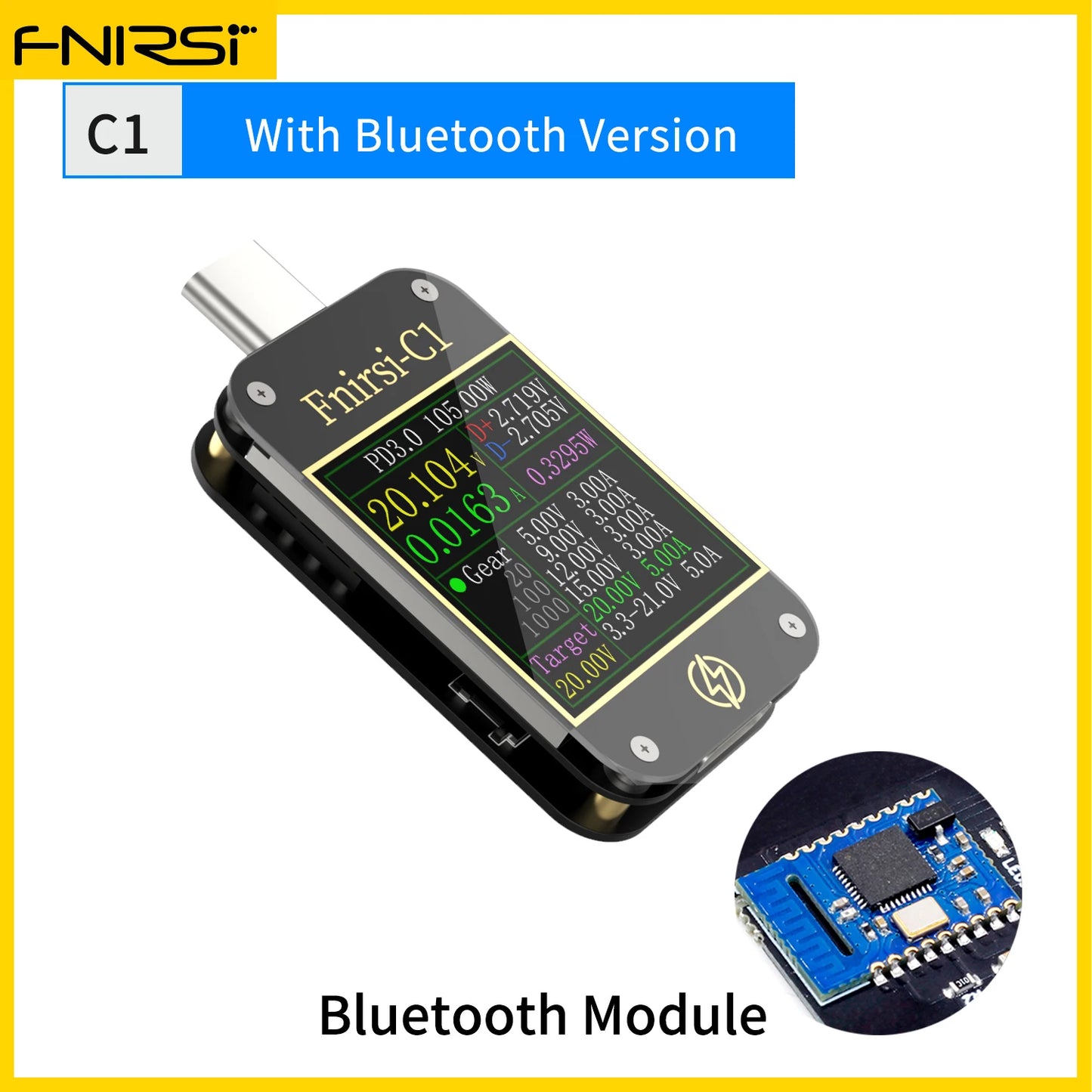

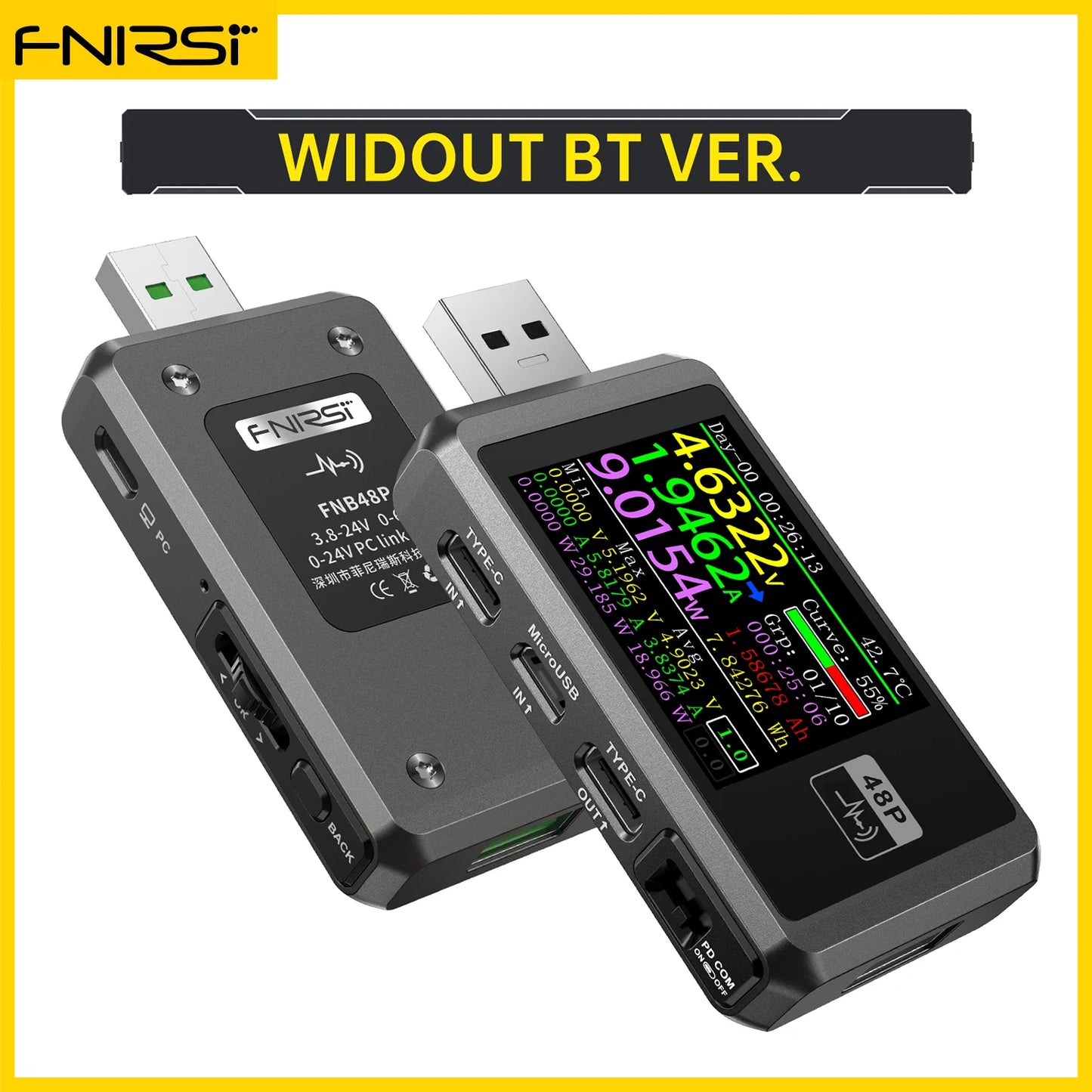

Color FNB58 WO BT. FNB48P With BT. C1 With Bluetooth FNB58 With BT. FNB48SWO Bluetooth FNB48P WO BT.

Ships From CHINA

block: block, product: product, product_form_id: product_form_id, section_id: section.id, show_pickup_availability: true -%}

SPECIFICATIONS

Brand Name: FNIRSI

DIY Supplies: ELECTRICAL

Origin: Mainland China

Operating Temperature: -10C~+80℃

Accuracy Class: 0.1%

Display Type: Digital Only

Power Supply: DC

Certification: CE

Model Number: FNB48S

Monitor voltage: 4-24V

Monitor current: 0-6.5A

Monitor power: 0-156W

Load equivalent internal resistance: 0-9999.9Ω

D+/D- voltage: 0-3.3V

Capacitance: 0-9999.99Ah

Energy used: 0-9999.99Wh

Cable resistance: 0-9999.9Ω

Equipment running time: 99 days 23 hours 59 minutes 59 seconds

Record time: 999 hours 59 minutes 59 seconds

{"moduleList":[{"html":{"content":"

"},"type":"html"},{"html":{"content":"

\n

Compatibility Issues

\n

①There may be incompatibilities problems of the PC software with some Windows systems, if you really need it, please install and test the software before buying the product.

\n

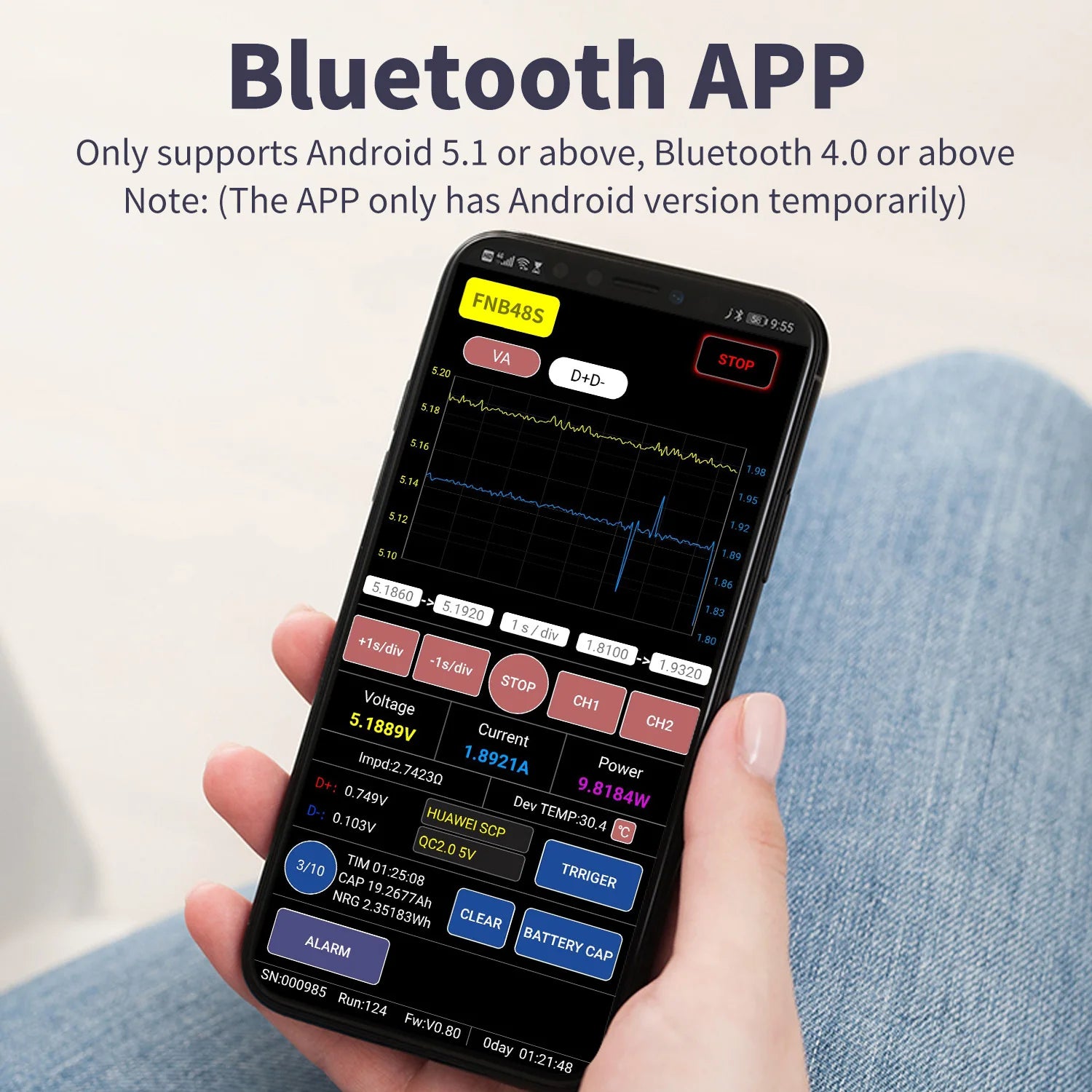

②There are many types of mobile phones and operation systems, so there may be incompatibilities, if you need APP, please install and test the APP before buying the product.

\n

③If you don't test the PC software and APP function before buying and find that the products works fine except the PC software or APP, we refuse to refund.

\n

④Please do install and test the APP if you use Samsung mobile phone.

\n

\n
\n

\n

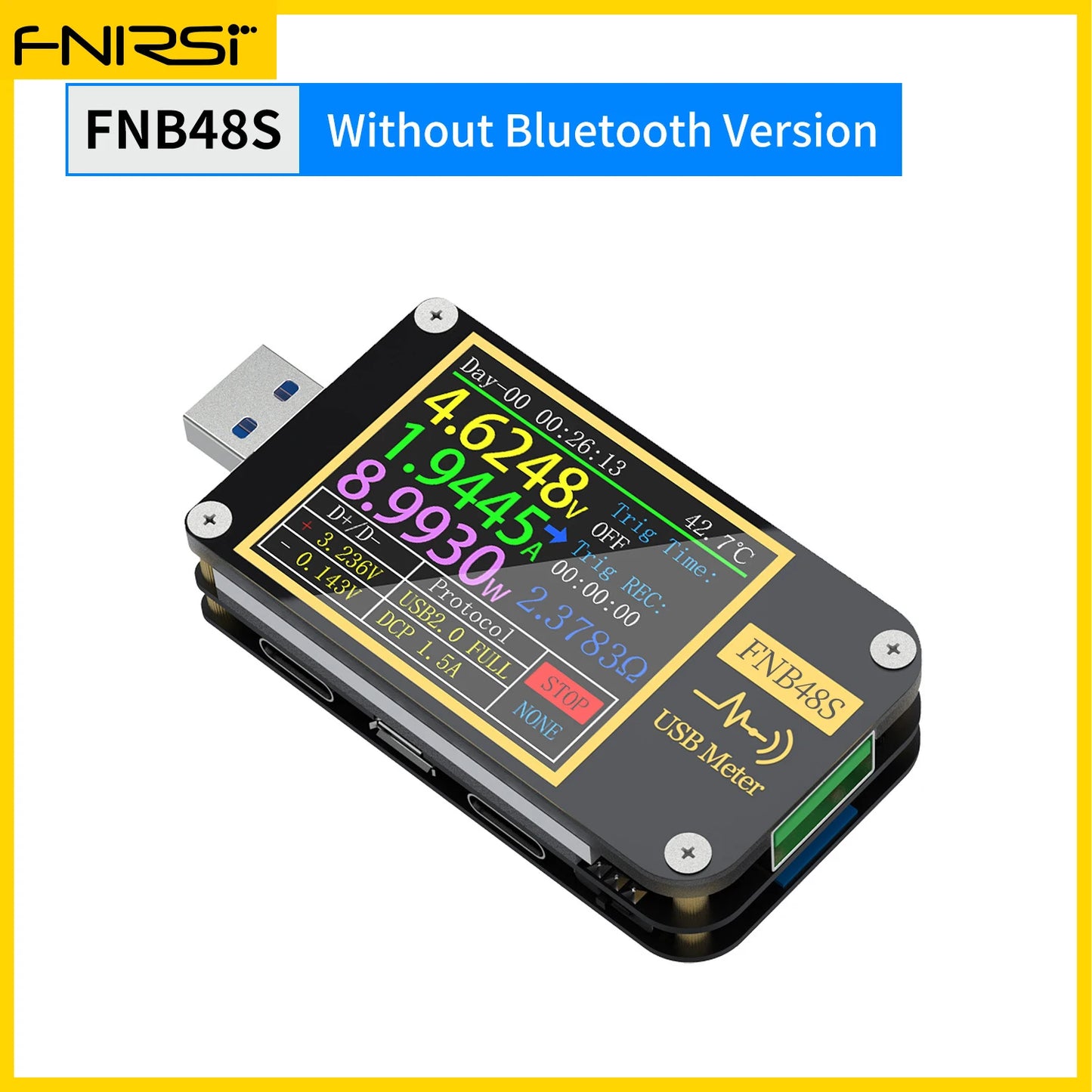

FNIRSI FNB48S Voltmeter Ammeter Current Quick Recharging Tester Protocol Tool PD Trigger Ammeter USB Tester QC4 PD3.0 2.0 PPS Capacity Test

\n

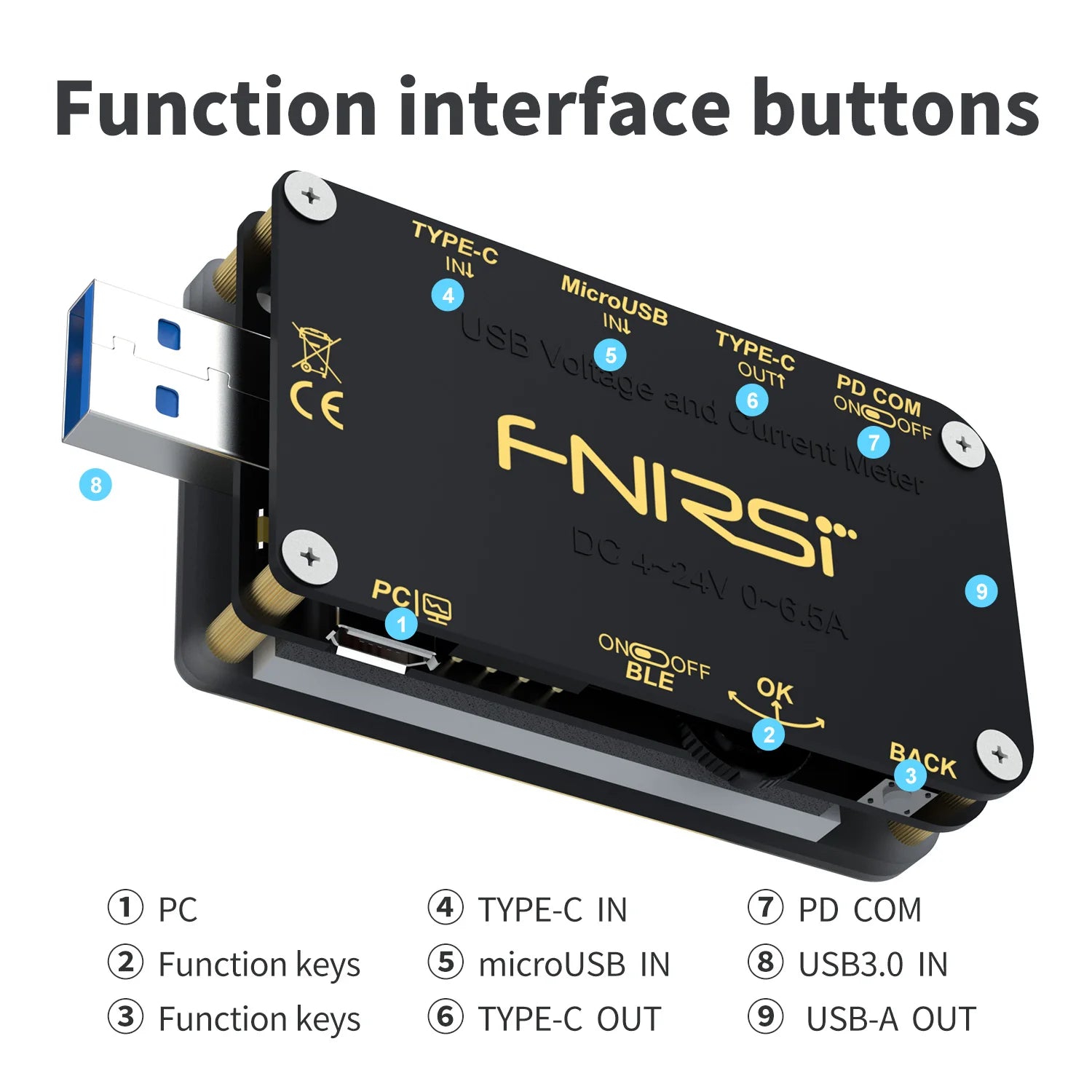

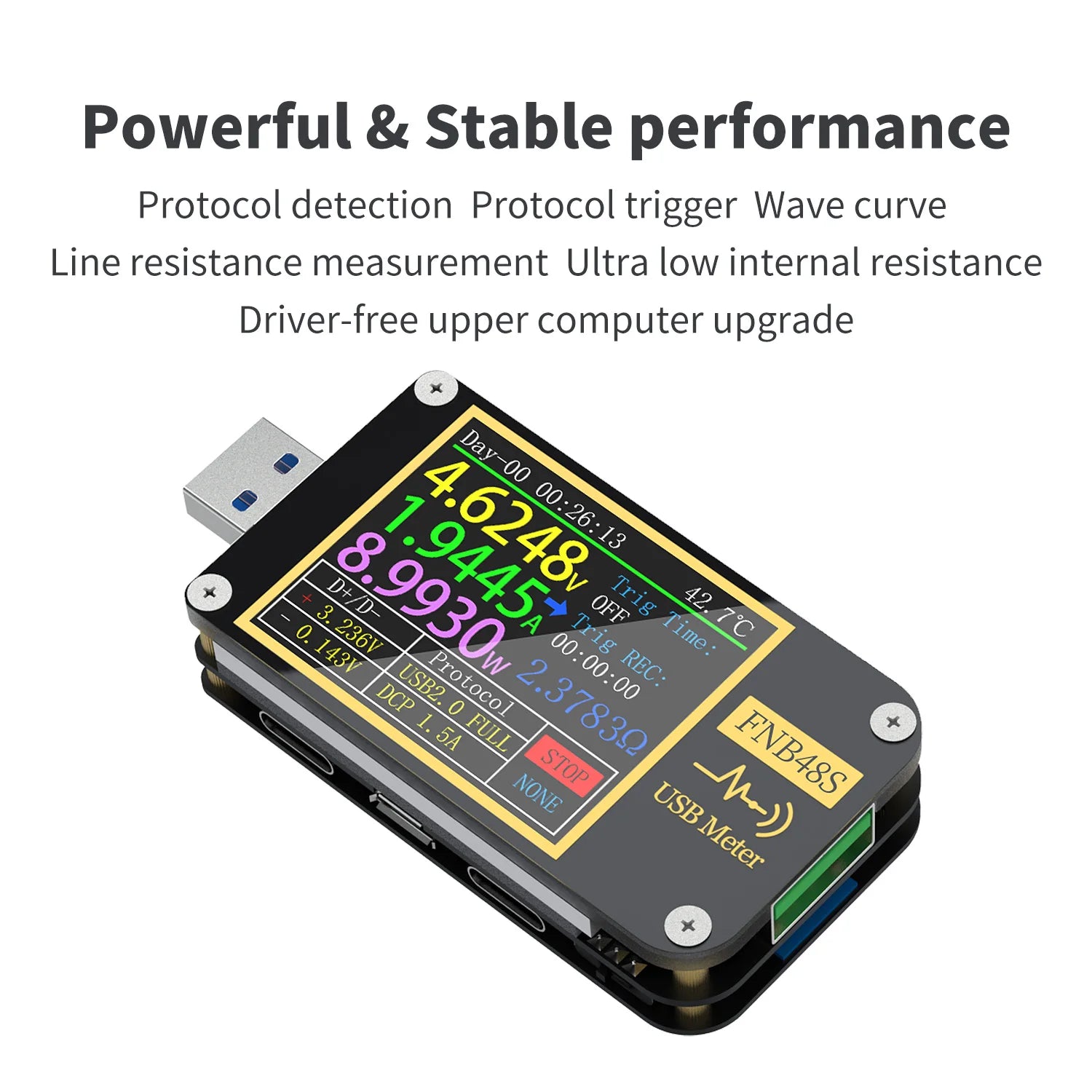

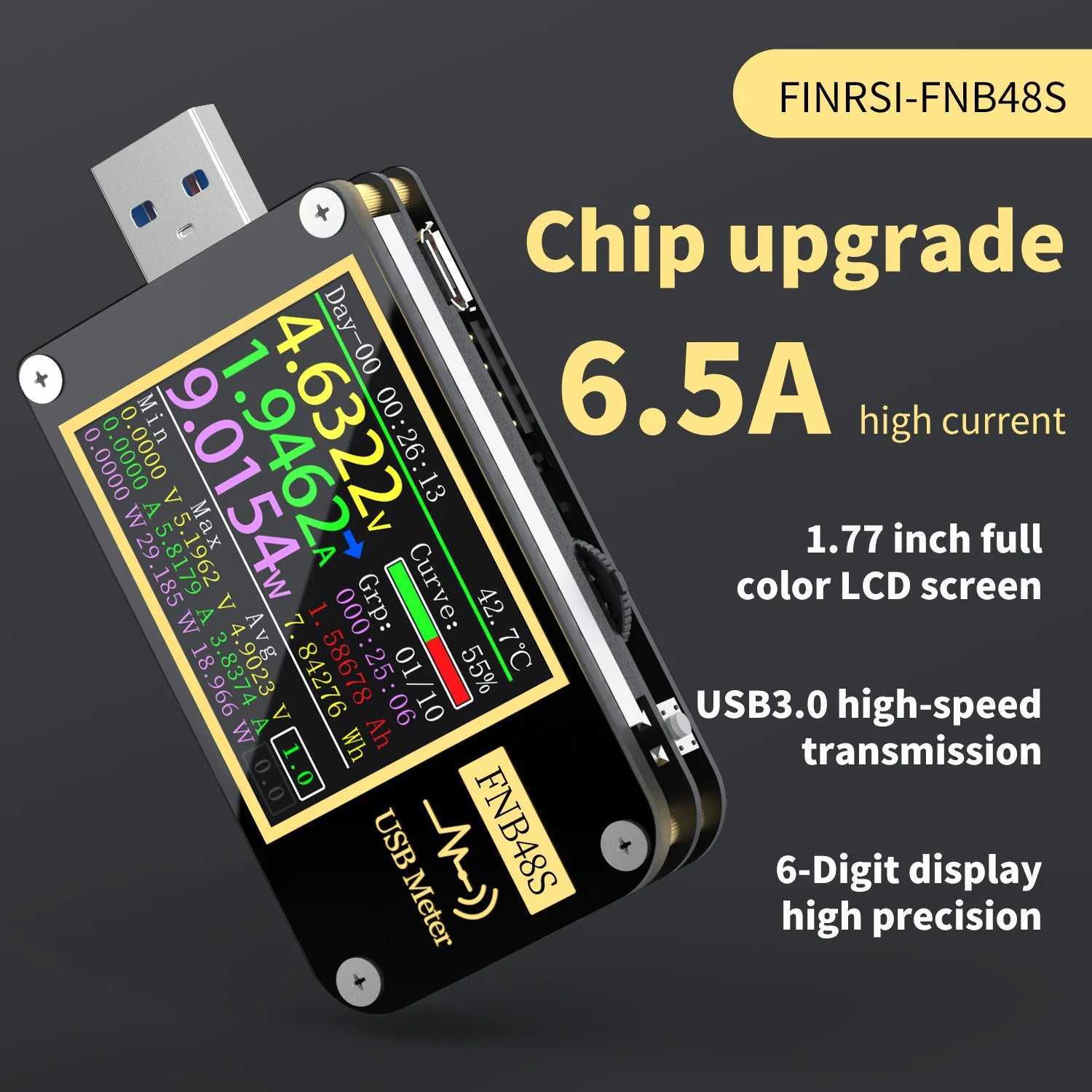

This tool is an multifunction protocol capacity test tool, it integrated USB-A, Micro-USB, type-C interface, with 1.77 inch high definition display screen, using external 16-bit ADC, PD protocol physical chip, which can real-time monitoring of the voltage, current, power, capacity, recharging protocol, curve waveform and so on, come on and try it, it will not let you down.

\n

Features:

\n

Five-bit or six-bit display can be switched by one button , with the maximum resolution of 0.00001, which can real time monitoring of the subtle changes in voltage, current and power during recharging.

\n

This product uses USB3.0 interface, 9 pin design, downward compatible with USB2.0,+ times the transmission rate of USB2.0.There is no need to use the primary data cable, it can also directly test the recharger agreement of some mobile phones.

\n

It is in small size, so you can take it with you to anywhere you want to use it, or you can take it and share it with your friends.

\n

This product can record 10 sets of measurement data, you can use the data you get to calculate the capacity of battery.

\n

This product directly add the calculate formula on this product, the result multiply 1000 to get the capacity of battery.

\n

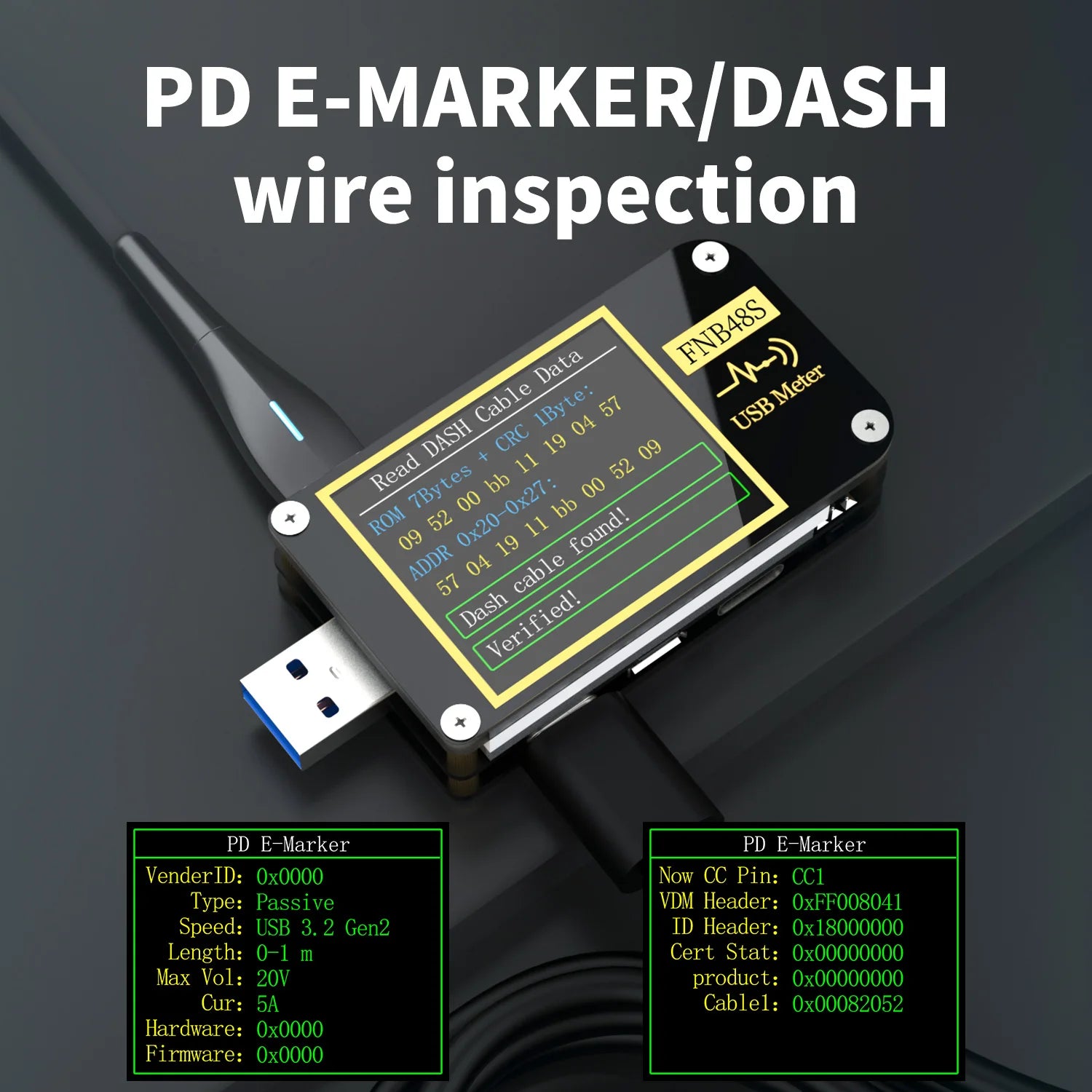

This product support read the data of E-Marker and DASH cable, and the chips of e-marker and DASH cables can be easily read after connecting the data lines.

\n

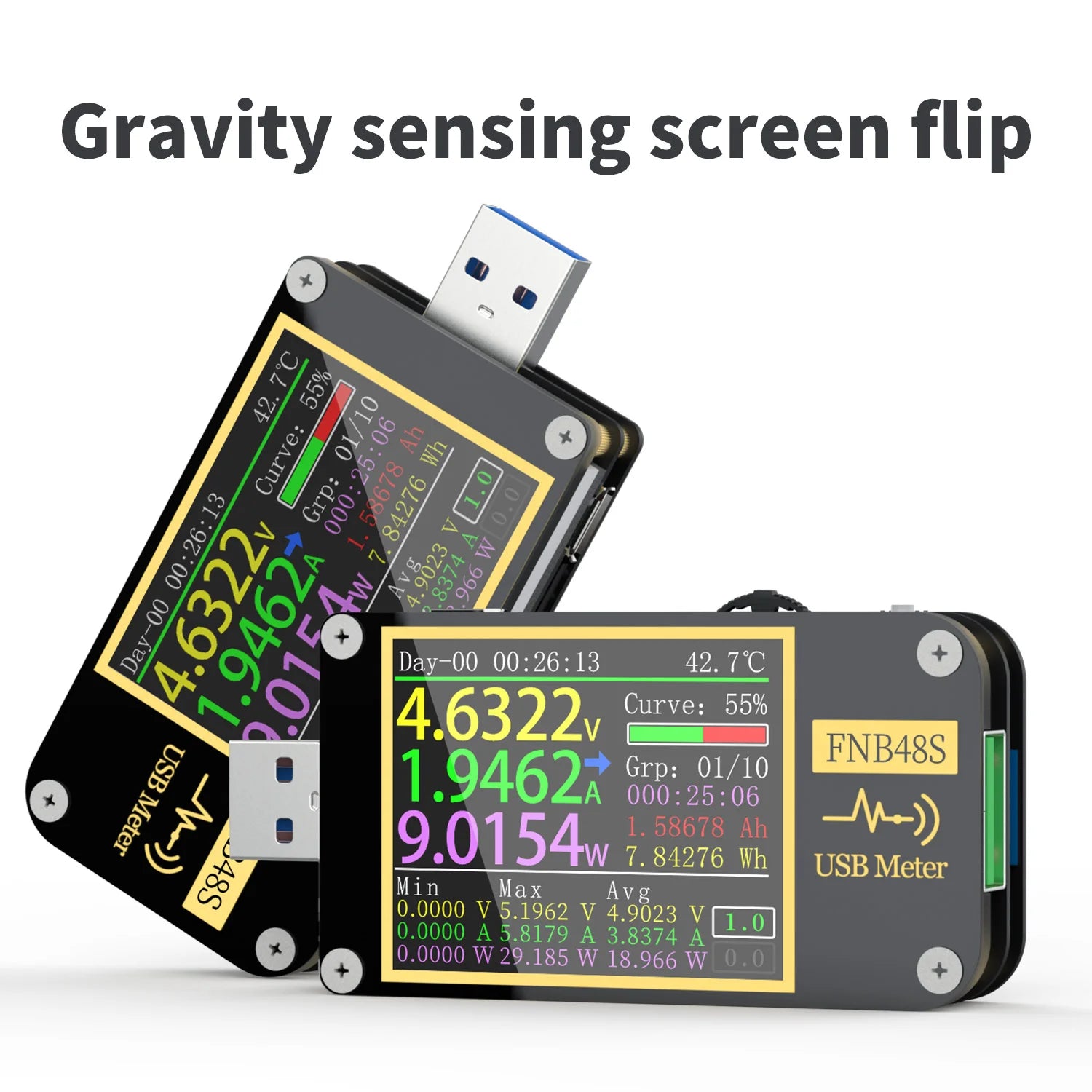

This product support screen flip function, through the gravity-induction, the screen can be free to flip, you can also turn off gravity-direction recognition and flip the screen by long pressing the middle key.

\n

This product uses differential pressure method to measure cable resistance. It is used with constant current load to easily detect cable resistance.

\n

Specifications:

\n

Material: ABS

\n

Monitor voltage: 4~24V

\n

Monitor voltage resolution: 0.00001V

\n

Monitor voltage accuracy: ±（0.2%+2）
