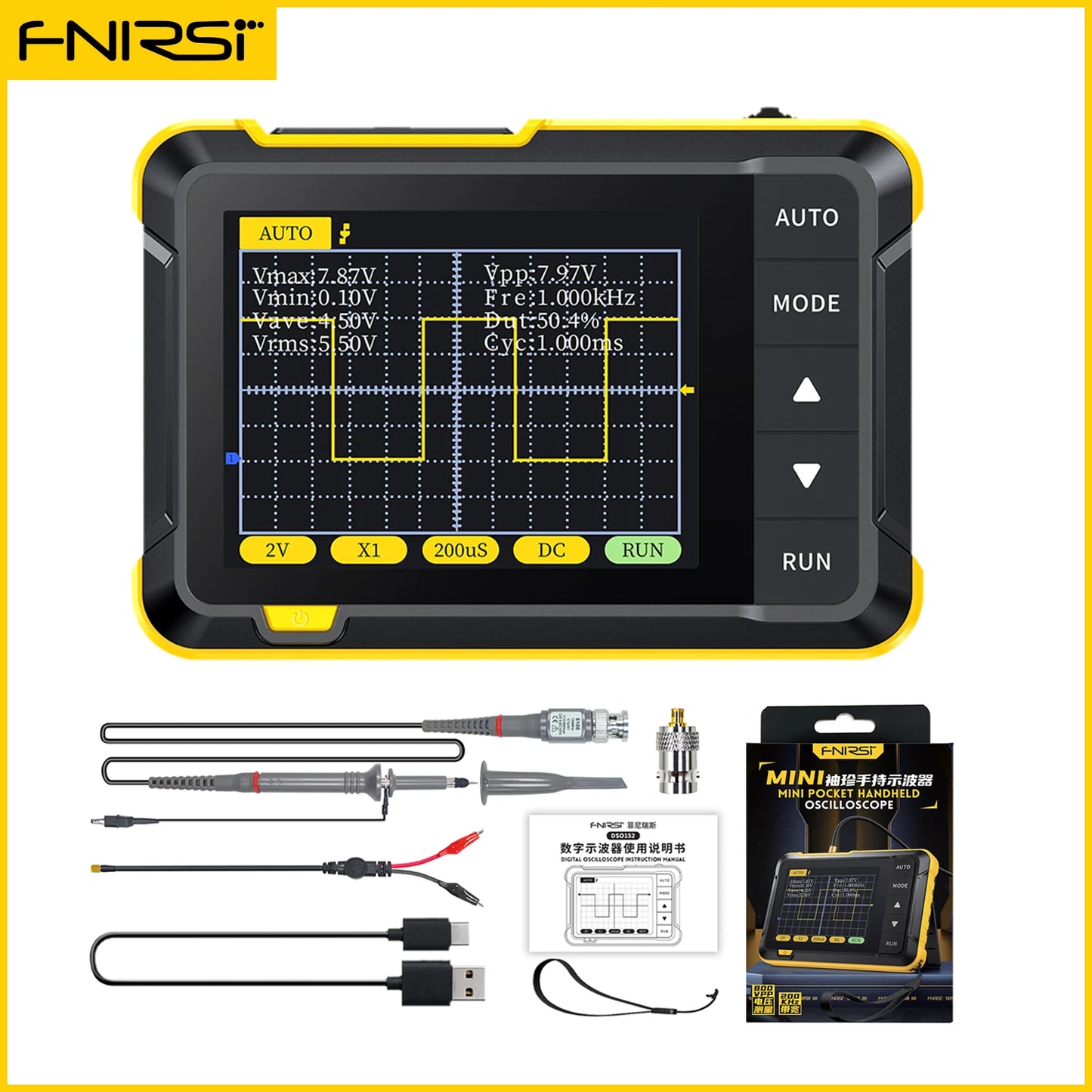

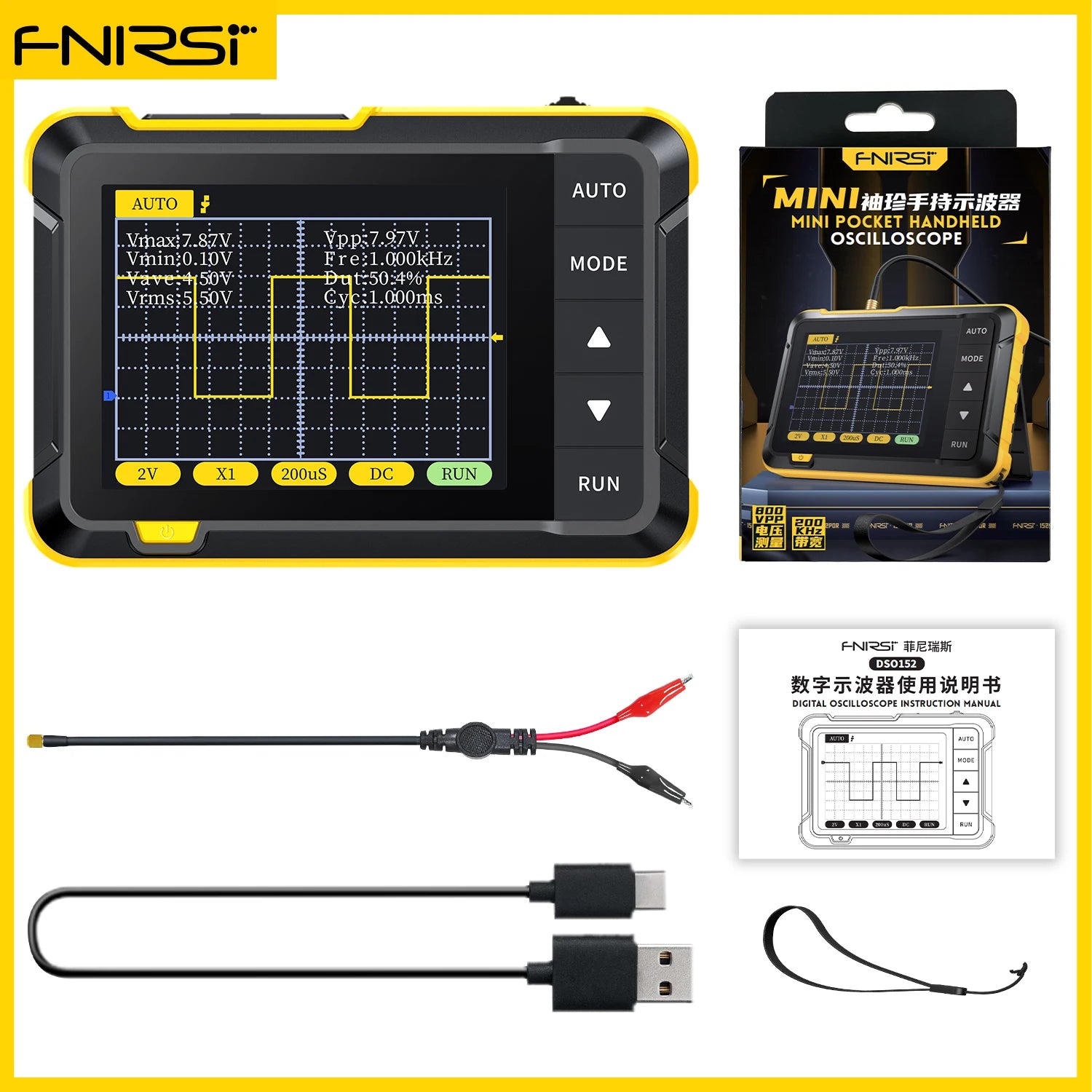

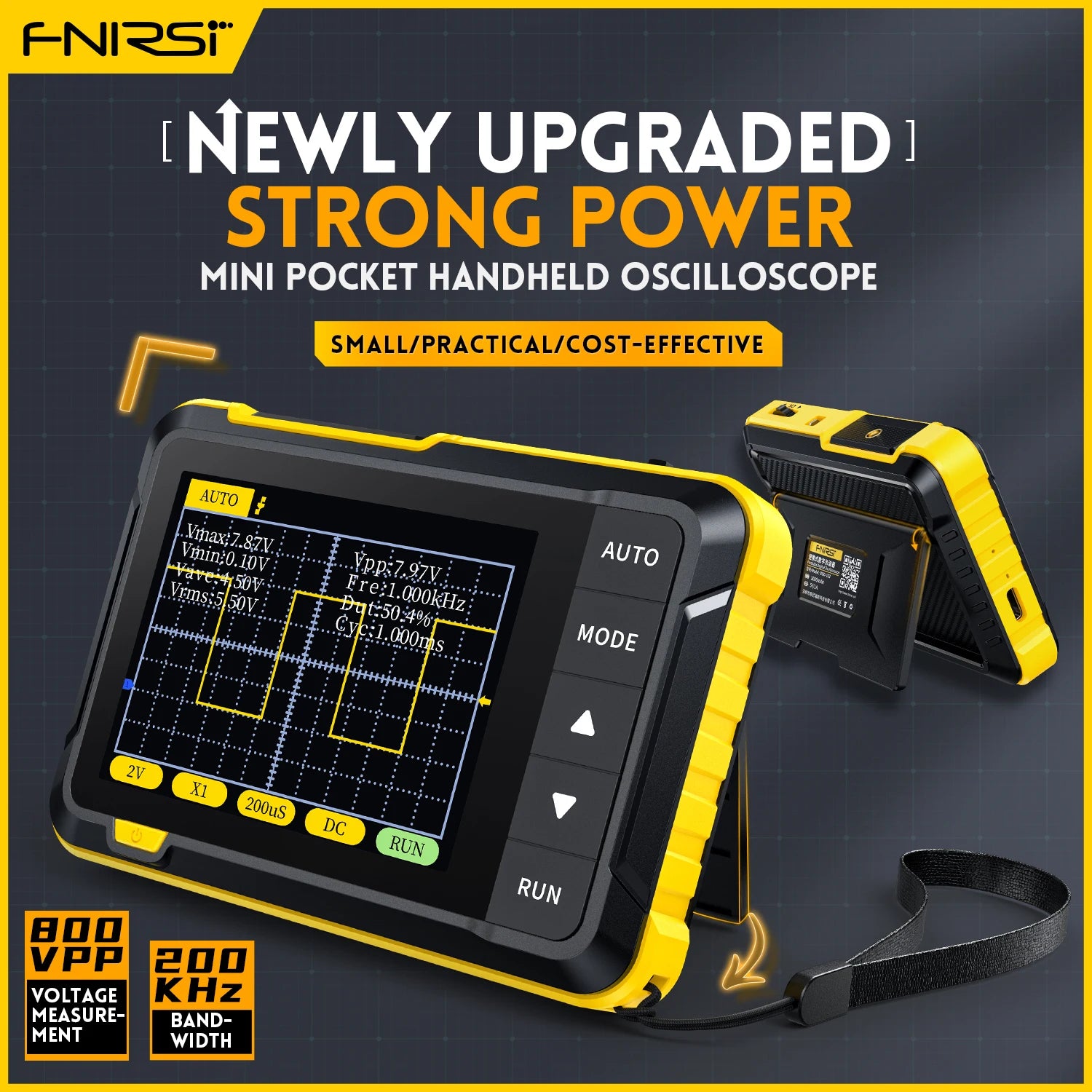

FNIRSI DSO152 Mini Handheld Digital Osciloscopio 2.5MSa/s 200KHz Analog Bandwidth 800VPP Support Firmware Upgrade PWM Output

FNIRSI DSO152 Mini Handheld Digital Osciloscopio 2.5MSa/s 200KHz Analog Bandwidth 800VPP Support Firmware Upgrade PWM Output

KSh7,651
KSh5,707 KSh7,651
Sale Sold out
Shipping calculated at checkout.
Color
Ships From
block: block, product: product, product_form_id: product_form_id, section_id: section.id, show_pickup_availability: true -%}

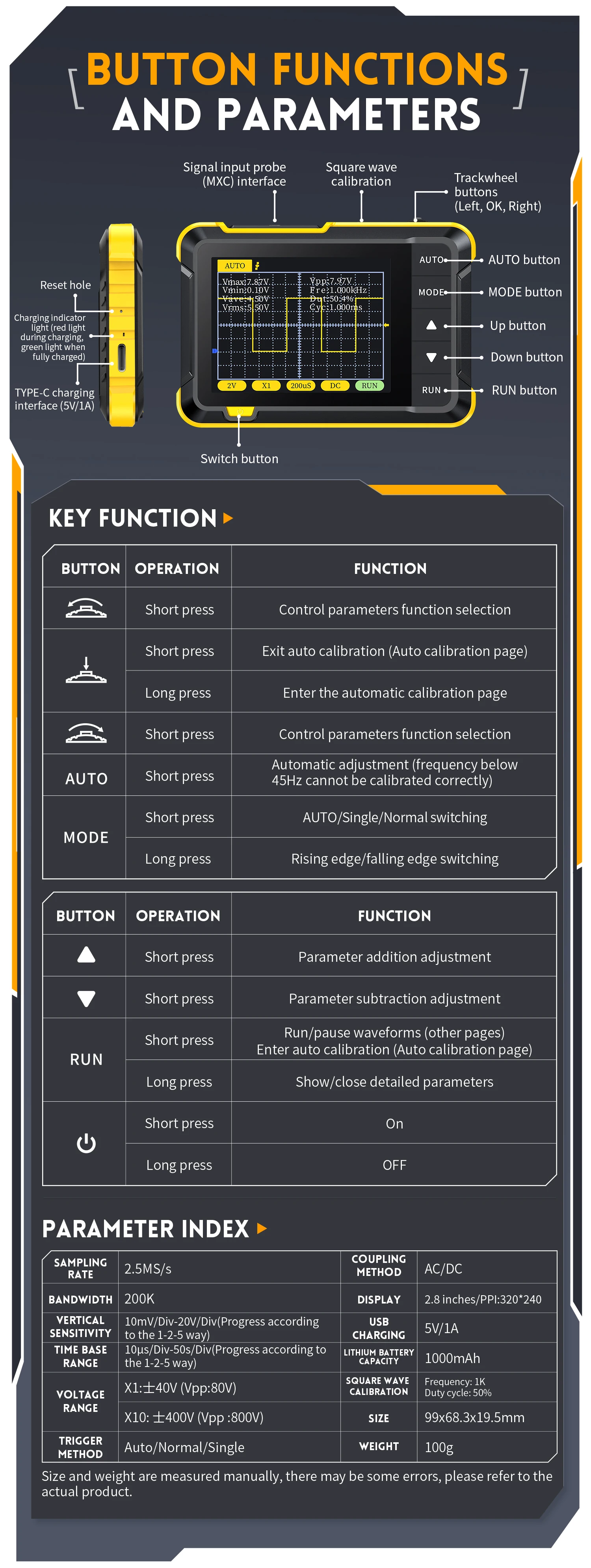

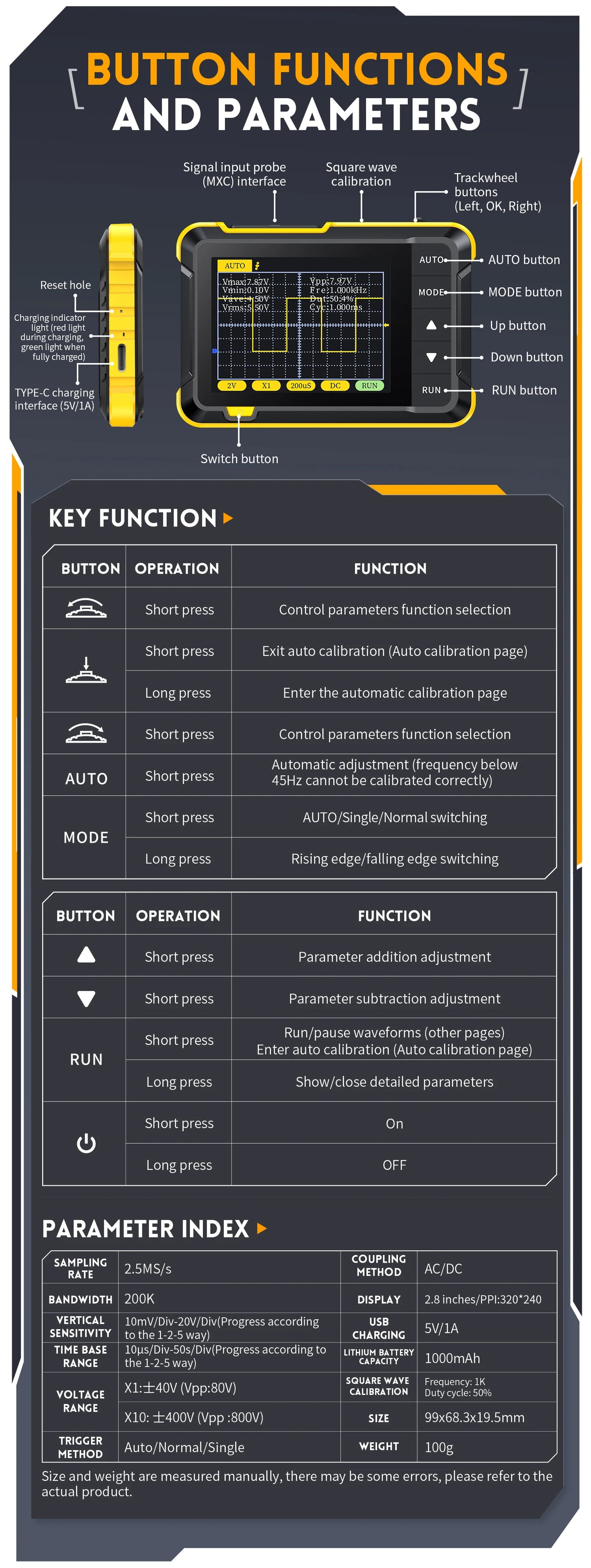

SPECIFICATIONS

Brand Name: FNIRSI

FNIRSI Model: DSO152

Origin: Mainland China

DIY Supplies: ELECTRICAL

Display resolution: 320*240 Pixels

Digital Channels: 1

Model Number: DSO150

IS Battery Demountable: Yes

Display Size: None

Certification: CE

Real Time Sampling Rate: as the d2.5MSa/sscription

Band Width: 200KHz

Vertical sensitivity: 10mV/Div-20V/Div(Progress according to the 1-2-5 way)

Time base range: 10μs/Div-50s/Div(Progress according to the 1-2-5 way)

Voltage range: 1X 400VPP 10X 800VPP

Trigger method: Auto/Normal/Single

Coupling method: AC/DC

Display: 2.8 inches/PPI:320*240

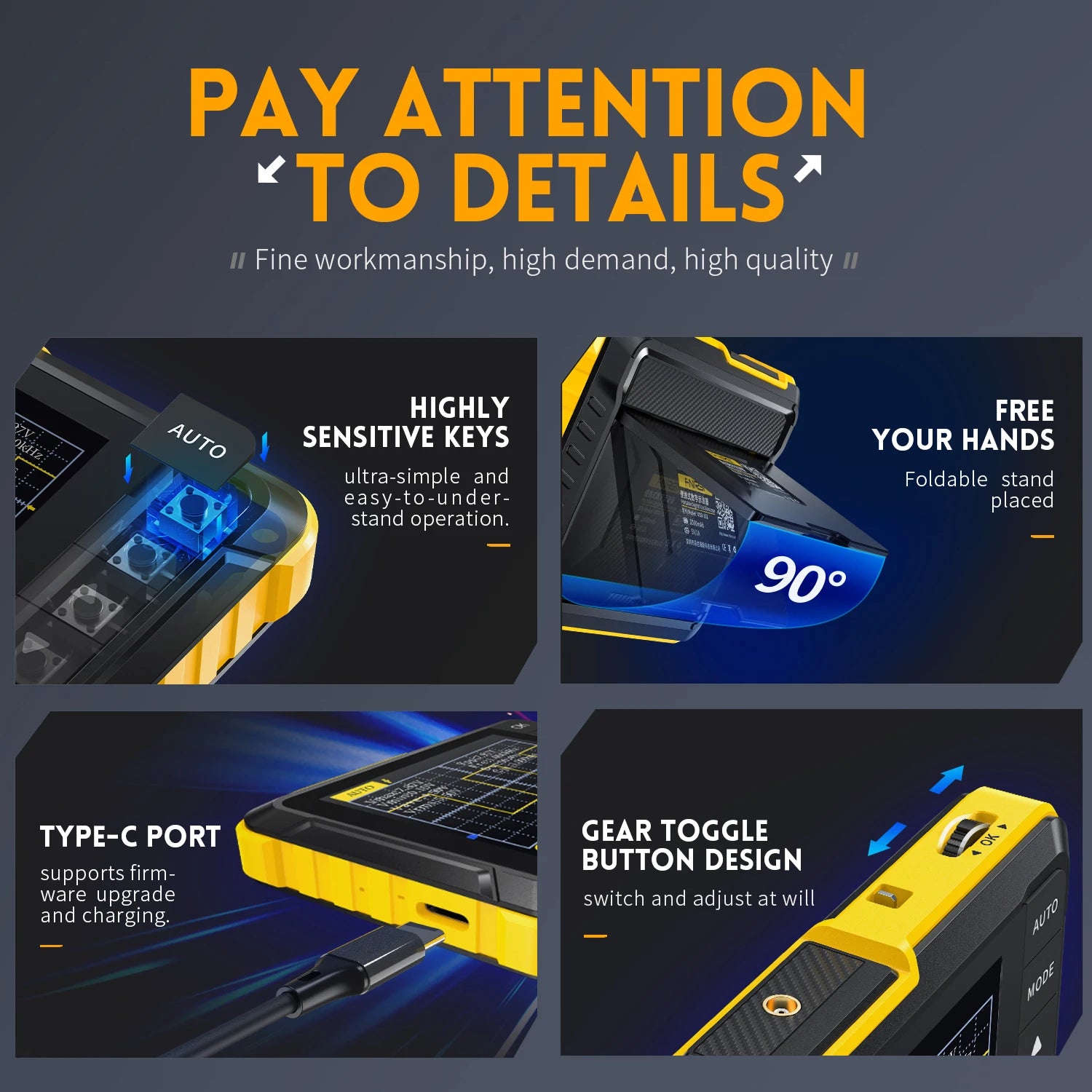

USB charging: 5V/1A

Lithium battery capacity: 1000mAh

Square wave calibration: Frequency: 1K Duty cycle: 50%

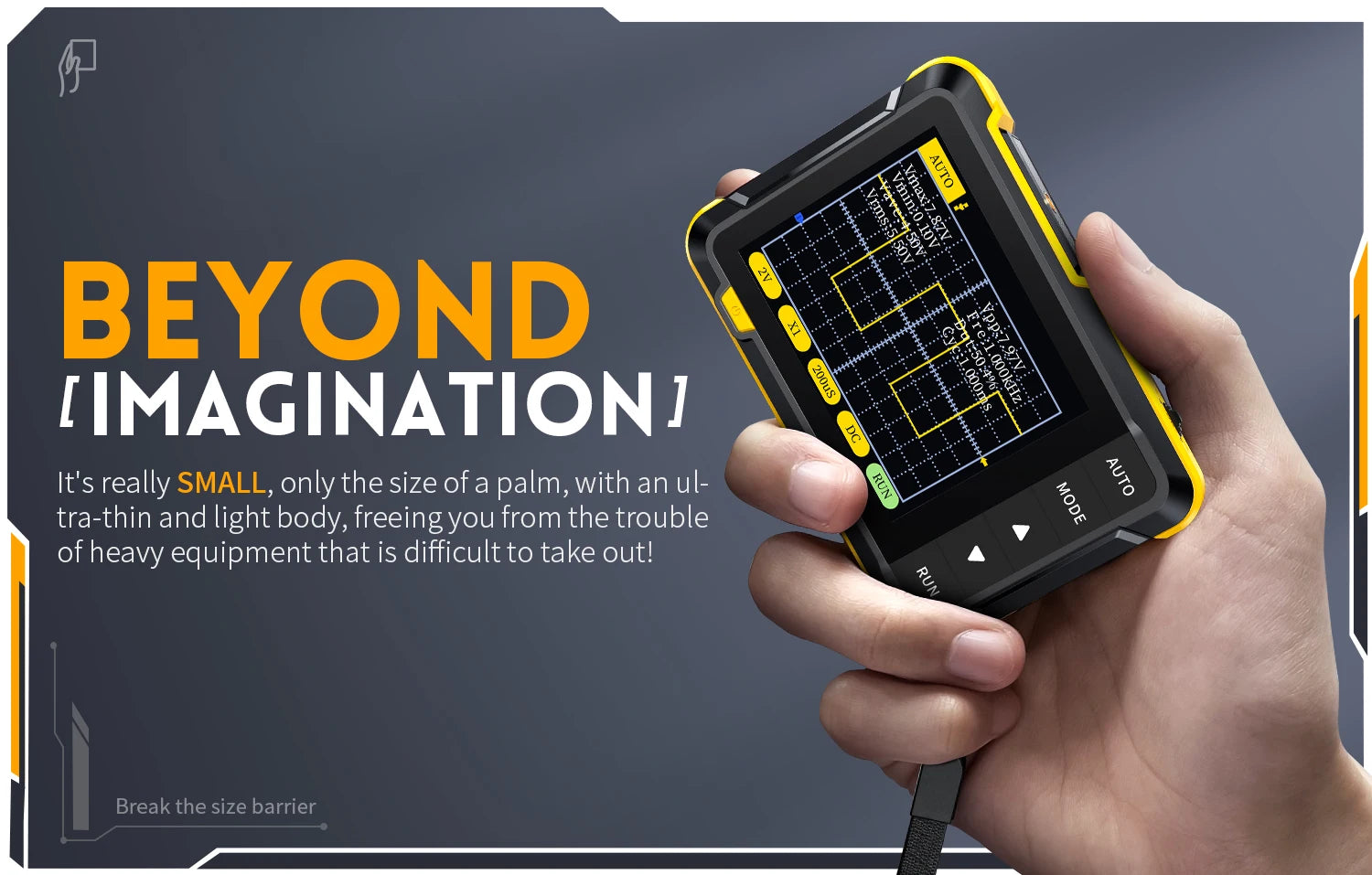

Size: 99mmx68.3mmx19.5mm

Weight: 100g

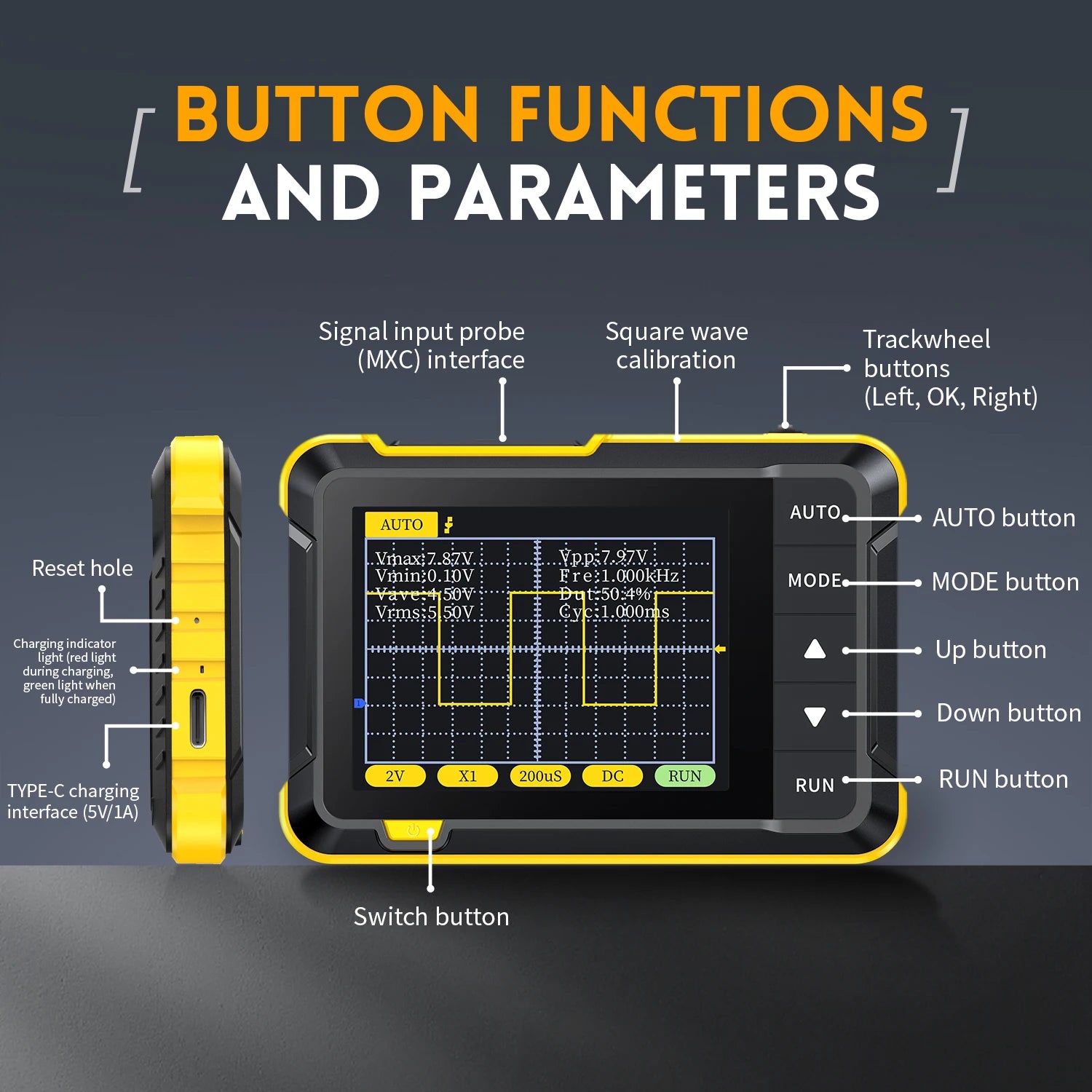

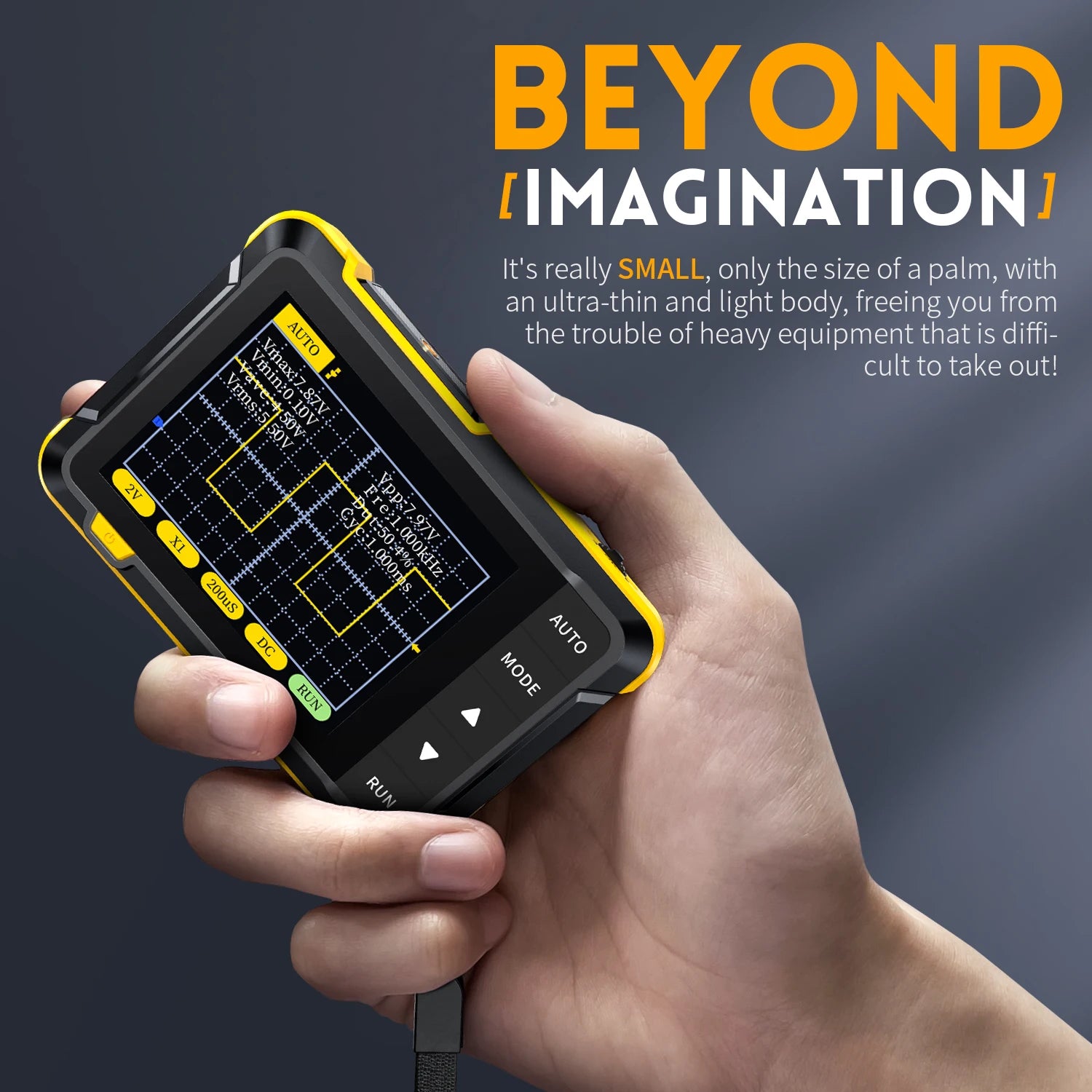

"DSO152" is a highly practical and cost-effective handheld oscillograph launched by our company, which is aimed at the maintenance industry and the research education industry.

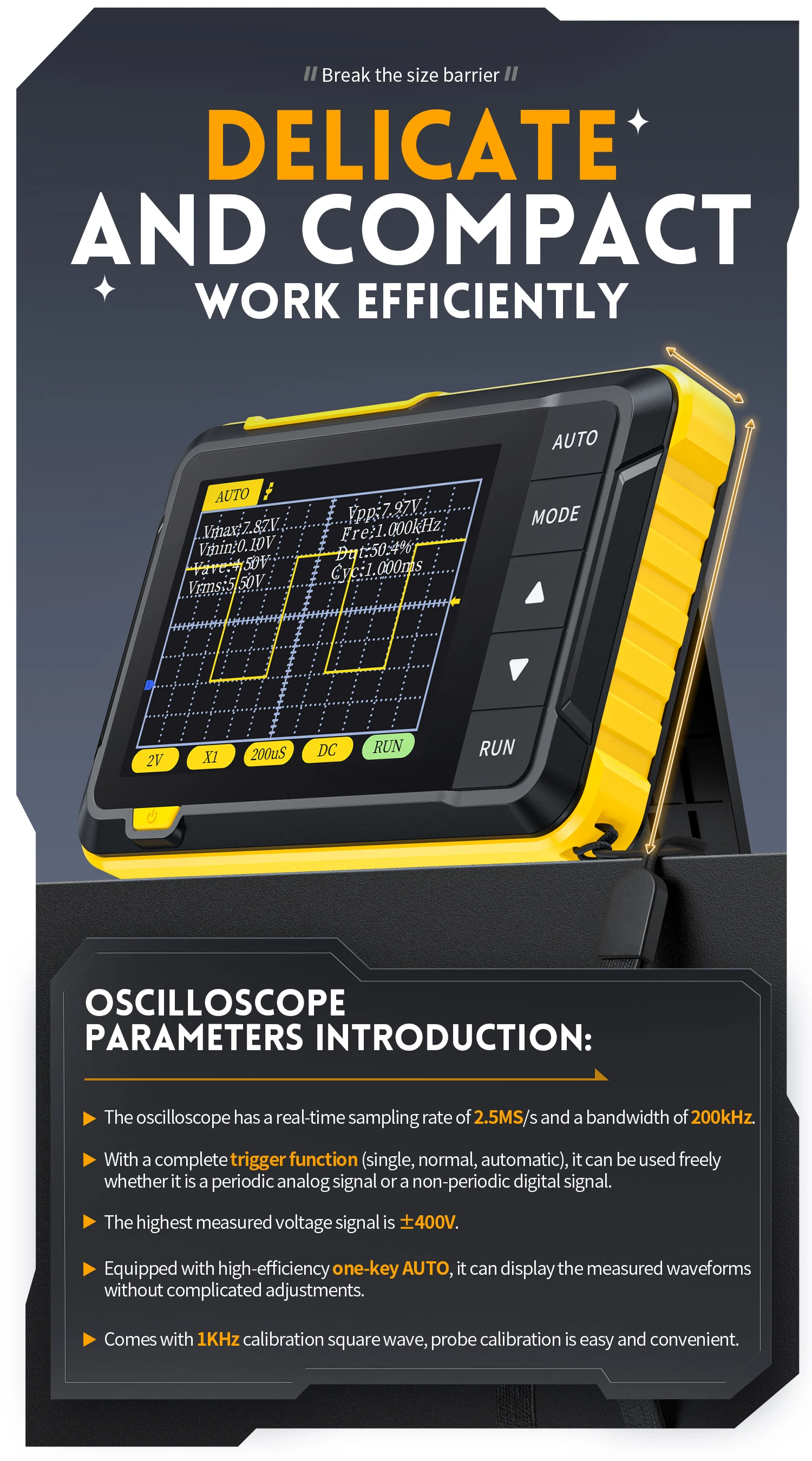

The oscillograph has a real-time sampling rate of 2.5MS/s, abandwidth of 200KHz, and complete trigger functions (single, normal, and automatic).

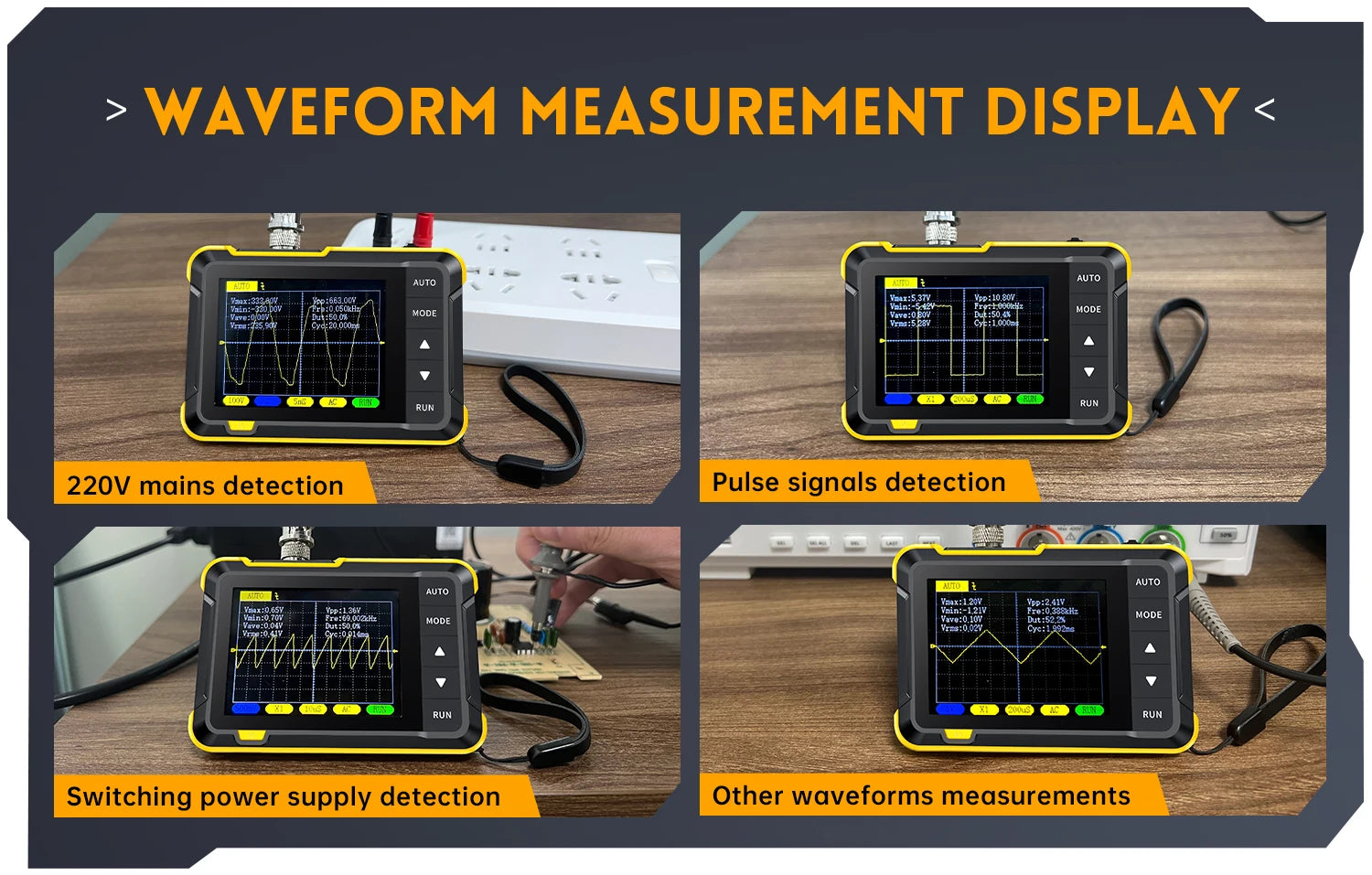

It can be used freely for both periodic analog signals and non-periodic digital signals, and can measure voltages up to ±400V.

Equipped with an efficient one-key AUTO, it can display the measured waveform without cumbersome adjustments.

Equipped with a 2.8-inch 320*240 resolution high-definition LCD screen.

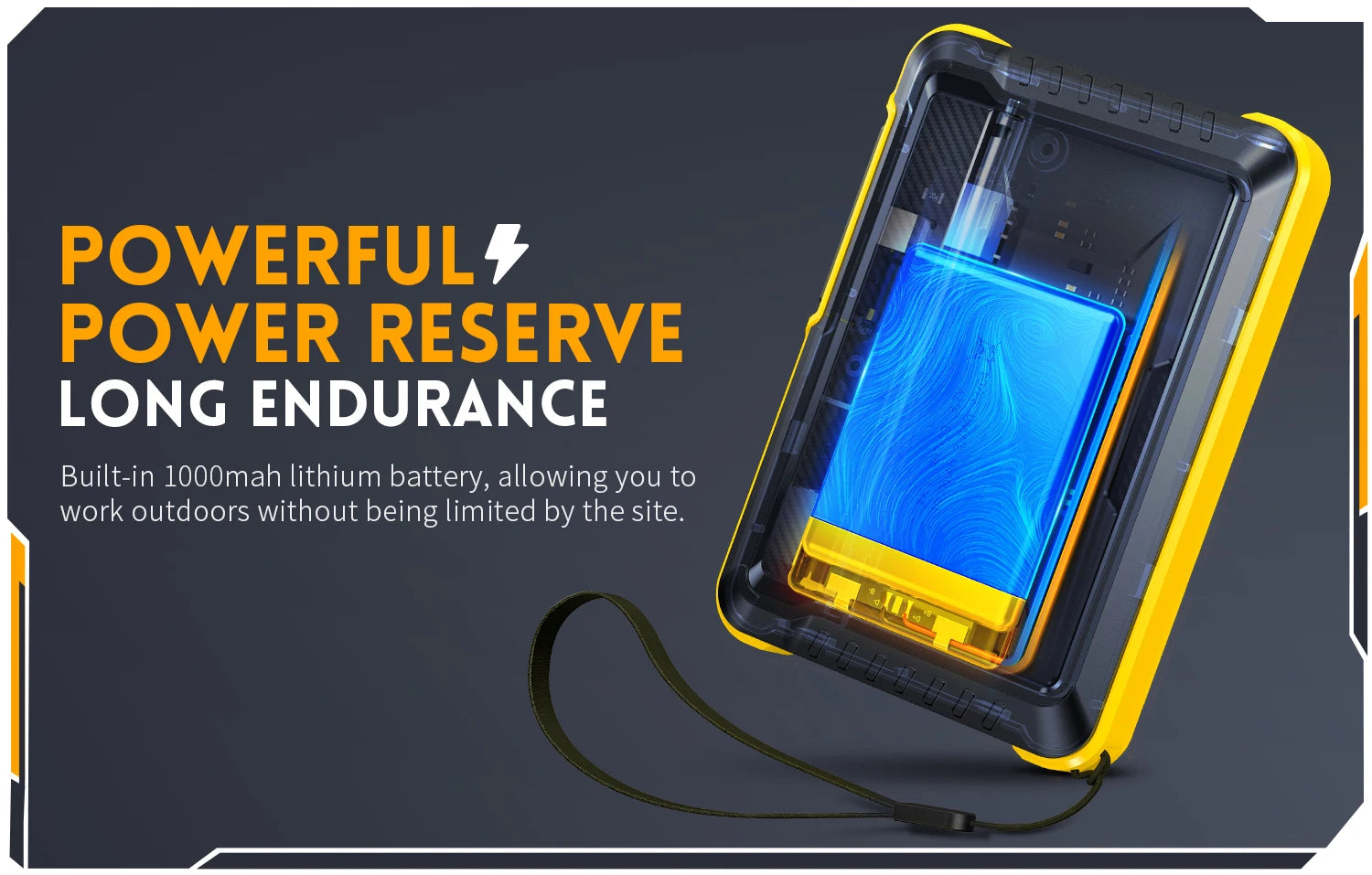

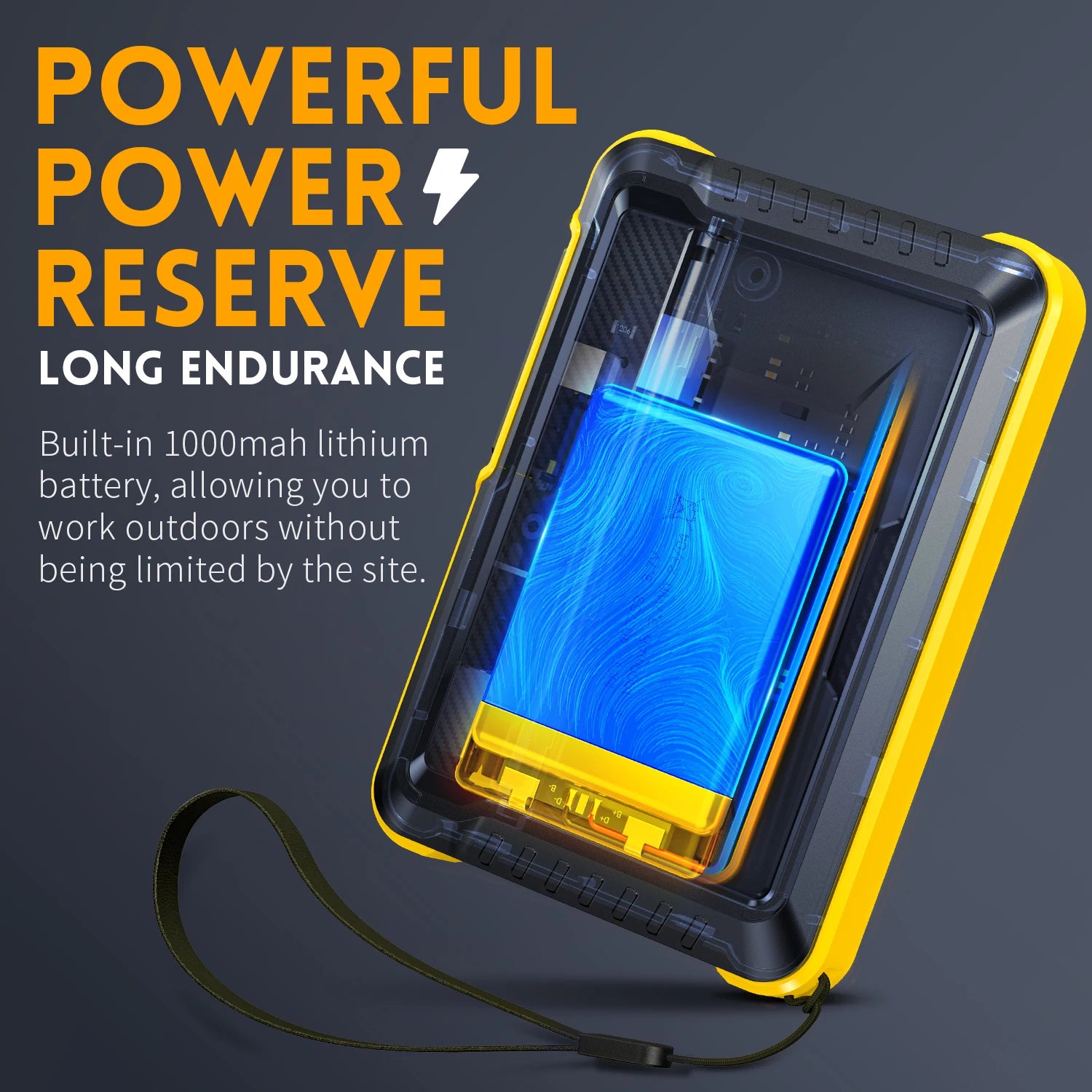

Built-in 1000mAh high-quality lithium battery, can be used continuously for about 4 hours after fully charged.
