SPECIFICATIONS

Accuracy: ±0.5%

Battery: 1000mAh lithium battery

Brand Name: FNIRSI

Certification: CE

Choice: yes

DIY Supplies: Electrical

Hign-concerned Chemical: None

History recoed: Support

Model Number: HRM-10

Origin: Mainland China

Recorded data export: Support

Relative humidity: <80%

Resistance gear: Auto, 20mΩ, 200mΩ, 2Ω, 20Ω, 200Ω

Resistance measuring range: 0 ~ 200Ω

Signal frequency: AC 1Khz

Sorting mode: Support

Storage environment: -20℃ ~ +80℃

Type: Vehicle Battery Tester

User calibration: Support

Voltage gear: Auto, 1V, 10V, 100V

Voltage measuring range: 0 ~ ±100V (DC)

Working environment: -10℃ ~ +45℃

semi_Choice: yes

FNIRSI HRM-10 0-100V Voltage 0mΩ-200Ω Resistance Battery Tester Meter 18650 Lithium Lead-acid Battery Internal Resistance Tester

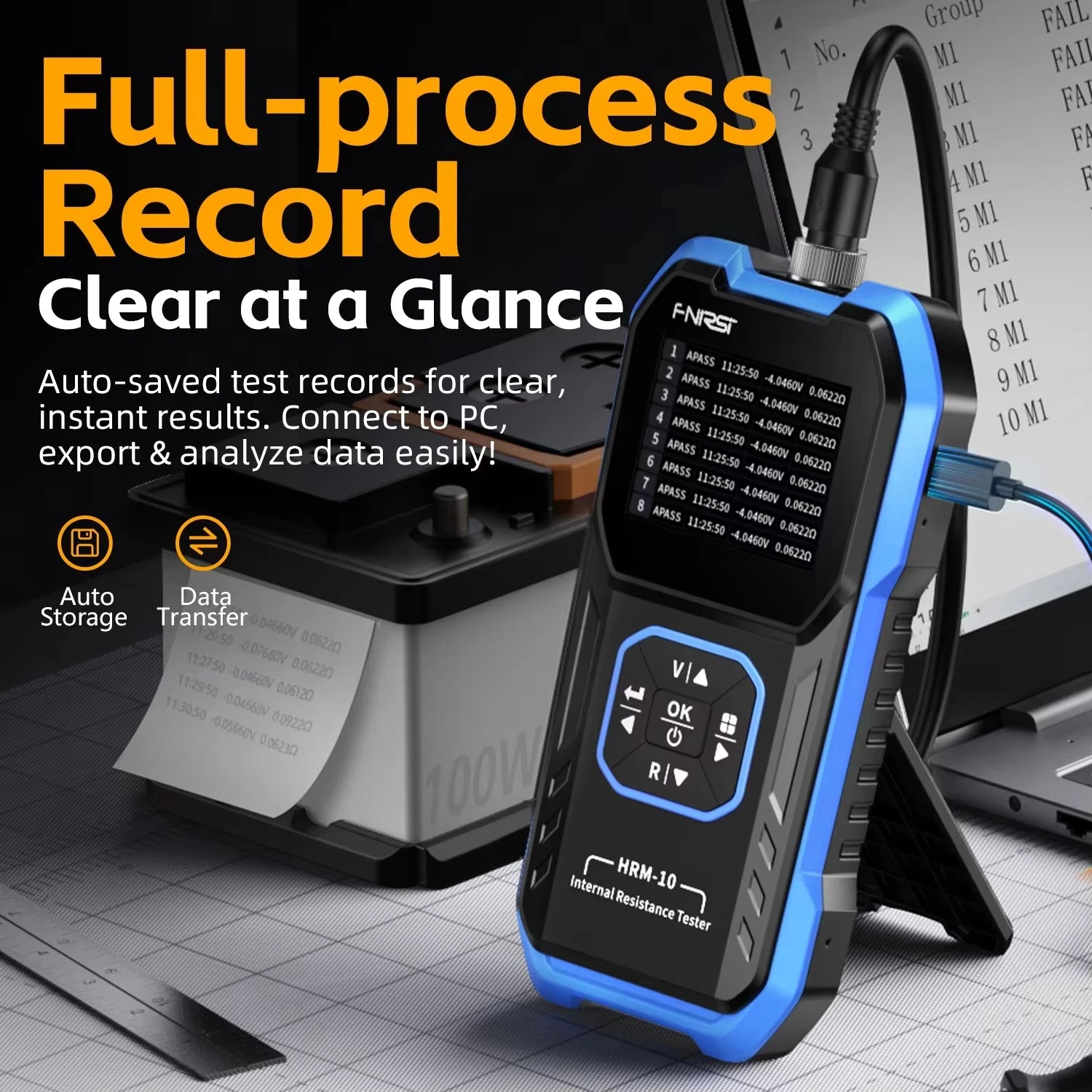

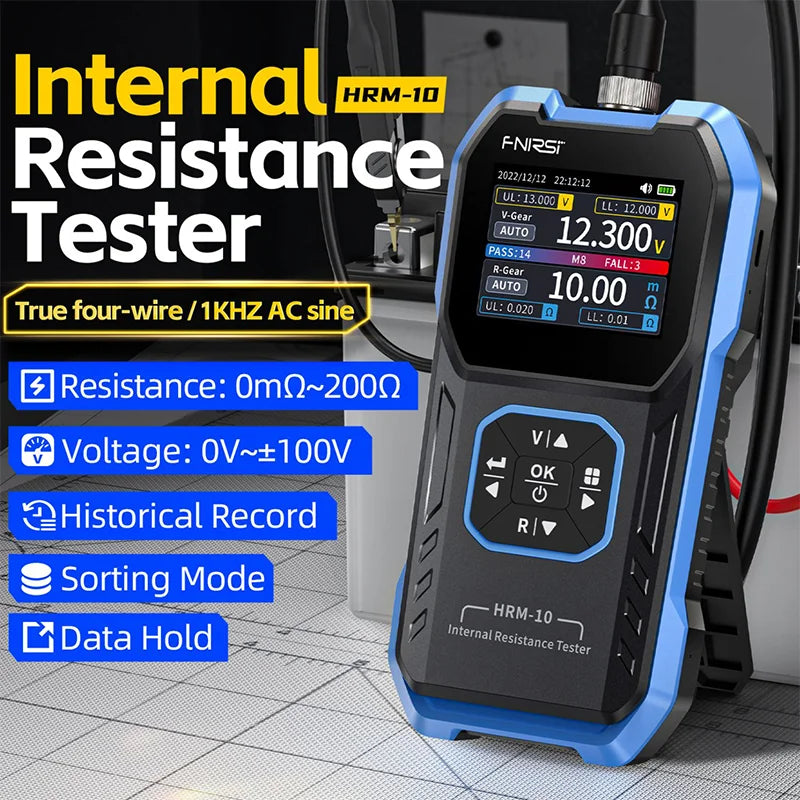

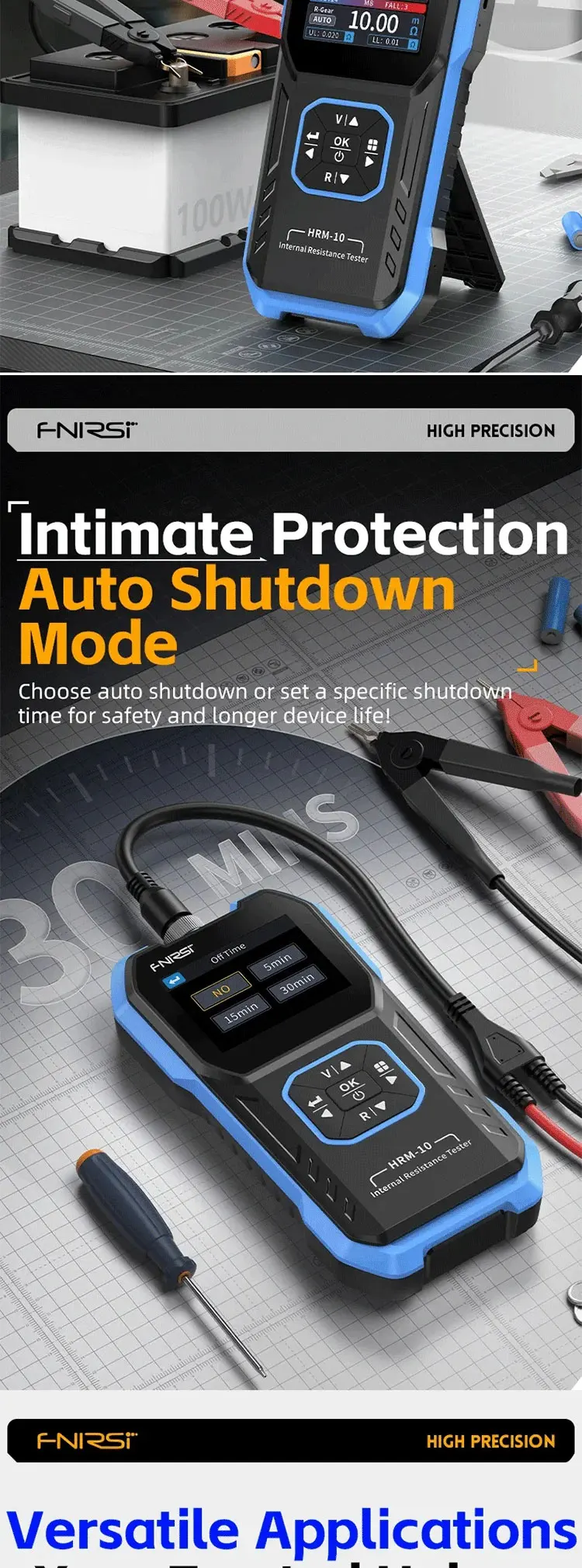

FNIRSI "HRM-10" is our company's first handheld high-precision attery internal resistance meter. It is a true four-wire measurement internal resistance meter, designed with precision, convenient to carry. The device can automatically test internal resistance and voltage values simultaneously, with measurement results displayed on the screen. Users can also manually adjust the voltage and resistance range. The product features a sorting mode, automatically filtering the good and bad batteries based on user-set thresholds. It also supports historical records and exporting data tables of historical measurements.

Describe：

Voltage measuring range：0 — ±100V（DC）

Voltage gear：Automatic, 1V, 10V, 100V

Resistance measuring range：0 — 200Ω

Resistance gear：Automatic, 20mΩ, 200mΩ, 2Ω, 20Ω, 200Ω

Accuracy：±0.5%

Instrument test signal frequency：AC 1Khz

Rechargeable：Type-C interface (5V/1A)

Built-in battery：1000mAh lithium battery

User calibration：Support

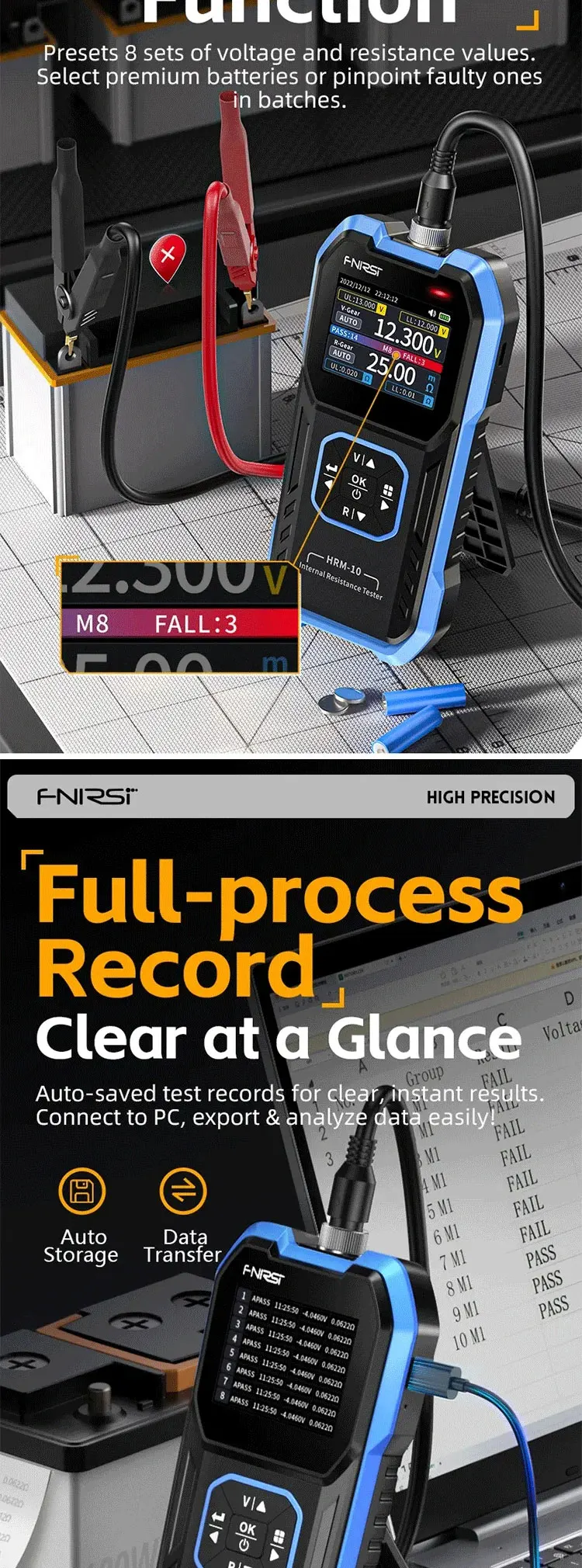

Sorting mode：Support

History recoed：Support

Recorded data export：Support

Working environment：-10℃ ~ +45℃, relative humidity<80%

Storage environment：-20℃ ~ +80℃, relative humidity<80%

Size：158.7×80.5×28.4mm

Weight：225g
