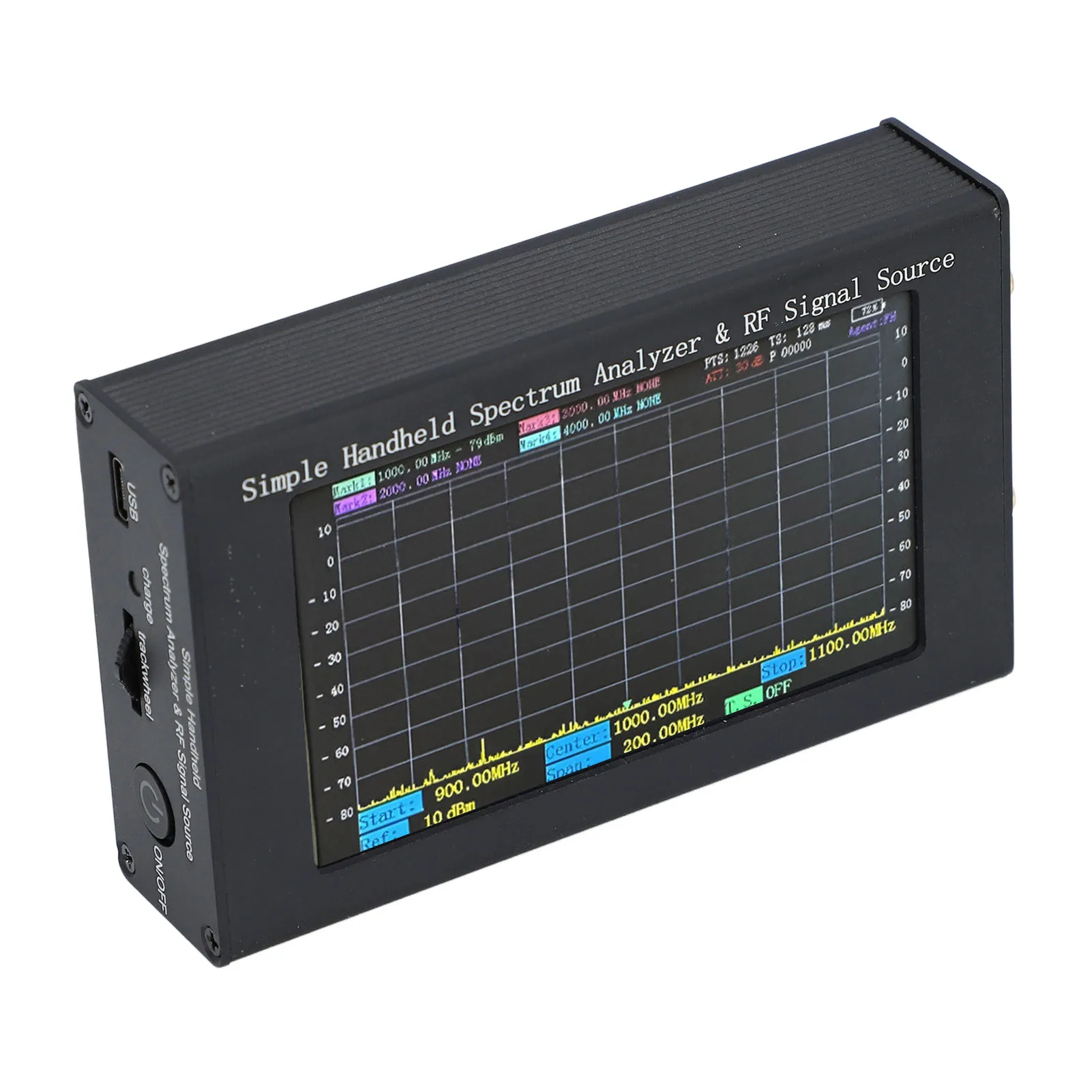

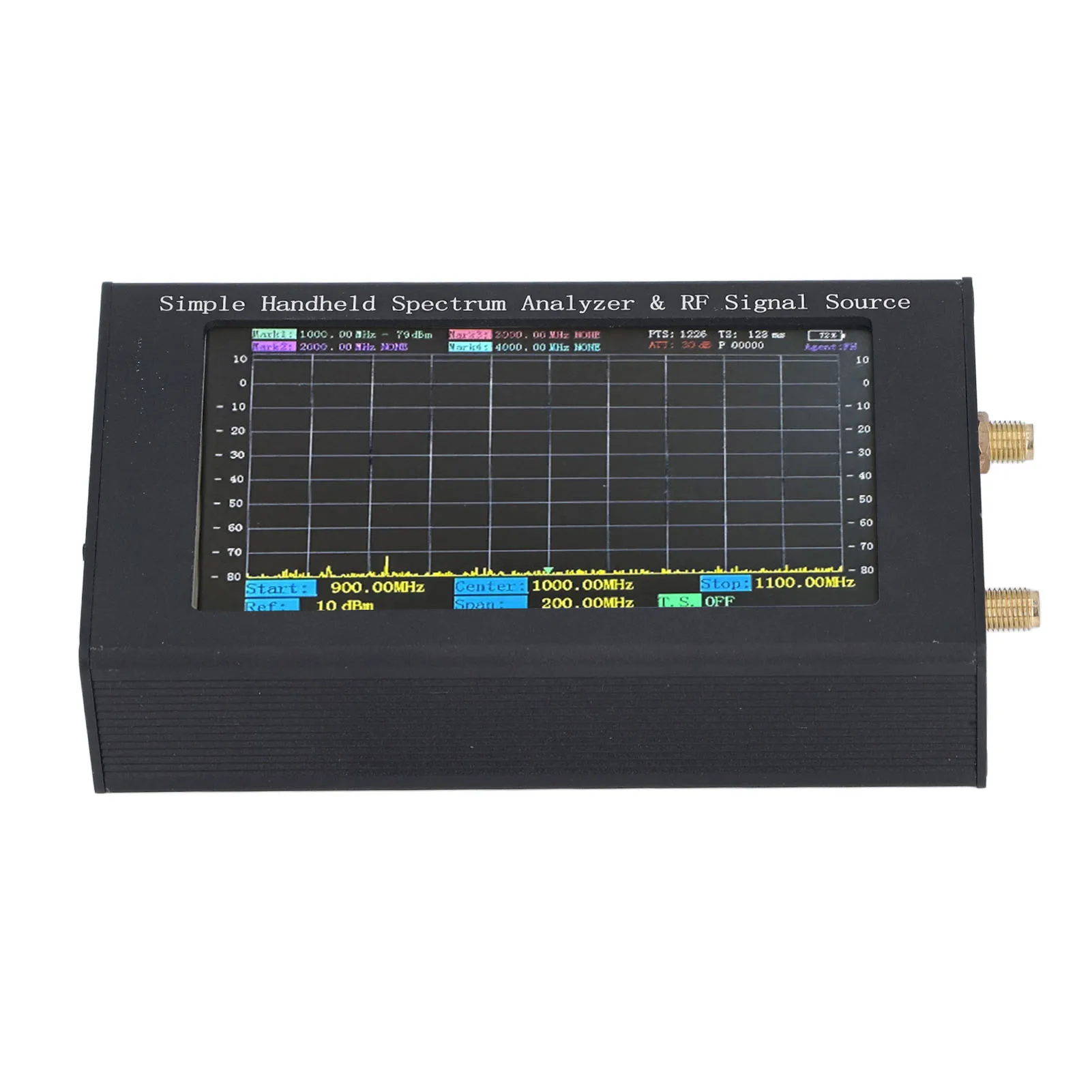

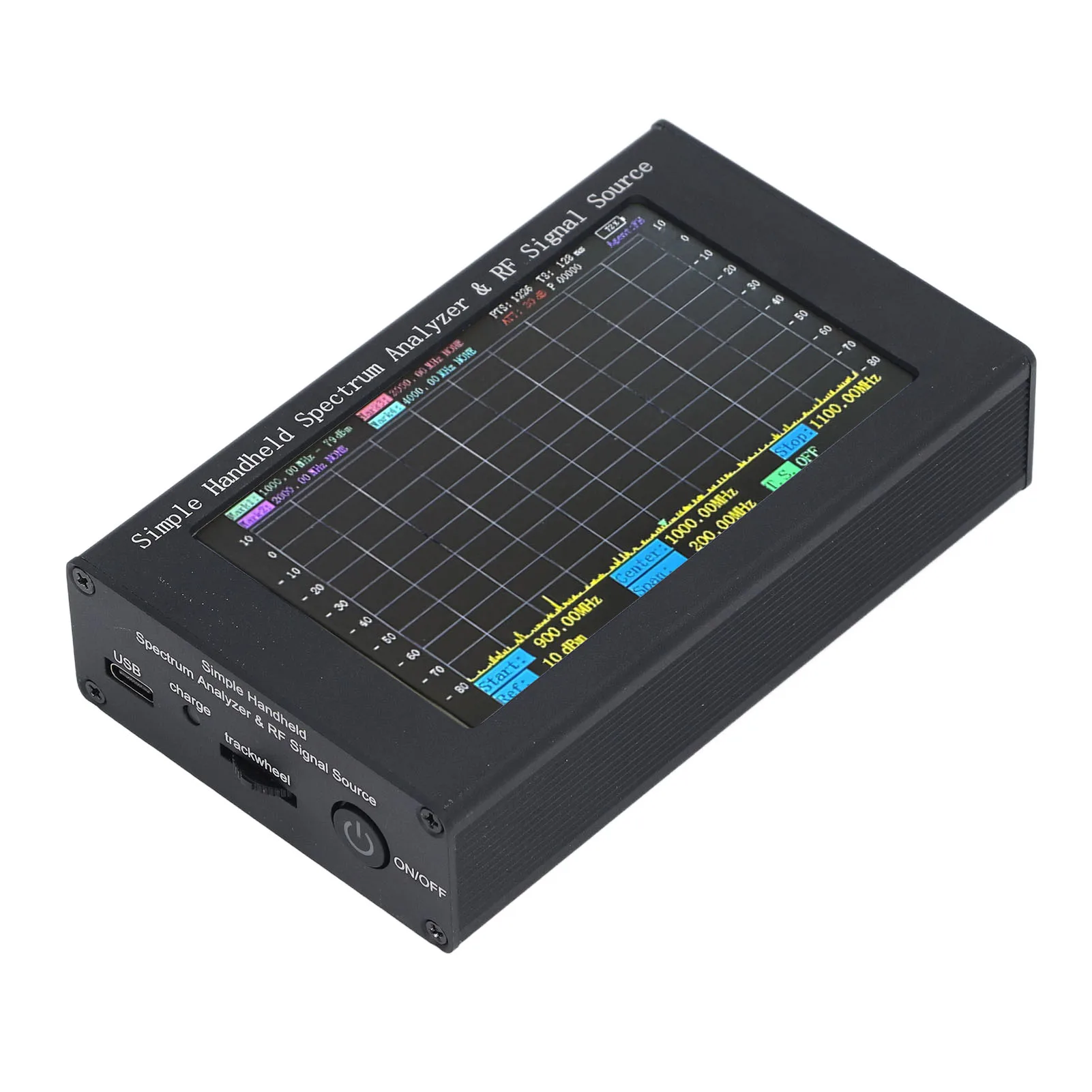

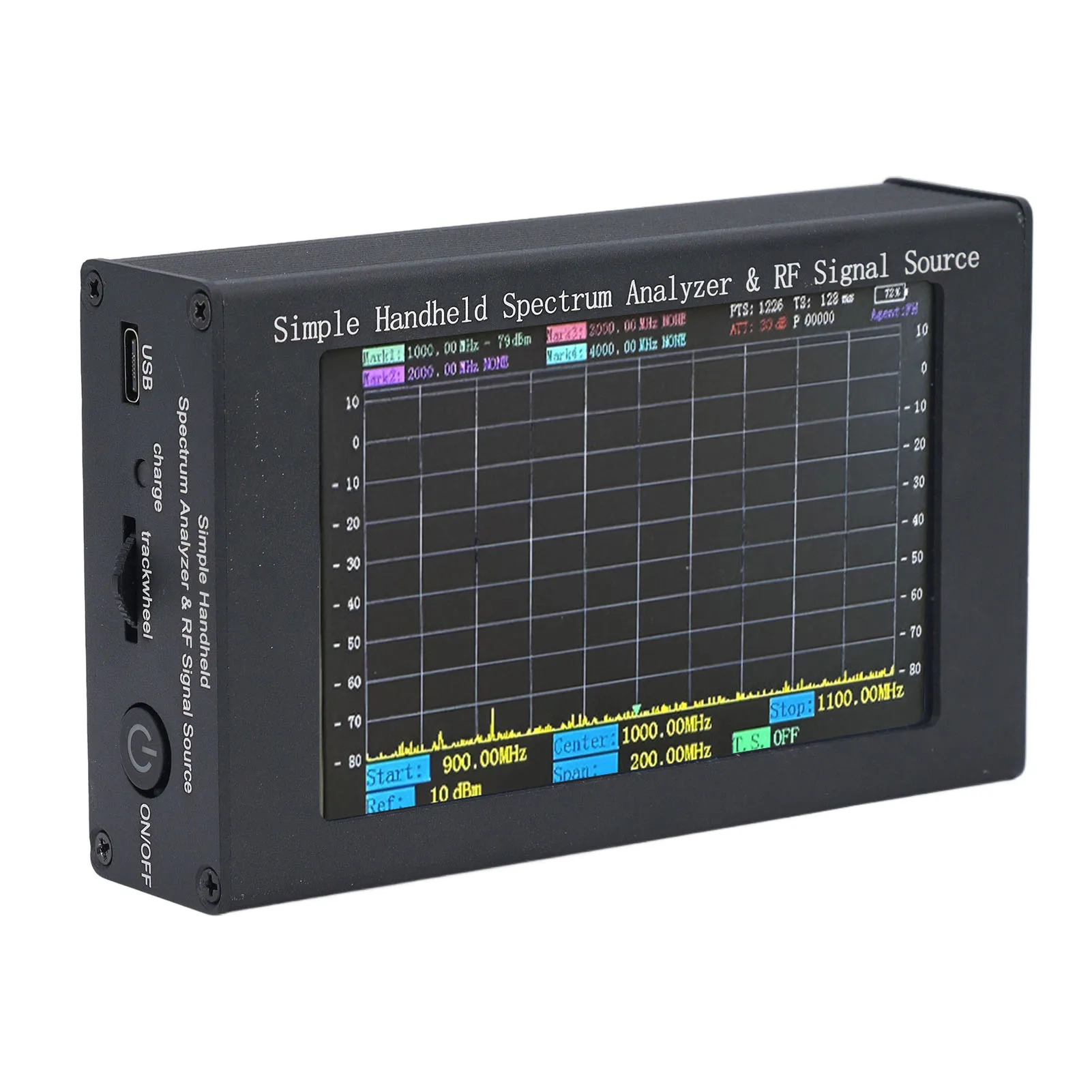

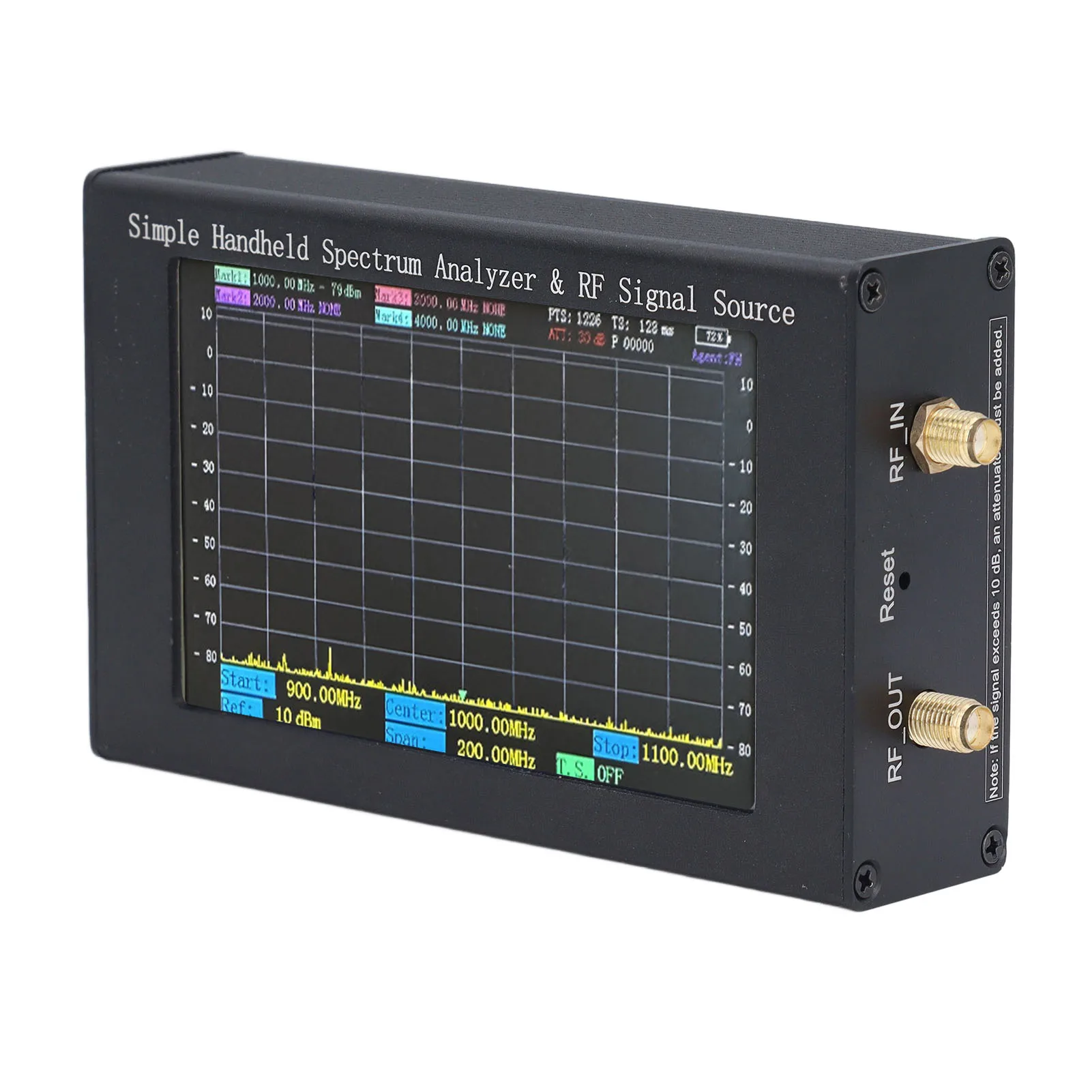

Frequency Analyzer Spectrum Analyzer 35MHz To 6000MHz 4.3 Inch Color Screen Handheld Spectrum Analyzer and Generator
Frequency Analyzer Spectrum Analyzer 35MHz To 6000MHz 4.3 Inch Color Screen Handheld Spectrum Analyzer and Generator
Couldn't load pickup availability
SPECIFICATIONS
Battery Included: No
Brand Name: YOSOO
Certification: CE
Choice: yes
DIY Supplies: Electrical
Hign-concerned Chemical: None
Origin: Mainland China
Spectrum Analyzer 35MHz To 6000MHz 4.3 Inch Color Screen Handheld Spectrum Analyzer and Signal Generator
Feature:
1. [Wide Frequency Range] The spectrum analyzer covers a frequency range from 35MHz to 6000MHz, providing comprehensive analysis capabilities for various applications.2. [Versatile Functionality] This device combines spectrum analyzer, tracking source, and signal source functions, making it a powerful tool suitable for various applications and scenarios.

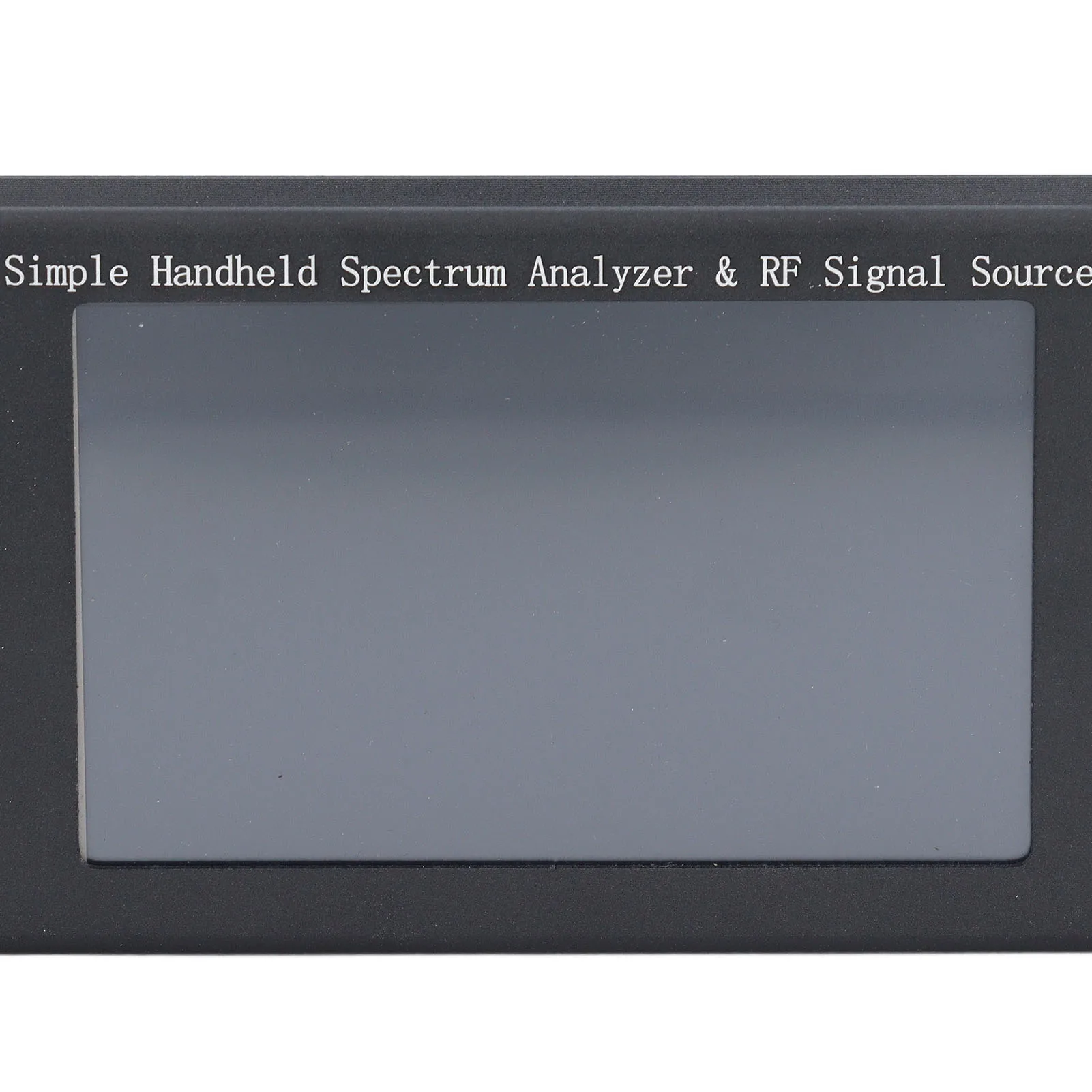

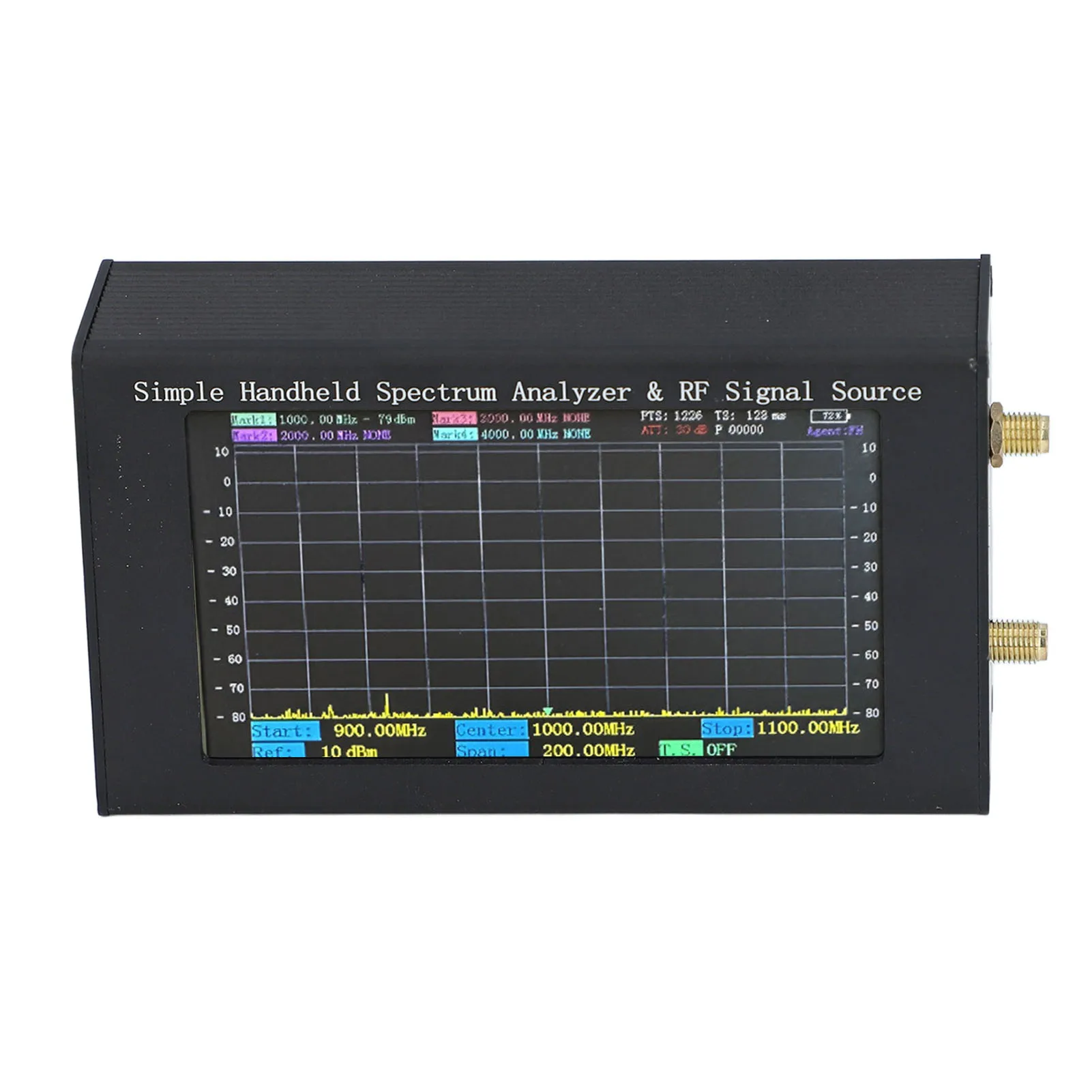

3. [4.3 Inch Display] Equipped with a 4.3 inch color screen, provides a clear and responsive display for real time data monitoring, comes with a stylus for convenient operation.
4. [Extended Battery Life] Powered by 5000mAh battery, the handheld spectrum analyzer ensures extended operation time. Its USB charging capability allows for convenient charging.
5. [External Antenna Compatibility] By placing an external antenna on base stations, this spectrum analyzer signal generator enables quick analysis of RF environments, testing relays, signal generators, filters, etc.
Specification:
Item Type: Spectrum AnalyzerMaterial: Aluminum Alloy
Scanning Frequency Range: 35-6000MHz
Maximum Scanning Width: 5965MHz
Scanning Bandwidth: 200KHZ
100mhz Scanning Time: Background Noise: -115dBm
Tracking Source Range: 35-6000MHz
Frequency Output Range (Point Frequency): 23.5-6000MHz
Frequency Accuracy (Point Frequency): 0.01MHz
Output Signal Strength (Point Frequency): -30dBm-0dBm
Output Signal Strength Adjustment Step (Point Frequency): 0.5dBm
Scanning Range (Frequency Sweep): 23.5-6000MHz
Sweep Frequency Point Minimum Step (Sweep Frequency): 0.01MHz
Frequency Interval Time (Sweep Frequency): 0.1-500ms
Sweep Frequency Time Minimum Step: 0.1ms
Battery Capacity: Rechargeable Lithium Battery 5000mAh x 1 (Built in)
Endurance: 5-6h
How to Use:

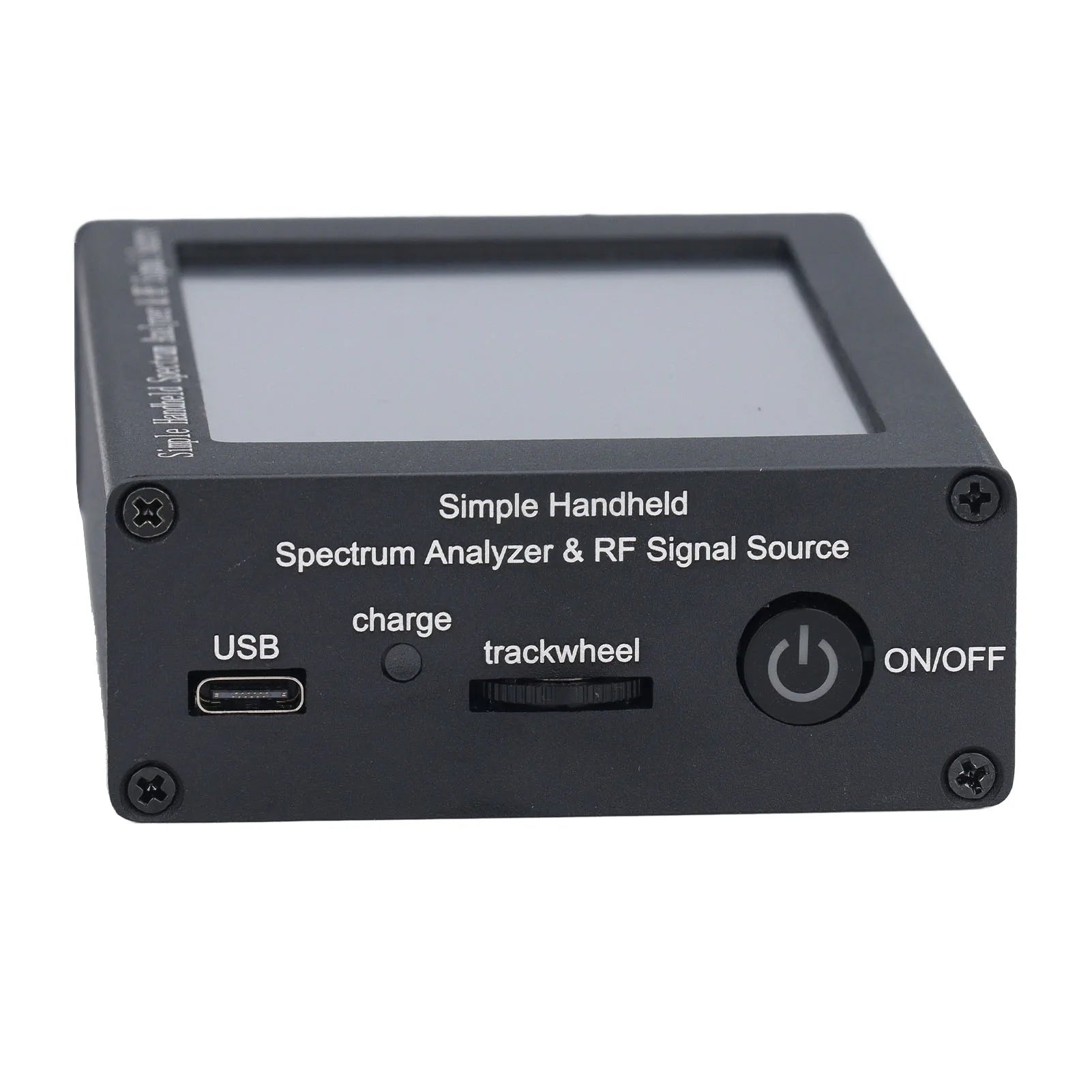

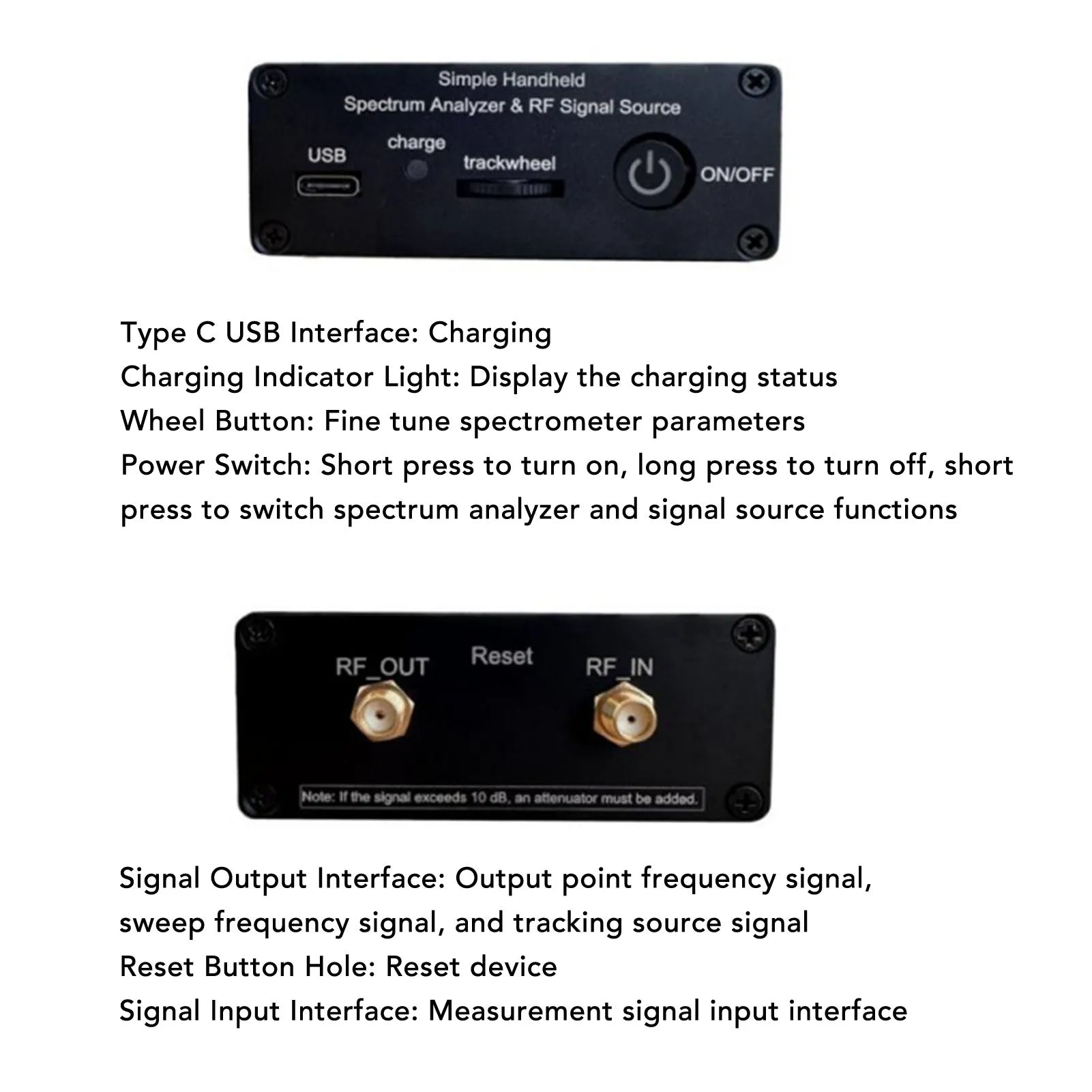

1. Power On and OffPress the power switch to turn on. Long press the power switch to save data and turn off. During use, short press the power switch to switch between the signal source function or spectrum analyzer function.

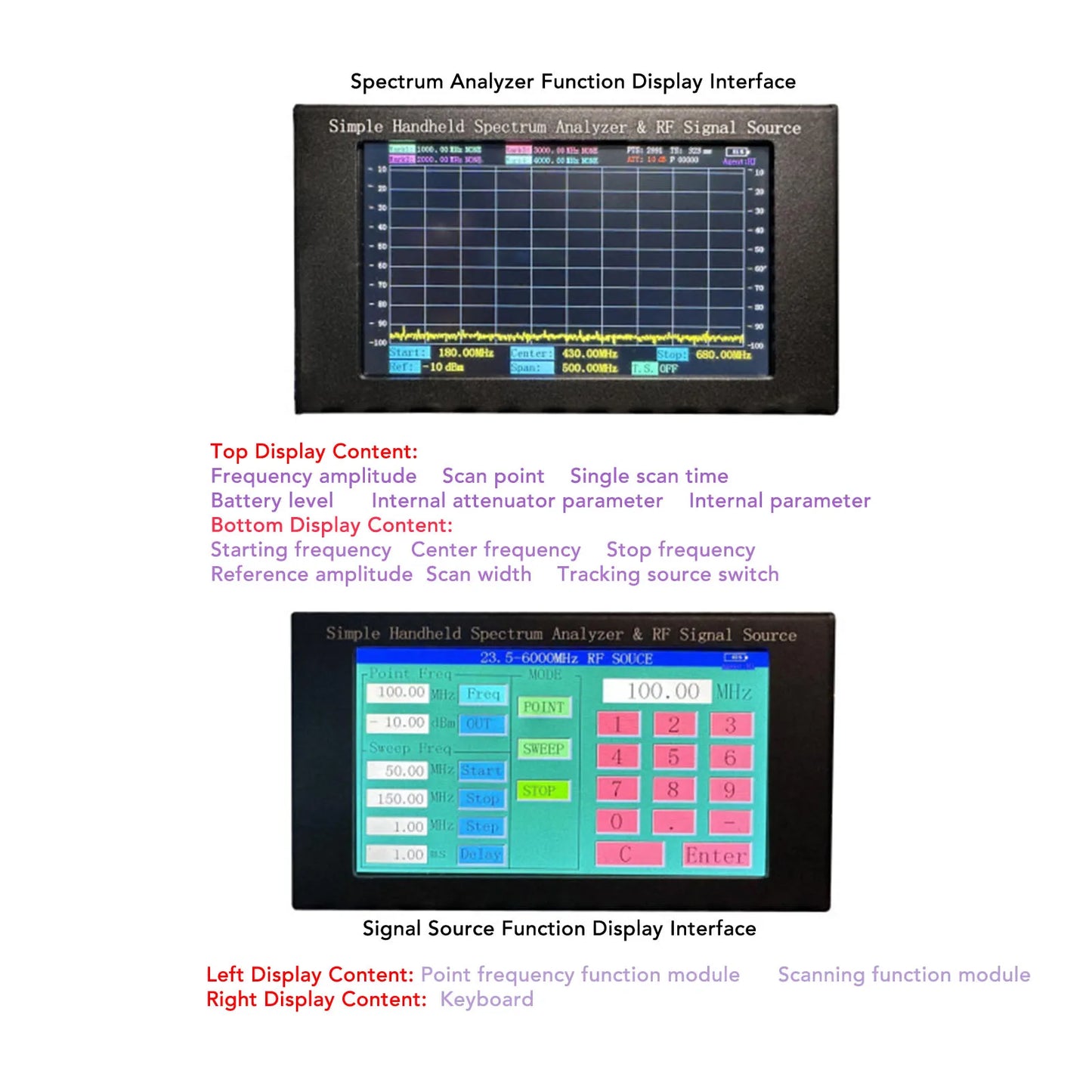

2. When using the spectrum analyzer function, lightly touch the corresponding button on the screen to set the parameters. Different parameters can be adjusted on the parameter setting interface. Press the OK button to save the data and press the Exit button to exit the setting.
3. In the spectrum analyzer interface, T.S is the tracking source switch, please pay attention to the tracking source status during use. When performing spectrum scan, please turn off the tracking source, otherwise, it will interfere with the measurement. When using the tracking source, please prepare the related hardware such as a reflection bridge by yourself.
4. When using the spectrum analyzer function, please note whether the signal source function has turned on the signal output to avoid interference from the self interference signal affecting the measurement. In the signal source on state, the spectrum analyzer can also measure the signal source output signal itself.
5. When using the signal function, lightly touch the corresponding button to input the required parameters on the right keyboard, and click the OK button to update. The menu in the middle can modify the working states such as point frequency, sweep frequency, and stop.

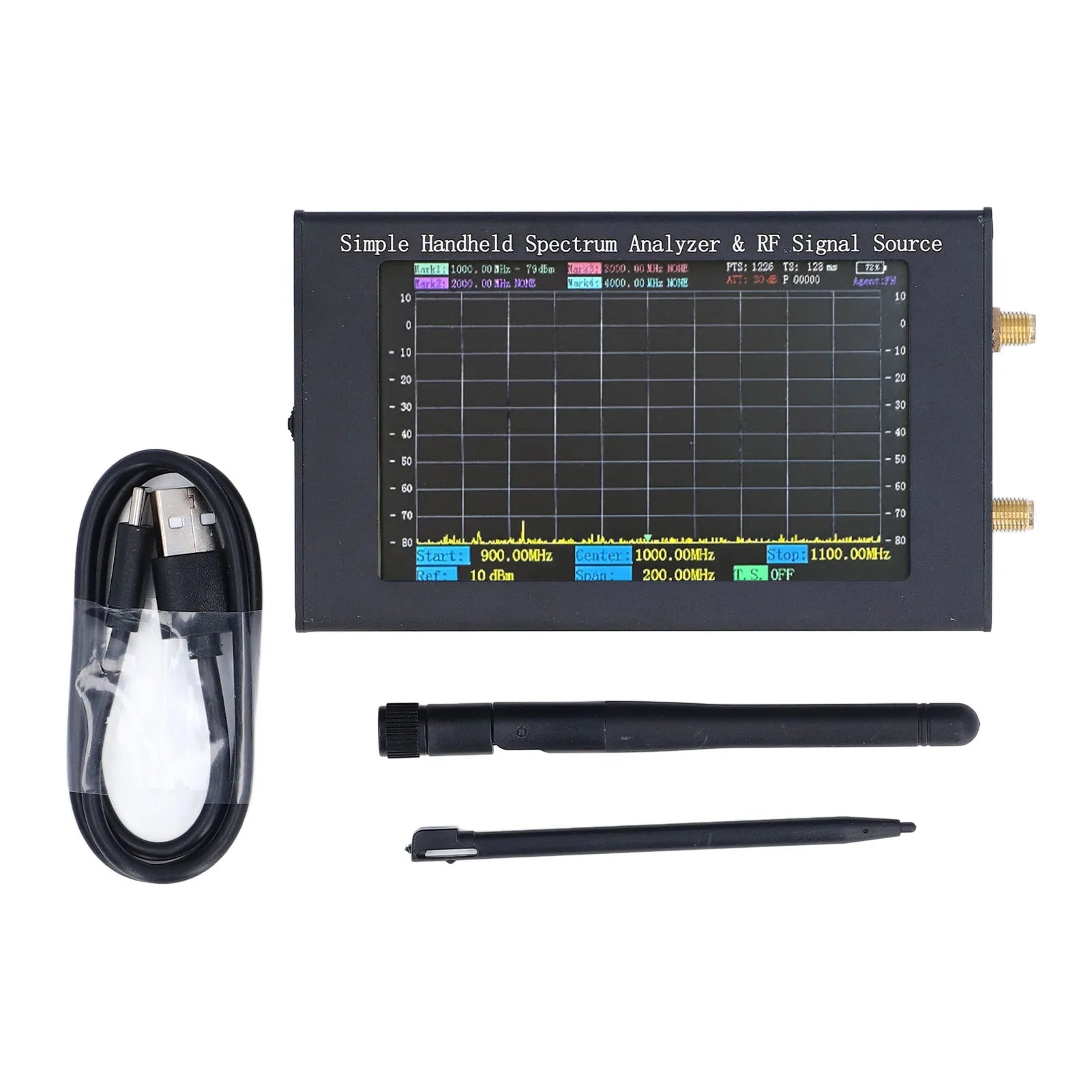

Package List:
1 x Spectrum Analyzer
1 x USB Cable
1 x Antenna
1 x Stylus Pen
1 x User Manual
Note:
1. During setup, please do not input a signal exceeding 10dBm.2. During low battery, signal measurement and output may have large errors, try to avoid using the equipment under low battery.
3. During outdoor use, water, static electricity, high temperature, etc. will cause irreversible damage to the equipment.
