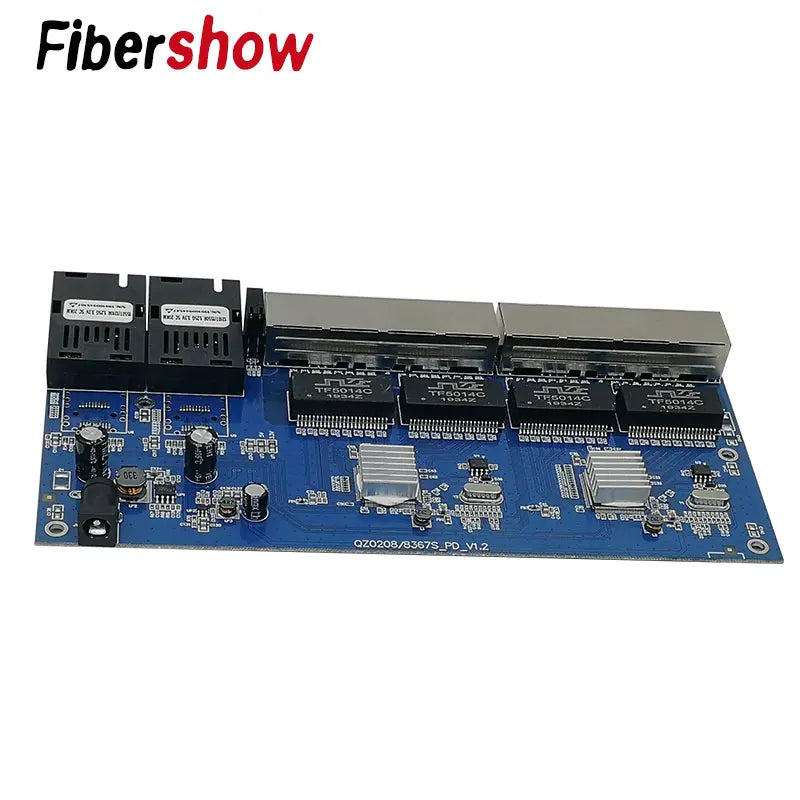

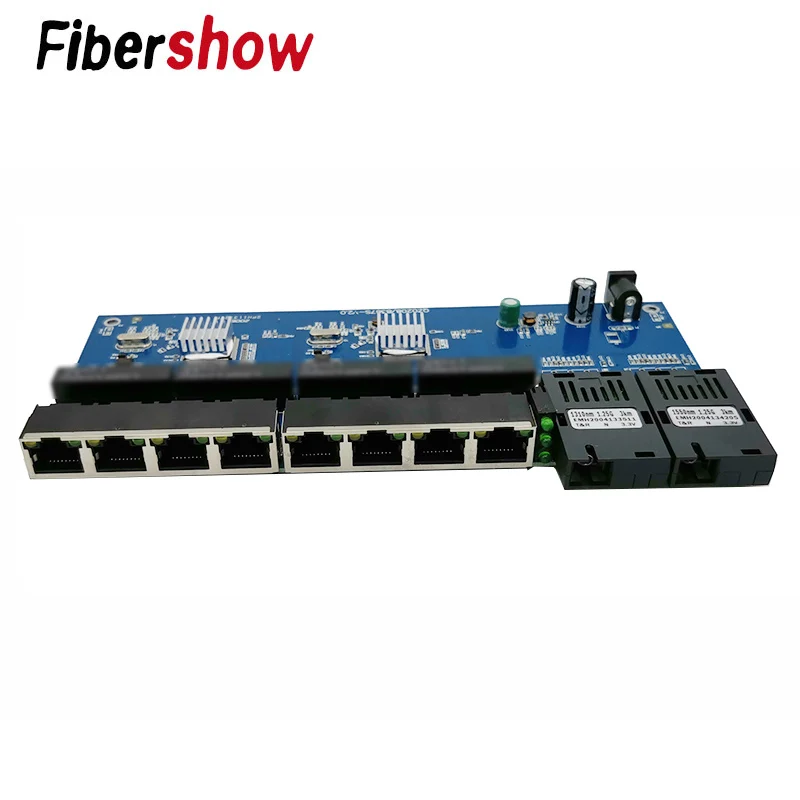

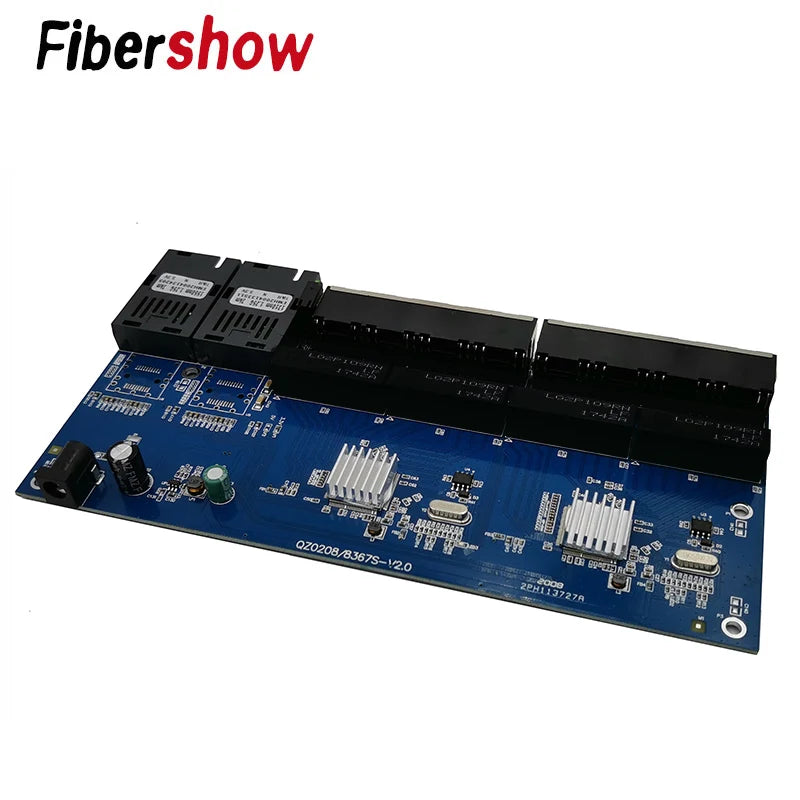

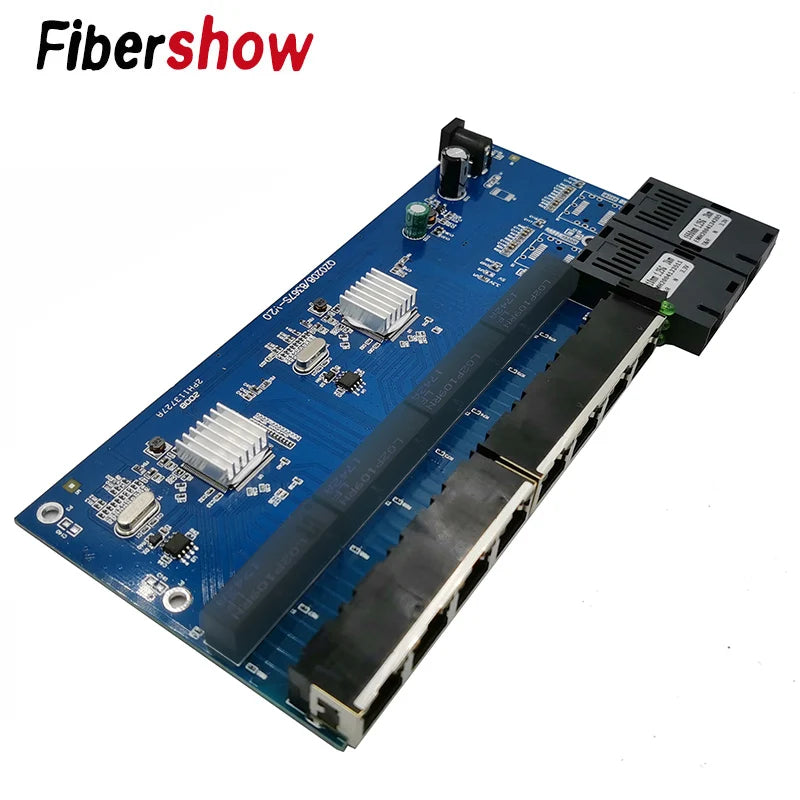

Gigabit Ethernet switch Fiber Optical Media Converter PCBA 8 RJ45 UTP and 2 SC fiber Port 10/100/1000M Board PCB

KSh4,602

~~KSh5,230~~ KSh4,602

Sale Sold out

Shipping calculated at checkout.

Cable Length without power supply

block: block, product: product, product_form_id: product_form_id, section_id: section.id, show_pickup_availability: true -%}

SPECIFICATIONS

Brand Name: tapirapeco

Certification: CE

Choice: yes

Hign-concerned Chemical: None

Item Type: Communication Converter

Model Number: JYD-0208

Origin: Mainland China

Plug Type: EU

Size: 30*12*5

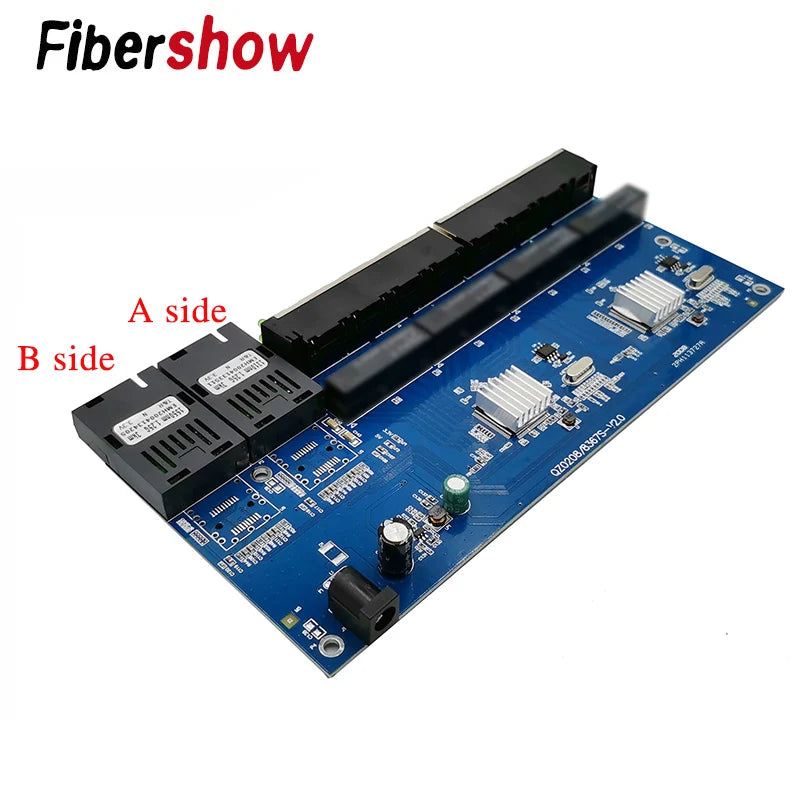

Default with 1pcs 1310nm A side Fiber module and 1pcs 1550nmB side

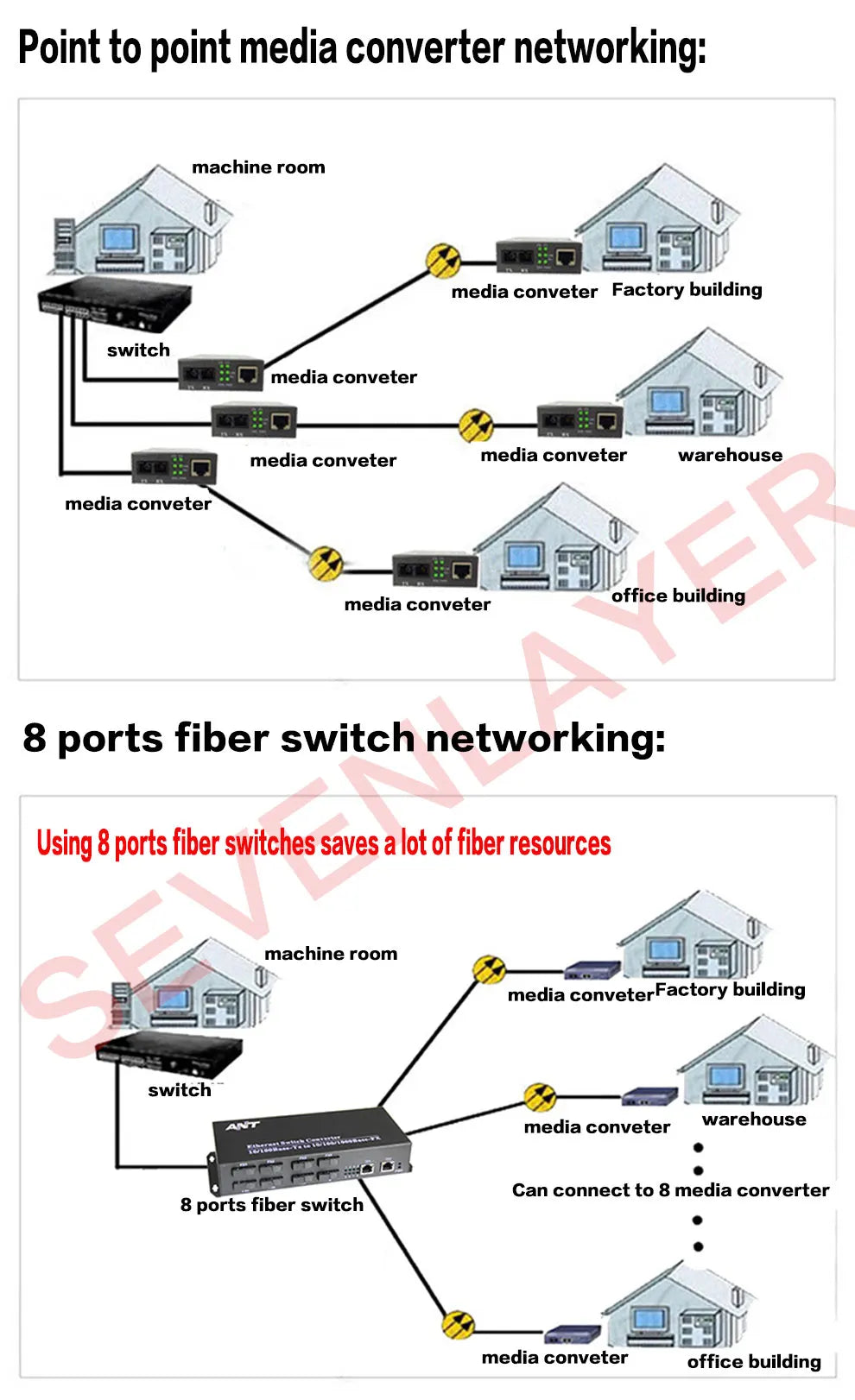

The Gigabit 2G8FE is an Ethernet Fiber Switch which is specially designed for network monitoring. It

has eight 10/100/1000Mbps Ethernet ports and two 1.25Gbps fiber ports. It adopts Marvell chips to ensure

low power consumption and high stability. It extends the transmission distance of a network from

100m to 120km via copper cables. It can extend the transmission distance; there are also many other

advantages such as isolation protection, good data security, working stability and easy maintenance.

1.Support the switch between 10/100/1000Base-TX and 1000Base-SX/LX

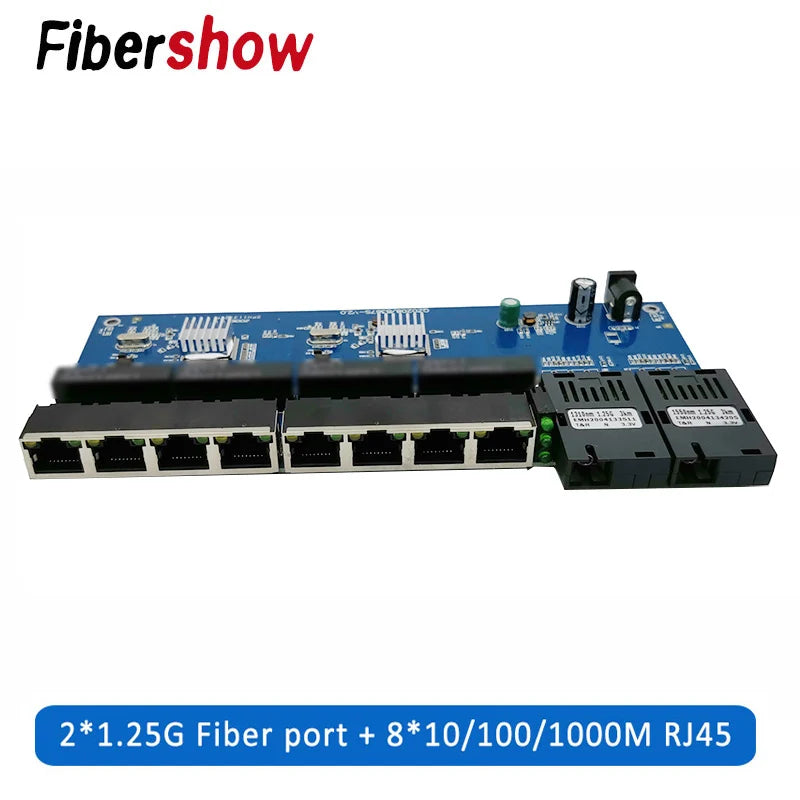

2.2*1.25Gbps full-duplex fiber ports and 8*100M Ethernet ports with auto-negotiation function

3.Support 1000M speed rate, MDI/MDIX and half/full-duplex with auto-negotiation function

4.Each port has the complete LED Indicator light

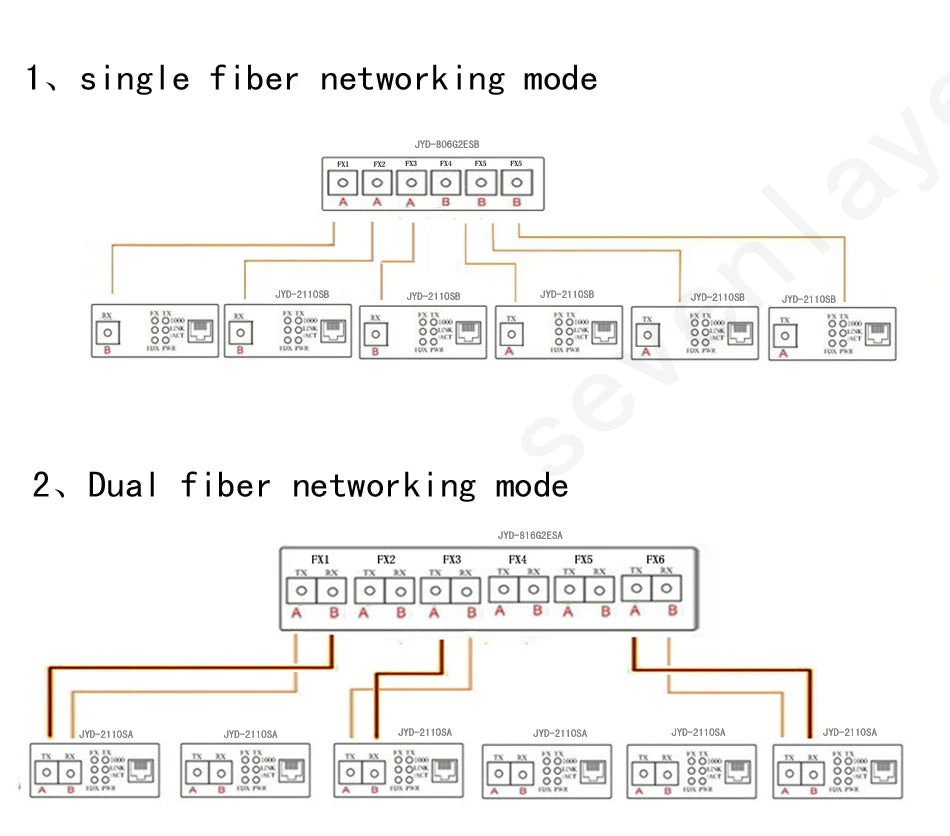

5.Support single mode single fiber,single mode dual fiber ,multi-mode dual fiber and SFP slot

6.Support IEEE802.1d Spanning Tree

7.Support high performance QoS function on each port

8.Support 5-12V voltage input

9.Support IEEE 802.3x flow control and back pressure control

10.Require no configuration and will instantly operate as soon as you power it up

11.Low power consumption chip with heat sink built in to ensure longtime efficient operation

Specifications:

Standards	IEEE802.3 10Base-T IEEE802.3u 100Base-TX/FX IEEE802.3z 1000Base-SX/LX IEEE802.3x Flow control IEEE802.1p QoS IEEE802.1d Spanning Tree
Ethernet Port	Connector: RJ45 Data Rate:10/100M or10/100/1000M Distance: 100m UTP Type: UTP-5E or higher level
Fiber Port	Connector: SC/FC/ST/SFP slot Data Rate:155M or1.25Gbps Optical Wavelength: 850nm/1310nm/1490nm/1550nm Distance: 550m～120km
Performance	Processing Type: Store and Forward MAC Table Size:4K/6K/8K Buffer Space:500kbs/1Mbit/2Mbit Jumbo Packet: 1518 bytes Back bandwidth:3.8G/5.6G/7.2G Time Delay: ＜150μs

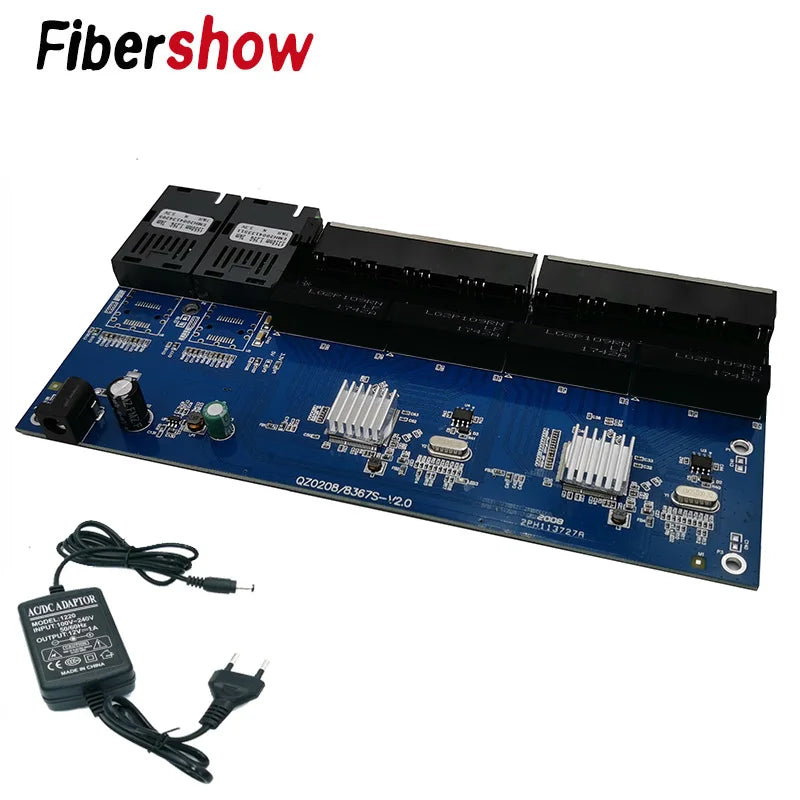

Power	Power type: external power supply Input Voltage: AC100V～240V 50/60Hz Connector: DC Socket Working Voltage: 5-12V Power Consumption: 2.2W～3.5W
Transmissin Distance	Twisted Pair: 100m (CAT5e, CAT6 cables) Muti-mode: 2km Single-mode:20/40/60/80/100km
MTBF	100, 000 hours
Warranty	1 year
Environment	Storage Temperature: -40～70℃ Operating Temperature: -10～55℃ Relative Humidity: 5-90% ( no condensation)
Mechanical Structures	Dimension: 215×107×26mm Weight: 0.15 PCB main board
OEM&ODM	Supportive
