Artillery Genius Pro

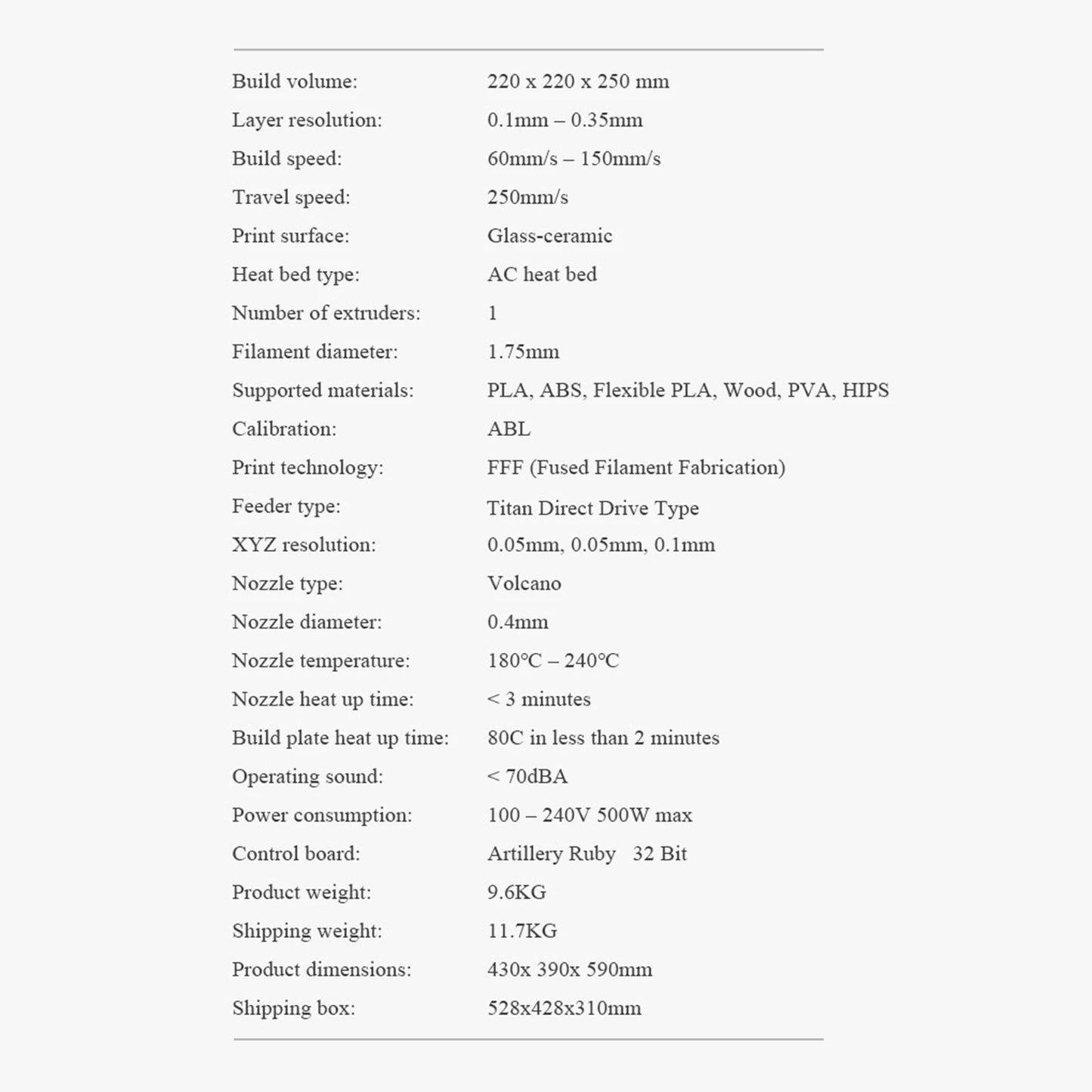

Specification

Model: Genius Pro

Build Volume: 220 x 220 x 250 mm/8.7 x 7.7 x 9.8in

Layer Resolution: 0.1mm 0.35mm

Build Speed: 60mm/s 150mm/s

Travel Speed: 250mm/s

Print Surface; Glass-ceramic

Heat Bed Type: AC heat bed

Number of Extruders: 1

Filament Diameter: 1.75mm

Supported materials: PLA, ABS, Flexible PLA, Wood, PVA, HIPS

Calibration: ABL

Print Technology: FFF (Fused Filament Fabrication)

Feeder Type: Titan Bowden Type

XYZ Resolution: 0.05mm, 0.05mm, 0.1mm

Nozzle Type: Volcano

Nozzle Diameter: 0.4mm

Nozzle Temperature: 180 240

Nozzle Heat Up Time: <;3 minutes

Build plate heat up time: 80C in Less Than 2 Minutes

Operating Sound: <;70dBA

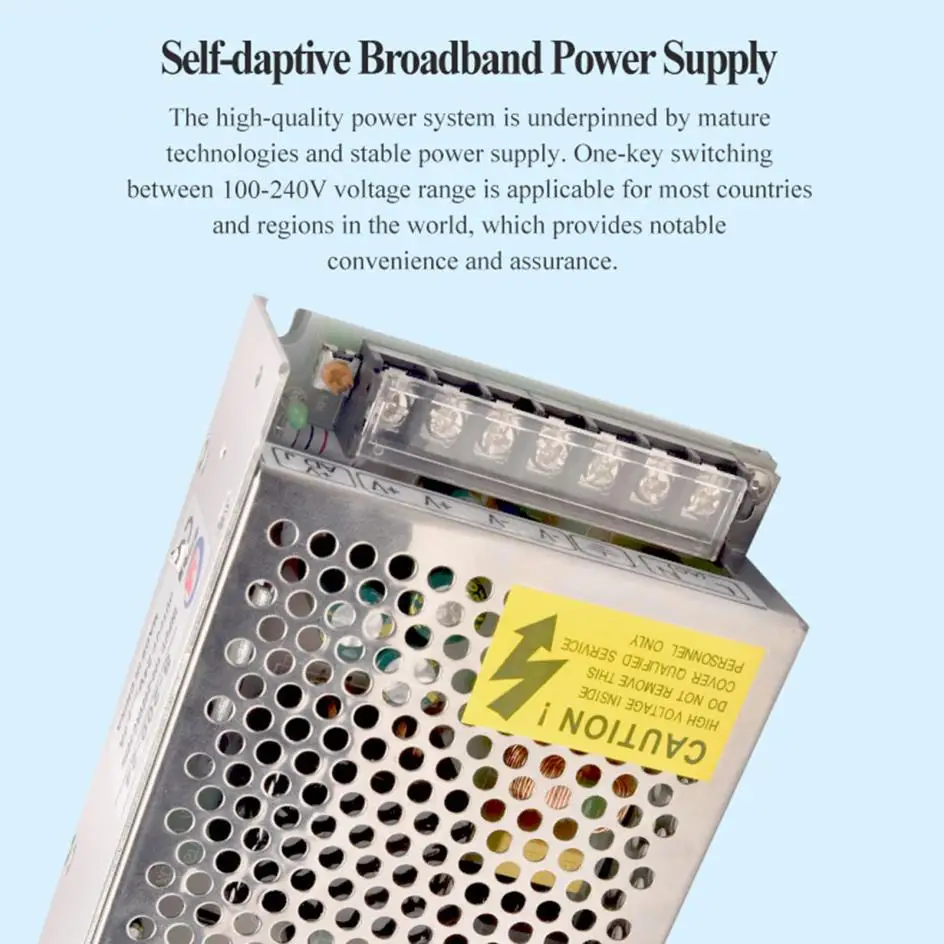

Power Consumption: 100240V 700W max (w/ Heated Bed Turned On)

Control Board: Artillery Ruby 32bit

Product Weight: 9.6Kg/21.2lbs

Product Dimensions: 430 x 390 x 590mm/16.9 x 15.3 x 23.2in

Package Size: 528 x 428 x 310mm/20.8 x 16.7 x 12.2in

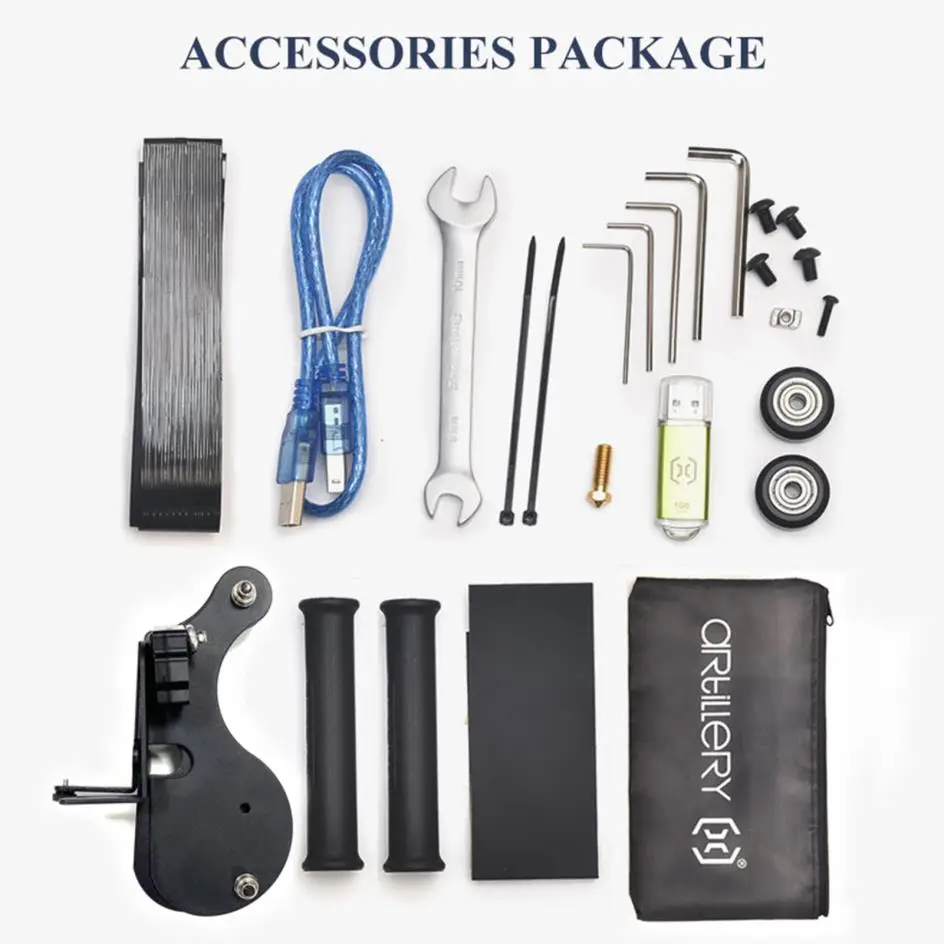

Packing List

1 x 3D Printer Kit

1 x Tools Kits

Genius Pro 3D Printer

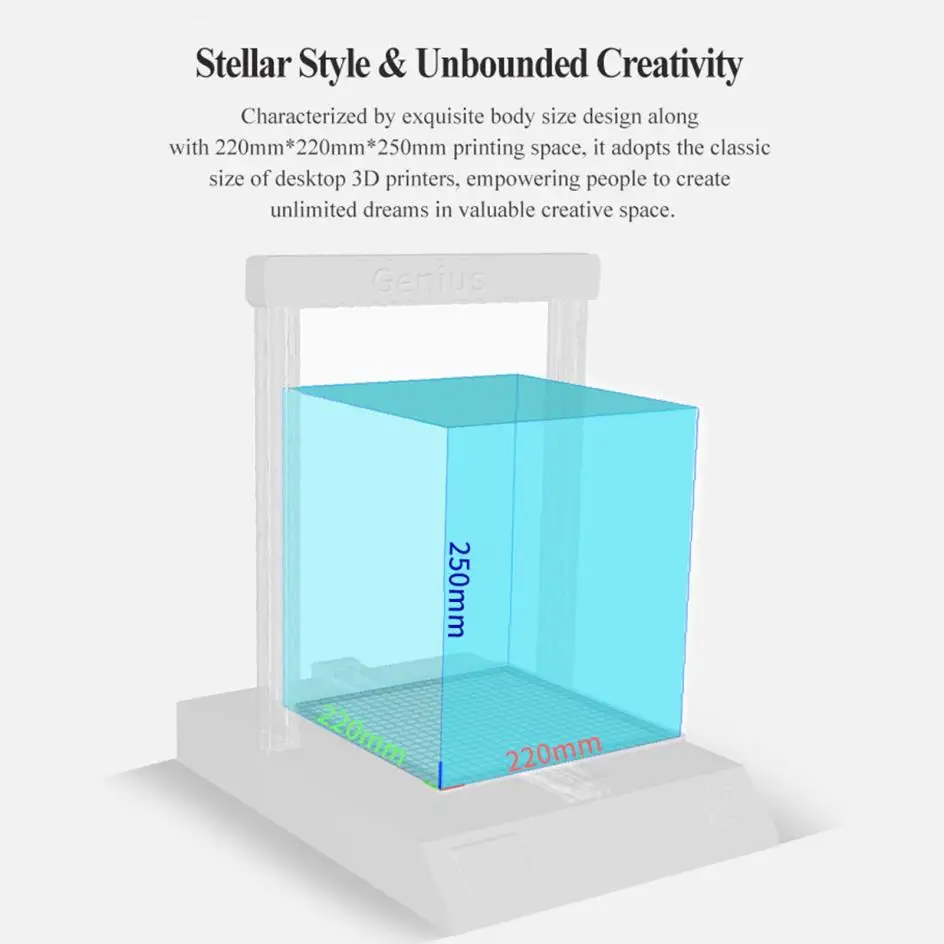

DIY all-in-one alloy structure, assemble with just few minutes. Large printing size 220x220x250mm/8.7x7.7x9.8in, provides more space for your creative platform. Featuring integrated cable design, simple and novel appearance, high level of integration, stable performance and convenient maintenance.

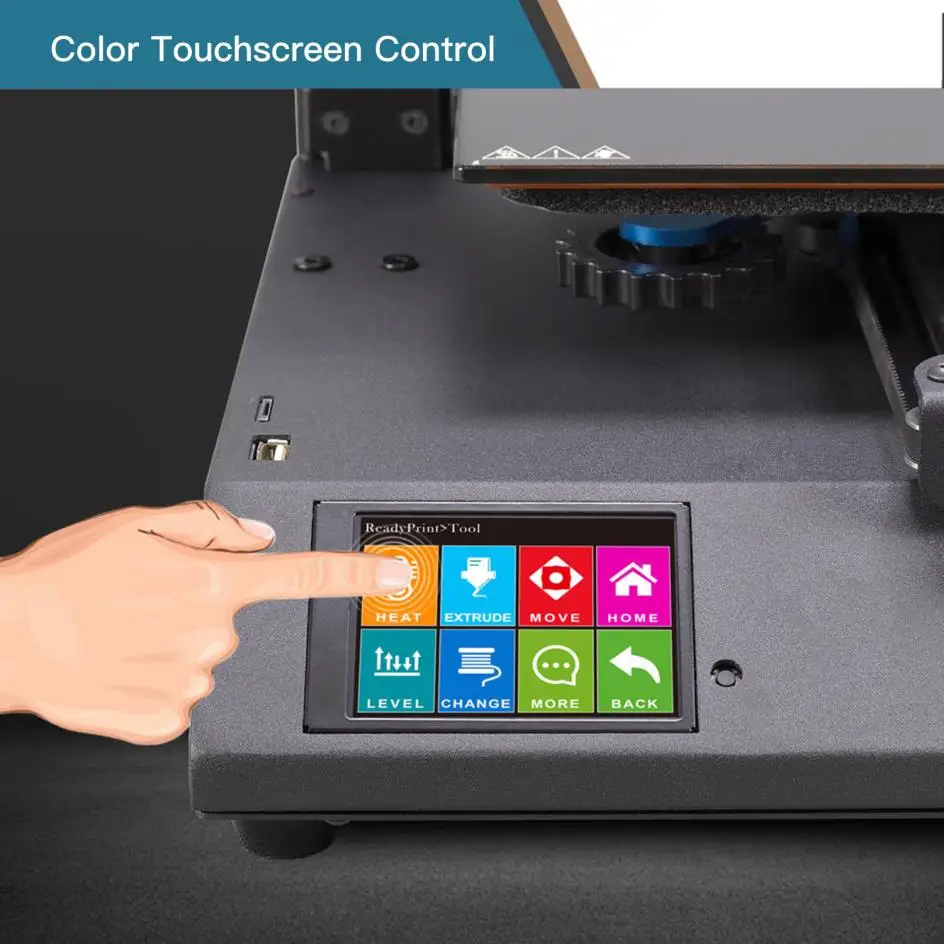

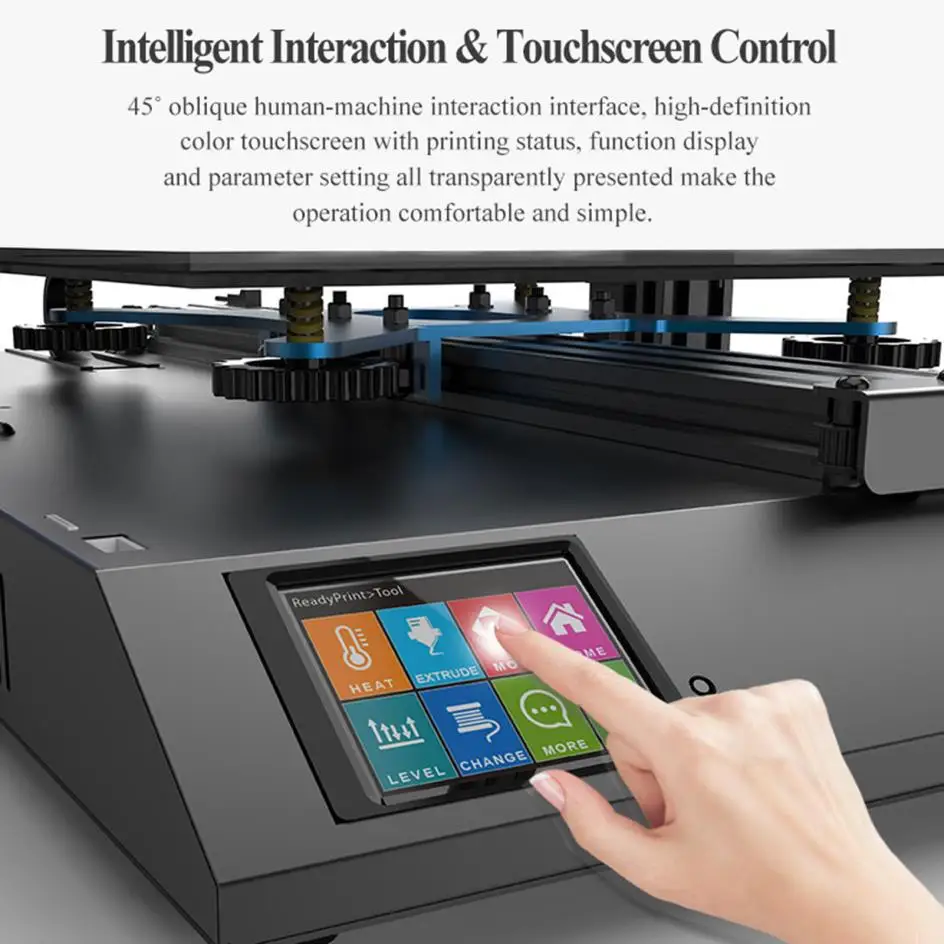

Touchscreen Control

45" oblique human-machine interaction interface, high-definition color touchscreen, simple and easy to understand operating interface, make the operator convenient and comfortable.

High-Precision Printing

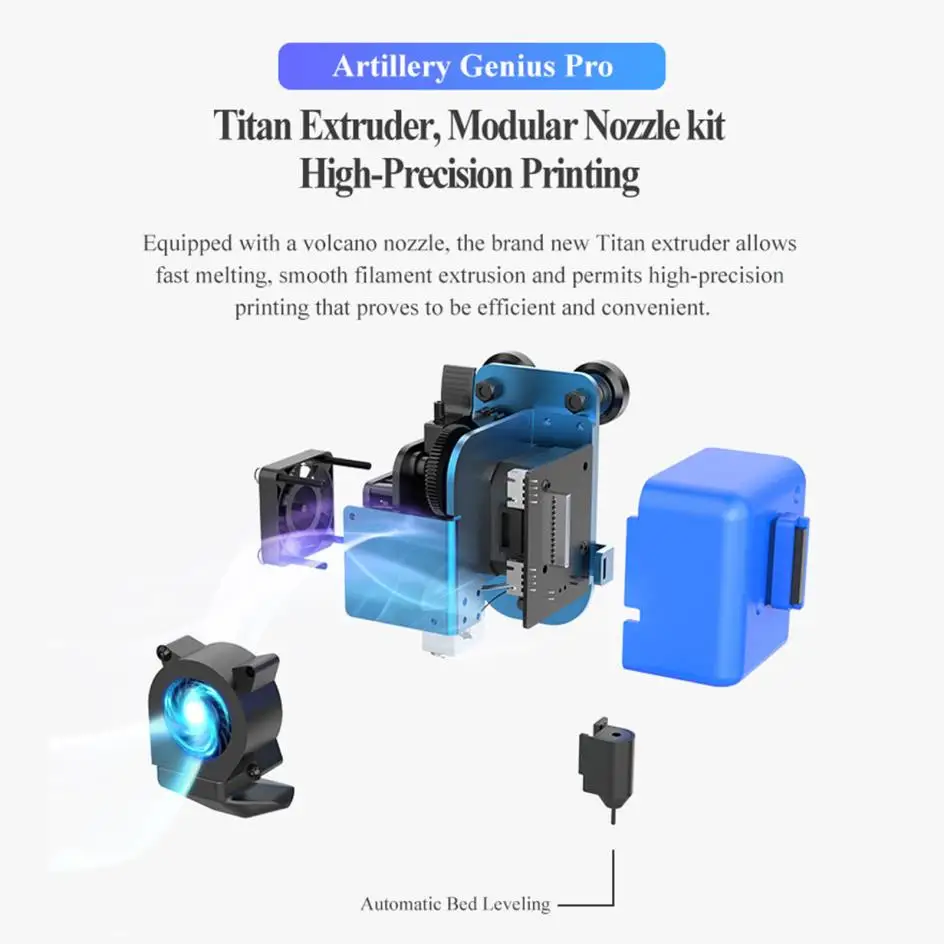

Equipped with a volcano nozzle, the brand-new Titan extruder allows fast melting, smooth filament extrusion and permits high-precision printing that proves to be efficient and convenient.

Extra Quiet to Operate & Print

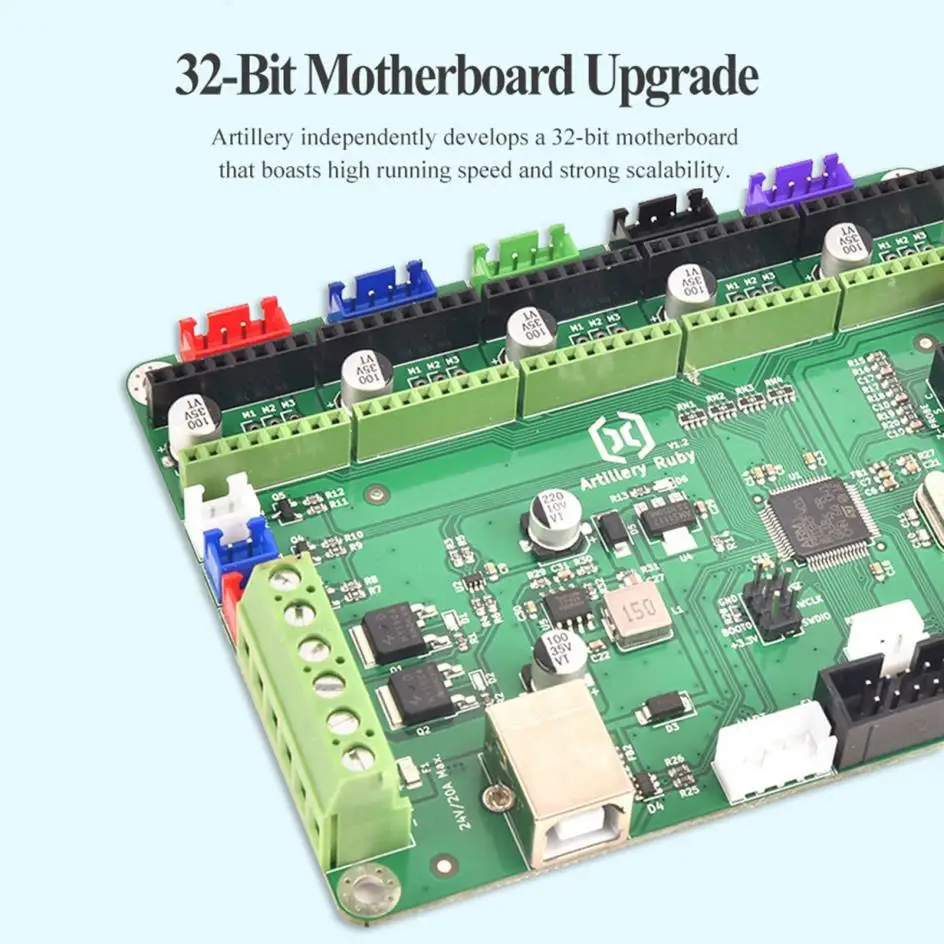

Artillery independently develops a 32bit motherboard that boasts high running speed and strong scalability Ultra-quiet replaceable stepper drivers and low-decibel working mode make printing quiet.

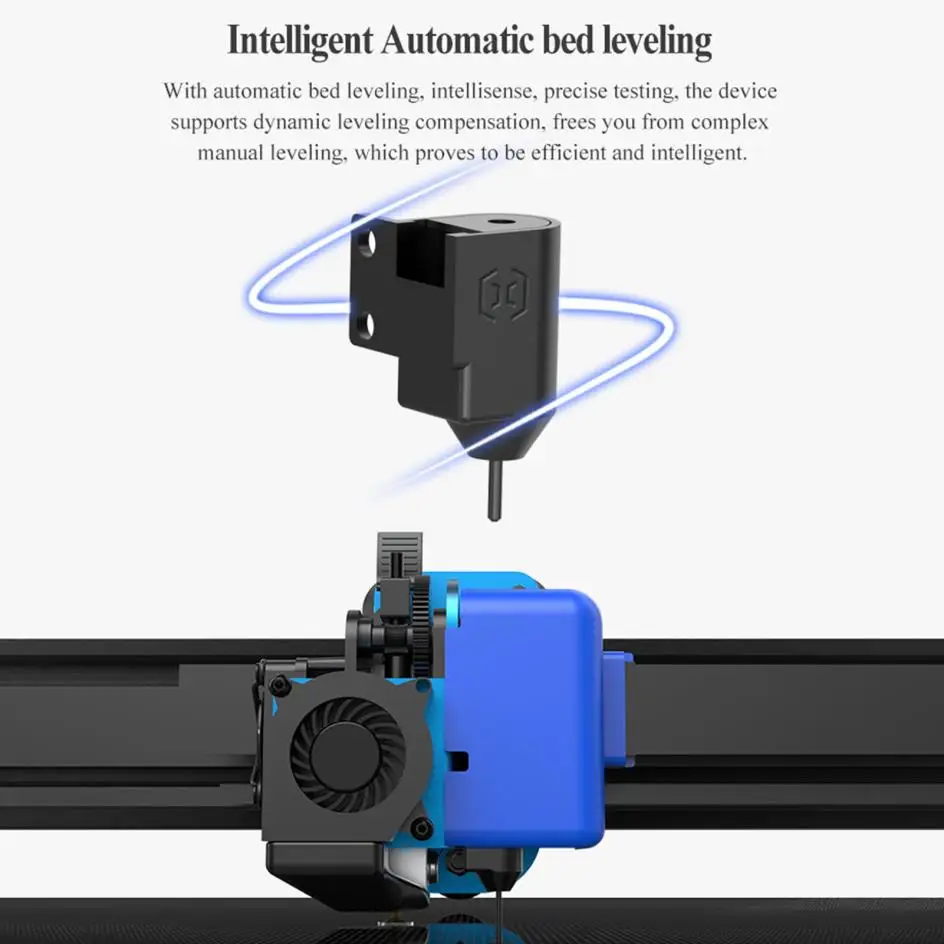

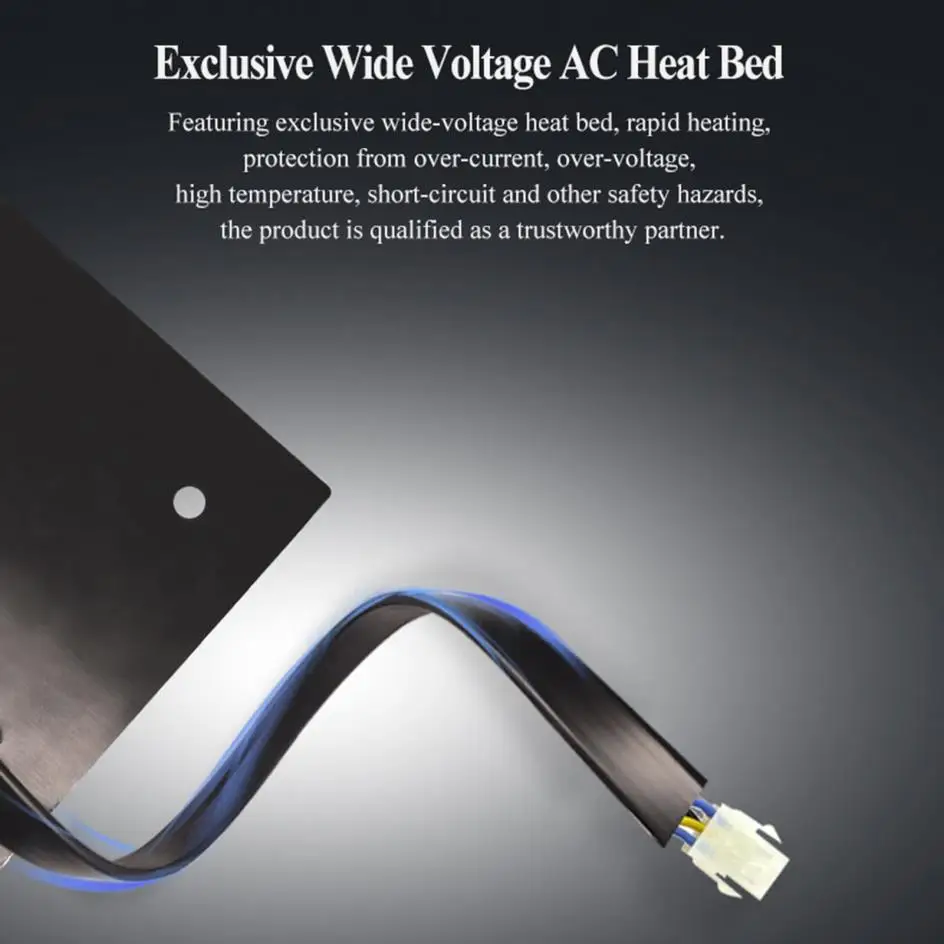

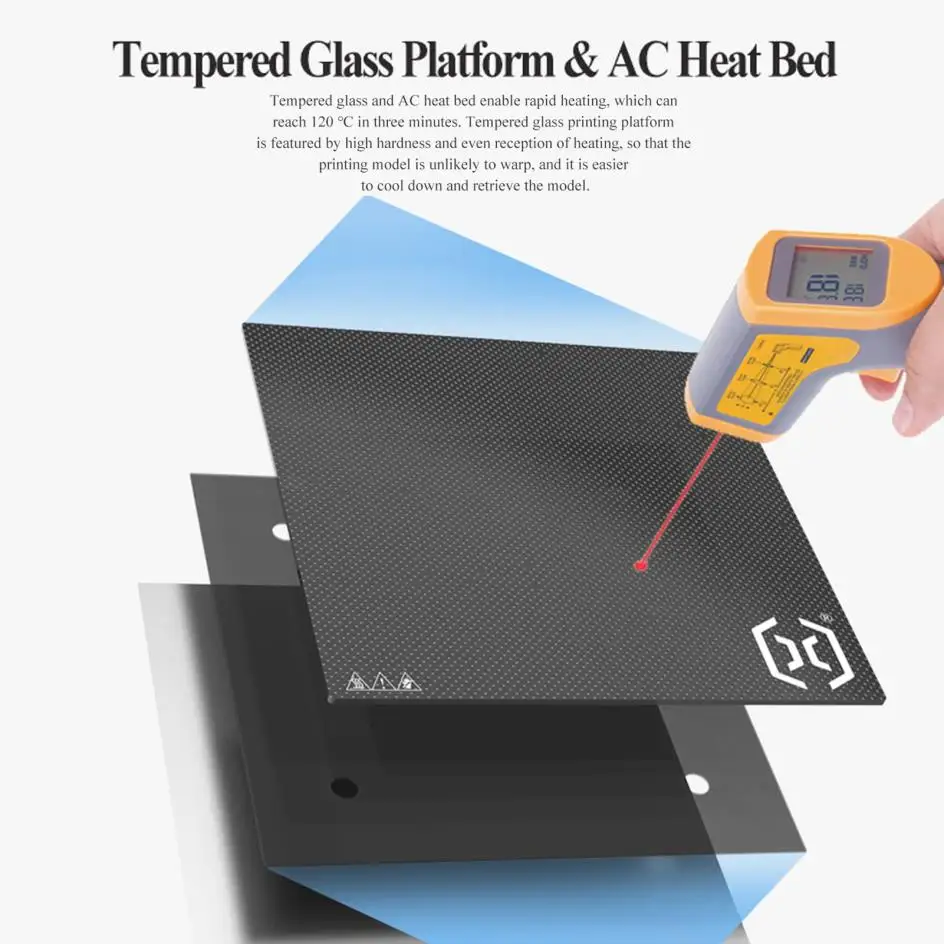

Fast Heating Platform & Intelligent Auto Leveling

The tempered glass printing platform prints more smoothly and adheres well The AC heat bed has good thermal conductivity and enables fast heating It can be heated up to 120°C in two minutes. With matrix automatic bed leveling, intelligence, precise testing, the device supports dynamic leveling compensation.

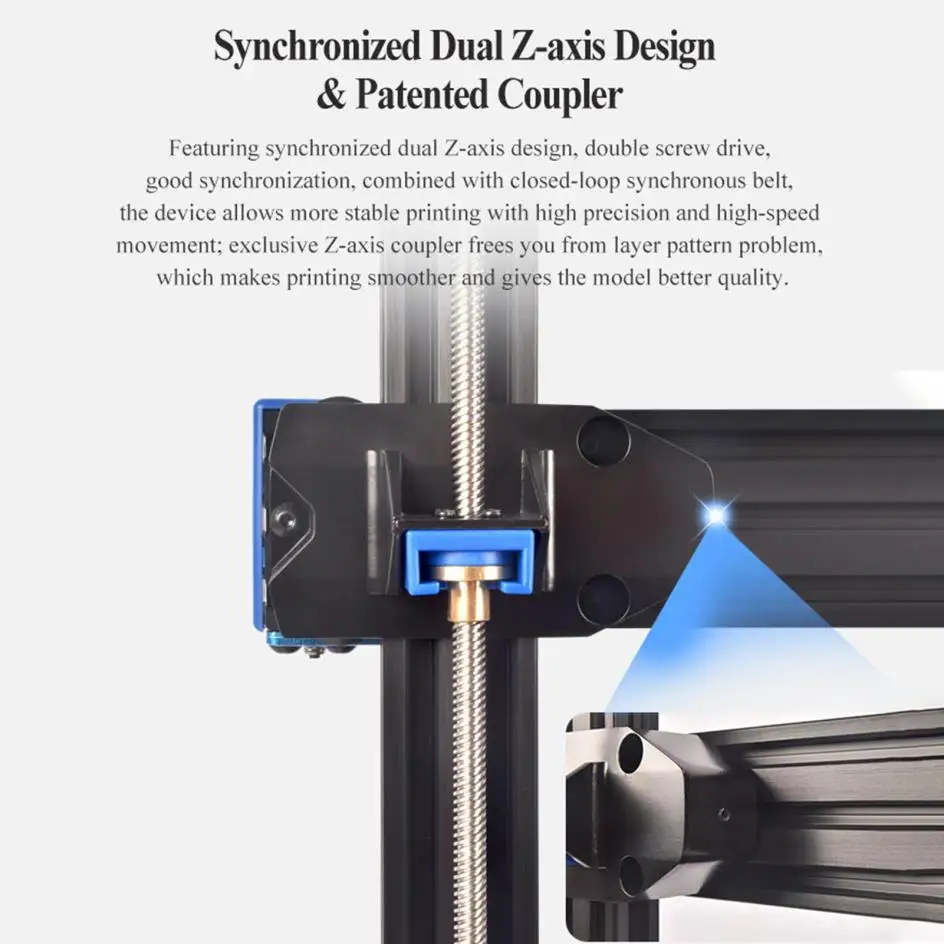

Synchronized Dual Z-axis Design

Exclusive Z-axis coupler frees you from the problem of layer pattern, and gives the printing experience high sophistication and better quality.

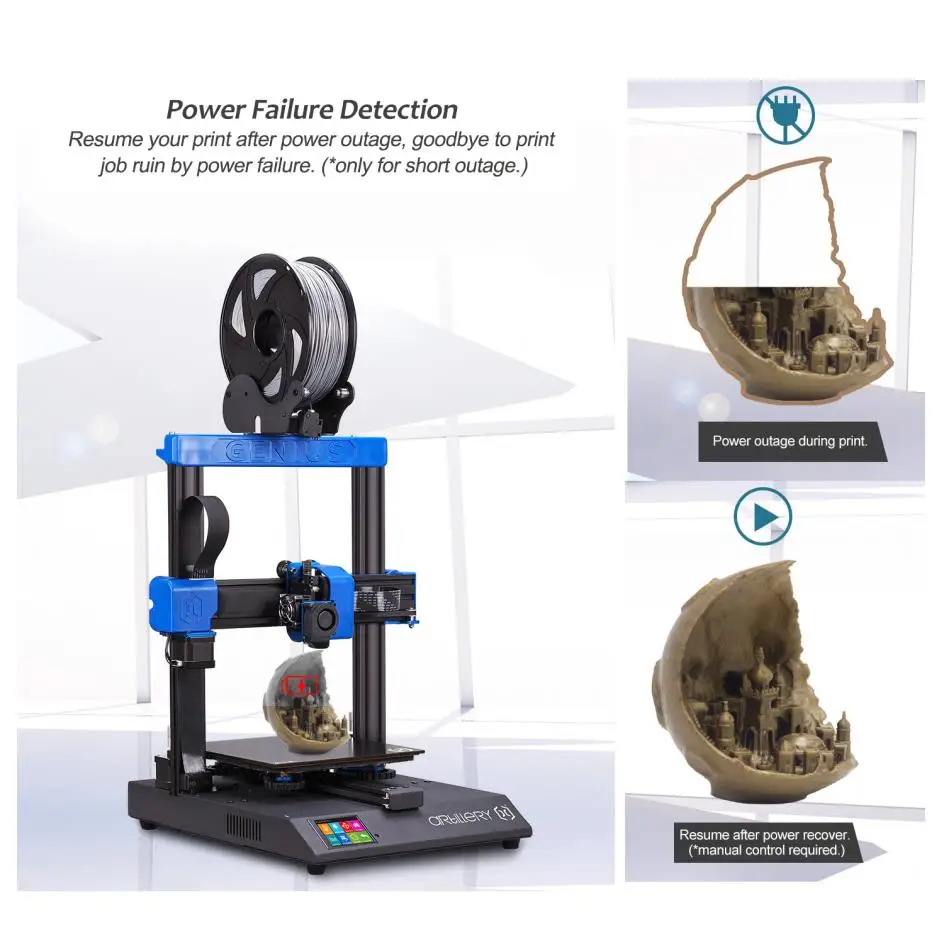

Resume Printing & Filament Detection

Featuring the function of detecting filament run outpower interruption and resumption of printing giving an alarm before filament run out; it is featured by continuing usability after power recovery.

Genius

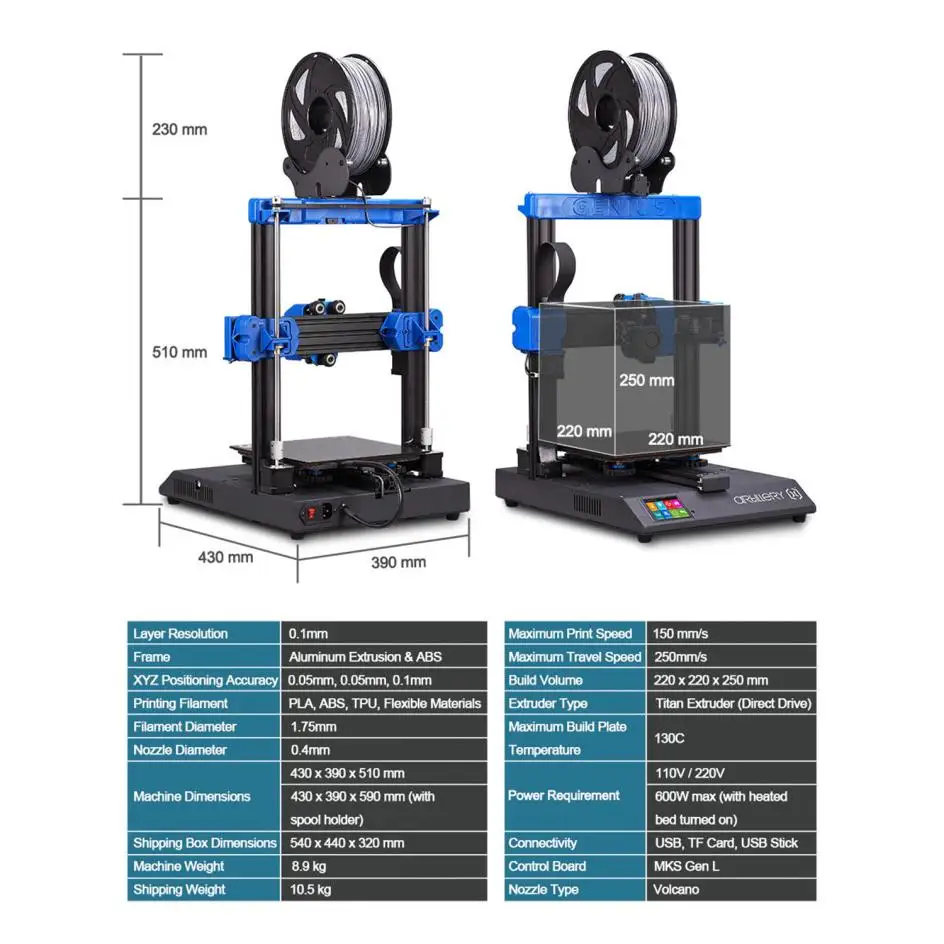

Specifications

Model: Genius

Layer Resolution: 0.1mm

Frame: Aluminum Extrusion & ABS

XYZ Positioning Accuracy 005mm, 0.05mm, 0.1mm

Printing Filament: PLA, ABS, TPU, Flexible Material

Filament Diameter: 1.75mm

Nozzle Diameter: 0.4mm

Maximum Print Speed: 150mm/s

Maximum Travel Speed: 250mm/s

Build Volume: 220 * 220 * 250mm/ 8.7 * 8.7 * 9.8in

Extruder Type: Titan Extruder(Direct Drive)

Maximum Build Plate Temperature: 130

Power Requirement: 110V/220V, 600W max (with heated bed turned on)

Connectivity: USB, TF Card, USB Stick

Control Board: MKS Gen L

Nozzle Type: Volcano

USB Disk Capacity: 1GB

Machine Dimensions:

430 * 390 * 510mm / 16.9 * 15.4 * 20.1in

430 * 390 * 590mm / 16.9 * 15.4 * 23.2in (with spool holder)

Machine Weight: 8900g / 313.9oz

Package Size: 54 * 44 * 32cm / 30.71 * 21.26 * 9.84in

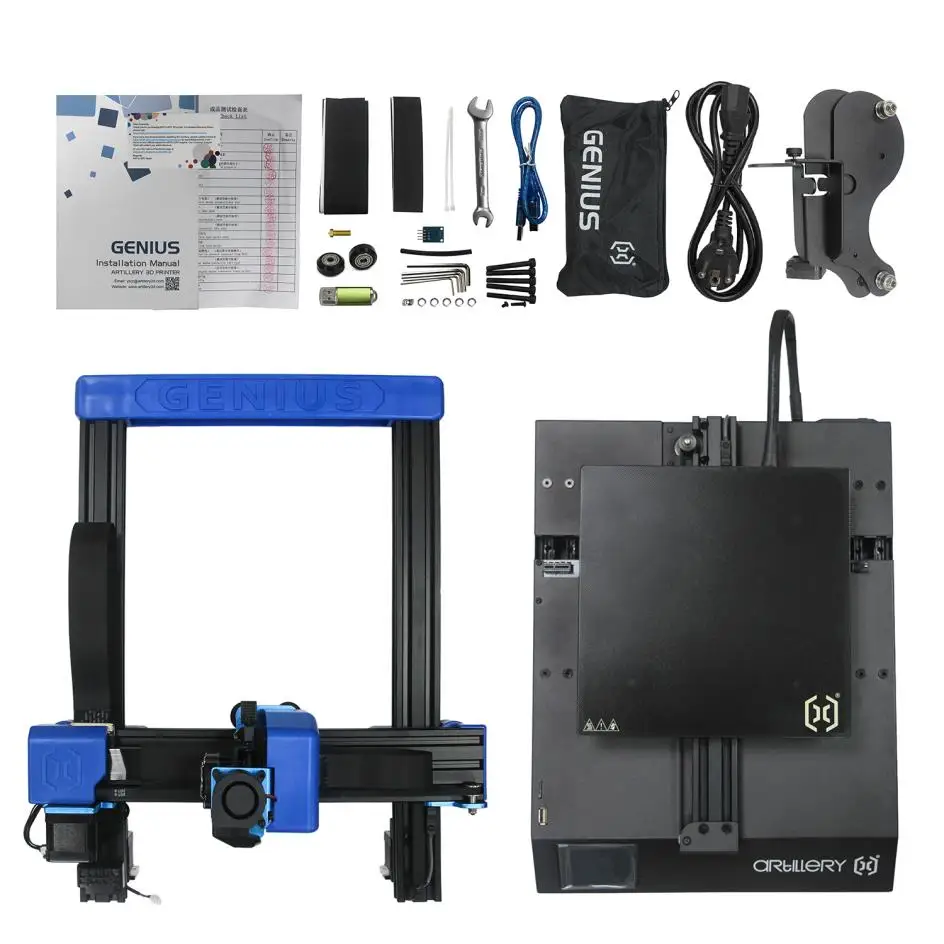

Packing List

1 * 3D Printer Kit

1 * Tools Kits

1 * USB Disk(1GB)

1 * Plug

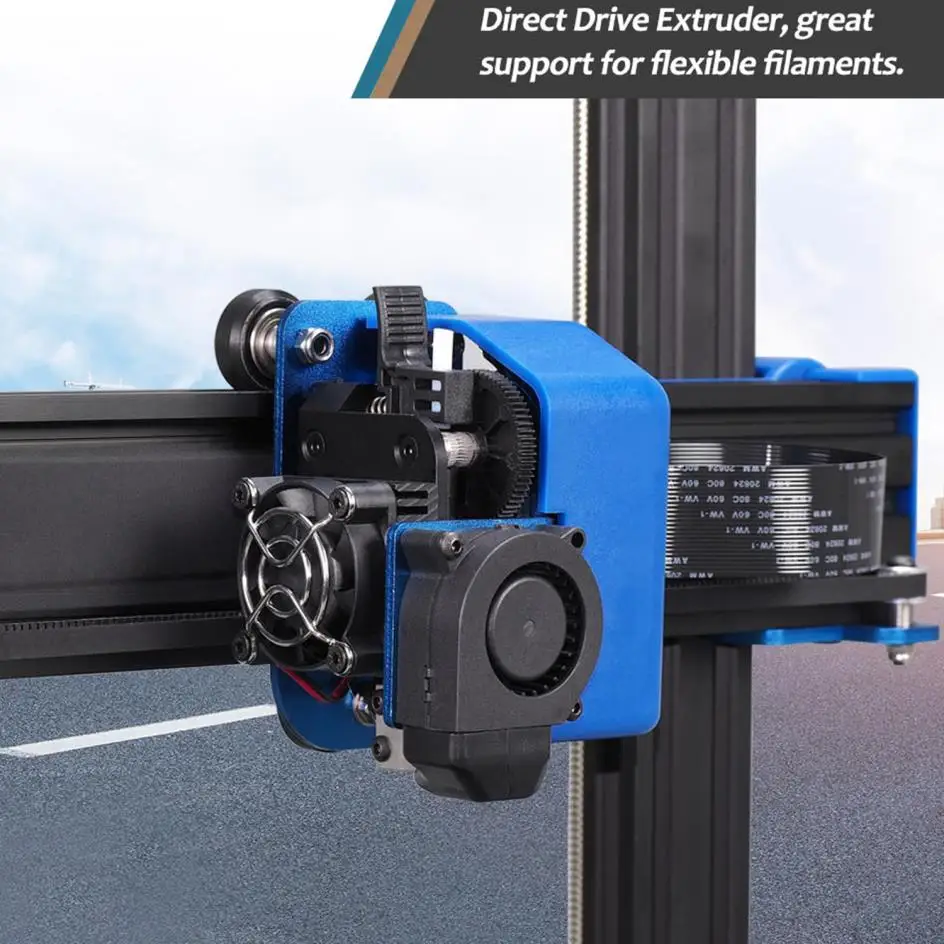

Direct drive extruder, great support for flexible filament, such as TPU, TPE. Fast heating AC heat bed, reaches 110C in 130s.

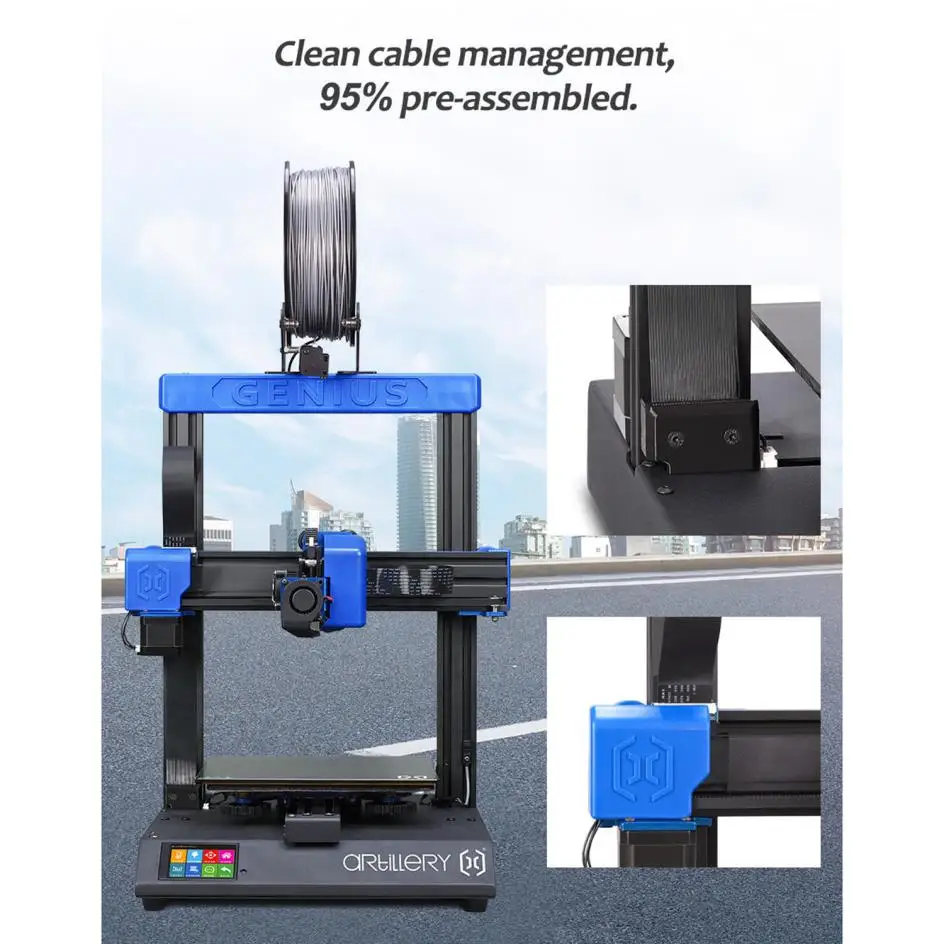

Easy cable connection and clean cable management. 95% pre-assembled, simple to install, 2 minutes to complete the installation, saving installation time.

Large leveling Knob for easier leveling. (With auto bed leveling expansion port.) Color touchscreen, real time monitoring of printing status, easy to operation.

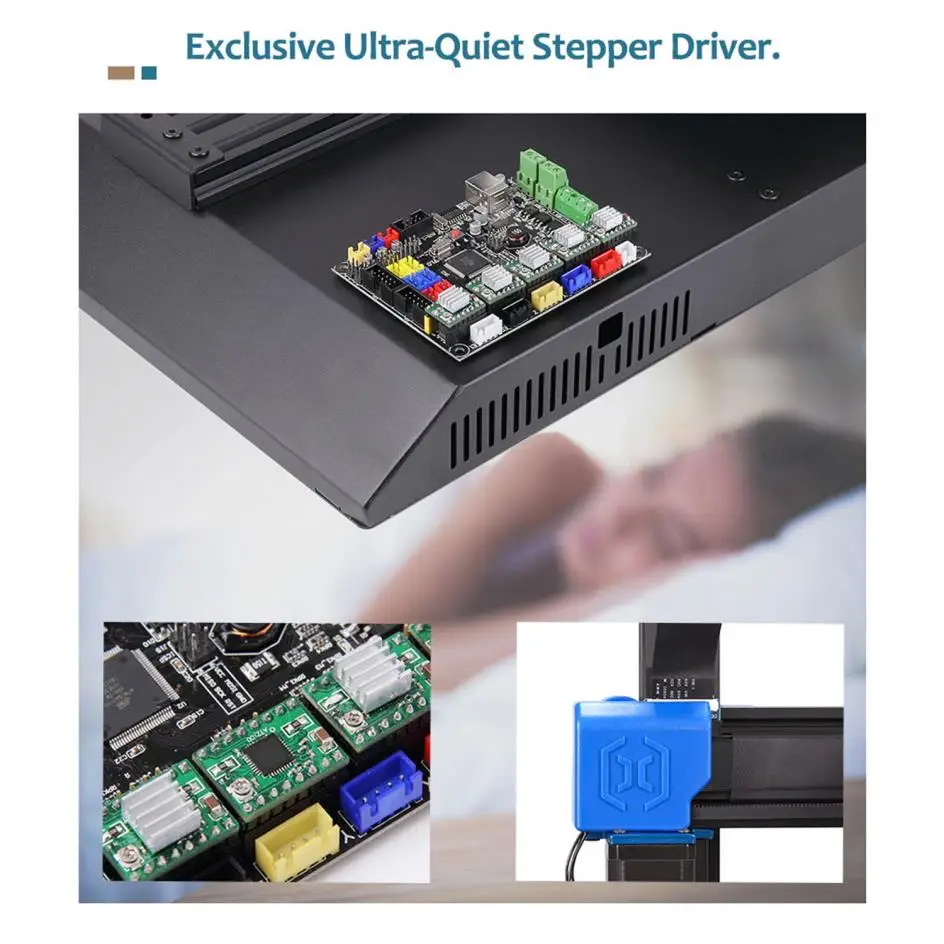

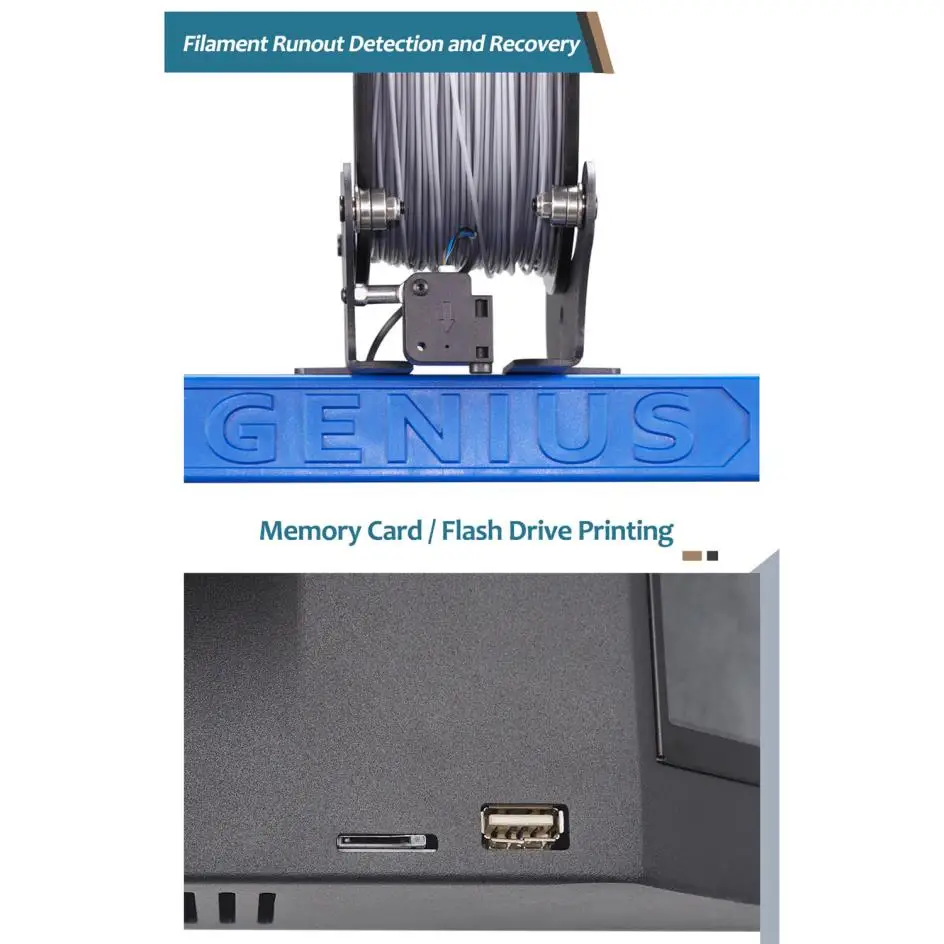

Exclusive ultra-quiet stepper driver, support filament run-out detection and recovery, power failure detection and recovery

Synchronized Dual Z System, stability is improved under high speed movement. High-precision Inductive sensor end stop for more precise positioning.
