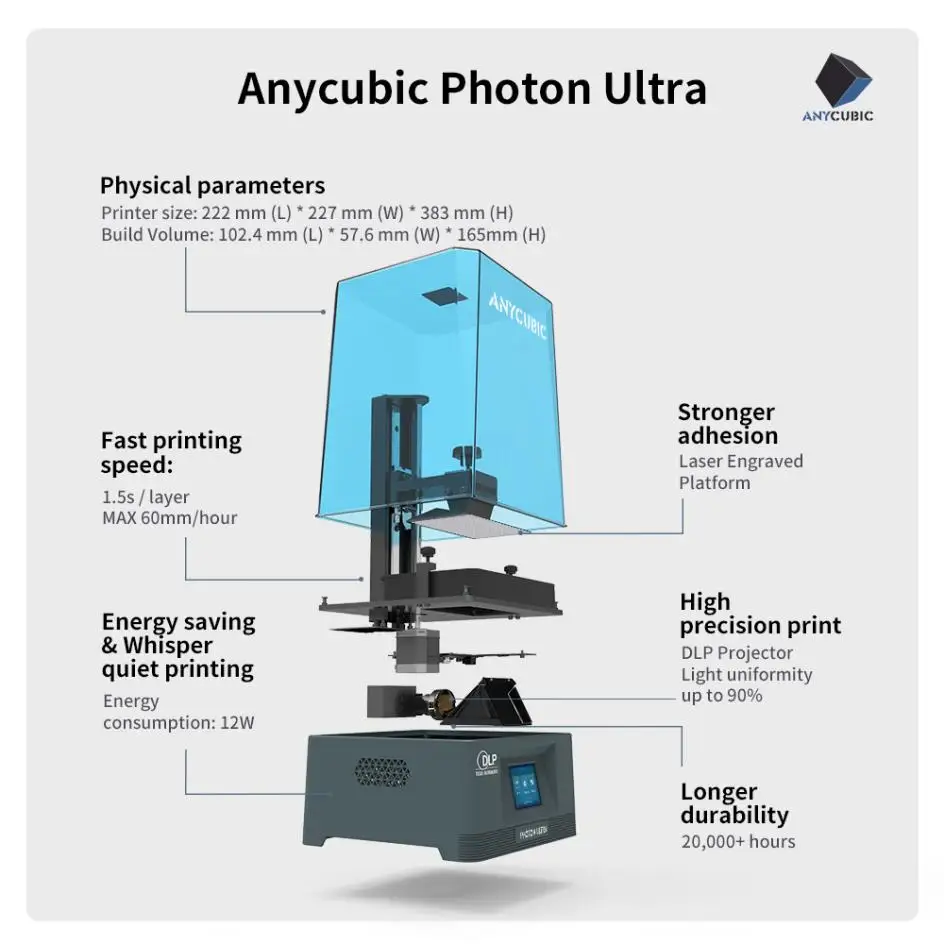

Anycubic Photon UltraTechnical Specifications

System: ANYCUBIC Photon Ultra

Color touch screen: 2.8 inch

Slicer: ANYCUBIC Photon workshop

Connectivity: USB

Printing technology: DLP (Digital Light Processing)

Light source: DLP optical projector

Resolution: 1280 * 720

XY resolution: 80um (0.080mm)

Z axis resolution: 0.01mm

Layer res.: 0.01 ~ 0.15mm

Print speed: 1.5S / layer Max 60mm/h

Rated power: 12W

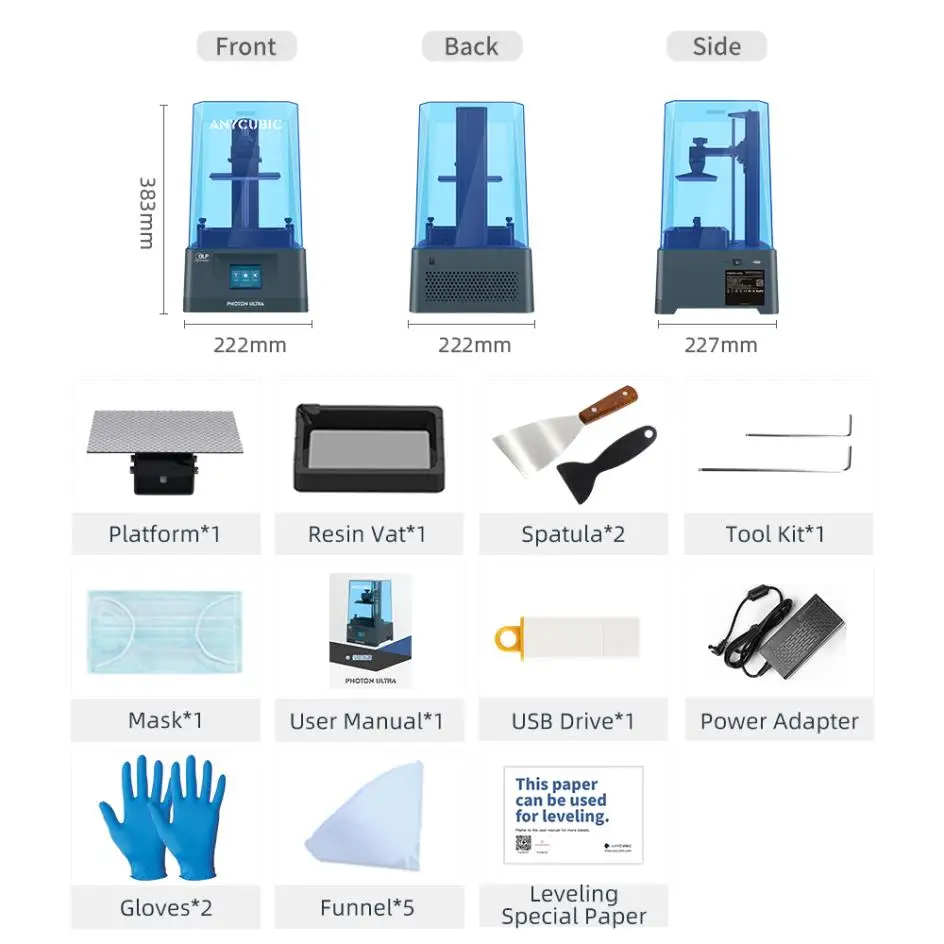

Printers size: 222mm (L) * 227mm (W) * 383mm (H)

Build volume: 102.4mm (L) * 57.6mm (W) * 165mm (H)

Net weight: ~ 4kg

Close to reality

HighPrecision | Long-termDurability | EnergySaving

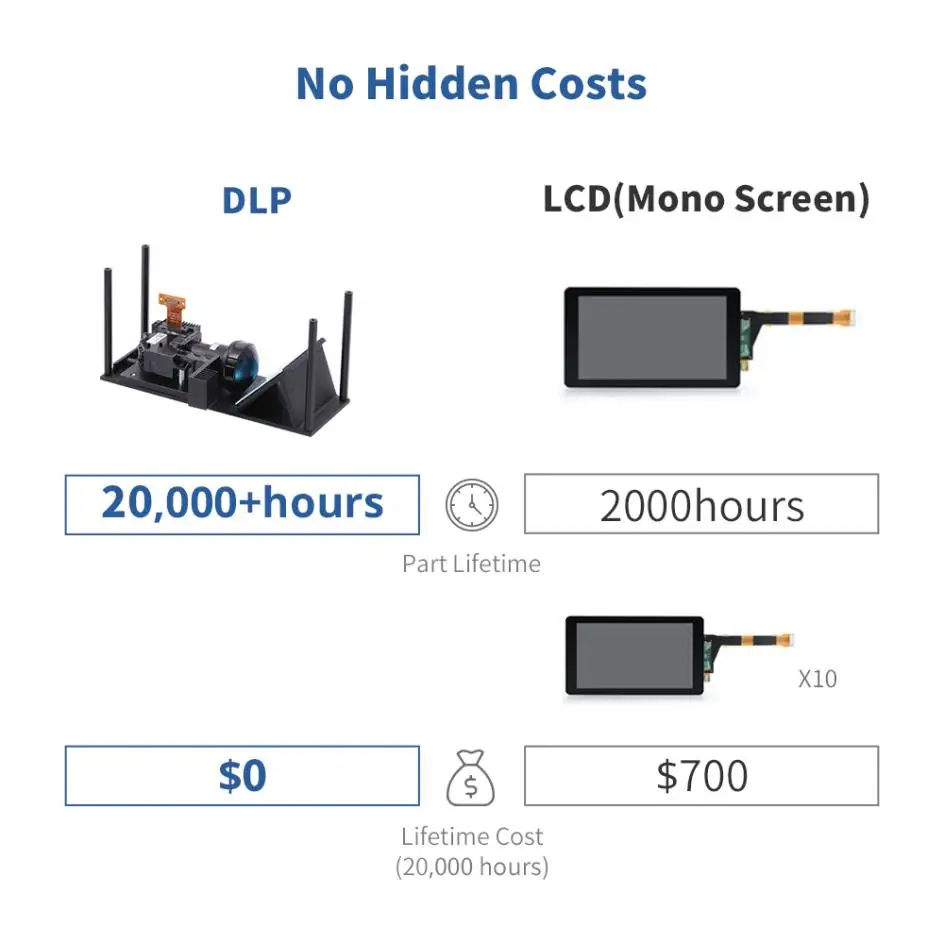

20,000 Hours Super Durable

Thanks to DLP® technology, Anycubic Photon Ultra's light source system does not need to be replaced as often as an LCD 3D printer and has a life span of over 20,000 hours, 10 times longer than the 2,000 hours for LCD monochrome screens. Maintenance costs have been greatly reduced.

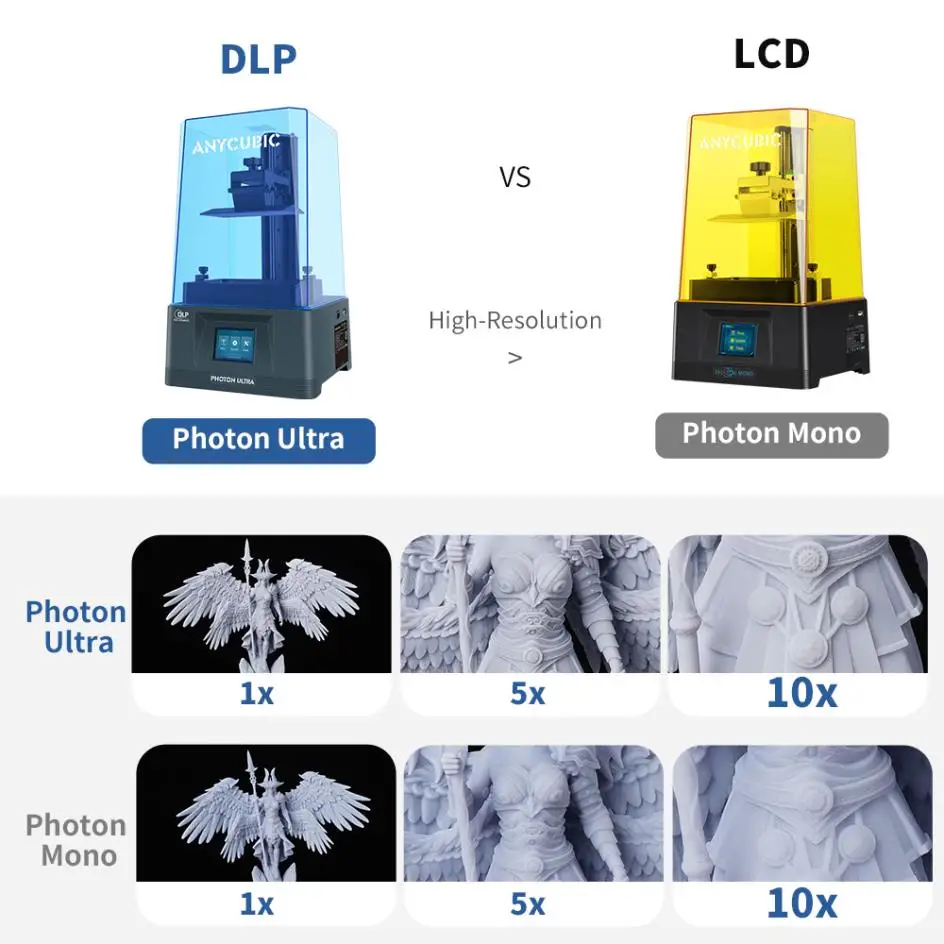

DLP detail is better than LCD

A DLP printer has an optical projector, shining concentrated beams of light only where the resin needs to cure, producing incredibly crisp results without light leaks or blurry edges. DLP Projector can project a beam of higher uniformity, and the light uniformity of the forming surface is greater than 90%. With an LCD printer, a single big UV light shines through a screen that has either open or closed pixels. However, the light source is always on, which gives light leaks, even on dark pixels.

Blazing fast 60mm/h

The Ultra's blazing-fast optics engine speeds up the printing process to just 1.5 seconds per layer, 1/5 of the original Photon of 8 seconds per layer. The print speed is up to 60mm per hour, three times faster than the original Photon of 20mm per hour.

Energy saving and environment friendly

The rated power of Photon Ultra is as low as 12W, which is about the power of a normal light bulb and only 1/5 of the 60W power of an LCD 3D printer.

Whisper quiet printing

DLP printers release less heat due to its low power consumption. The heat dissipates through a radiator without containing a cooling fan to ensure a whisper quiet printing environment for users.

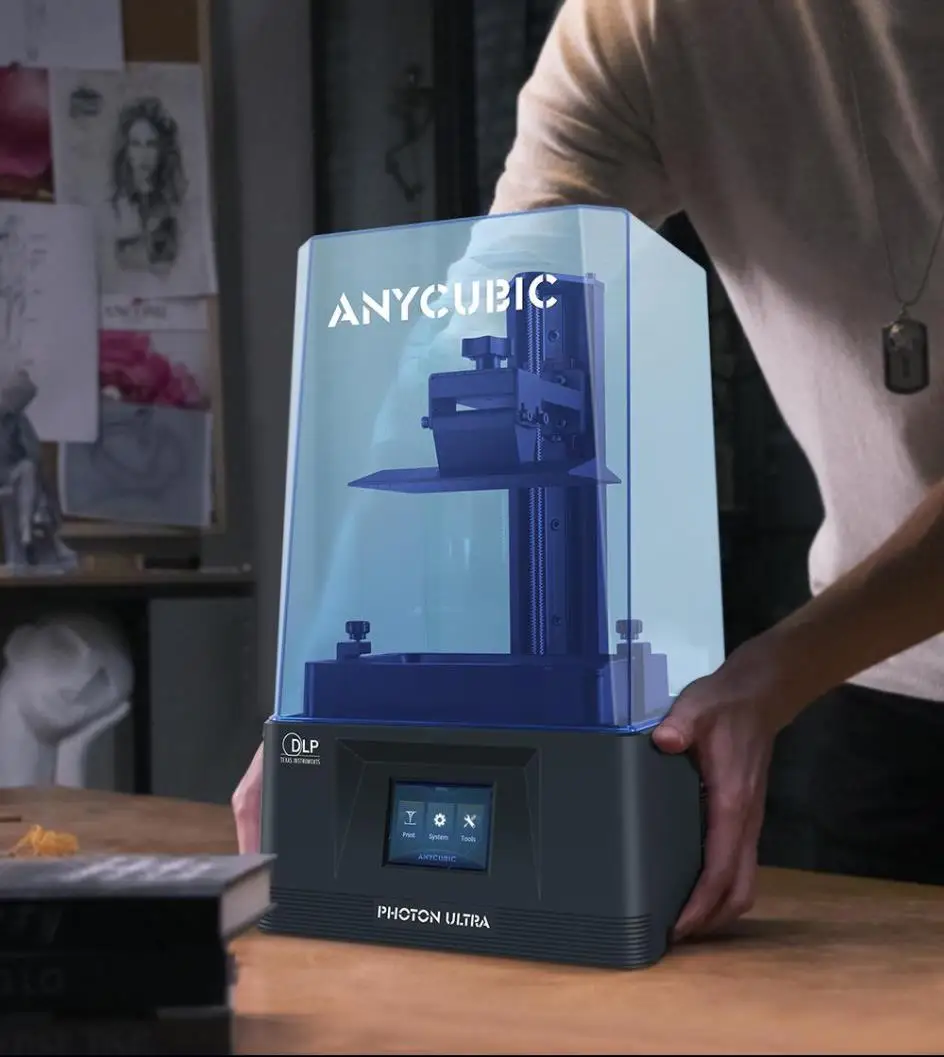

Desktop DLP® 3D Printer

Anycubic Photon Ultra is a groundbreaking consumer DLP 3D printer. Anycubic co-engineered with Texas Instruments to introduce Digital Light Processing (DLP) technology into the desktop 3D printer industry.

Do Better

1. Improved print bed

We've engineered the printing bed with an engraved checker pattern for improved adhesion, while still making it a snap to remove prints.

2. Photon Workshop , self developed & free

3 A safe power supply certified by TUV CE ETL
