Go V0.1 3D Printer Kit with Enclosed Panel Desktop FDM Corexy Youth 3D Printer DIY Scatter V6 Hotend Full-set Printers Kits
Go V0.1 3D Printer Kit with Enclosed Panel Desktop FDM Corexy Youth 3D Printer DIY Scatter V6 Hotend Full-set Printers Kits

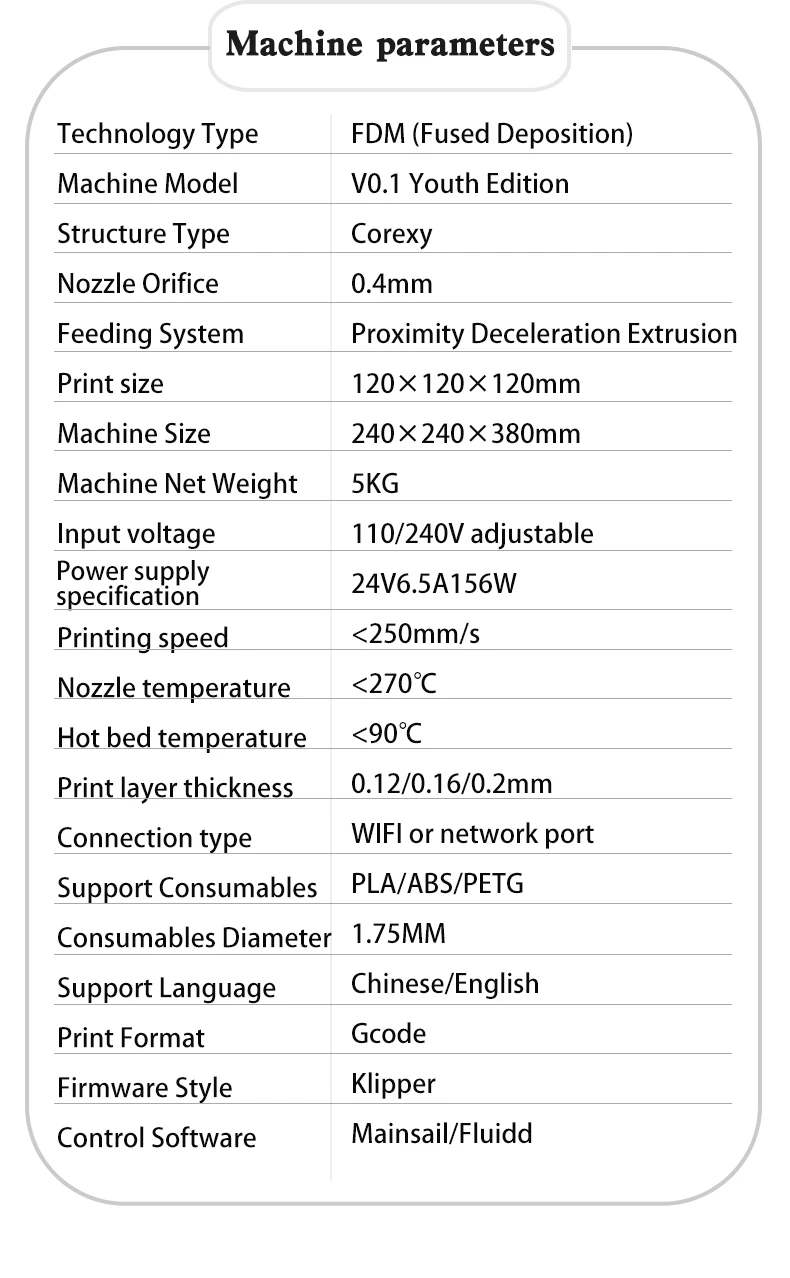

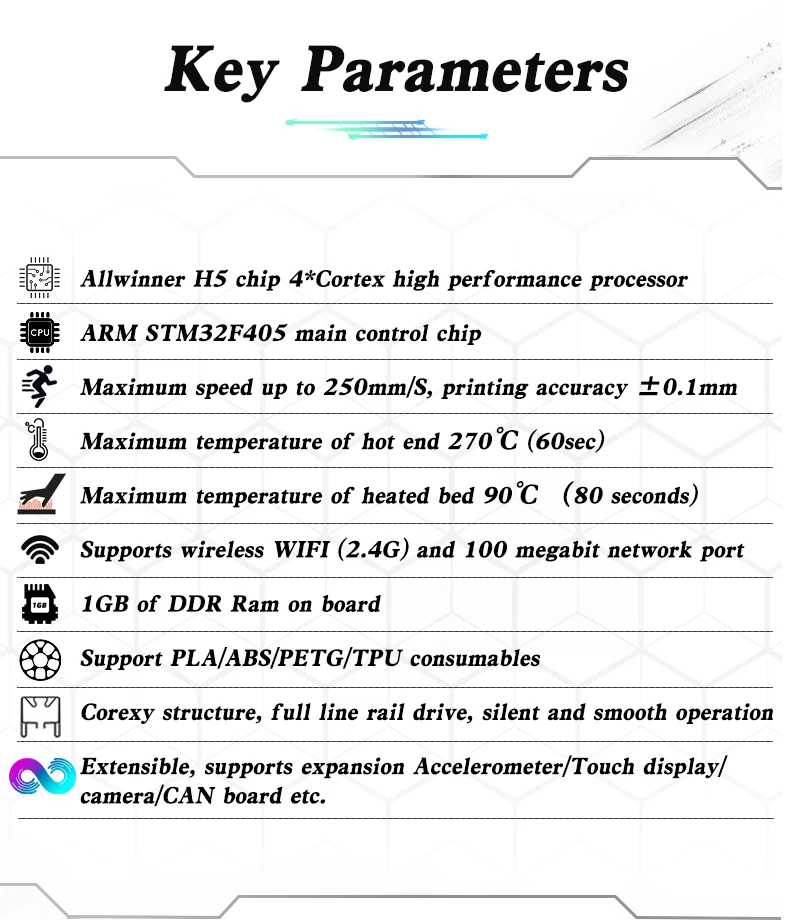

SPECIFICATIONS
Brand Name: brand name
CE Certification: none
Origin: Mainland China
Hign-concerned Chemical: Certain combined chemotherapy for lymphomas
Bed Temp: 90℃
Slice Thickness: 0.12/0.16/0.2mm
Maximum Printing Speed: 250mm/s
Nozzle Diameter: 0.4mm
Diameter Temp: 270℃
Auto Leveling: no
Maximum Print Size: 120x120x120mm
Color Print Speed: 30-250MM/S
Consumables Diameter: 1.75MM
Certification: CE
Printing Speed: 250mm/s
Language: Chinese/English
Fliament: TPU PLA ABS PETG
Slice Software: cura simplify 3Dprusa slicer
Power Supply: 110/240V Adjustable
Precision: ±0.01mm
Operating System: Proximity deceleration extrusion
File Format: Gcode
Molding Technology: FDM
Interface Type: USB
Maximum Working Speed: 250mm/s
Voltage: 110-220V
Additional Features: Other/other error alarm Platform heating version
Color :: Silver + cyan
Application Areas: Education and Research, Culture and Art, Creative DIY
Number of Nozzles: Single nozzle
Whether the whole package: No
Classification category: entry-level
Why choose our product?

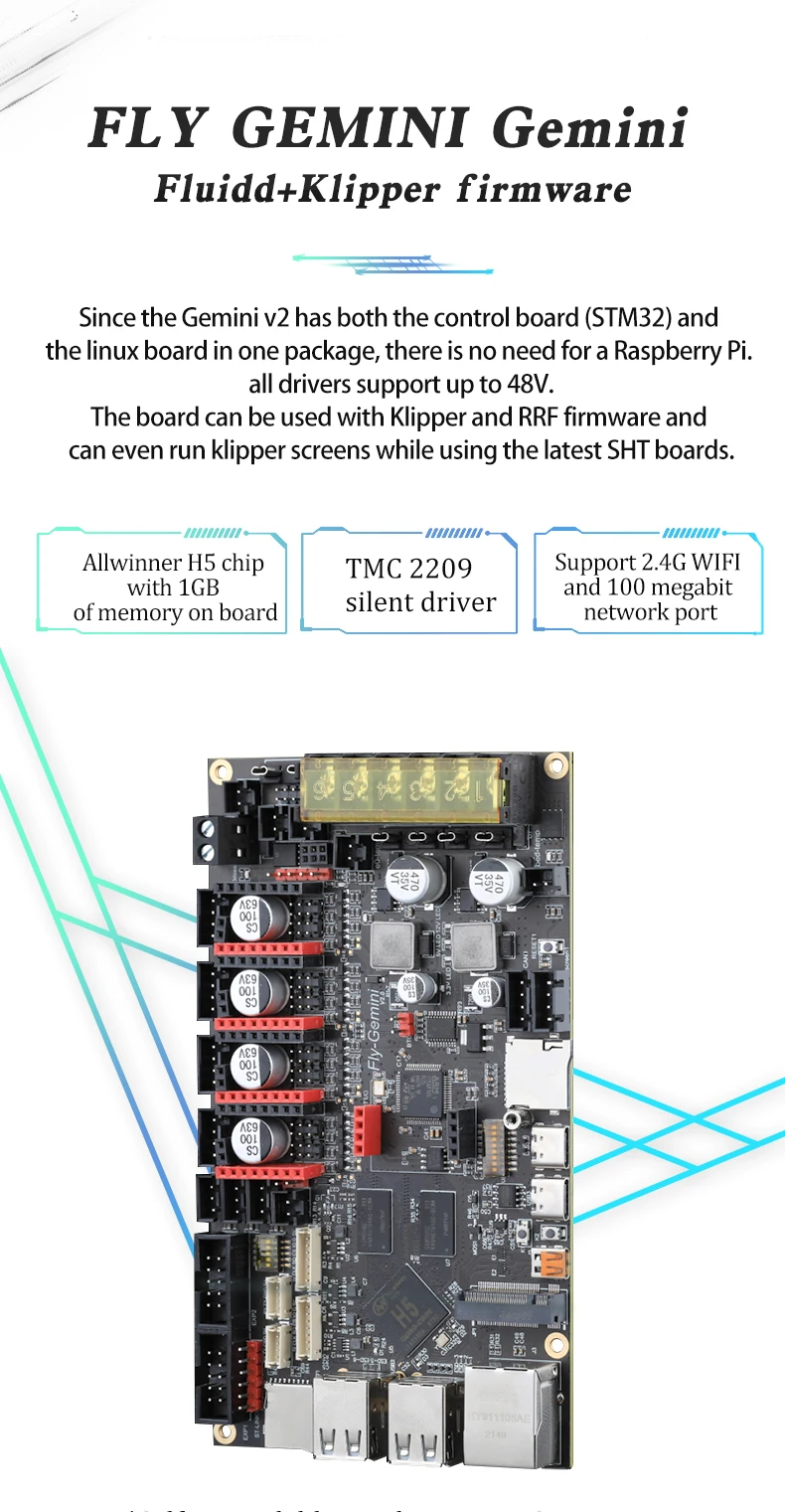

1:Our V0.1 Green Youth Edition:Gemini motherboard is self-contained on the computer, no need to purchase a separate Raspberry Pi, etc.

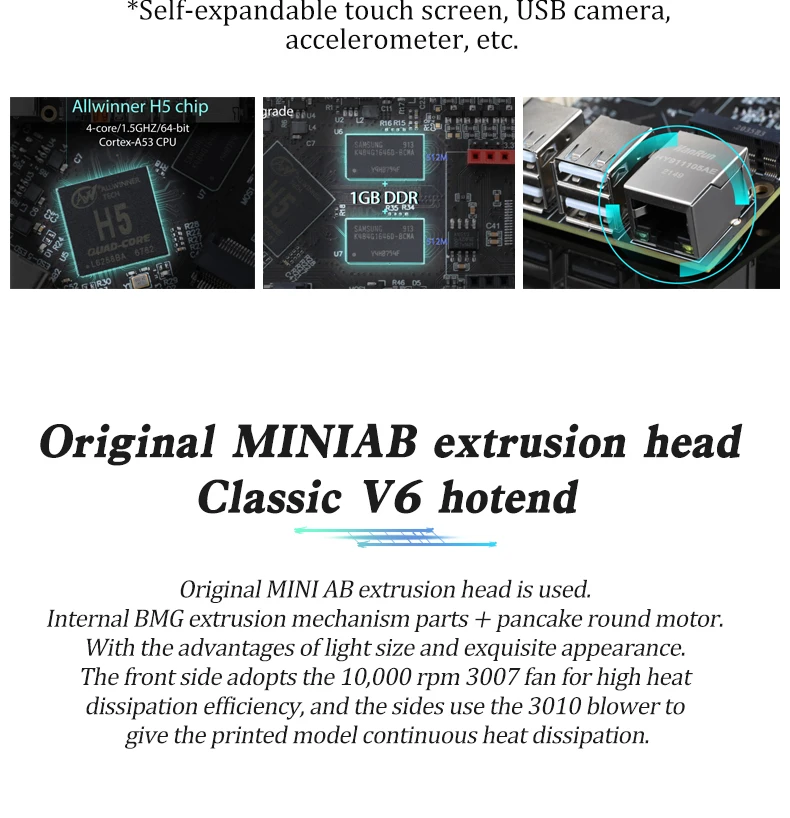

The main board supports 48Vhigh voltage input, you can expand your own touch screen, USB camera, accelerometer and many other expansion features.

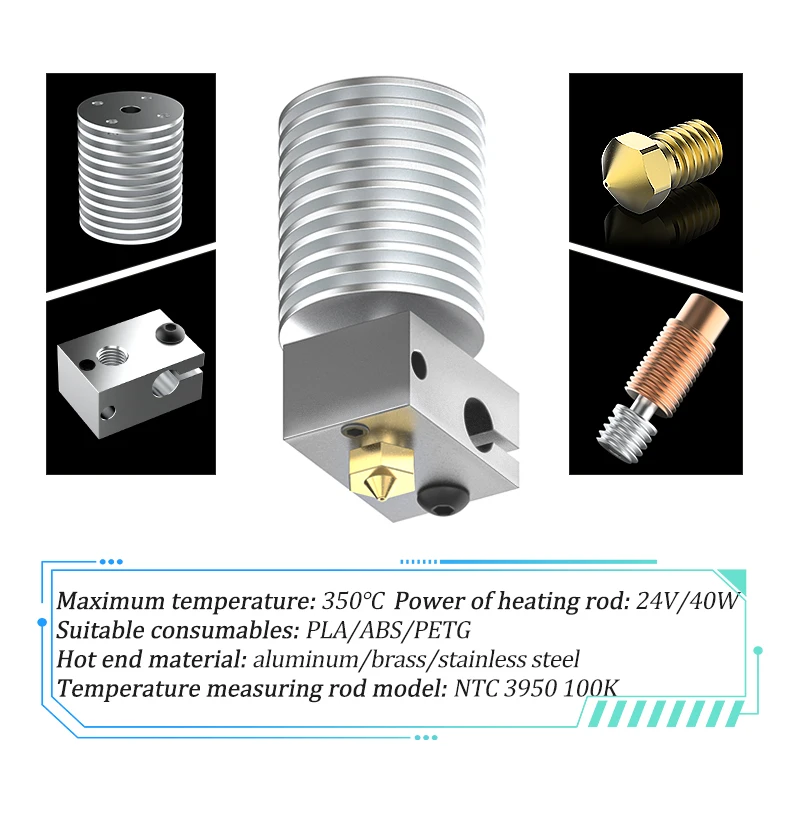

2:V6 hotend is customized, the maximum temperature of 350 °, bimetallic throatthree-hole nozzle.
3: Important point: built-in system, the machine is assembled directly into the debugging printing process, support for printing PLA/PETG/ABS/PA and other materials, technical support is provided, no worries.
4: We send the kit contains a full set of ABS 3Dprinting parts.
Note:
The system card emphasizes that do not format, connected to the line power connected to the wifi can be used.
V6 Hotend:Youth version V0.1
Shipping List:
(EXTRA PARTS):
Cable Ties *20pcs
Nylon Cable Sleeving *2pcs
Nylon Wrap-Around Cable Sleeving 10mm *1pcs
Solder Rings, Blue 10pcs, Red 10pcs* 1pcs
XH2.54 Reed* 100pcs
XH2.54 plastic shell *15pcs
Full set ABS Printed parts *1pcs
Solder Iron *1pcs
(Fasteners):
CNVORON 0.1 full set of screws Stainless steel * 1sets

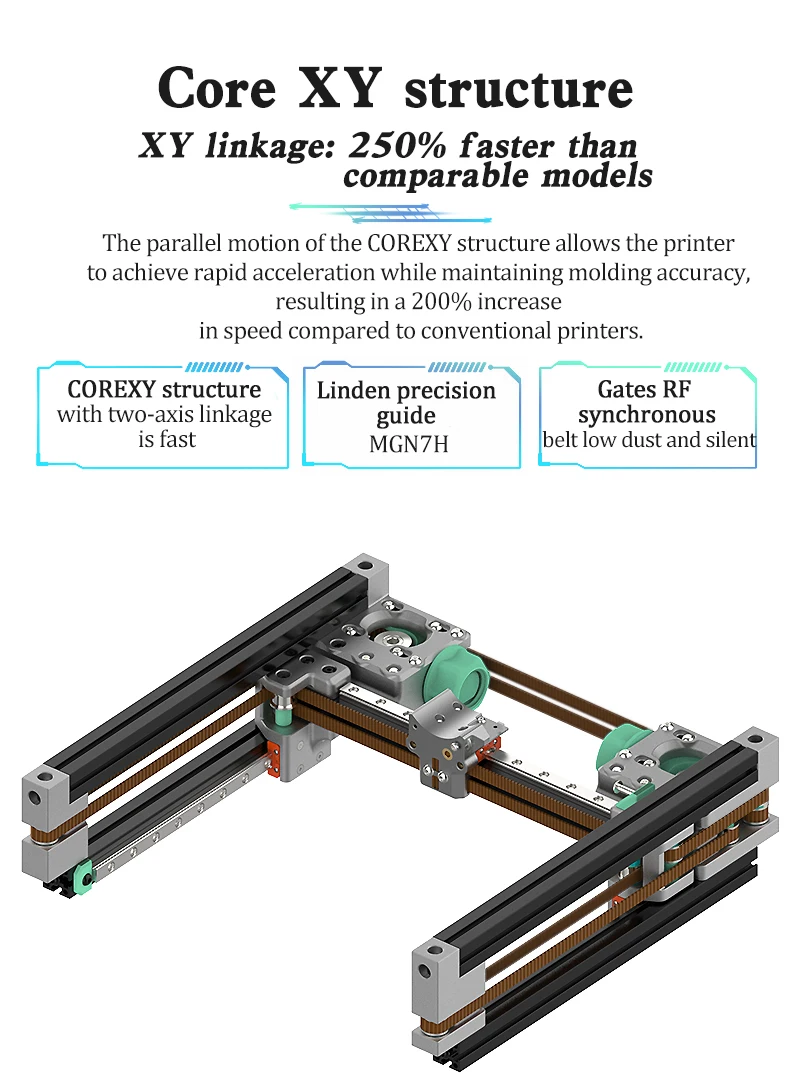

(Motion):
F623-RS Bearing * 24 pcs
MGN7H Linear Rail with Carriage - 150mm *5pcs
GT2 20T (5mm ID 6mm W) *2pcs
GATES GT2 Open Belt (6mm W) - 3000mm *1pcs

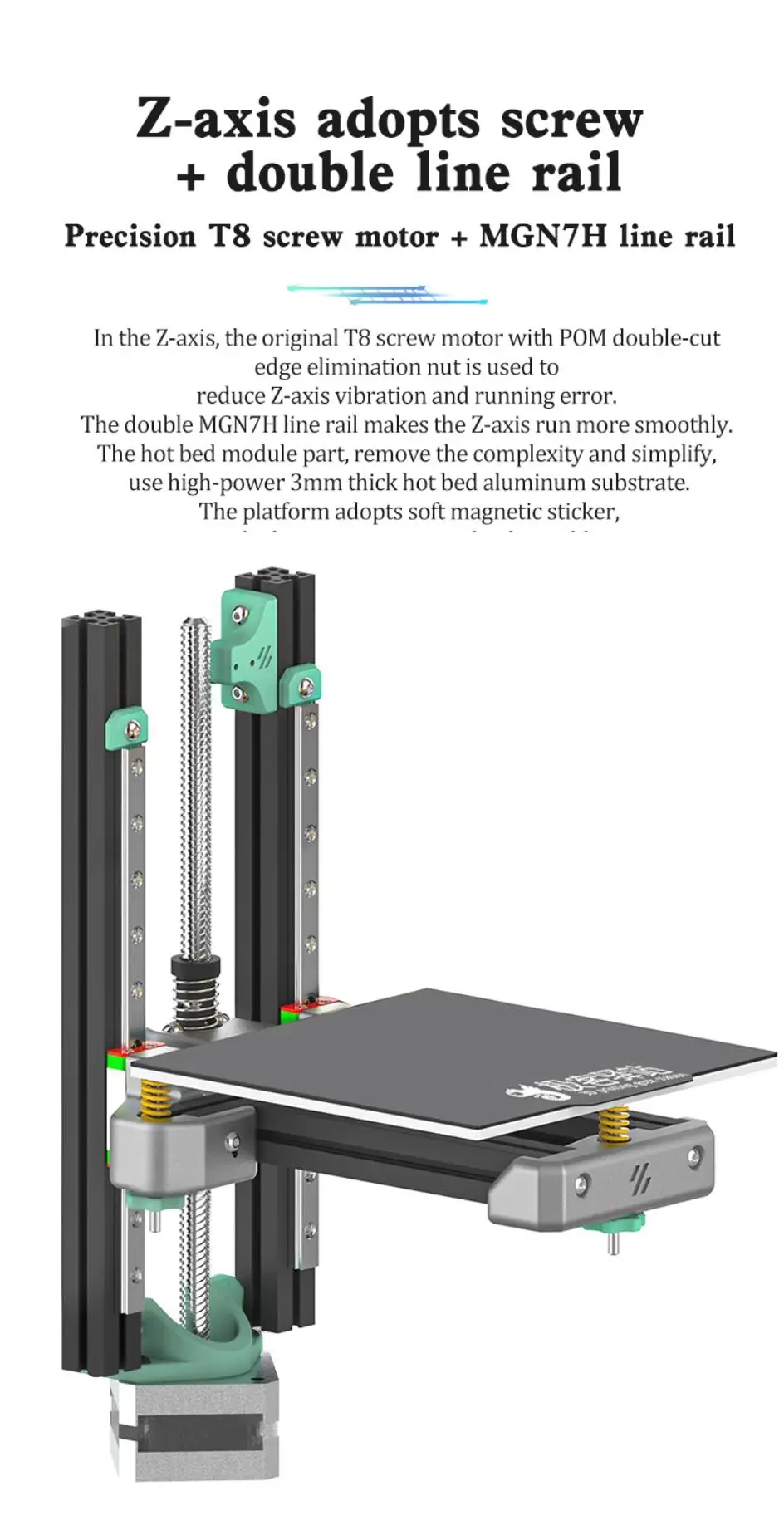

T8x8 Anti-backlash Flange Nut *1pcs
Motor cable *4pcs
Red-Black cable *2pcs
2*4 Teflon tube *1pcs
Frame(CNVORON 0.1 full set of profiles black oxide * 1set):
CNVORON Official Aluminum Profile 15x15 200mm*16pcs
CNVORONOfficial 15x15 100mm *3pcs
(Miscellaneous(:
Little Rubber Feet,14*11*9 * 4pcs
6mm x 3mm Round Neodymium Magnets *8pcs
(Cables):
XYZ motor cable * 1pcs
Thermal Fuse 125C * 1pcs
7mm x 7mm cable chain (less than 1/2 meter needed) * 1pcs

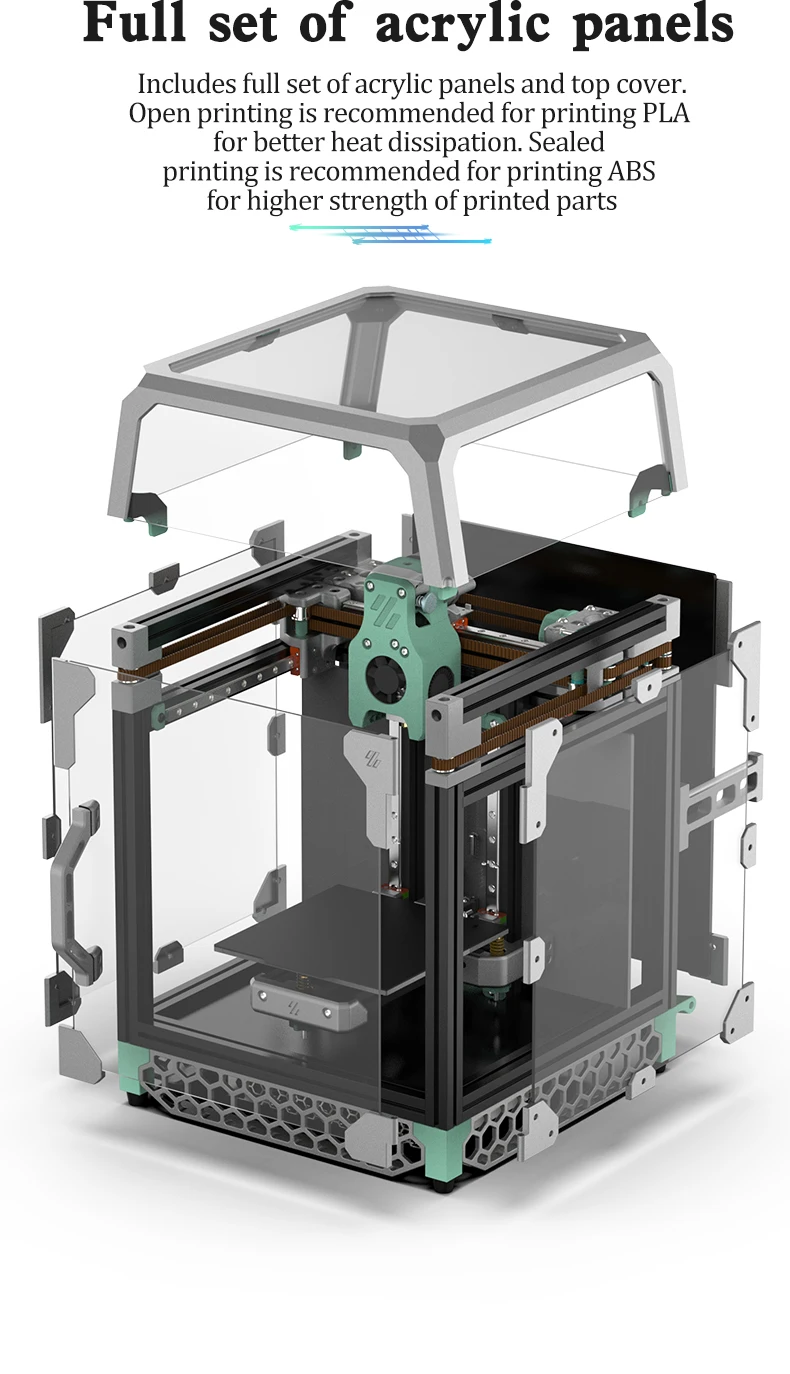

(Panels):
Acrylic Sheet Clear - 212x230x2.5mm *2pcs
Acrylic Sheet Clear - 212x239x2.5mm *1pcs
Rear Panel 212mm x 248mm *1pcs
Deck Panel 3mm thick *1pcs
Motor Panel 3mm thick *1pcs
Mid Panel 3mm thick *1pcs
Tophat - Top Panel 180x211mm *1pcs
Tophat - Front/Rear Panel 206x73mm *2pcs
Tophat - Side Panel *2pcs
(Bowden):
Bowden Fitting *2pcs
(Buildplate):
Hotbed - 120x120mm *1pcs
Magnetic printing platform *1pcs
yellow die springs 8x4x20mm *3pcs

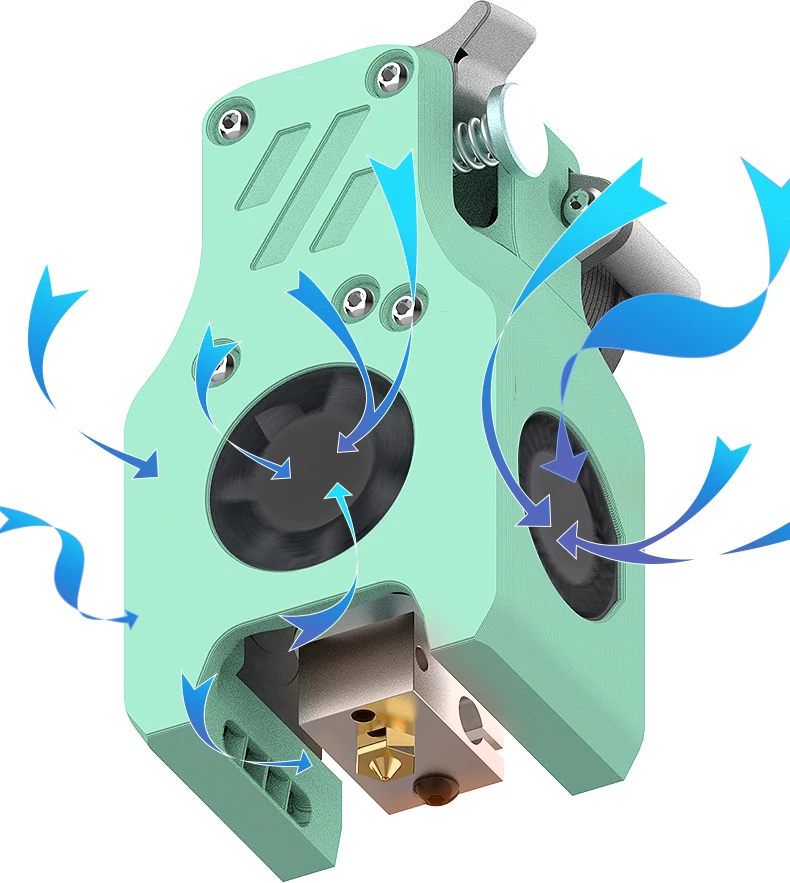

(Extruder):
NEMA14 36mm pancake Motor with 10 tooth gear *1pcs
BNG extrusion wheel *1pcs
Miniature needle roller bearing *2pcs
Hand screw *1pcs
Stainless steel spring *1pcs
Black gasket *1pcs
5mm pin with 30 teeth plastic gear *1pcs
3mm pin *1pcs
MR85 bearing *2pcs
