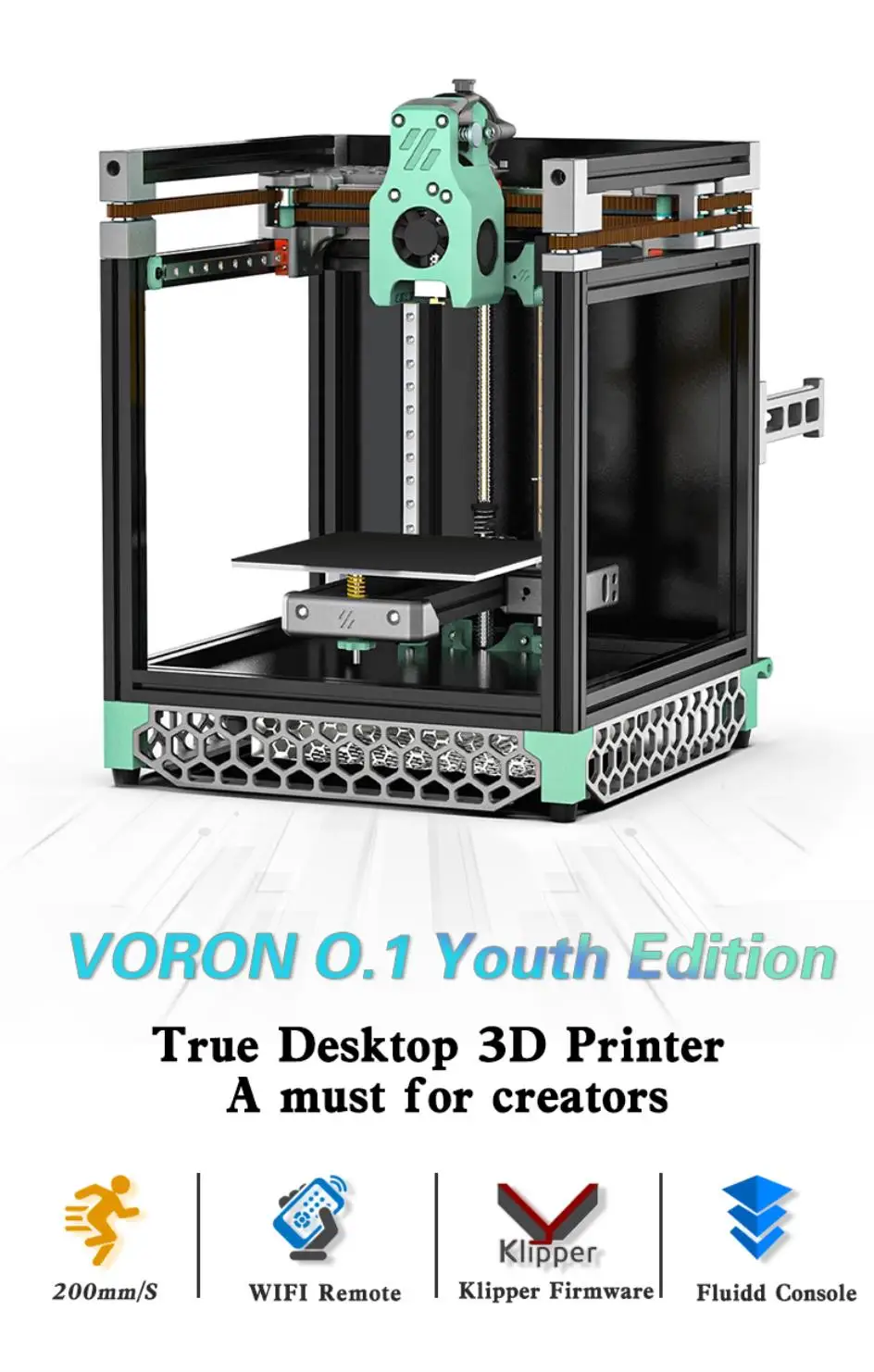

Go V0.1 Corexy 3D Printer WiFi Onboard Klipper Fluidd Desktop FDM 3D Printers Kit DIY Scatter V6 Hotend with Enclosed Panel
Go V0.1 Corexy 3D Printer WiFi Onboard Klipper Fluidd Desktop FDM 3D Printers Kit DIY Scatter V6 Hotend with Enclosed Panel

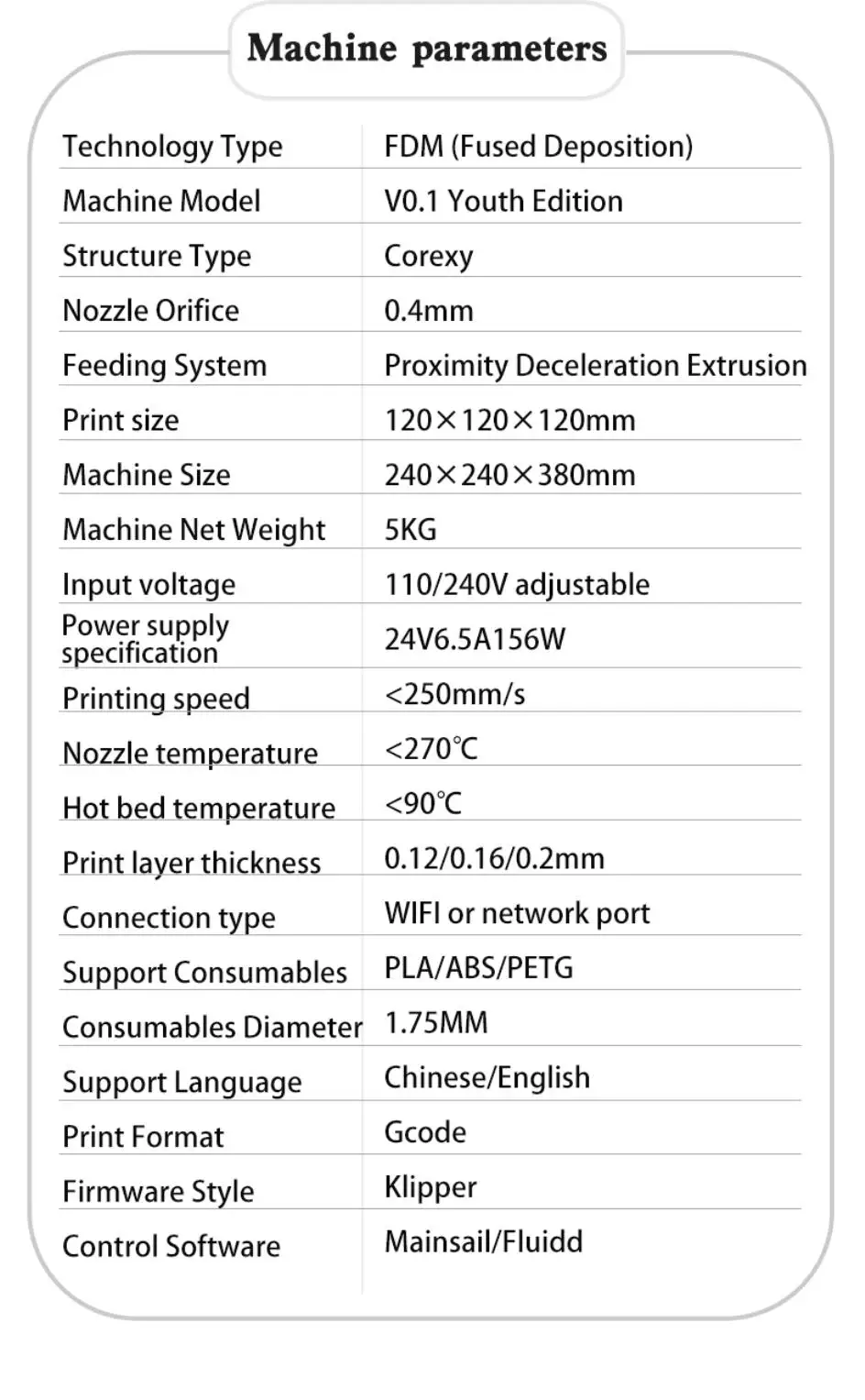

SPECIFICATIONS
Brand Name: brand name
CE Certification: none
Origin: Mainland China
Hign-concerned Chemical: Certain combined chemotherapy for lymphomas
Bed Temp: 90℃
Slice Thickness: 0.12/0.16/0.2mm
Maximum Printing Speed: 250mm/s
Nozzle Diameter: 0.4mm
Diameter Temp: 270℃
Auto Leveling: no
Maximum Print Size: 120x120x120mm
Color Print Speed: 30-250MM/S
Consumables Diameter: 1.75MM
Certification: CE
Printing Speed: 250mm/s
Language: Chinese/English
Fliament: TPU PLA ABS PETG
Slice Software: cura simplify 3Dprusa slicer
Power Supply: 110/240V Adjustable
Precision: ±0.01mm
Operating System: Proximity deceleration extrusion
File Format: Gcode
Molding Technology: FDM
Interface Type: USB
Maximum Working Speed: 250mm/s
Voltage: 110-220V
Additional Features: Other/other error alarm Platform heating version
Color :: Silver + cyan
Application Areas: Education and Research, Culture and Art, Creative DIY
Number of Nozzles: Single nozzle
Whether the whole package: No
Classification category: entry-level
Why choose our product?

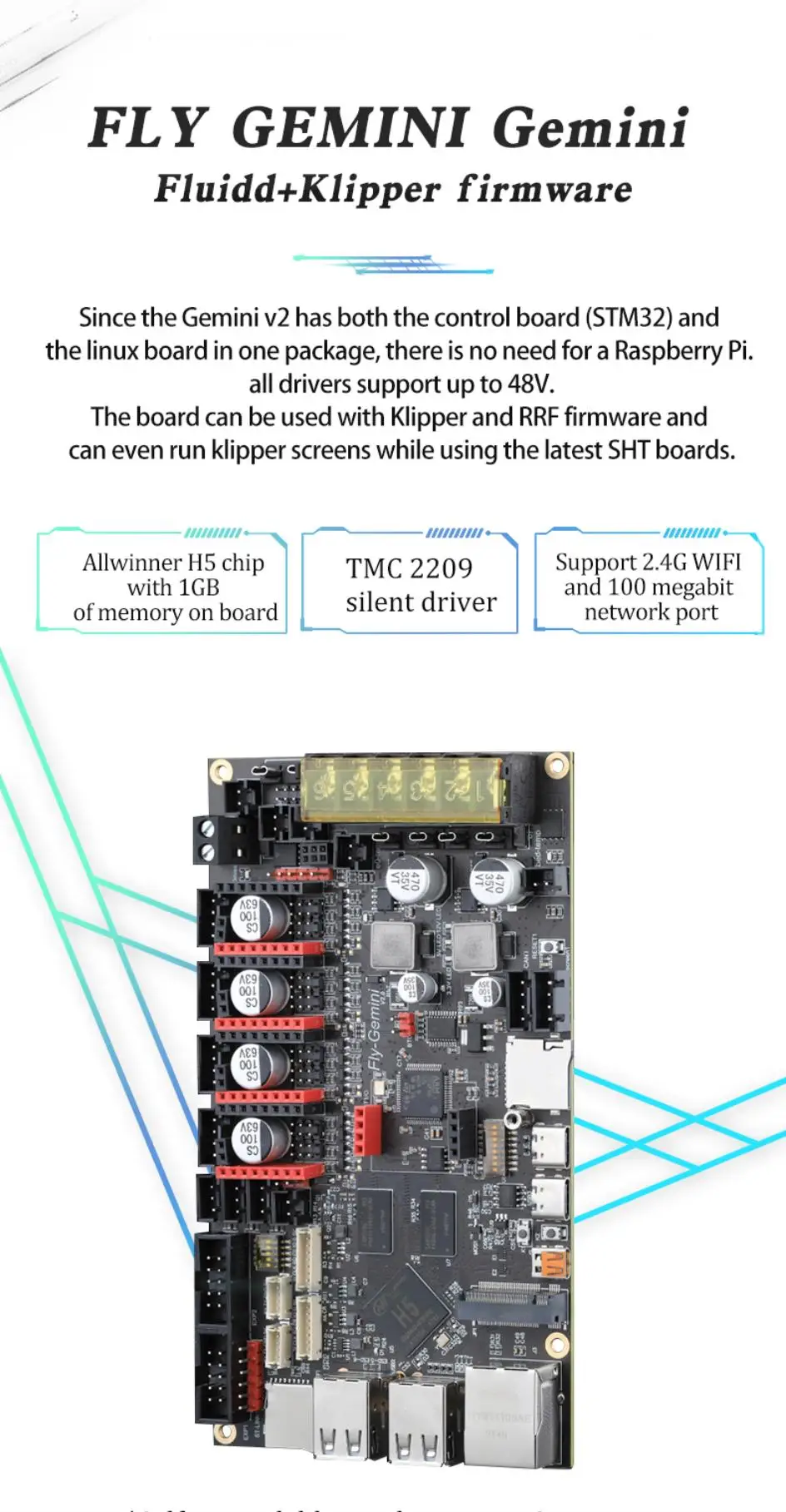

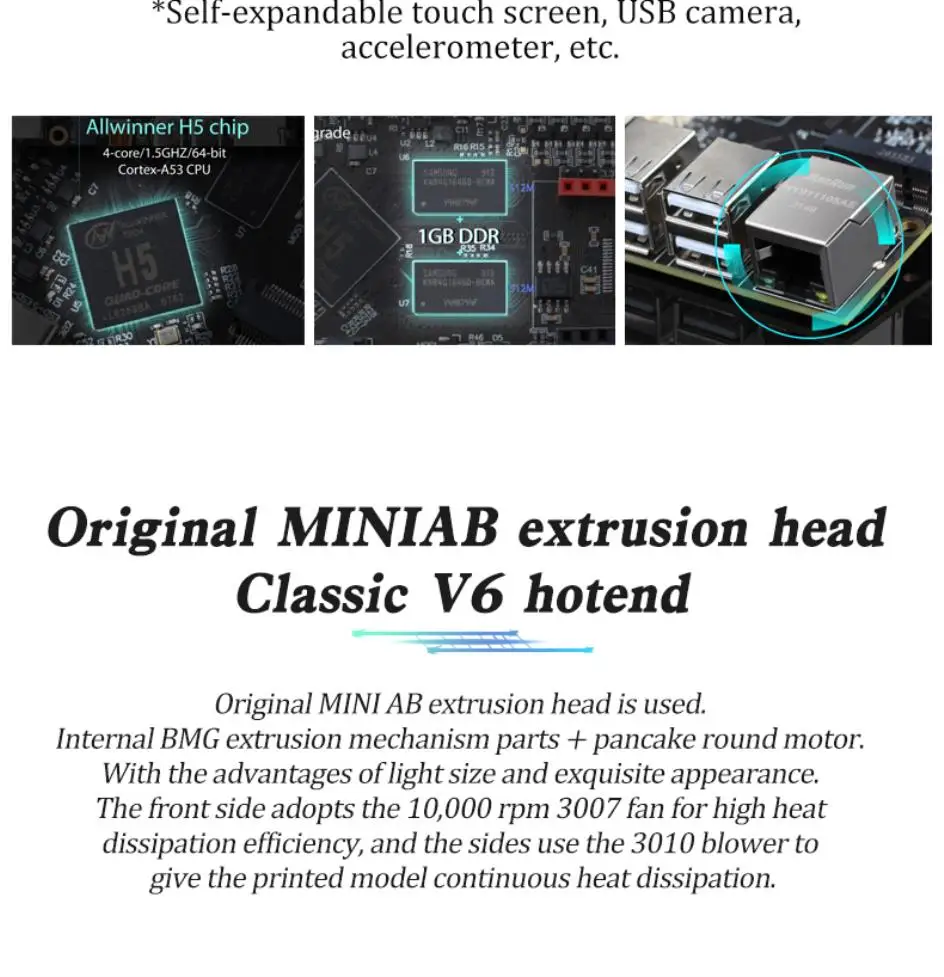

1:Our V0.1 Green Youth Edition:Gemini motherboard is self-contained on the computer, no need to purchase a separate Raspberry Pi, etc.

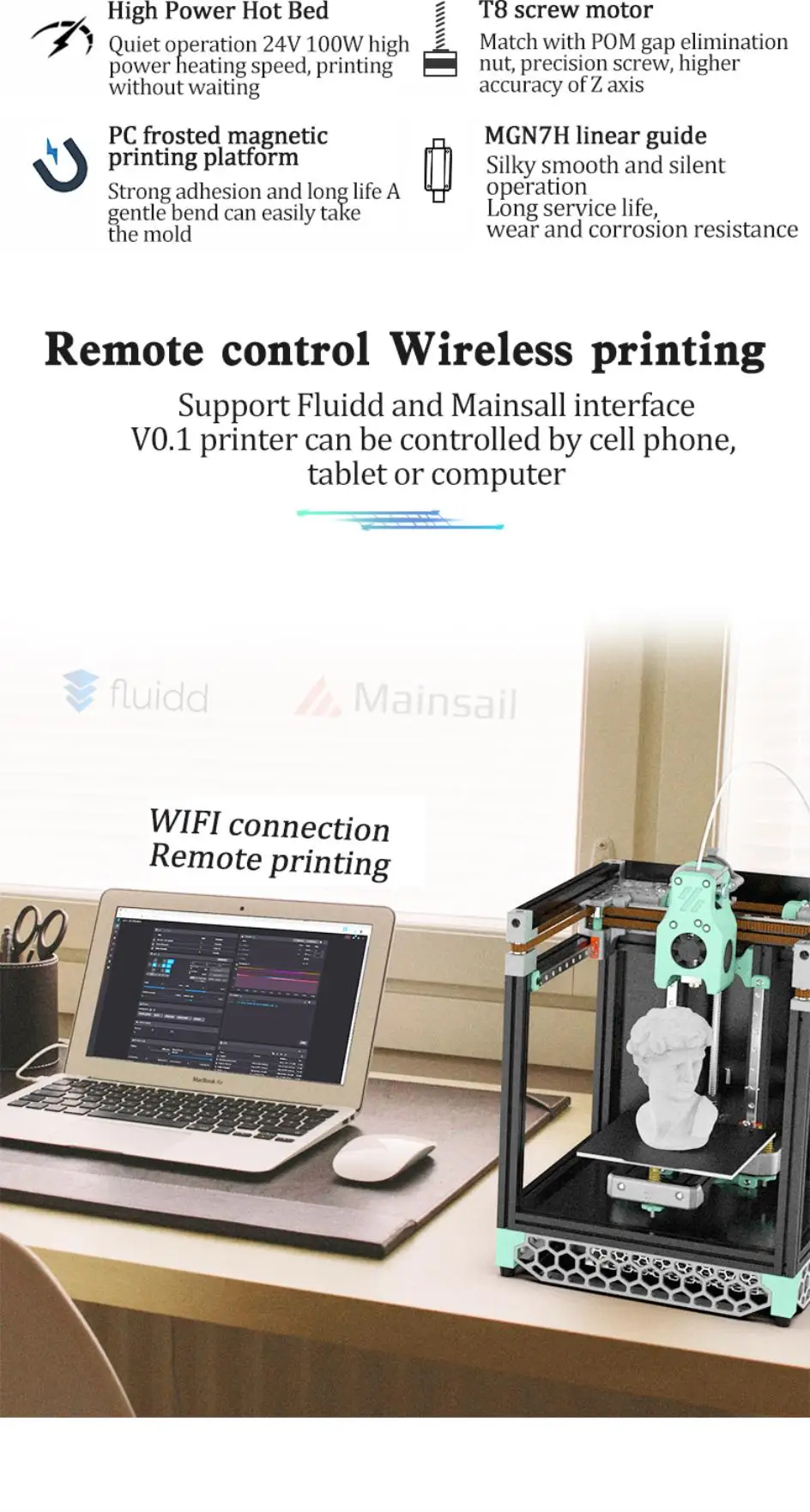

The main board supports48Vhigh voltage input, you can expand your own touch screen, USB camera, accelerometer and many other expansion features.

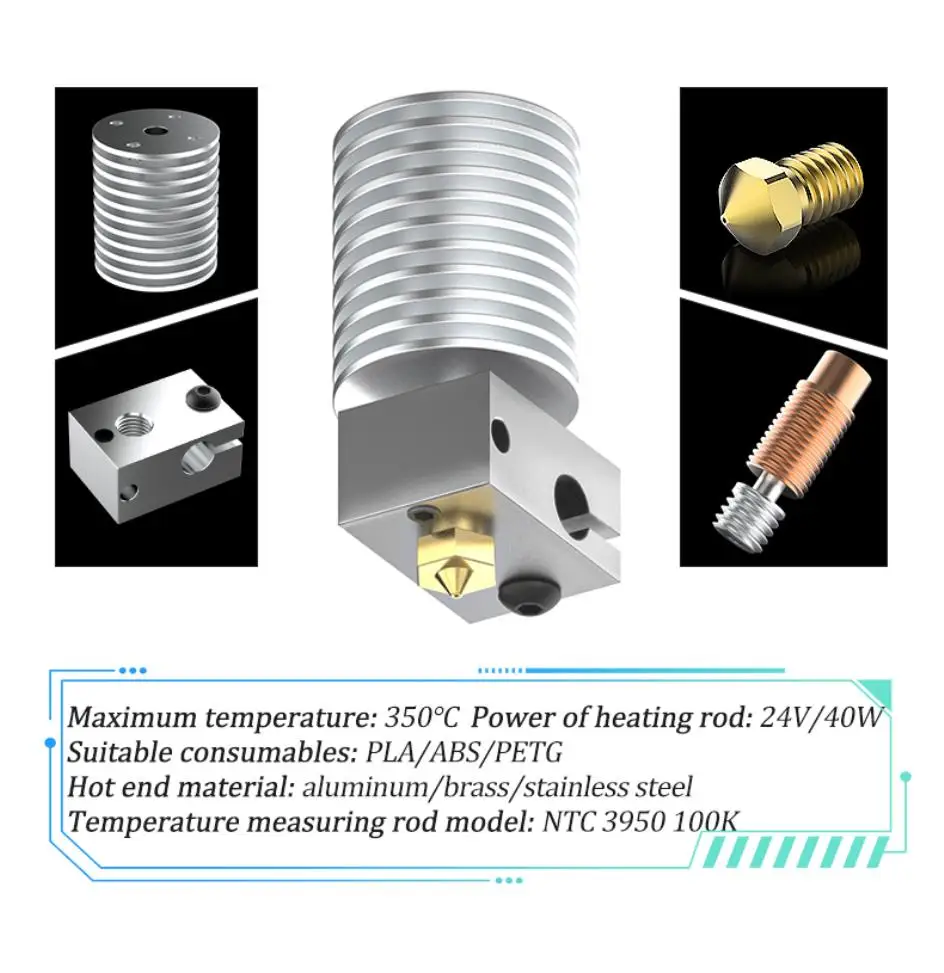

2:V6 hotend iscustomized, the maximumtemperature of 350 °, bimetallic throatthree-hole nozzle.
3: Important point:built-in system, the machine is assembled directly into the debugging printing process, support for printing PLA/PETG/ABS/PA and other materials, technical support is provided, no worries.
4: We send the kit contains a set ofABS 3Dprinting parts.
Note:
The system card emphasizesthat do not format, connected to the line power connected to the wifi can be used.
Product Shipping List:
V6 Hotend:Youth version V0.1
Shipping List:
(EXTRA PARTS):
PVC Stickers,three colors *1pcs
Screwdriver Set * 6pcs
Cable Ties *20pcs
Nylon Cable Sleeving *2pcs
Nylon Wrap-Around Cable Sleeving 10mm *1pcs
Solder Rings, Blue 10pcs, Red 10pcs* 1pcs
XH2.54 Reed* 100pcs
XH2.54 plastic shell *15pcs
Full set ABS Printed parts *1pcs
Solder Iron *1pcs
(Fasteners):
CNVORON 0.1 full set of screws Stainless steel * 1sets
(Motion):
F623-RS Bearing * 24 pcs
MGN7H Linear Rail with Carriage - 150mm *5pcs
GT2 20T (5mm ID 6mm W) *2pcs
GATES GT2 Open Belt (6mm W) - 3000mm *1pcs
T8x8 Anti-backlash Flange Nut *1pcs
Motor cable *4pcs
Red-Black cable *2pcs
2*4 Teflon tube *1pcs
Frame(CNVORON 0.1 full set of profiles black oxide * 1set):
CNVoron Official Aluminum Profile 15x15 200mm*16pcs
CNVoron Official 15x15 100mm *3pcs
(Miscellaneous(:
Little Rubber Feet,14*11*9 * 4pcs
6mm x 3mm Round Neodymium Magnets *8pcs
(Cables):
XYZ motor cable * 1pcs
Thermal Fuse 125C * 1pcs
7mm x 7mm cable chain (less than 1/2 meter needed) * 1pcs

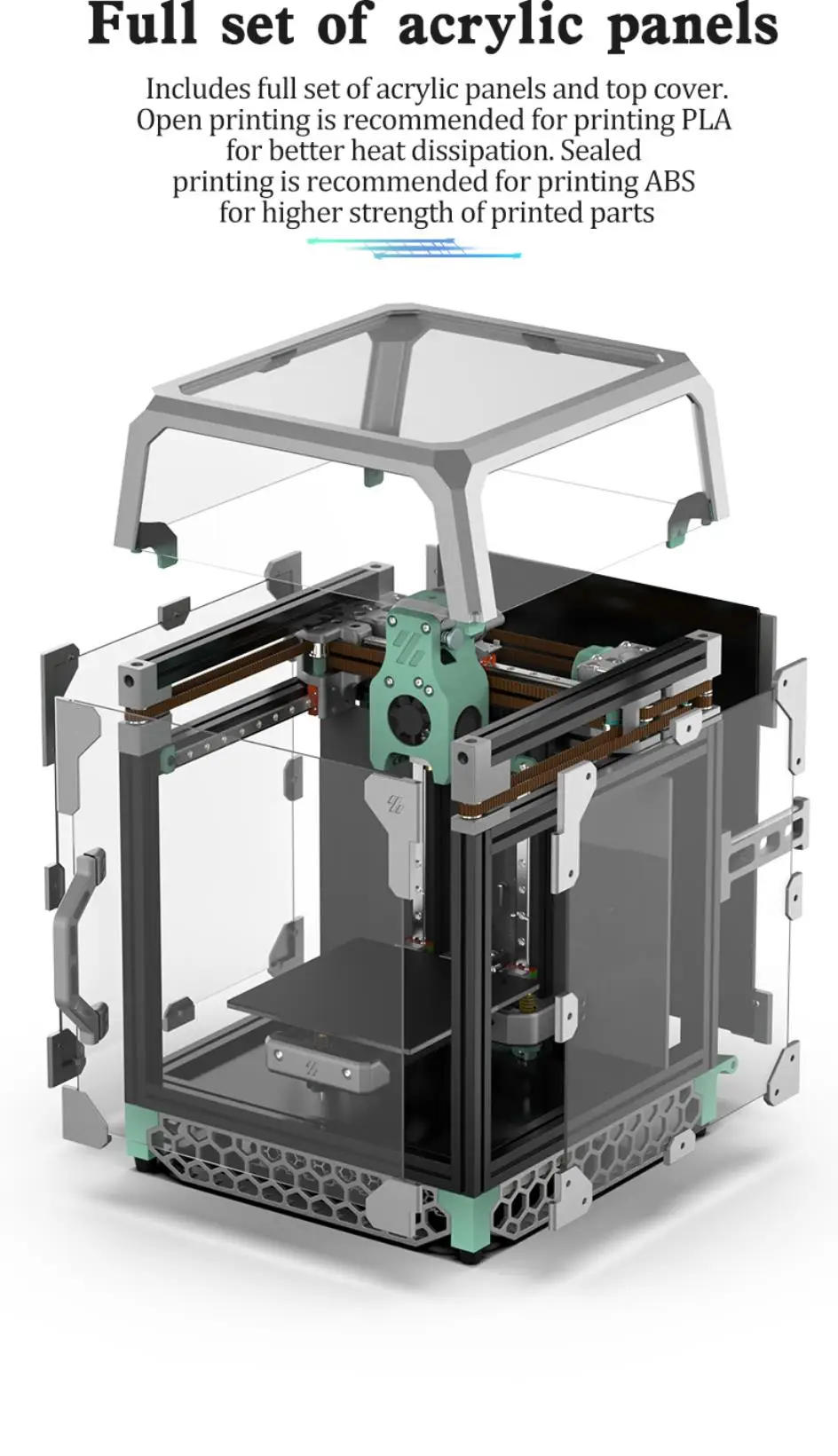

(Panels):
Acrylic Sheet Clear - 212x230x2.5mm *2pcs
Acrylic Sheet Clear - 212x239x2.5mm *1pcs
Rear Panel 212mm x 248mm *1pcs
Deck Panel 3mm thick *1pcs
Motor Panel 3mm thick *1pcs
Mid Panel 3mm thick *1pcs
Tophat - Top Panel 180x211mm *1pcs
Tophat - Front/Rear Panel 206x73mm *2pcs
Tophat - Side Panel *2pcs
(Bowden):
Bowden Fitting *2pcs

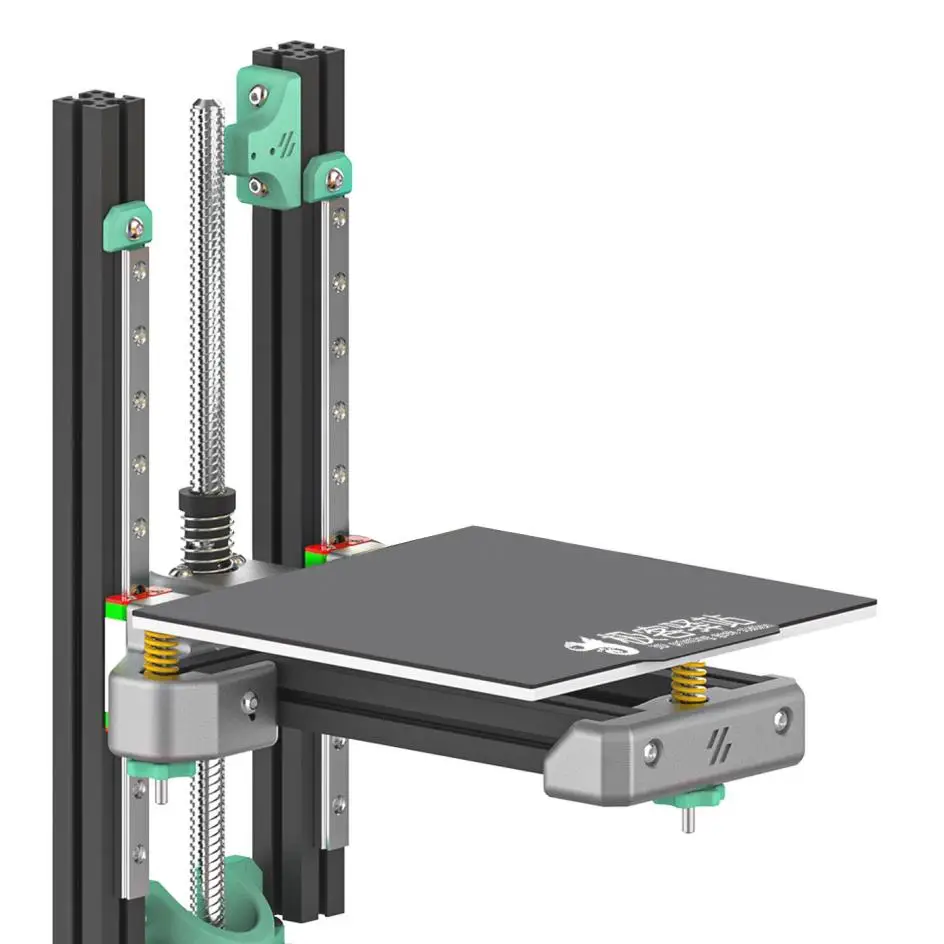

(Buildplate):
Hotbed - 120x120mm *1pcs
Magnetic printing platform *1pcs
yellow die springs 8x4x20mm *3pcs
(Extruder):
NEMA14 36mm pancake Motor with 10 tooth gear *1pcs
BNG extrusion wheel *1pcs
Miniature needle roller bearing *2pcs
Hand screw *1pcs
Stainless steel spring *1pcs
Black gasket *1pcs
5mm pin with 30 teeth plastic gear *1pcs
3mm pin *1pcs
MR85 bearing *2pcs

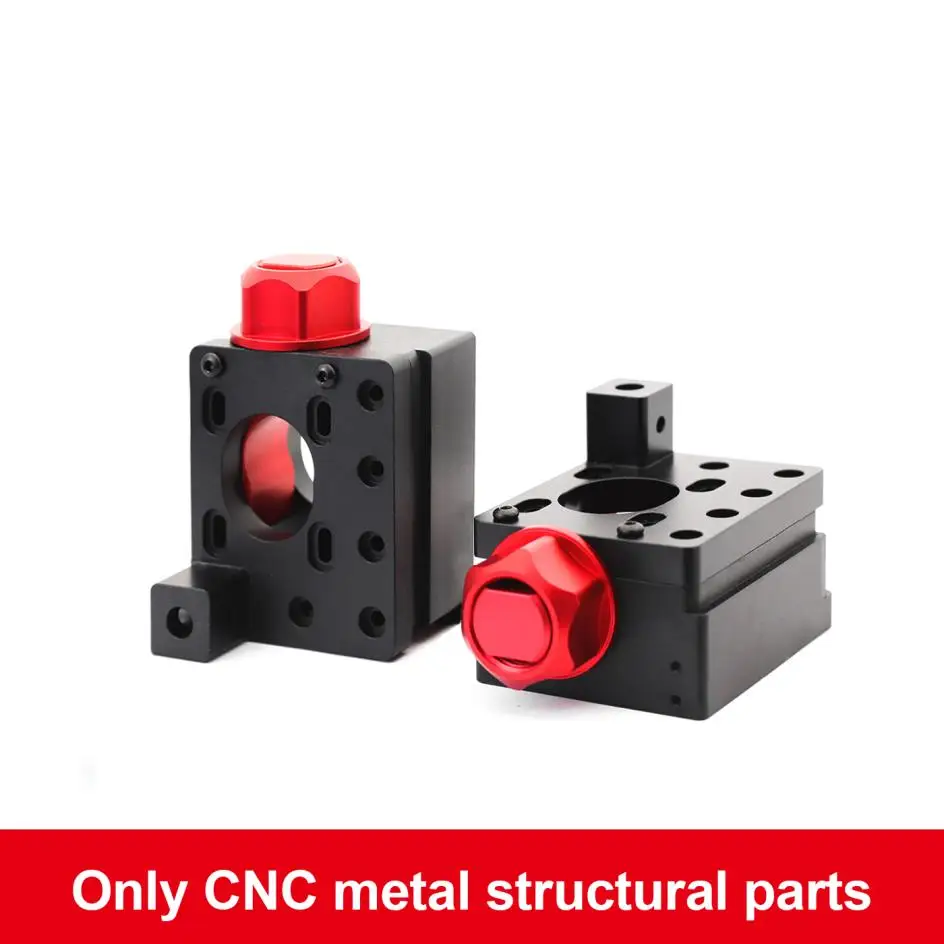

This contains only one set of CNC metal construction parts
