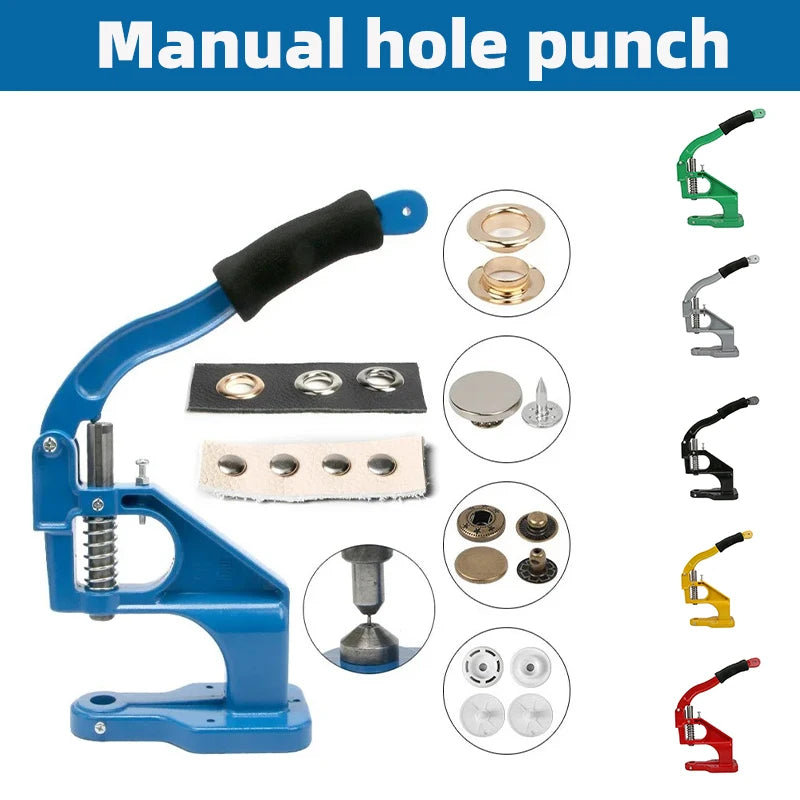

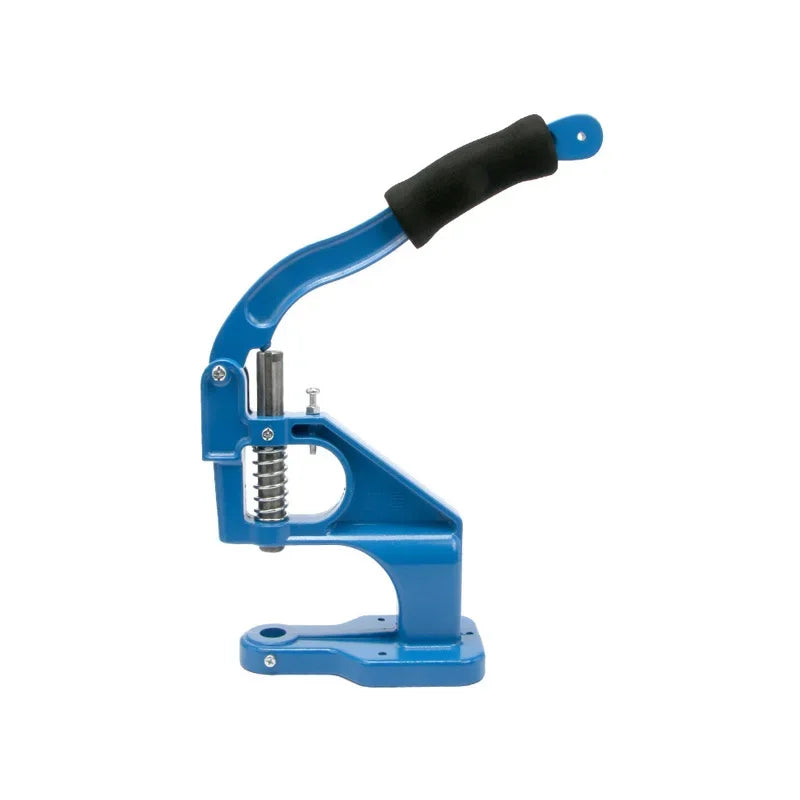

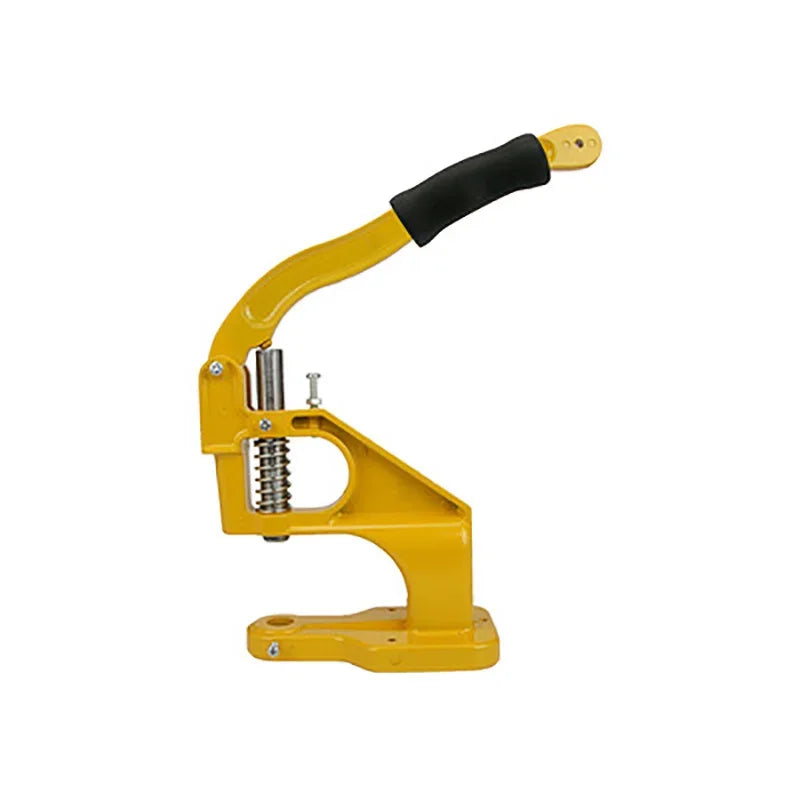

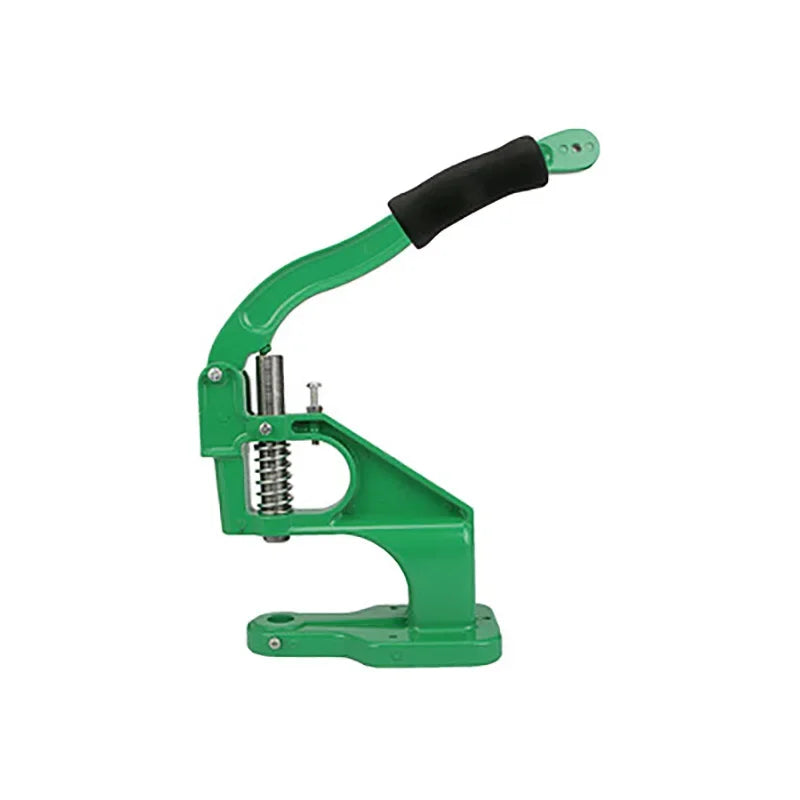

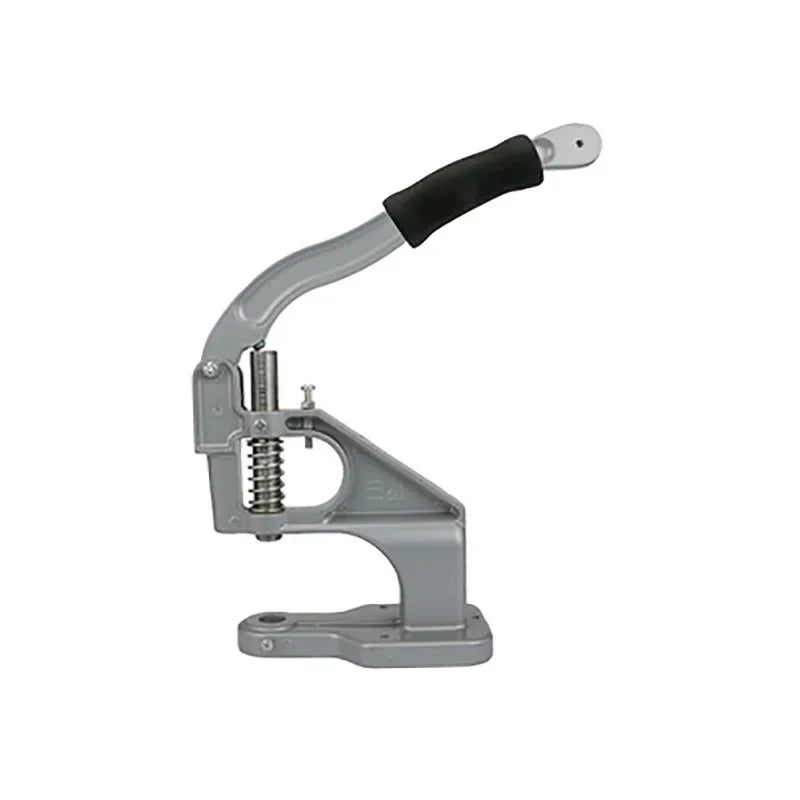

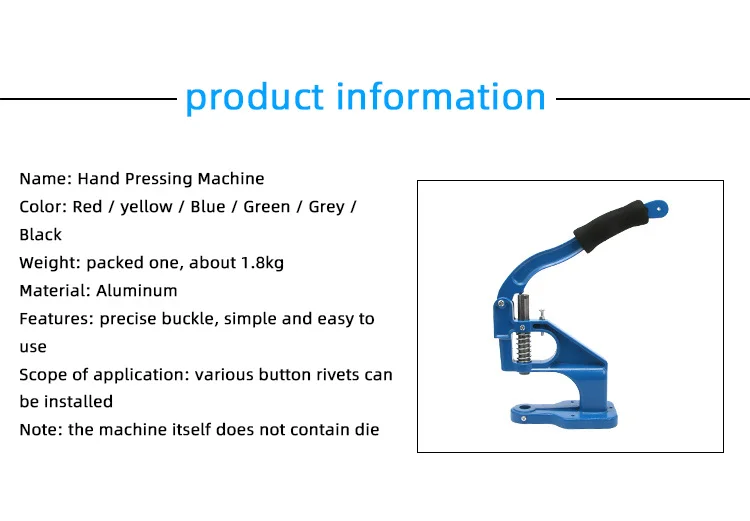

Hand Pressing Machine

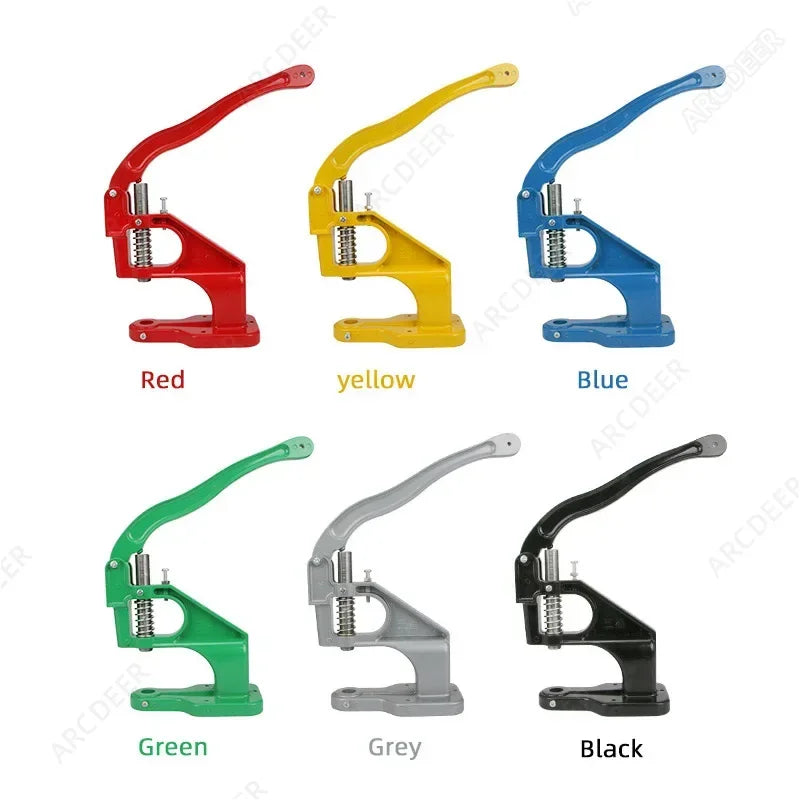

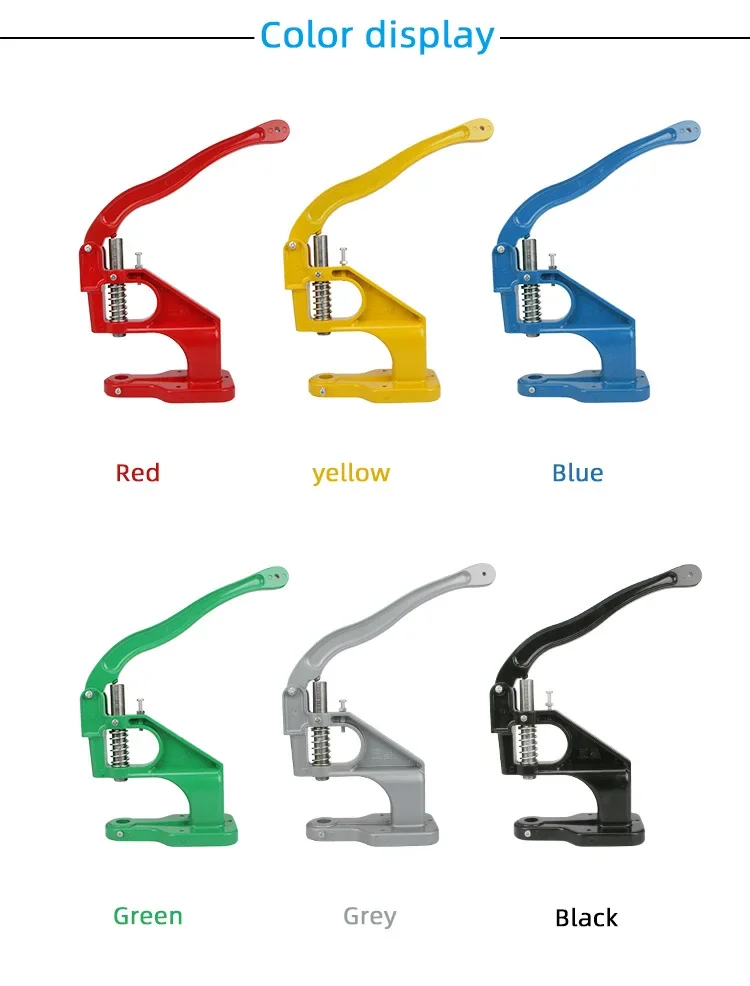

Color: Red / yellow / Blue / Green / Grey / Black

Weight: packed one, about 1.8kg

Material: Aluminum

Features: precise buckle, simple and easy to use

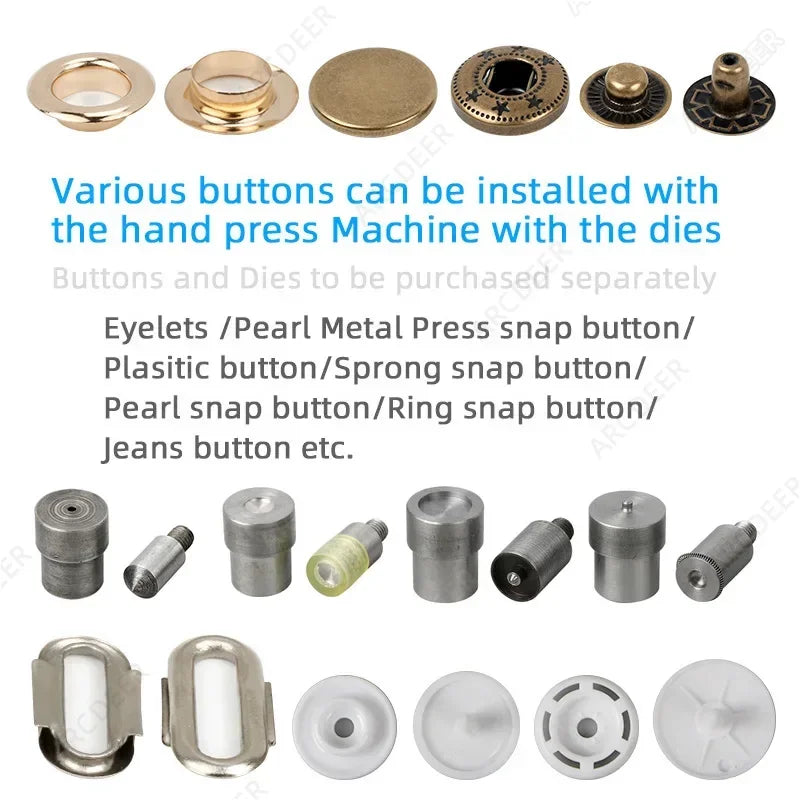

Scope of application: various button rivets can be installed

Note: the machine itself does not contain die

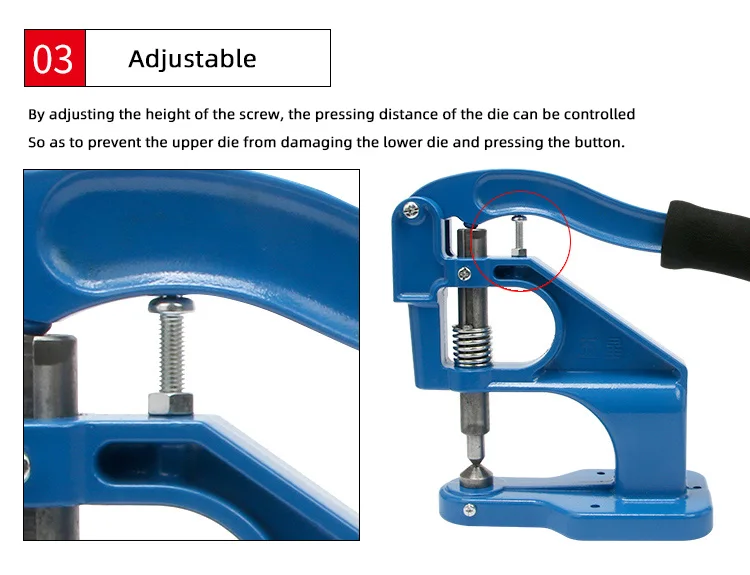

Adjustable

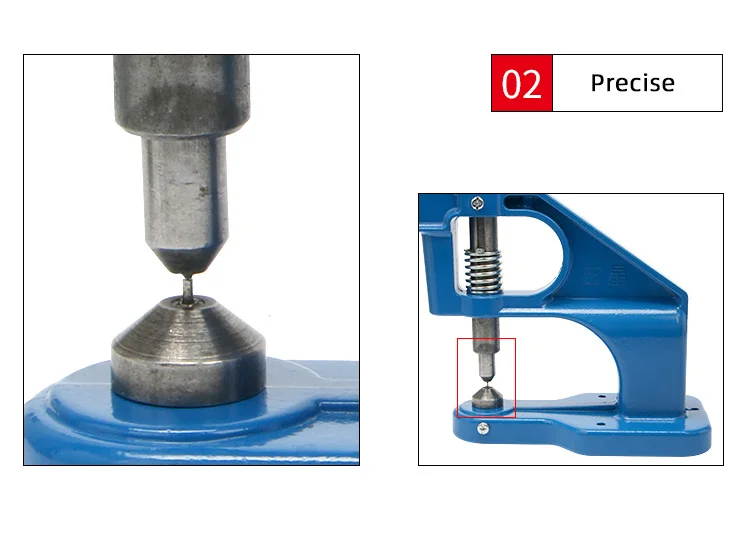

By adjusting the height of the screw, the pressing distance of the die can be controlled.

So as to prevent the upper die from damaging the lower die and pressing the button.

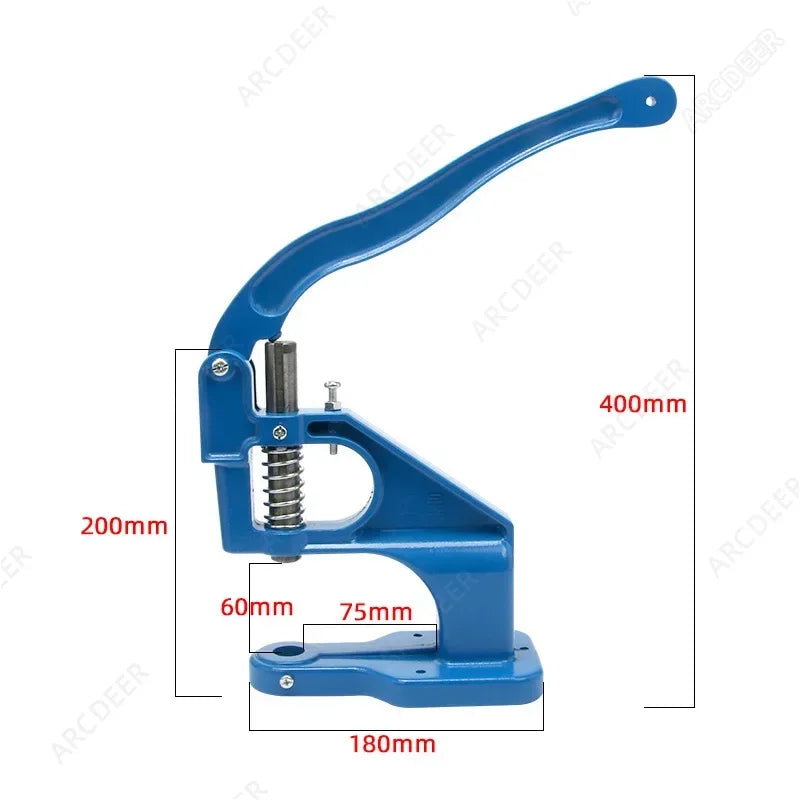

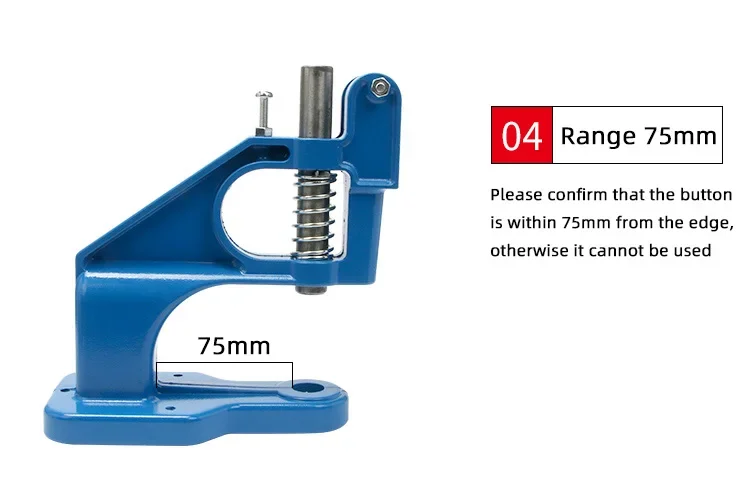

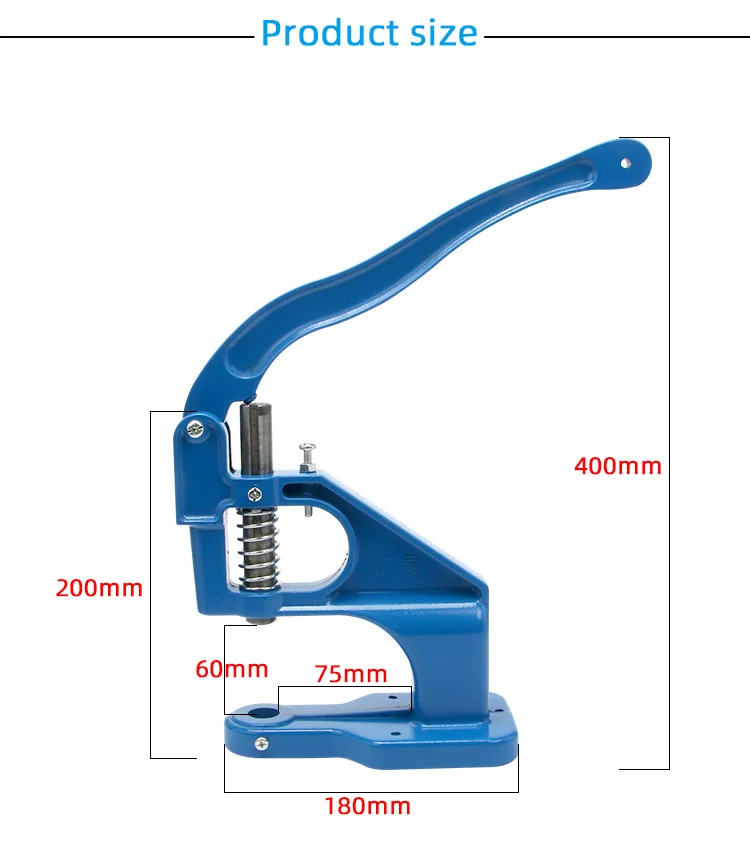

04:Please confirm that the button is within 75mm from the edge, otherwise it cannot be used.

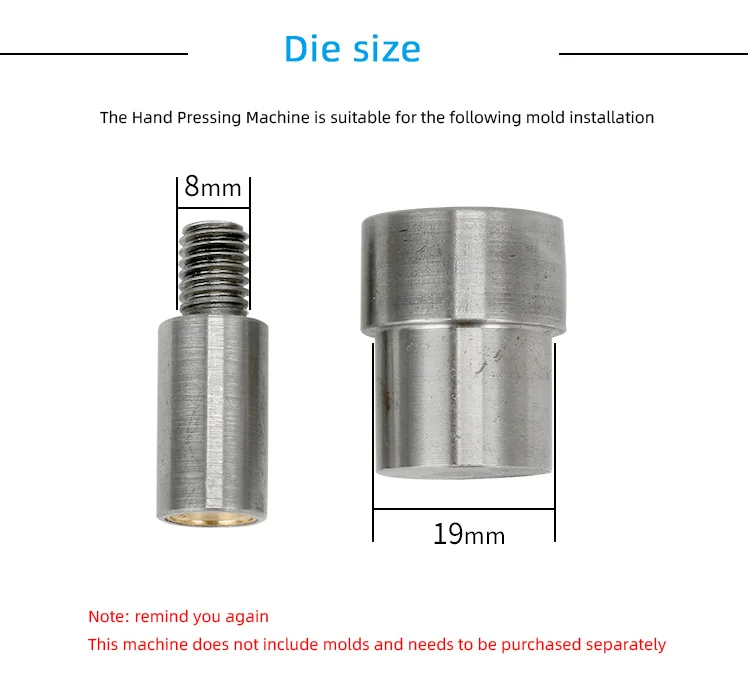

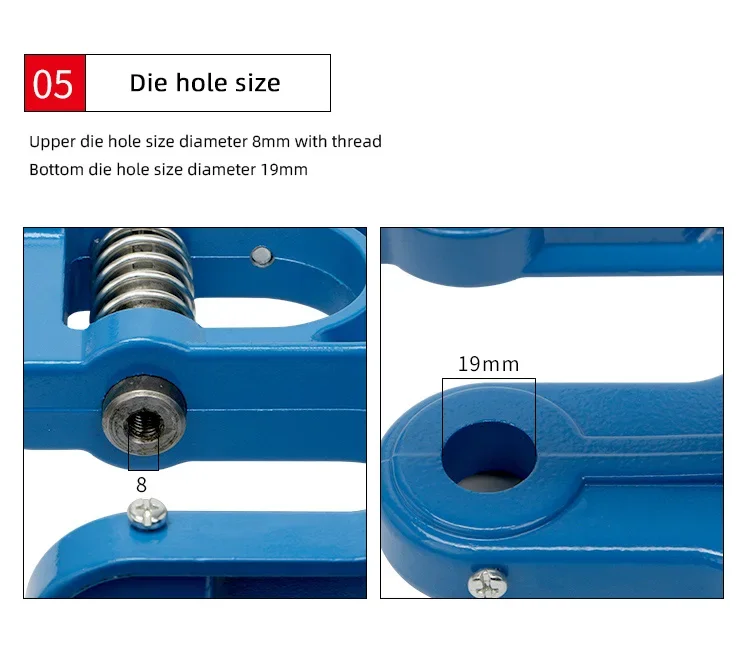

05:Upper die hole size diameter 8mm with thread
.
Bottom die hole size diameter 19mm.

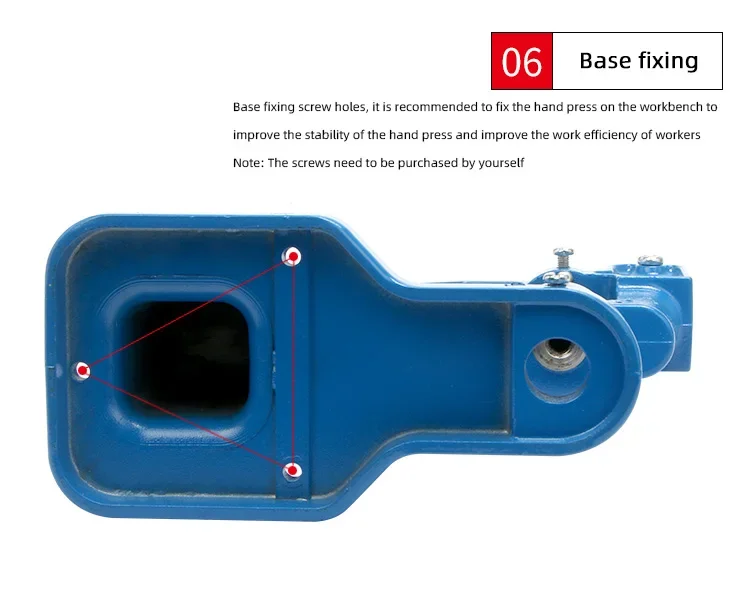

06: Base fixing screw holes, it is recommended to fix the hand press on the workbench to improve the stability of the hand press and improve the work efficiency of workers
Note: The screws need to be purchased by yourself

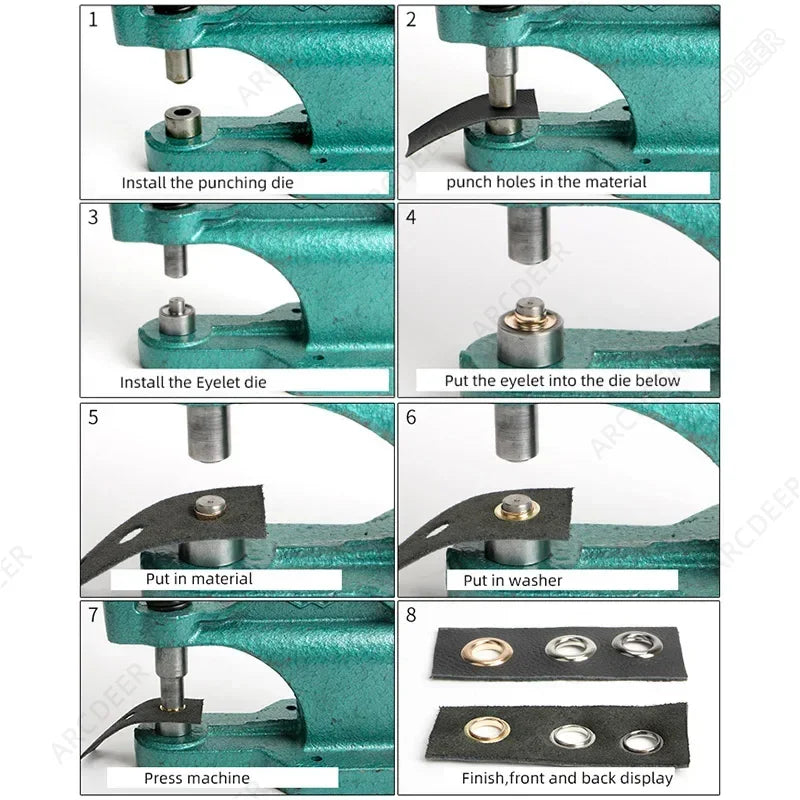

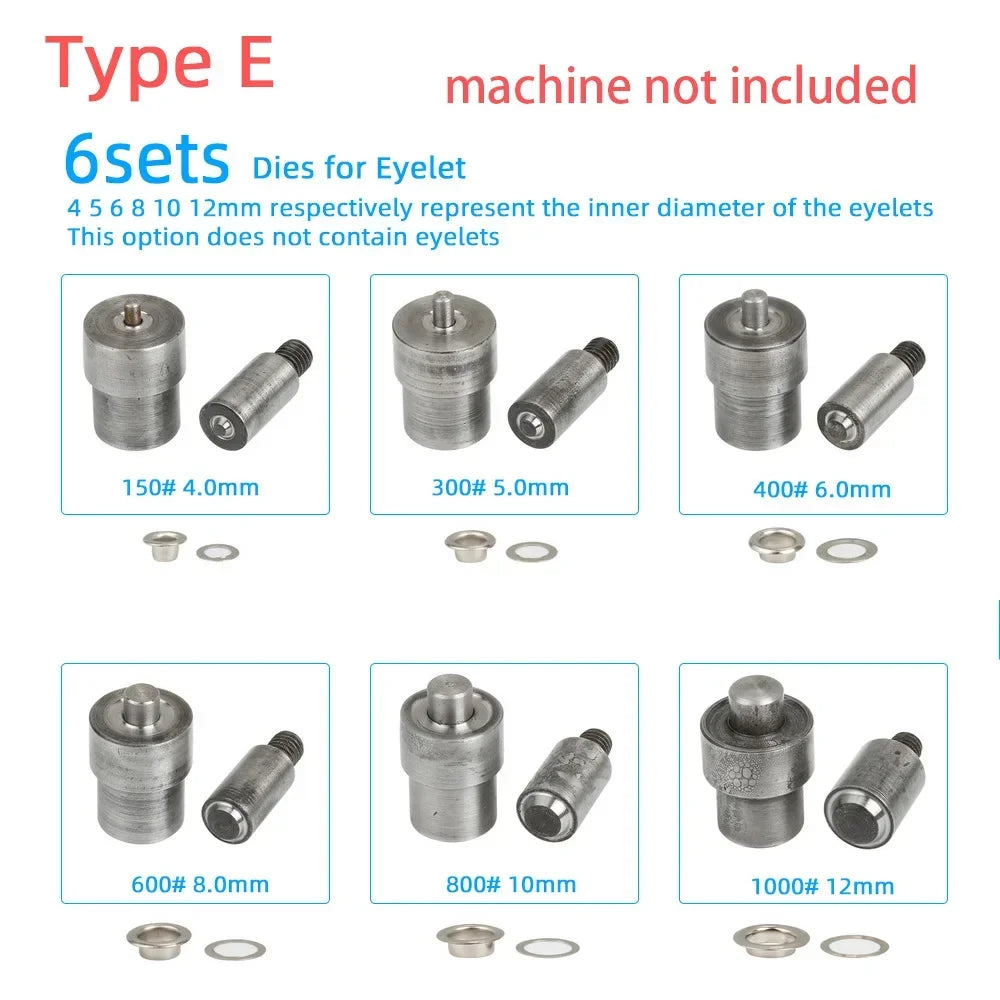

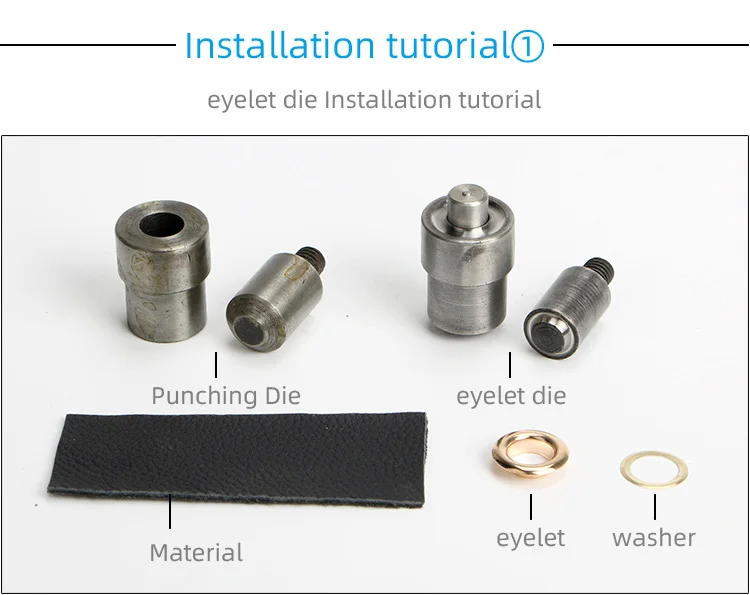

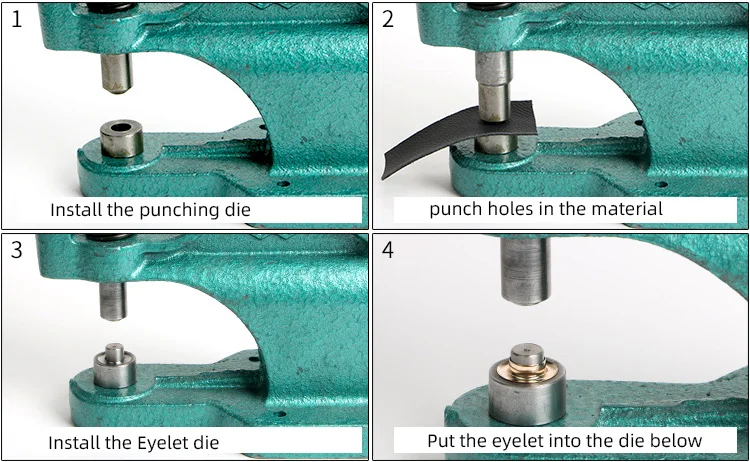

Eyelet dies

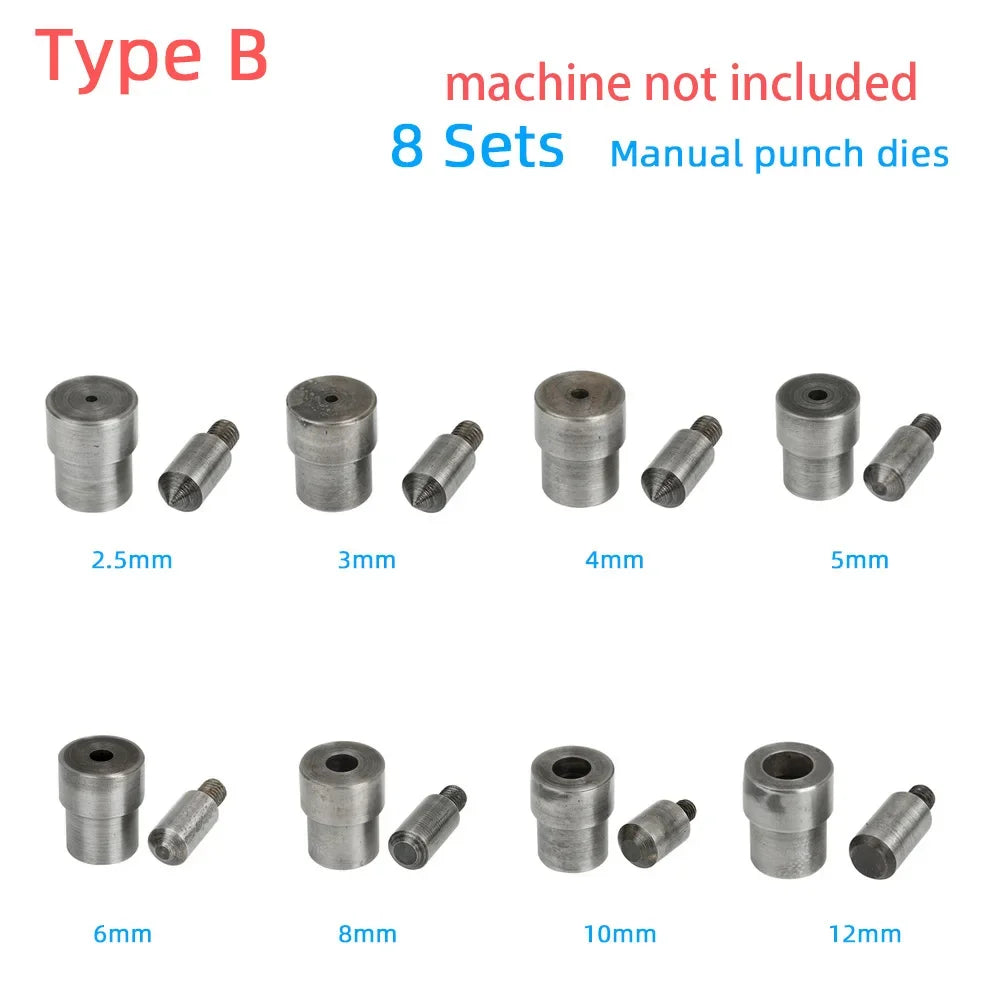

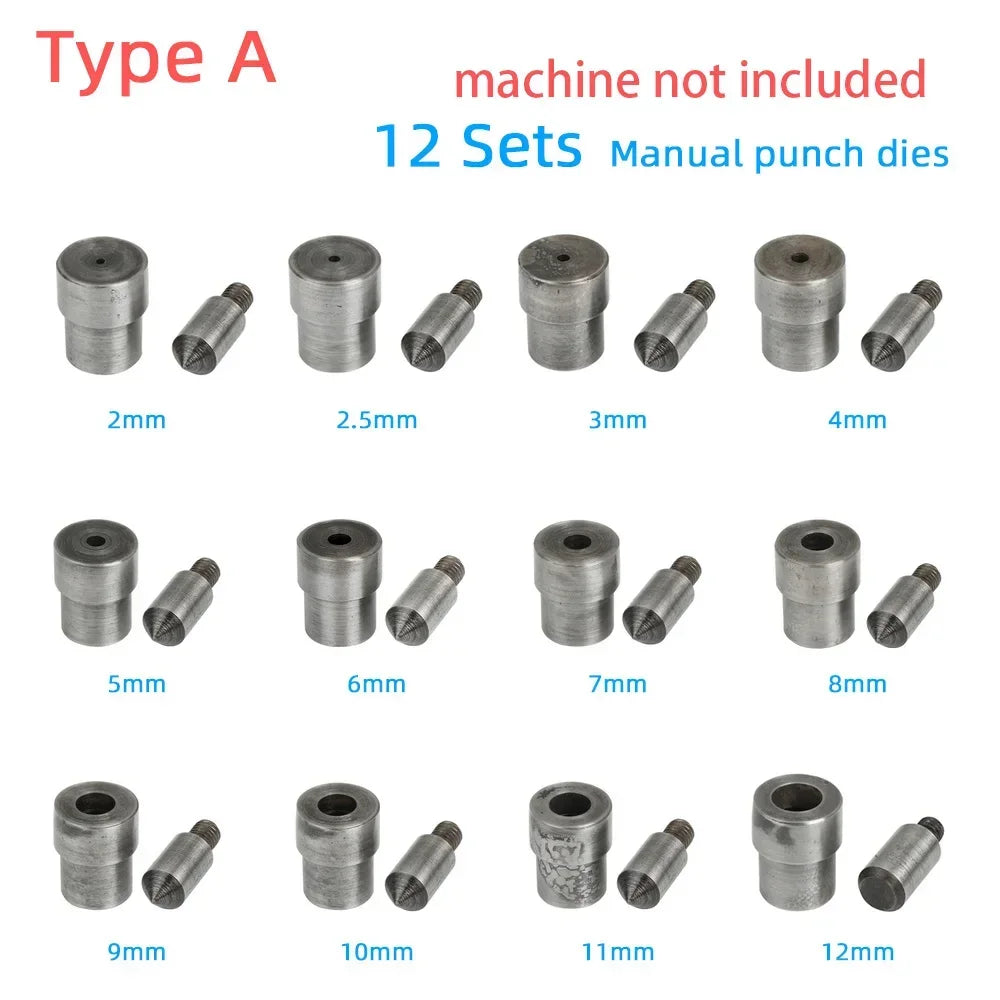

1.Install the punching die
2.Press the machine to punch holes in the material
3.Install the Eyelet Mould
4.Put the eyelet button into the mold below

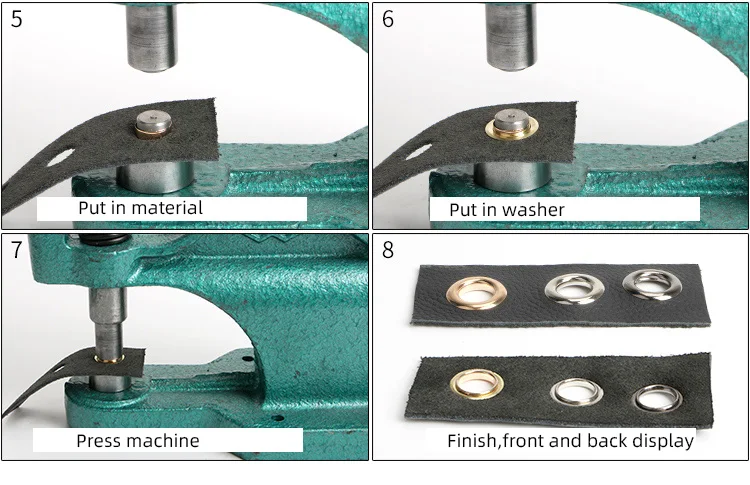

5.Put in material
6.Put in washer
7.Press machine
8.Finish

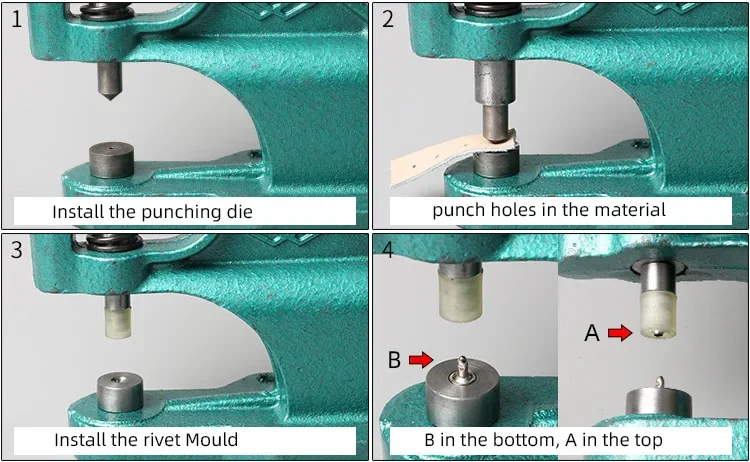

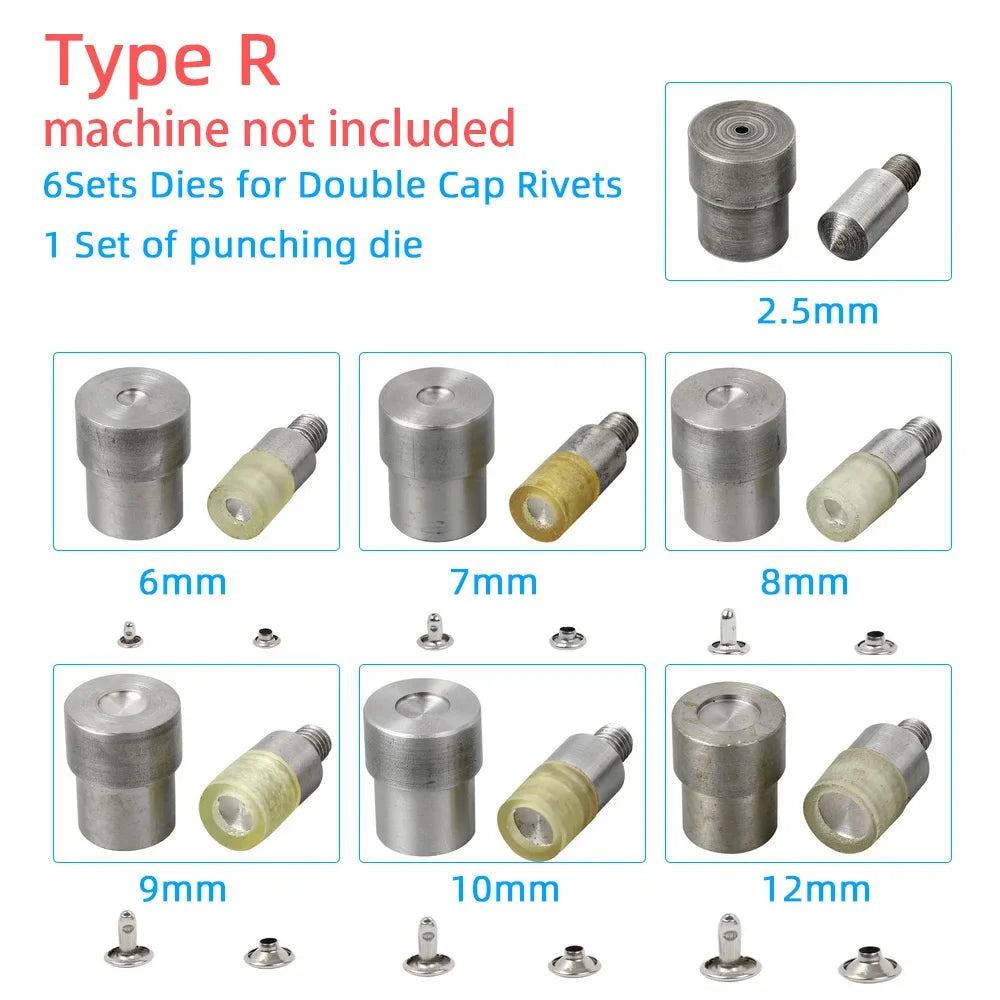

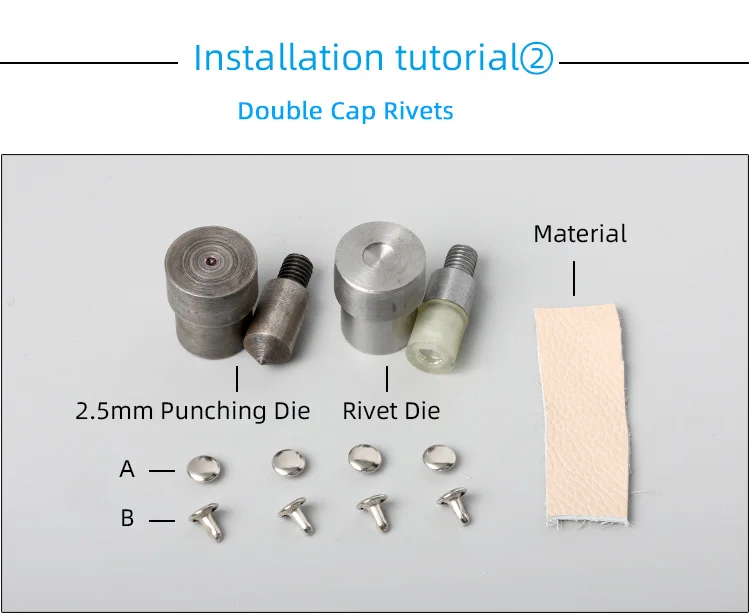

Double Cap Rivets

1.Install the punching die
2.Press the machine to punch holes in the material
3.Install the rivet Mould
4.B in the bottom, A in the top

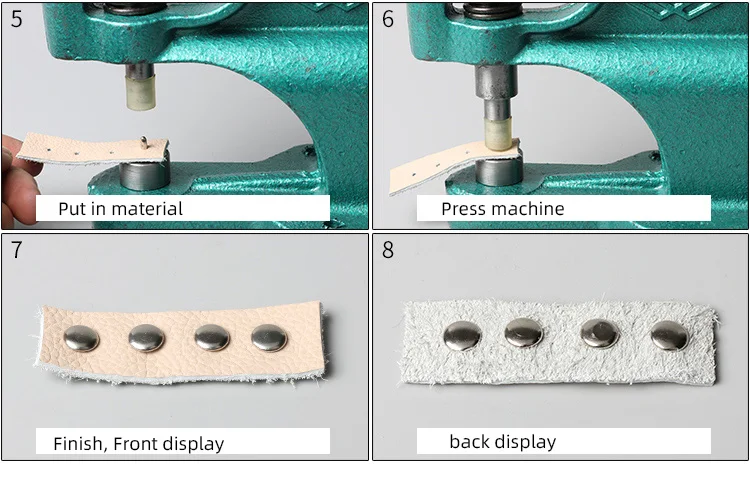

5.Put in material
6.Press machine
7. 8. Finish

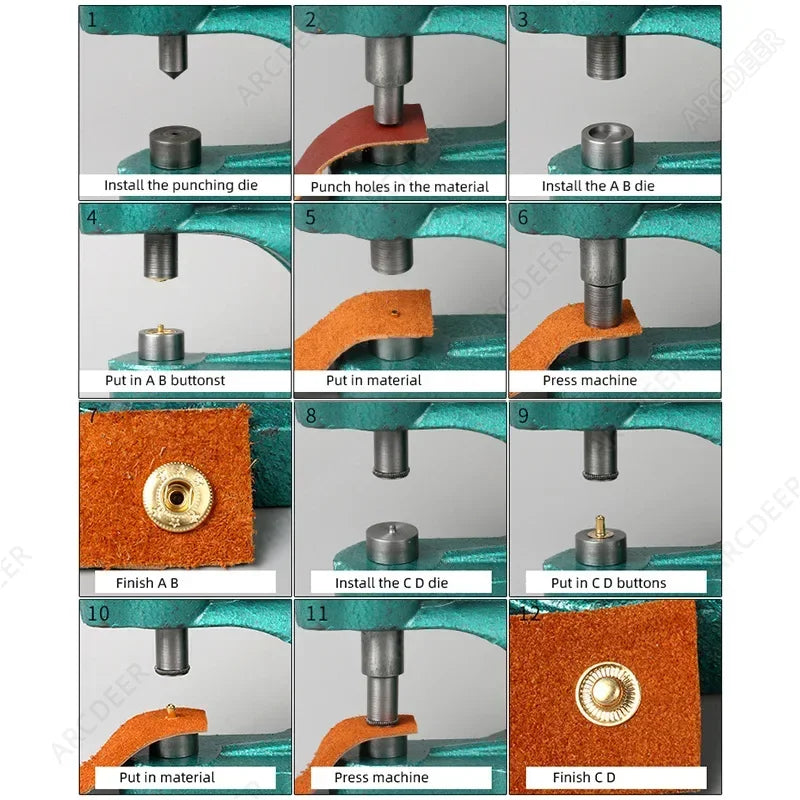

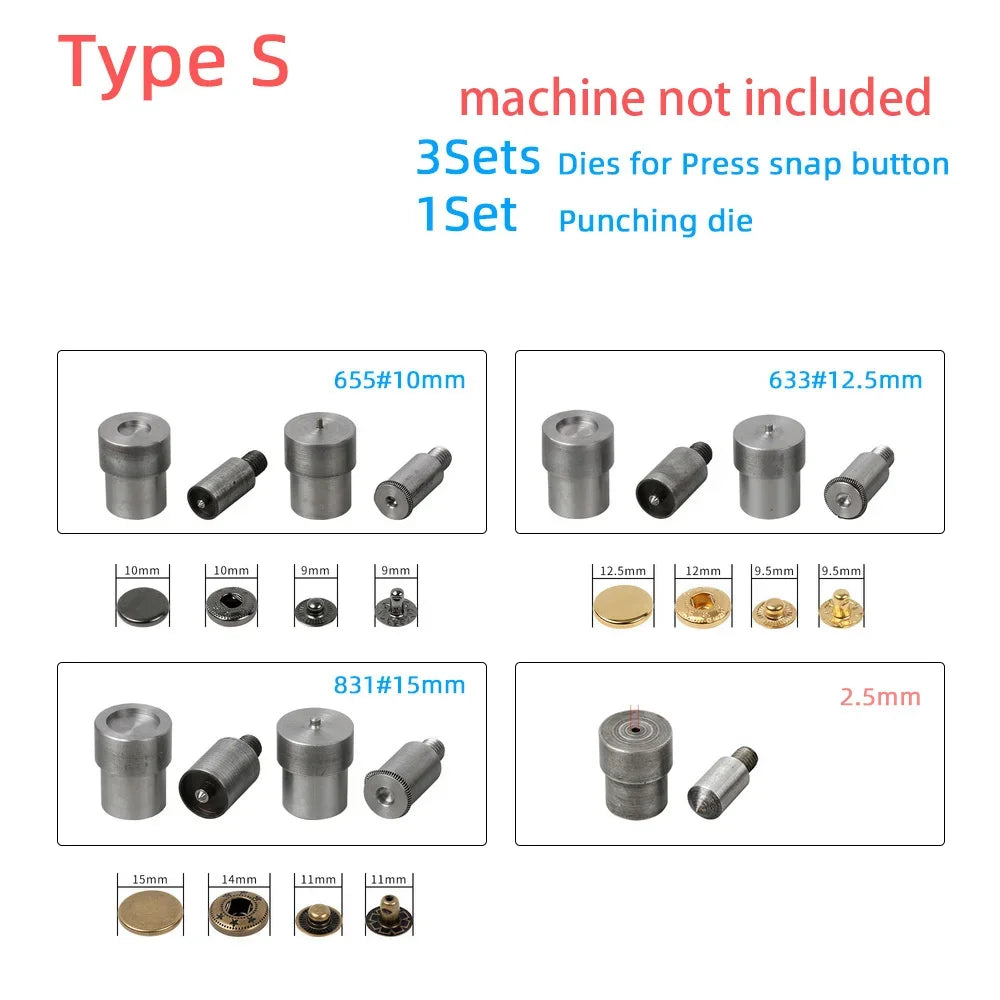

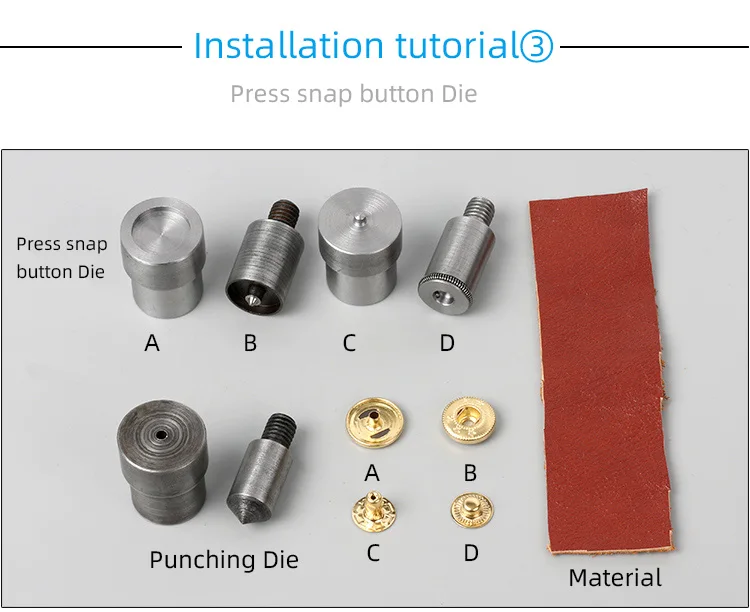

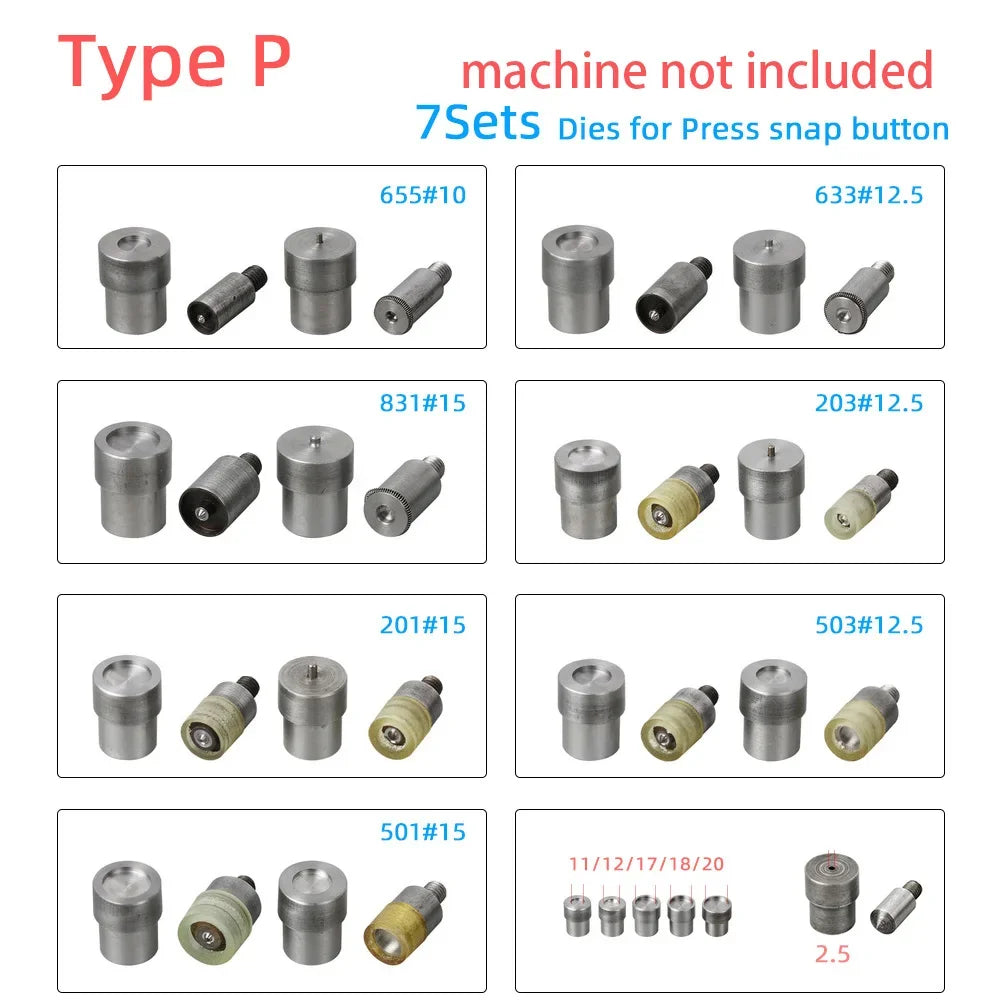

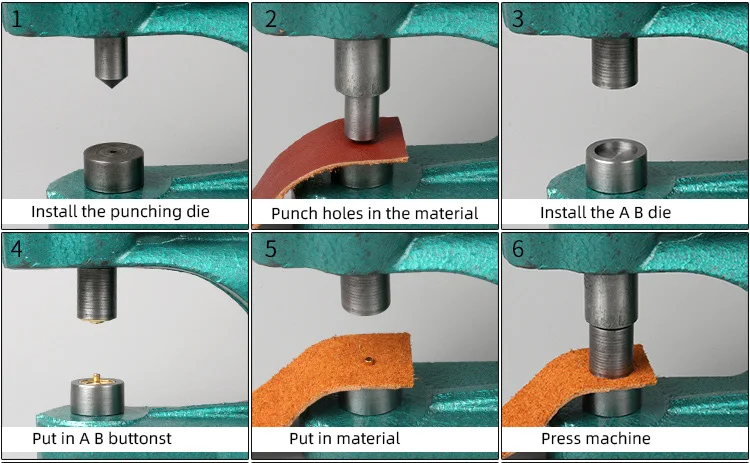

Press snap button die

1.Install the punching die
2.Press the machine to Punch holes in the material
3.Install the A B die
4.Put in A B buttons
5.Put in material
6.Press machine

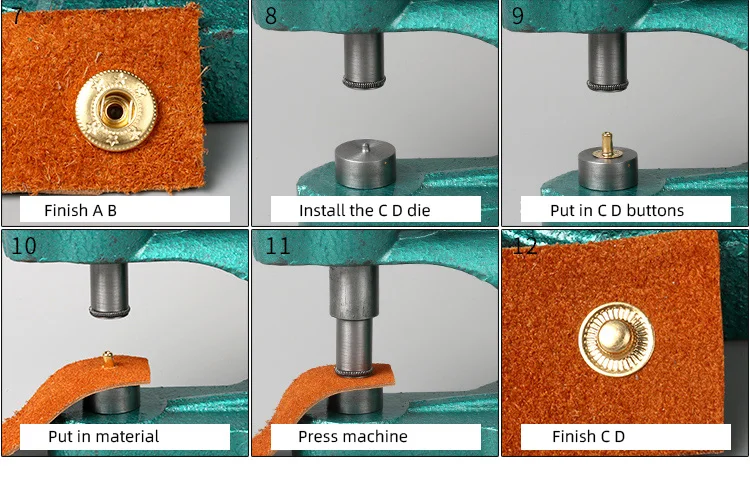

7.Finish A B
8.Install the C D die
9.Put in C D buttons
10.Put in material
11.Press machine
12.Finish C D
