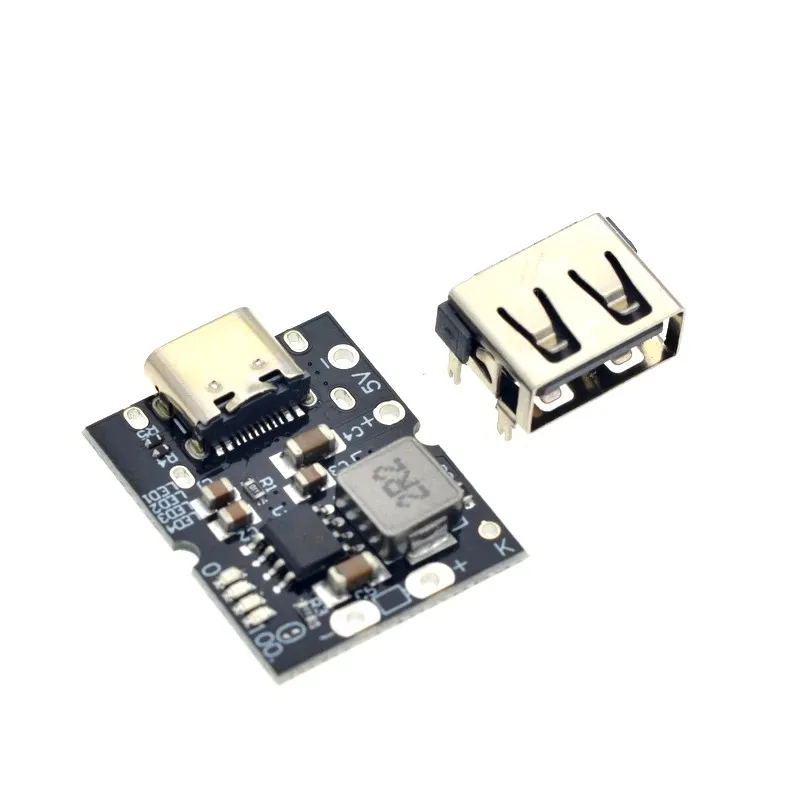

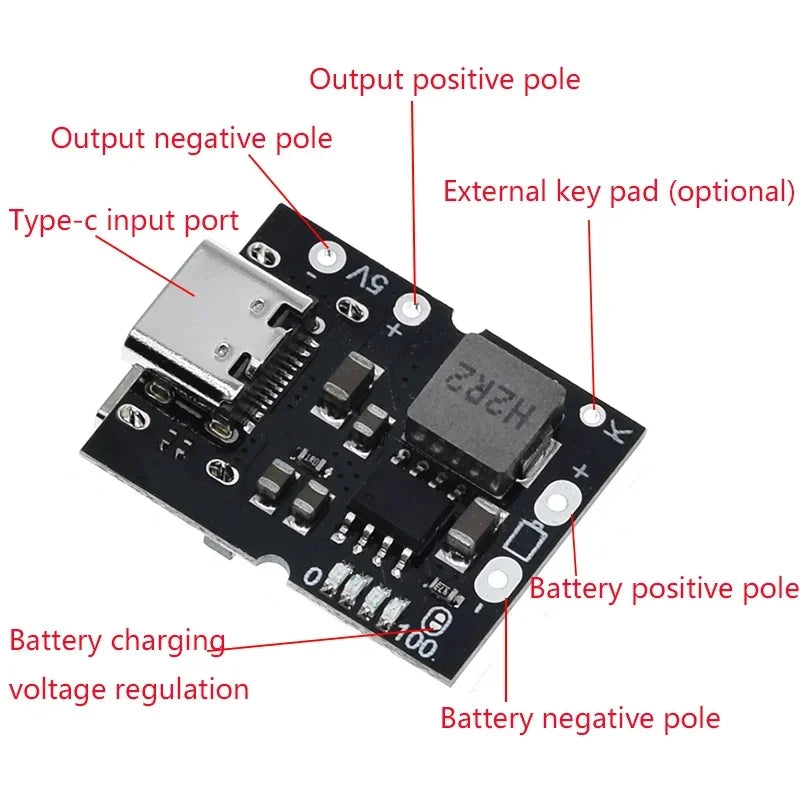

High-precision 5V2A charge-discharge integrated module Type-C input compatible with 4.2V lithium battery

KSh1,226

~~KSh1,313~~ KSh1,226

Sale Sold out

Shipping calculated at checkout.

Color 1pc

block: block, product: product, product_form_id: product_form_id, section_id: section.id, show_pickup_availability: true -%}

SPECIFICATIONS

Brand Name: other

Model Number: 17

Origin: Mainland China

Hign-concerned Chemical: None

Condition: New

Type: Module

Choice: yes

Type-C USB 5V 2A Boost Converter Step-Up Power Module

Lithium Battery Charging Protection Board LED Display USB

For DIY Charger

TYPE-C USB Black Board

Specification:

Input voltage range:5~5.5V

Charging cut-off voltage:(4.2v/4.35v)+0.5%

Charging current:2.4a +5%

Boost output voltage:5V 5.15v(line loss compensation)

Boost output voltage ripple:100mV

Boost output current:2A

Boost conversion efficiency:92.5%(3.6V input,5v2a output)

Static current at battery end:30uA
