High Precision Co2 Laser 6090 60w 80w 100w 130w Cnc Laser Engraver Cutter Machine 900x600 High Quality
High Precision Co2 Laser 6090 60w 80w 100w 130w Cnc Laser Engraver Cutter Machine 900x600 High Quality
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: rakoncnc
Certification: CE,ce
Driving system: Stepper motor;Panasonic/ Yaskawa servo motors options
Engraving Area: Other
Hign-concerned Chemical: None
Is Smart Device: Yes
Laser Power: Other
Laser control system: DSP control system Ruida 6332M
Laser power: 150W/180W/ 280W/ 300W
Laser tube type: Sealed CO2 glass laser tube
Model Number: RCJ9060
Origin: Mainland China
Software supported: CorelDraw,PhotoShop,AutoCAD
Working area: 900X600mm/1300x900mm
Working temperature: 5°C-40°C
High Precision Co2 Laser 6090 60w 80w 100w 130w Cnc Laser Engraver Cutter Machine 900x600 High Quality
Features:
1.Cold-rolled steel welded machine bed, strong and running stable.
2.Aluminium blade table: to process hard materials like acrylic, wood and so onAnd metal materials such as carbon steel, stainless steel, galvanized sheet, etc
3.Fireproof window,more security.
4.CO2 Glass sealed laser tube China famous brand (EFR, Reci), good beam mode stability, service timeover 8500~10000 working hours.
5. Laser good quality and stable output to prolong the laser tube service time.
6.Ruida or Leetro ControllerUSB interface, support online/offline working, English language system, adjustable cutting speed and power.
7.High accuracy stepper motors and drivers. Belt transmission.
8.Tiwan CSK/Hiwin Linear square guide rails, higher precision.

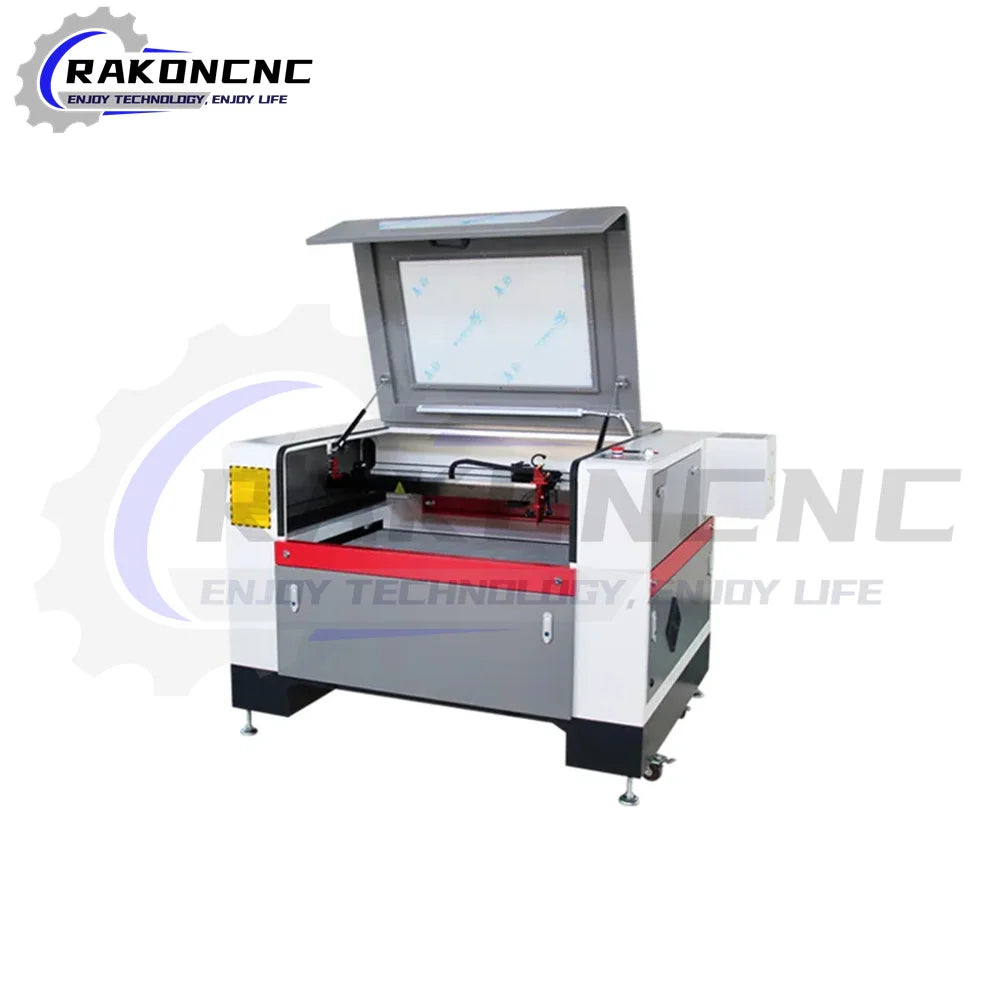

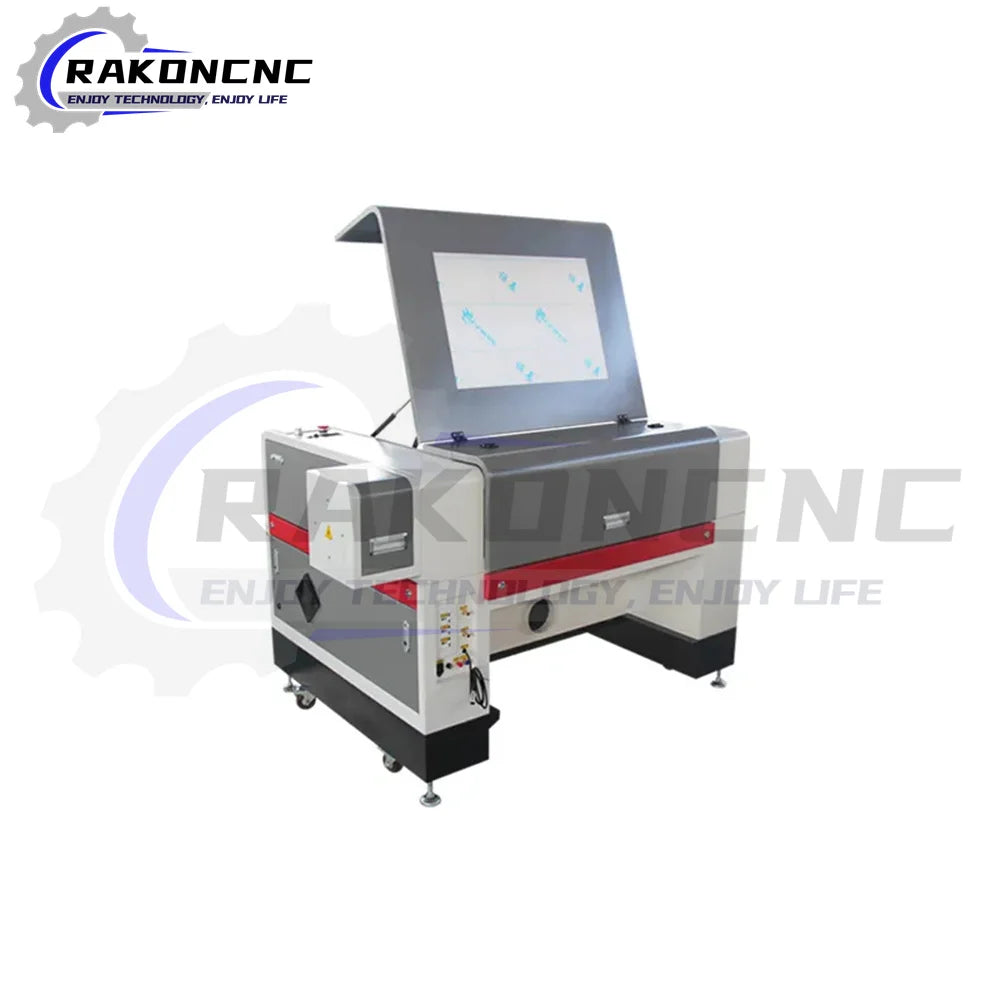

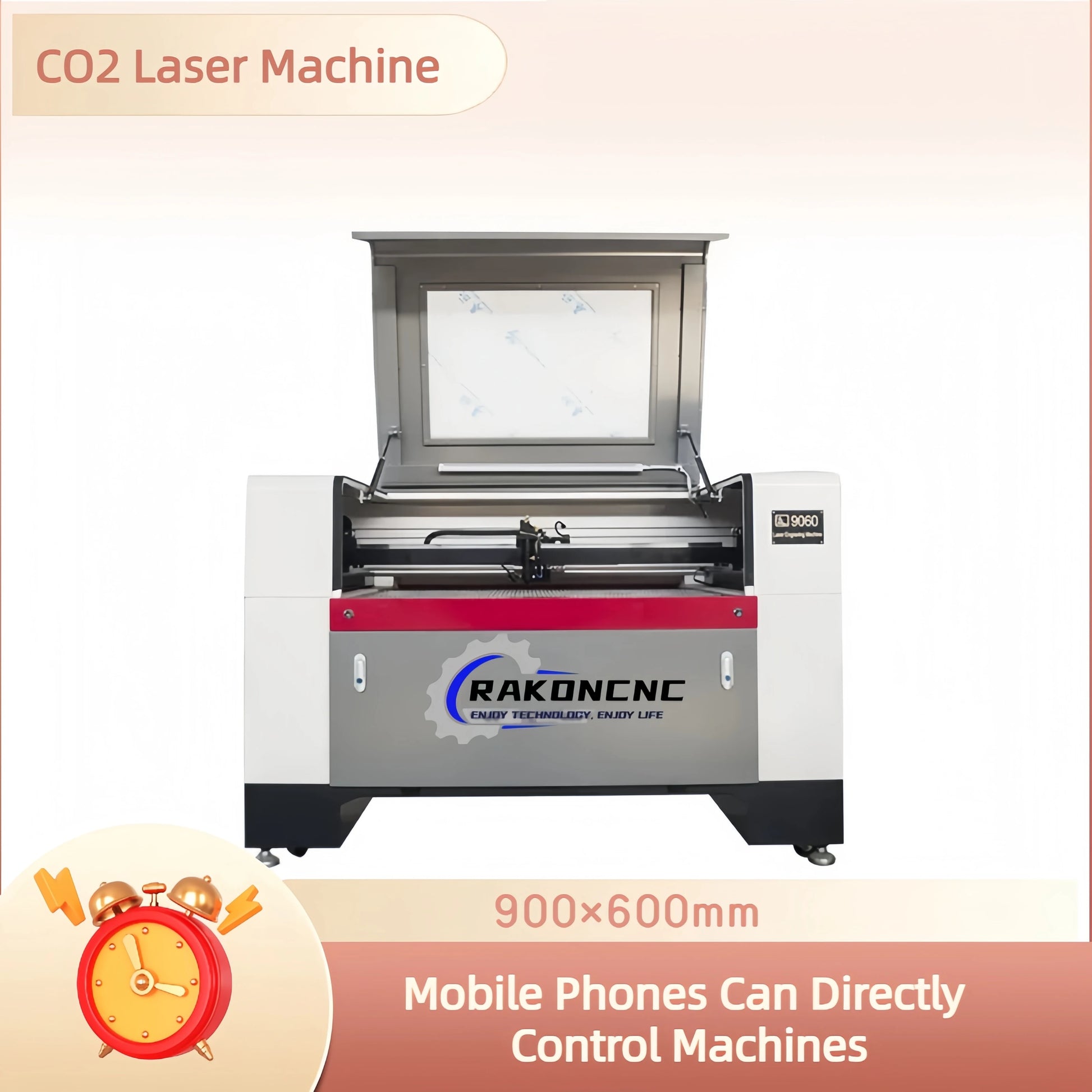

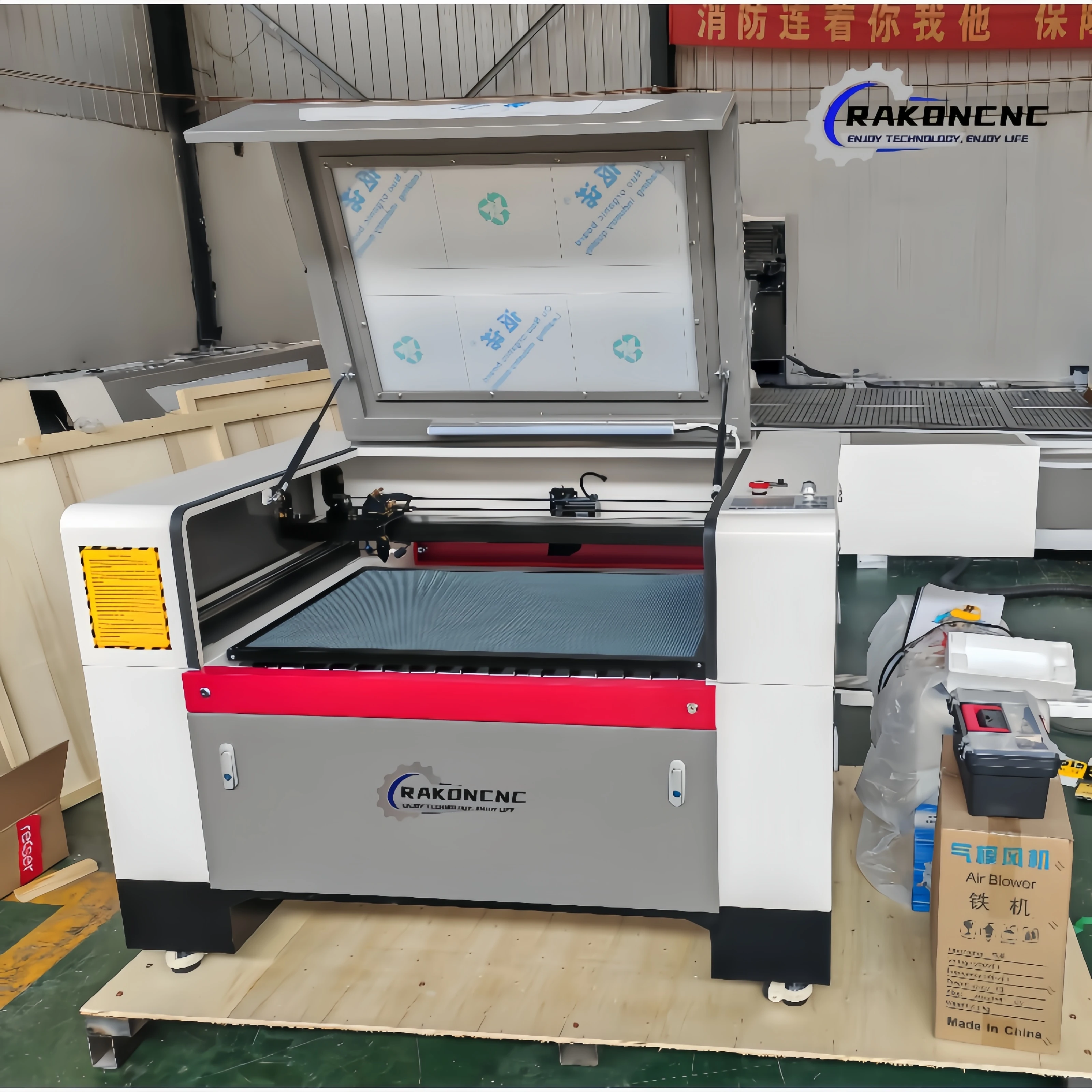

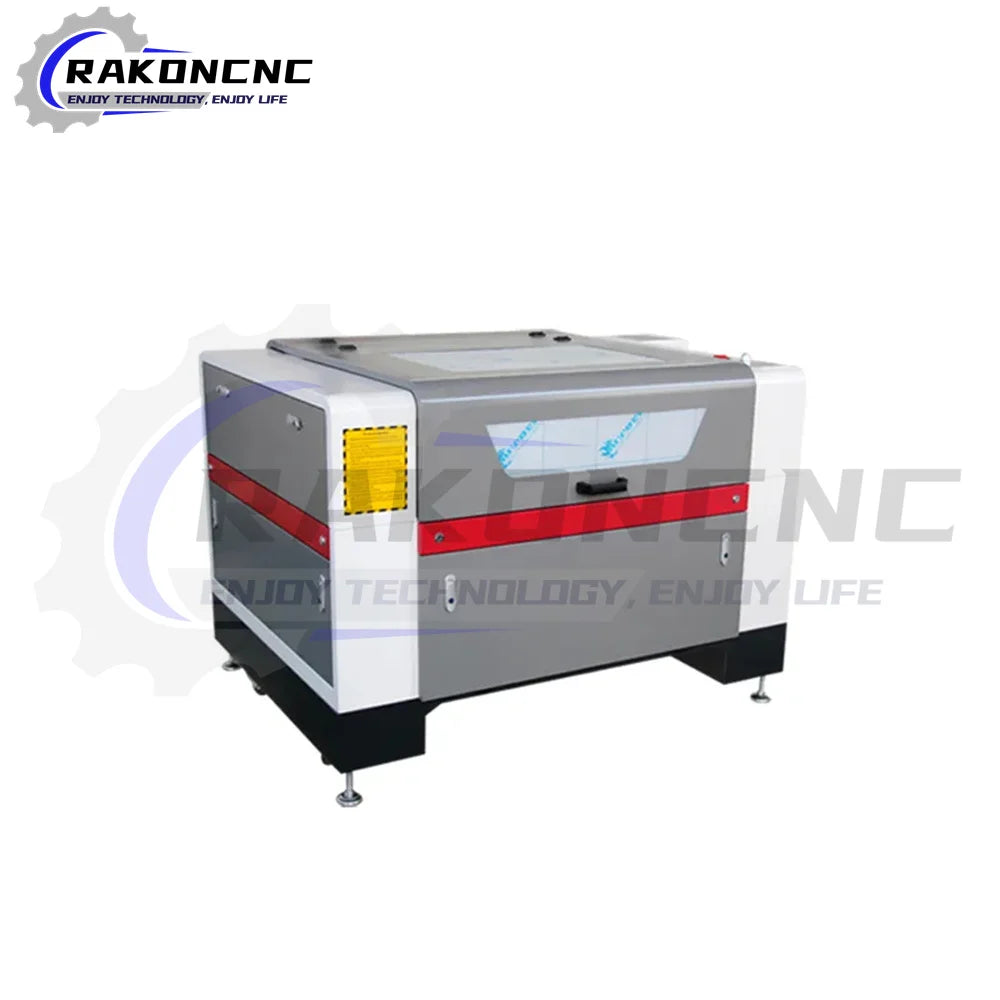

Machine details:
Technical Parameter:
Model |
RCJ9060H/ RCJ1390H |
Working area |
900*600mm/1300*900mm |
Laser power |
150W/180W/ 280W/ 300W |
Cutting speed |
0-50mm/s |
Repositioning accuracy |
±0.05mm |
Working voltage |
AC110-220v ±10% 50HZ-60HZ |
Consuming power |
less than 1000 watt |
Graphic format supported |
BMP, PLT, DST, DXF, AI,CDR |
Software supported |
CorelDraw, PhotoShop, AutoCAD |
Minimum letter size |
English 1mm x1mm Chinese 2mm x 2mm |
Driving system |
Stepper motor;Panasonic/ Yaskawa servo motors options |
laser tube cooling type |
CW5200/ CW6000 industry chiller |
other auxiliary equipment |
Exhaust fans and air exhaust pipe |
Working temperature |
0-45°c |
Operating humidity |
8%-95% (without condensed water) |
Laser control system |
DSP control system Ruida 6332M |
Laser tube type |
Sealed CO2 glass laser tube |
Production Application
Applicable Materials:
Nonmetal materials, like acrylic, wood, MDF, die board, and so on.
Metal materials, such as stainless steel, carbon steel, etc.
Applicable Industry:
Mainly used in advertising, decoration industry( stainless metal and carbon steel related
products), sheet metal industry (carbon steel), packing industry(die board) and other
related industry.

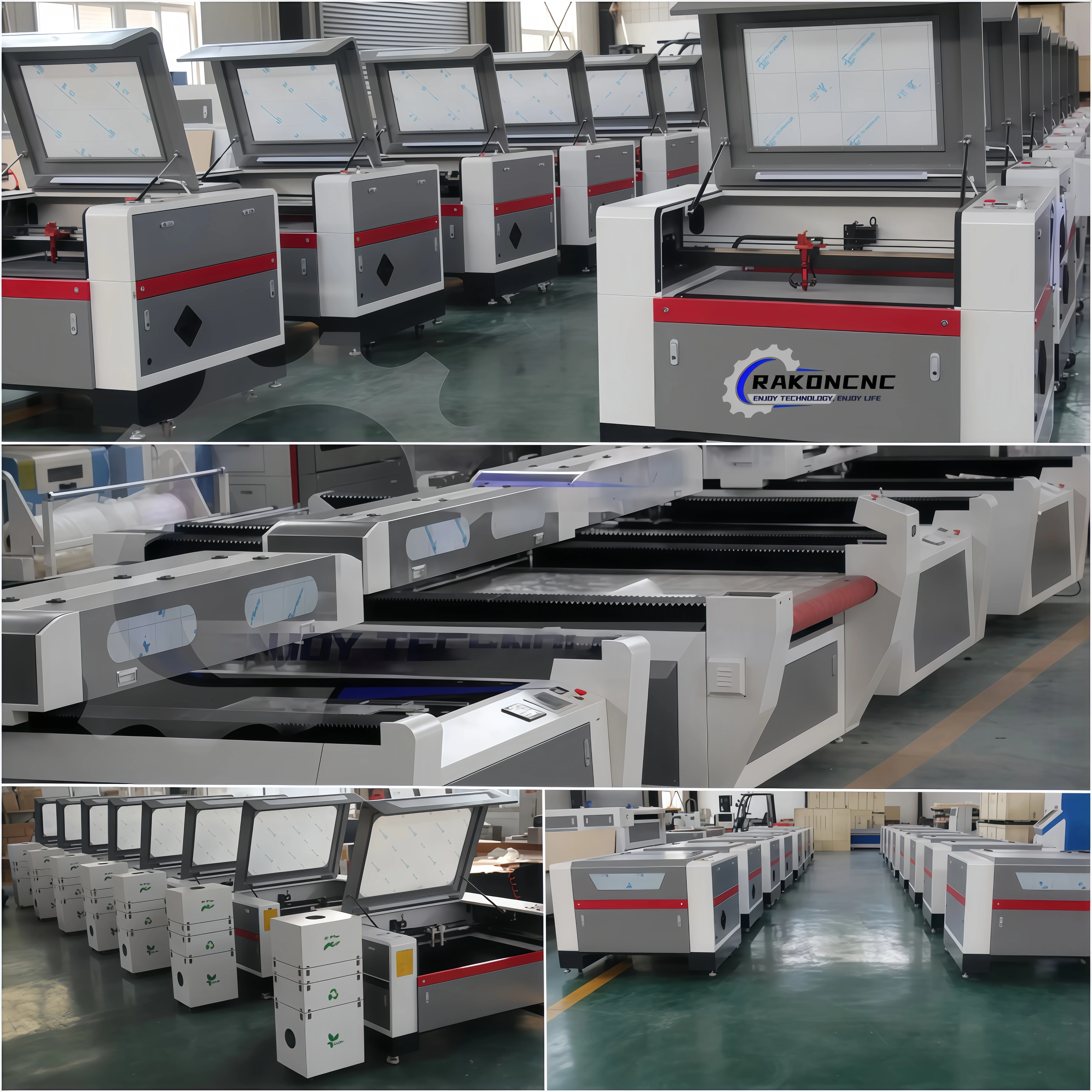

Factory Display
