SPECIFICATIONS

Brand Name: NoEnName_Null

Certification: CE

DIY Supplies: Electrical

Hign-concerned Chemical: None

Lubrication: grease

Origin: Mainland China

Voltage: 220V

application: CNC engraving machine

brand name: JSS MOTOR

collect: ER16

core components: Bearing, motor

current: 8A

diameter: 80mm

drive: VFD

frequency: 400Hz

joint of nose: ER16

machinery test report: Provided

maximum torque: 0.88nm

operating speed: 24000rpm

place of origin: China

rated power: 2.2kw

video outgoing-inspection: Provided

warranty: 6 Months

weight (kg): 6

My friend, welcome to our store, if you need other models of this product, please contact me, I will send the product link for you to buy! For some heavy goods, the shipping cost is not accurate. Please contact us for details. And welcome to add my WHATSAPP (+8615575894035)，My Email is dy31415926035@163.com .

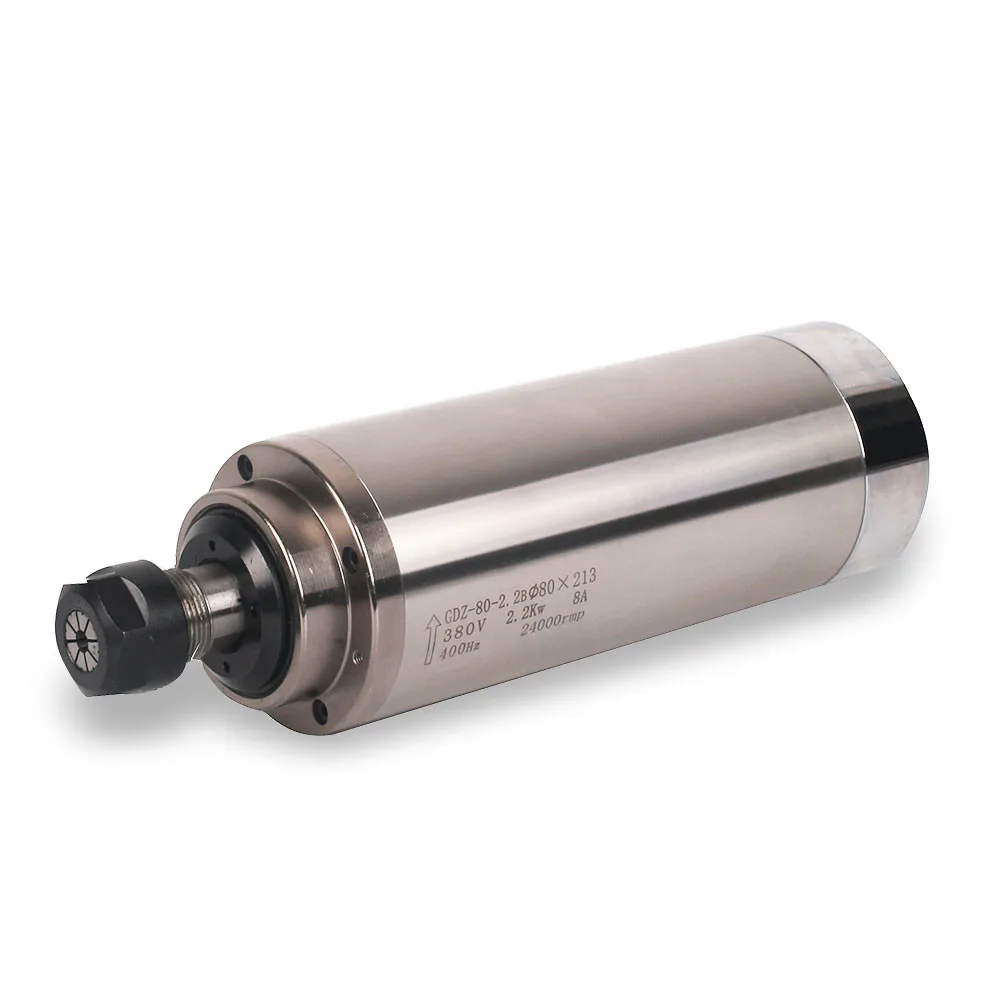

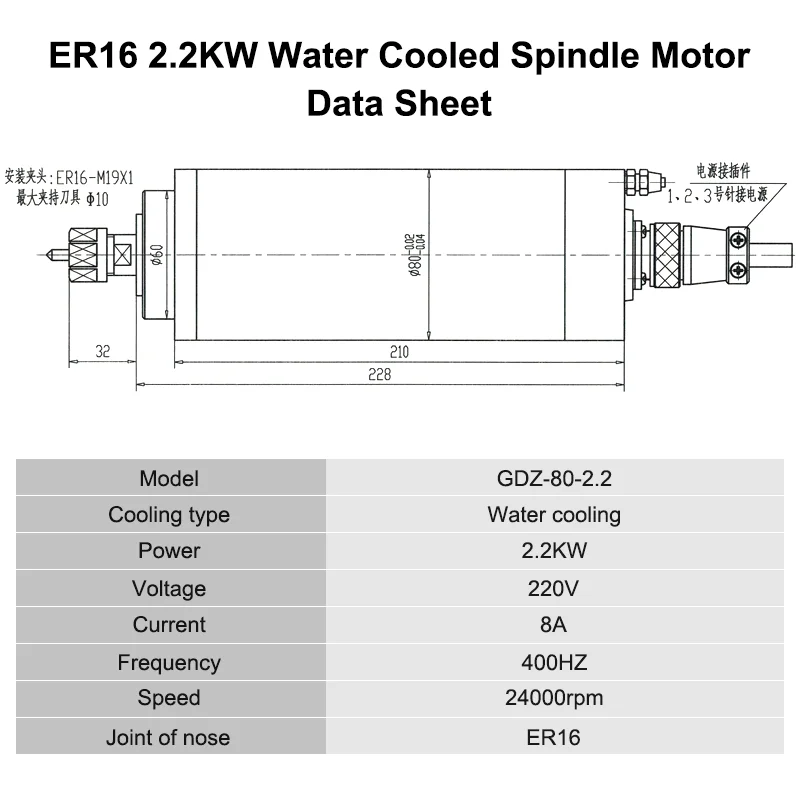

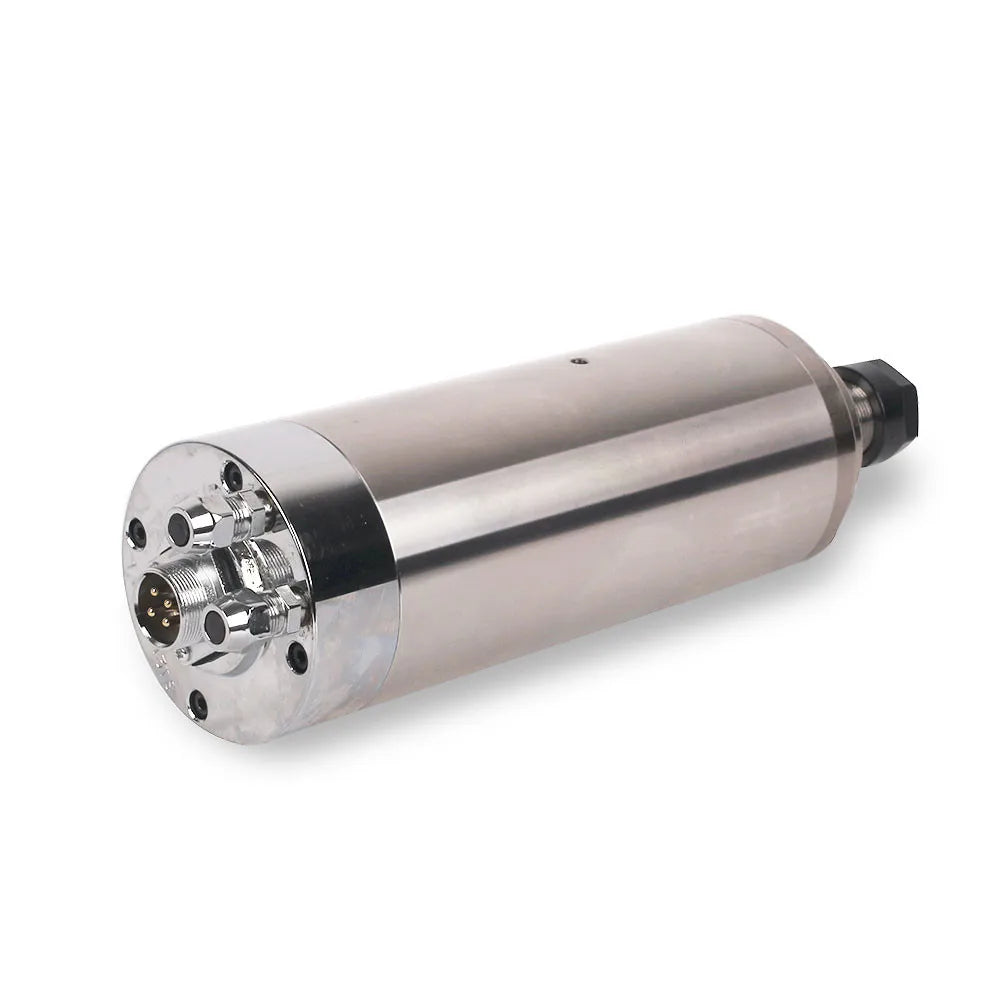

ER16 2.2KW Water Cooling Spindle Motor

Model	GDZ80-2.2
Cooling type	Water cooling
Power	2.2KW
Voltage	220V
Current	8A
Frequency	400HZ
Speed	24000rpm
Joint of nose	ER16

We also have spindle motor matching inverter(VFD), collet , gripper etc.
If you need other kinds of parts or other spindle motors, please send inquiry to us or contact us directly.
