SPECIFICATIONS

Applicable Industries: Manufacturing Plant, Machinery Repair Shops

Brand Name: NoEnName_Null

Certificate: CE

Certification: CE

Condition: New

DIY Supplies: Electrical

Diameter: 125mm

Frequency: 400hz

Hign-concerned Chemical: None

Joint of nose: ER25 collect chunk

Marketing Type: New Product 2020

Origin: Mainland China

Power: 5.5kw water cooled spindle motor

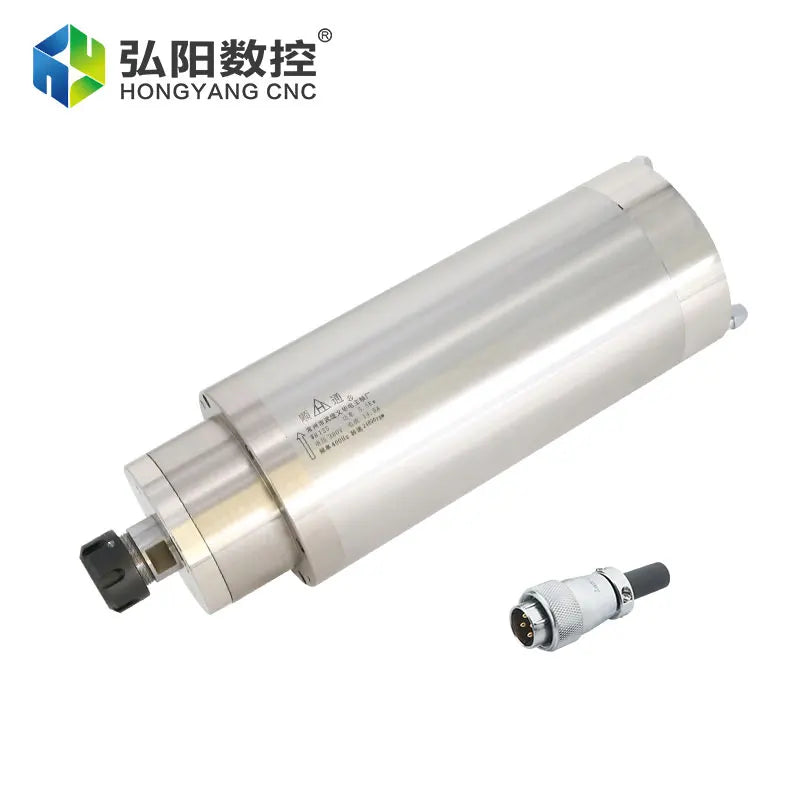

Product name: spindle motor 5.5kw kit

Showroom Location: None

Speed: 24000rpm/min

Voltage: 220v/380v

application: Milling

brand name: hycnc

core components: motor

drive: motor

machinery test report: Provided

maximum torque: 0.6Nm

operating speed: 24000rpm

place of origin: Shandong, China

video outgoing-inspection: Provided

warranty: 1 Year

weight (kg): 12

My friend, welcome to our store, if you need other models of this product, please contact me, I will send the product link for you to buy! For some heavy goods, the shipping cost is not accurate. Please contact us for details. And welcome to add my WHATSAPP (+8615575894035)，My Email is dy31415926035@163.com .

Product Description

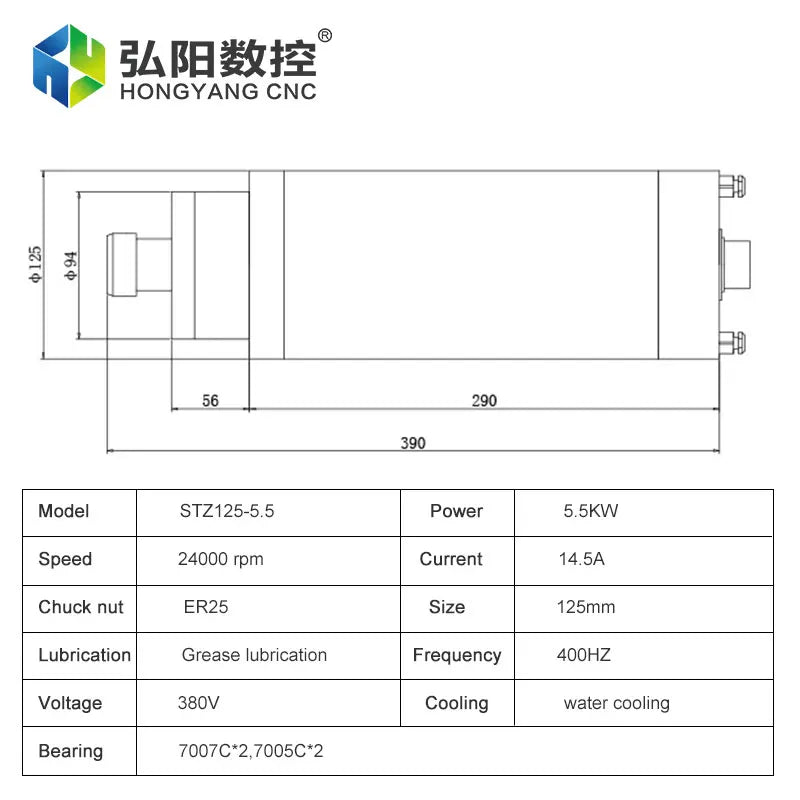

Middle body diameter: Φ125mm
Speed regulation mode: change the spindle speed through the three-phase output inverter and adjust the frequency of the inverter.

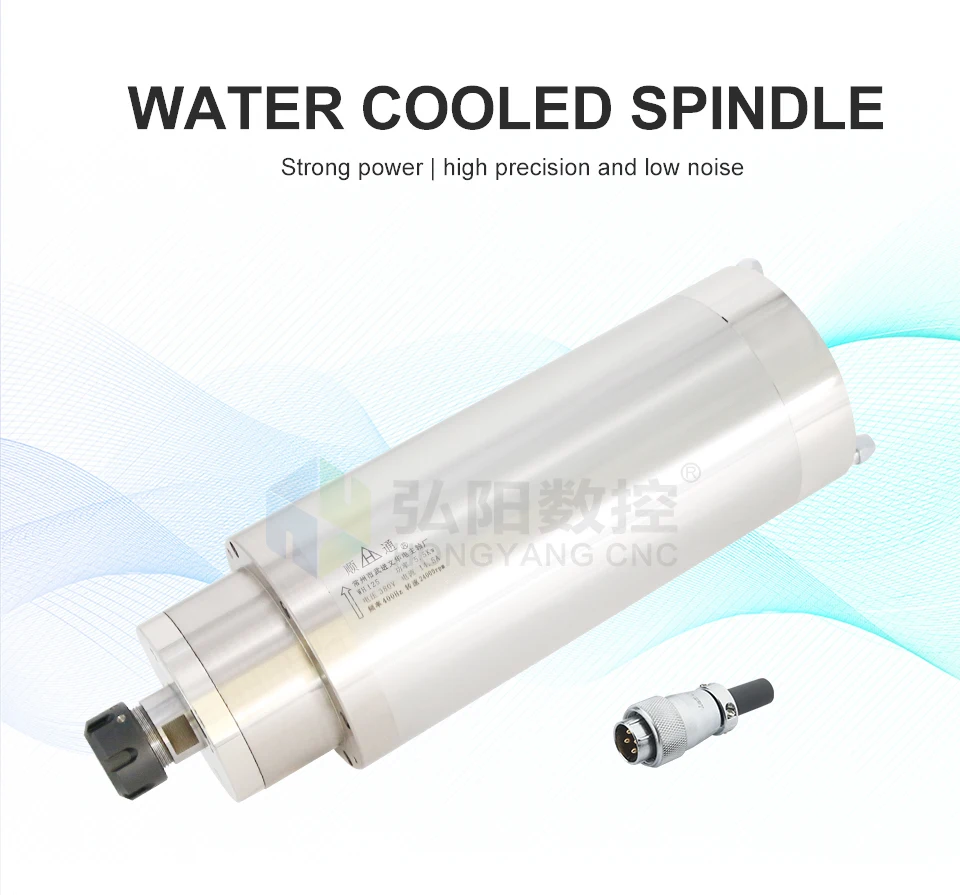

Cooling method: water cooling

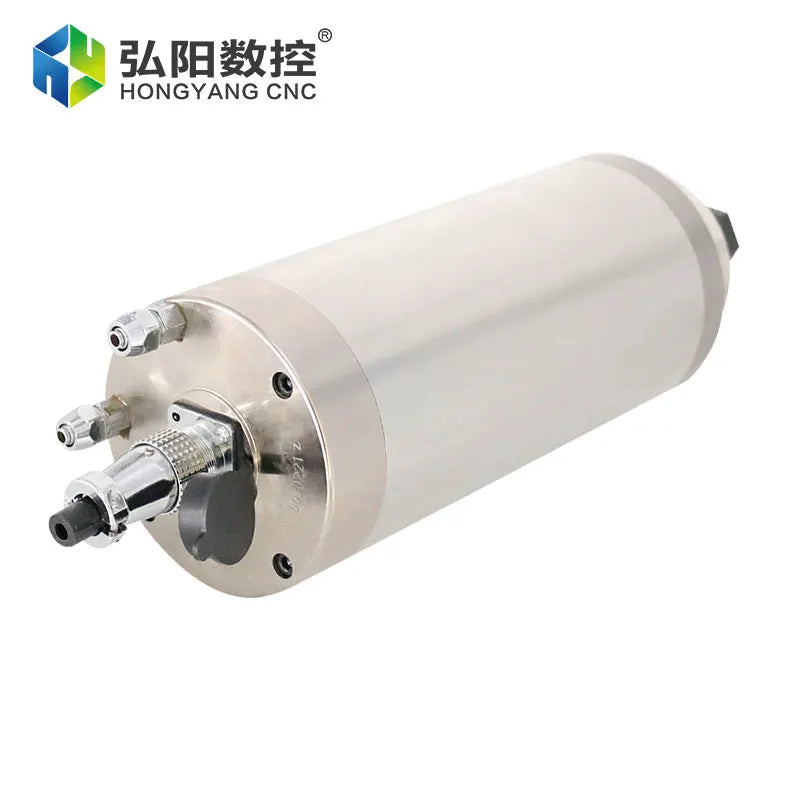

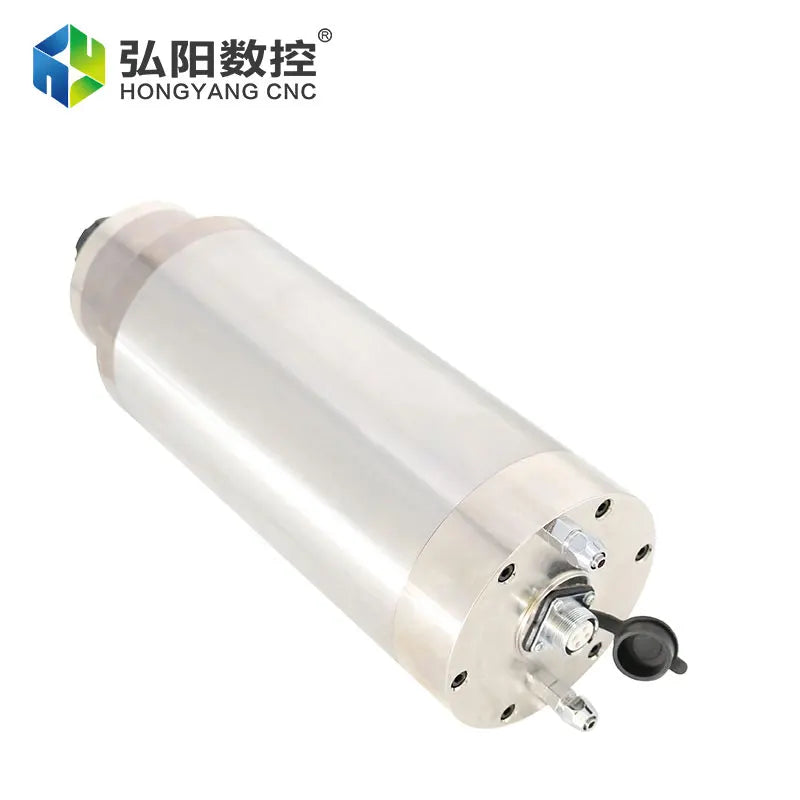

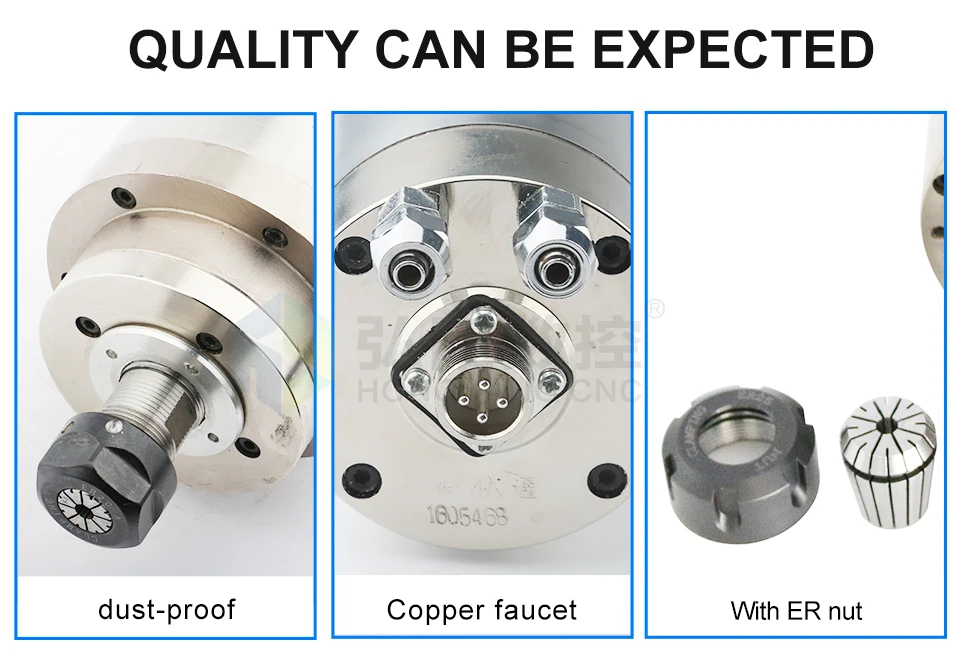

Power interface: 4 pin waterproof aviation plug is optional. The aviation plugs marked "1", "2", "3", "4", "1", "2", "3" are
connected to the inverter (U, V, W), and the 4 connected to the inverter will Ground the equipment.
Power: 5.5kw
Voltage: 220v 380v
Current: 14.5A
Frequency: 400Hz
Speed: 24000rpm

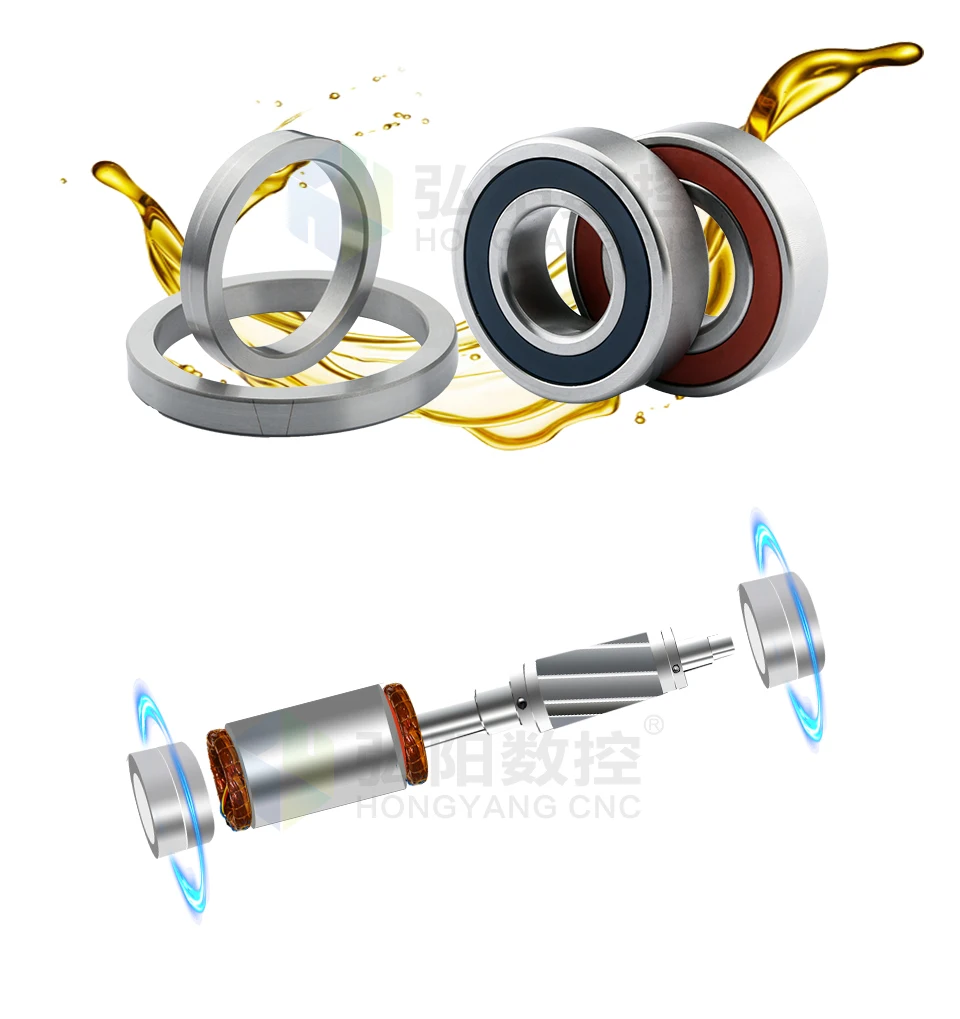

Bearing type: 7007C*2,7005C*2
Chuck: ER25
Grease lubrication
Main purpose: used for wood, bamboo, ordinary PCB, PVC, PMMA, plastic, bamboo, two-color board (ABS) and other non-metallic carvings.

鈼廤hen the spindle is stored and transported, the bearing condition inside the high-speed grease will change, and the customer should run it at low speed for 30 minutes. Then increase slowly at a speed of 3000 rpm, running for 20 minutes each time. The spindle and inverter should work together. The specifications and parameter settings of the inverter match the spindle parameters.

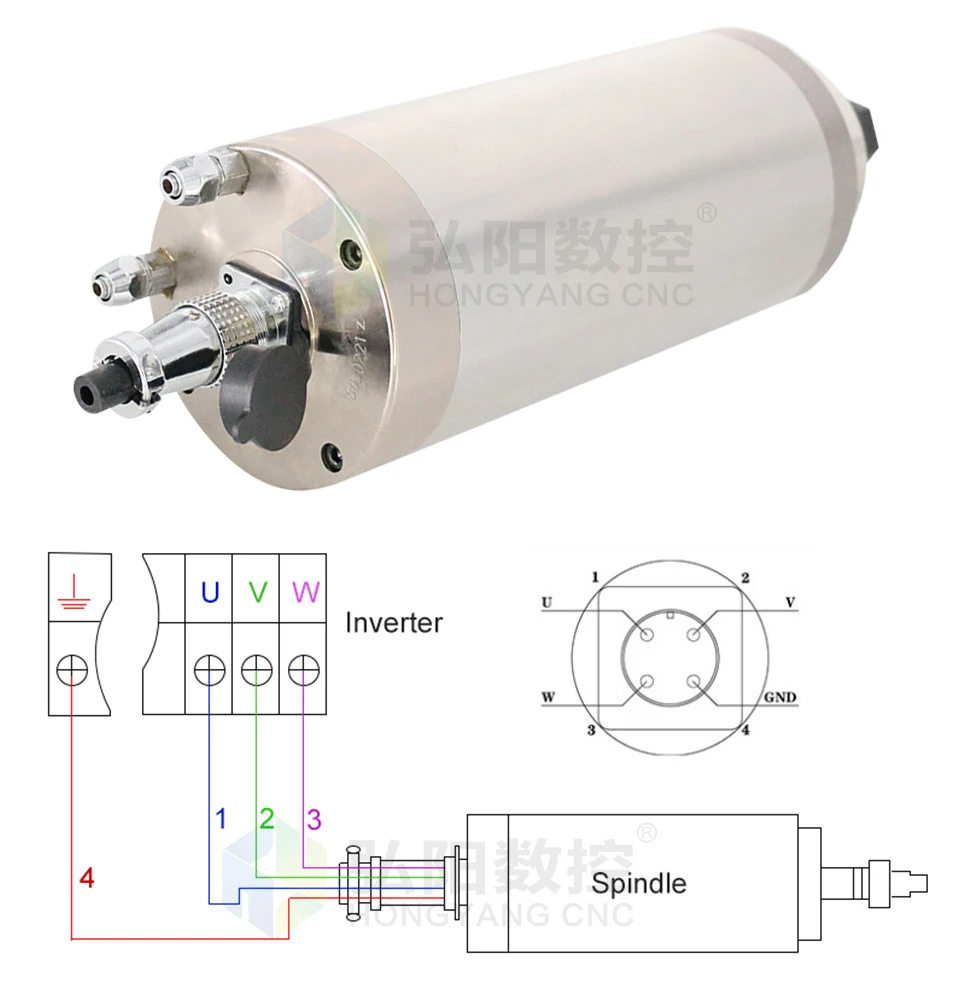

鈼廡o connect the inverter main shaft, the three-phase inverter power cord should be welded to the plug 1 (U), 2 (V), 3 (W) pin, and the grounded pin 4. After turning on the power, observe whether the spindle rotation axis always shows the direction. If it is inconsistent, turn it off immediately, and replace the two wires of the three-phase power supply connected to the inverter and thespindle.
鈼廈efore using the spindle every day, it must run at low speed for 15-20 minutes. Clamp the cutter on the spindle, the chuck nut, chuck, and cutter must be clean enough. The shank inserted into the chuck must be larger than 15mm.
