SPECIFICATIONS

Applicable Industries: Machinery Repair Shops, Construction works , Other, Advertising Compan

Bearing Number: 4

Brand Name: NoEnName_Null

Certification: CE

Collet: ER16

Condition: New

Cooling type: Water cooling

Current: 5A/3A

DIY Supplies: Electrical

Frequency: 400HZ

Hign-concerned Chemical: None

Marketing Type: Ordinary Product

Origin: Mainland China

Power: 1.5KW

Showroom Location: Turkey, Brazil, India, Russia

Speed: 24000RPM

Voltage: 220V/380V

Weight: 5.5KG

application: Milling

brand name: ChangSheng-WANGJIANNAN

core components: Bearing, motor

drive: motor

machinery test report: Provided

maximum torque: 0.91Nm

operating speed: 24000rpm

place of origin: Jiangsu, China

video outgoing-inspection: Provided

warranty: 1 Year

weight (kg): 5.5

My friend, welcome to our store, if you need other models of this product, please contact me, I will send the product link for you to buy! For some heavy goods, the shipping cost is not accurate. Please contact us for details. And welcome to add my WHATSAPP (+8615575894035)，My Email is dy31415926035@163.com .

Product Paramenters

Power	1.5kw	Voltage	220v/380v
Size	80mmx238	Current	8A / 5A
Rated Frequency	400Hz	collet Size	ER16
Rated Speed	24000rpm	cooling method	watercooling

Products Description

water cooling

*1.5kw full power

*4 bearings ,longer using life

*Water cooling method has better cooling effect and is suitable for high temperature environment

* Less noise

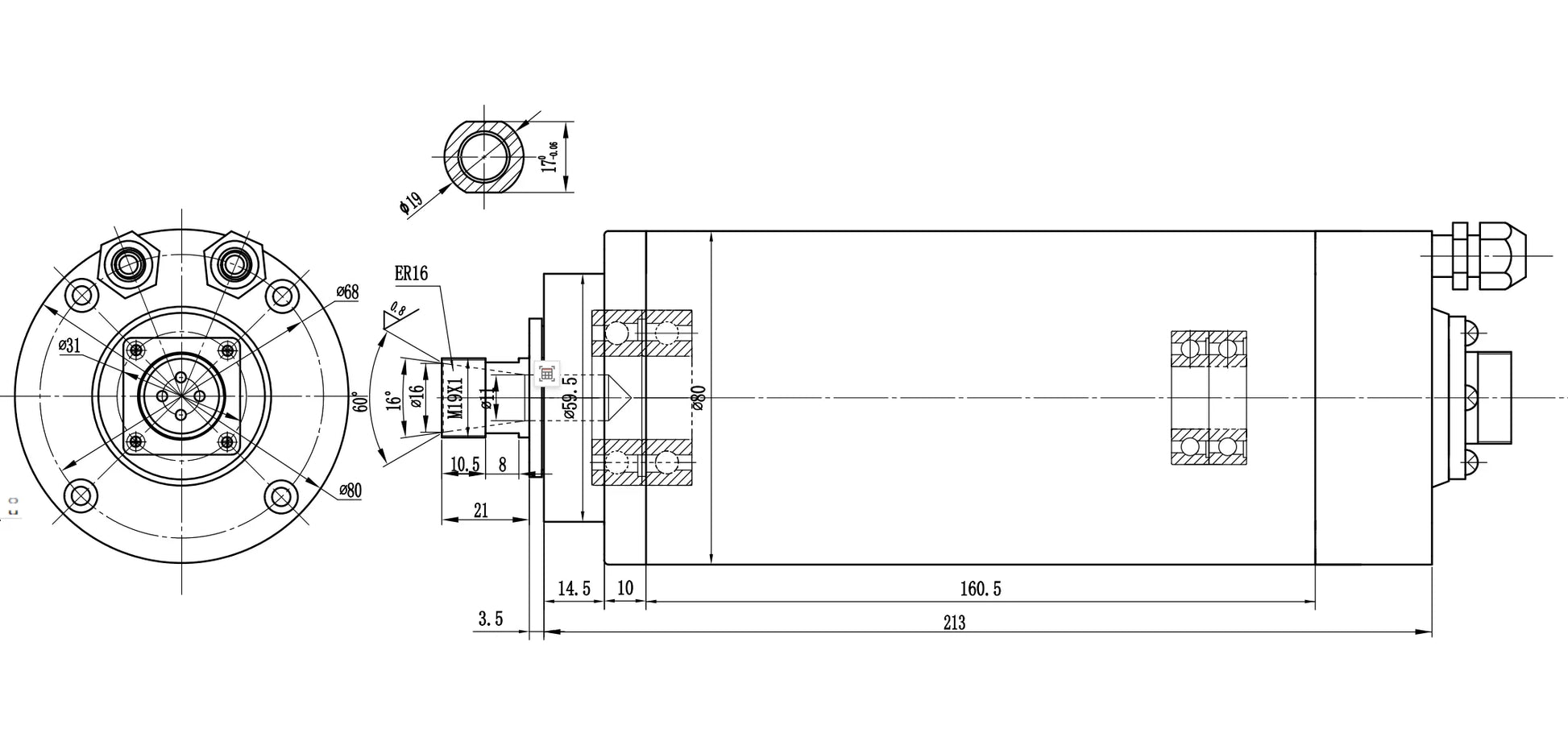

Product Size

Installation Instructions

spindle Brackets

all round type spindles should be installed with same size brackets.If you need ,we can supply 62mm, 65mm, 80mm, 100mm,105mm and
125mm brackets

Title goes here.

The water-cooled motor needs to be used with the water pump锛�1~2pcs use 3500l/h, 3~5pcs use 5000l/h
