SPECIFICATIONS

After Warranty Service: Video technical support, Online support, Spare parts, Field maintenanc

After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Onli

Applicable Industries: Garment Shops, Building Material Shops, Manufacturing Plant, Machinery

Brand Name: NoEnName_Null

Certification: CE

Condition: New

Cooling type: cooling by water

Current: 6a

DIY Supplies: Electrical

Diameter: diameter is 105 mm

Frequency: high frequency is 800hz

Hign-concerned Chemical: None

Local Service Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, G

Marketing Type: Ordinary Product

Origin: Mainland China

Power voltage ac: power is 3.2kw 220v or 380v voltage

Product name: its a metal engraving spindle motor

Showroom Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, G

Speed: high speed 24000rpm

application: Boring

applications: it could engraving aluminum steel or stone

applications usages: use on cnc router or cnc lathe

brand name: hycnc hongyang cnc

core components: Engine, Bearing, Gearbox, motor, Gear, Pump, 3.2kw spindle for metal c

drive: motor

machinery test report: Provided

maximum torque: 4.5nm

operating speed: 24000rpm

place of origin: Shandong, China

speed control: by vfd

video outgoing-inspection: Provided

warranty: 1 Year

My friend, welcome to our store, if you need other models of this product, please contact me, I will send the product link for you to buy! For some heavy goods, the shipping cost is not accurate. Please contact us for details. And welcome to add my WHATSAPP (+8615575894035)，My Email is dy31415926035@163.com .



Product name

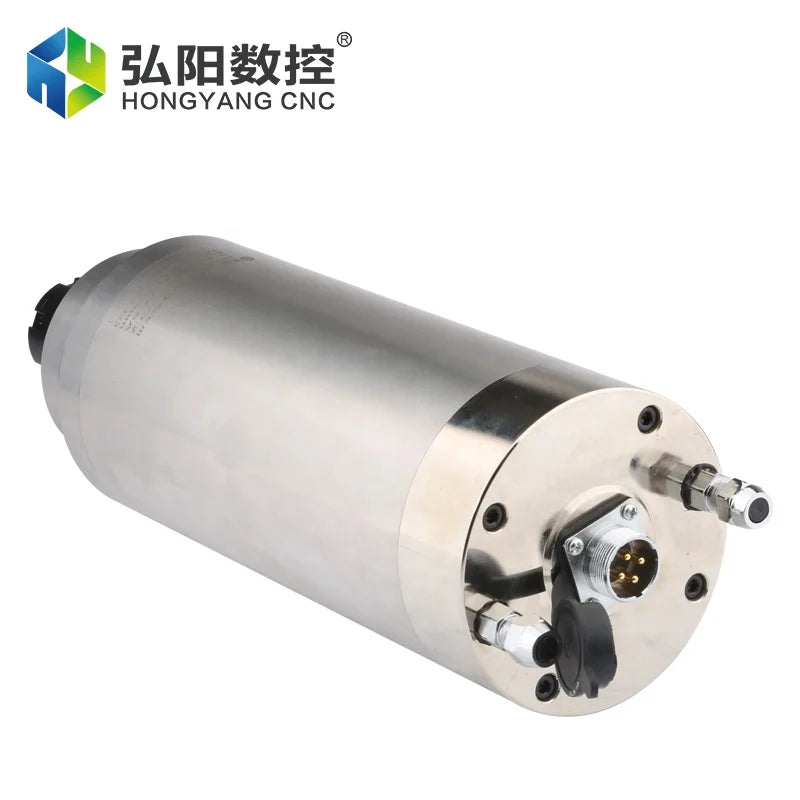

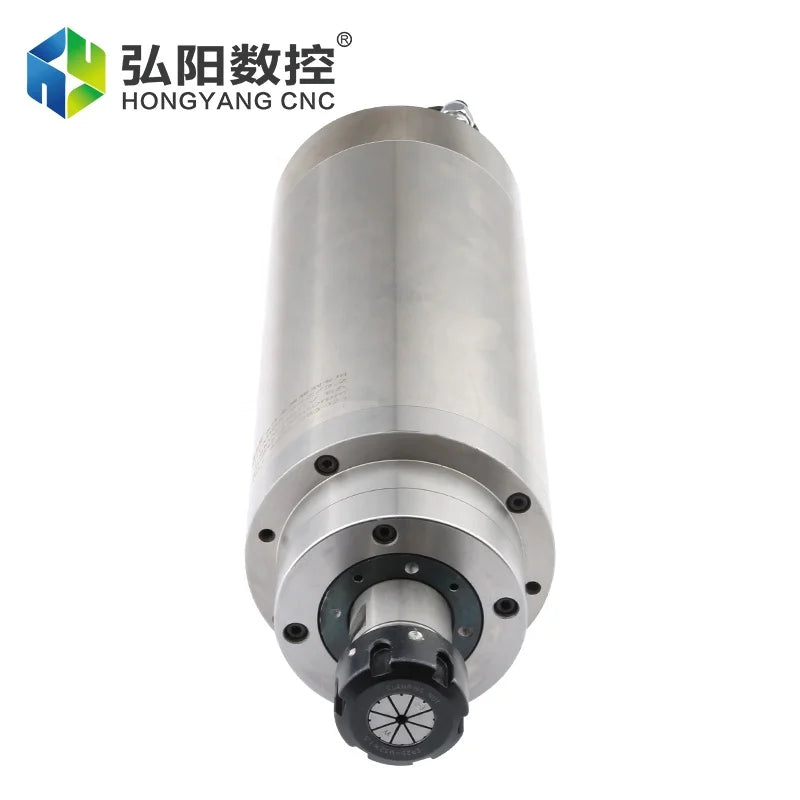

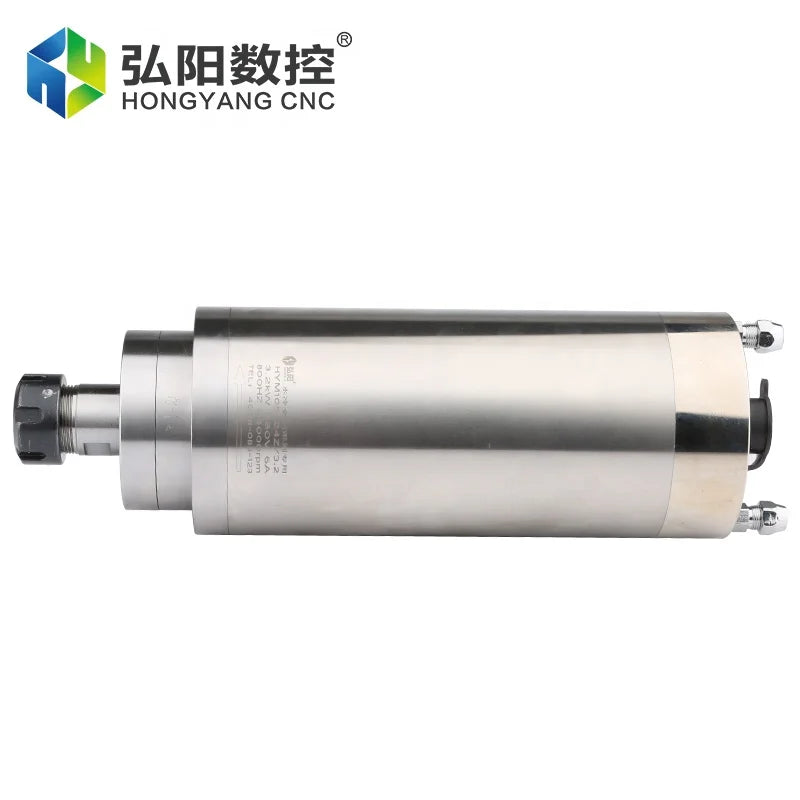

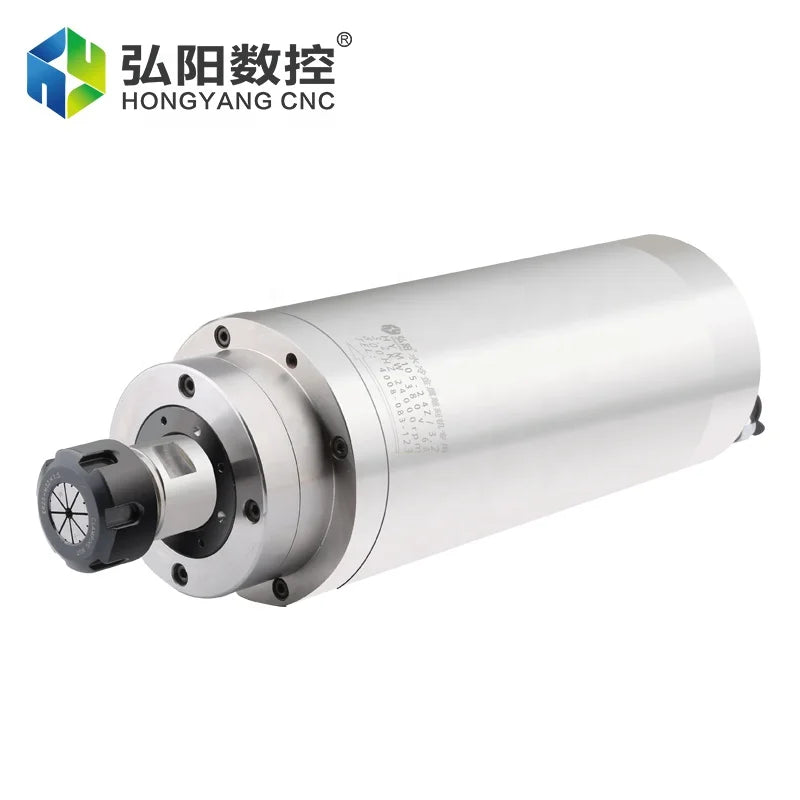

HYCNC 3.2kw Spindle Motor Water Cooled 4 Bearings Ac Motor In Machine Tool Spindle Motor For Cnc LatheMetal Drilling Milling

Product Description

Model	HYM105-24Z/3.2	Brand	HYCNC
Power	3.2KW	Frequency	800Hz
Speed	24000rpm	Voltage	380V
Current	6A/7A	Cooling method	Water cooling

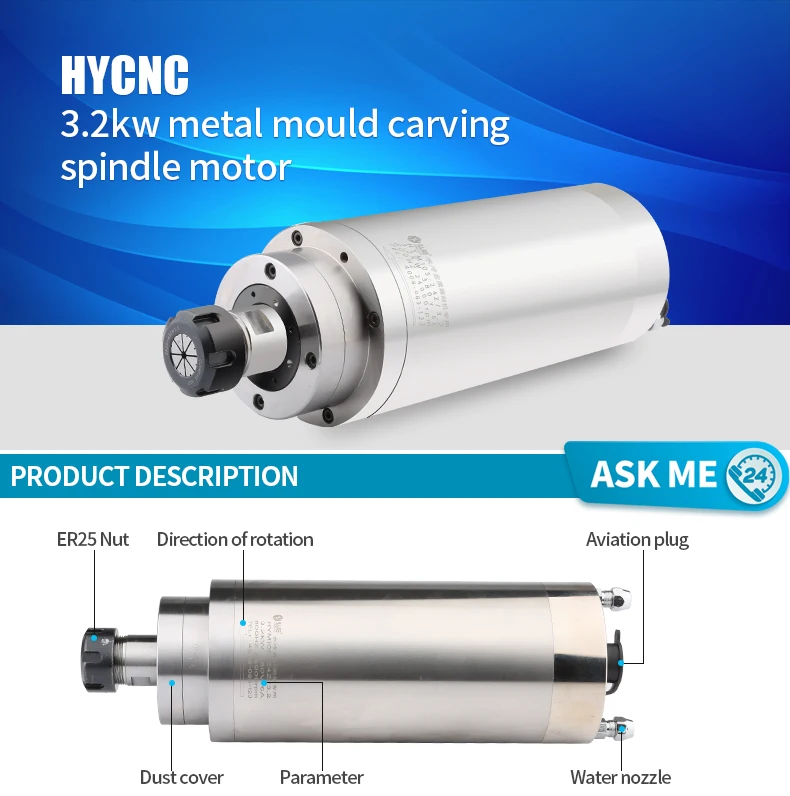

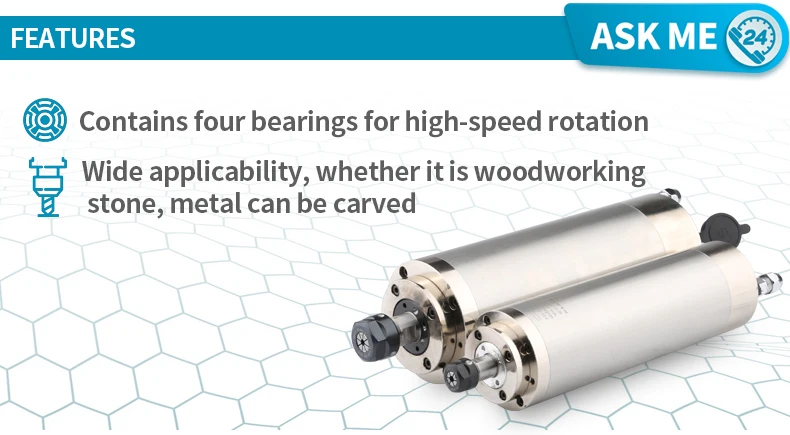

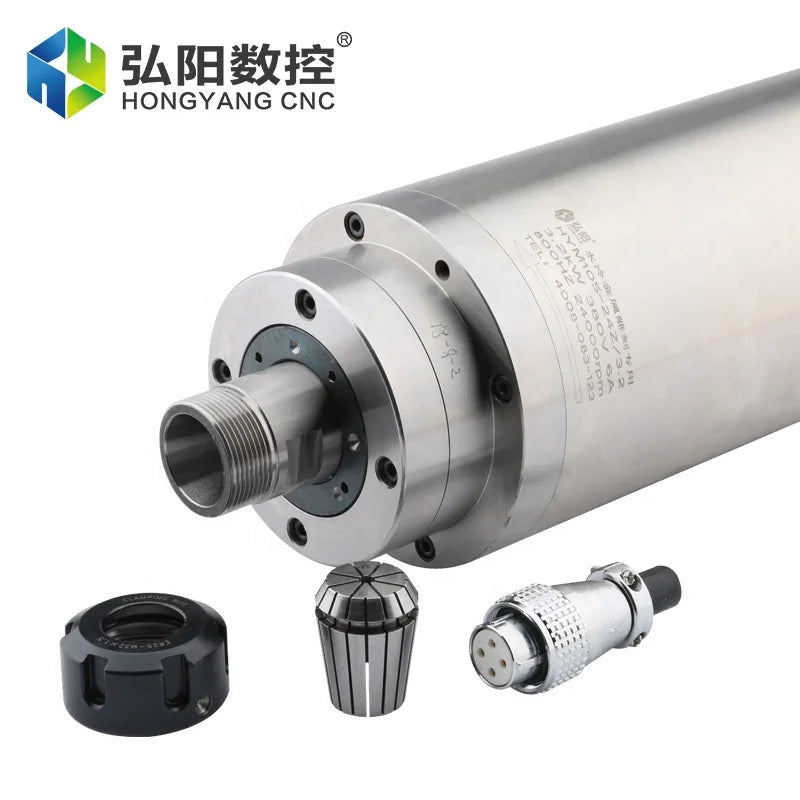

Size: 105x350mm (Middle body diameter:105mm;Length:350mm) Speed Ways: Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed. Cooling: Water cooling Power Interface: Optional waterproof air plug. The air plug marked "1 ","2"," 3"," 4", "1 ","2 ","3" were connected to inverter (U, V, W), 4 connected inverter ground. Power: 3.2kw Voltage: 380v Current: 6A/7A Frequency: 800Hz Speed: 0-24000rpm Diameter(mm): 105 4pcs fully sealed angular contact bearings Collet: ER25 Clip Knifediameter: 13mm,12mm,12.7mm,11mm,10mm,9mm,8mm,7mm, 6.35mm,6mm, 5mm, 4mm, 3.175mm, 3mm, 2mm, 1mm (standard 6mm) Grease Lubrication Main Application: Main use: Used for carving on wood, bamboo, stone, metal, and also on soft metal surfaces such as gold, silver, copper, aluminum, and Pb.

1. The received spindle motor will start from the low speed 6000 and increase by 3000 every ten minutes, until after 24000, it can be used normally. The new spindle needs to be preheated and run-in

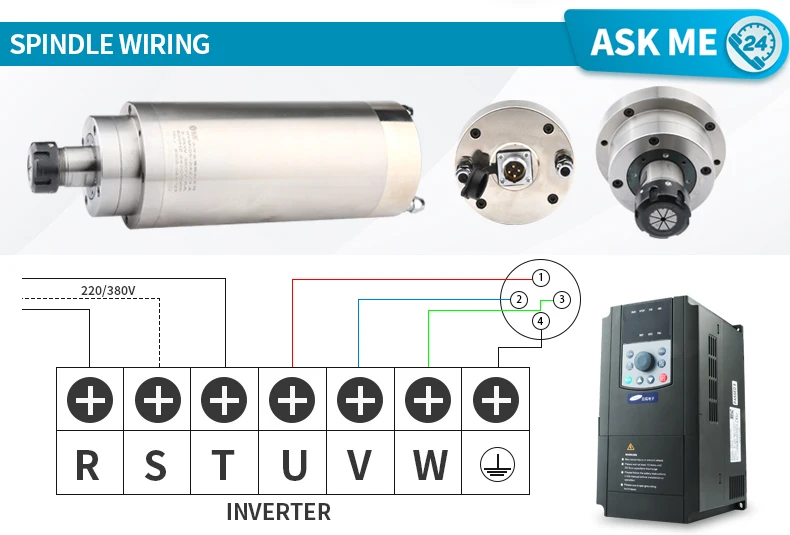

2.Connect the inverter spindle, three-phase inverter power cord should be soldered in the plug 1 (U), 2 (V), 3 (W) feet, 4 feet for the ground. After the power is turned on, to observe whether the spindle rotation axis indicates the direction consistent. If inconsistency should be immediately shut down, replace the inverter and spindle connected two wires of three-phase power supply.

3.Every day before using the spindle must be running at low speed for 15-20 minutes. Clamping the cutters to spindle, collet nuts ,collets,cutters must be clean enough.
