SPECIFICATIONS

Brand Name: IRIN

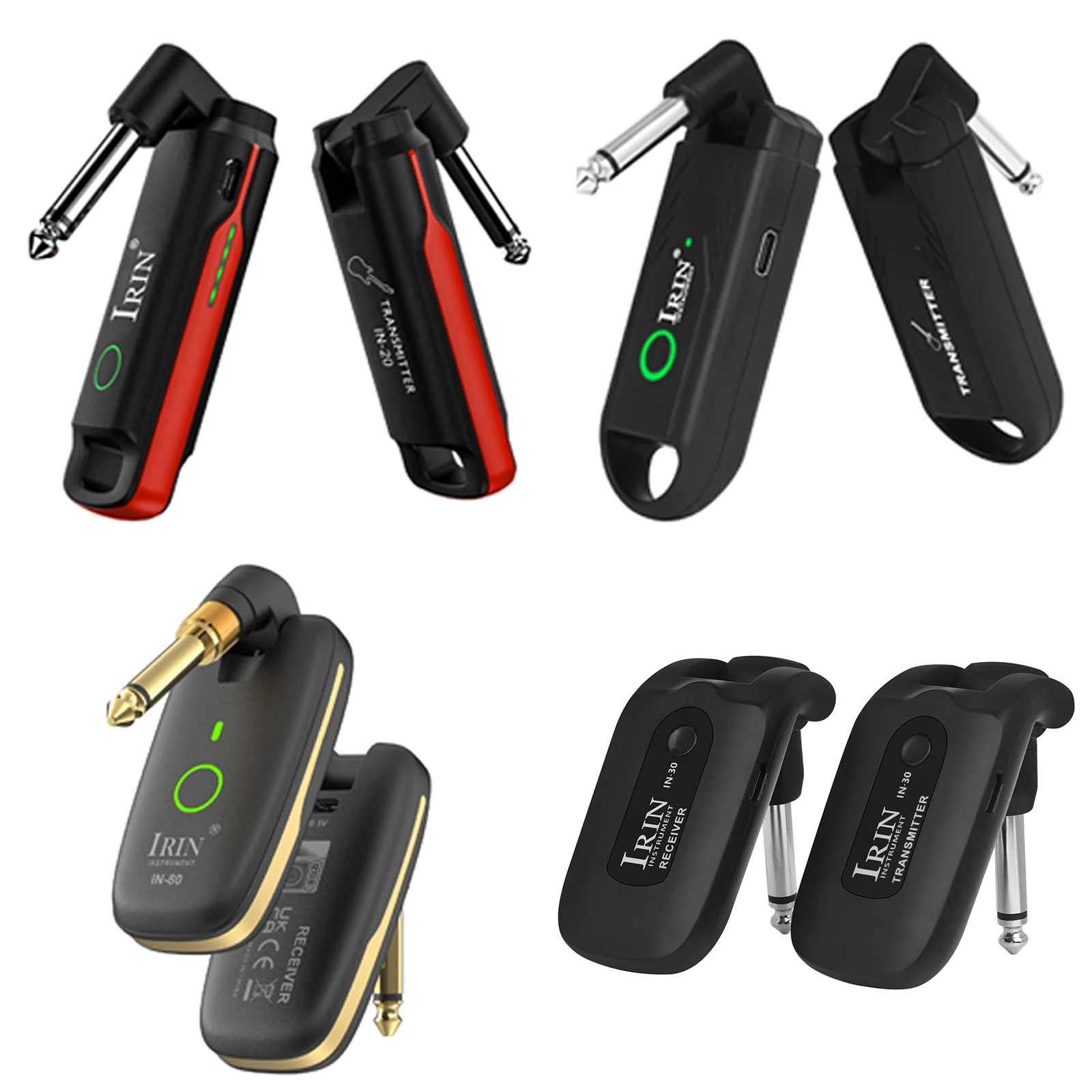

Model Number: IN-20/IN-30/IN-70/IN-80

Plug Type: NONE

Origin: Mainland China

weight: 200g

Type: Guitar Transmitter Receiver

Choice: yes

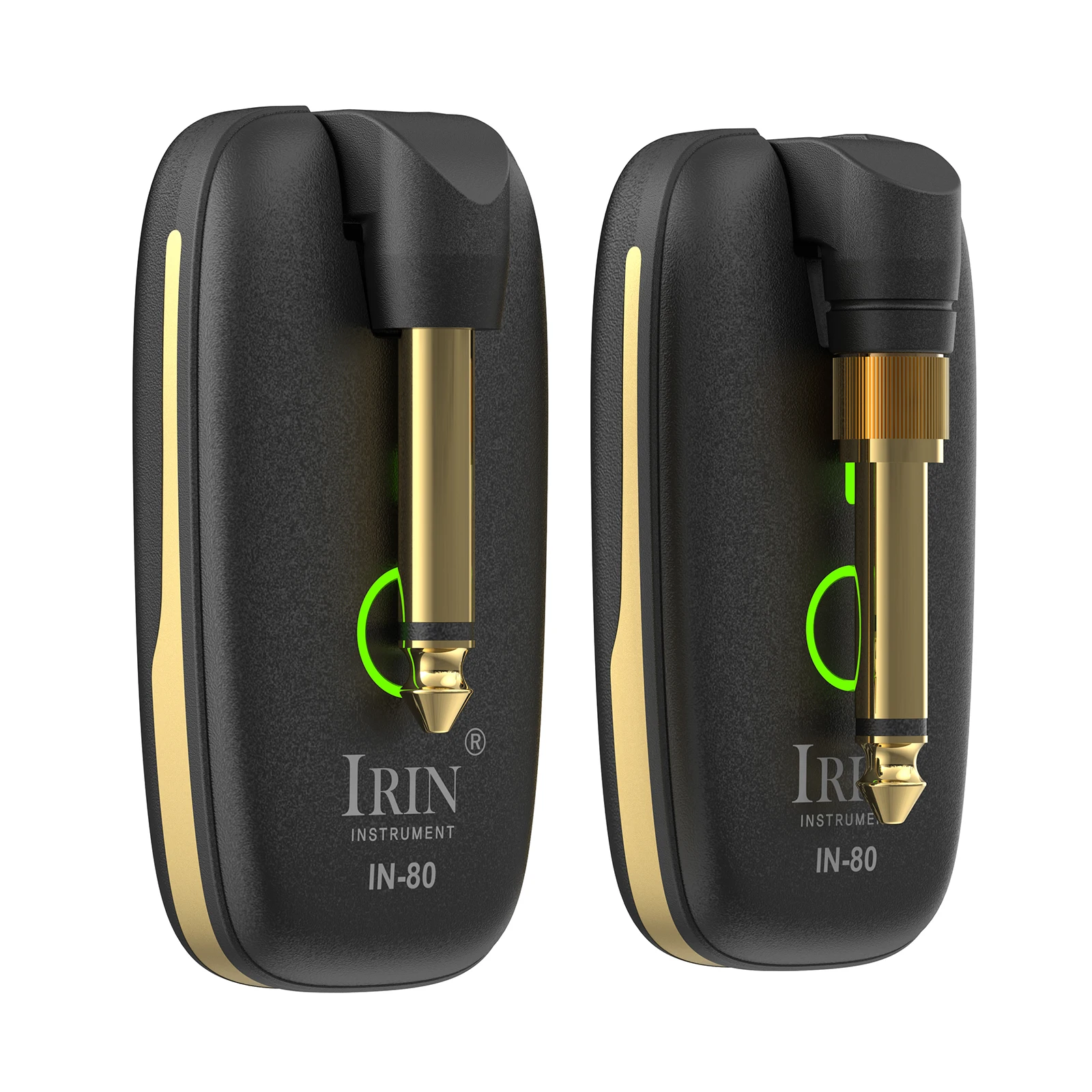

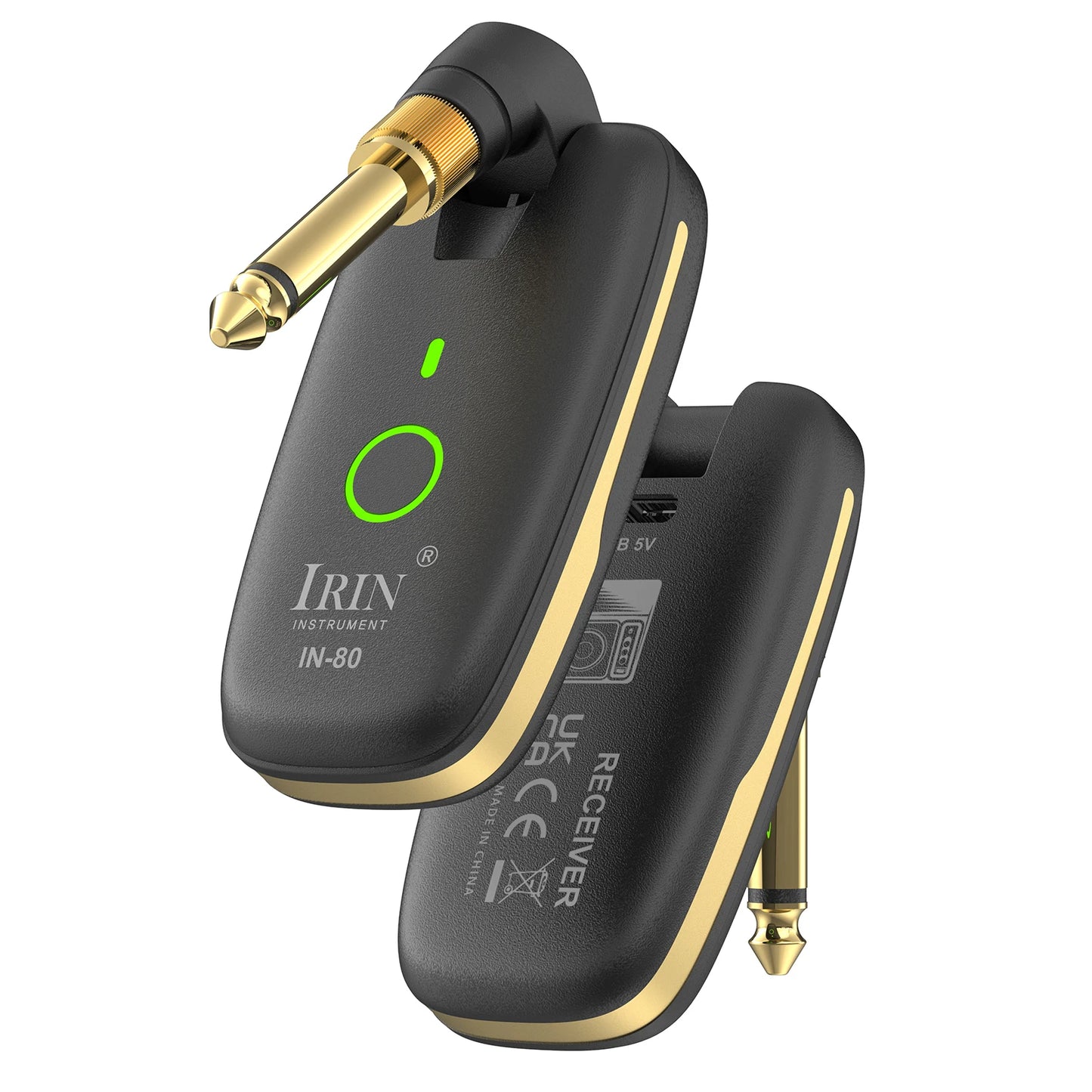

IN-80 MAIN FEATURES:

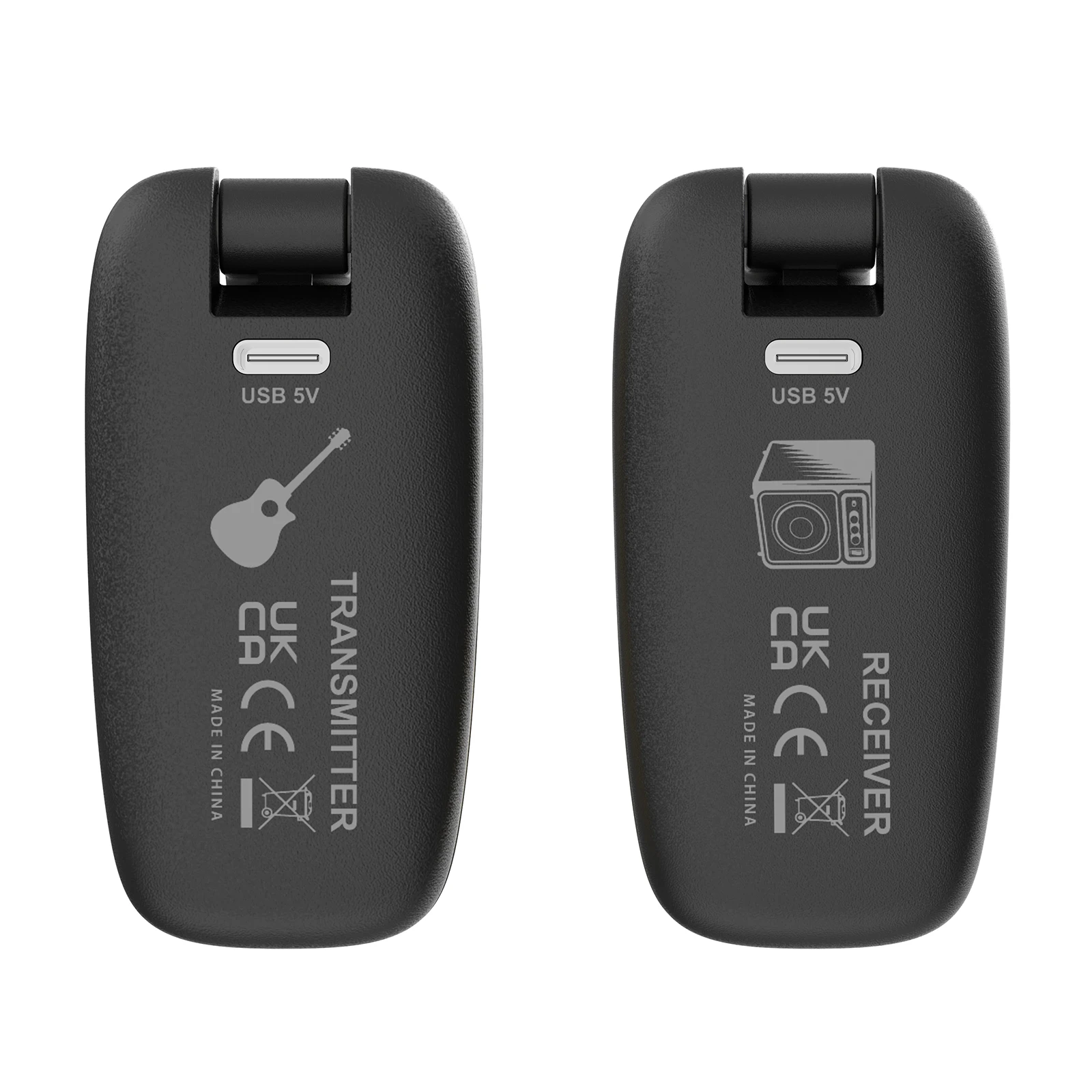

-This wireless tarnsmission system consists of two parts IN-80 TRANSMITTER and IN-80 RECEIVER, adopt UHF technology.
-Suitable for multiple instruments
-The transmitter comes with a 3.5mm connector and a 6.35mm detachable adapter, which is compatible with all kinds of electro-acoustic instruments and can rotate in a large range, and can be used for different interface positions.
-One transmitter to different receivers or more transmitters to more receivers
-7 channels which allows 7 sents working at same time.And also workable to use as one transmitter to more receivers.
-Anti-interference, stable, long distance
-UHF frequency with high quality signal without compression or distortion.
-Super endurance
-Adopt 950mA big capacity Li battery, able to use 6 hours continuously.

SPECIFICATIONS:
Power: 3.7V/950mAH Polymer lithium battery
Channel: 7
Distance: 30-50m
Frequency: 20Hz-20KHz
Dynamic rang: >106dB
Signal-to-noise ratio: >85dB
Working time: around 6 hours
Charging time: around 2 hours

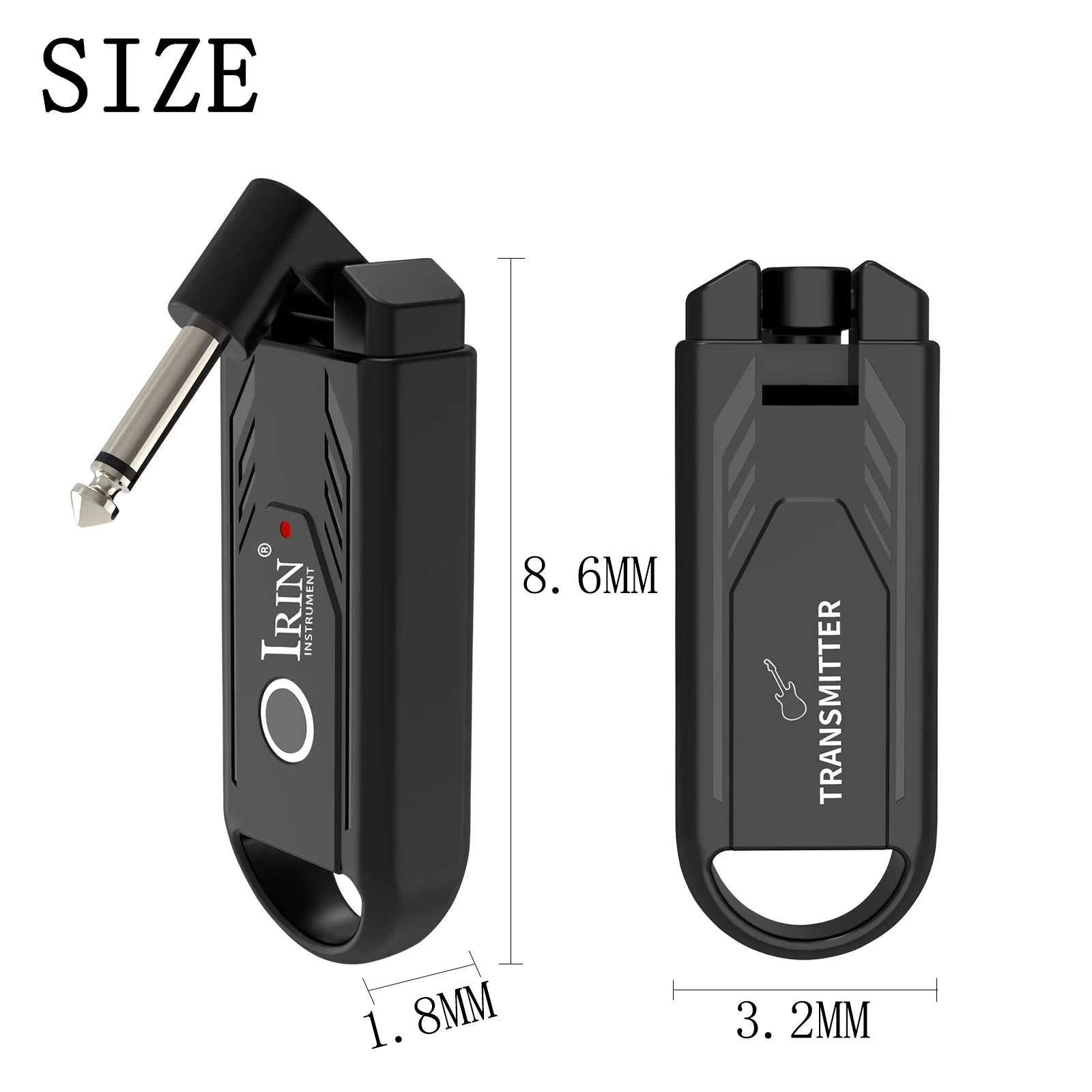

Dimension: 37.2×73.2x26.5mm
Weight: 93g
Accessories: user manual, Type-C USB cable

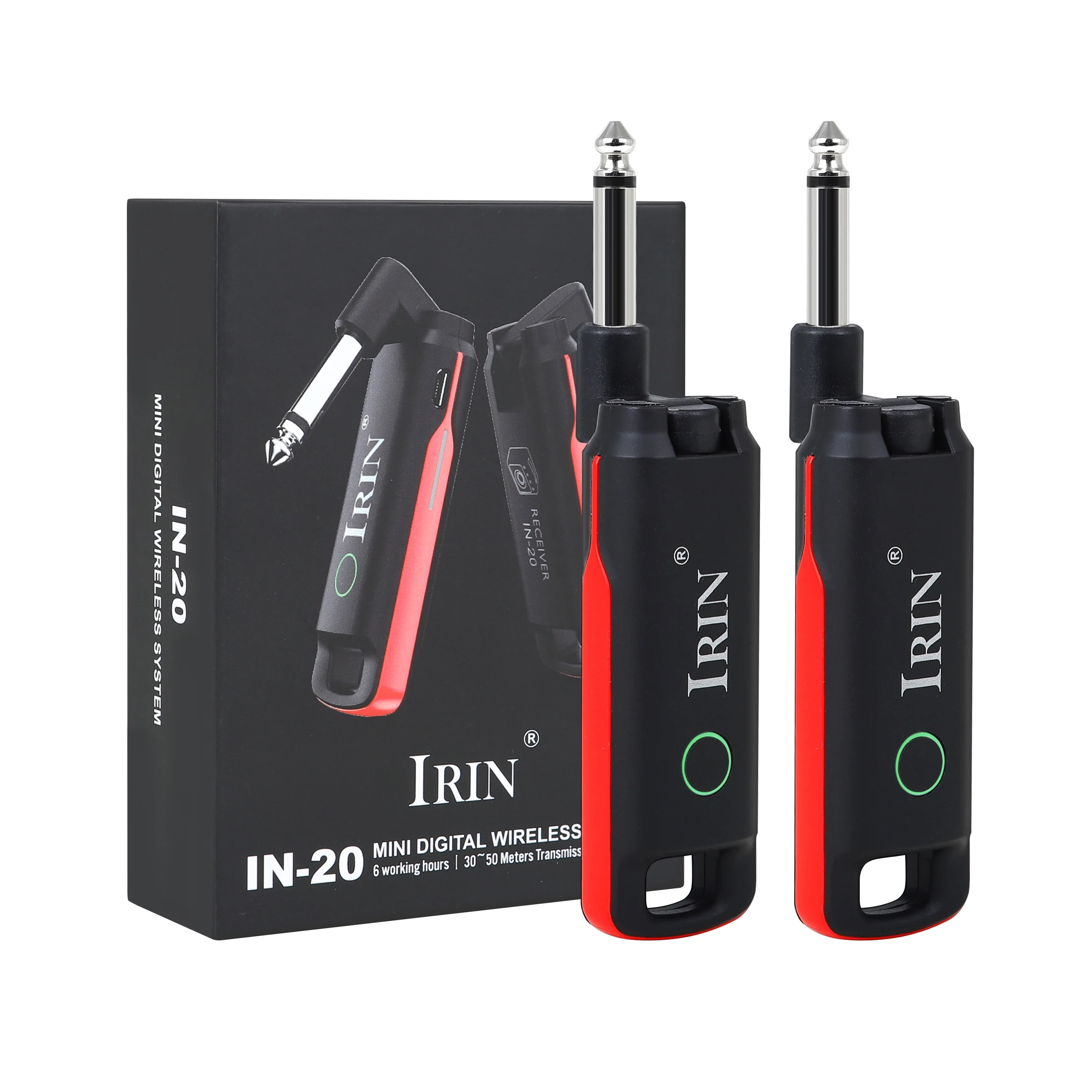

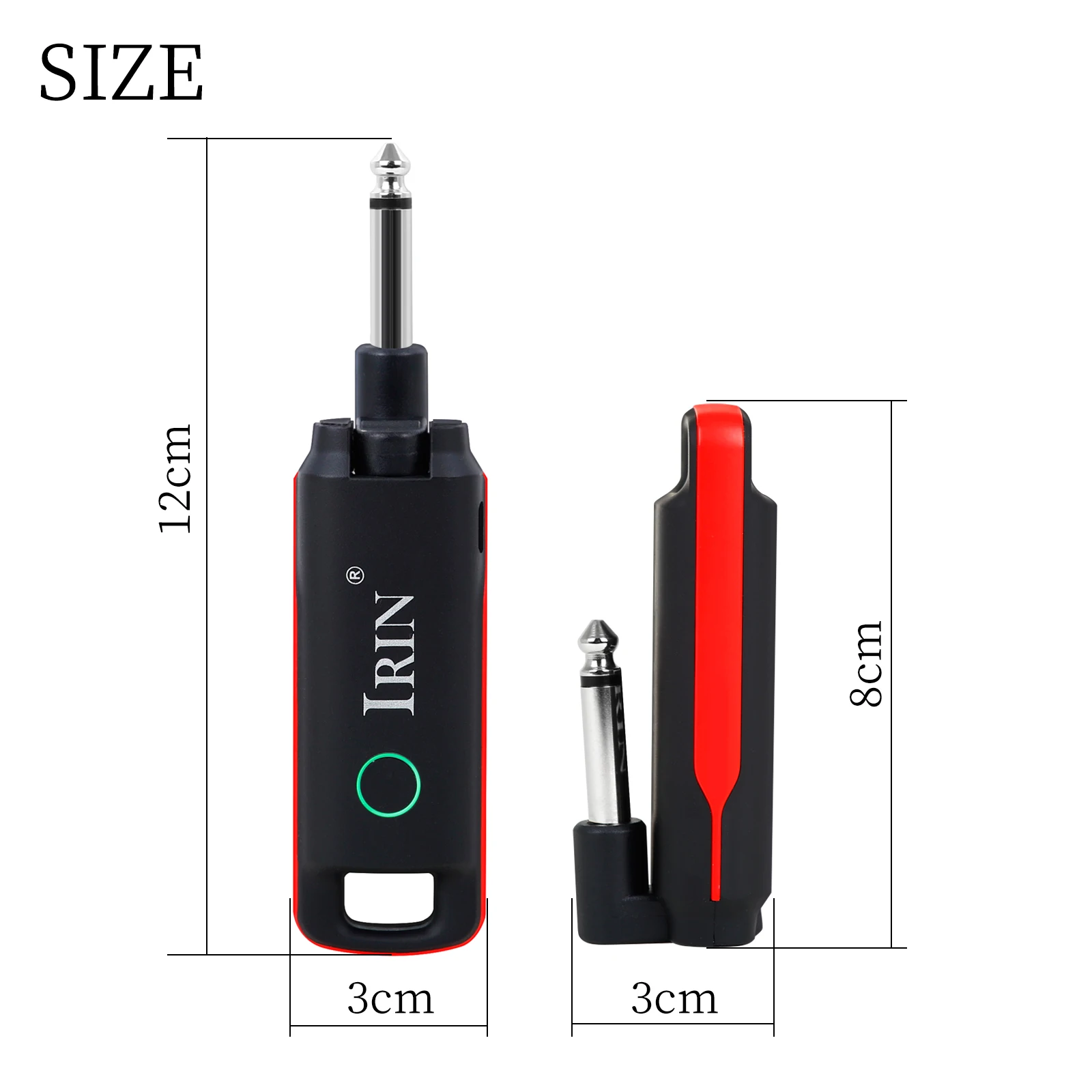

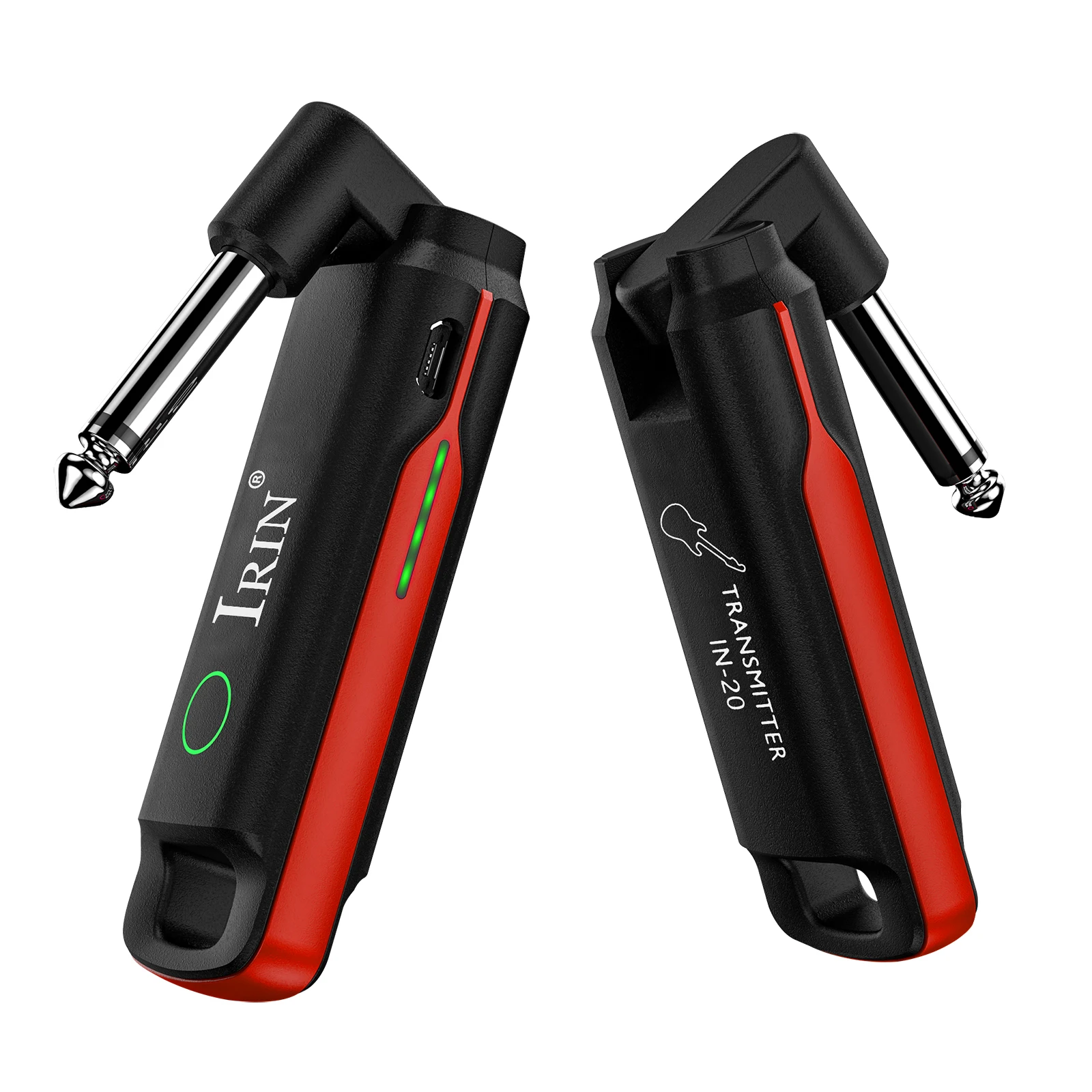

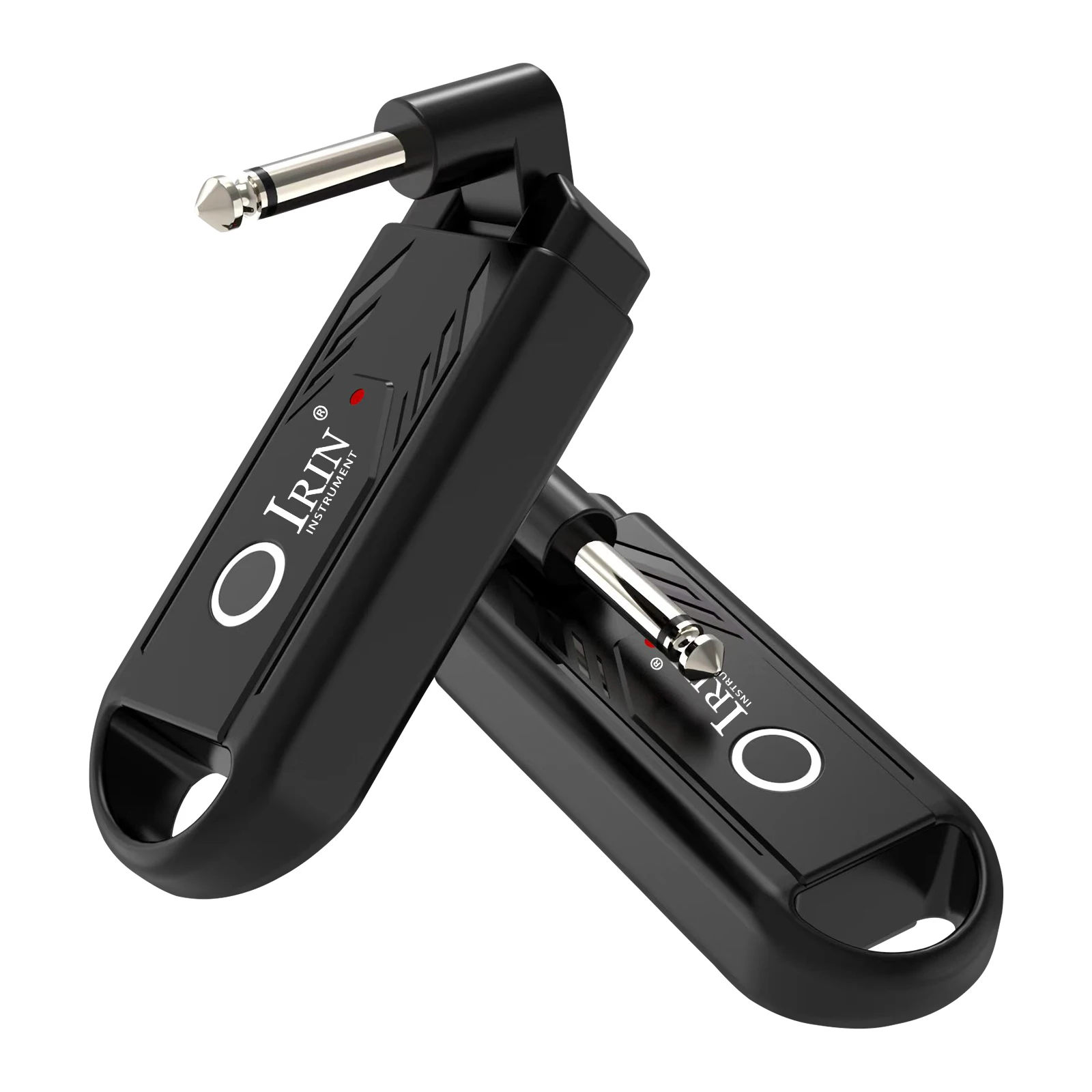

IN-20  Feature:
This is a mini wireless transceiver system, suitable for 6.35mm audio interface equipment, and has the advantages of strong anti-interference ability, strong penetration of obstacles, and stable transmission without freezing.
Wireless devices can support up to 99 sets of devices to be used at the same time without interfering with each other.
The transmitter of a wireless system can be used with the receivers of dozens of wireless systems.
Wireless transmitter & receiver set for electroacoustic musical instruments like guitar, bass, etc. giving you the best music sound.
transmission range is up to 50 meters.
Built-in rechargeable lithium battery, long working hours; and comes with USB cable for convenient charging.
With power display function, keep track of the remaining power
Plug and play, simple to use; compact size and lightweight, easy to carry.
Specification：
Material: ABS
Audio Response Range: 20-20kHz
Channel: 99 channel
Distortion: Less Than 0.05%
Reception sensitivity: Less Than -110dbm@20dbsinad
Signal-to-noise ratio: more than the 85dB
Transmission Range: Max.50M (No obstacle); 30M (through-wall)
Transmission Delay: Less Than 2ms
Power Supply: Built-in rechargeable lithium battery
Charge Port: USB

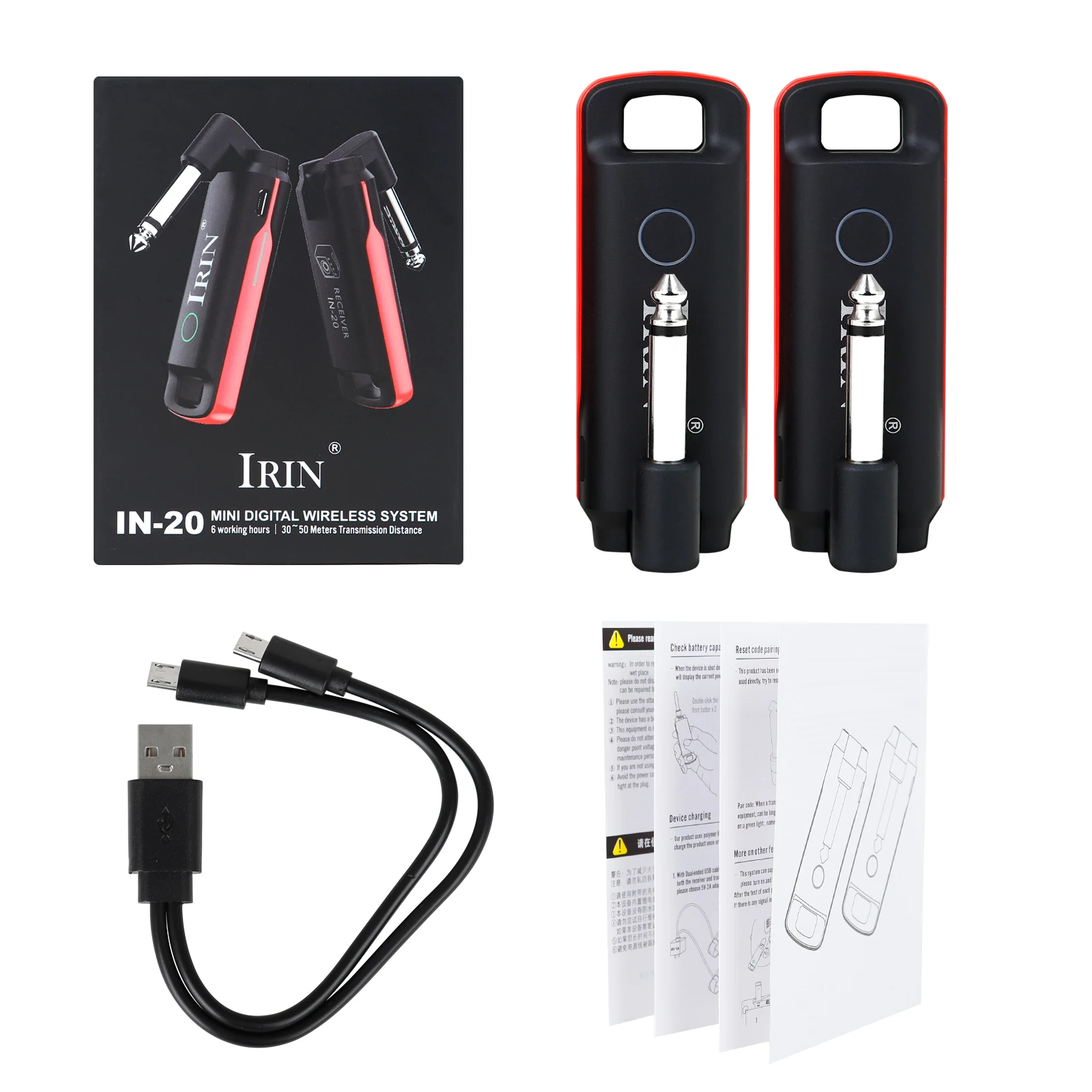

Accessories: User Manual,USB Charging Cable

IN-70 Specification:
Channels: 10channels
Reception sensitivity: <-110Bm@20dBSINAD
Signal-to-noise ratio: >85dB
Delay: <2ms
System frequency response: 20～20KHz
Distortion:＜0.05%
Transmission distance: 30～50m
Full power working time: 5～6 hours (varies by environment)

Package contents:
1 * Receiving end
1 * Transmitter
1 * USB
1 * Instruction manual

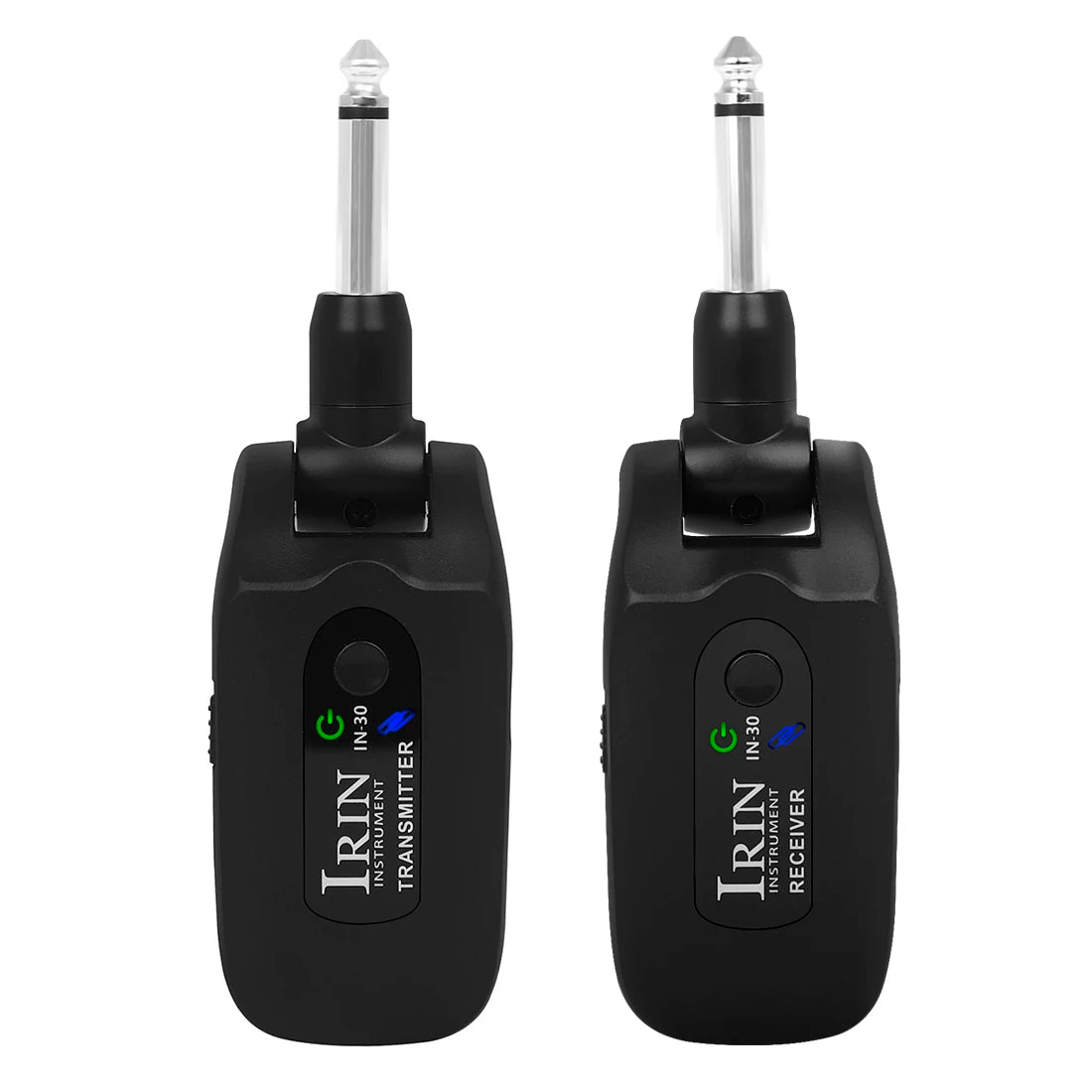

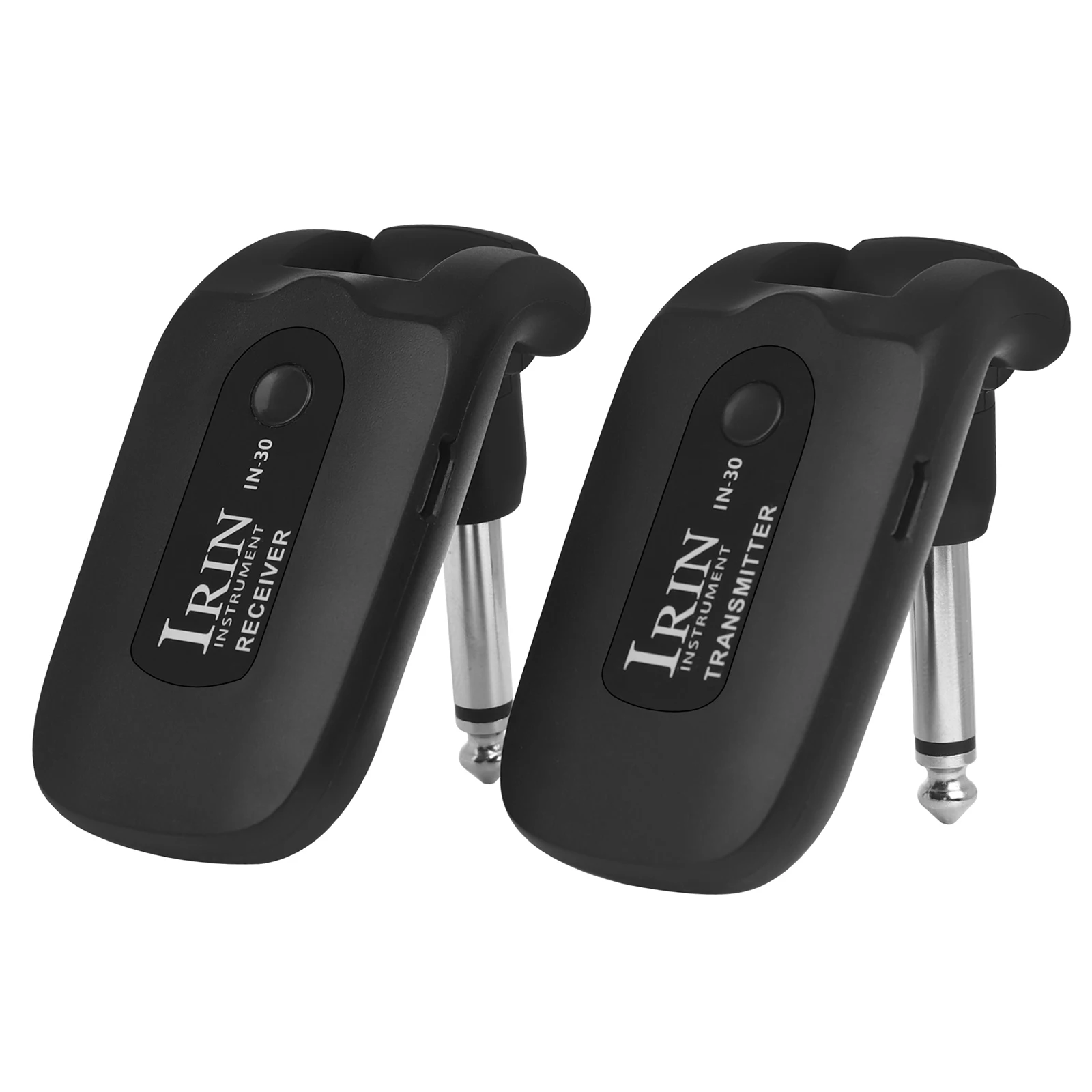

IN-30 PARAMETERS：
48K/16bit audio resolution
Delay time: <5mS
Transmission distance>20m
Frequency response: 10Hz-22KHz+-1dB
Distortion:<0.02% (@1KHz-10dBFS)
Wireless frequency band: 2.4GHz ISM frequency band
Anti-interference method: Frequency hopping
Quantity of signal channel: 12, in 4 channel banks
Built-in lithium battery: Over 10hrs battery life once fully charged
Specifications：
Battery: Rechargeable lithium battery 3.7V/650 mAh
Frequency response: 10Hz-22KHz
Wireless frequency band: 2.4GHz ISM frequency band
Volume: 73x35x30mm(when being folded)

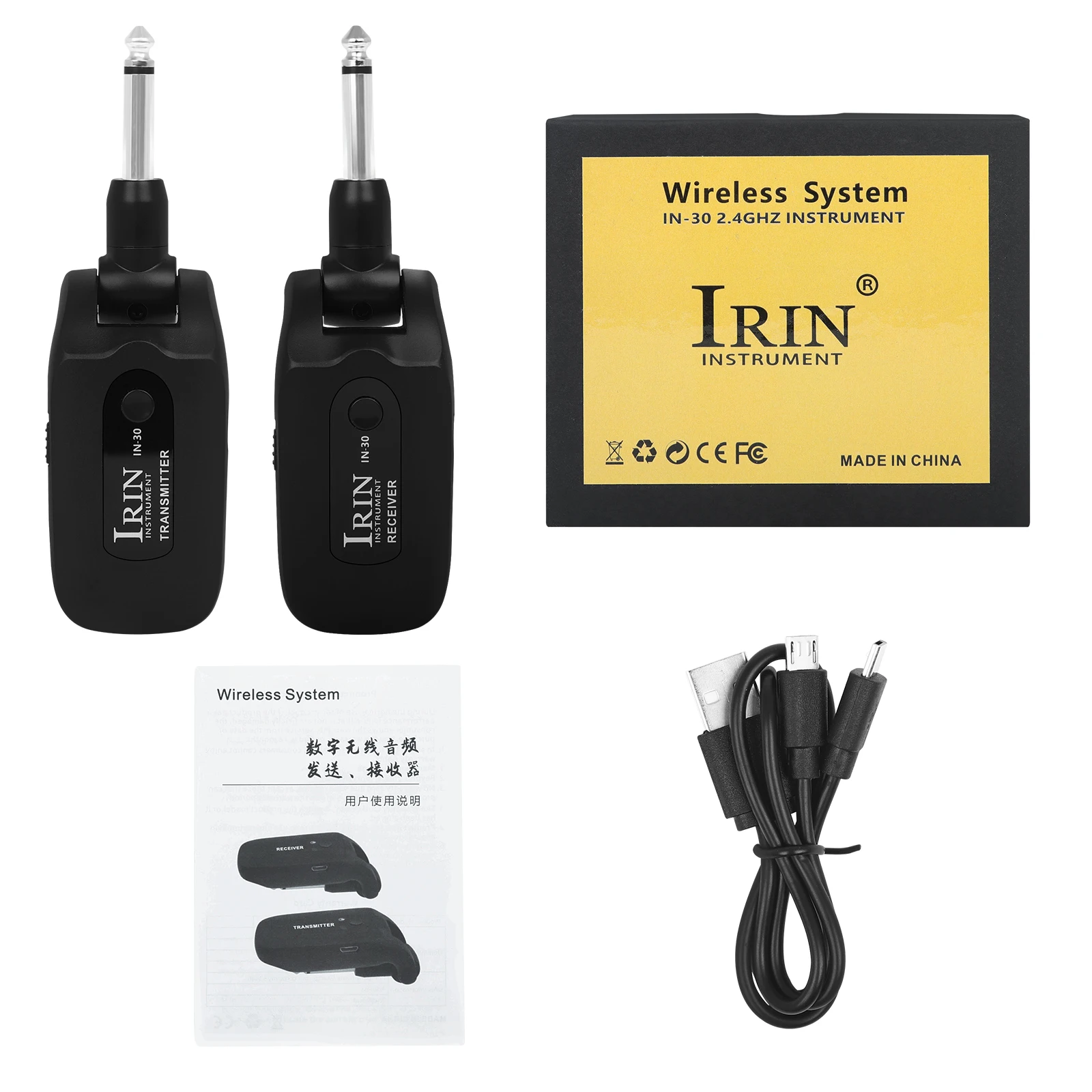

Attached accessories: Owner's manual, USB cable
The plug can be rotatedfor 270 degree
