SPECIFICATIONS

Application: Desktop

Back I/O Ports: 6 x USB 2.0

Brand Name: Kllisre

Chipset: Intel H61

Chipset Manufacturer: Intel

Choice: yes

Hign-concerned Chemical: None

Maximum Ram Capacity: 64 GB

Number of PCI: 1

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI - E 3.0

Package: Yes

Processor compatibility: Intel Xeon

RAID Supported: No

Socket Type: LGA 2011

Special Function: None

Storage Interface Type: SATA

Support Memory Type: DDR3

Usage Scenario: Gaming,Audio & Video,Office

With CPU: Yes

CPU:

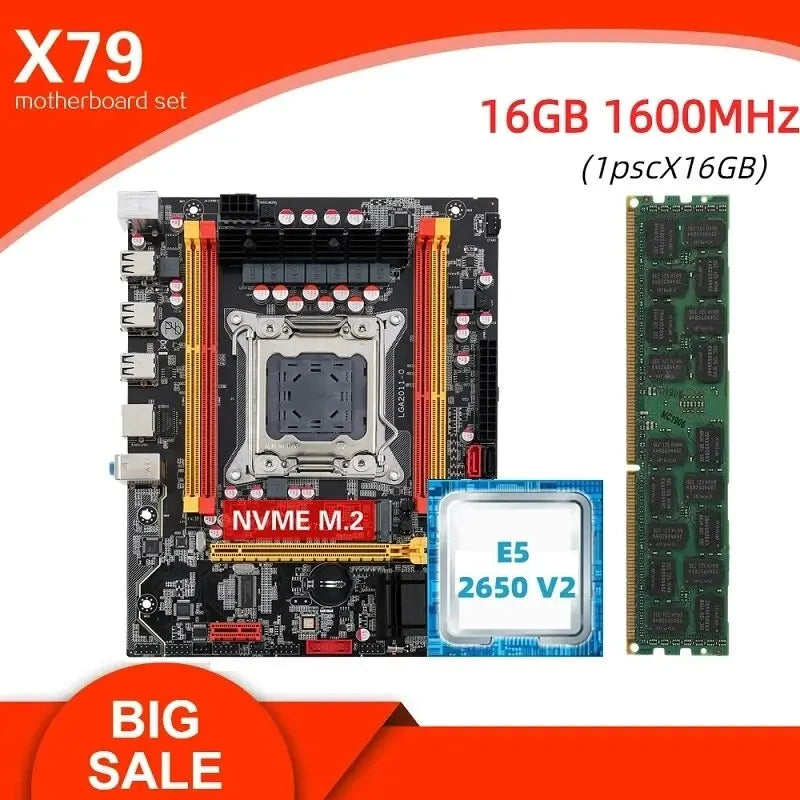

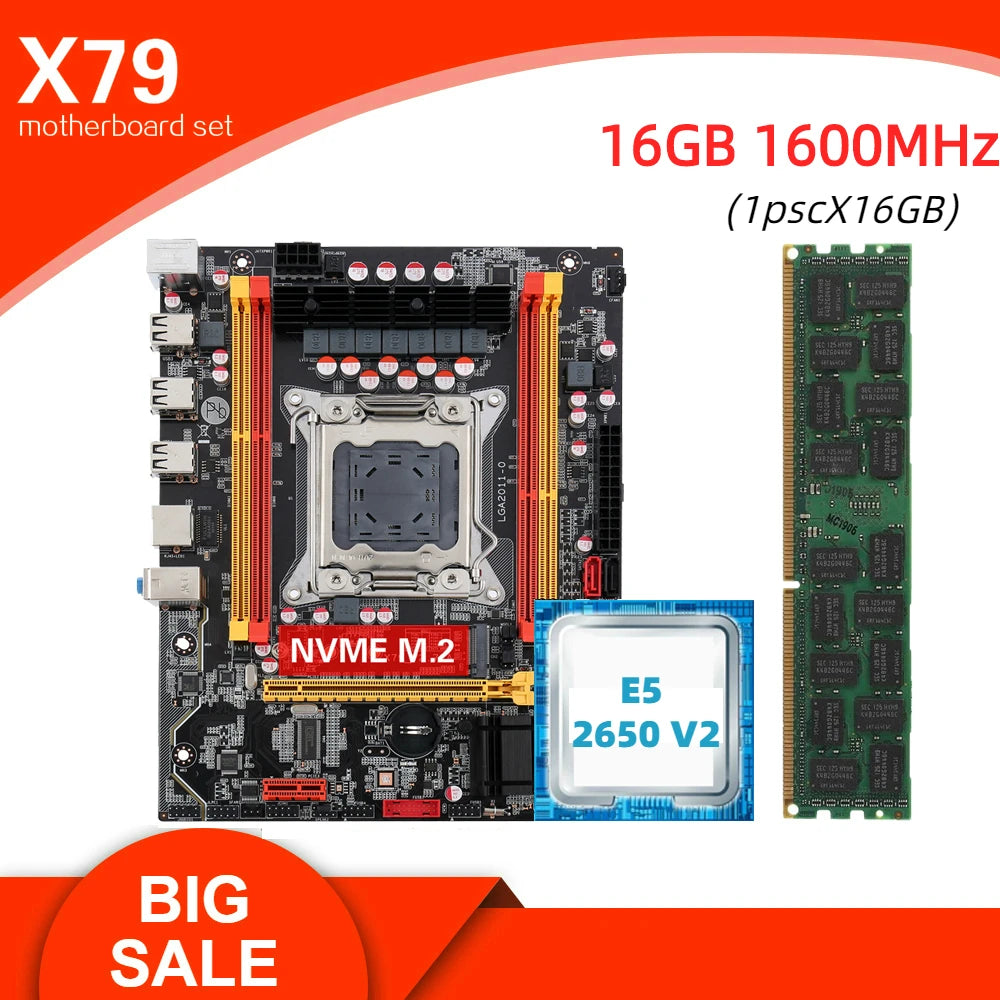

Processor Series: Xeon E5 2650 V2 SR1A8(8 cores/16 threads)

Main frequency: 2.6GHz

Power consumption: 95W

CPU is used, condition good, 1 year warranty

Memory:

Chip: SEC / HY/ MIC and others (ship at random)

Type: ECC REG (server memory)

Frequency: DDR3 1600MHz

Capacity: 16GB (1*16GB)

RAM is used, condition good, 1 year warranty

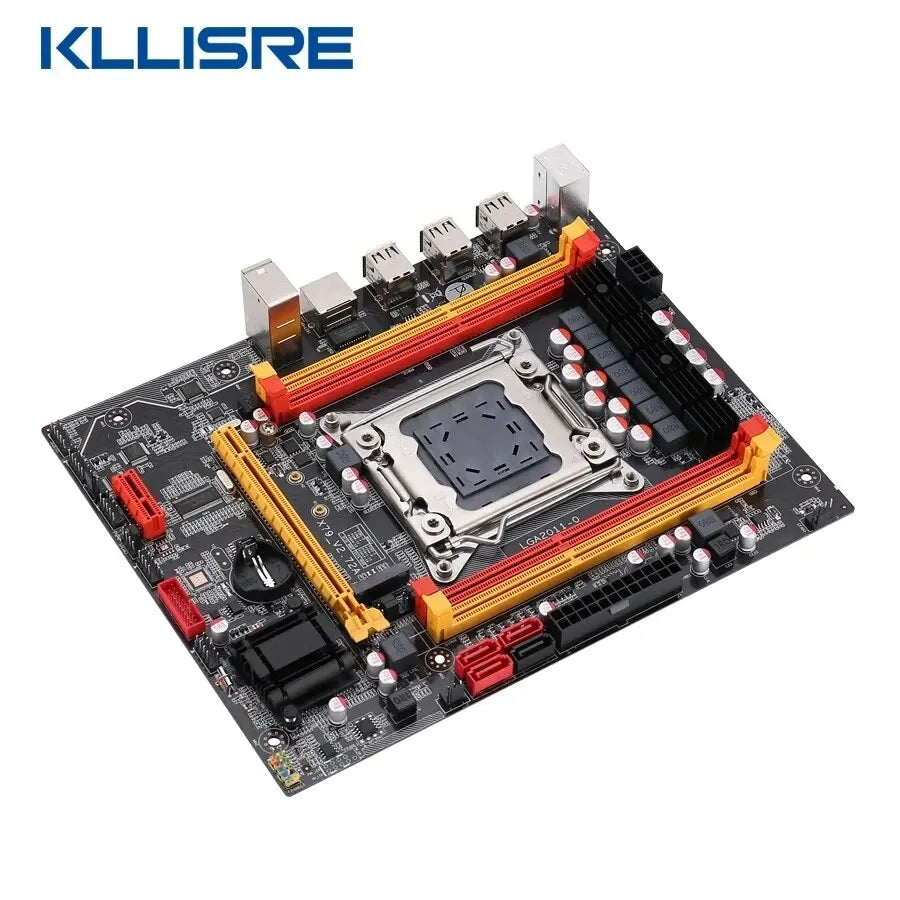

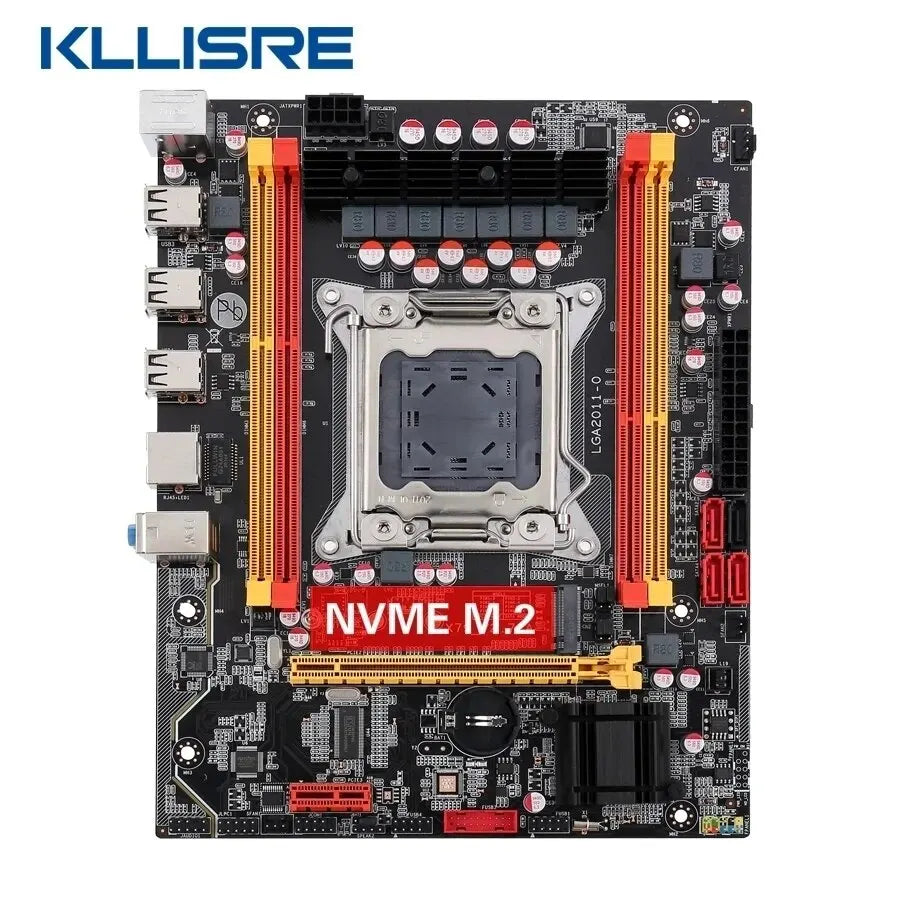

Specification:

Main Chipset:H61

CPU slot LGA: 2011

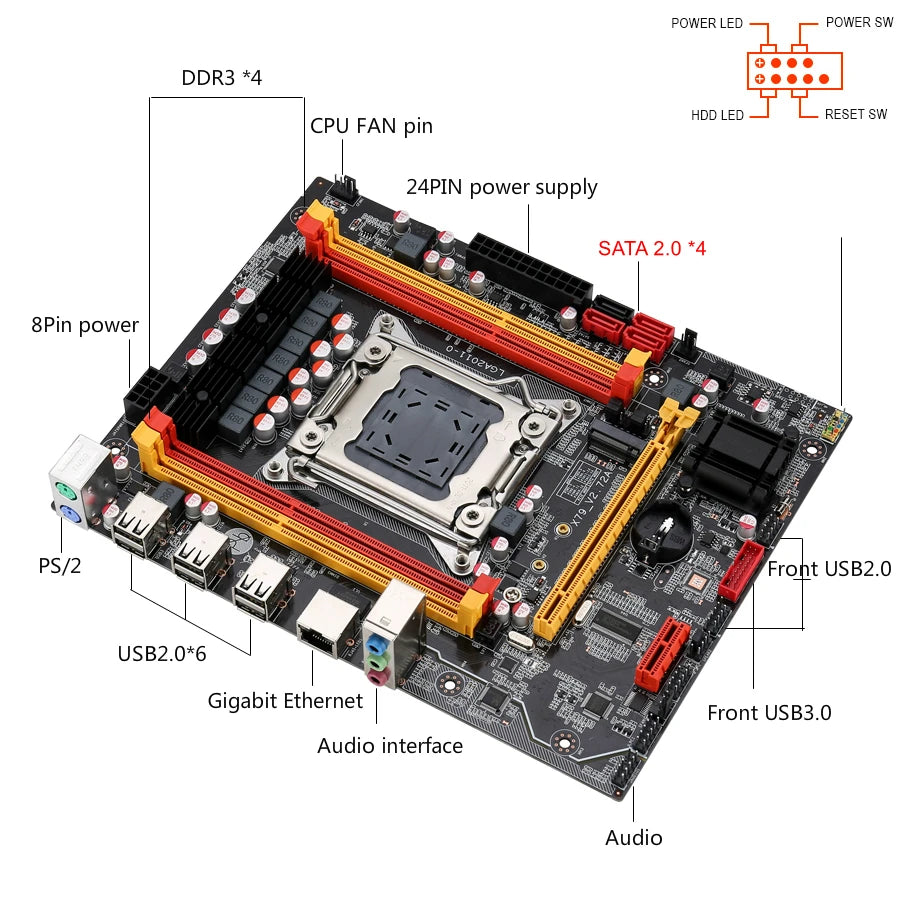

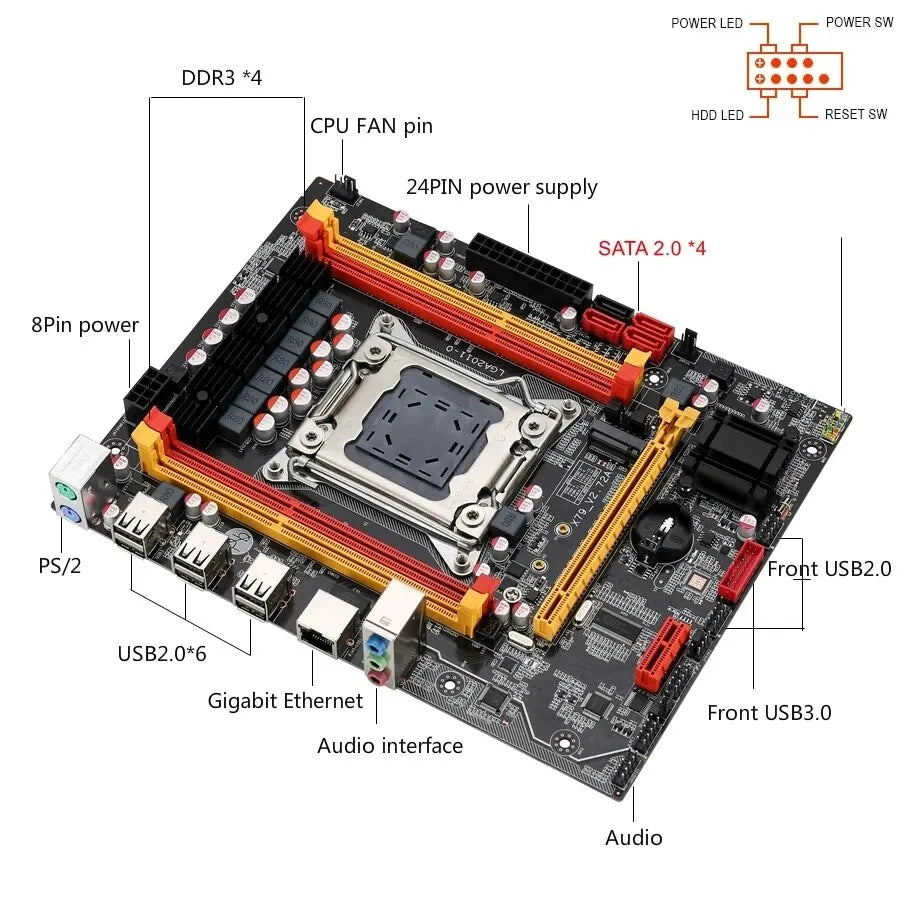

Memory slot: 4xDDR3(1600MHz/1333MHz) DIMM

Memory channel: dual channel

Maximum memory capacity: 64GB

Hard disk interface: S-ATA II (SATA 2.0 x 4)

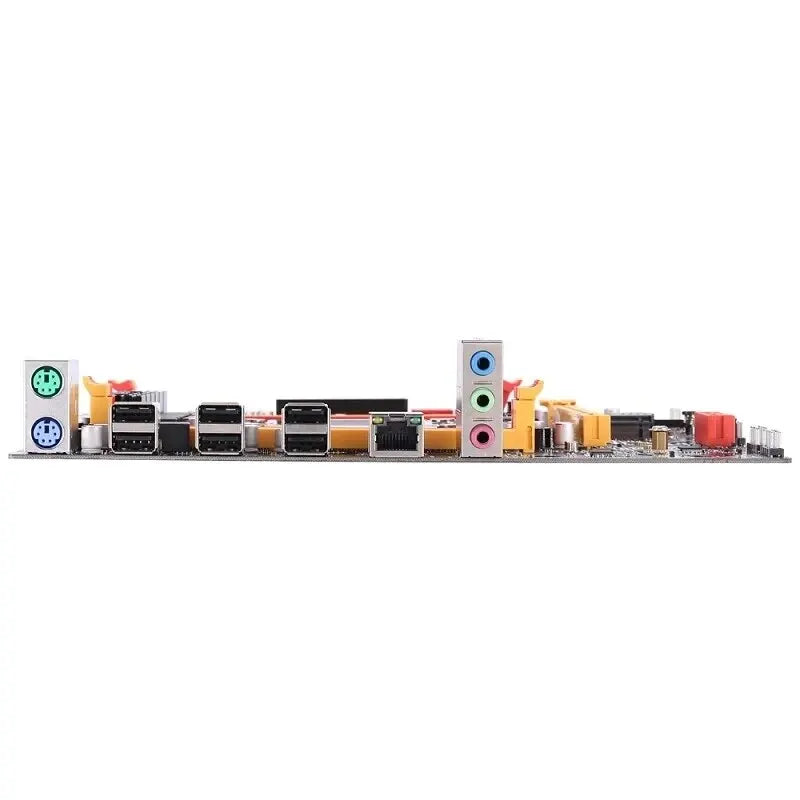

Number of USB interfaces: 6 (USB 2.0 x 6)

Whether to support disk array: not supported

Support for image card standards: PCI Express 16X

Motherboard dimension: 187*217mm

Motherboard weight(including package): 1.0kg or so

Note:

This motherboard only has sata 2.0, the photo is only for reference.

The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.



If you encounter problems when testing, please review the following steps, it will help you solve problem.

1. Wipe the gold fingers of the memory and the metal contacts on the back of the processor with an alcohol cotton ball (to rule out oxidization causing unrecognized problems).

2. Please check the power supply cable is installed well on the motherboard, you need to install both 24 pin and 8 pin on the motherboard. the power pin is black color, pls make sure that you connect correctly.

3. Please make sure that the power supply, video card and other accessories you use to test the product are working properly.

4. Please make sure the cable is installed well between the VGA/HDMI port and monitor.

If you still encounter problems, please contact us and we will help you.

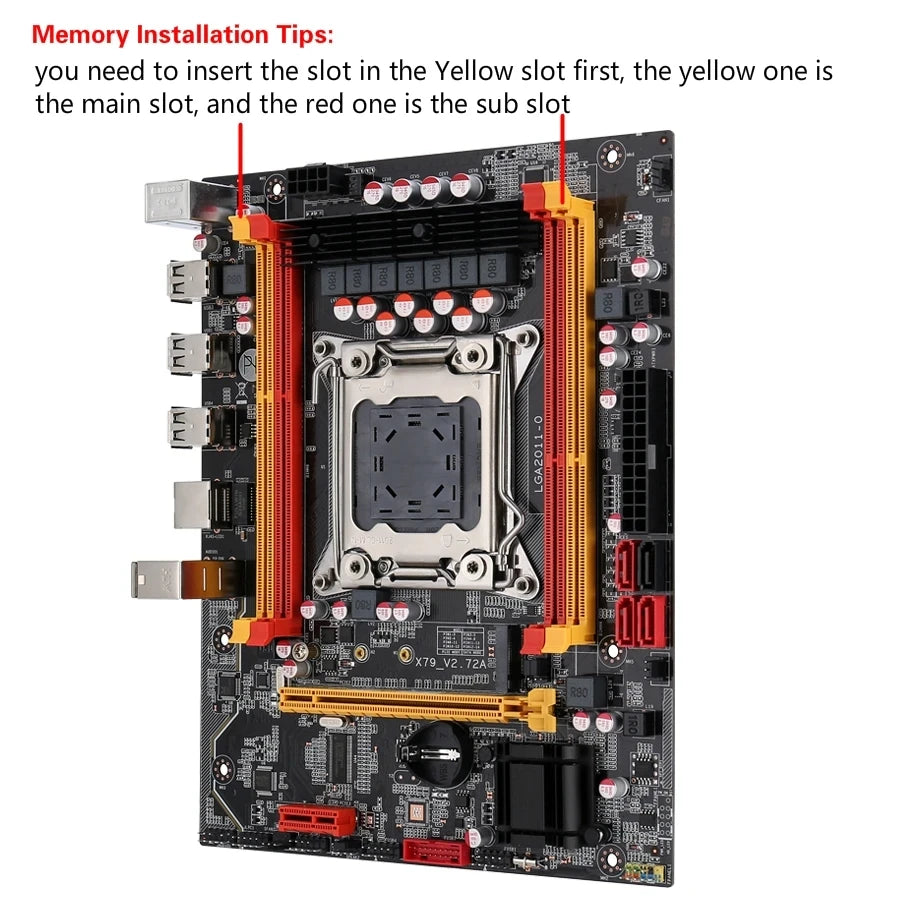

You can also go to the Kllisre Official Store to contact customer service and we will help you.Memory Installation Tips: you need to insert the slot in the Yellow slot first, the yellow one is the main slot, and the red one is the sub slot
