Notice:

1. Before using the device to measure the capacitor, please discharge the capacitor first

2. Using the device while charging is prohibited.

3. The ESR and Vloss of the capacitor are only displayed when they are valid

4. On or Off voltage of the FET must be less than 5V

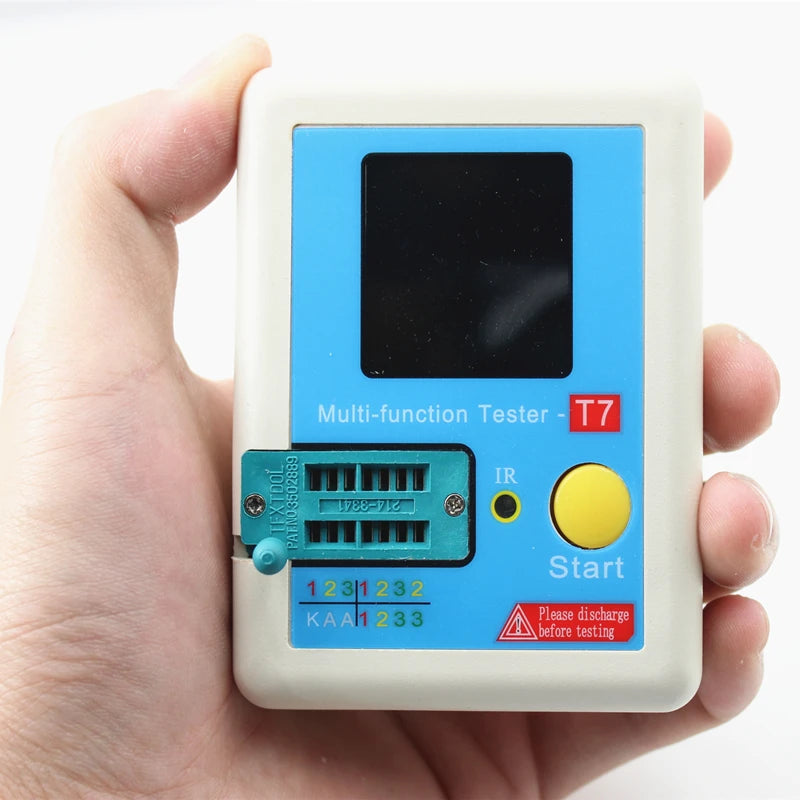

- 160x128 TFT display
- Multi function key
- Transistor test area
- Zener Diode test area
- IR receiver window

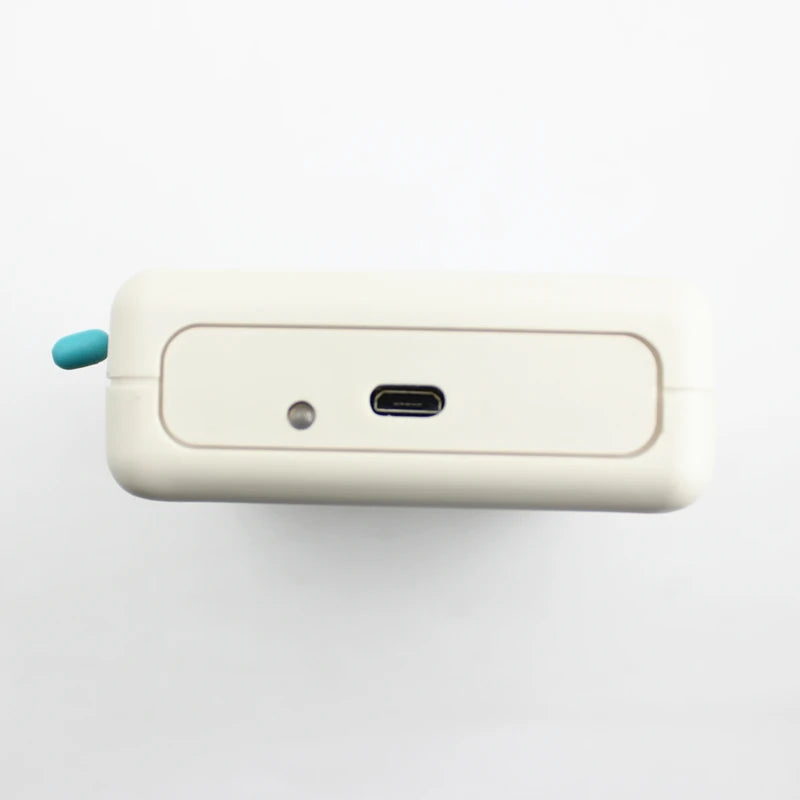

- Micro USB Charging Interface
- Charge indicator LED

1.1 Features

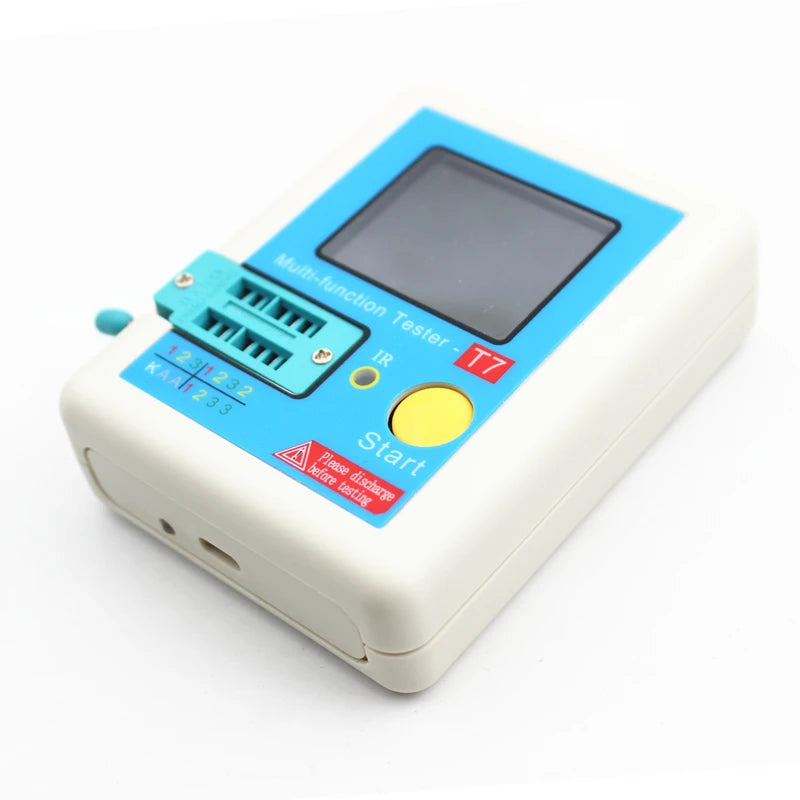

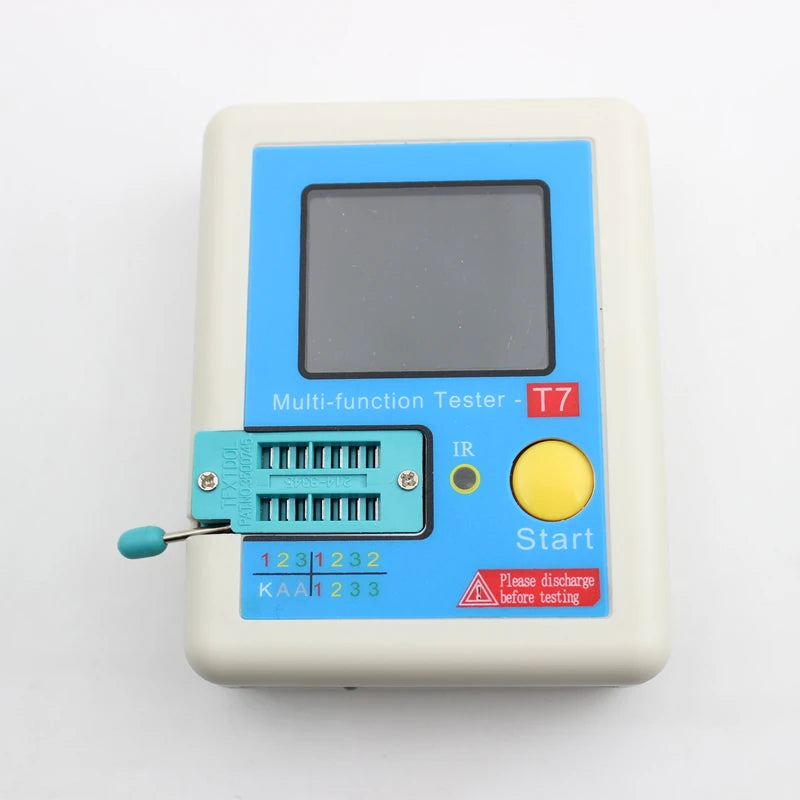

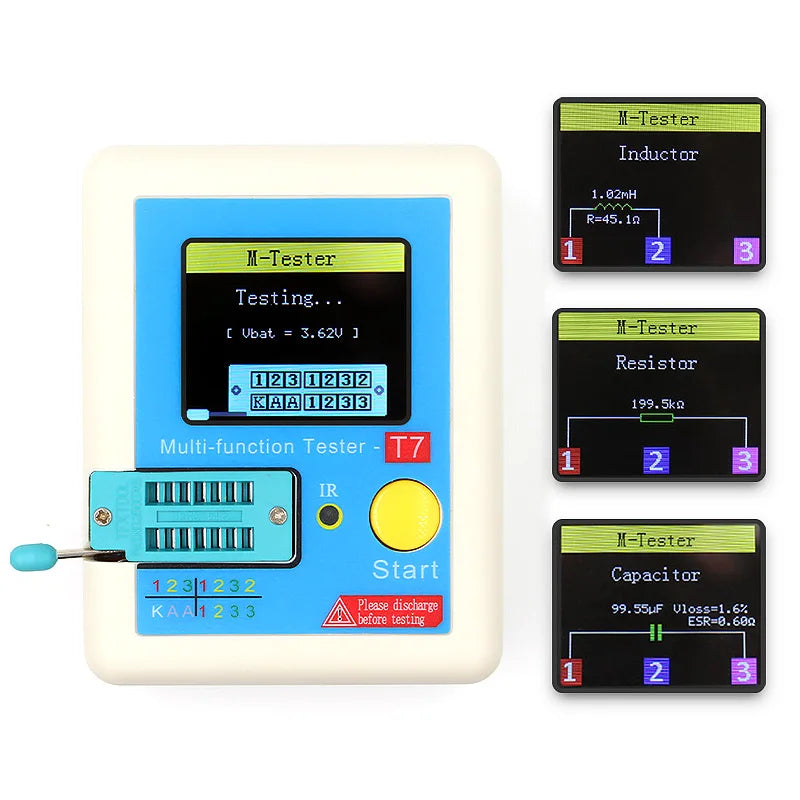

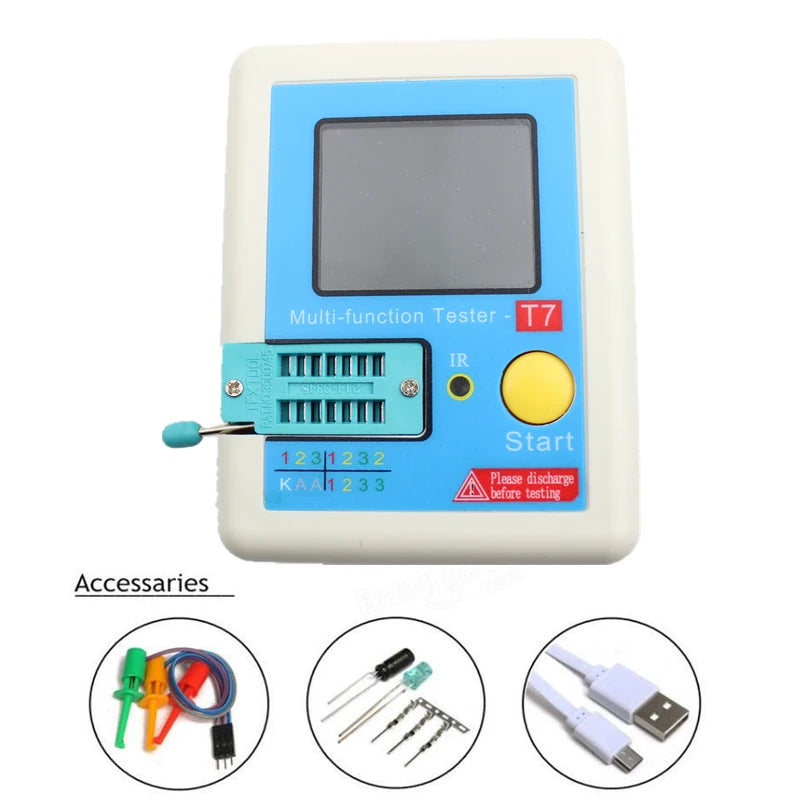

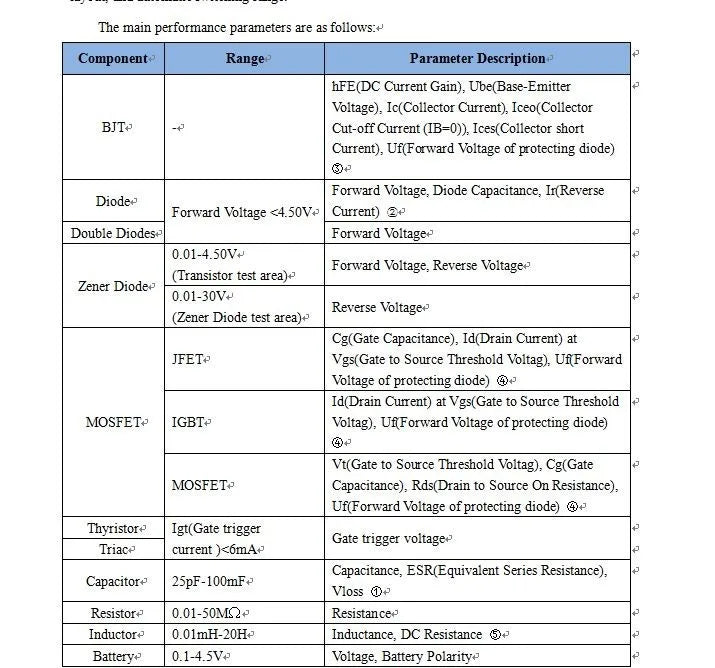

TC-V2.12k is a TFT graphic display Multifunction Tester.
l Transistor Tester
-
- Automatic detection of zener diode 0.01-30V
- Self test with automatic calibration

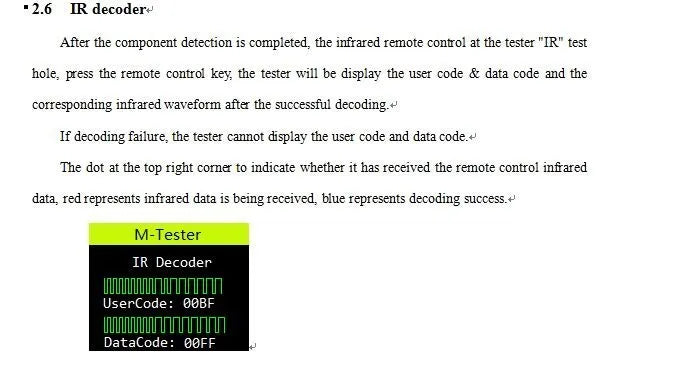

l IR decoder
- Support Hitachi IR coding
- IR waveform display
- Infrared receiving instruction
l Other
- Measurement results using TFT graphic display(160x128)
- One key operation
- Auto Power Off(Timeout Settable)

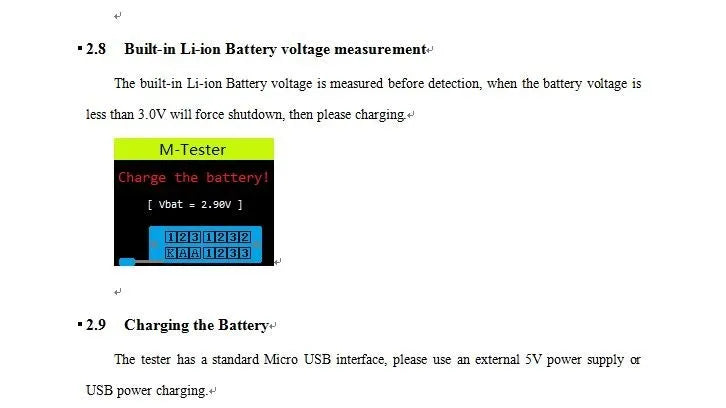

- Built-in high capacity rechargeable Li-ion Battery
- Li-ion Battery voltage detection - 160x128 TFT display
- Multi function key
- Transistor test area
- Zener Diode test area
- IR receiver window
- Micro USB Charging Interface
- Charge indicator LED

1.1 Features

TC-V2.12k is a TFT graphic display Multifunction Tester.
l Transistor Tester
-
- Automatic detection of zener diode 0.01-30V
- Self test with automatic calibration
l IR decoder
- Support Hitachi IR coding
- IR waveform display
- Infrared receiving instruction
l Other
- Measurement results using TFT graphic display(160x128)
- One key operation
- Auto Power Off(Timeout Settable)
- Support Chinese and English

Warning: Built-in Li-ion Battery, it is strictly prohibited the tester immersed in water, or near a heat source!
Warning: For your personal safety, please strictly comply with the use of Li-ion Battery specifications and precautions!

1 Operating Instructions
1.1 Key operational definitions

Multi-function key has two actions:
l Short press: Press the key and not less than 10 ms, release key within 1.5 seconds
l Long press: Press the key more than 1.5 seconds
1.2 Power on

In the power off state, short press the multifunction key, the tester is turned on and automatically measured.
l Power on & measurement interface

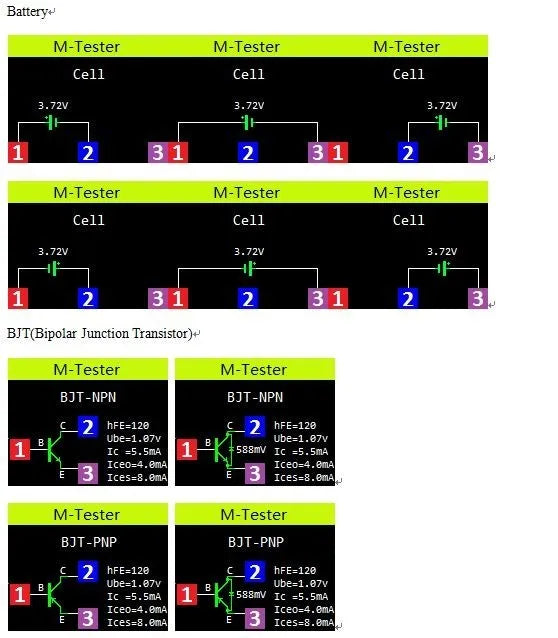

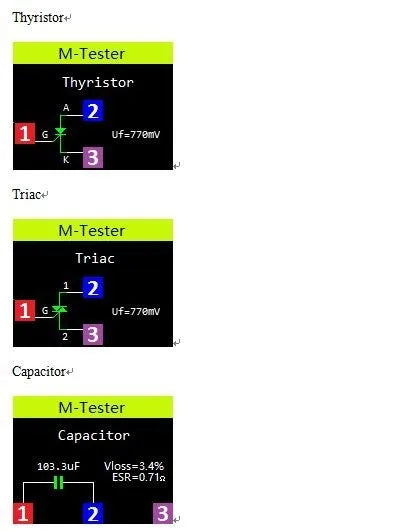

1.3 Detect transistor

In the power off state or the test is completed, put the test element into the transistor test area of test seat, and press the locking handle, short press the multifunction key, the tester automatically measure, graphical display of measurement results when testing is complete.

Warning: Always be sure to DISCHARGE capacitors before connecting them to the tester! The tester may be damaged before you have switched it on!
Warning: We do not recommend using the tester to measure the battery! The battery voltage must be less than 4.5V, otherwise the tester may be damaged!

l Component placement
Test seat are divided into transistors and zener diode test area, detailed in 1.1 Description.
