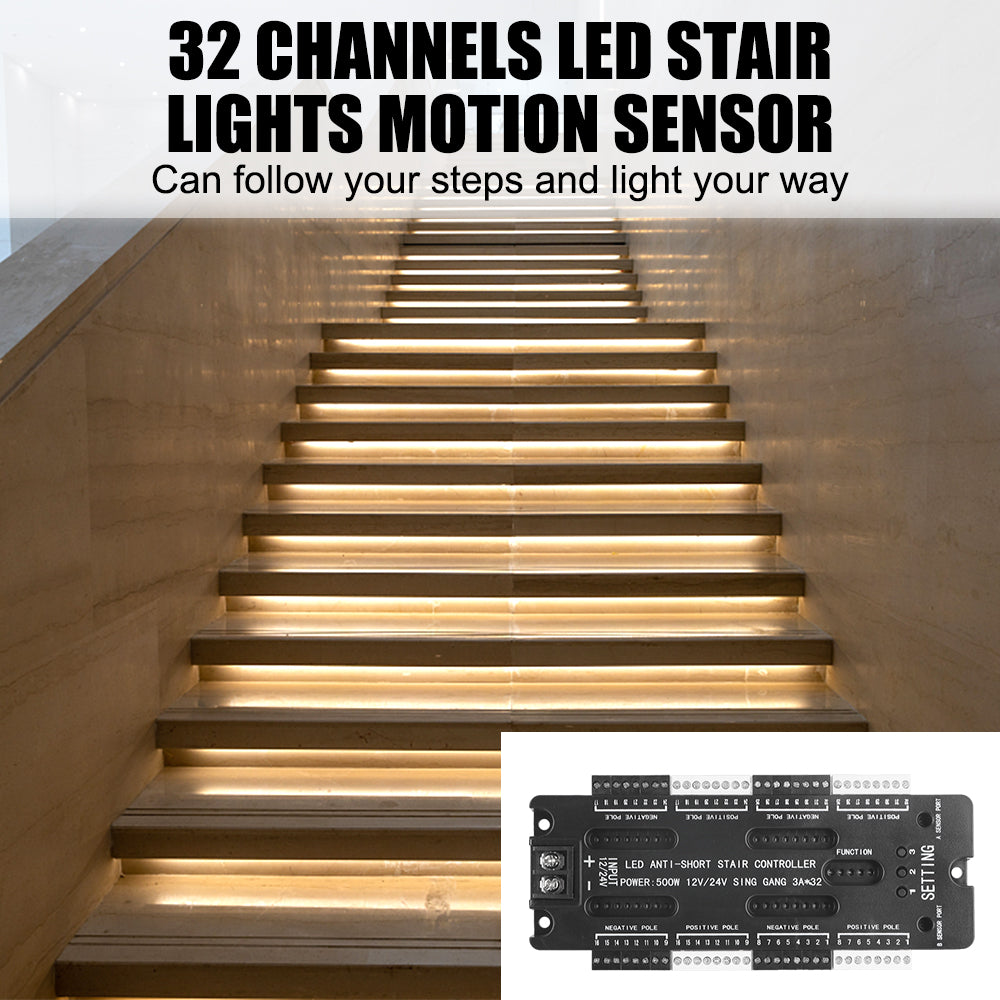

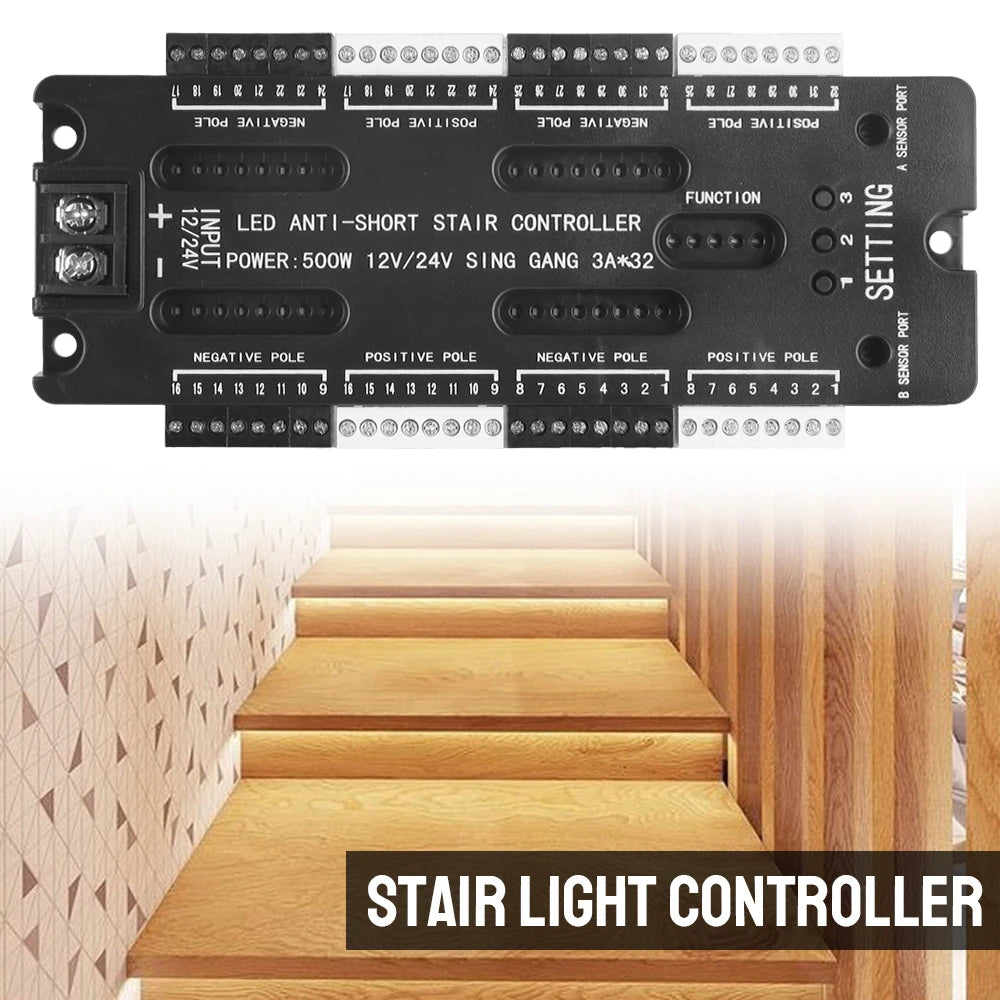

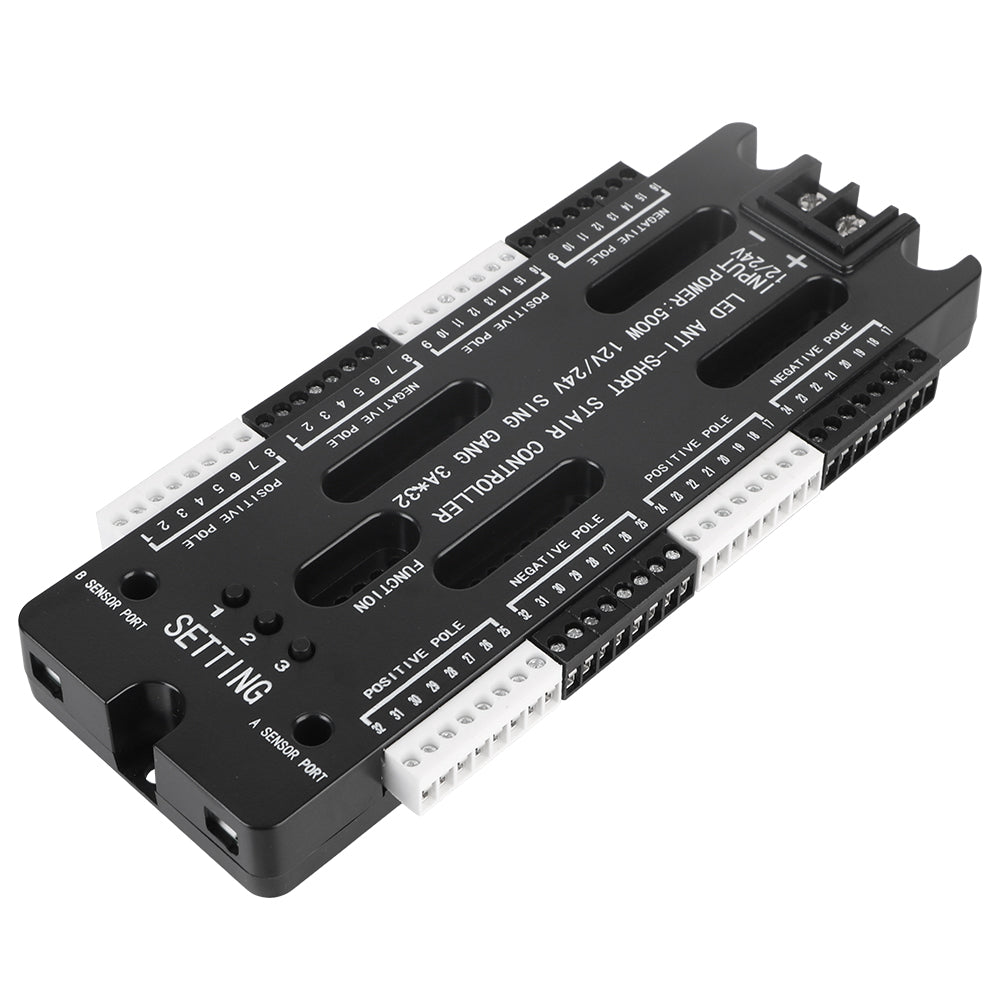

LED Motion Sensor Adjustable Brightness Automatic 32 Channels Stair Light Controller Kit DC 12V 24V For Stairs Flexible Strip

KSh5,665

~~KSh0~~ KSh5,665

Sale Sold out

Shipping calculated at checkout.

Color black

SPECIFICATIONS

Applicable Lights: LED flexible light strip

Brand Name: NONE

Certification: ce

Choice: yes

Connection Mode: Power converter

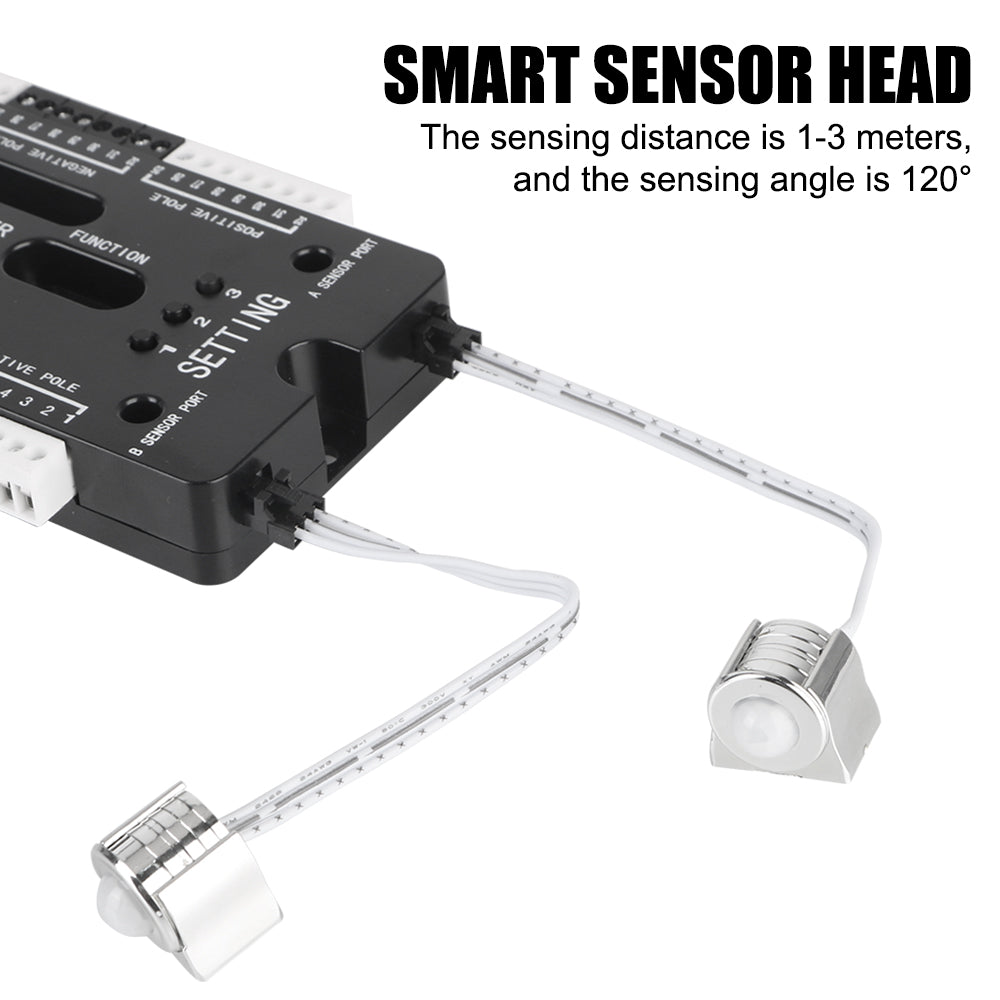

Controled Method: human body sensor

High-concerned chemical: None

Max. Load Power: 500W

Model Number: YJ-LTD0045

Origin: Mainland China

Power Source: DC

Remote Distance: 3m

Voltage: 12-24v

Wattage: 0.3W

Features:

Made of high quality plastic and aluminium, with a stable output and sensitive sensing. Perfect for homes, shopping malls, shops etc.
Fully automatic, turns on the light when it senses someone walking and turns off the light when they leave.
With anti-leakage system, stable output, safer and more secure use.

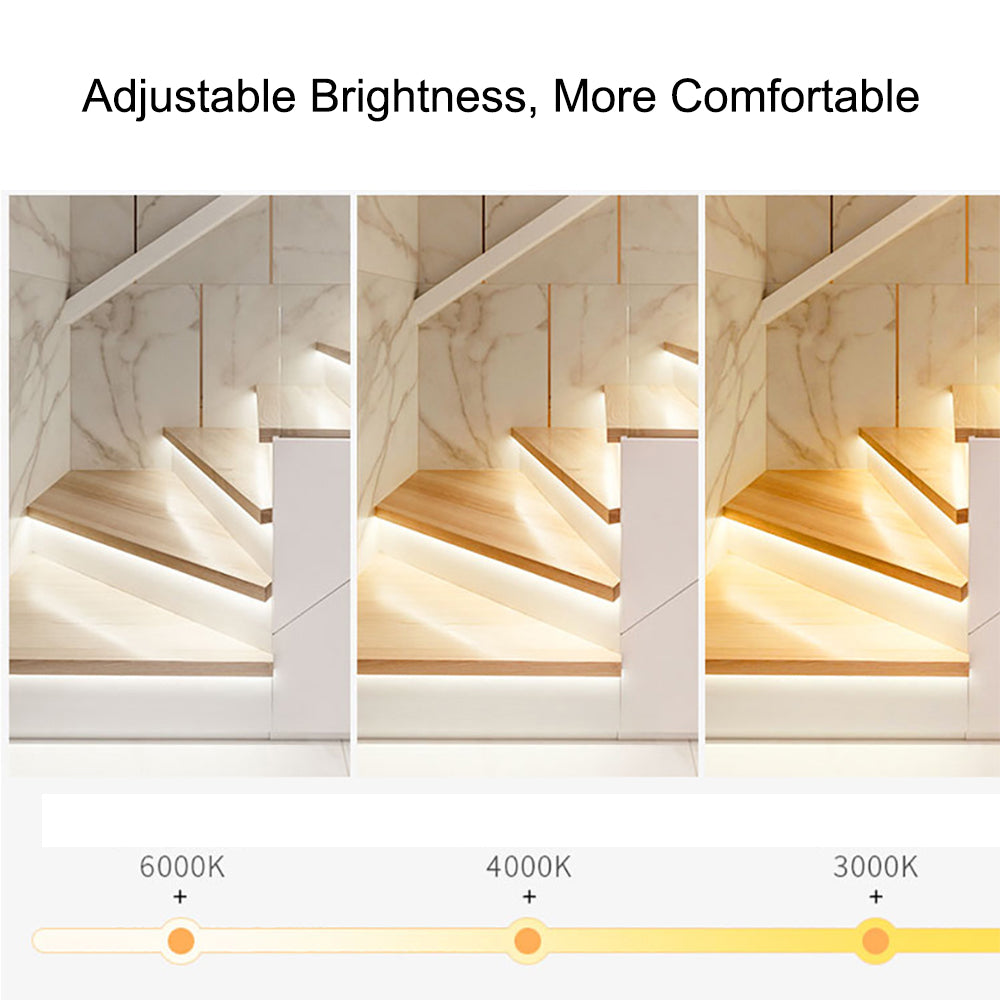

It can control the lighting mode, time and brightness.

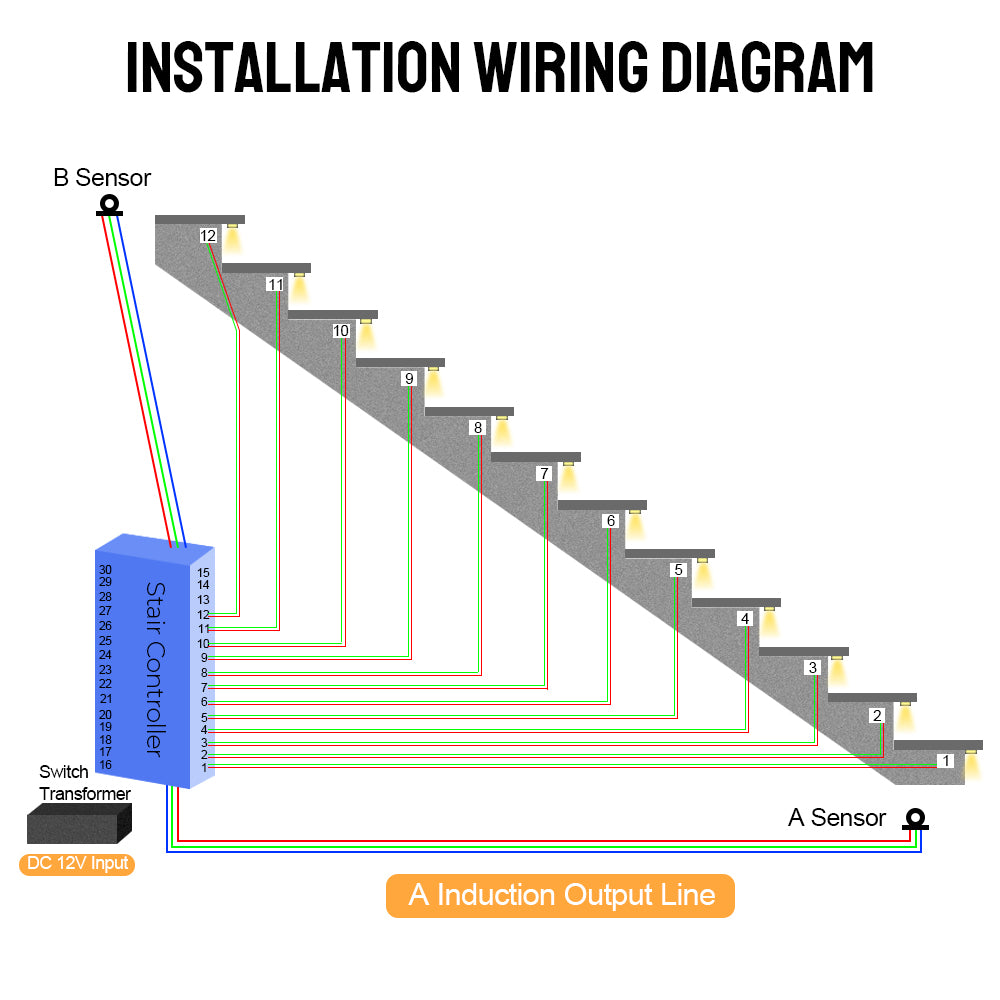

Installation Tips:

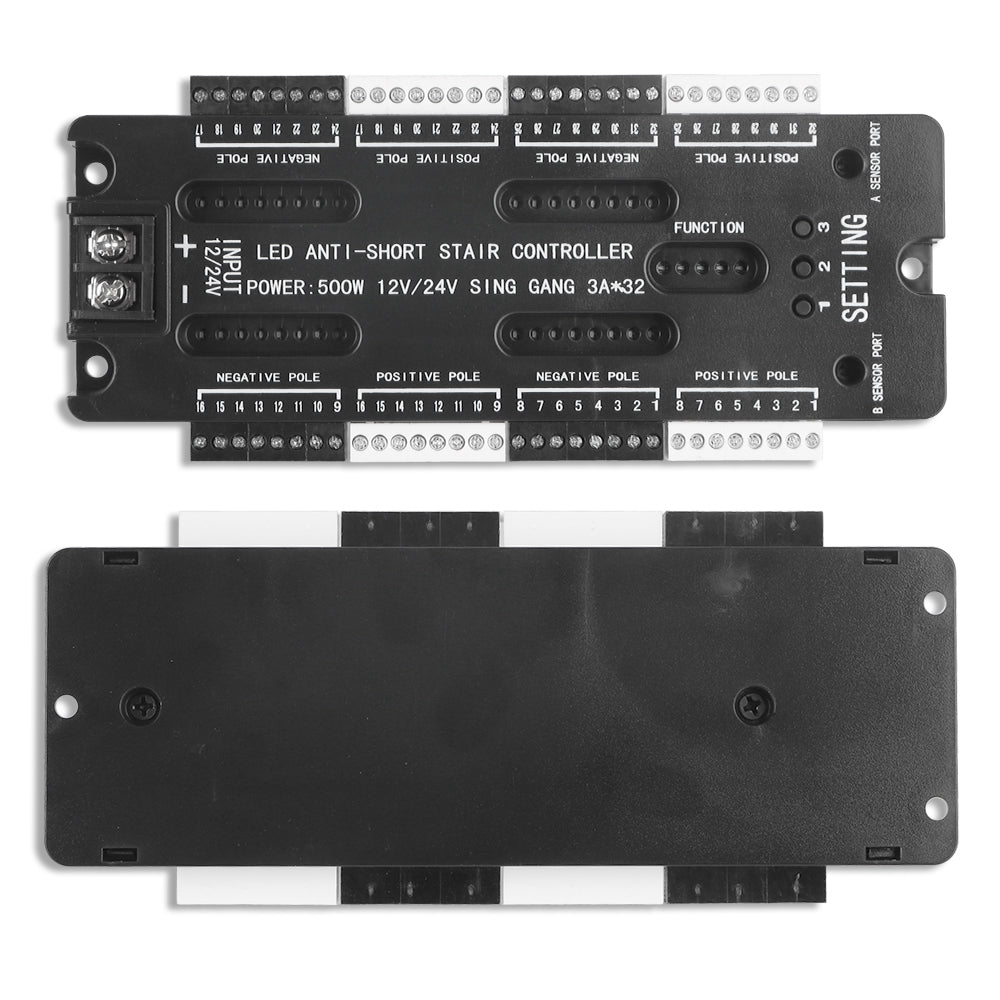

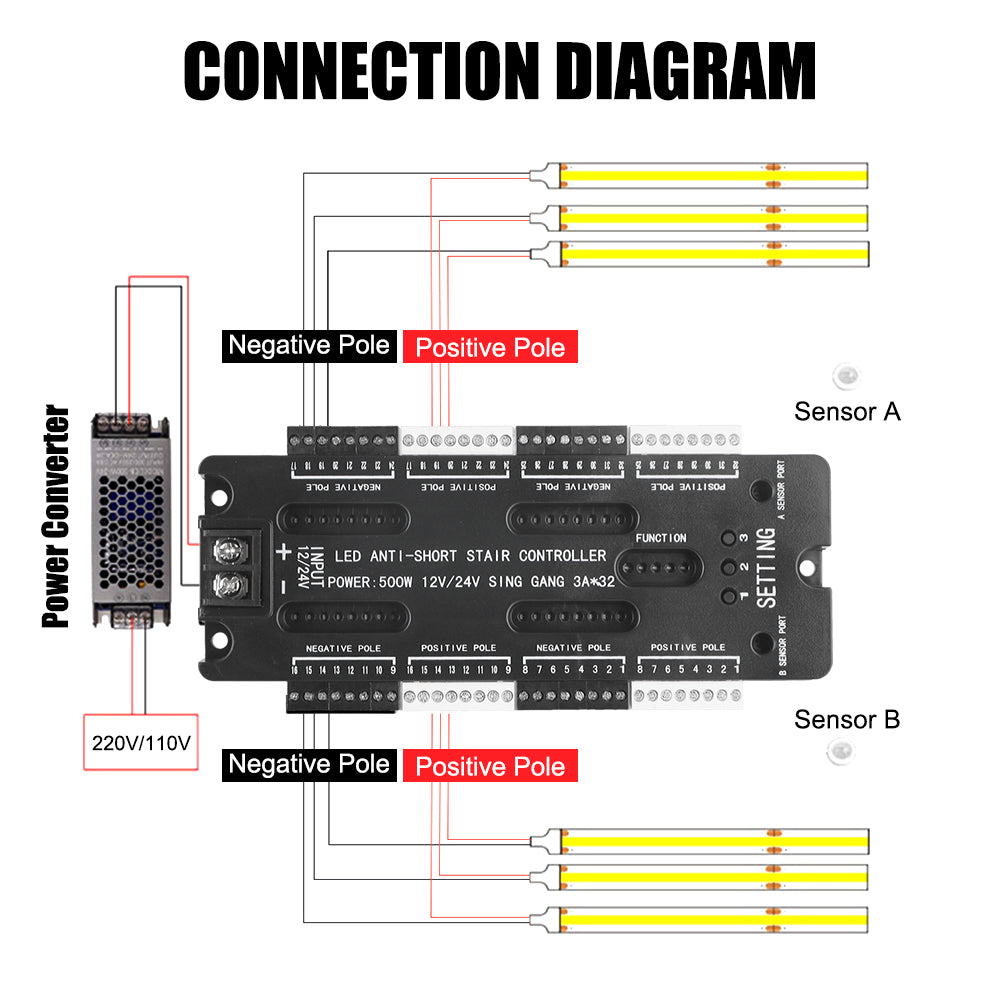

When the lamp is plugged into the controller, be sure to find the socket of the corresponding serial number.

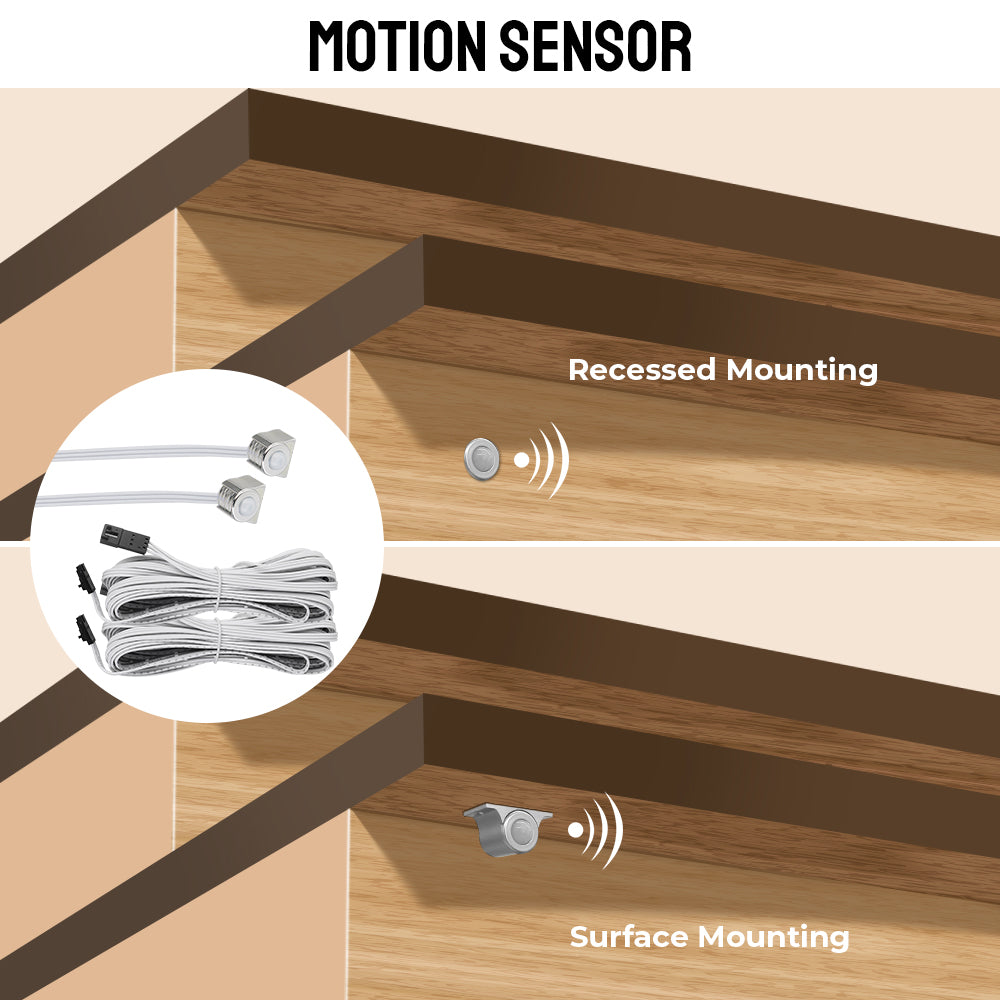

The controller and sensor can be in the electric box.
Be sure to connect the positive and negative poles, the white is the positive, the black is the negative, and the low-voltage current is DC 12-24V, not AC 220V/110V.
It is recommended to bury the line in advance and install the lights when the stairs are decorated.
The wiring needs to be connected in case of power off, to avoid short circuit.

Setting:

Press and hold the [1] key for 4 seconds to enter the step number setting of the step light, and then press the [1] key for a short time to light up the "1-32" channel number light, Select the number of step light channels according to the channel light indication, and then press and hold the [1] key or wait for 5 seconds to save the setting;
Briefly press the [1] key to select five patterns, and select the desired pattern according to the display indicator;
Briefly press the [2] key to select the time "10s-20s-40s-80s-100s" for holding the constant light;
Press and hold the [2] key for 4 seconds to select the brightness of the stair lamp, and then press and hold the [2] key to select "10%-20%-40%-60%-100%", and then press and hold the [2] key or wait for 5 seconds to save the setting;
Briefly press the [3] key to set the water flow speed of the stair lamp, and the time is "0.3s-0.5s-0.8s-1.0s-1.2s";
After 5 seconds of no operation of all keys, all lights flash once to automatically save all set parameters

Specifications:
