MAXSUN Terminator B650M WiFi6 Computer Motherboard support AMD CPU AM5 Ryzen7000 Ryzen8000 Ryzen9000 Bluetooth 5.2 DDR5 SATA3.0
MAXSUN Terminator B650M WiFi6 Computer Motherboard support AMD CPU AM5 Ryzen7000 Ryzen8000 Ryzen9000 Bluetooth 5.2 DDR5 SATA3.0
Couldn't load pickup availability

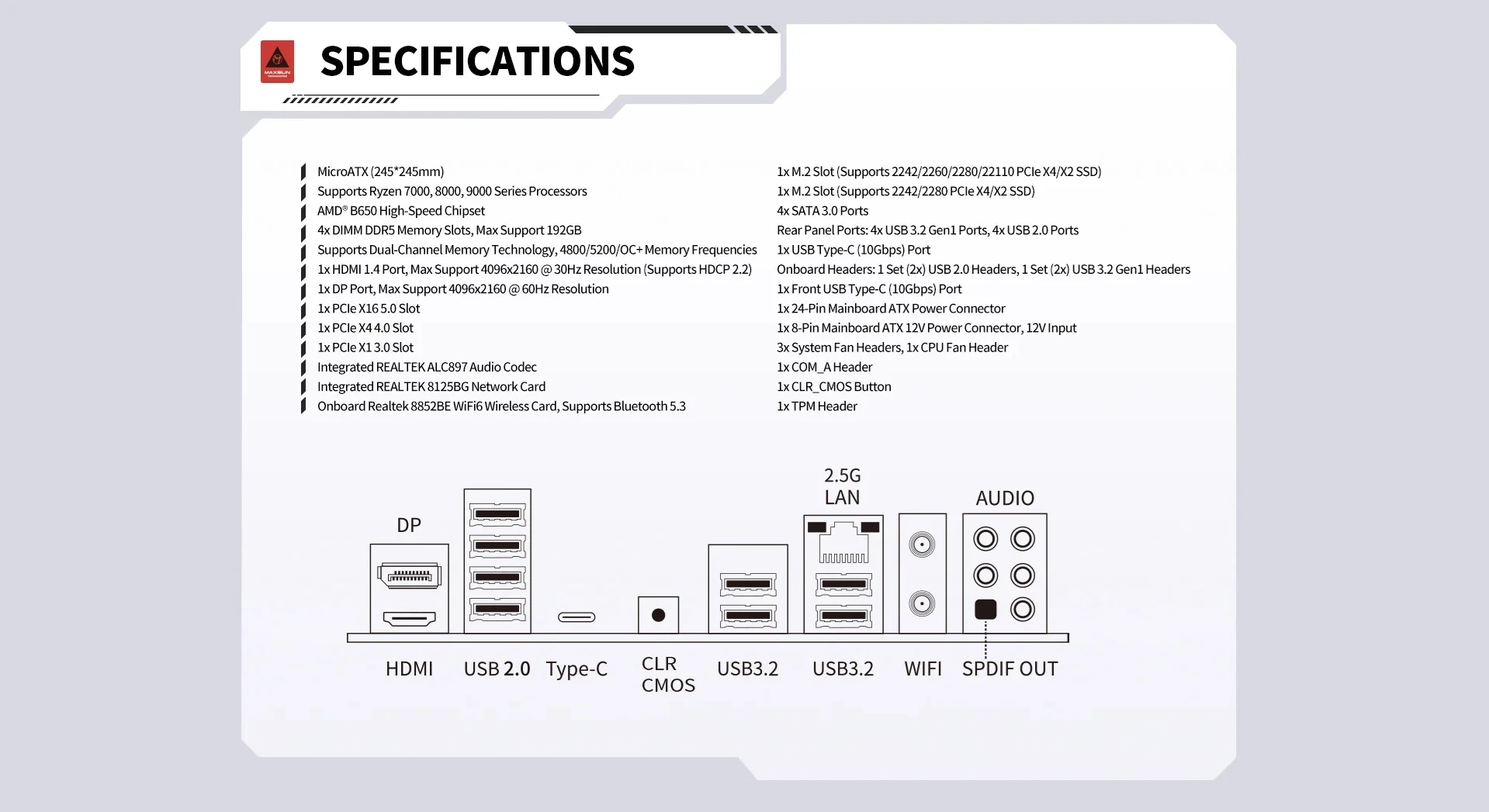

SPECIFICATIONS
Application: Desktop,Workstation

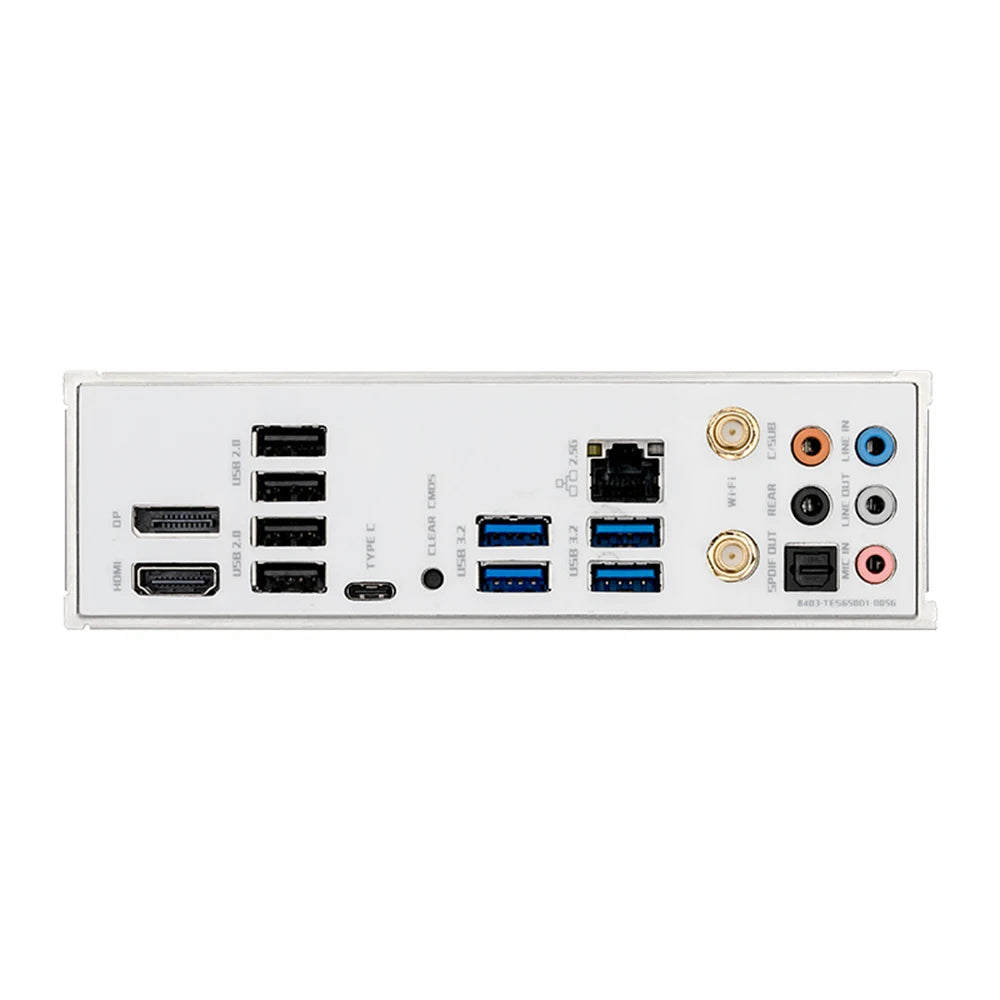

Back I/O Ports: 1x RJ45,WIFI,4x USB 3.2/3.1 Gen 2,Displayport,HDMI 2.0
Brand Name: MAXSUN
Chipset: AMD B650
Chipset Manufacturer: AMD
Choice: yes
Hign-concerned Chemical: None
Maximum Ram Capacity: 192GB
Memory channel: Double
Number Of Memory Slots: 4
Number of M.2: 2
Number of PCI: 2
Number of PCIe x 16: 3
Number of SATA Ports: 4
Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),AAFP Connector,USB 3.1 /3.2 Gen 1 Connector,Speaker Connector,USB 2.0 Connector,System Panel(s) (Chassis intrusion header is inbuilt)
Onboard LAN: 1x RJ45,WIFI 6 (AX)
Origin: Mainland China
PCI - E standards: PCI - E 4.0
Package: Yes
Ports: WIFI
Processor compatibility: AMD Ryzen 7000 Series-R3,AMD Ryzen 7000 Series-R5,AMD Ryzen 7000 Series-R7,AMD Ryzen 7000 Series-R9
RAID Supported: YES
Socket Type: Socket AM5

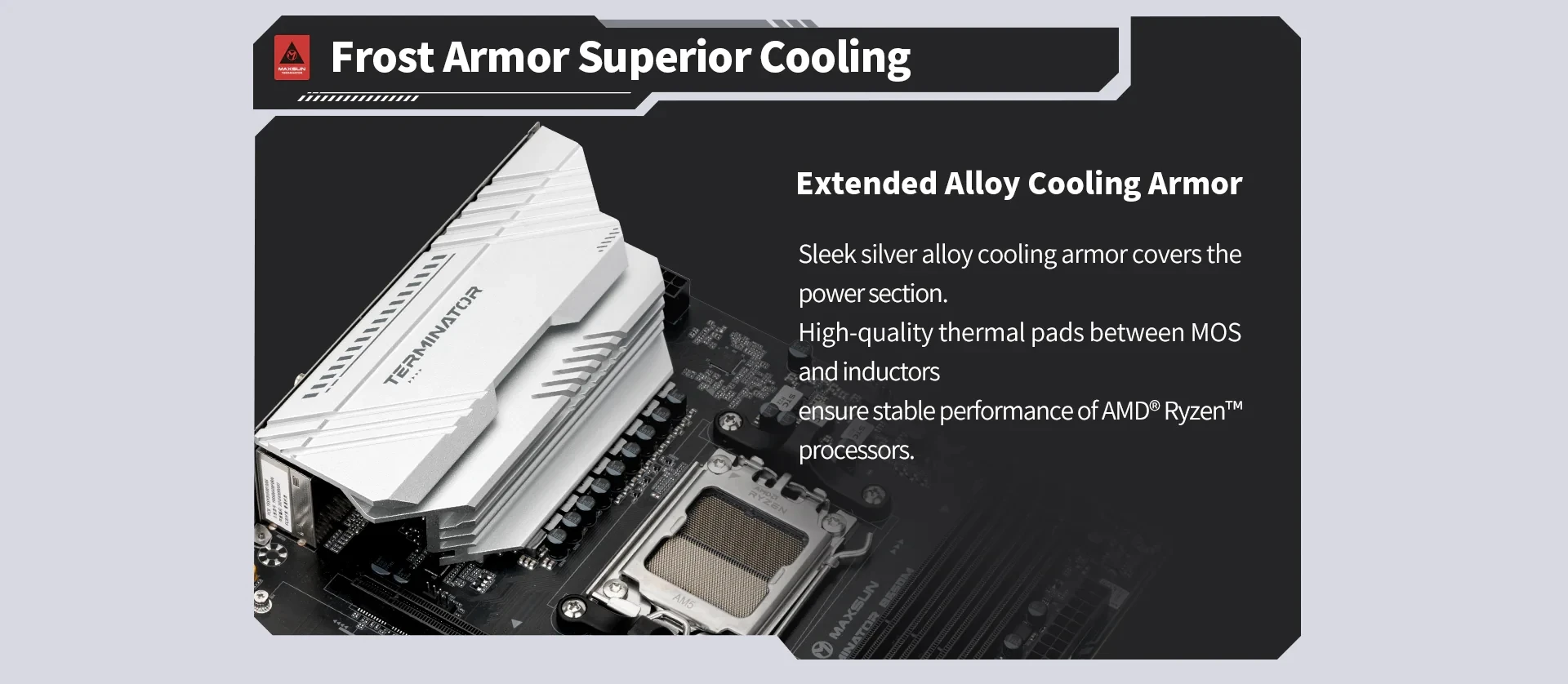

Special Features: Cooling Armor
Storage Interface Type: SATA 3,M.2 (NVMe),M.2(SATA)
Support Memory Type: DDR5
Support USB Type: USB 3.1 Gen1,USB 3.2 Gen1
Supports M.2 SSD: 2280,22110
Usage Scenario: Enthusiast & Overclocking,Gaming,Audio & Video,Office,Workstation,Scientific Computing,Video Rendering
With CPU: No

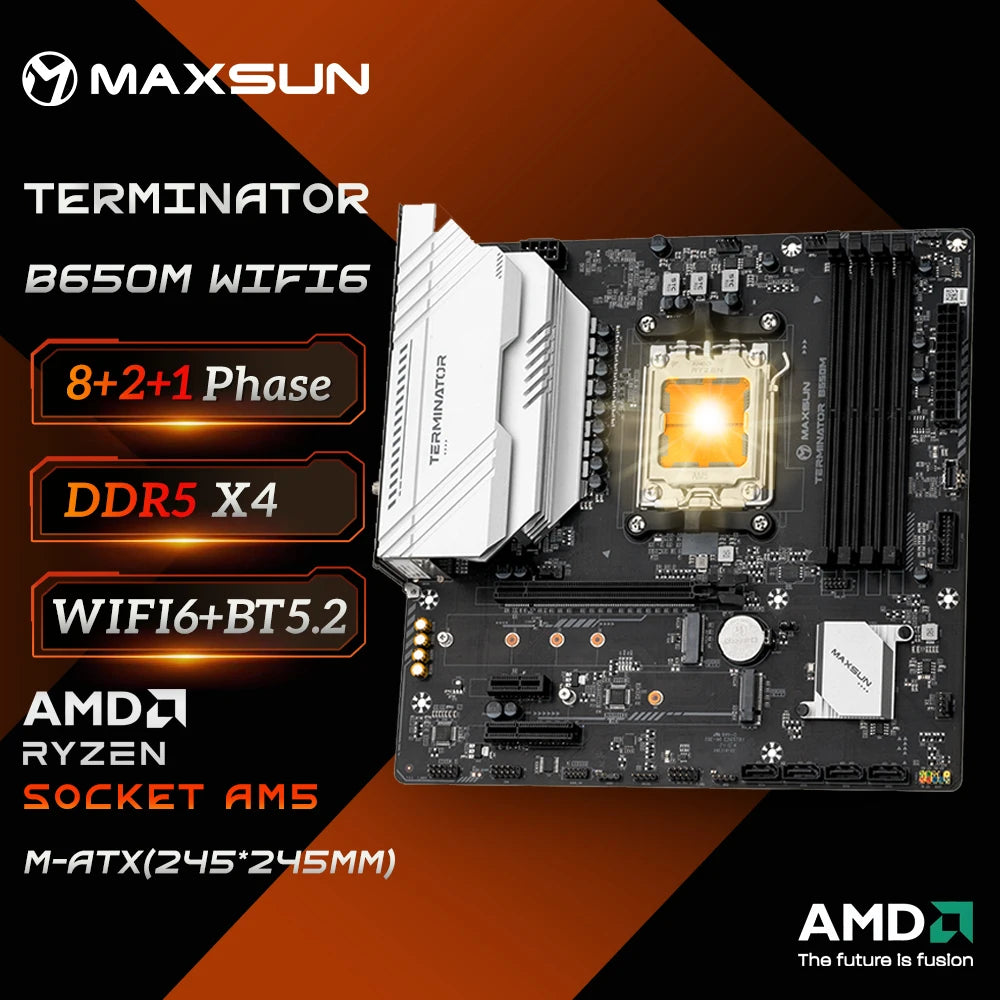

● Motherboard size: micro-ATX (245 * 245mm)
● CPU: AM5 slot is supported, and Ryzen7000/Ryzen8000/Ryzen9000 series processors TDP：170W.
● Chipset: AMD®B650 high-speed chipset

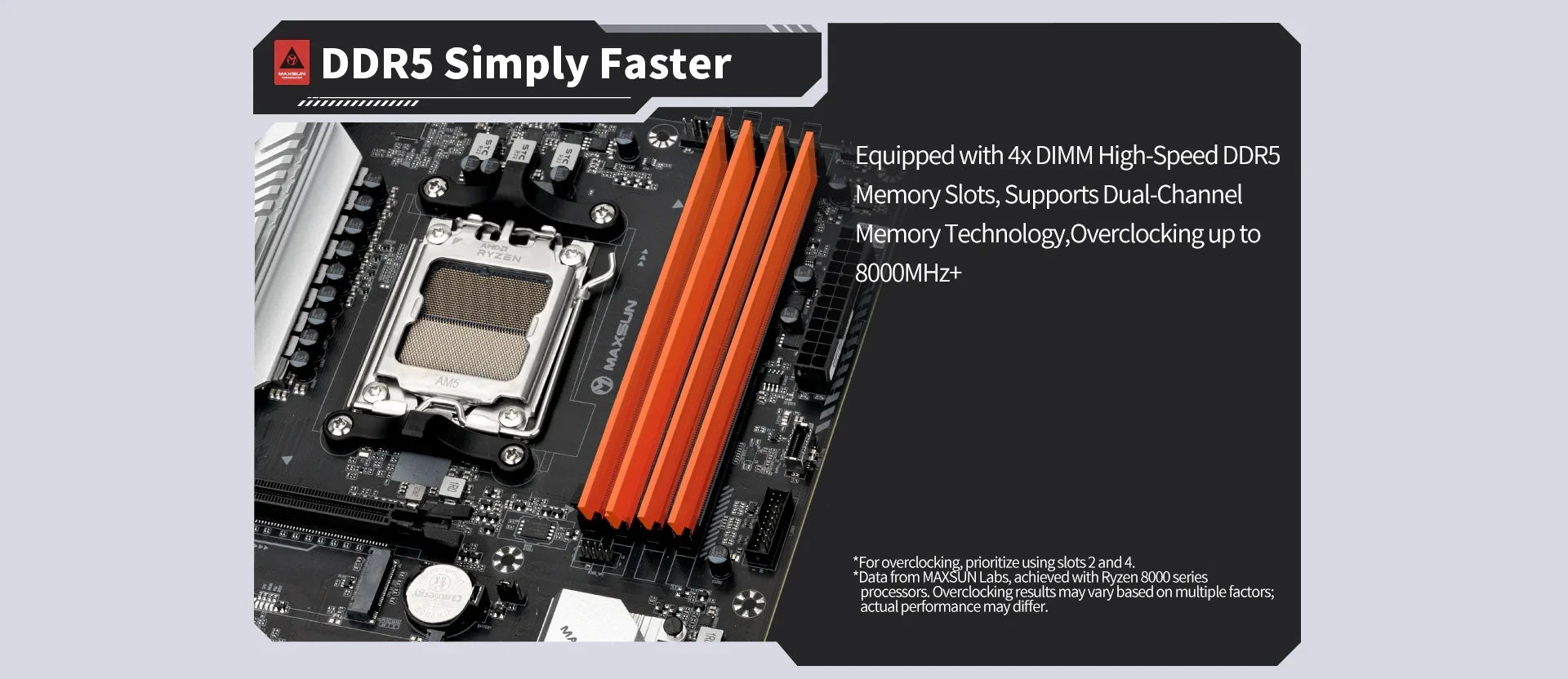

● Memory: 4 DIMM DDR5 memory slots (please insert the second and fourth slots first), with a maximum support of 192GB, dual-channel memory technology, memory overclocking and 4800/5200/OC+ memory frequency.

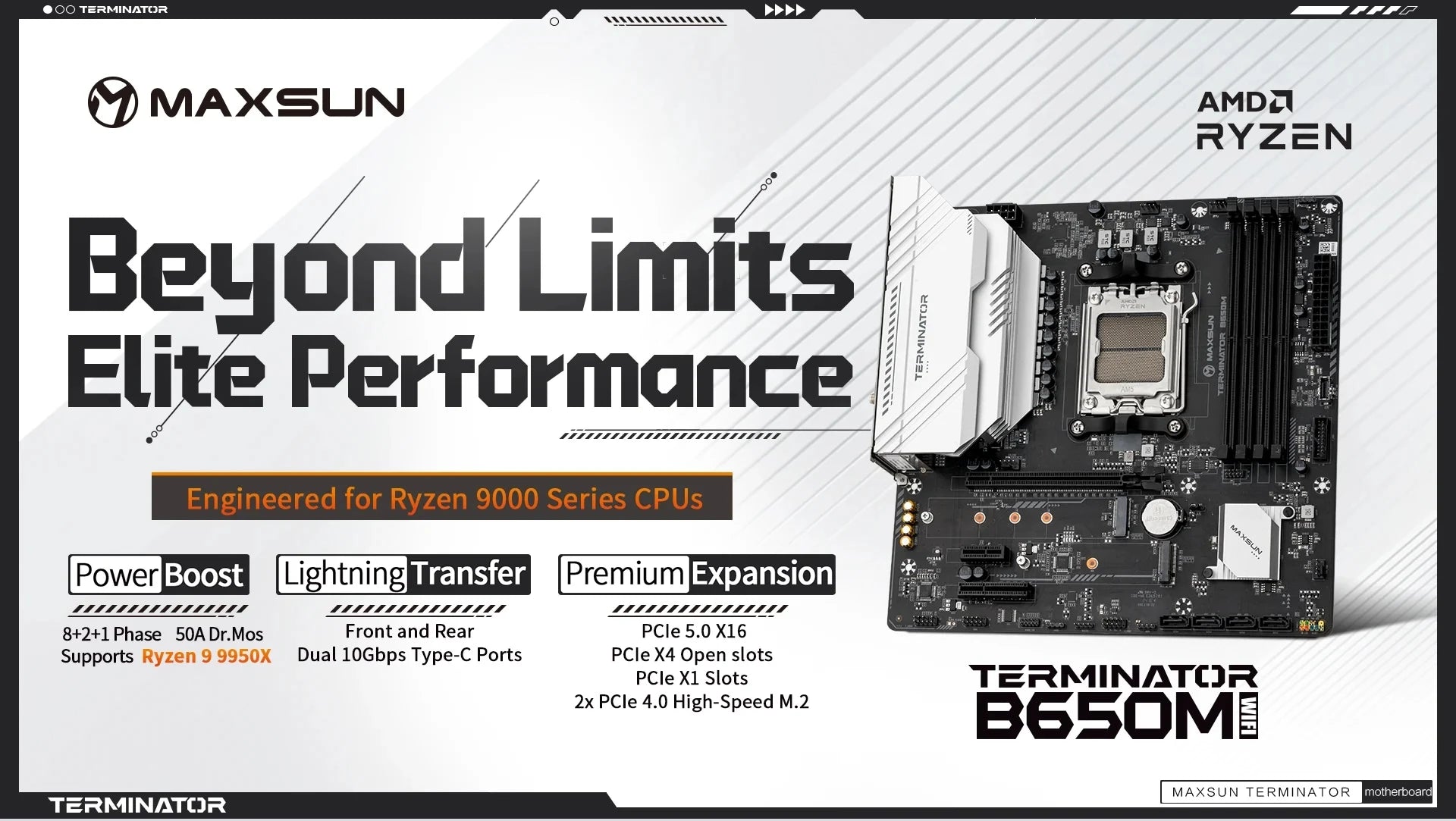

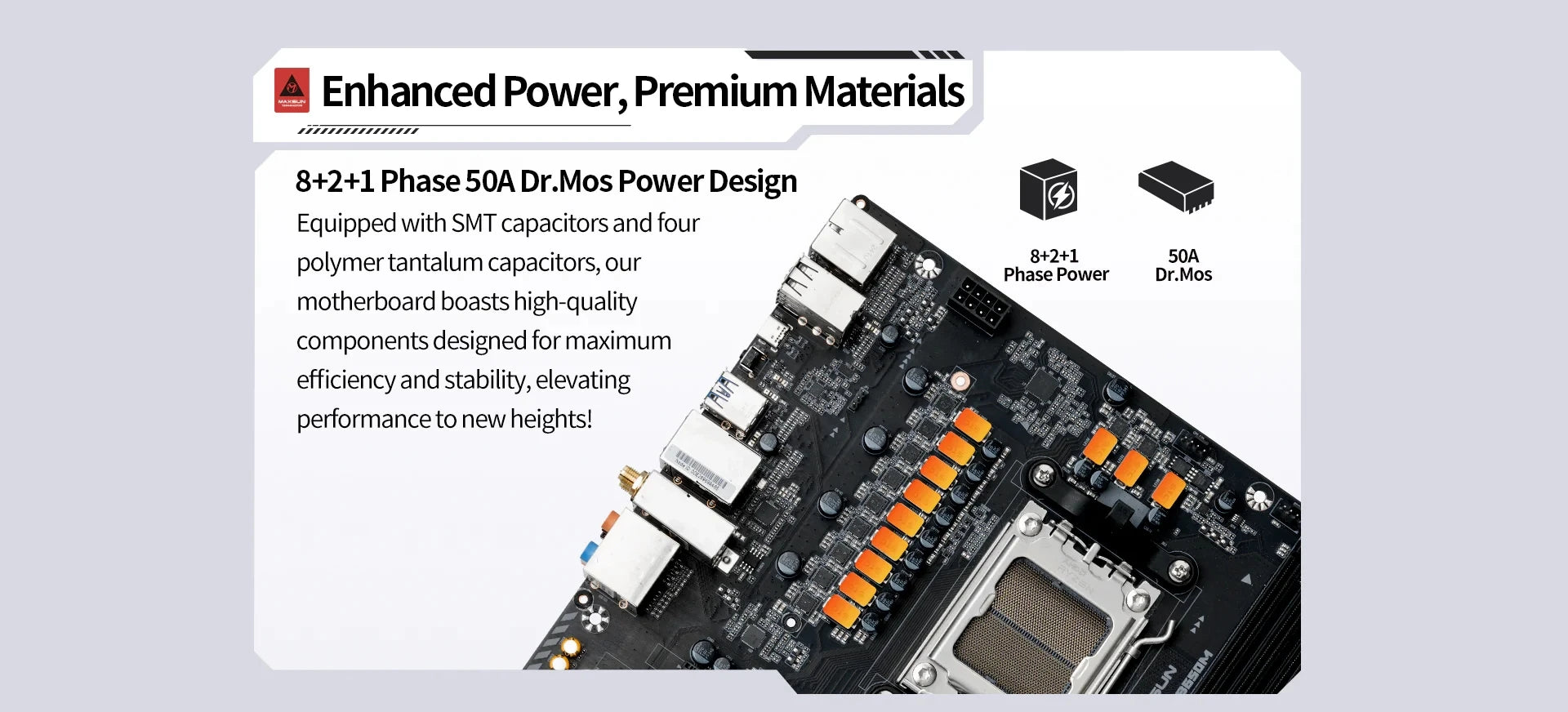

●Stable Power: 8+2+1 phase 50A Dr.MOS power delivery
●Top Performance: Compatible with Ryzen 9 9950X

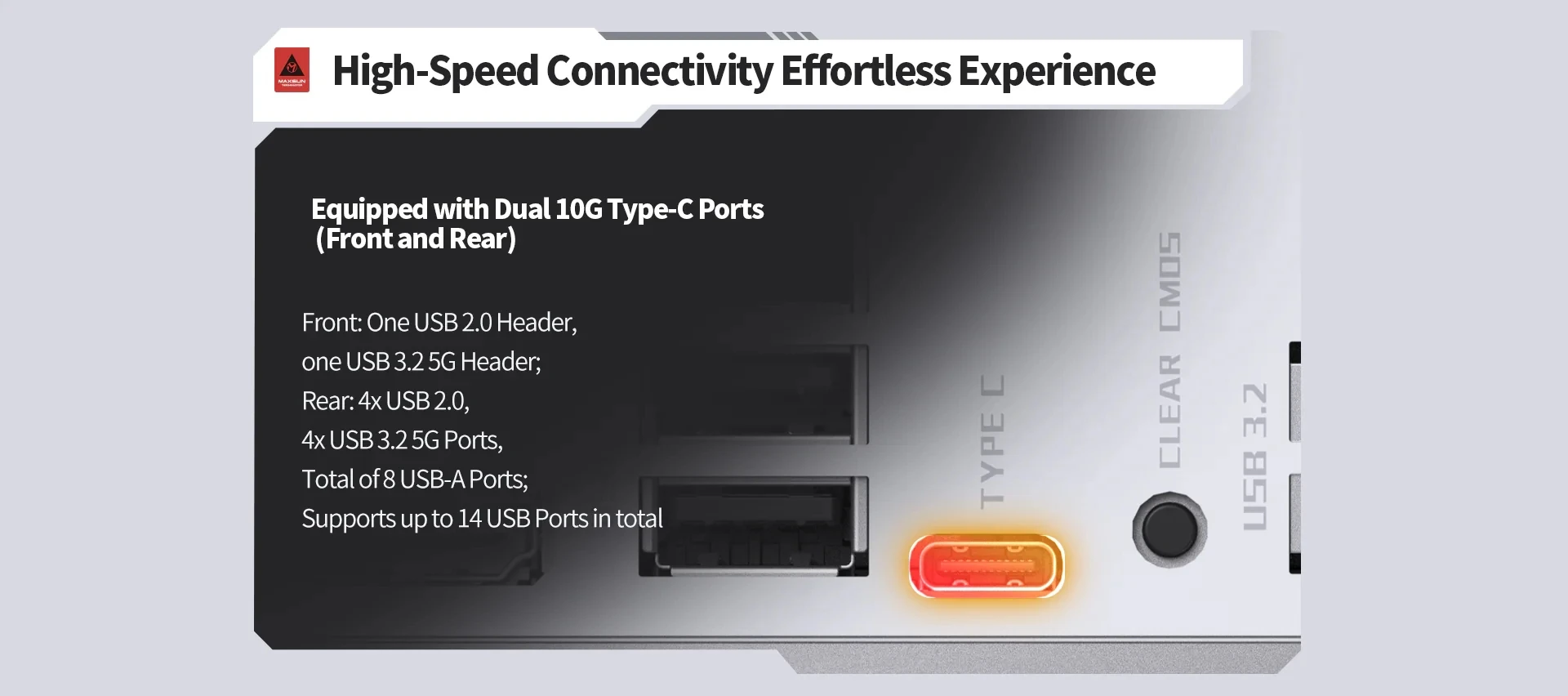

●High-Speed Connectivity: Dual 10G Type-C ports (front and rear)
Tip：The CR2032 battery in the motherboard photo will be taken out before shipping, as the battery is prohibited at CN Post and Custom
● Display: Based on the display function with integrated graphics card processor, it adopts shared display memory technology, one HDMI1.4 interface, which supports up to 4096x2160@30Hz resolution (supports HDCP2.2) and one DP interface, which supports up to 4096x2160@60Hz resolution.

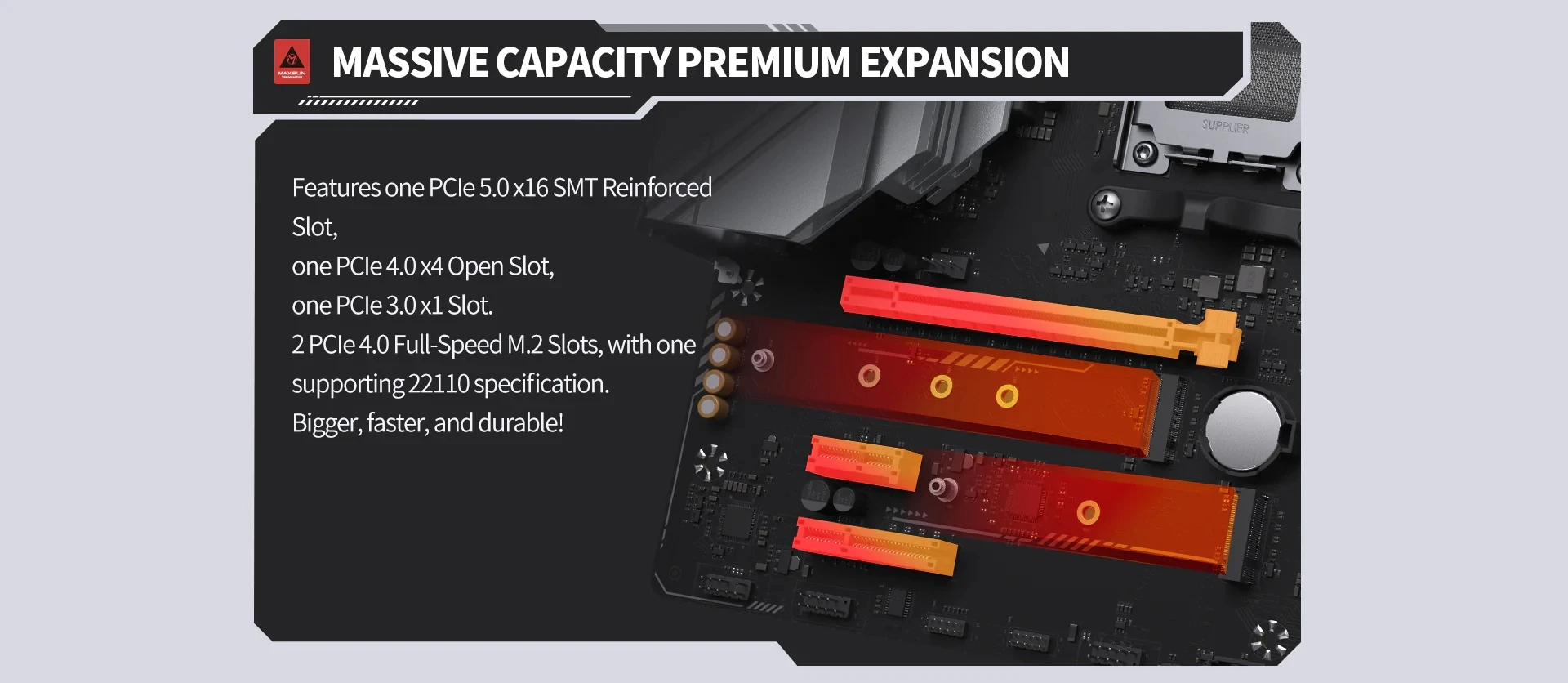

● Expansion interface: 1 PCIEX16 5.0 slot, 1 PCIEX4 4.0 slot and 1 PCIEX1 3.0 slot (supporting AMD and NVidia discrete graphics cards).
● Audio: REALTEK ALC897 sound card chip is integrated, which supports simultaneous output of front and REAR channels (it needs to be set in the high-definition audio controller). The rear is equipped with six audio interfaces: one rear onboard LINE IN interface, one rear onboard LINE OUT interface, one rear onboard MIC_IN microphone interface, one rear onboard C/SUB interface, one rear onboard REAR interface and one rear onboard SPDIF_OUT optical fiber interface. , F_AUDIO pin: 1 set of front microphone pin, 1 set of front audio output pin (these two pins are F_Aduio pin group), 1 set of 4pin speaker Buzzer pin.

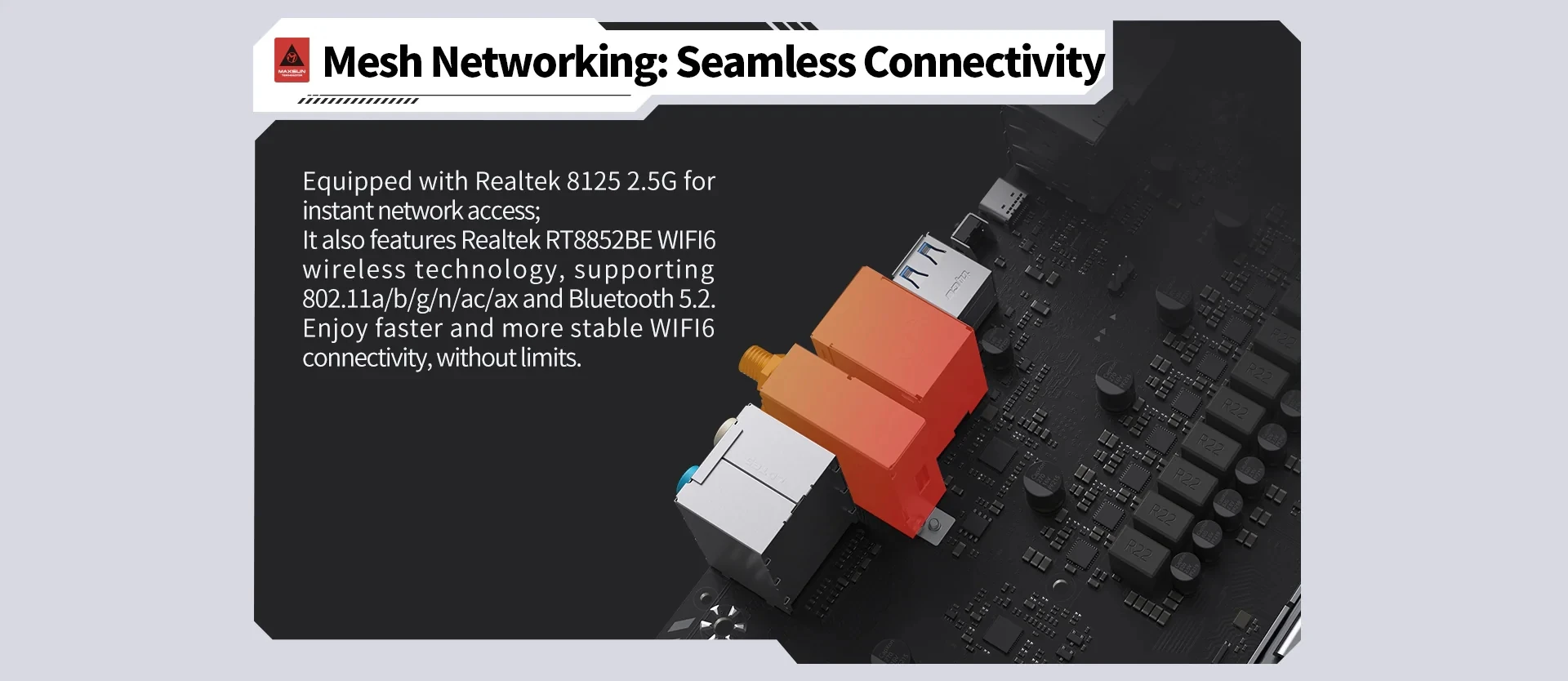

● Network: integrated REALTEK8125BG BG network card chip (10/100/1000/2500Mbit), onboard Realtek 8852BE WiFi6 wireless network card, supporting Bluetooth 5.2, an onboard RJ45 interface, and an onboard M.2 E-Key PCI-E 2230 WIFI network card interface, supporting network wake-up, PXE diskless and UEFI diskless.
● Storage: 1 M.2 slot (only supporting 2280/22110 PCIE X4/X2 channel SSD), 1 M.2 slot (only supporting 2280 PCIE X4/X2 channel SSD) and 4 SATA3.0 interfaces.
● USB: On-board rear interface: 4 USB3.2 GEN1 interfaces, 4 USB2.0 interfaces, 1 USB Type-C(10Gbps) interface, in-board pins: 1 set (2) USB2.0 pins, 1 set (2) USB3.2 GEN1 pins, and 1 front USB Type-C(10Gbps) interface.
● In-board socket: one 24PIN motherboard ATX power supply interface, one 8PIN motherboard ATX 12V power supply interface, 12V input, three sets of system fan pins, one set of CPU fan pins and one set of chassis front control panel pins (F_PANEL).
