MCP2515 CAN Bus Module TJA1050 receiver SPI For 51 MCU ARM controller
MCP2515 CAN Bus Module TJA1050 receiver SPI For 51 MCU ARM controller
Regular price
KSh1,375
Regular price
KSh1,587
Sale price
KSh1,375
Unit price
KSh0
per
Shipping calculated at checkout.
Couldn't load pickup availability
SPECIFICATIONS
Application: Computer
Brand Name: SIMPLE ROBOT
Choice: yes
Condition: New
Dissipation Power: 1
Model Number: MW
Origin: Mainland China
Supply Voltage: 1
Type: Voltage Regulator
is_customized: Yes
semi_Choice: yes
Features:
This is a brand new MCP2515 CAN bus module TJA1050 receiver SPI protocol
Compatible with Arduino based micro-controller projects.
Specifications:
Support CAN V2.0B specification, the communication speed 1Mb / S
0 to 8-byte data field
Three frames - standard, expand the frame and remote
DC5V power supply module & SPI interface protocol control
120 ohm termination resistors, Impedance matching, ensure drive capacity, long-distance data transmission against signal radiation

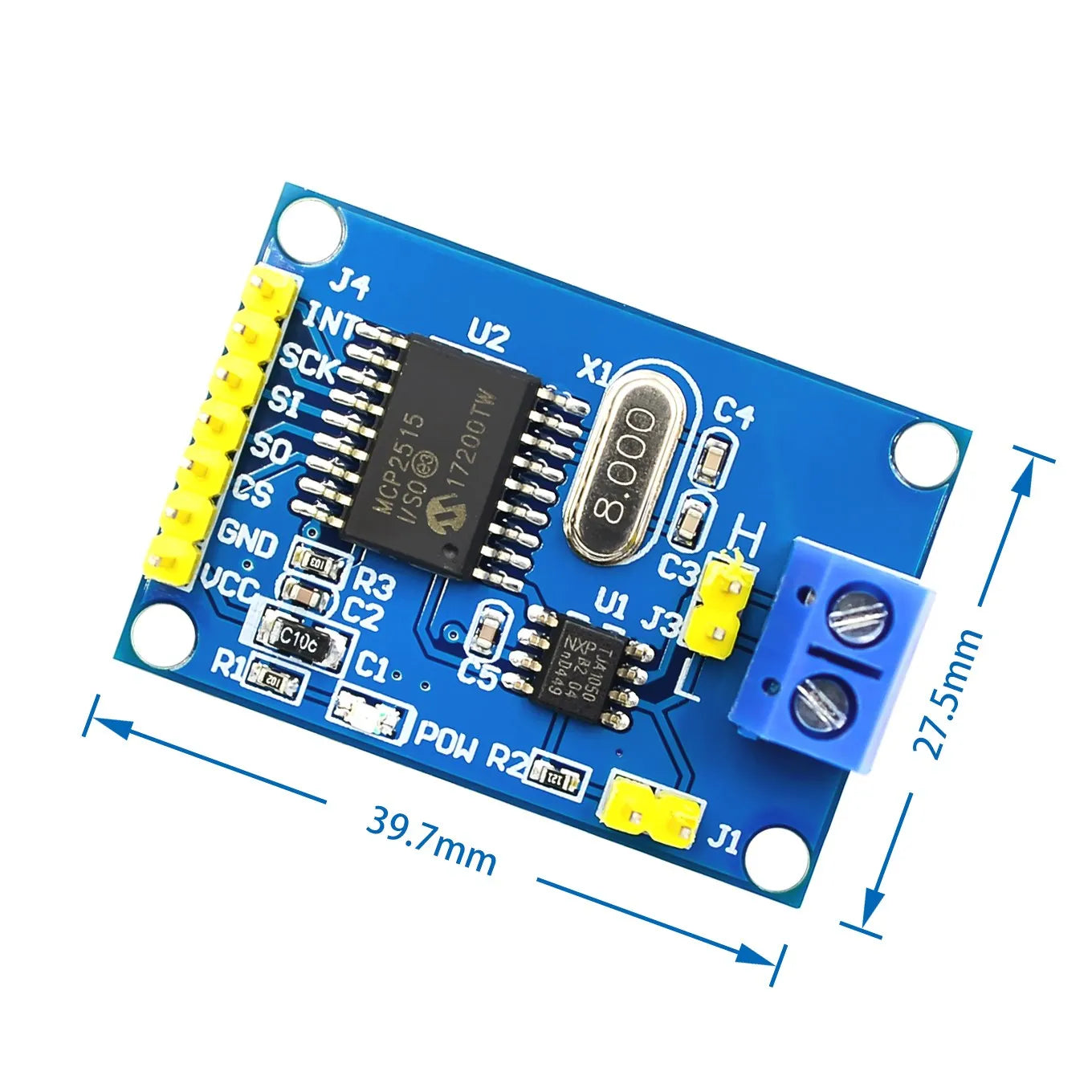

Module dimensions 4. 4 x 2.8 cm/1.57*1.1" (approx.)
Working Current - typ. 5mA & 1A standby current
Working Temperature - (Industrial grade) -40°C - +85°C
This is a brand new MCP2515 CAN bus module TJA1050 receiver SPI protocol
Compatible with Arduino based micro-controller projects.
Specifications:
Support CAN V2.0B specification, the communication speed 1Mb / S
0 to 8-byte data field
Three frames - standard, expand the frame and remote
DC5V power supply module & SPI interface protocol control
120 ohm termination resistors, Impedance matching, ensure drive capacity, long-distance data transmission against signal radiation
Module dimensions 4. 4 x 2.8 cm/1.57*1.1" (approx.)
Working Current - typ. 5mA & 1A standby current
Working Temperature - (Industrial grade) -40°C - +85°C
DESCRIPTION:
Support CAN V2.0 B , Communication rate up to 1Mb/S
Power supply: DC 5V , SPI Protocol Control
Work current: 5mA ,
Size: 4*2.8 cm , standby current: 1uA
Working temperature: -40 C - +85 C
120 Ohm terminal resistance, Impedance matching and guarantee the ability to drive
6*1
