Feature:

1. TWO MODES OF OPERATION: Eyepiece support manual or automatic white balance, manual or automatic exposure, stainless steel metal case is durable
2. SENSITIVE AND ACCURATE: Electronic eyepiece with 1/3in sensor, progressive scanning, possess low illumination and high sensitivity
3. CLEAR IMAGE: Eyepiece adopt 960 TV cable hardware, professional micro image sensor, bring clear imaging, good color reduction, The factory default is PAL

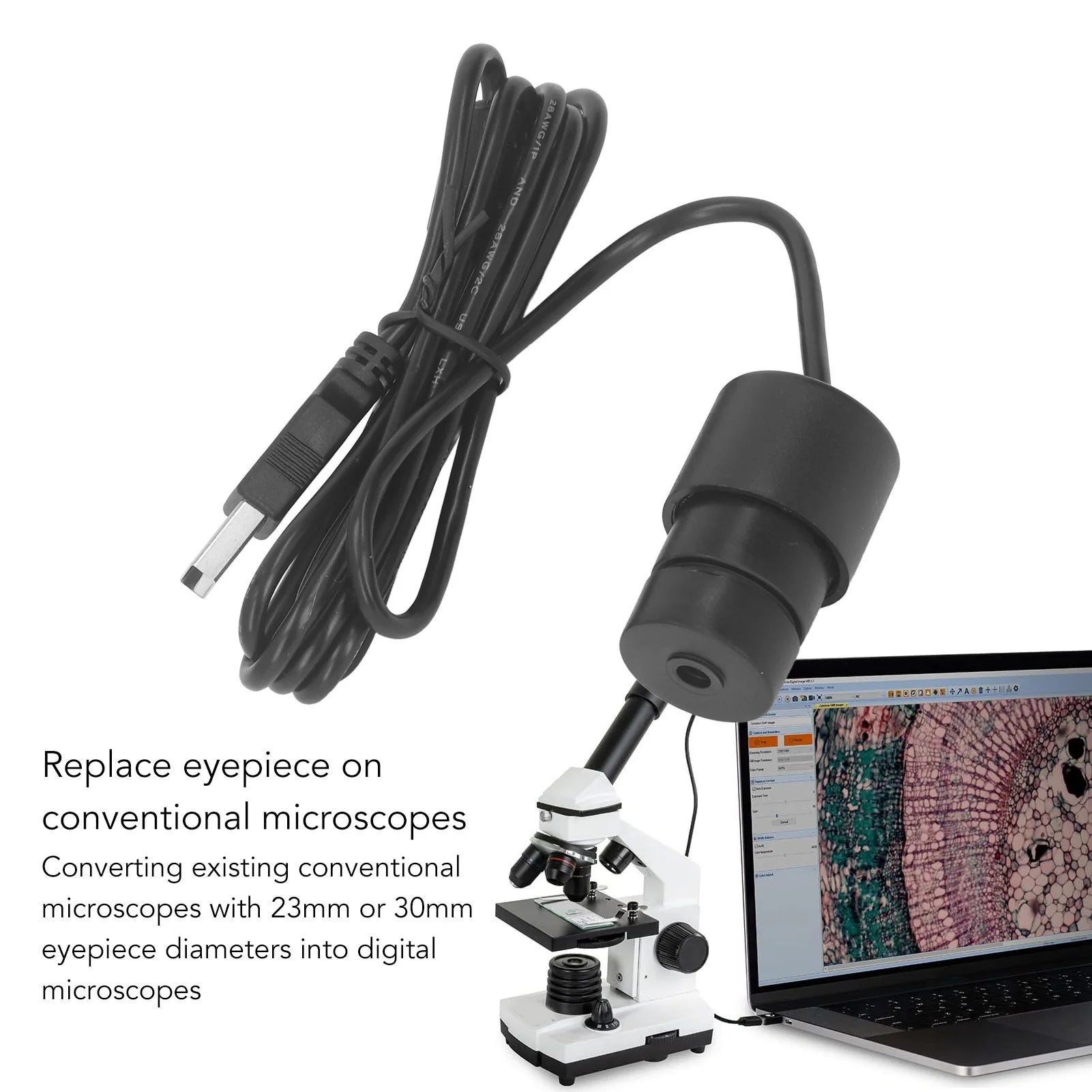

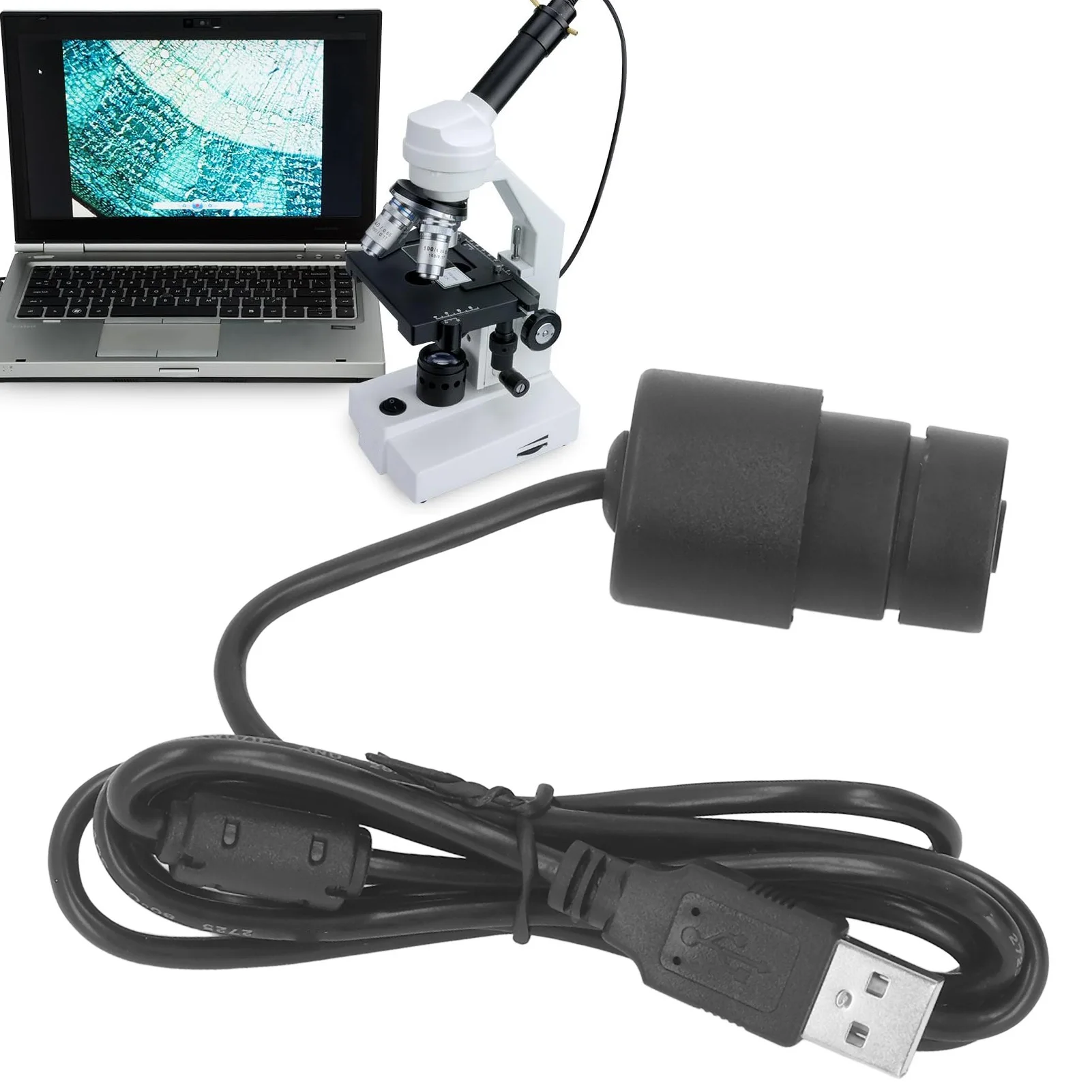

4. PERFECT REPLACEMENT: Used to replace the eyepiece on conventional microscopes, converting existing conventional microscopes with 23mm or 30mm eyepiece diameters into digital microscopes
5. MULTIPLE FEATURES: More powerful eyepiece with new features such as measurement, calibration, note taking and comparison

Specification:

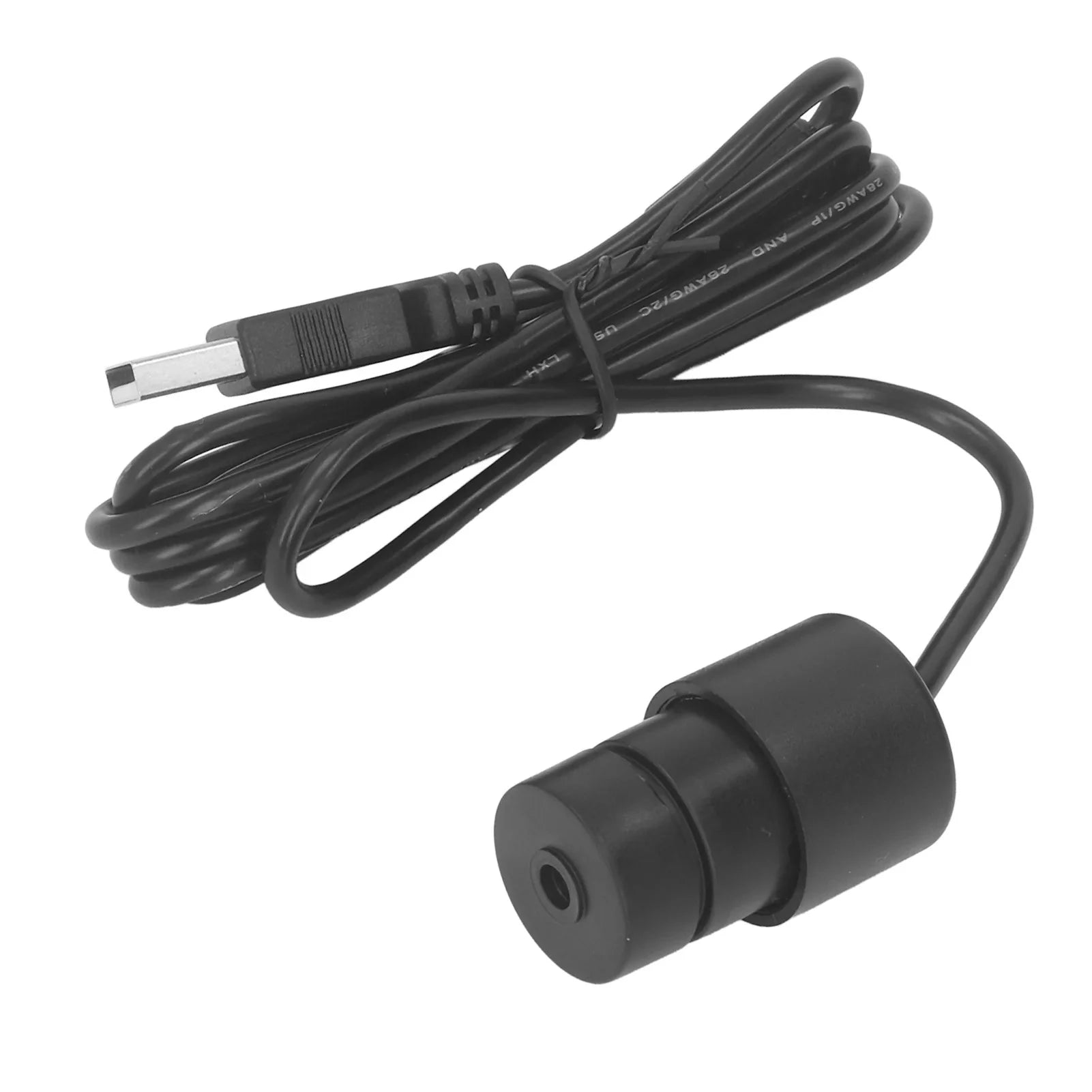

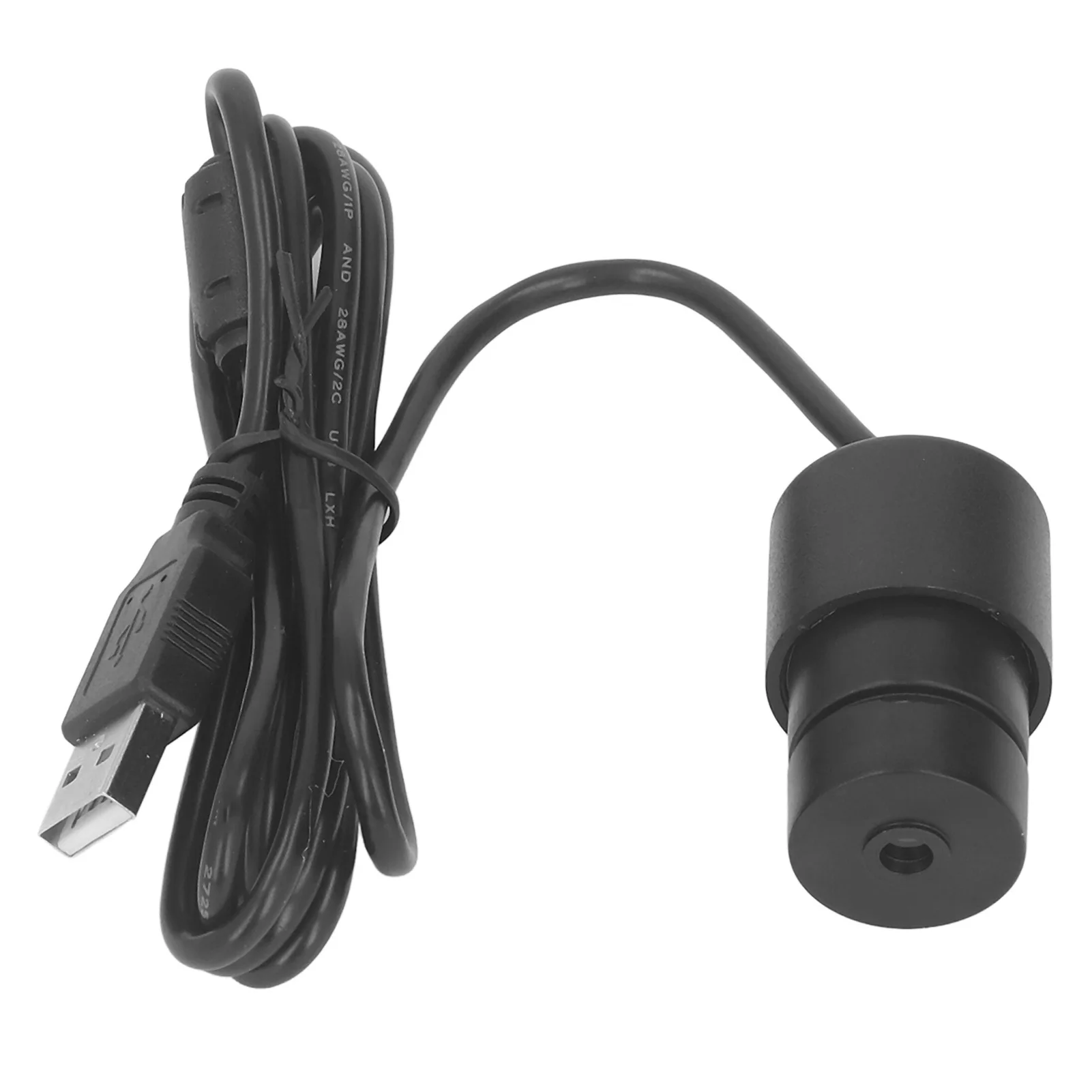

Item Type: Electronic Eyepiece
Material: ABS, stainless steel
Basic Parameters:
Microscope Connection Mode: Diameter Approx. 23.2mm / 0.91in interface, directly inserted into the eyepiece barrel
Output Signal: Video, CVBS
Digital Image: None
Image Sensor Size: 1/3 inch, Approx. 4.840 x 3.611mm / 0.19 x 0.14in
Sensor Horizontal Resolution: 960 TV cable
Sensor Effective Pixels: PAL: 968(H)x488(V), NTSC: 960(H)x480(V)
Image Control: Manual or automatic white balance, manual or automatic exposure
Minimum Illumination: 0.005 Lux
Signal to Noise Ratio: 43.6dB
Dynamic Range: 65.9dB
Working Voltage: DC 12V (working current: 90mA)
Power Consumption: 140mW
Operating Temperature: -20-50℃
Relative Humidity:

How to Use:

Install and use directly.

Package List:

1 x Eyepiece

1 x Floppy Disk

1 x User Manual
