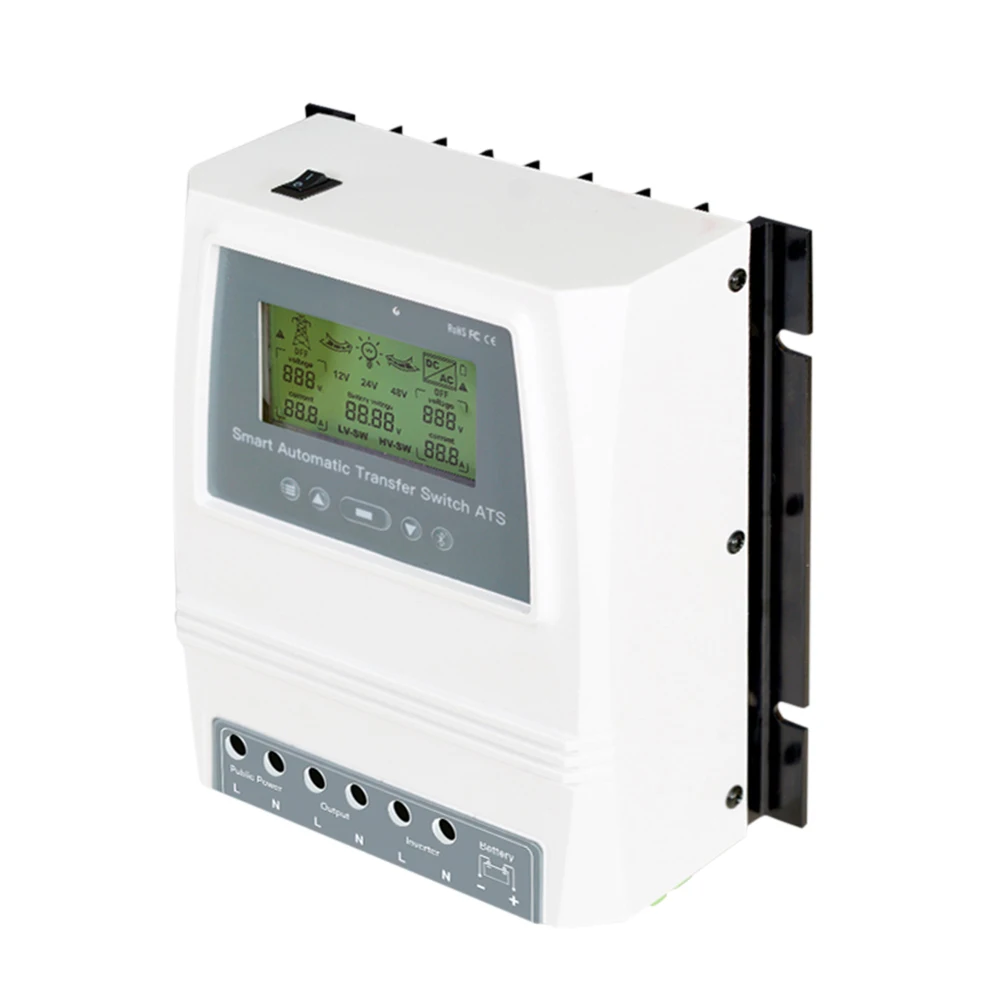

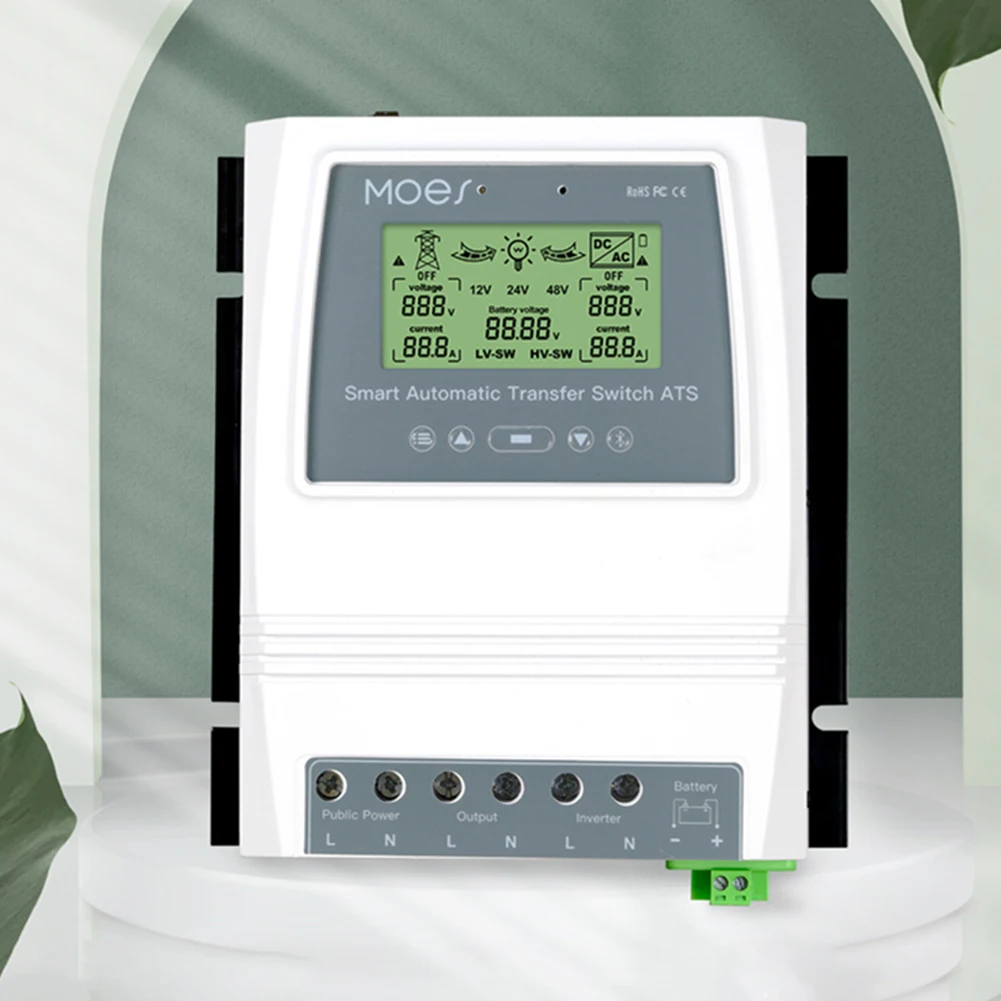

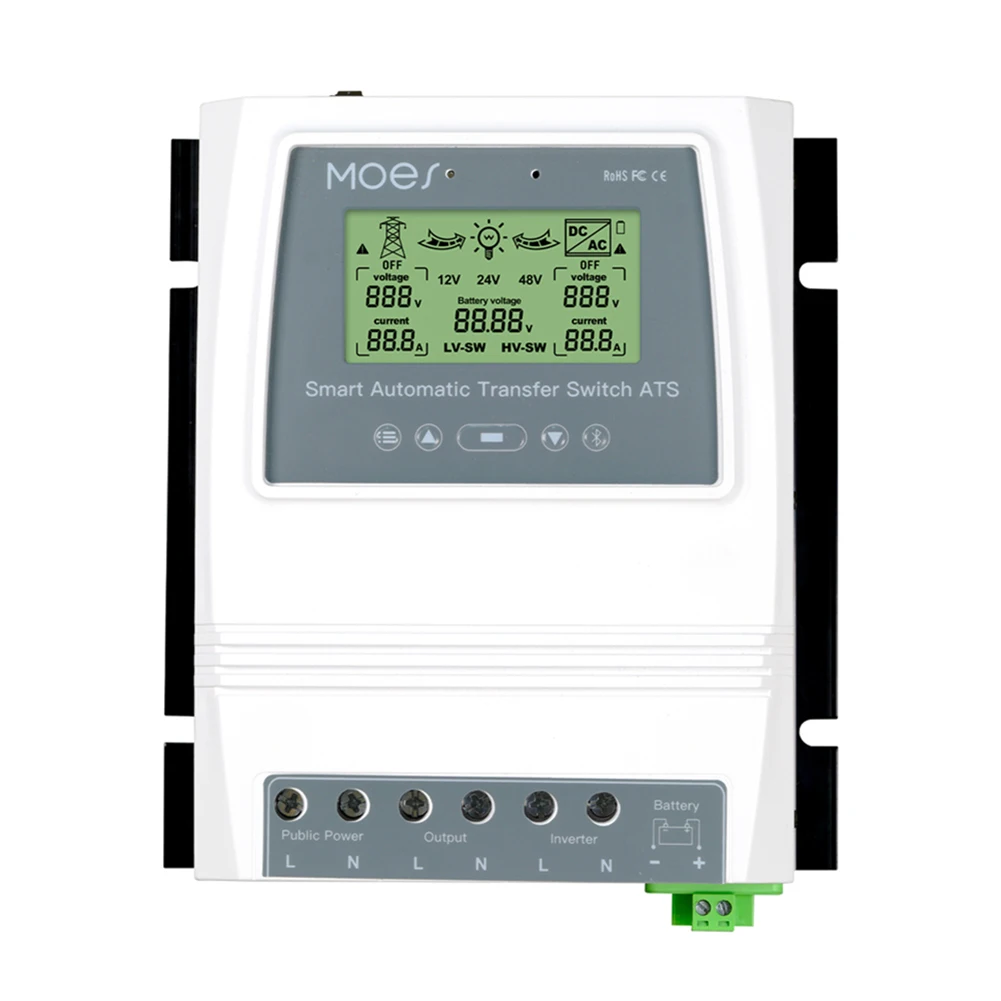

LCD ATS Switcher 12V 24V 48V Auto Select Manual APP Control Set Value Adjustable AC Test Auto Distinguish for Solar Wind Systems
Feature:

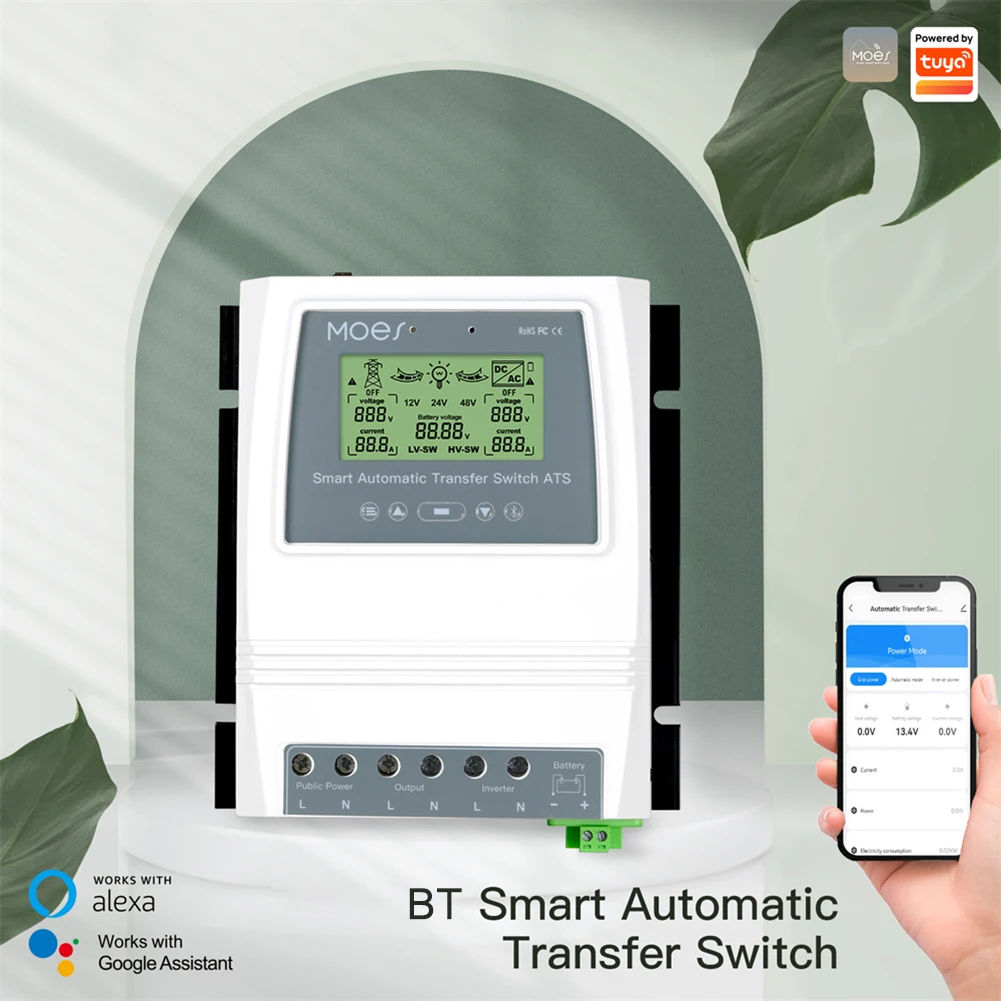

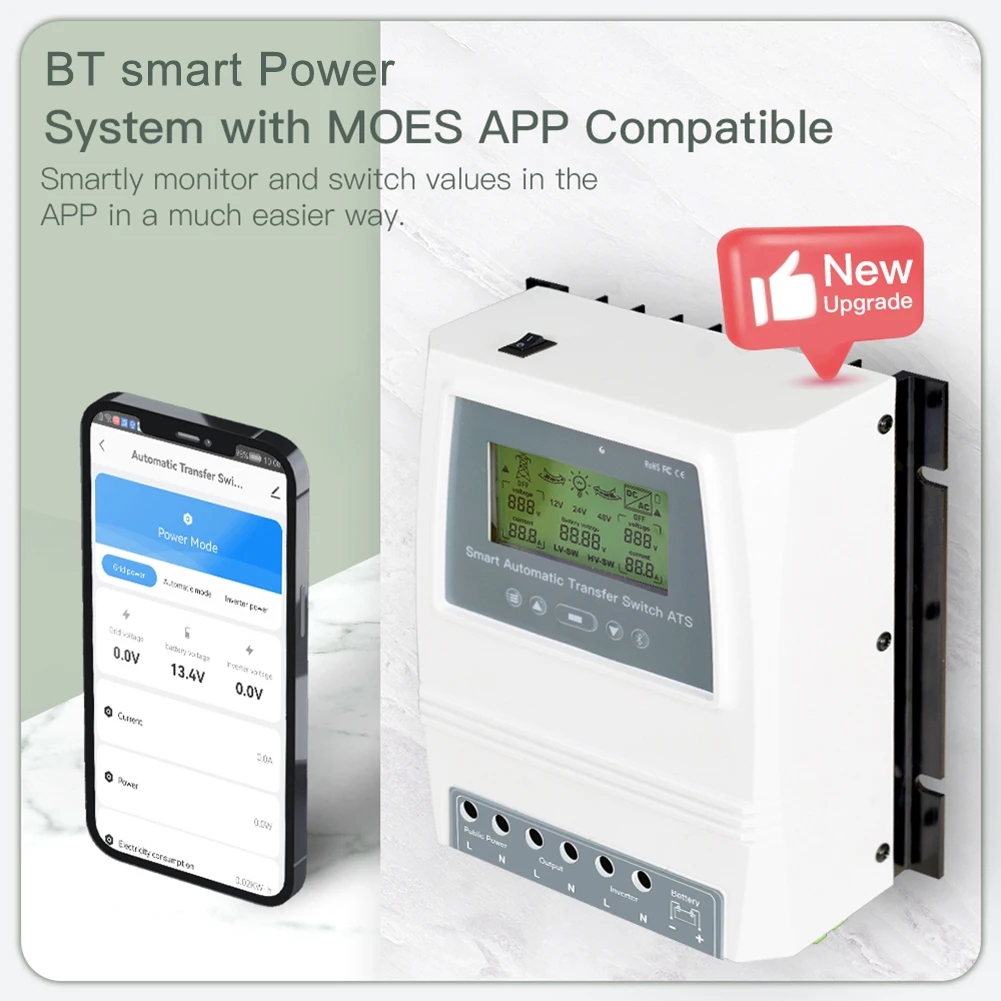

1. APP Smart Control: Through the APP intelligent control, the flexible transfer and use between the public power supply and the battery can be realized. The power supply APP has three functional values: grid power, automatic mode power, and inverter power. (Note: All functions of ATS itself will not interfere with the APP)
2. Mine Protection Smart Electrical Value Monitor: It can obtain the current and voltage of the power grid, battery and inverter in time, especially the current, power and power consumption of the load, as an advanced mine protection power system with overcurrent protection function. Smart scene automation requires a Bluetooth hub, but it has a fast network pairing function under mobile phone Bluetooth and 2.4G WiFi.

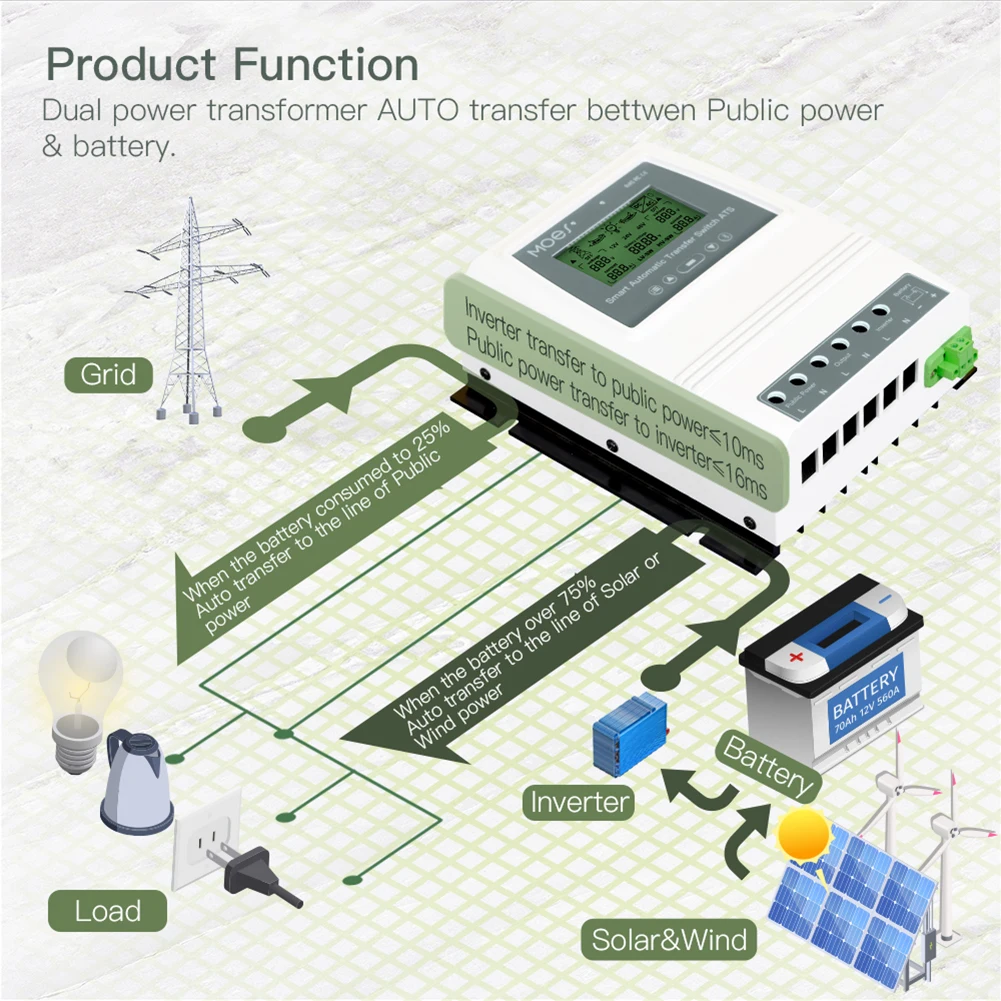

3. Manual Switch: In cloudy or windless weather, when your battery power is low, it will automatically switch to grid power supply to protect your battery, especially when the battery voltage is lower than the cut-off point When the battery voltage is higher than the recovery point, it will automatically switch back to the battery, working like a reverse UPS, updating the manual switch function for your convenience.
4. Adjustable Setting Value & Automatic Identification of AC Test: DC 12/24/48V, automatic identification of AC 100-120V 60HZ / 220-240V 50HZ. Users can customize cut-off voltage and recovery voltage. The recovery voltage must be higher than the cutoff voltage. Suitable for various battery types, such as sealed, gel, lead-acid, lithium batteries, etc., the battery low-voltage transfer and battery recovery set points can be freely adjusted according to the battery type. The AC test function is good. When the AC output of the inverter is abnormal, the device will automatically switch to the public power supply.

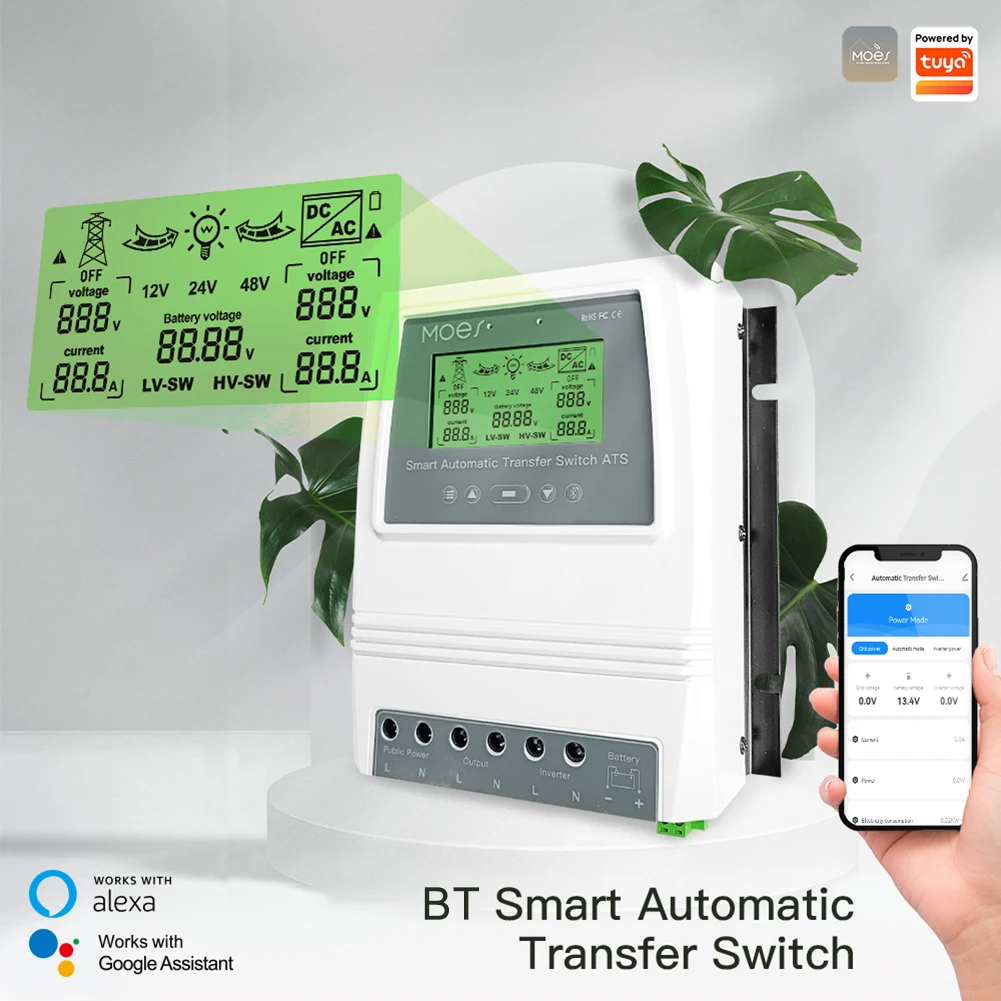

5. High Power & Large LCD: Updated rated power: 8KW (110V) or 16KW (220V), 80A, fast conversion time: inverter to public power supply ≤ 10ms, public power supply to inverter ≤ 16ms, large LCD design Display, display battery real-time voltage, public power supply, inverter, battery working status.


Specification:
Model Number: Dual Power Transfer Switch
Product Name: Bluetooth-Compatible ATS
Model: BAT-80A
Rated power: 8kw (Utility Power 100-120V); 16kw (Utility Power 220-240V)
Input voltage: Auto Selection: AC 100-120V or AC 220-240V
Output voltage: Auto Selection: AC 100-120V or AC 220-240V

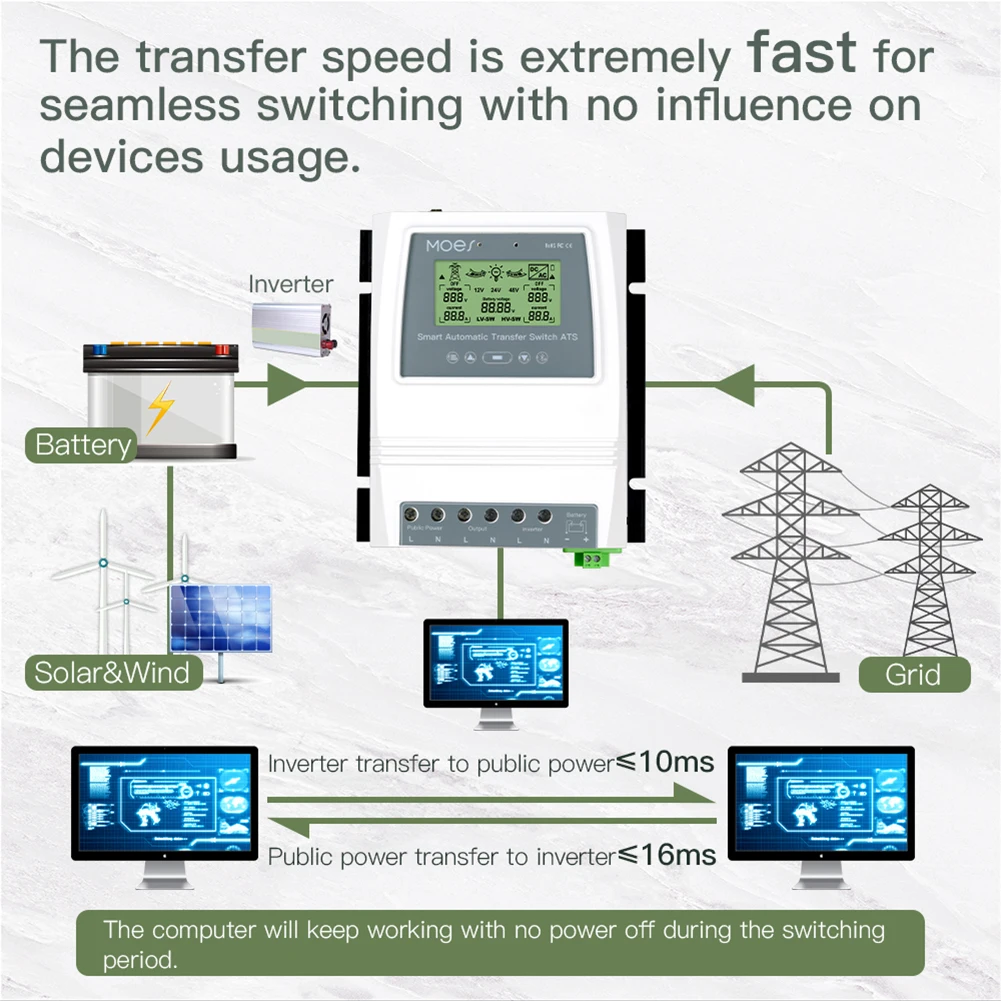

Transmission time: the time for the inverter to transfer to the utility power is ≤10ms; the time for the utility power to be transferred to the inverter is ≤16ms
LCD display: battery voltage; power source: utility; power supply or battery inverter.
System voltage: Automatic selection: 12V or 24V or 48V
Low battery voltage transmission set point: default value: 10.5v/21v/42v, adjustable
Battery recovery setting: Default: 12.5v/25v/50v, adjustable
Applications: Off-grid solar energy systems; wind turbines; hydroelectric generators

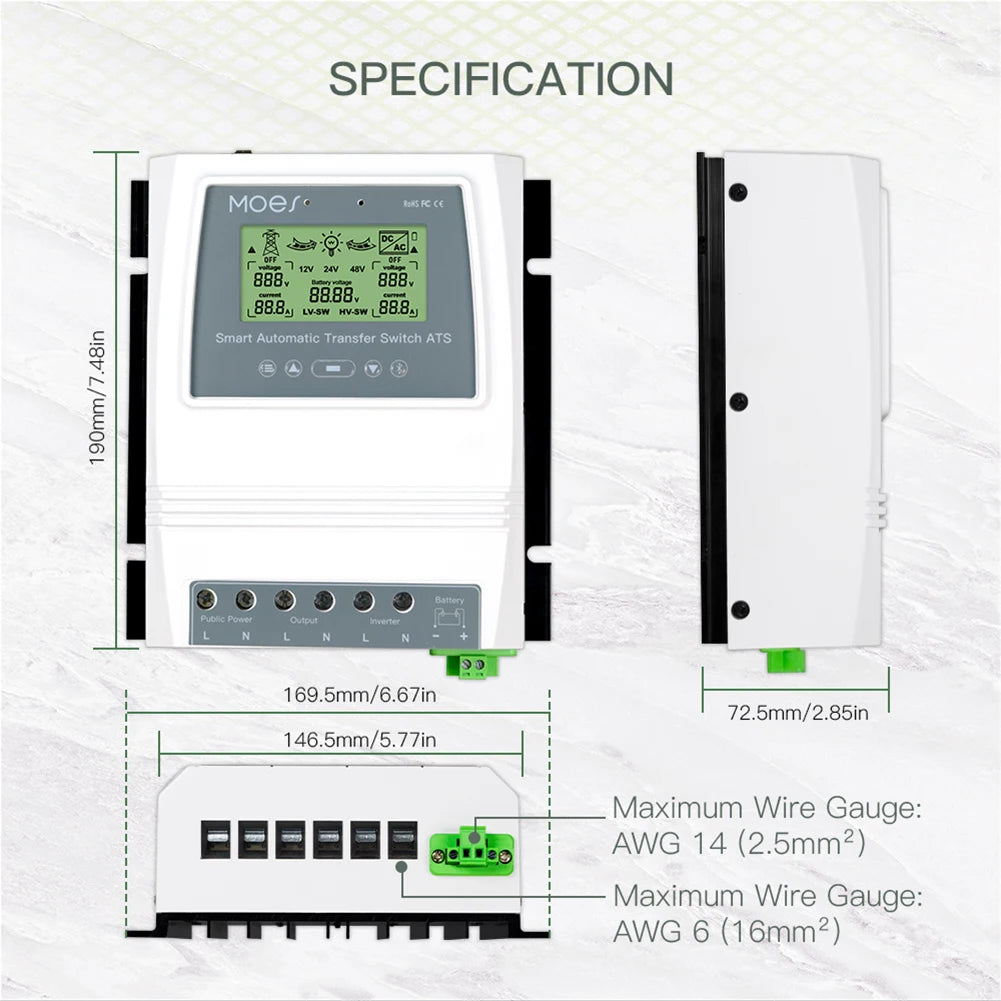

Product size: About 190x170x72.5mm/7.48x6.69x2.85in
Packing size: About 260x230x150mm/10.23x9.05x5.9in
Net weight: 1320g

Note:
A gateway is required for remote control.
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.



1 x Automatic ATS Transfer Switch
1 x Manual
