NYOK3568-C Single Board Computer 2G
NYOK3568-C Single Board Computer 2G
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: NONE
High-concerned chemical: None
Origin: Mainland China

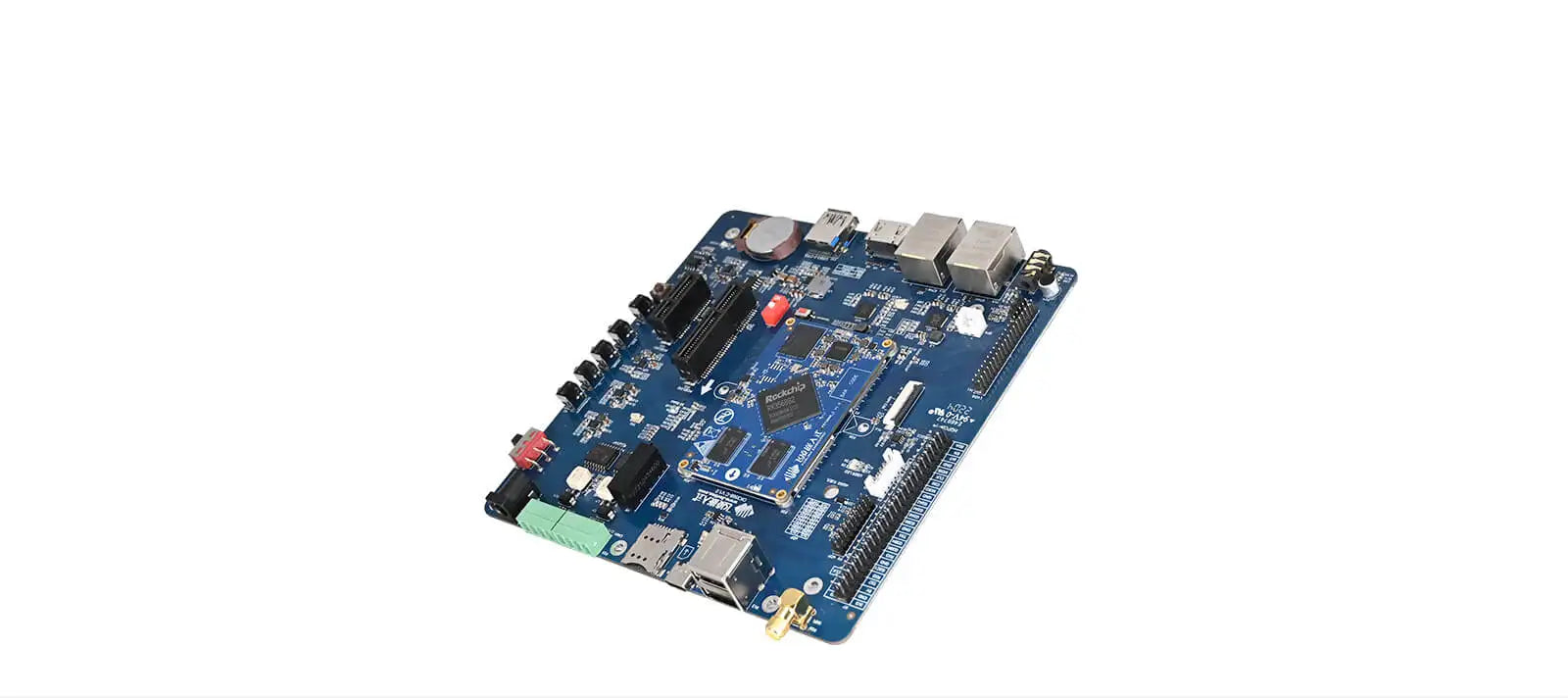

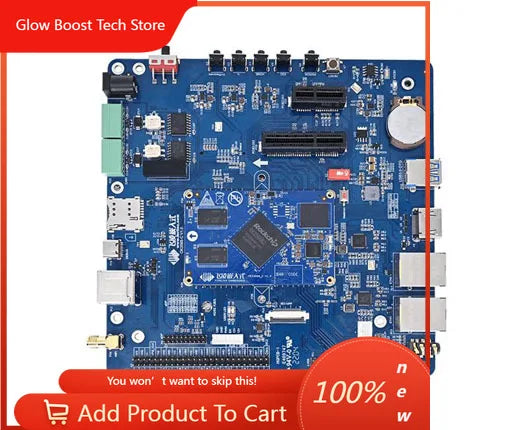

OK3568-C Single Board Computer
OK3568-C single board computer(SBC) is populated with SoM FET3568-C on carrier board by four ultra thin connectors. The carrier board ensures the SoM source fully available to achieve users' fast evaluation purpose.
Beside, the board is designed with ESC solution which simplifies designing reference to help users to shorten their product time-to-market.

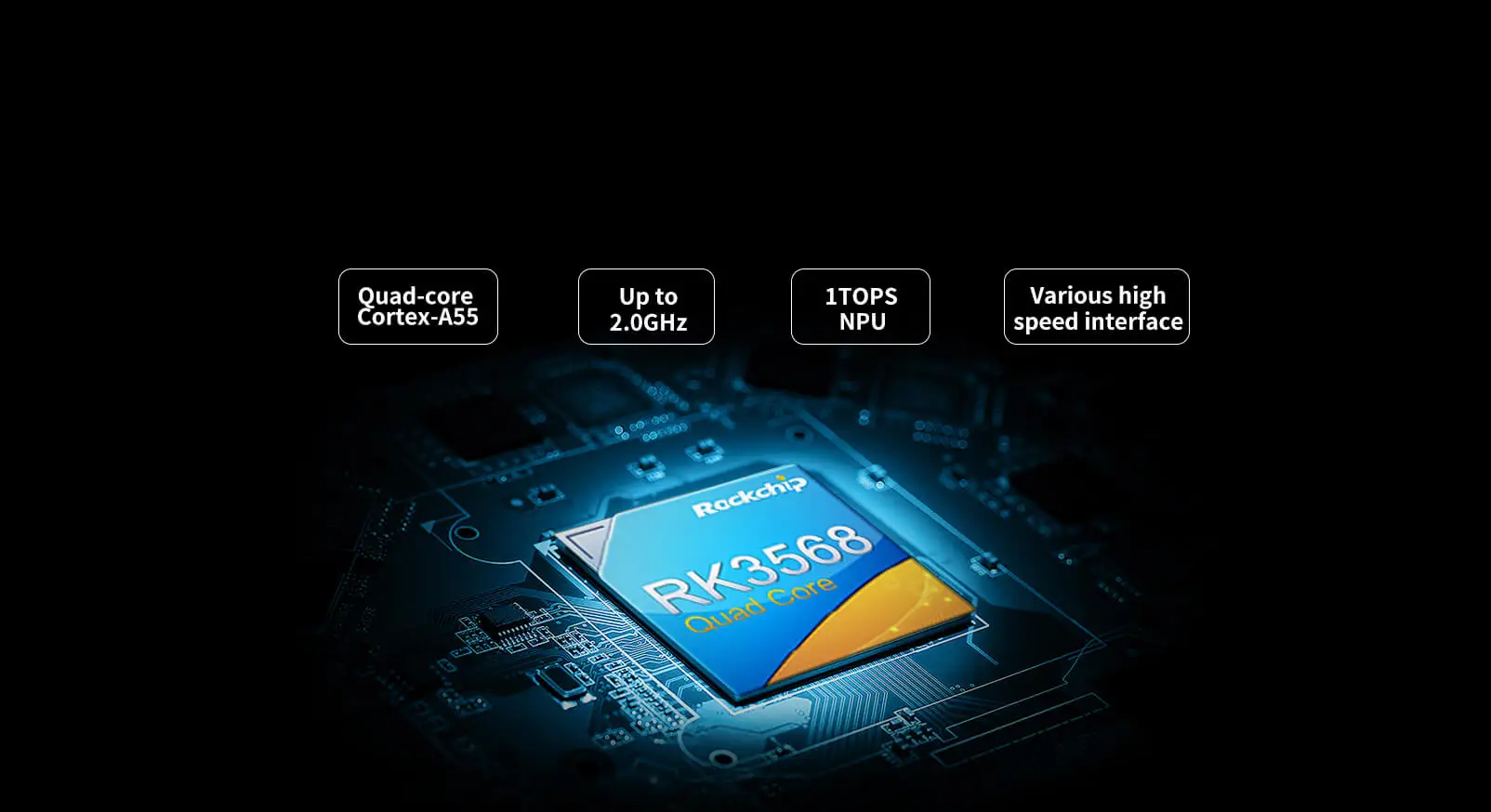

Advanced and robust
FET3568-C SoM is equipped with quad-core 64-bit Cortex-A55 processor with built in NPU based on advanced 22nm processing technology,
running at up to 2.0GHz, and plenty of high-speed peripheral interfaces are available.

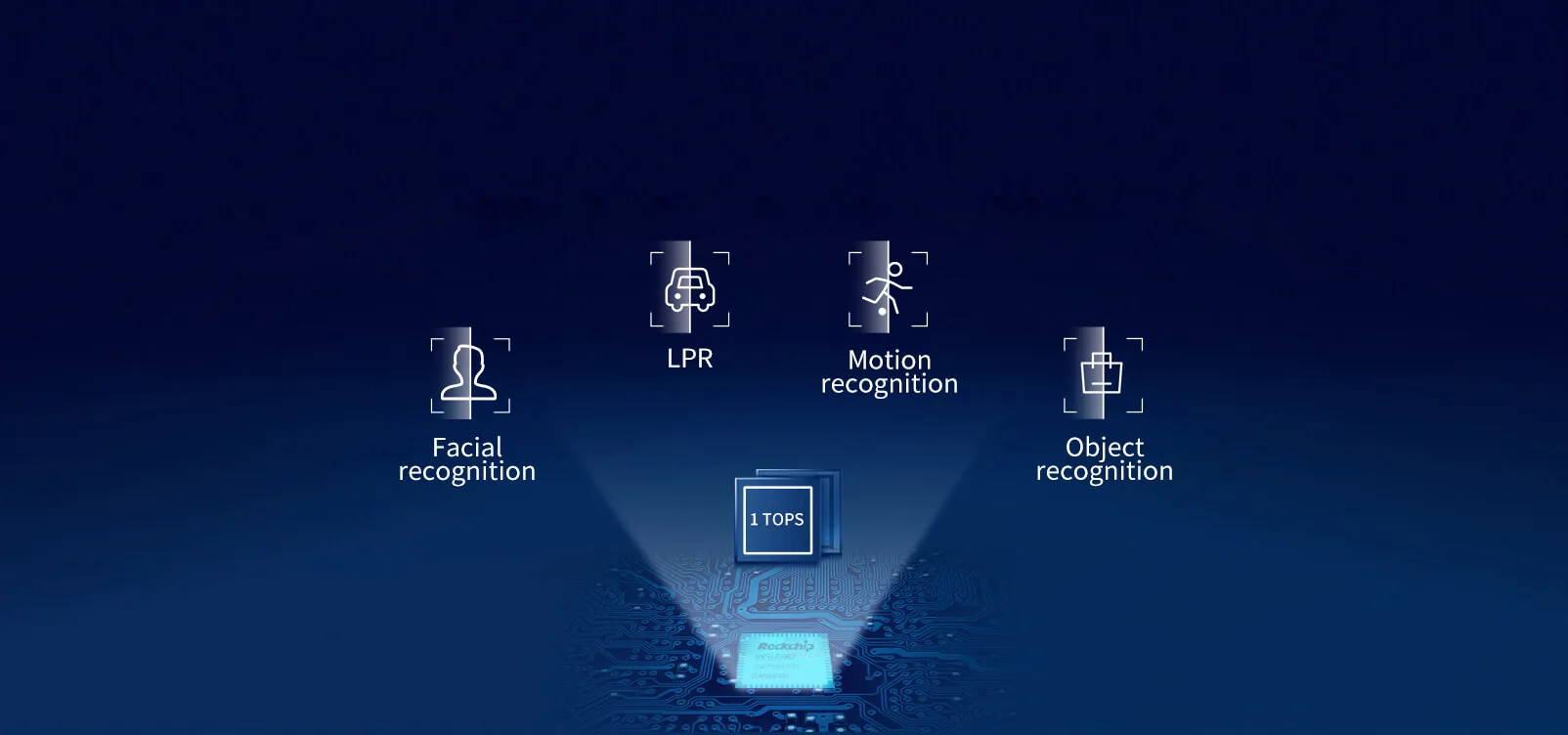

Built-in NPU
Neural network acceleration engine with processing performance up to 1 TOPS. Supports RKNN-Toolkit.
In addition, with its strong compatibility, network models based on a series of frameworks such as TensorFlow/MXNet/PyTorch/Caffe can be easily converted.

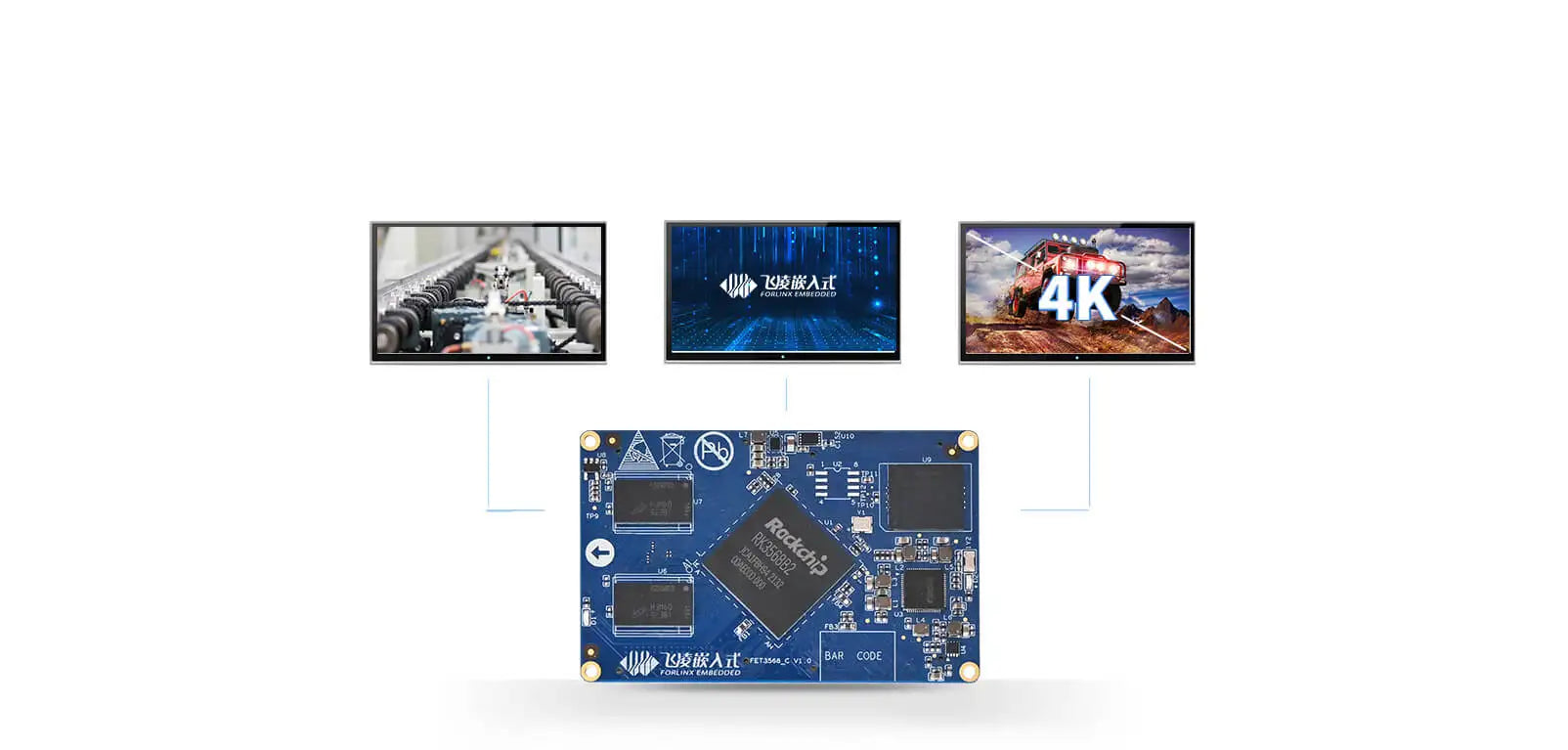

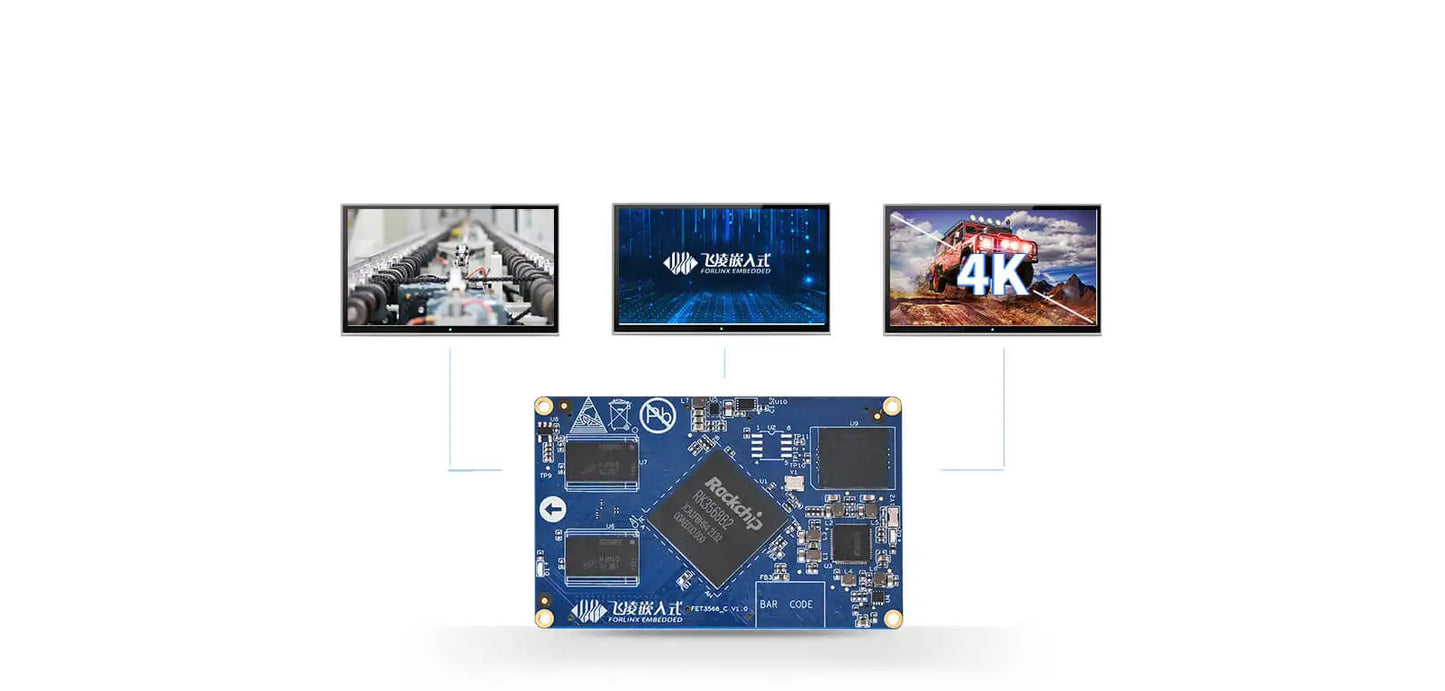

Various display interfaces, supports three displays with different frames
HDMI2.0, eDP, LVDS, RGB Parallel and MIPI-DSI are all well supported, besides, it supports three displays simultaneously output up to 4K,
which is preferable and applicable for PDA, cash register, multi-screen advertising machine, karaoke machine, electronic bus stop board, self-service machine, etc.
Powerful video codec performance
Support 4K resolution H.264/H.265/VP9 and other formats high-definition hard decoding,
and can support multiple video sources decoding simultaneously, support HDR10 with excellent performance in color and dynamic range;
FET3568-C SoM supports H.264 and H.265 format hardware encoding at 1080p60fps, and supports dynamic code rate, frame rate, and resolution adjustment.
High-scalability
Equipped with 3 PCIe, 4 separate USB, 3 SATA controllers, and 2 builtin GMAC can support RGMII/ SGMII/ QSGMII(2MAC) to expand dual Gigabit Ethernet ports.
OS Supporting
FET3568-C SoM supports Linux 4.19 and Android 11 operating systems that deeply optimized, which ensures high-stability for long-last running.

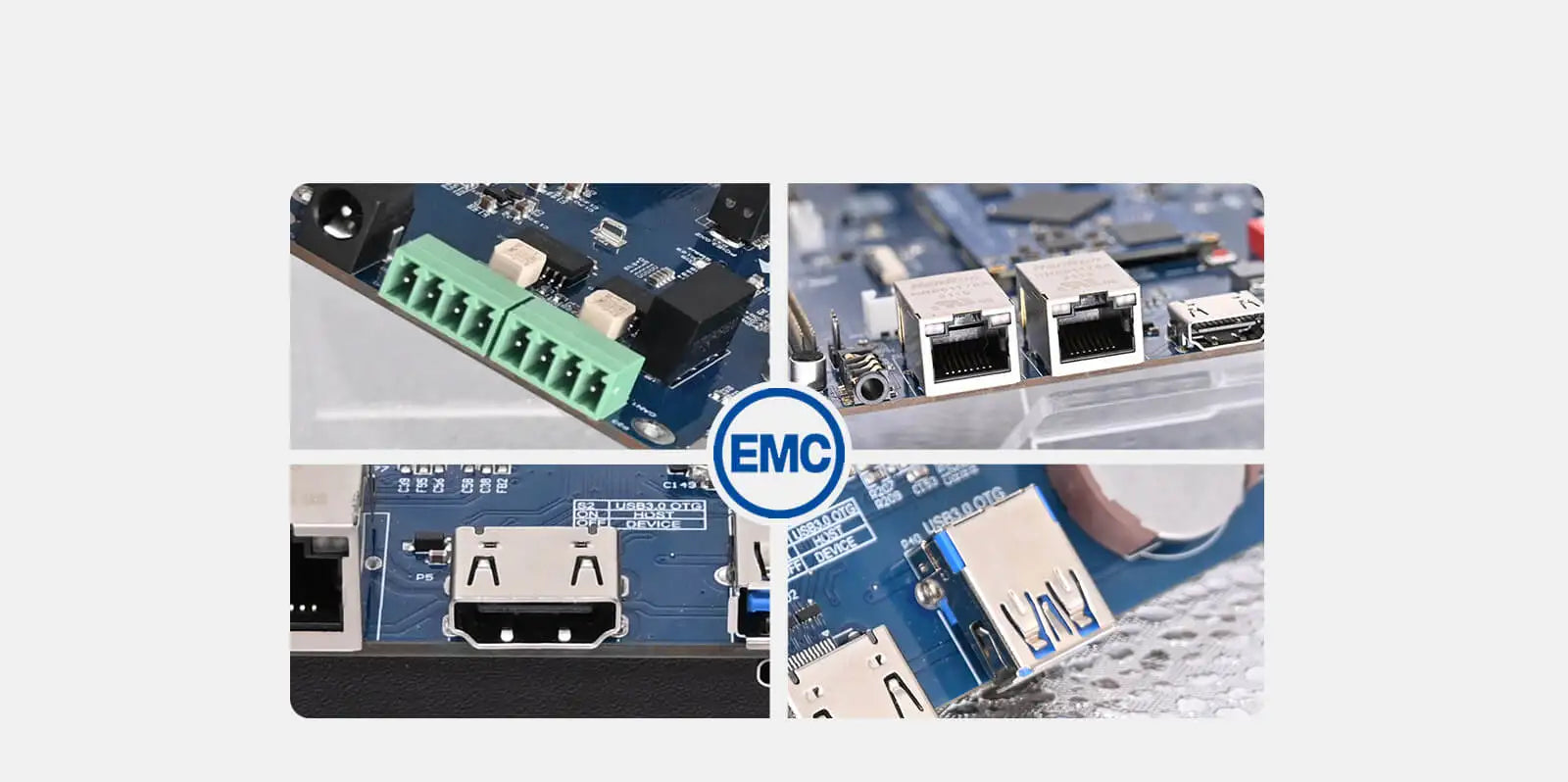

Industrial applicable EMC protection
OK3568-C carrier board is designed with EMC protection solution, which is applicable for industrial related scenes.
CAN and Ethernet are designed with EFT3, ESD3 and Surge3; HDMI and USB are designed with ESD3.

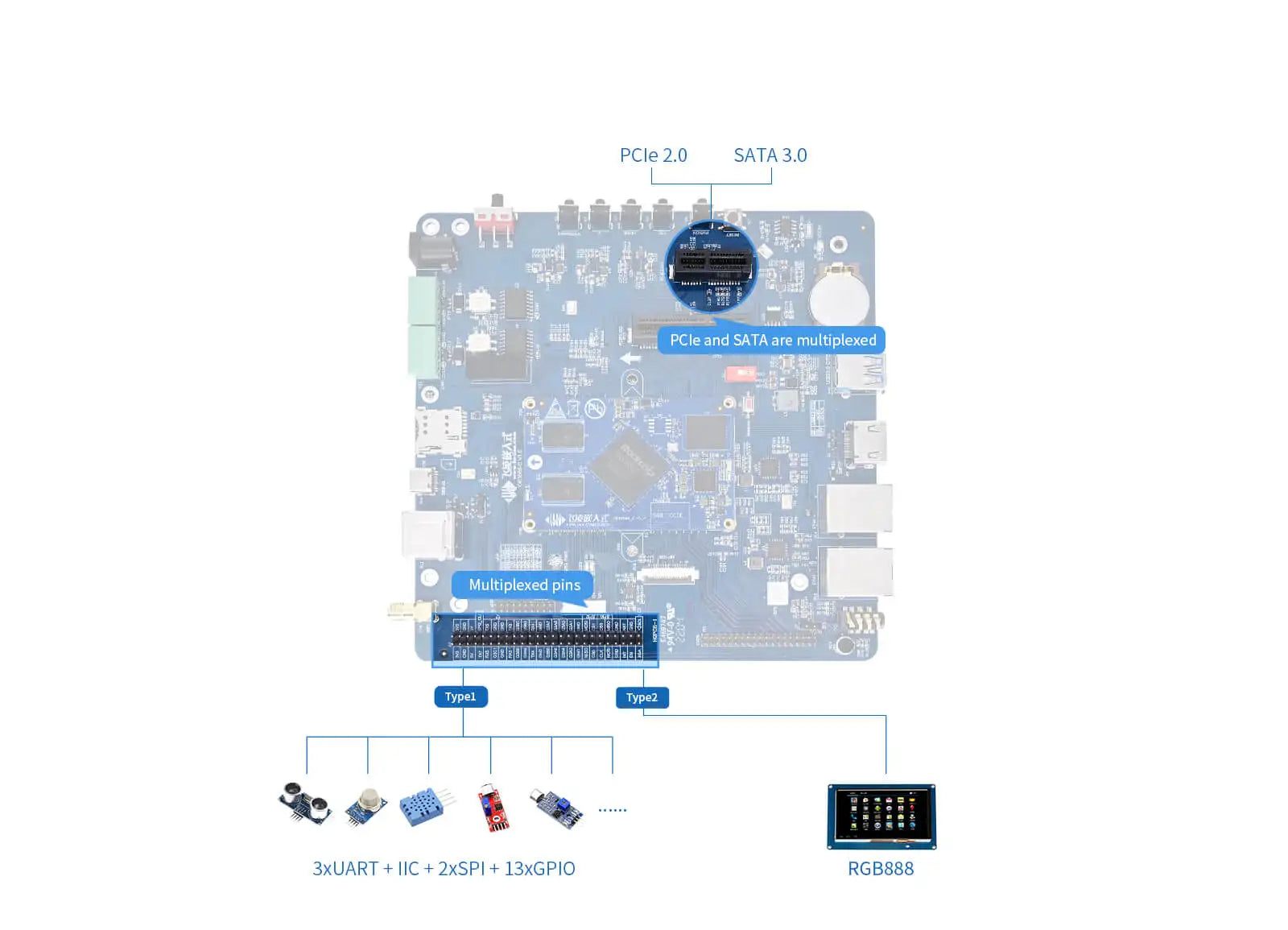

User-friendly designing
Multiple pins are multiplexed on OK3568-C carrier board, user friendly and easy to go.

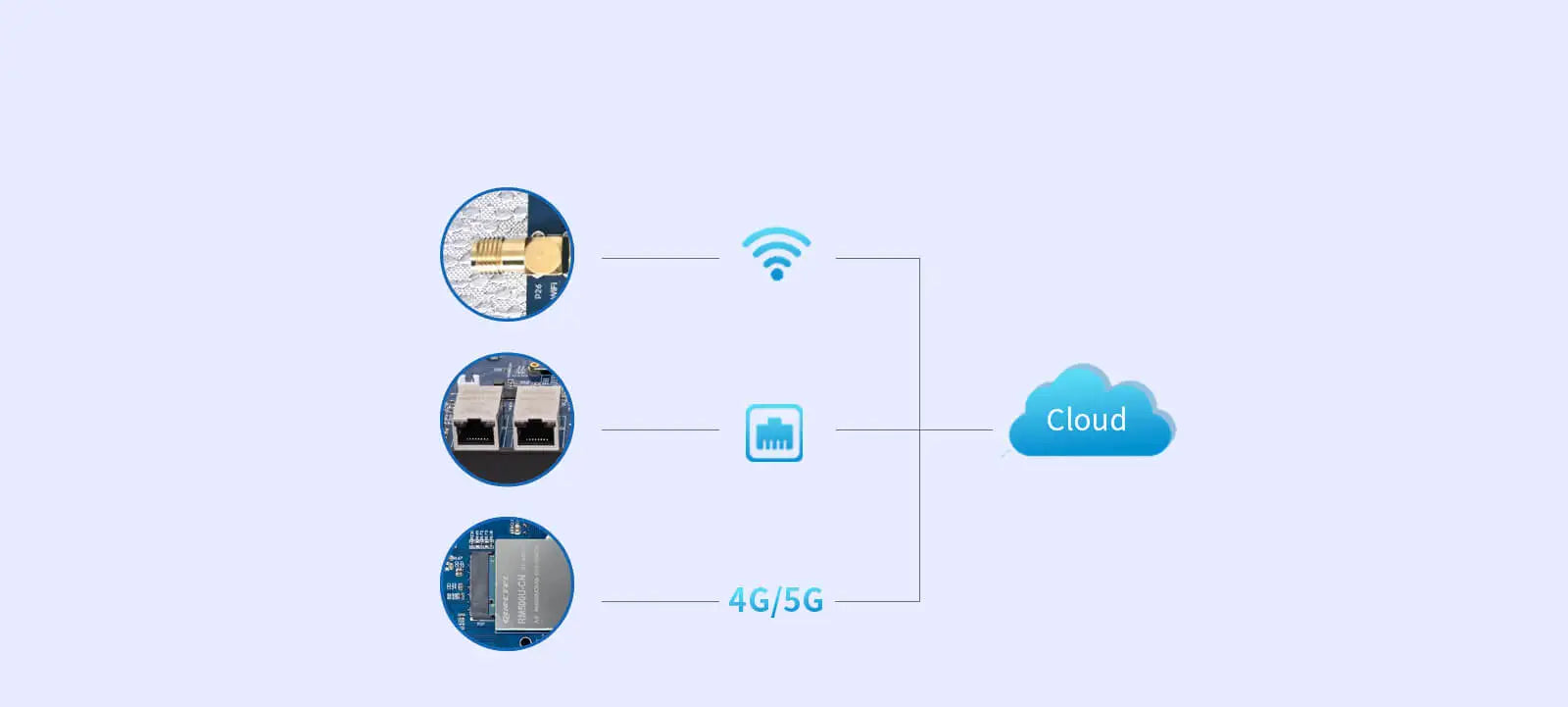

Diverse networking connectivity
Dual native Gigabit Ethernet, dual-band WiFi and 4G/ 5G modem slot are all available on OK3568-C carrier board for networking requirement.
Target Applications
The SoM could be widely used in medical, industrial, transportation, cloud terminal, streaming media, security, AI application, energy management and other related applications.
▊ Specs
FET3568-C SoM Basic Parameters |
|||
CPU |
Rockchip RK3568 quad-core Cortex-A55@2.0GHz |
||
GPU |
• Mali-G52-2EE |
||
NPU |
1TOPS, Support INT8/INT16/FP16/BFP16 mixed operation. |
||
|
VPU |
Decode: |
Encode: |
|
RAM |
2GB/4GB/8GB DDR4(Standard 2GB) |
ROM |
16GB eMMC |
OS |
Linux4.19+Qt5.12, Android11 |
Voltage input |
DC5V |
Package |
board to board connector(4*80pin Spacing 0.5mm) |
||
Working temperature width |
0℃ ~ 70℃ / -40~85℃ |
Dimensions |
45x70mm |
FET3568-C SoM Function parameter |
|||
Interface |
QTY |
Spec. |
|
|
Display |
3 |
Equipped with 3 display controller, supports 3 simultaneous output in RGB, LVDS, MIPI DSI, HDMI, eDP interface. |
|
Camera |
2 |
1x DVP, 1x 4-lane MIPI-CSI. |
|
Audio |
4 |
1X 8ch I2S/TDM, 2X2ch I2S, 1x8ch PDM. |
|
SDIO |
3 |
SDIO 3.0, data throughput up to: 104MB/S |
|
Ethernet |
2 |
2GMAC, by RGMII / RMII |
|
USB 2.0 |
2 |
USB2.0 Host, separate but not multiplexed with USB3.0. |
|
USB 2.0 |
2 |
1 USB 2.0 Host and1 USB 2.0 OTG in USB 3.0. Can be used as 2 independent USB 2.0 USB 3.0 is not needed |
|
USB 3.0 |
2 |
1x USB 3.0 Host, 1x USB 3.0 OTG. |

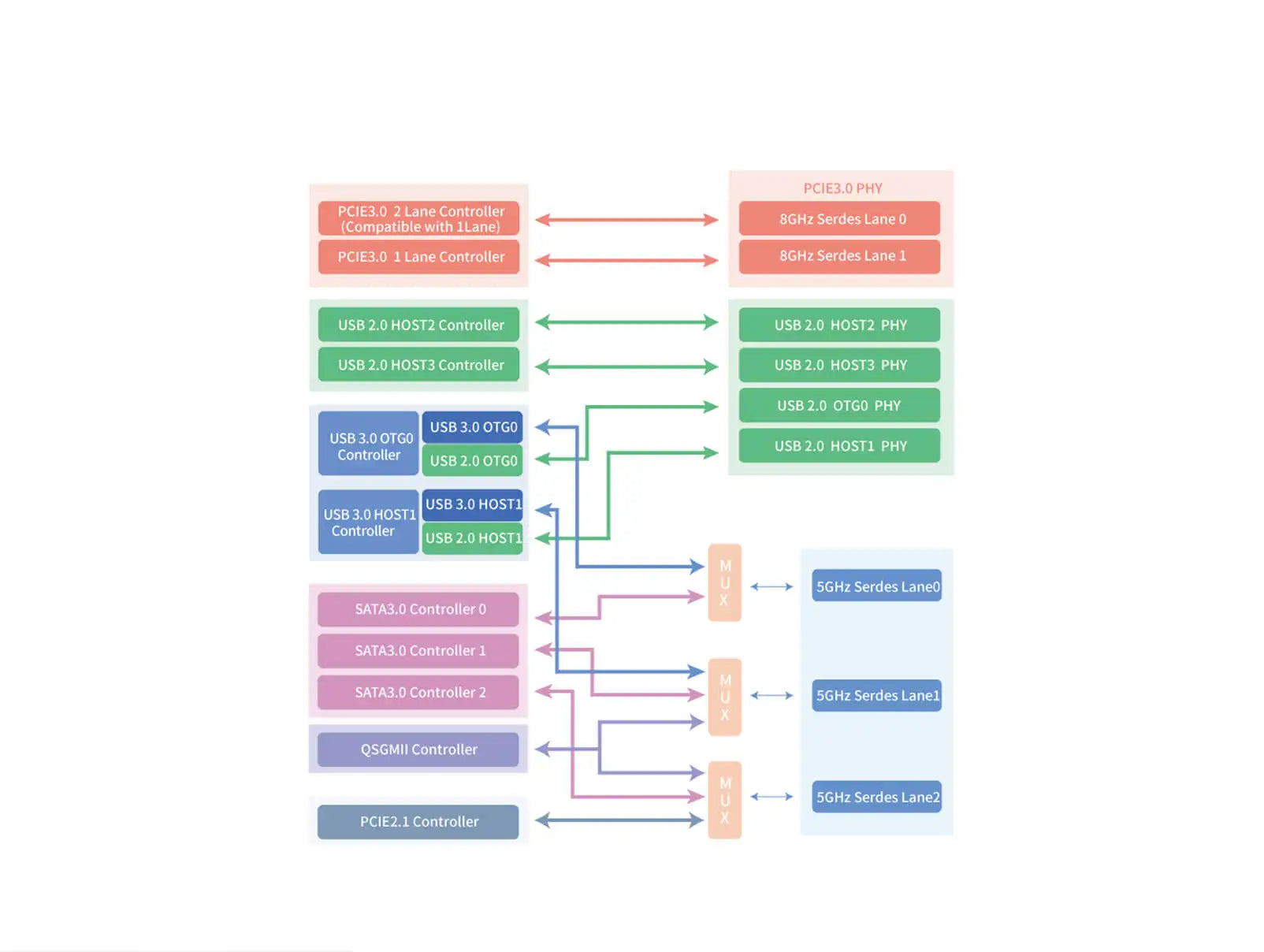

They share 3 sets of SerDes, in this case, only 3 functional interface of them could be used simultaneously. |
SATA |
3 |
SATA 3.0, up to 6.0Gb/s, support eSATA. |
|
PCIe2.1 |
1 |
PCIe 2.1 x1, up to 5.0Gbps, RC mode. |
|
|
PCIe3.0 |
2 |
PCIe 3.0, 1x2Lanes or 2x1Lane, each lane up to 8.0Gbps. |
|
UART |
10 |
up to 4Mbps. |
|
CAN |
3 |
Both CAN-FD and CAN2.0 B are well supported |
|
SPI |
4 |
Host mode and slave mode are optional and configurable |
|
I2C |
5 |
Supports 7bits and 10bits address modes, up to 1 Mbit/s. |
|
PWM |
16 |
32bits timer/counter |
|
OK3568-C Carrier Board Features |
||
Interface |
spec. |
|
|
Display |
HDMI 2.0 |
resolution up to 1080p@120Hz or 4096x2304@60Hz; |
eDP |
supports eDP 1.3, resolution up to 2560x1600@60Hz; |
|
LVDS |
single-channel output, resolution up to 1280x800; |
|
LCD |
RGB888 up to 1280x800; multiplexed with SPI0, SPI2, UART3, UART4, UART5 and UART7. |
|
MIPI-DSI1 |
single-channel output, up to 1920x1080@60Hz; |
|
Camera |
MIPI-CSI, tested and recommended model OV13850. |
|
Audio |
1x stereo headphone output; 1x 1.3W class D amplifier output; 1x MIC input. |
|
TF Card |
For storage expanding and OS firmware flashing. |
|
Ethernet |
2x 10/100/1000Mbps auto-negotiation, RJ45 connector. |
|
4G/5G modem |
M.2 Key-B, contains USB 3.0/2.0 for 4G/5G module expanding; |
|
Wi-Fi&BT |
On-board AW-CM358SM, 2.4G/5G dual-band Wi-Fi, BT5.0. |
|
USB 2.0 |
2x USB 2.0 Host, Type-A |
|
USB 3.0 |
1x USB 3.0 Host, Type-A. |
|
USB 2.0 OTG |
contained in USB 3.0, can be used as slave mode for OS iamge flashing and ADB debugging. |
|
PCIe 2.1 |
Standard PCIe x1 socket; multiplexed with SATA |
|
PCIe 3.0 |
Standard PCIe x4 socket, can be configured as 2 PCIe x1. |
|
UART |
3x 3.3V TTL level, by pin headers with pitch of 2.54mm. |
|
CAN |
2x CAN-FD, up to 5Mbps; with isolation and ESD protection. |
|
SPI |
2x 3.3V TTL, by pin headers with pitch of 2.54mm |
|
I2C |
1x 3.3V TTL level, by pin headers with pitch of 2.54mm. |
|
RTC |
CR2032 |
|
Buttons |
8: reset, power on/off, OTG programming, Maskrom, VOL+, VOL-, HOME, ESC. |
|
QSPI |
on-board 32MB QSPI Nor Flash. |
|
Debug |
converted by USB, Type-C connector that convenient for laptop users. |
|
Power input |
DC 12V |
|
