SPECIFICATIONS

Battery Included: Yes

Brand Name: TOOLTOP

Choice: yes

DIY Supplies: Electrical

Hign-concerned Chemical: None

Origin: Mainland China

100% original, designed and produced by hugen (zeenko).

We are an officially authorized store, please feel free to purchase.

Features:

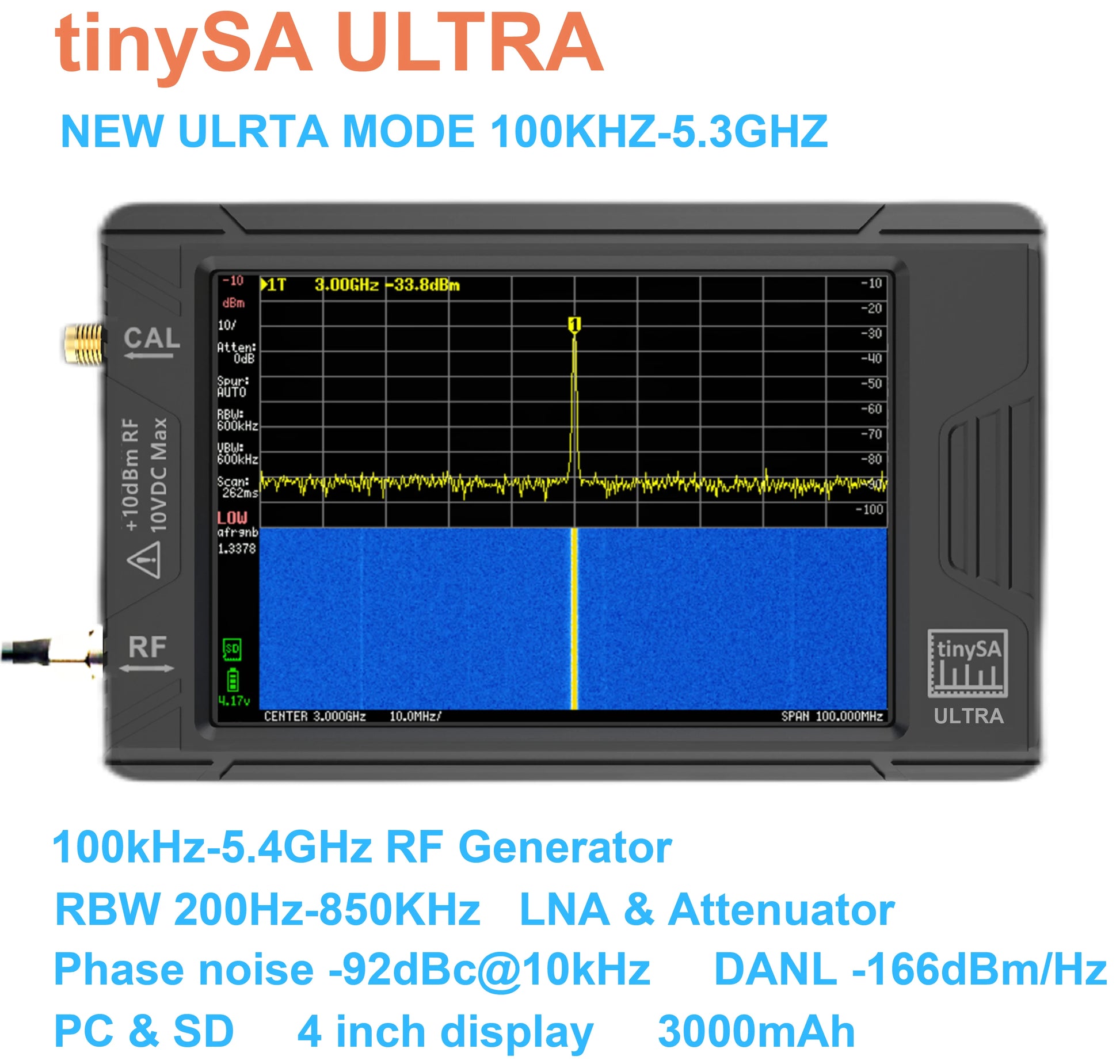

- Screen size 3.95 inch(≈4 inch)

- Spectrum Analyzer for 0.1-800MHz or, with Ultra mode enabled, 0.1MHz-6GHz

- Signal Generator with sine wave output between 0.1-800MHz or square wave or dual tone output up to 4.4GHz when not used as Spectrum Analyzer.

- Switchable resolution bandpass filters for both ranges between 200Hz and 850kHz

- Built-in 20dB optional LNA

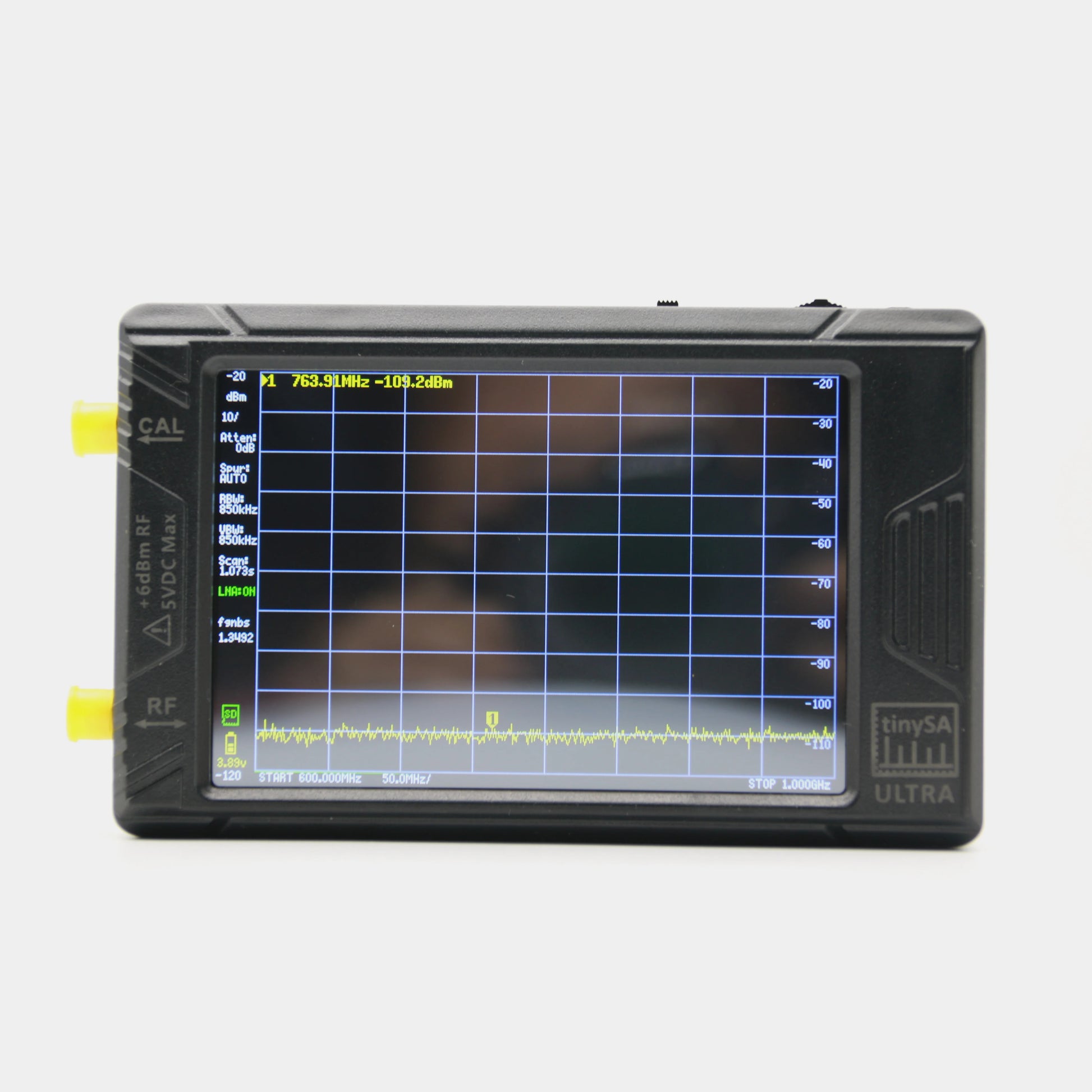

- Color display showing 450 scan points covering up to the full frequency range.

- Input Step attenuator from 0dB to 31dB (not in combination with LNA).

- A built-in calibration signal generator that is used for automatic self test and (low) input calibration.

- Connected to a PC via USB it becomes a PC controlled Spectrum Analyzer or Signal Generator

- Rechargeable battery allowing a minimum of at least 2 hours portable use

- Max input level +10dBm. Do not destroy your tinySA

- Due to the low cost and very small form factor there are certain relevant tinySA limitations and tinySA Ultra limitations

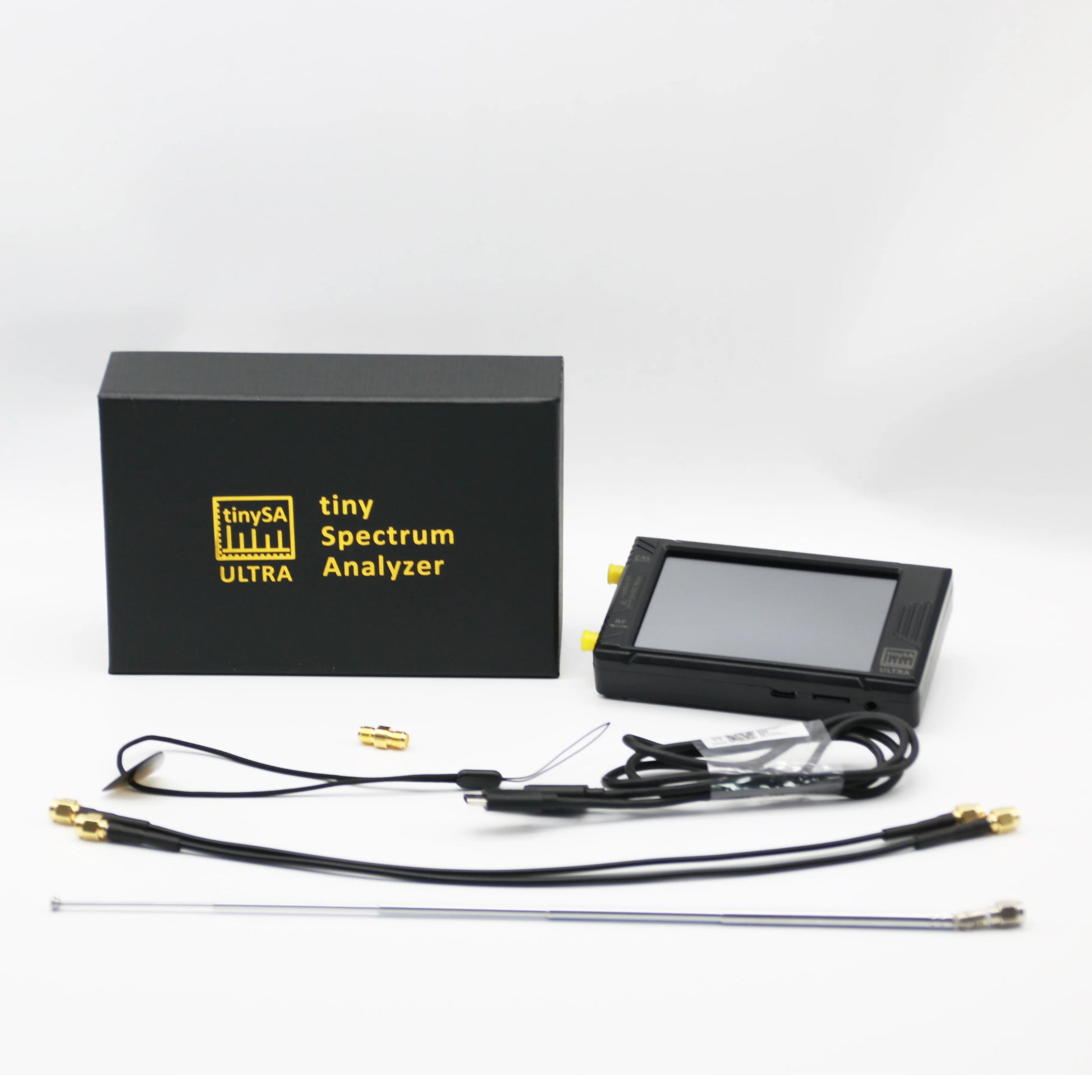

The tinySA ULTRA includes:

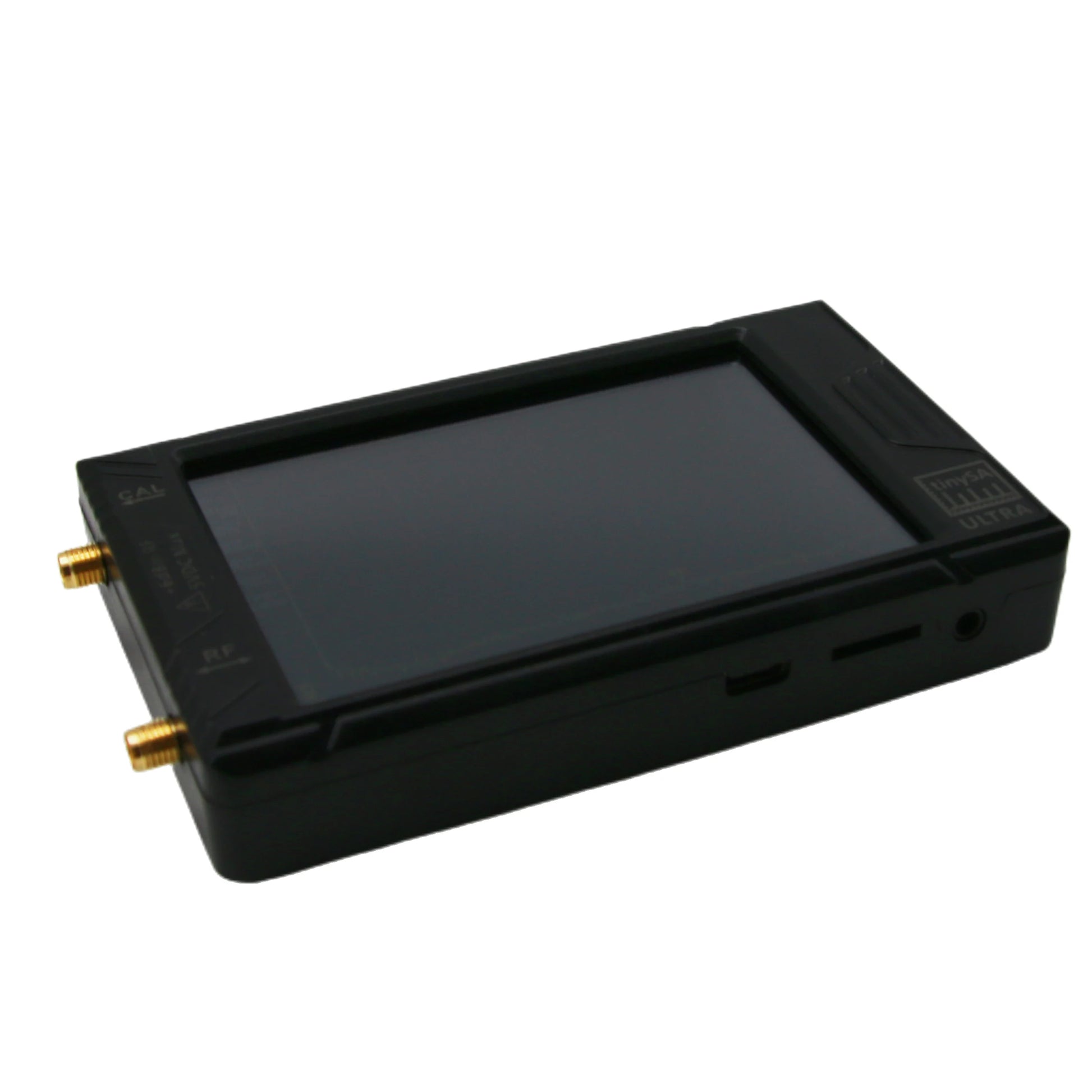

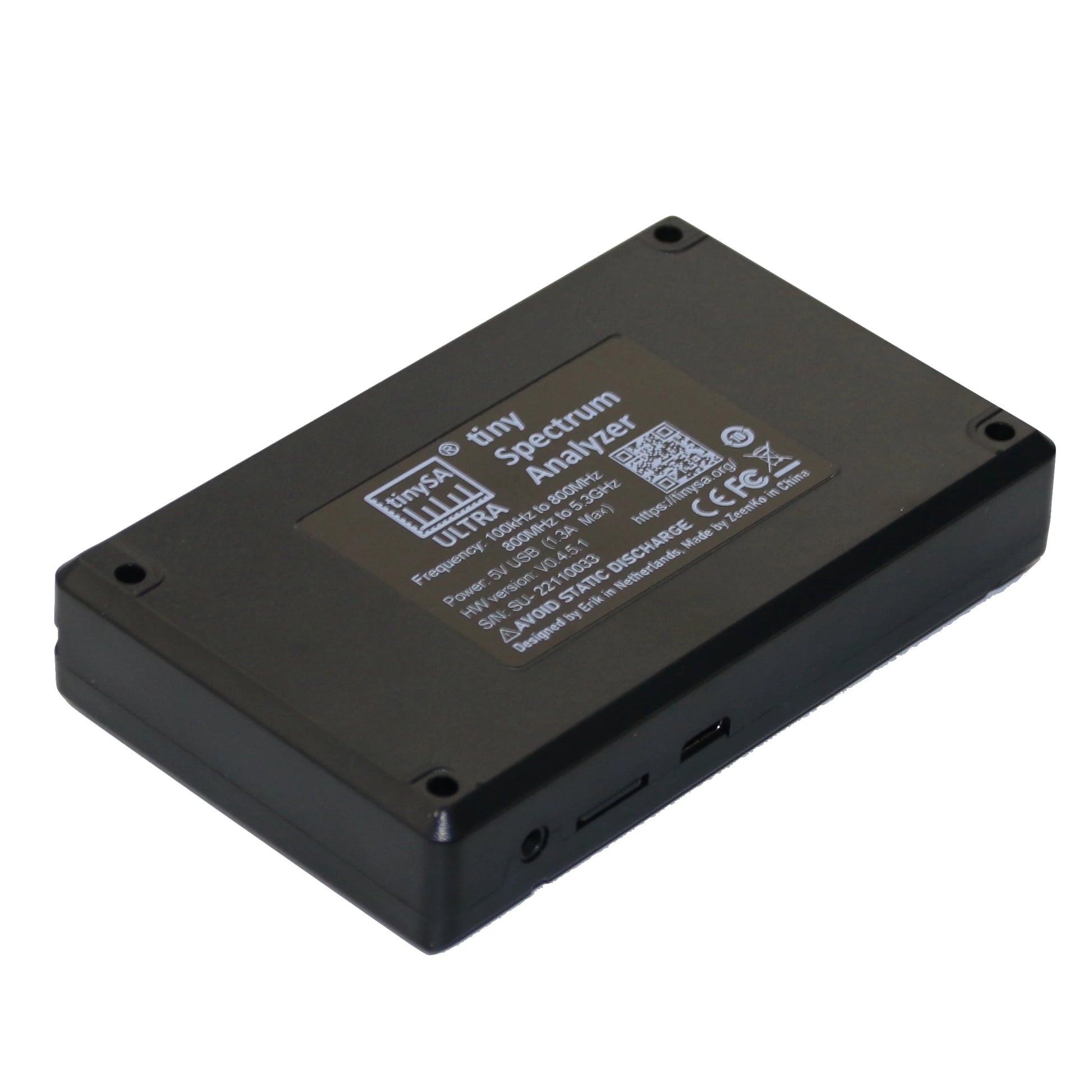

Host (with 3000mAh battery) x 1

USB Type-C data cable x1

30cm ALSR100 SMA cables x2

SMA-SMA barrel connector x1

Antenna with SMA connector x1

Lanyard and touch plectrum x1

32GB MicroSD card(plugged in the host) x1
